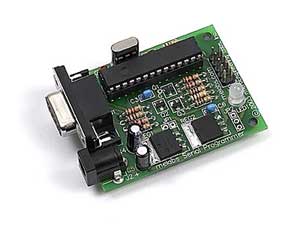

melabs Serial Programmer/adaptor

From £99.95
Buy it Now

melabs' latest PIC® Programmer uses a serial port to interface to your computer. This makes it compatible with computers that don't have parallel ports. It also allows the use of a USB-to-Serial adapter for those computers that only have USB ports. Includes: 8-40 Pin Zif Adaptor, not shown.
