YesQuote:
Originally Posted by richard
VSSQuote:
Originally Posted by richard
Printable View
YesQuote:
Originally Posted by richard
VSSQuote:
Originally Posted by richard
i would start with a 100R resister between each cathode and vss , if the backlight is not brite enough
drop the R incrementally .
you should have specs on max current for the backlight, the actual R used should limit to that value or less at 100% pwm modulation at 5v. imo
Roger, Richard.Quote:
Originally Posted by richard

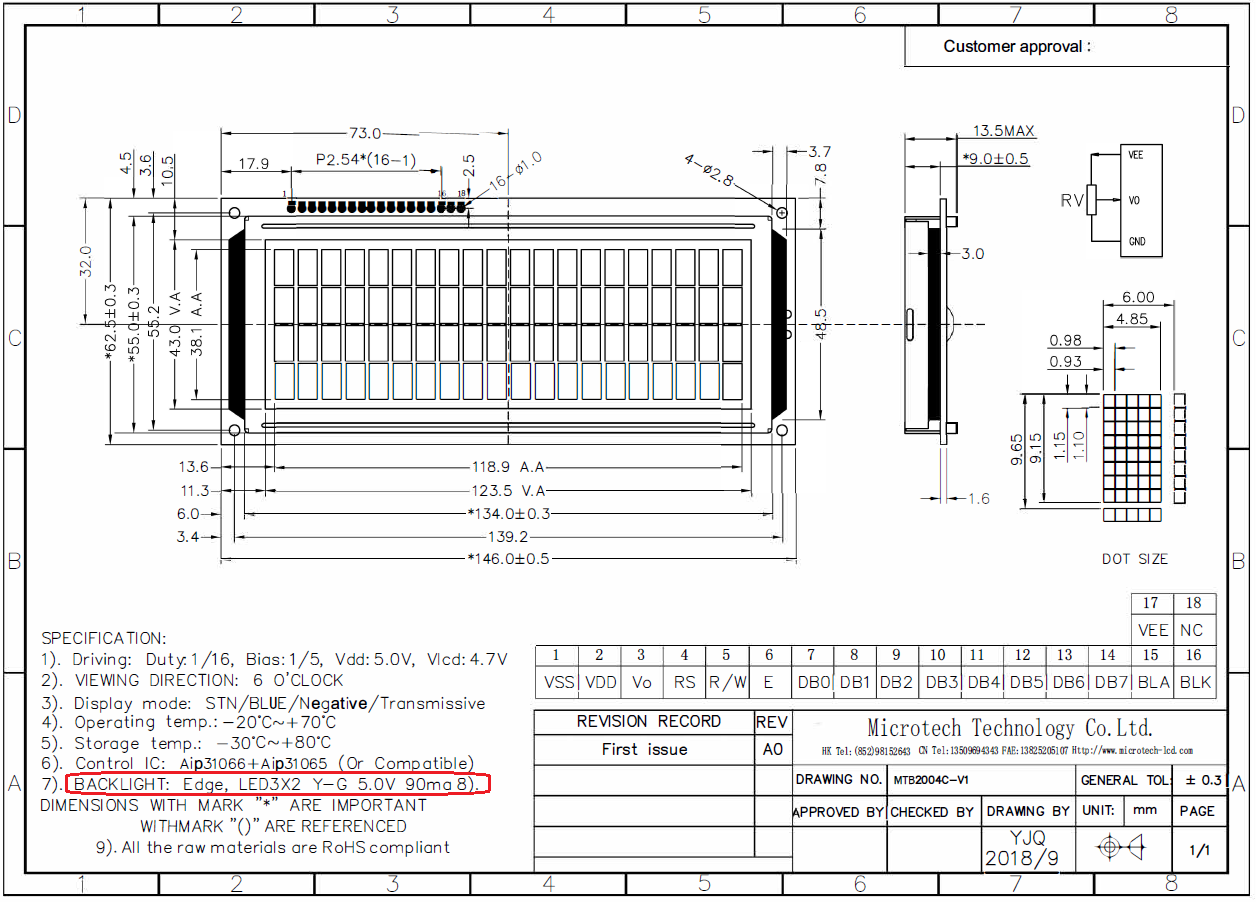

Specs say 90mA. Gonna have to test to see if that's into the "overbright" range with pixels bleeding through.
I remember setting this "by eye" at an intensity that was "aesthetically pleasing". I was also trying to save on AMPS too since I was initially thinking of running off USB power.
Attachment 9828
The 2N2907 is a PNP transistor while IRF530P is a N-Channel FET. So the circuit should be different.
In the case of 2N2907 you source current to the LCD but with IRF you should sink current to the ground.
And of course the polarity of the control signal should be inverted for the IRF. Hope you are aware of that.
As for the noise, your circuit does not have any decoupling capacitors very close to your switching transistor (either 2N or IRF) and to the ground. Put a 100nF and a 10uF in parallel and I am sure things will be better.
Also ground loops etc will have massive effect on this. Do not trust breadbording for this. Noise will be much more on such circuits even with capacitors.
Ioannis
IRF5305P is P channel.
https://www.mouser.ca/ProductDetail/...uFut1Niv57Vgi1
I could be wrong but the way I read your instruction sheet I see this..... think the module has the dimmer mechanism internal and is controlled by 0-5 volt on the Vo pin
-
-

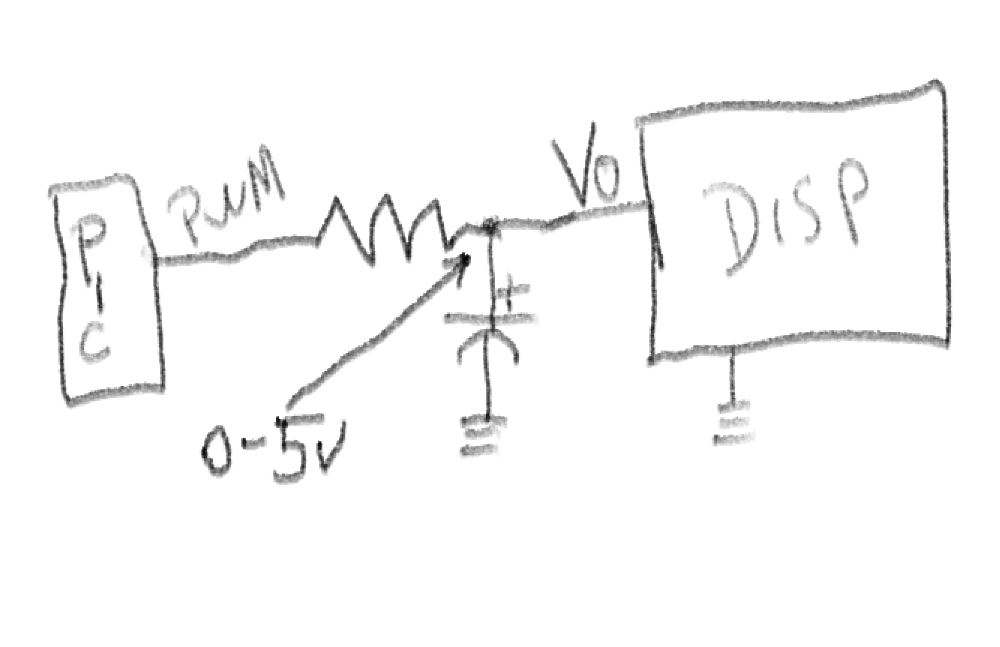

Attachment 9829
Quote:
Originally Posted by amgen
Yeah, as I corrected myself in post #38,
https://www.picbasic.co.uk/forum/sho...583#post156583
it's the backlight that I'm controlling.
This is white-on-black LCDs. I've set V0 to a "visually acceptable level" (still have to test Richard's suggestion), and I control the brightness of the LCDs only with the backlight.
https://youtu.be/G87bqw30w-M?si=_7N4VQmrWjQ2aYpJ
Obviously I mistyped the part number. Yes it is a P channel.
From the datasheet the Vth seems to be 4Volts min. Have you tested yet this MosFet?
Please check with an Osciloscope that the MosFet is fully closed at PIC low state, so that there is no voltage drop on S-D pins.
Was there a specific reason that you selected a P channel instead of a N channel control of the PWM signal? Usually the N channel have better characteristics in terms of Rds.
Ioannis
Nope. But I'm using a IRFZ44N n-channel to PWM the LED strip with has similar specs.Quote:
Originally Posted by Ioannis
Good idea. Choosing the proper resistors to drive the MOSFET is still a black art to me. :DQuote:
Originally Posted by Ioannis
Because when I first started testing blue-on-white LCDs, I was PWMing both the Contrast (V0) and Backlight (LedA). I didn't even consider MOSFETs and went straight to transistors since we're not talking about a lot of current. Why I chose PNP transistors back then is a mystery; maybe I saw a schematic on google and copied that.Quote:
Originally Posted by Ioannis
I've since switched to white-on-black LCDs, I don't need to have adjustable Contrast (V0). So controlling the Backlight with a PNP transistor is just "the old way of doing things". But since noise has become an issue, getting a P-channel MOSFET seemed like the logical way to replace the PNP.
But if I had thought about it for 2 seconds, I would have realized I have access to both the Anode and Cathode on the Backlight. Since I already have an IRFZ44N on the circuit, it would cost less at JLCPCB to use another IRFZ44N instead of a second type of component.
So that's the long-winded way of me saying that now I'm going to swap the 2N2907A PNP to a IRFZ44N n-channel.
Funny story, I finally realized the letter at the end of a MOSFET seems to indicate the channel. I don't know if it holds true for all, but it's working for the first two that I researched.
:)
Switching to MosFet from bipolar, as Richard noted, it will introduce MORE noise because they are faster.
So, do add capacitors (100nF plus 10uF) as close as possible to the Mosfet power supply, taking care of ground loops at the same time.
Ioannis
a waste of time until he address' the correct current limiting resistors for each displayQuote:
So, do add capacitors
if its really 90mA per display then a 1000uF might help a little.
The peak current as it stands could be very high depending on led vf , could be amps , who knows
OK, but having a 4.000uF on the 5V rail is too much, isn't it?
Ioannis
You seem to be moving the goal posts. One 1000uF at the pnp tranny emitter since all four back lights are parallel driven from that source
By "if its really 90mA per display then a 1000uF might help a little" seemed to me that you meant 1000uF per display.
In any case though, the 1084 or even the humble 7805, do not have any problem with large capacitance.
I bet a reverse biased diode, across output/input pin, would be needed to protect the regulator, in case the Reg. input is grounded for whatever reason while the outuput cap is still charged.
Ioannis
Quote:
Originally Posted by Ioannis
Yup, I saw that in the datasheet.
Haven't done any of the suggestions for the LCDs yet. I'm doing voltage regulator heat tests for now; looking for the best heatsink setup.

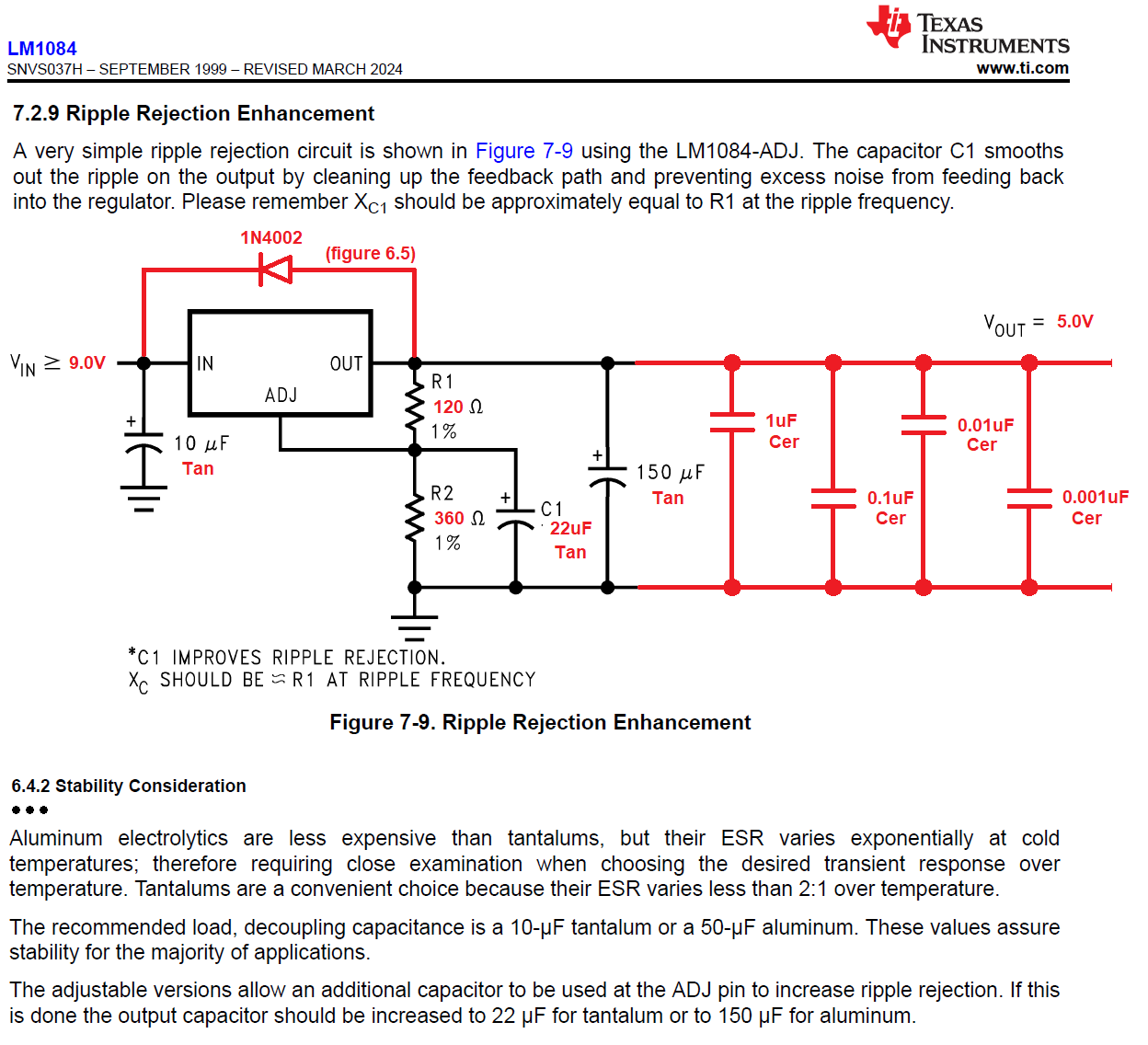

This is how I'm running the LM1084-ADJ now:
Attachment 9831
Black is from the datasheet, red is my adjustments.
if you solve the backlight issue then you will most likely find the wall warts simple smps are not the problem and the regs and heatsinks are unnecessaryQuote:
Haven't done any of the suggestions for the LCDs yet. I'm doing voltage regulator heat tests for now; looking for the best heatsink setup.
The LCD datasheets note that the backlight is 5v at 90mA, isn't it?
So I understand that no current liminting resistor is necessary, as it is included on the LCD board.
Ioannis
you may be correct but that does not explain why the backlights cause so much noise.Quote:
So I understand that no current liminting resistor is necessary, as it is included on the LCD board
it would be a 2 minute job to apply 5v to the backlight and measure the current .[i would used a cc regulated ps just in case]
i have never come across an lcd of that type with anything onboard to limit led current.
Well, there are not many but they exist. I use them all the time to avoid external resistors.Quote:
Originally Posted by richard
If the datasheet marks it as 5V then the LCD includes the limiting resistor. Otherwise they note 4 or 4.2 volts at specific current and specific resistor for 5V supply.
Ioannis
I've put on hold debugging/testing LCDs, ADC and whatnot until I get a handle on power regulation.
Thanks to Ioannis, the datasheet for the TPS voltage regulators led me to TI's WEBBENCH; that tool is just remarkable for the newb like me. I've spent the last 2 days playing with various ICs, checking their availability on JLCPCB and such.
The 2 best features has to be that Alternate and Simulate features; you can chose equivalent parts that are no available at JLCPCB, and see exactly what the output ripple will look like.
I've narrowed down my choice to a TPS56637. I can run 5V @ 5A using 7V to 12V at 11.4mV Vout Peak-Peak; it can do more, but the output ripple degrades as you push it.
This is awesome because it gives me a wider range of power supply adapters. I was initially fixated on running on 9V to limit heat from conventional voltage regulators.

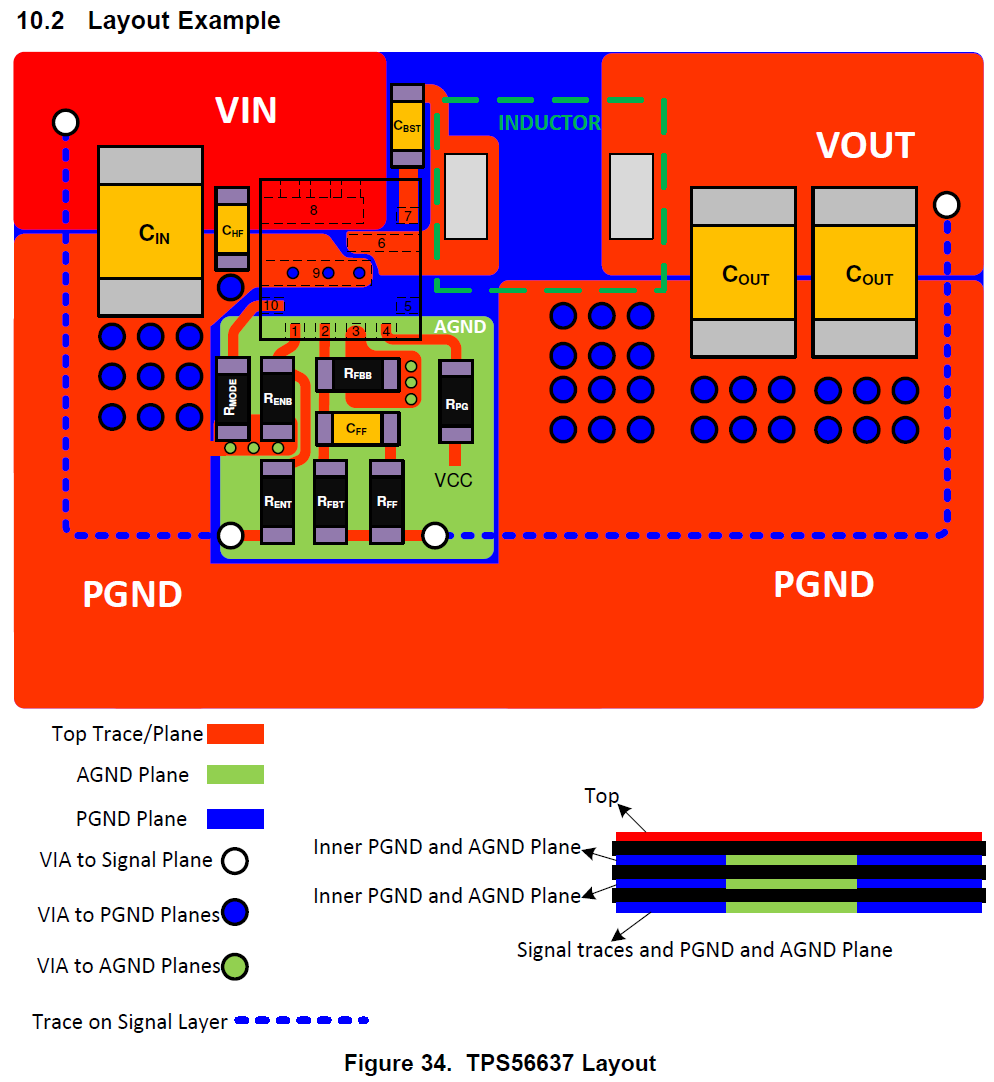

The datasheet even gives a very detailed PCB layout:
Attachment 9838
Thanks mucho Ioannis!
You are most welcome! Thats what friends are for, right?
The selected TPS is difficult to handle by hand. Needs heatsinking on the PCB by special design. I do understand why you selected this one over the TPS565208, that is super easy to handle.
Amazing chips TI has...!
Ioannis
Definitely, that's why I did my best to mimic the "suggested" layout I posted above. I figure there's countless hours or even days put into that design.Quote:
Originally Posted by Ioannis

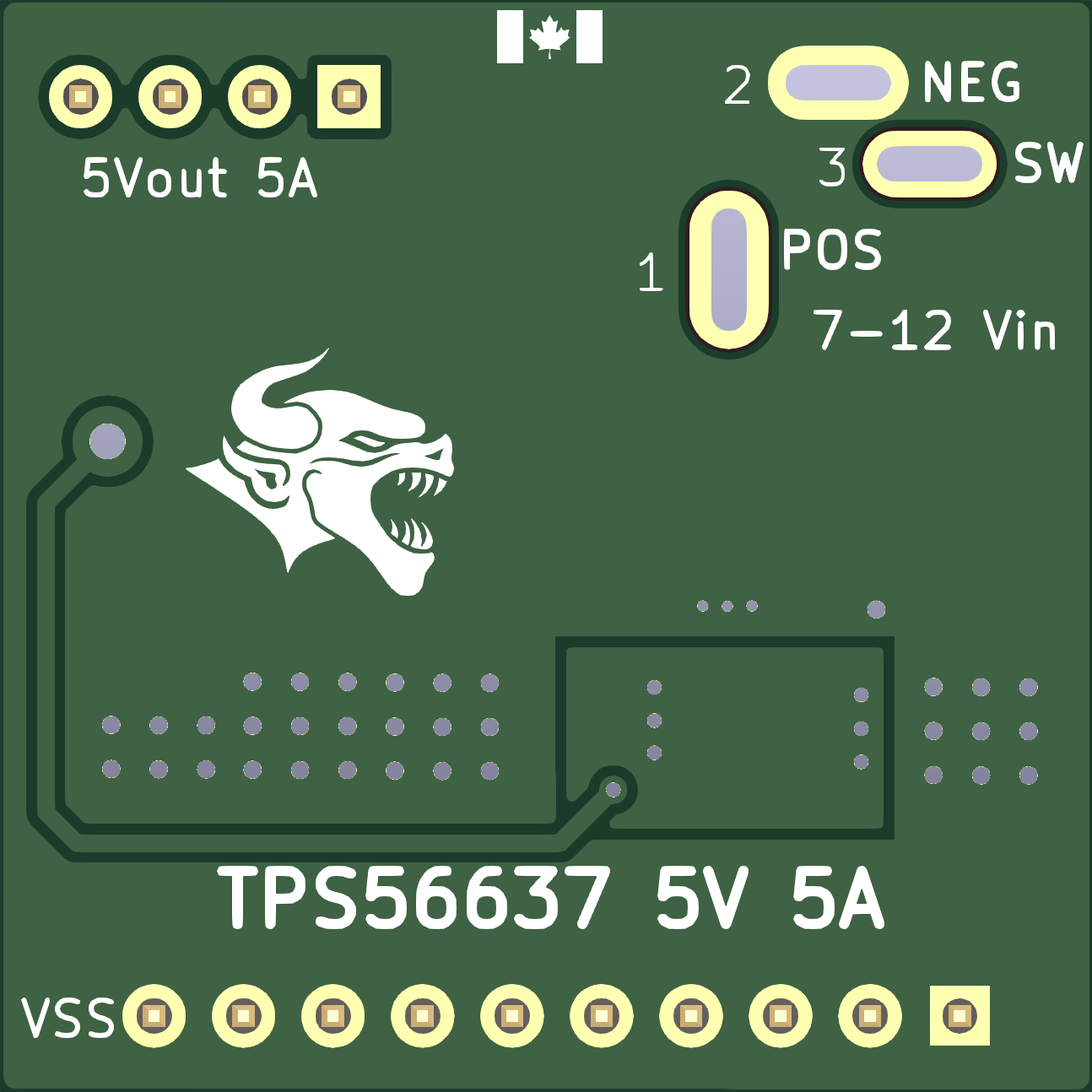

I came up with this 4-layer PCB, top layer:
Attachment 9839
Both inner layers are identical:

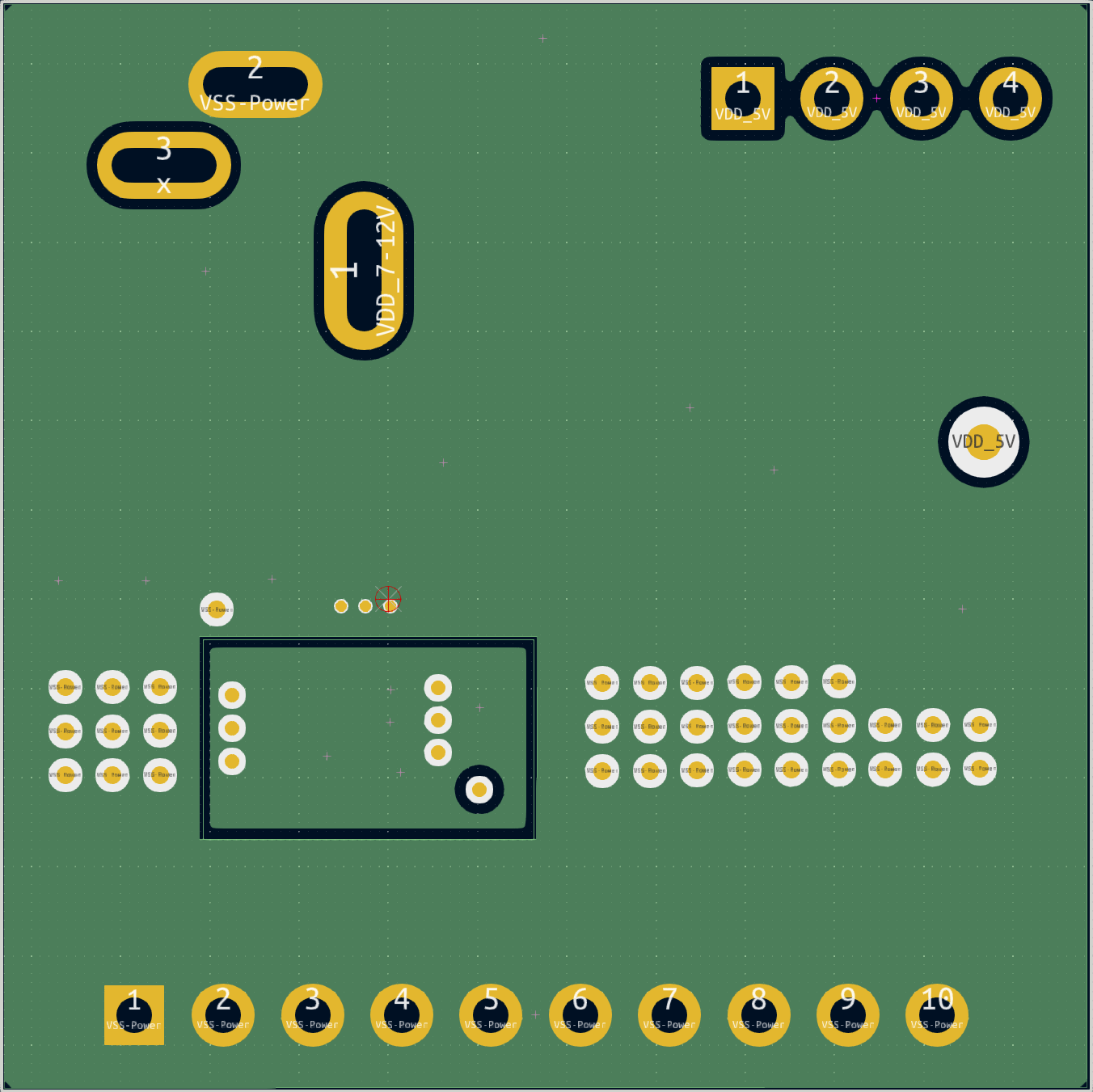

Attachment 9840
And the bottom layer:

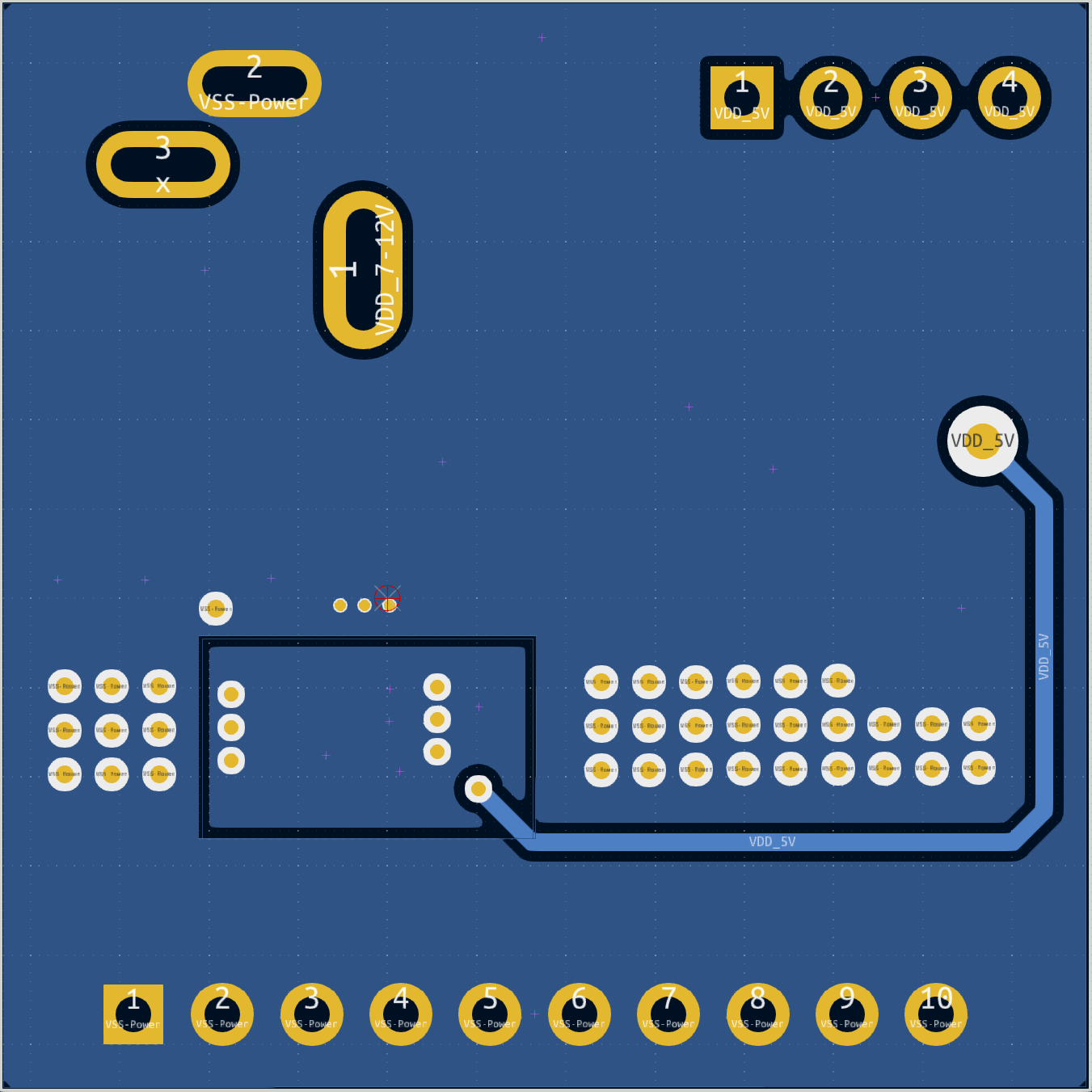

Attachment 9841
I did my best to use the same outlines, but I didn't have identical sized components, so I had to make due.
- Rpg goes to VCC on the datasheet drawing, but goes straight to 5Vout on the generated schematic.
- they have a single Cin cap, but mine is split into 2 using alternate parts.
- my inductor seems to be twice as large as theirs.
Also, the Webench schematic for 7-12Vin to 5A-5Vout didn't have these resistors:
- Rmode
- Renb
- Rent
So I don't have that trace from PGND going up to VIN.
The last thing I have to adjust is the copper layers; I remember reading something about needing 2 ounces top and bottom, and 1 ounce inners (or something like that - got reading to do).

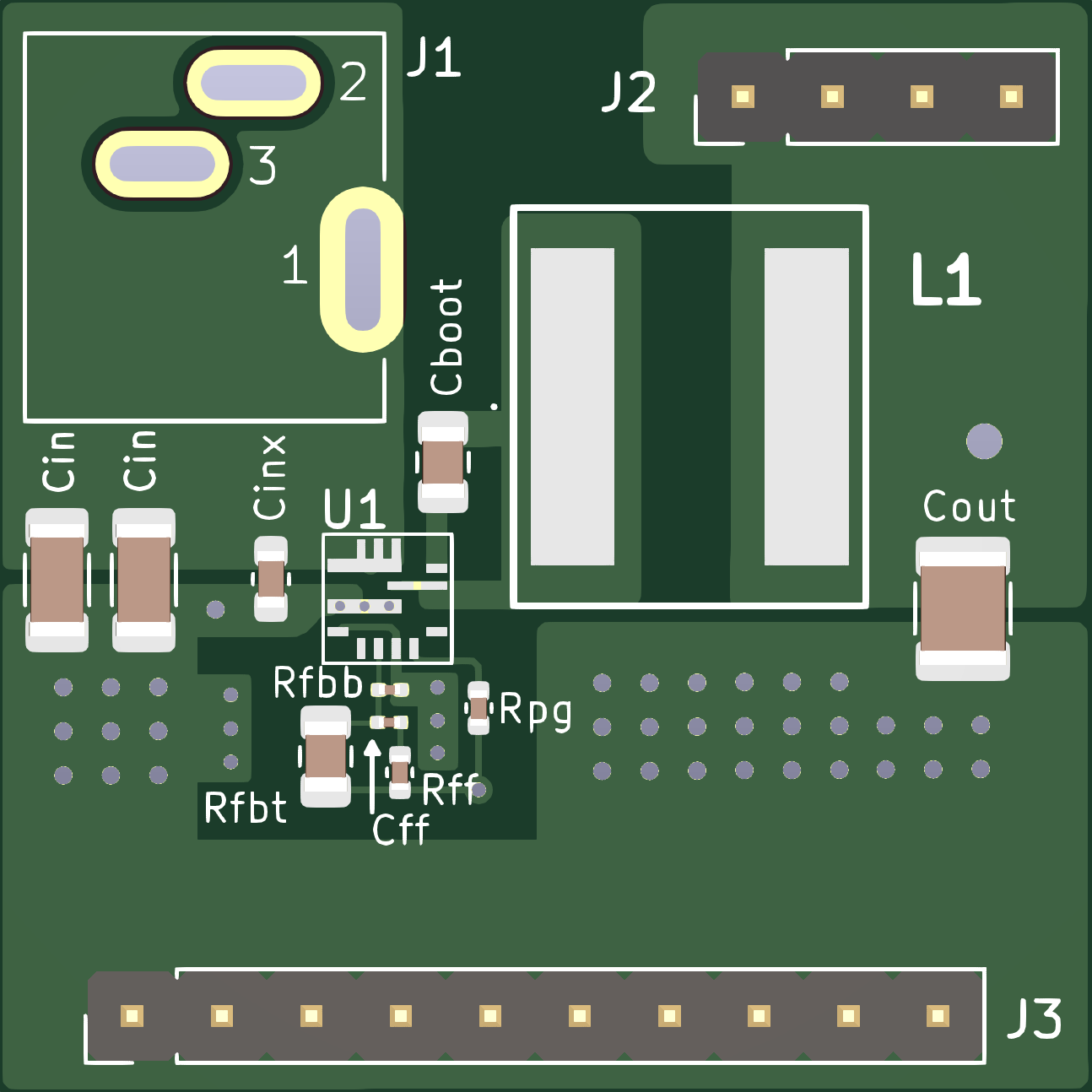

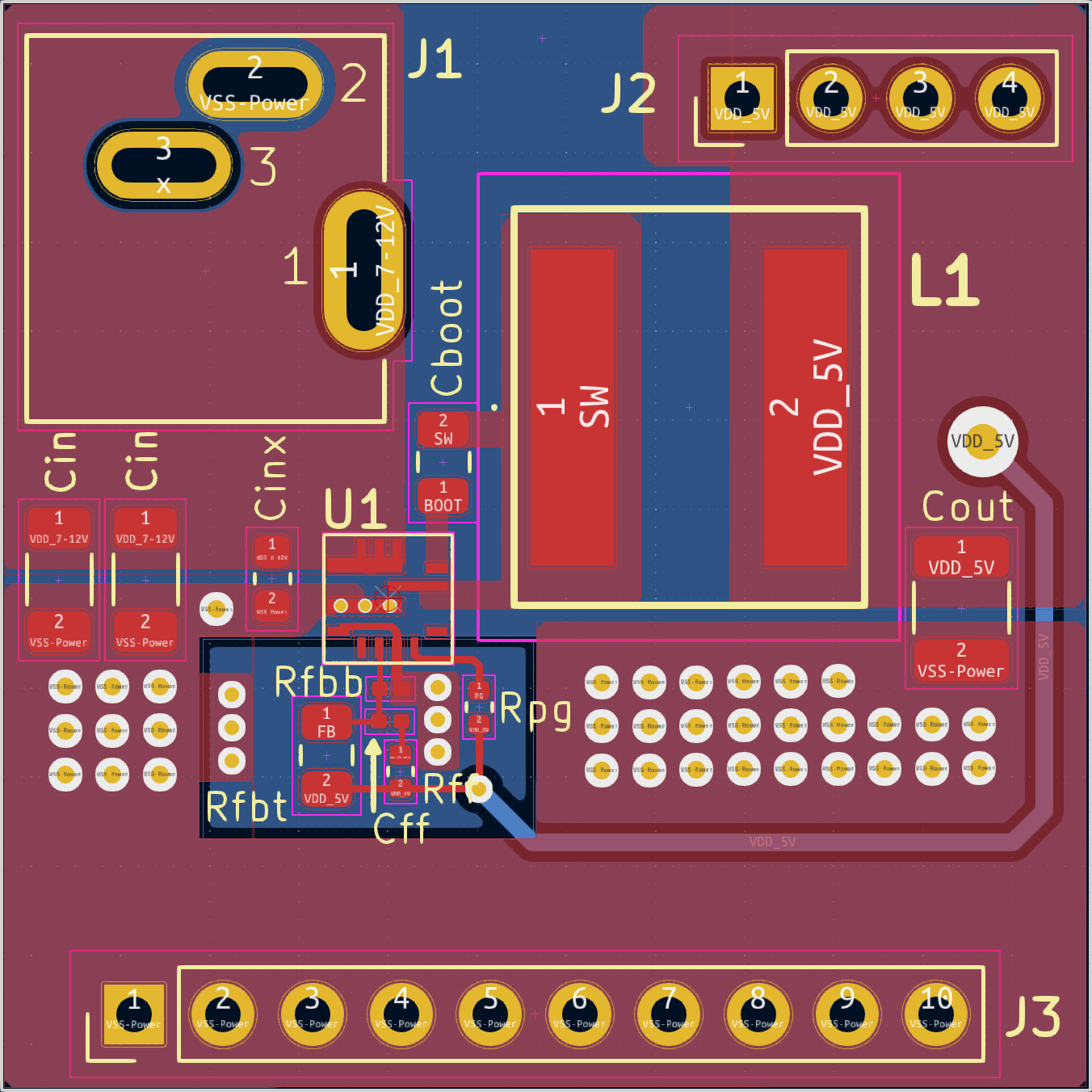

Looks like this in 3D:
Attachment 9842
Attachment 9843

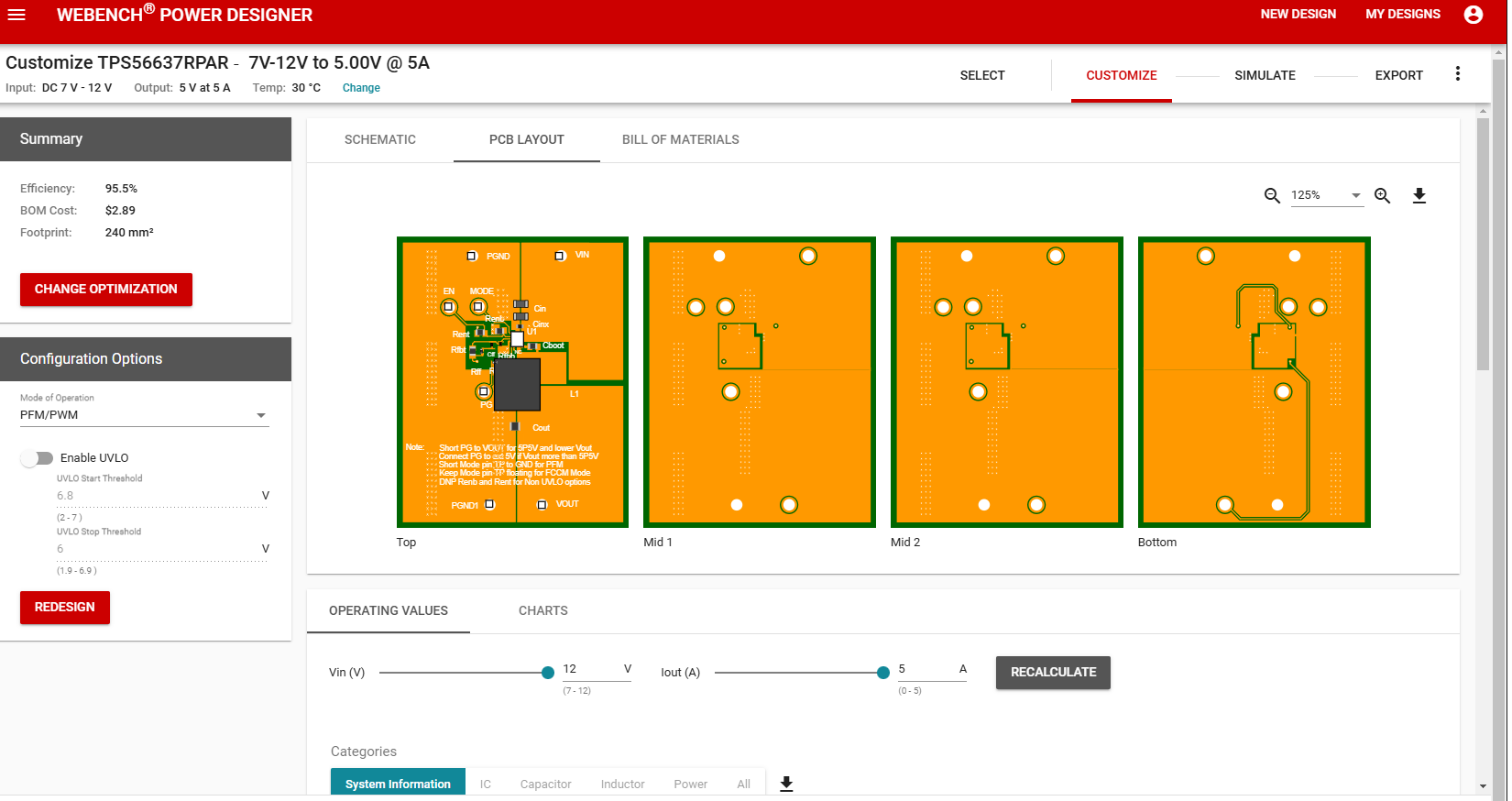

ARGH! Of course it's only now that I notice Webench generated a layout specifically for that schematic.
Attachment 9844
I couldn't find any mention of copper thickness in the datasheet. No mention in the Evaluation Board for the TPS56637, but it does have a much nicer layout with A LOT MORE cooling holes and a wider area.
Attachment 9845
I must have read about the copper thickness in the datasheet for another TPS. I just can't remember which cause I looked at so many.
EDIT: No mention of copper in their Quick Reference Guide:
https://www.ti.com/lit/an/slva958b/slva958b.pdf
Bingo, I must have seen this while researching the LM1084. Digikey PDF for the LM76002 on page 43:
https://www.digikey.ca/en/htmldatash.../1/lm76003rnpt
Quote:
TI recommends using a four-layer board with the copper thickness, for the four layers, starting from the top one, 2 oz / 1 oz / 1 oz / 2 oz.

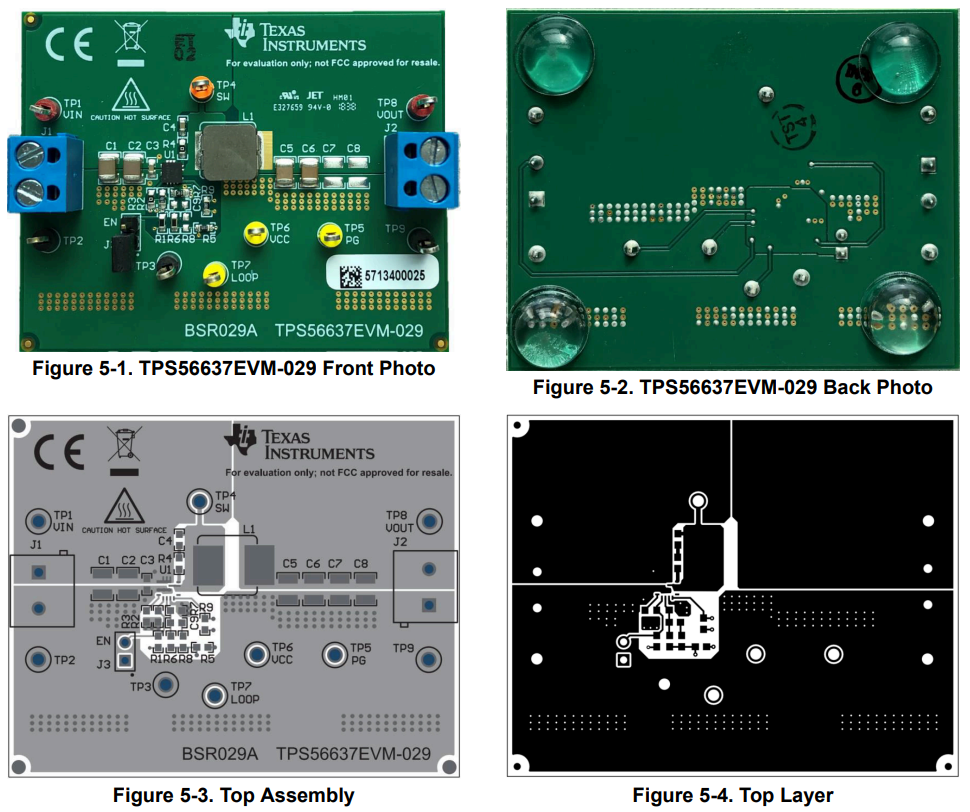

TI's Eval board for the TPS56637 is 51mm x 64mm. I figure it would be wise for me to use the same dimensions until I have an actual board to check under the infra-red camera.
Increased the amount of cooling VIAs like on the Eval board.
Used a DIP header for the leads for a cleaner look once on the prototype.
Increased thicknesses to 2-1-1-2 ounces and tweaked the trace width/space according to JLCPCB minimum requirements for a 2oz board.

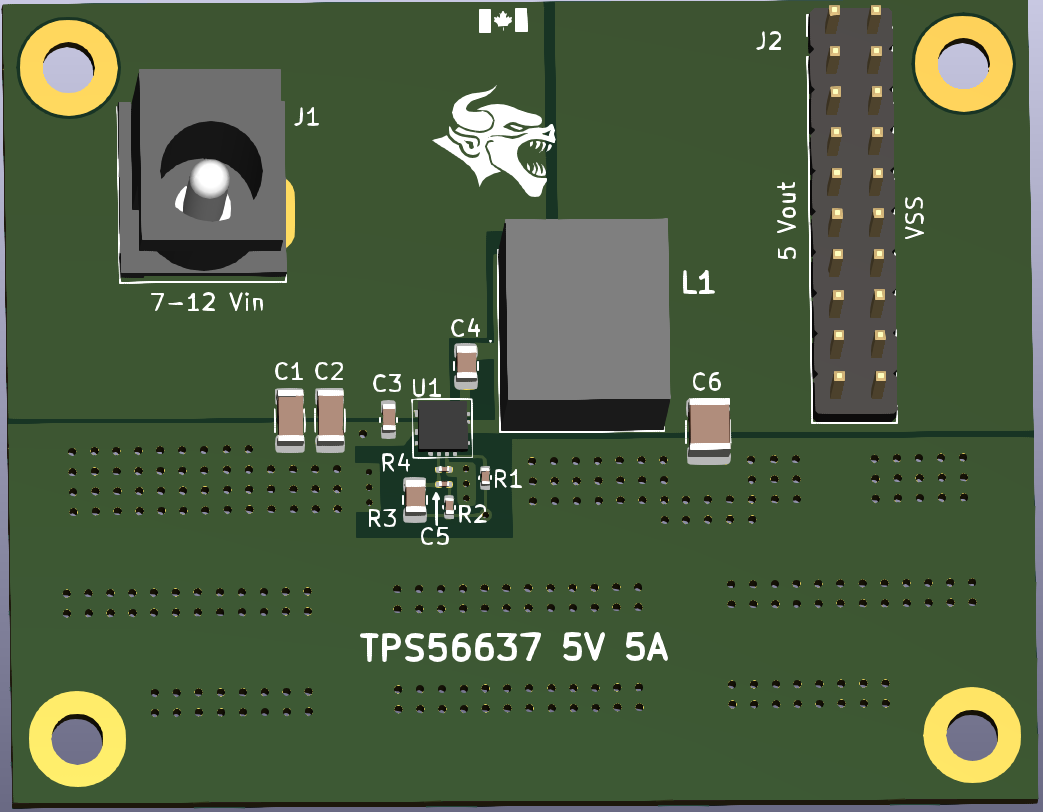

Attachment 9846
I still have to figure out how I can make my VIAs have large copper rings like the Eval board. I probably have to replace them with actual holes (like I have on the 4 corners - nice visible copper ring).
Had to make the hole a Part, not included in Schematic, BOM or To Be Populated.
Discovered the Create From Selection / Create Array feature; real time saver to make grids of parts.

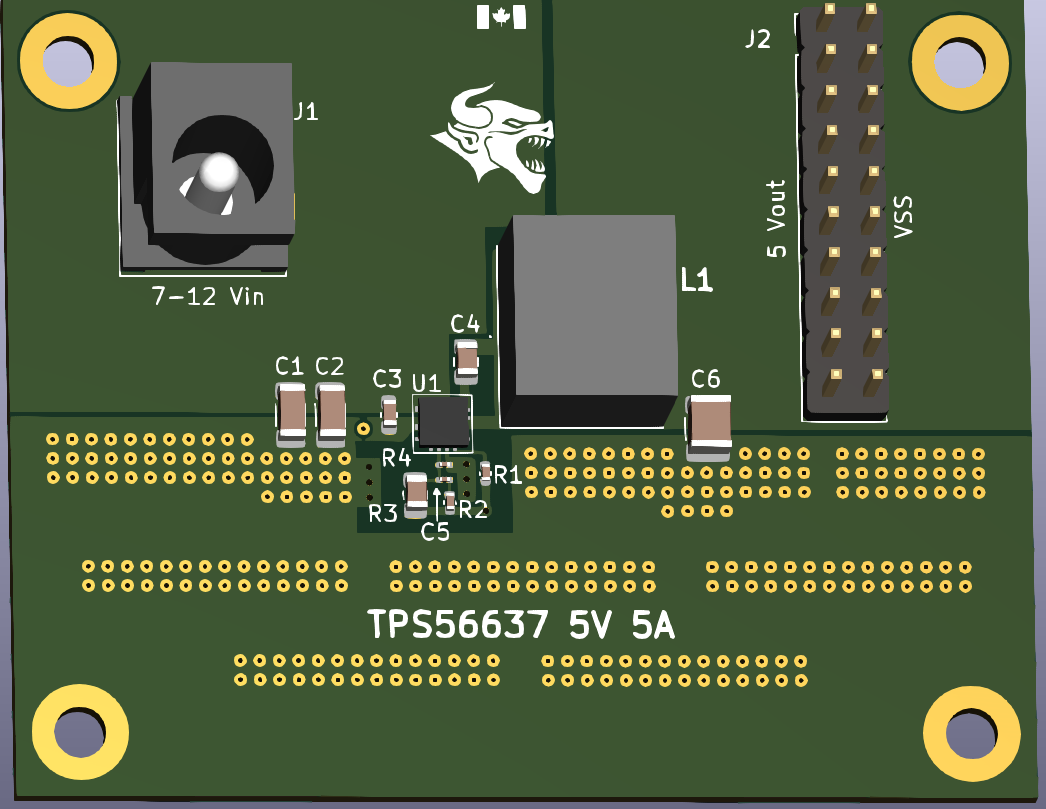

Attachment 9847
Starting to look 1/2 decent. :)
Wow! You did a lot of work!
I am pretty sure that the extra layers TI suggest are for less noise ad better heat dissipation. Have you checked how much extra cost is added by JLCPCB?
In general if you want/need to make the board smaller, you can move all componets to the left, connector closer to the inductor and the right board edge also moved to the left. I don't see why this pcb needs to be that large. Saves cost also I guess.
I'd add an extra output capacitor for less noise and better operation without much cost. Parallel capacitors make for lower ESR also.
Nice design. You become an KiCad expert!
Ioannis
EDIT:
At first I was tempted to make 2 prototypes; 2 layers and 4 layers; just to see if the extra cost is worth it. But the more I think about it, the more I'm leaning for the 4-layer design.
Two of the main objectives with this circuit is to reduce heat and stabilize the voltage (ripples). If the pros design their Eval board to that size with 4 layers, I can't really see why I should consider cutting corners.
But boy am I tempted. :D
Not yet, I wanted to get as close to a "finalized design" before using JLCPCB's quote generator.Quote:
Originally Posted by Ioannis
I didn't know that about the lower ESR.Quote:
Originally Posted by Ioannis
EDIT the CAPS section
I just noticed the datasheet has a range of output capacitance at 5V from 25 to 100uF (table 4). So I just added 10uF and 1uF ceramics alongside the 47uF.
These guys have a nice bla-bla about "why there can be too much output capacitance on SMPS circuits":
https://www.cui.com/blog/understandi...citance-limits
Thanks, but I can't really take credit for the design. I feel like Mr. Bean copying the test answers from the guy next to him. I really did put a lot of effort to do as close to what TI recommends.Quote:
Originally Posted by Ioannis
As for "Kicad expert", that remains to be seen. :D
Well, if I'm going to have all that unused real-estate at the top, might as well do something with it:
- DC jack,
- power switch,
- multiple output headers,
- amp and volt test points.
It's all parts I have on hand, so it's not really costing me more. I don't see how it would disturb the cooling, since TI placed all the ventilation holes on the bottom section. It anything, it's extra cooling fins. :D

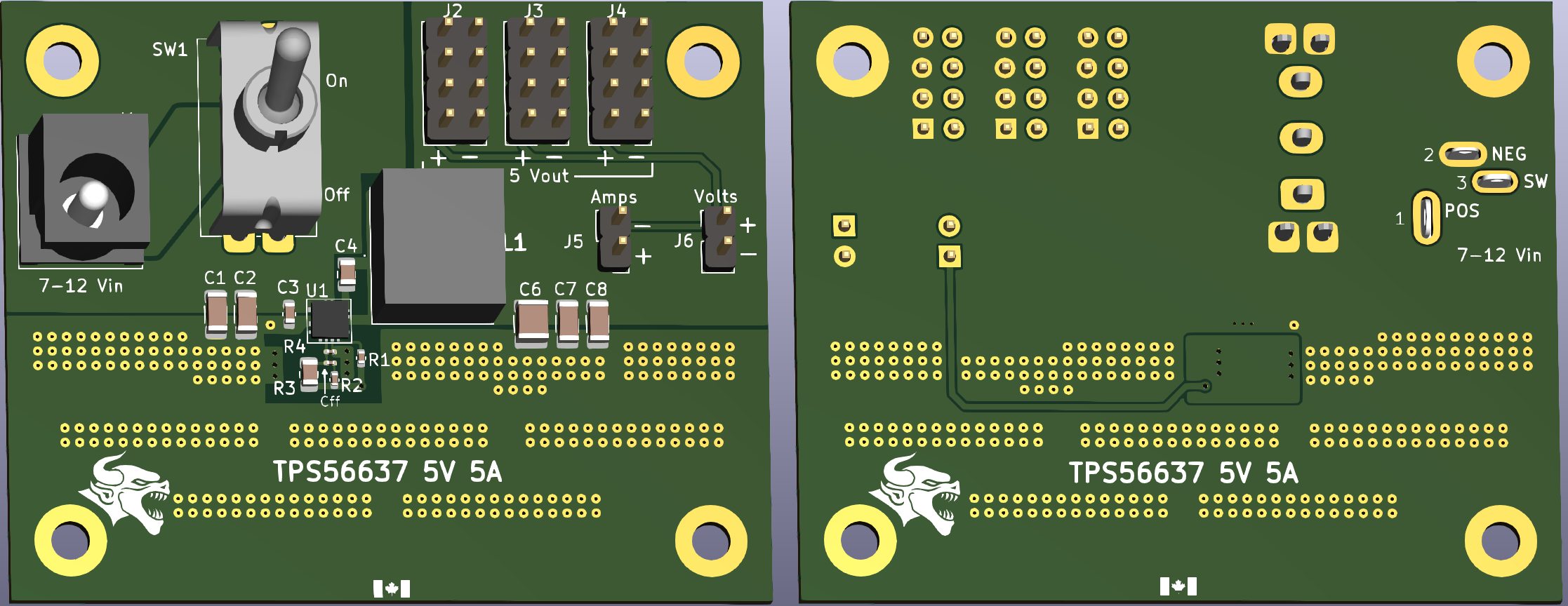

Attachment 9848
Now I just have to remember to slap a jumper on the amp test point for the circuit to work. :)
4 layers with 2-1-1-2 ounces with assembly, the area of my circuit jumps from 63mm x 50mm up to 73mm x 70mm.Quote:
Originally Posted by Ioannis
2oz $32.20
1oz $16.07
Another issue, I can't use Economy with 0201 SMD, i have to use Standard. I had to swap 0201 resistor and capacitor for 0402.
Final bill for 5 PCBs:
- PCB $55.45
- Assembly $83.89
- Total $165.21 (with UPS shipping), $33.04 each PCB.
Plan B:
1oz all layers
PCB $23.15
PCBA $67.92
Ship $ 25.87
Total $116.94, $23.39 each PCB.
Tempted to go with plan B. It's not like I'm going to push 5 amps, most likely 2.5A at best.
Ten dollars is quite enough. I'd select that 1oz too.
Maybe and more caps too.
Ioannis
I ordered 2 models:
- 4 layers, all 1 oz, 5 for $147 including shipping and duties, $29.40 each
- 2 layers, all 1 oz, 5 for $108 including shipping and duties, $21.60 each
I was able to stay on Economic price by avoiding 2oz layers, and remained at recommended area size by TI.
Output caps, 47uF (recommended), 10uF and 1uF.
I was tempted to add 0.1uF and 0.001uF but I thought I might be exaggerating. I can still add them in the final version if you guys think I should; I have room and it's not like they cost anything.
At least I'll have something to see how it ripples using PWM from transistors and mosfets.
I can also push it for heat test by PWMing a whole roll of LED strip.
I can get the price down a bit more by using another inductor:
Current: XAL1010-332MED by Coilcraft, $4.4191 x 5 = $22.10
Alternative: SRP1265A-3R3M by Bourns, $1.5387 x 5 = $7.70
That's a difference of $14.40 ($2.88/unit)
I didn't use the Bourns cause I'd have to order a minimum of 10 from Mouser, and that takes 8-15 lead days, and I wanted my PCB for testing yesterday.
There was 73 inductors in stock from Coilcraft, but that's already down to 38 (I only used 10 in my 2 orders).
Ioannis, have you had any experience ordering from Element or Onlinecomponents?
Once I get my order and done some testing, I'll be in a better position to know what configuration of layers I'm going to need.
I'm always getting emails from PCB assembly suppliers from alibaba, so I'll to make a RFQ for that "winning" configuration.
Just to see if I can get anything better than JLCPCB.
That'll also give me a chance to find a good competitor for my PCBs in the future. But I gotta admit, JLCPCB's online system is pretty slick once you get used to it.
No. My country adds a lot of import taxes so I select suppliers within European Union or Mouser that ships tax free.Quote:
Originally Posted by Demon
May main suppliers are Mouser, TME, SOSelectronics and local resellers for larger quantities.
Regarding the inductors, I think either Coilcraft or Burns (or other reputable brands) will make no difference, as long as you select one that has the specs.
At testing time you will see if adding more caps on output of the power supply makes any significant difference. Can't tell right now.
For mass production of assembled pcb JLCPCB may be more expensive. I usually do this for no more than 20-30 pcs, depending on the component count too. Greater production is cheaper for me if I do it locally and just order only the pcb's from JLCPCB.
Ioannis

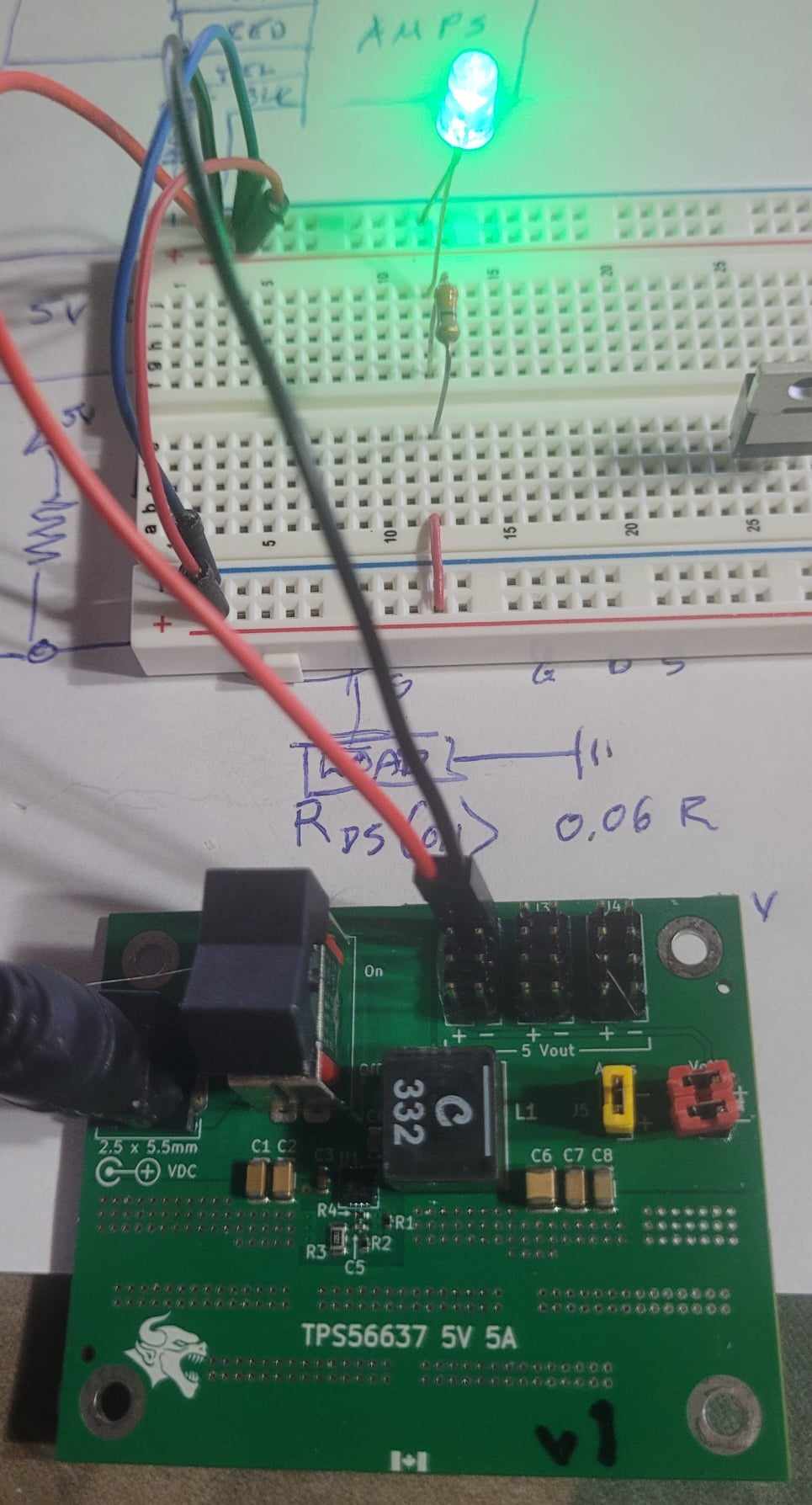

Assembled, checked each header and basic test on v1; 2 layer, 1-1oz.
Attachment 9864

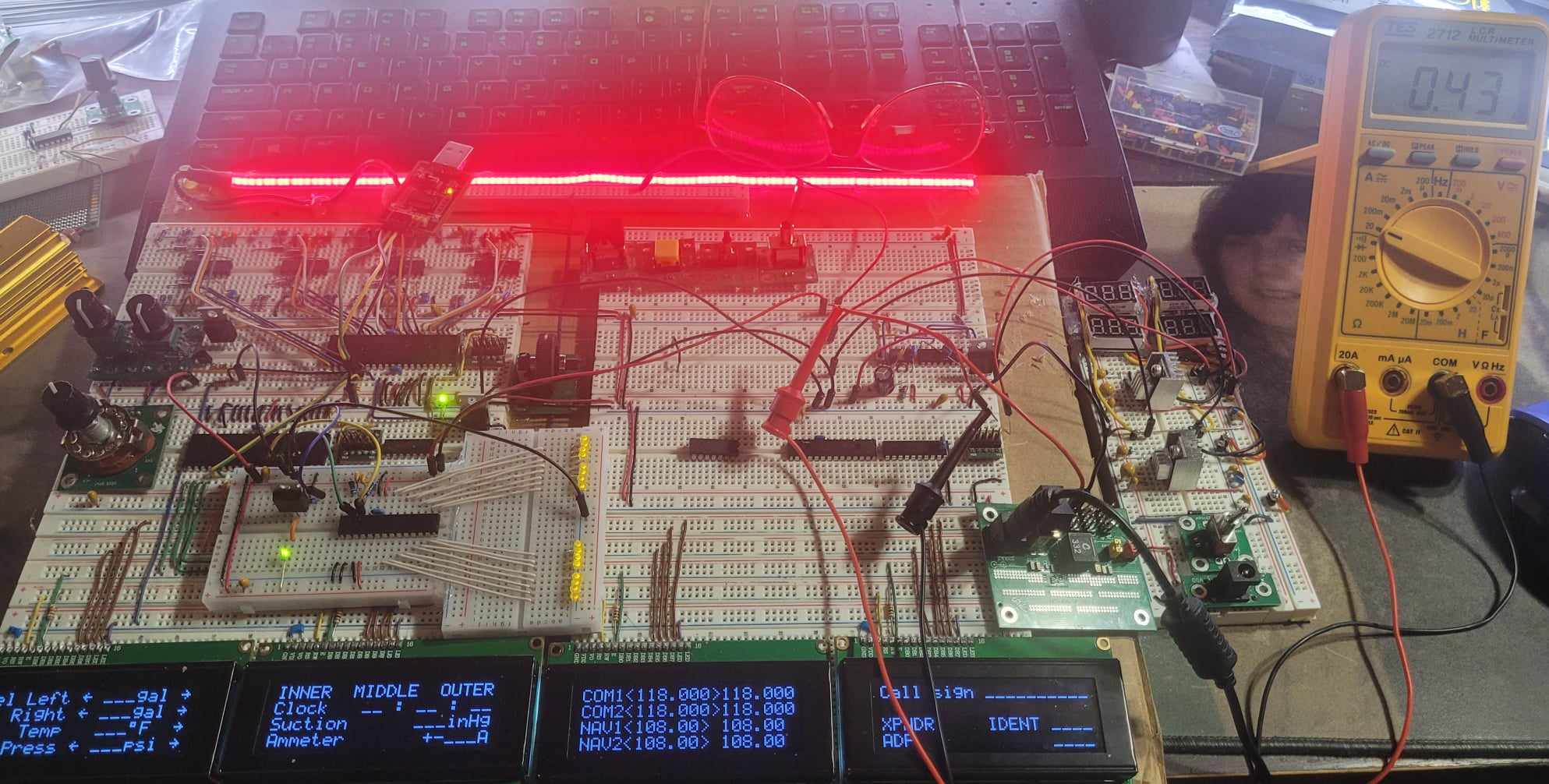

Now I need to finish my load tester using this puppy.
Attachment 9865

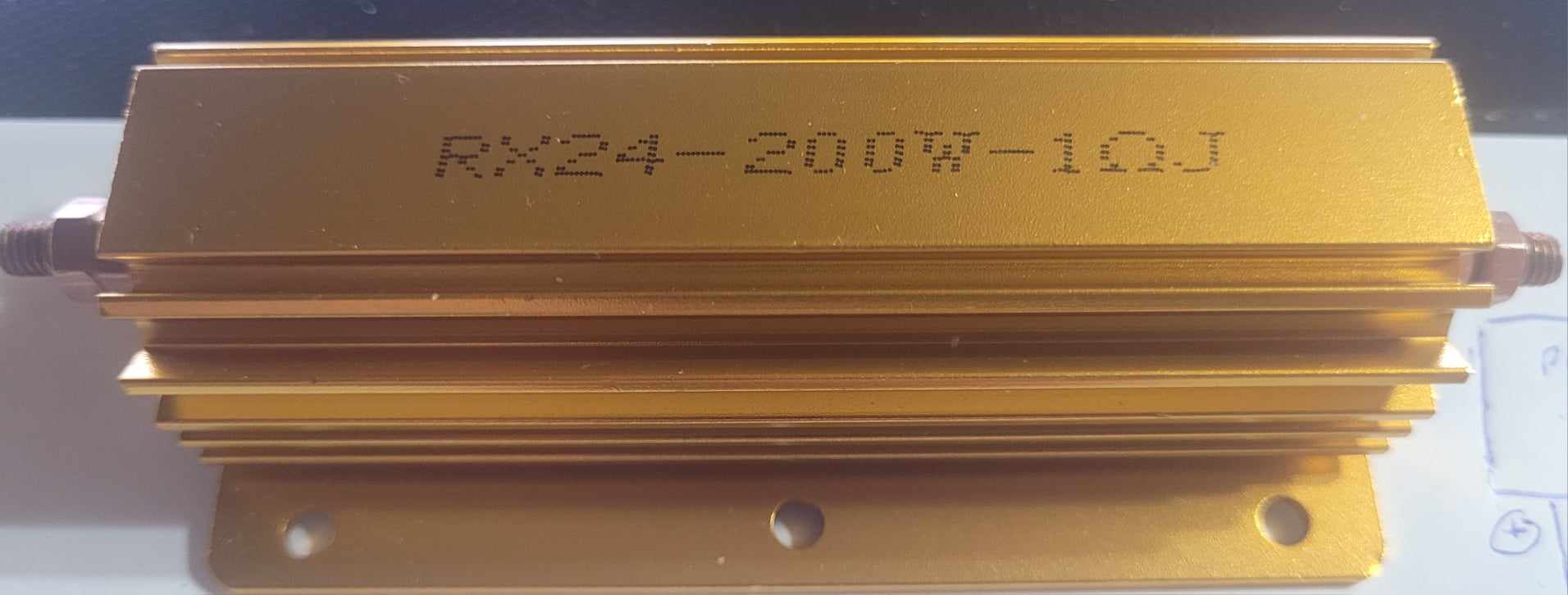

The plan is to PWM the power resistor while monitoring current, and using E02 thermal camera to watch heat spots on PCB.
Still undecided if using N or P channel logic-level MOSFET. I have yet to find a good tutorial to determine the base resistor.
Tested on prototype board; 430mA.
Attachment 9866
Top side, TPS56637 step-down IC is the hottest at 25C, followed by inductor and switch bracket. I just touched power jack at far left, so that's not actual temp.
Attachment 9867
Bottom side, center is at 23C, the max spots are my finger (can see through top left mounting hole too) and LED strip in background.
Attachment 9868
That's insane compared to 7805 or LM1084. Humungous difference in efficiency and heat (never expected it to be so much difference).
I can touch this with my fingers.
The LM1084 was maxxing out near 124C, and that was only at 300mA with heatsinks on front and back.
Attachment 9869
I'm both flabber and gasted. :D
