Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Attachment 8321

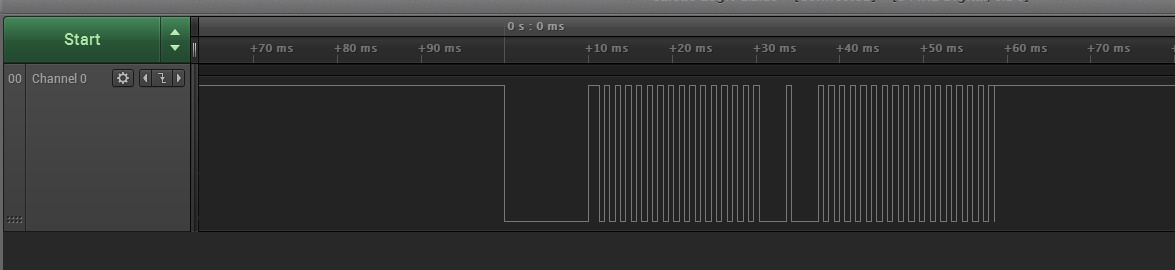

as close as I can get . it has a glitch after the last bit sent
Code:
'****************************************************************
'* Name : MODULATOR.BAS *
'* Author : [select VIEW...EDITOR OPTIONS] *
'* Notice : Copyright (c) 2016 [select VIEW...EDITOR OPTIONS] *
'* : All Rights Reserved *
'* Date : 5/29/2016 *
'* Version : 1.0 *
'* Notes : *
'* : 16F1825 *
'****************************************************************
#CONFIG
__config _CONFIG1, _FOSC_INTOSC & _CP_OFF & _WDTE_ON & _PWRTE_ON & _MCLRE_ON & _CLKOUTEN_OFF
__config _CONFIG2, _PLLEN_OFF & _LVP_OFF
#ENDCONFIG
OSCCON=$70
DEFINE OSC 8
' PIC 16F1825
TRISA = %011111 '
trisc = %001111 ;
ANSELA=0
ANSELC=0
MDSRC= %00000000
MDCARH =%01000100
MDCARL =%00000000
X VAR byte
darta VAR byte[4]
TIMER1 VAR WORD EXT
clear
modout var latc.4
darta.0[14]=1
darta.0[15]=1
t2con=6
pr2=158
CCPR1L =318>>2
ccp1con=12
MDCON.0 = 0
modout =1
Main_Loop:
lata.5=1 ; cro trigger
while !pir1.1 :wend
modout=0
pauseus 9900
modout =1
pir1.1=0
while !pir1.1 :wend
pir1.1=0
while !pir1.1 :wend
MDCON= %11000001
pir1.1=0
while !pir1.1 :wend
for x = 0 to 31
if darta.0[x] then
MDCON.0 = 0
pir1.1=0
while !pir1.1 :wend
pir1.1=0
while !pir1.1 :wend
MDCON.0 = 1
pir1.1=0
while !pir1.1 :wend
else
MDCON.0 = 1
pir1.1=0
while !pir1.1 :wend
endif
next
modout = 1
MDCON = 0
lata.5=0
PAUSE 200
goto Main_Loop
end
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Thanks!
I guess, your code can run on 16F1829 ?
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Quote:
I guess, your code can run on 16F1829 ?
should do they are the same except for a few extra pins
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
well the dsp module is interesting but for this project perhaps its easier to do it the old way
Code:
'****************************************************************
'* Name : MODULATOR.BAS *
'* Author : [select VIEW...EDITOR OPTIONS] *
'* Notice : Copyright (c) 2016 [select VIEW...EDITOR OPTIONS] *
'* : All Rights Reserved *
'* Date : 5/29/2016 *
'* Version : 1.0 *
'* Notes : *
'* : 16F1825 *
'****************************************************************
#CONFIG
__config _CONFIG1, _FOSC_INTOSC & _CP_OFF & _WDTE_ON & _PWRTE_ON & _MCLRE_ON & _CLKOUTEN_OFF
__config _CONFIG2, _PLLEN_ON & _LVP_OFF
#ENDCONFIG
OSCCON=$70
DEFINE OSC 32
' PIC 16F1825
TRISA = %001111 ' Make some pins Input
trisc = %001111 ;Make some pins Input
ANSELA=0
ANSELC=0
X VAR byte
darta VAR byte[4]
clear
modout var latc.4
darta.0[14]=1
darta.0[15]=1
modout =1
lata.5=0 ;cro triger
Main_Loop:
lata.5=1
modout=0
pauseus 9900
modout =1
pauseus 1880
for x = 0 to 30
modout =0
if darta.0[x] then
pauseus 2000
else
pauseus 780
endif
modout =1
pauseus 635
next
modout =1
lata.5=0
PAUSE 200
goto Main_Loop
end
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Did you try code I posted a month ago, or looked at it to determine it won’t work?
It’s used in an IR remote receiver for a game controller (so has to be reliable)
to interpret exactly the same pulse coded signal, with the timings being the only difference.
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
No, I haven't used it, because protocol is different from IR protocol.
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Just tried Henrik's code, it gives error on:
LSB VAR BitArray.LowWord
"bad variable size modifier .lowword"
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Corrected the errors, to level of my knowledge. Code compiles now, but it does not do anything. Here it is:
Code:
;----[16F1829 Hardware Configuration]-------------------------------------------
#IF __PROCESSOR__ = "16LF1829"
#DEFINE MCU_FOUND 1
#CONFIG
cfg1 = _FOSC_INTOSC ; INTOSC oscillator: I/O function on CLKIN pin
cfg1&= _WDTE_OFF ; WDT disabled
cfg1&= _PWRTE_OFF ; PWRT disabled
cfg1&= _MCLRE_OFF ; MCLR/VPP pin function is digital input
cfg1&= _CP_OFF ; Program memory code protection is disabled
cfg1&= _CPD_OFF ; Data memory code protection is disabled
cfg1&= _BOREN_OFF ; Brown-out Reset disabled
cfg1&= _CLKOUTEN_OFF ; CLKOUT function is disabled. I/O or oscillator function on the CLKOUT pin
cfg1&= _IESO_ON ; Internal/External Switchover mode is enabled
cfg1&= _FCMEN_OFF ; Fail-Safe Clock Monitor is disabled
__CONFIG _CONFIG1, cfg1
cfg2 = _WRT_OFF ; Write protection off
cfg2&= _PLLEN_OFF ; 4x PLL disabled
cfg2&= _STVREN_ON ; Stack Overflow or Underflow will cause a Reset
cfg2&= _BORV_19 ; Brown-out Reset Voltage (Vbor), low trip point selected.
cfg2&= _LVP_OFF ; High-voltage on MCLR/VPP must be used for programming
__CONFIG _CONFIG2, cfg2
#ENDCONFIG
#ENDIF
;----[Verify Configs have been specified for Selected Processor]----------------
; Note: Only include this routine once, after all #CONFIG blocks
#IFNDEF MCU_FOUND
#ERROR "No CONFIGs found for [" + __PROCESSOR__ +"]"
#ENDIF
DEFINE OSC 16
include "modedefs.bas"
ANSELA = %00000000 ' Set PORTA pins to digital I/O
ANSELB = %00000000 ' Set PORTB pins to digital I/O
ANSELC = %00000000 ' Set PORTC pins to digital I/O
WPUB = %00000000 'DISABLE WEAK PULL UP
TRISB=%11110000 'SET PORTB TO OUTPUT
TRISA=%00000000 'SET PORTA TO OUTPUT
TRISC=%00000000 'SET PORTC TO OUTPUT
OSCCON = %01111111 'SET INTOSC TO 16MHZ
' Set LCD Data port
DEFINE LCD_DREG PORTC
' Set starting Data bit (0 or 4) if 4-bit bus
DEFINE LCD_DBIT 4
' Set LCD Register Select port
DEFINE LCD_RSREG PORTA
' Set LCD Register Select bit
DEFINE LCD_RSBIT 5
' Set LCD Enable port
DEFINE LCD_EREG PORTA
' Set LCD Enable bit
DEFINE LCD_EBIT 4
' Set LCD bus size (4 or 8 bits)
DEFINE LCD_BITS 4
' Set number of lines on LCD
DEFINE LCD_LINES 2
' Set command delay time in us
DEFINE LCD_COMMANDUS 1500
' Set data delay time in us
DEFINE LCD_DATAUS 44
LCDOUT $FE, $C0, "TEST"
HighTime VAR WORD
LowTime VAR WORD
BitArray VAR WORD [2]
LSB VAR BitArray.lowbyte
MSB VAR BitArray.Highbyte
Signal var PORTB.6
i var word
WaitForStartBit:
GOSUB MeasureLow
IF (LowTime < 9500) OR (LowTime > 10500) THEN WaitForStartBit ' 9.5-10.5ms qualifies
GOSUB MeasureHigh
IF (HighTime < 1500) OR (HighTime > 2500) THEN WaitForStartBit ' 1.5-2.5ms qualifies
NextLevel:
For i = 0 to 31
GOSUB MeasureLow
IF (LowTime > 400) AND (LowTime < 800) THEN BitArray.0[i] = 1 ' 500-700us qualifies as 1
IF (LowTime > 1700) AND (LowTime < 2320) THEN BitArray.0[i] = 0 ' 1800-2200us qualifies as 0
NEXT
LCDOUT $FE,$01, "HighWord", DEC MSB
LCDOUT $FE,$C0, "LowWord", DEC LSB
Pause 1000
Goto WaitForStartBit
MeasureLow:
LowTime = 0
While Signal = 1 : WEND ' Wait for low level
While Signal = 0 ' Measure low level
LowTime = LowTime + 100 ' Resolution is 100us, change if needed
PauseUS 92 ' Tweak to calibrate, depends on actual loop time
WEND
RETURN
MeasureHigh:
HighTime = 0
While Signal = 0 : WEND ' Wait for low
While Signal = 1 ' Measure high level
HighTime = HighTime + 1 ' Resolution is 100us, change if needed
PauseUS 92 ' Tweal to calibrate, depends on actual loop time
WEND
RETURN
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Modified measurelow subroutine, to show the value of LowTime:
Code:
MeasureLow:
LowTime = 0
While Signal = 1 : WEND ' Wait for low level
While Signal = 0 ' Measure low level
LowTime = LowTime + 100 ' Resolution is 100us, change if needed
PauseUS 92 ' Tweak to calibrate, depends on actual loop time
WEND
LCDOUT $FE, $C0, "T:",DEC lowtime, " "
RETURN
It returns 600.
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
This is quite strange, because I'm using 16F1829, running at 16mhz. DEFINE OSC is correct, I've launched series of pulses with 1ms duration, and checked by scope - all correct.
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Modified HighTime routine too:
Code:
MeasureHigh:
HighTime = 0
While Signal = 0 : WEND ' Wait for low
While Signal = 1 ' Measure high level
HighTime = HighTime + 1 ' Resolution is 100us, change if needed
PauseUS 92 ' Tweal to calibrate, depends on actual loop time
WEND
LCDOUT $FE,$c0, "T2:",DEC hightime, " "
RETURN
it returns 9.
Feels like MCU is operating very slow?
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
what are you expecting to see ?
how many times do you think 100uS will divide into a shade less than 1mS ?
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Where it should returned something like 9000, it returns 600, is not this strange?
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Quote:
I've launched series of pulses with 1ms duration, and checked by scope - all correct
the code is expecting 10 mS pulse
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
I goofed there. Since the BitArray actually consists of two WORDs and you want the least and most significant WORD of that array the declaration should read
Code:
LSB VAR BitArray[0]
MSB VAR BitArray[1]
Quote:
Where it should returned something like 9000, it returns 600, is not this strange?
What should return 9000?
You've changed the MeasureHigh routine so it only adds 1 each time thru a loop that (ideally) takes 100us to execute. A pulse lasting for 10ms will (ideally) cause that loop to execute 100 times, you end up with 100 in (instead of 10000) in HighTime.
/Henrik.
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
I modified henriks code an tested it with my simulation , works fine
Code:
'****************************************************************
'* Name : deMODULATOR.BAS *
'* Author : richard's modified version of henriks *
'* Notice : 2016 *
'* : All Rights Reserved *
'* Date : 10/10/2016 *
'* Version : 1.0 *
'* Notes : decodes missing pulse encoded data stream A.5 *
'* : 16F1825 *
'****************************************************************
#CONFIG
__config _CONFIG1, _FOSC_INTOSC & _CP_OFF & _WDTE_ON & _PWRTE_ON & _MCLRE_ON & _CLKOUTEN_OFF
__config _CONFIG2, _PLLEN_ON & _LVP_OFF
#ENDCONFIG
OSCCON=$70
DEFINE OSC 32
' PIC 16F1825
TRISA = %111110 ' Make somepins Input
trisc = %111100 ;Make some pins Input
ANSELA=0
ANSELC=0
led var latc.0 ;DEBUG
led2 var latc.1 ;DEBUG
demod var porta.5 ;demod in
X VAR byte
darta VAR byte[4]
counter var word
dm_state VAR byte
lata.0=1 ;DEBUG
clear
led=0
DEFINE DEBUG_REG PORTA
DEFINE DEBUG_BIT 0
DEFINE DEBUG_BAUD 9600
DEFINE DEBUG_MODE 0
pause 2000
Debug "Start",13 ,10
DEFINE PULSIN_MAX 9000
Code:
HighTime VAR WORD
LowTime VAR WORD
WaitForStartBit:
GOSUB MeasureLow
IF (LowTime < 9500) OR (LowTime > 11000) THEN WaitForStartBit ' 9.5-10.5ms qualifies
led2=1
GOSUB MeasureHigh
IF (HighTime < 1500) OR (HighTime > 2500) THEN WaitForStartBit ' 1.5-2.5ms qualifies
led2=0
NextLevel:
For x = 0 to 31
GOSUB MeasureLow
IF LowTime < 1000 then
darta .0[x] = 0
else
darta .0[x] = 1
endif
NEXT
led=1
Debug 13 ,10 ,bin8 darta[3],bin8 darta[2],bin8 darta[1],bin8 darta[0] ;DEBUG
Pause 1000
led=0
Goto WaitForStartBit
MeasureLow:
LowTime = 0
While demod = 1 : WEND ' Wait for low level
While demod = 0 ' Measure low level
LowTime = LowTime + 100 ' Resolution is 100us, change if needed
PauseUS 92 ' Tweak to calibrate, depends on actual loop time
WEND
RETURN
MeasureHigh:
HighTime = 0
While demod = 0 : WEND ' Wait for low
While demod = 1 ' Measure high level
HighTime = HighTime + 100 ' Resolution is 100us, change if needed
PauseUS 92 ' Tweal to calibrate, depends on actual loop time
WEND
RETURN
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
for comparison I came up with this , oddly it uses mode code space
Code:
'****************************************************************
'* Name : deMODULATOR.BAS *
'* Author : richard *
'* Notice : Copyright (c) 2016 *
'* : All Rights Reserved *
'* Date : 5/29/2016 *
'* Version : 1.0 *
'* Notes : decodes missing pulse encoded data stream A.5 *
'* : 16F1825 *
'****************************************************************
#CONFIG
__config _CONFIG1, _FOSC_INTOSC & _CP_OFF & _WDTE_ON & _PWRTE_ON & _MCLRE_ON & _CLKOUTEN_OFF
__config _CONFIG2, _PLLEN_ON & _LVP_OFF
#ENDCONFIG
OSCCON=$70
DEFINE OSC 32
' PIC 16F1825
TRISA = %111110 ' Make somepins Input
trisc = %111100 ;Make some pins Input
ANSELA=0
ANSELC=0
led var latc.0 ;DEBUG
led2 var latc.1 ;DEBUG
demod var porta.5 ;demod in
X VAR byte
darta VAR byte[4]
counter var word
dm_state VAR byte
lata.0=1 ;DEBUG
clear
led=0
DEFINE DEBUG_REG PORTA
DEFINE DEBUG_BIT 0
DEFINE DEBUG_BAUD 9600
DEFINE DEBUG_MODE 0
pause 2000
Debug "Start",13 ,10
DEFINE PULSIN_MAX 9000
main:
select case dm_state
case 0
PULSIN demod, 0, counter
if counter > 7800 then
dm_state=1
x=0
endif
case 1
pir1.1=0
tmr2=0
t2con=7
while demod : wend
if pir1.1 | (tmr2 < 220) then
dm_state=0
else
dm_state=2
tmr2=0
endif
case 2
while !demod : wend
t2con=0
if pir1.1 then
dm_state=0
led=1
endif
if tmr2 < 150 then
darta.0[x]=0
else
darta.0[x]=1
endif
tmr2=0
x=x+1
if x >31 then
dm_state=3
else
while demod : wend
t2con=7
endif
case 3
led2=1 ;DEBUG
' Debug 13 ,10 ,hex2 darta[3] ,hex2 darta[2],hex2 darta[1],hex2 darta[0] ;DEBUG
Debug 13 ,10 ,bin8 darta[3],bin8 darta[2],bin8 darta[1],bin8 darta[0] ;DEBUG
pause 200
led2=0 ;DEBUG
dm_state=0
end select
goto main
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
the 1ms was just test, I used it to check MCU speed, whenever OSCCON and DEFINE OSC were correct, later it was removed.
I have Henrik's code running, I connect it to actual hardware, and width of large pulse, which should be 9000us, measured only 600 ?
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
I've copied all code from post #35, including timings.
http://www.picbasic.co.uk/forum/show...165#post138165
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
Quote:
I have Henrik's code running, I connect it to actual hardware, and width of large pulse, which should be 9000us, measured only 600 ?
then you are doing something wrong ,plus you said in previous posts the pulse was 9900uS it makes a difference . whats correct ?
your looking more scatterlogical than my exwife
-
Re: Is it possible to interpret non-standard serial data with PicBasic (sample attach
haha, no, I'm not blond :)
Just I'm multi-tasking very hard.
9000, 9900, it was just typo, exact timings are given on the previous page. I don't know what I'm doing wrong, since code is Henrik's. As I said, I verified MCU speed and OSC settings, and they are all correct. Pulse timings are also correct, verified using two different scopes. this is only what I can do.
