Hdsp 21xx display

Hello Melanie

I'm trying to figure out how to use your DS1307 clock code, at the melabs site, to display hh:mm:ss on the hp hdsp 211x display. The Rentron site has the hdsp example to scroll a message and I've been successful with ascii characters. The clock display format is very confusing to me. Could you please steer me in the right direction or anyone else. I've been trying to get some result for a while now. Bruce Reynolds code is below:

DEFINE OSC 20 ' 20MHz oscillator
DEFINE LOADER_USED 1' Using boot-loader for initial prototype
TRISA = 0 ' Setup PortA = output for Address Bus
TRISB = 0 ' Setup PortB = output for Data Bus
TRISC = $80 ' RC.7 = input, rest outputs [used for loader]
ADCON1 = 7 ' A/D OFF
A_Bus VAR PortA ' PortA Address Bus
D_Bus VAR PortB ' PortB = Data Bus
W_Pin VAR PortC.0 ' HDSP-2112 write strobe pin #13
A3 VAR PortC.1 ' HDSP-2112 mode select pin #6
RST VAR PortC.2 ' HDSP-2112 reset pin #1
Digit VAR BYTE[8] ' 8-byte digit array
DigPat VAR BYTE ' Digit pattern from lookup table
LP_Cnt VAR BYTE ' Loop counter
LowDig VAR BYTE ' Holds "low" digit # to lookup
LowDig = 0 ' 1st digit = 0
HiDig VAR BYTE ' Holds "high" digit # to lookup
HiDig = 7 ' Last digit = 7
J VAR BYTE ' Array index pointer
J = 0 ' 1st byte in array
S_Speed VAR WORD ' Holds display scroll speed
S_Speed = 300 ' Set display scroll speed here
LOW D_Bus.7 ' Set display for normal operation
EOM CON "~" ' Character used as "End of Message" marker
'* // Initialize display - then set brightness * //'
Init_Display:
' * // Initialize Display Here * //'
HIGH W_Pin : LOW RST : PAUSE 10 : HIGH RST : PAUSE 10

' * // Set Display Brightness Here * //'
' To change display brightness
' D_Bus = | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
' Bright =| 100% | 80% | 53% | 40% | 27% | 20% | 13% |
'
' Set 27% | mode.bit | strobe settings into display |
D_Bus = 4 : LOW A3 : LOW W_Pin : HIGH W_Pin
HIGH A3 ' A3 used only for setting display brightness

'* // Get 8 digits into "Digit Array" for display * //'
GetDig:
FOR LP_Cnt = LowDig TO HiDig
LOOKUP LP_Cnt,[" Hello.! ~"],DigPat
Digit[J] = DigPat ' Load all 8 digits into array
J = J + 1 ' Increment array index pointer
NEXT ' Loop until we have all 8 digits loaded
J=0 ' Re-set array index pointer
LowDig = LowDig + 1 ' Increment to next "low" digit
HiDig = HiDig + 1 ' Increment to next "high" digit

' * // We're using the "~" character in EOM to tag the end of message * //'
IF Digit[7] = EOM THEN ' End-of-message indicator..?
Digit[7] = " " ' Then load a "blamk space" character
LowDig = 0 ' Re-load 0-7 MAX digit count
HiDig = 7 '
ENDIF
'* // Display 8 digits on display then return for more // *'
DisplayDigit:
FOR LP_Cnt = 0 TO 7 ' Scroll right-to-left
A_Bus = LP_Cnt ' Place digit address on address bus
D_Bus = Digit[J] ' Place digit data on data bus
LOW W_Pin : HIGH W_Pin' Strobe data into display
J = J + 1 ' Increment array pointer to next digit
NEXT
J = 0 ' Re-set array index pointer
PAUSE S_Speed ' Set display scroll speed
GOTO GetDig

I've not met this display before so without looking at it's datasheet (which I don't have) I can't immediately give you an answer. If nobody else answers this thread I'll try to find some time and look into it by the weekend.

Melanie

Thank you for the quick reply. Thae data sheet can be found at:
www.rentron.com/Files/hdsp-2112.pdf if you need.

Well I was able to write a test code for the clock function if anyone is intrested. Works very good!

Hi friends,

I know that this is a really old topic, but, last week I got 3 of this display for free from a friend.

They are nice, bright, and has a good "retro" looking.

I did many many tests and I was unable to get a stable result from the display. They are brand new, never used.

I test the Rentron´s Hello moving message an the clock published here.

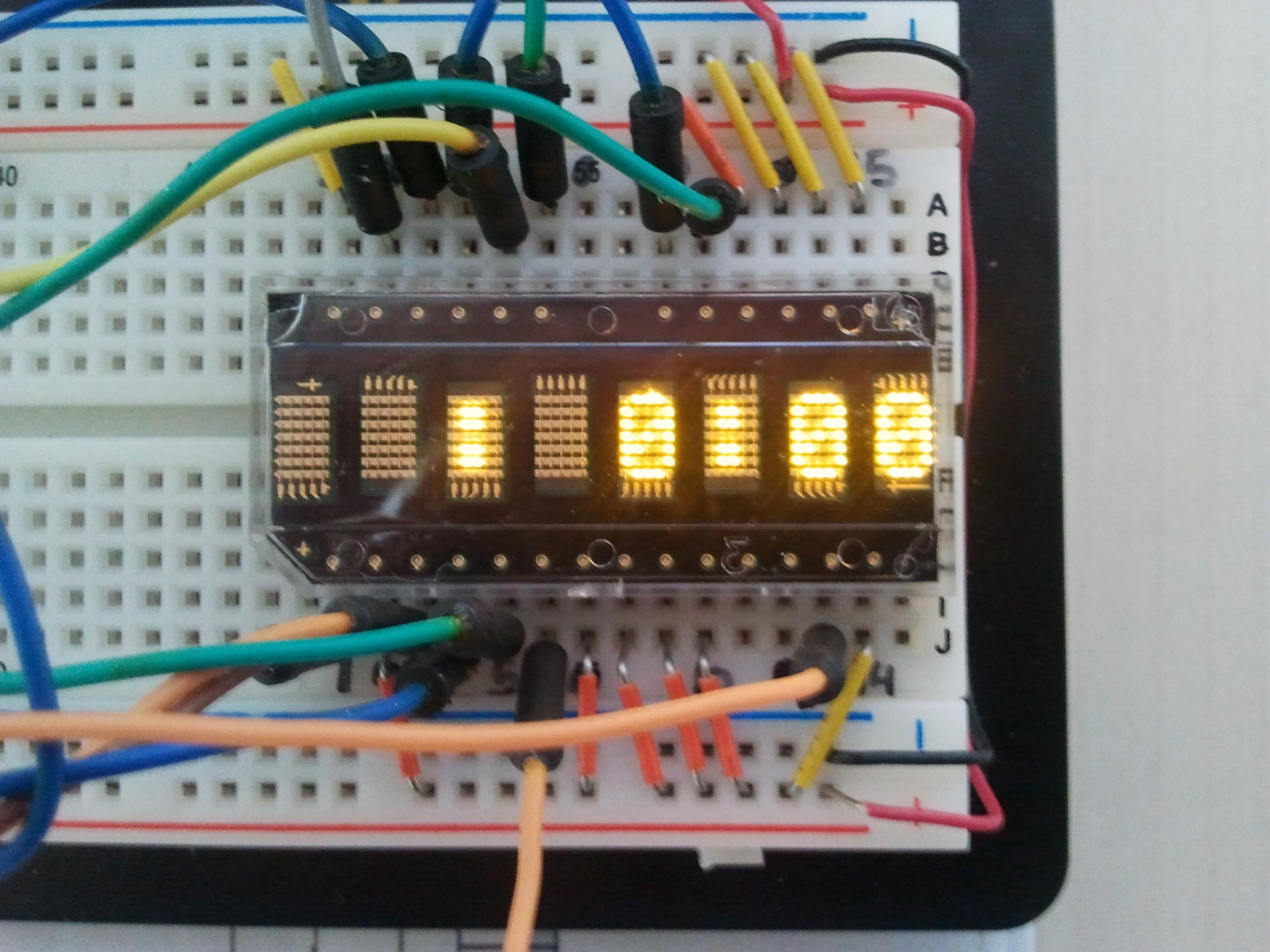

Both, I get ramndom characters and a strange behavior.

I´m using a 16F877 @ 10 Mhz (I did tests @ 20 Mhz also)




Attachment 6516

I´m using the wiring suggested by rentron :

'* // Display connections * //'
' PortB Display | PortA Display | PortC Display
' B0 #19 | A0 #3 | C0 #13
' B1 #20 | A1 #4 | C1 #6
' B2 #23 | A2 #5 | C2 #1
' B3 #24
' B4 #25
' B5 #26
' B6 #27
' * // Display GND, VCC and N.C. [no connection] * //'
' GND 15,16,17,28
' VCC 2,7,8,9,10,11,14,18
' N.C. 12


and the source code :

Code:

---

DEFINE OSC 10        ' 4MHz oscillator
@ ERRORLEVEL -306  ; Retira o erro de crossing page boundary
;@  __CONFIG  _CP_OFF  & _DEBUG_OFF & _CP_OFF & _CPD_OFF & _LVP_OFF & _BODEN_OFF & _PWRTE_ON & _WDT_OFF & _HS_OSC
@  __CONFIG  _HS_OSC &  _CP_OFF & _DEBUG_OFF  & _CPD_OFF & _LVP_OFF & _PWRTE_ON  & _WDT_OFF

TRISA  = 0        ' Setup PortA = output for Address Bus
TRISB  = 0        ' Setup PortB = output for Data Bus
TRISC  = 0      ' RC.7 = input, rest outputs [used for loader]
ADCON1  = 7        ' A/D OFF

A_Bus  VAR PORTA
D_Bus  VAR PORTB  ' PortB = Data Bus
W_Pin  VAR PortC.0 ' HDSP-2112 write strobe pin #13
A3      VAR PortC.1 ' HDSP-2112 mode select pin #6
FL      VAR PortC.4 'Flash mode select
RST    VAR PortC.2 ' HDSP-2112 reset pin #1
Digit  VAR BYTE[8] ' 8-byte digit array
DigPat  VAR BYTE    ' Digit pattern from lookup table
LP_Cnt  VAR BYTE    ' Loop counter
LowDig  VAR BYTE    ' Holds "low" digit # to lookup
LowDig  = 0        ' 1st digit = 0
HiDig  VAR BYTE    ' Holds "high" digit # to lookup
HiDig  = 7        ' Last digit = 7
J      VAR BYTE    ' Array index pointer
J      = 0        ' 1st byte in array
S_Speed VAR WORD    ' Holds display scroll speed
S_Speed = 200      ' Set display scroll speed here
Low D_Bus.7        ' Set display for normal operation
EOM    CON "~"    ' Character used as "End of Message" marker
hour    VAR    BYTE    ' Define hour variable
dhour  VAR    word    ' Define display hour variable
minute  VAR    BYTE    ' Define minute variable
second  VAR    BYTE    ' Define second variable
ticks  VAR    BYTE    ' Define pieces of seconds variable
update  VAR    BYTE    ' Define variable to indicate update of LCD

second10 var byte
min10  VAR BYTE
hour10  VAR BYTE

i var word
ADCON1 = 7
        second10 = 0
        hour = 0      ' Set initial time to 01:00:00
        hour10 = 6
        minute =  0
        min10  = 0
        second = 0
        ticks = $00


        update = 0

        OPTION_REG = $55        ' Set TMR0 configuration and enable PORTB pullups
        INTCON = $a0            ' Enable TMR0 interrupts
        On Interrupt GoTo tickint
                '
'* // Initialize display - then set brightness * //'
Init_Display:
    ' * // Initialize Display Here * //'
    High W_Pin : Low RST : Pause 20 : High RST : High FL : Pause 20

    ' * // Set Display Brightness Here * //'
    ' To change display brightness
    ' D_Bus = |  0  |  1  |  2  |  3  |  4  |  5  |  6  |
    ' Bright =| 100% | 80% | 53% | 40% | 27% | 20% | 13% |
    '
    ' Set 27% | mode.bit | strobe settings into display |
    D_Bus = %0001100 : Low A3 : Low W_Pin : High W_Pin
    High A3 ':HIGH FL' A3 used only for setting display brightness




'* // Get 8 digits into "Digit Array" for display * //'
GetDig:



    For LP_Cnt = LowDig TO HiDig
      LookUp LP_Cnt,["  :  :  "],DigPat
        Digit[J] = DigPat  ' Load all 8 digits into array
        J = J + 1          ' Increment array index pointer
    Next                    ' Loop until we have all 8 digits loaded
    J=0                    ' Re-set array index pointer
    LowDig = LowDig      ' Increment to next "low" digit
    HiDig = HiDig      ' Increment to next "high" digit



'* // Display 8 digits on display then return for more // *'
DisplayDigit:
  For LP_Cnt = LowDig TO HiDig    ' Scroll right-to-left


    A_Bus  = LP_Cnt        ' Place digit address on address bus

      D_Bus = Digit[J]      ' Place digit data on data bus
      Low W_Pin : High W_Pin' Strobe data into display
    J = J + 1            ' Increment array pointer to next digit
    DigPat = DigPat

    Next
    J = 0

  chkup:
                'While hour = 1 and hour10 = 3
                '      hour = 0
                '      hour10 = 1
                '      wend

              A_Bus  = 7
                D_Bus = 48 + second10
                Low W_Pin : High W_Pin
                  Pause 10

              A_Bus  = 6
                D_Bus = 48 + second
                Low W_Pin : High W_Pin
                  Pause 10

                A_Bus  = 4
                D_Bus = 48 + min10
                Low W_Pin : High W_Pin
                  Pause 10

                  A_Bus  = 3
                D_Bus = 48 + minute
                Low W_Pin : High W_Pin
                  Pause 10

                  A_Bus  = 1
                D_Bus = 48 + hour10
                Low W_Pin : High W_Pin
                  Pause 10

                  A_Bus  = 0
                D_Bus = 48 + hour
                Low W_Pin : High W_Pin
                  Pause 10

                  IF update = 1 Then

                update = 0
                  endif
    Goto chkup

          Disable
tickint:
        ticks = ticks + 1      ' Count pieces of seconds

        IF ticks < 165 Then tiexit


' One second elasped - update time

        ticks = 0
        second10 = second10 + 1
        IF second10 >= 10 Then
          second10 = 0
          second = second + 1

        IF second >= 6 Then
                second = 0
                min10 = min10 +1
                IF min10 > 9 THEN
                min10 = 0
                minute = minute + 1
                IF minute >= 6 Then
                        minute = 0
                        hour10 = hour10 + 1
                        IF hour10 > 9  THEN
                        hour10 = 0
                        hour = hour + 1
                        IF hour > 2 Then
                                hour = 0



                                  ENDIF
                          ENDIF

                        EndIF
                EndIF
        EndIF

        ENDIF
        update = 1      ' Set to update LCD

tiexit:
        INTCON.2 = 0    ' Reset timer interrupt flag

        Resume
        End

---

Have someone here ever used this kind of display ?

thanks !

Sérgio

Hi friends !

I did find my problem.

I was using a really noisy power supply.

Afeter changing it to another one, everything is working fine !

Thank you !
