Losing data when extracting bytes from words - 16F18855
I haven't figured out a pattern. I went all the way up to 1999 and it's always the same ones that mess up, starting with 93-99.
Transmit code using only 0-99, will wait for OK signal back from RX PIC before sending another set:
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
DEFINE OSC 32
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
WPUA = %11111111
WPUB = %11111111
WPUC = %00111111
ANSELA = %00000000
ANSELB = %00000000
ANSELC = %00000000
TRISA = %00000000
TRISB = %00000000
TRISC = %11000000
MsgData var byte[21]
MsgOK var byte[2]
MsgLoop VAR WORD
Num0 VAR WORD
Num1 VAR WORD
Num2 VAR WORD
Num3 VAR WORD
Num4 VAR WORD
Num5 VAR WORD
Num6 VAR WORD
Num7 VAR WORD
Num8 VAR WORD
Num9 VAR WORD
ADCcode var BYTE
Pause 1000 ' Let PIC stabilize and start after RX PIC
goto mainloop
TransmitData:
Num0 = MsgLoop
Num1 = MsgLoop + 1
Num2 = MsgLoop + 2
Num3 = MsgLoop + 3
Num4 = MsgLoop + 4
Num5 = MsgLoop + 5
Num6 = MsgLoop + 6
Num7 = MsgLoop + 7
Num8 = MsgLoop + 8
Num9 = MsgLoop + 9
MsgData[1] = Num0.byte1 : MsgData[2] = Num0.byte0
MsgData[3] = num1.byte1 : MsgData[4] = num1.byte0
MsgData[5] = num2.byte1 : MsgData[6] = num2.byte0
MsgData[7] = num3.byte1 : MsgData[8] = num3.byte0
MsgData[9] = num4.byte1 : MsgData[10] = num4.byte0
MsgData[11] = num5.byte1 : MsgData[12] = num5.byte0
MsgData[13] = num6.byte1 : MsgData[14] = num6.byte0
MsgData[15] = num7.byte1 : MsgData[16] = num7.byte0
MsgData[17] = num8.byte1 : MsgData[18] = num8.byte0
MsgData[19] = num9.byte1 : MsgData[20] = num9.byte0
hserout [ "[", ADCcode, _
MsgData[1], MsgData[2], MsgData[3], MsgData[4], MsgData[5], _
MsgData[6], MsgData[7], MsgData[8], MsgData[9], MsgData[10], _
MsgData[11], MsgData[12], MsgData[13], MsgData[14], MsgData[15], _
MsgData[16], MsgData[17], MsgData[18], MsgData[19], MsgData[20], "]"]
while TXSTA.1 = 0 ' Check TRMT bit
wend
RETURN
Mainloop:
ADCcode = 2
for MsgLoop = 0 to 90 step 10 ' loop by multiples of 10
gosub TransmitData
hserin [ wait("<"), STR MsgOK\2\">" ] ' return confirmation code
next MsgLoop
end
RX code (stripped of LCD code):
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
DEFINE OSC 32
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
WPUA = %11111111
WPUB = %11111111
WPUC = %00111111
ANSELA = %00000000
ANSELB = %00000000
ANSELC = %00000000
TRISA = %00000000
TRISB = %00000000 ' B6 - ICSPCLK
' B7 - ICSPDAT
TRISC = %11000000 ' C6 - HSEROUT
' C7 - HSERIN
MsgData var byte[21]
Num0 VAR WORD
Num1 VAR WORD
Num2 VAR WORD
Num3 VAR WORD
Num4 VAR WORD
Num5 VAR WORD
Num6 VAR WORD
Num7 VAR WORD
Num8 VAR WORD
Num9 VAR WORD
Pause 200 ' Let PIC and LCD stabilize
Mainloop:
hserin [ wait("["), STR MsgData\21\"]" ]
if MsgData[0] = 2 then
Num0.byte1 = MsgData[1] : Num0.byte0 = MsgData[2]
Num1.byte1 = MsgData[3] : Num1.byte0 = MsgData[4]
Num2.byte1 = MsgData[5] : Num2.byte0 = MsgData[6]
Num3.byte1 = MsgData[7] : Num3.byte0 = MsgData[8]
Num4.byte1 = MsgData[9] : Num4.byte0 = MsgData[10]
Num5.byte1 = MsgData[11] : Num5.byte0 = MsgData[12]
Num6.byte1 = MsgData[13] : Num6.byte0 = MsgData[14]
Num7.byte1 = MsgData[15] : Num7.byte0 = MsgData[16]
Num8.byte1 = MsgData[17] : Num8.byte0 = MsgData[18]
Num9.byte1 = MsgData[19] : Num9.byte0 = MsgData[20]
hserout [ "[", dec4 Num0, _
" ", dec4 Num1, " ", dec4 Num2, " ", dec4 Num3, _
" ", dec4 Num4, " ", dec4 Num5, " ", dec4 Num6, _
" ", dec4 Num7, " ", dec4 Num8, " ", dec4 Num9, "]"]
while TXSTA.1 = 0 ' Check TRMT bit
wend
hserout [ "<OK>"] ' MAKE SURE DATA IS COMPLETELY SENT BEFORE CONFIRMATION
hserout [ 10] ' this is just to maintain alignment on Serial Communicator
endif
GOTO Mainloop
end
Output from RX program to MCS+ Serial Communicator:
Code:
[0000 0001 0002 0003 0004 0005 0006 0007 0008 0009]<OK>
[0010 0011 0012 0013 0014 0015 0016 0017 0018 0019]<OK>
[0020 0021 0022 0023 0024 0025 0026 0027 0028 0029]<OK>
[0030 0031 0032 0033 0034 0035 0036 0037 0038 0039]<OK>
[0040 0041 0042 0043 0044 0045 0046 0047 0048 0049]<OK>
[0050 0051 0052 0053 0054 0055 0056 0057 0058 0059]<OK>
[0060 0061 0062 0063 0064 0065 0066 0067 0068 0069]<OK>
[0070 0071 0072 0073 0074 0075 0076 0077 0078 0079]<OK>
[0080 0081 0082 0083 0084 0085 0086 0087 0088 0089]<OK>
[0090 0091 0092 0000 0000 0000 0000 0000 0000 0000]<OK>

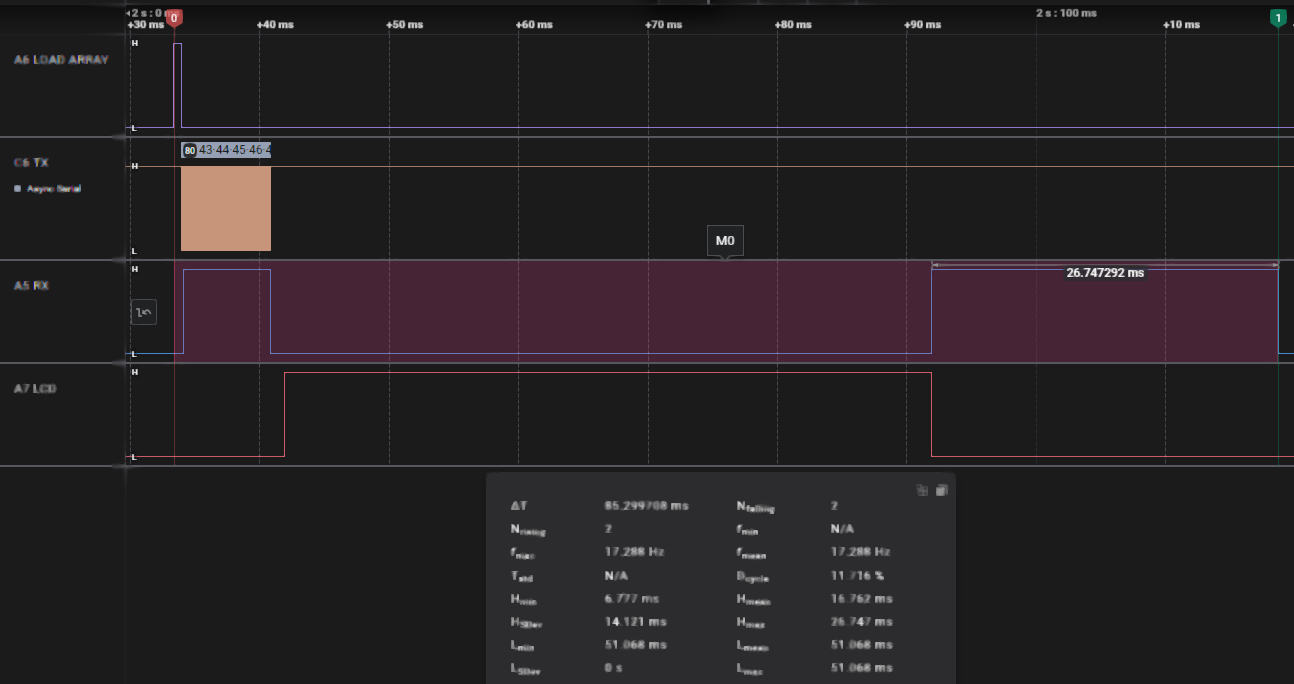

I know it's transmitted properly using Saleae probe:
Attachment 9926
The data is complete on top row (RX from TX PIC), but missing on bottom (TX towards PC).
-
1 Attachment(s)
Re: Losing data when extracting bytes from words

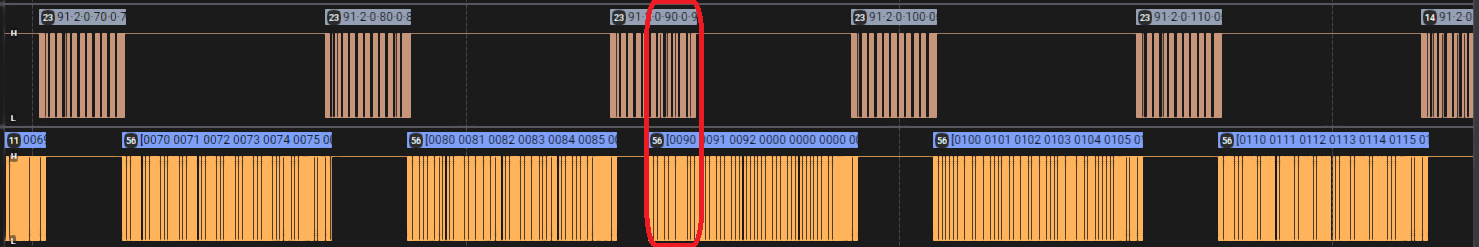

This is when I run it up to 1990, and repeat the 90 series at the bottom; always the same numbers are messed up.
Attachment 9928
-
1 Attachment(s)
Re: Losing data when extracting bytes from words
I just noticed something. It didn't wait for the 90 series to complete.
Something is not always working with my OK reply.
Attachment 9929
EDIT: Confirmed, I checked the longest saved SALEAE session. All the series that are chopped are missing numbers that relate with how early the TX started on the RX PIC. It didn't wait for the HSERIN to complete, and took off running.
I can't explain why it's always the same series.
Something tells me the DEFINES are different for this PIC, and I blindly copied over existing code.
-
Re: Losing data when extracting bytes from words - 16F18855
You will notice you never receive the data from 93 onwards
since your terminator is "]" <==> ascii 93
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by
richard
You will notice you never receive the data from 93 onwards
since your terminator is "]" <==> ascii 93
Ok, but what about these guys?
Code:
[0340 0341 0342 0343 0344 0345 0346 0347 0348 0256]
[0860 0768 0000 0000 0000 0000 0000 0000 0000 0000]
[1110 1111 1112 1113 1114 1115 1116 1024 0000 0000]
[1620 1621 1622 1623 1624 1625 1626 1627 1628 1536]
[1880 1881 1882 1883 1884 1792 0000 0000 0000 0000] <---- this one does have a 93

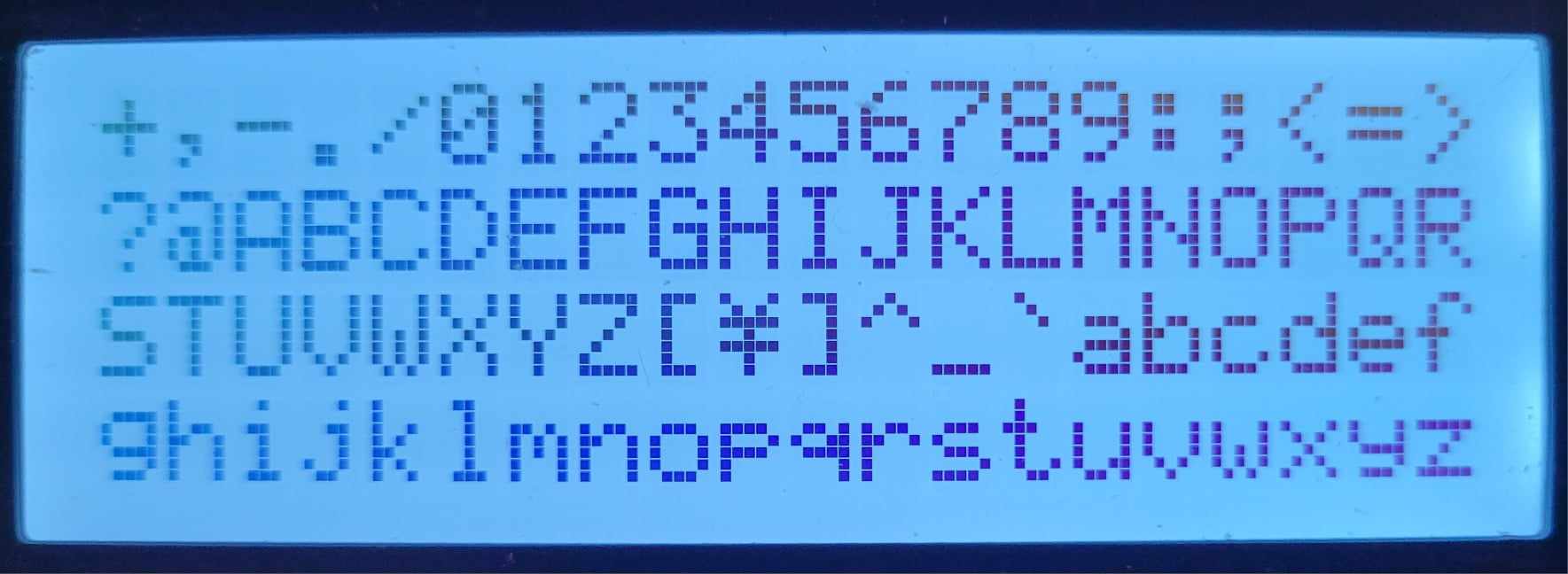

EDIT: What would you suggest as a good delimiter? I have no idea what would avoid this stuff.
-
Re: Losing data when extracting bytes from words - 16F18855
349 dec = 0x15d 0x5d = dec 93 <==> ascii "]"
-
Re: Losing data when extracting bytes from words - 16F18855
Right.
In mainframe programming, we used high-values.
Is x'FF' is viable option in PBP?
EDIT: This doesn't work, even if tilde is at 126. Some still get triggered.
Code:
hserin [ wait("~"), STR MsgData\21\"~" ]
EDIT SOME MORE: it works fine if I don't use delimiters. I'll be sending text and numbers so I don't see a way out, I have to leave the ends "free".
-
Re: Losing data when extracting bytes from words - 16F18855
the start and finish characters cannot be allowed in the data body of your message using your simplistic scheme ;
there are much simpler and more reliable methods
-
Re: Losing data when extracting bytes from words - 16F18855
The safest is to use ASCII characters for your numbers and not binary.
Of course this will need more characters to send but that way your delimiter will not mess with your data.
Or maybe you can have specific data length and then CRC check along with timeout.
Ioannis
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by Ioannis
maybe you can have specific data length and then CRC check along with timeout.
I have a need to identify the to-from PICs, as well as data identification, and a confirmation code if it went OK (still thinking about how to handle Not OK).
I've practiced CRC many years ago, so I might still add that feature to make sure the data was not scrambled while still having valid delimiters.
Quote:
Originally Posted by
richard
the start and finish characters cannot be allowed in the data body of your message using your simplistic scheme...
I've been thinking a lot about how to delimit messages with characters that do not interfere with the message (or rather vice versa as Richard pointed out). The last character in the ASCII table is 126 $7E ~, in binary that's 01111110. Is anything stopping me from using %1xxxxxxx and up to act as delimiters?
Prefix delimiter:
- %11nnnnnn, PIC ID (64 combinations);
- %1nnnnnnn, Transaction ID (128 combinations).
Messaqe:
-bla bla bla
CRC:
- byte (can handle 255 byte message, or at worst, a word).
Suffix delimiter (seems it's limited to a single byte in PBP - "Receive string of n characters optionally ended in character c"):
- %111nnnnn, Confirmation code (32 combinations).
This would only cost me 3 bytes, offer plenty combinations and could be imbedded along with the message.
Quote:
there are much simpler and more reliable methods
What simpler techniques did you have in mind?
I also want to be able to easily add more PICs or Transactions IDs as the project grows (I'm considering an optional control panel). This first project will serve as a template for larger airplanes with many more controls (think Boeing 787).
-

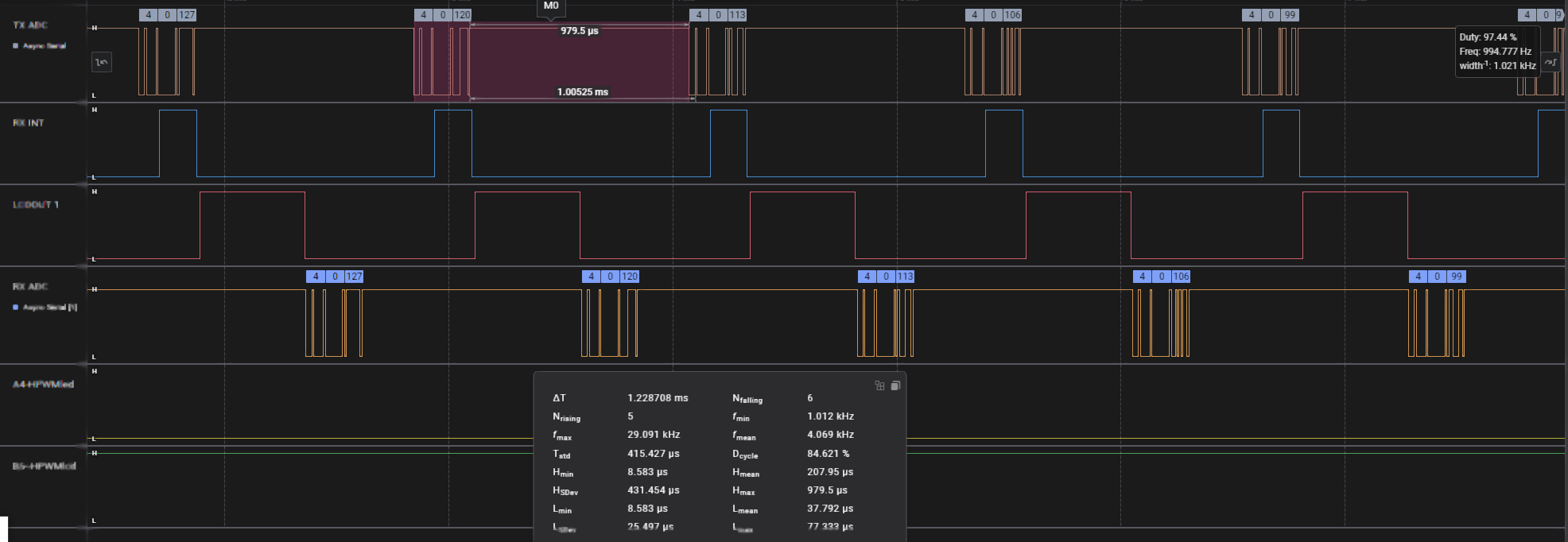

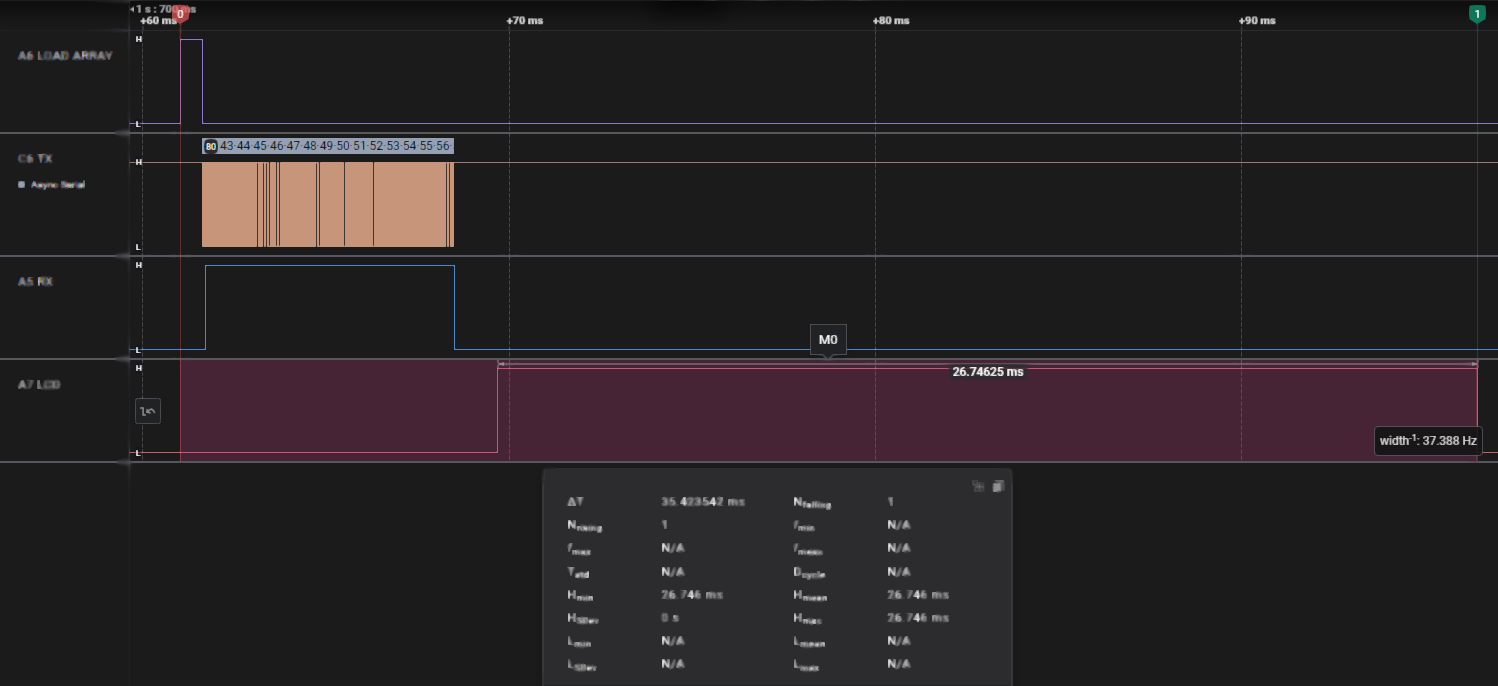

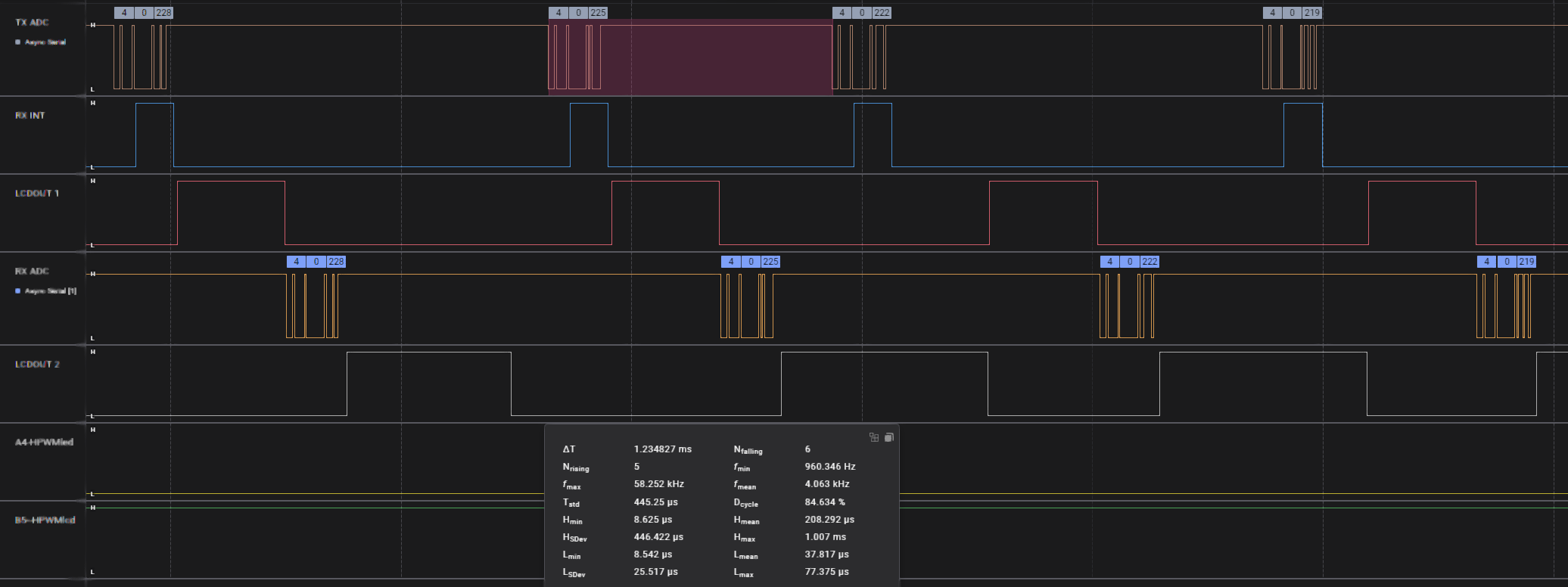

4 Attachment(s)
Re: Losing data when extracting bytes from words - 16F18855
delimiters only works for ascii data , converting data to from ascii is a slow ugly process that bloats the amount of data to send
a packetised binary structure is way more efficient esp if its fixed length , crc may not even be required
the demo is pic18f26k22 @ 57600b
-
Re: Losing data when extracting bytes from words - 16F18855
before confirmation HSEROUT inn RX program...
Doesn't this WHILE do the same thing? Make sure everything is gone before doing anything else?
Code:
hserout [ MsgData[0], MsgData[1], MsgData[2] ]
while TX1STA.1 = 0 ' Check TRMT bit
wend
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Doesn't this WHILE do the same thing? Make sure everything is gone before doing anything else?
got nothing to do with that , its intent was to give the other end time to setup for reception.
your handshake method is extremely awkward and incapable of recovery from a missed transmission.
turns out it was not needed and should be removed
-
Re: Losing data when extracting bytes from words - 16F18855
more robust demand/response handshaking
Code:
;pic18f26k22
#CONFIG
CONFIG FOSC = INTIO67 ; Internal oscillator block
CONFIG PLLCFG = OFF ; Oscillator used directly
CONFIG PRICLKEN = OFF ; Primary clock can be disabled by software
CONFIG FCMEN = OFF ; Fail-Safe Clock Monitor disabled
CONFIG IESO = OFF ; Oscillator Switchover mode disabled
CONFIG PWRTEN = OFF ; Power up timer disabled
CONFIG BOREN = SBORDIS ; Brown-out Reset enabled in hardware only (SBOREN is disabled)
CONFIG BORV = 190 ; VBOR set to 1.90 V nominal
CONFIG WDTEN = ON ; WDT is always enabled. SWDTEN bit has no effect
CONFIG WDTPS = 32768 ; 1:32768
CONFIG CCP2MX = PORTC1 ; CCP2 input/output is multiplexed with RC1
CONFIG PBADEN = OFF ; PORTB<5:0> pins are configured as digital I/O on Reset
CONFIG CCP3MX = PORTB5 ; P3A/CCP3 input/output is multiplexed with RB5
CONFIG HFOFST = ON ; HFINTOSC output and ready status are not delayed by the oscillator stable status
CONFIG T3CMX = PORTC0 ; T3CKI is on RC0
CONFIG P2BMX = PORTB5 ; P2B is on RB5
CONFIG MCLRE = INTMCLR ; MCLR pin enabled, RE3 input pin disabled
CONFIG STVREN = ON ; Stack full/underflow will cause Reset
CONFIG LVP = OFF ; Single-Supply ICSP disabled
CONFIG XINST = OFF ; Instruction set extension and Indexed Addressing mode disabled (Legacy mode)
CONFIG DEBUG = OFF ; Disabled
CONFIG CP0 = OFF ; Block 0 (000800-001FFFh) not code-protected
CONFIG CP1 = OFF ; Block 1 (002000-003FFFh) not code-protected
CONFIG CP2 = OFF ; Block 2 (004000-005FFFh) not code-protected
CONFIG CP3 = OFF ; Block 3 (006000-007FFFh) not code-protected
CONFIG CPB = OFF ; Boot block (000000-0007FFh) not code-protected
CONFIG CPD = OFF ; Data EEPROM not code-protected
CONFIG WRT0 = OFF ; Block 0 (000800-001FFFh) not write-protected
CONFIG WRT1 = OFF ; Block 1 (002000-003FFFh) not write-protected
CONFIG WRT2 = OFF ; Block 2 (004000-005FFFh) not write-protected
CONFIG WRT3 = OFF ; Block 3 (006000-007FFFh) not write-protected
CONFIG WRTC = OFF ; Configuration registers (300000-3000FFh) not write-protected
CONFIG WRTB = OFF ; Boot Block (000000-0007FFh) not write-protected
CONFIG WRTD = OFF ; Data EEPROM not write-protected
CONFIG EBTR0 = OFF ; Block 0 (000800-001FFFh) not protected from table reads executed in other blocks
CONFIG EBTR1 = OFF ; Block 1 (002000-003FFFh) not protected from table reads executed in other blocks
CONFIG EBTR2 = OFF ; Block 2 (004000-005FFFh) not protected from table reads executed in other blocks
CONFIG EBTR3 = OFF ; Block 3 (006000-007FFFh) not protected from table reads executed in other blocks
CONFIG EBTRB = OFF ; Boot Block (000000-0007FFh) not protected from table reads executed in other blocks
#ENDCONFIG
define OSC 64
ANSELC = 0
OSCCON = $70
OSCTUNE.6 = 1
RCSTA = $90 ' Enable serial port & continuous receive
TXSTA = $24 ' Enable transmit, BRGH = 1
SPBRG = 21 ' 57600 Baud @ 64MHz, -0.08%
SPBRGH = 1
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
asm
ADCcode = _MsgData
Num0 = _MsgData + 1
Num1 = _MsgData + 3
Num2 = _MsgData + 5
Num3 = _MsgData + 7
Num4 = _MsgData + 9
Num5 = _MsgData + 11
Num6 = _MsgData + 13
Num7 = _MsgData + 15
Num8 = _MsgData + 17
Num9 = _MsgData + 19
endasm
MsgOK var byte[2]
MsgLoop VAR WORD
MsgData var byte[21]
ADCcode var BYTE ext
Num0 VAR WORD ext
Num1 VAR WORD ext
Num2 VAR WORD ext
Num3 VAR WORD ext
Num4 VAR WORD ext
Num5 VAR WORD ext
Num6 VAR WORD ext
Num7 VAR WORD ext
Num8 VAR WORD ext
Num9 VAR WORD ext
Mainloop:
ADCcode = 2
for MsgLoop = 0 to 390 step 10 ' loop by multiples of 10
tol:
hserin 50,tol,[ wait("<OK>") ]
gosub TransmitData
next MsgLoop
goto mainloop
end
TransmitData:
Num0 = MsgLoop
Num1 = MsgLoop + 1
Num2 = MsgLoop + 2
Num3 = MsgLoop + 3
Num4 = MsgLoop + 4
Num5 = MsgLoop + 5
Num6 = MsgLoop + 6
Num7 = MsgLoop + 7
Num8 = MsgLoop + 8
Num9 = MsgLoop + 9
hserout [ "[",21,str MsgData\21]
RETURN
rx
Code:
;pic18f26k22
#CONFIG
CONFIG FOSC = INTIO67 ; Internal oscillator block
CONFIG PLLCFG = ON ; Oscillator used directly
CONFIG PRICLKEN = OFF ; Primary clock can be disabled by software
CONFIG FCMEN = OFF ; Fail-Safe Clock Monitor disabled
CONFIG IESO = OFF ; Oscillator Switchover mode disabled
CONFIG PWRTEN = OFF ; Power up timer disabled
CONFIG BOREN = SBORDIS ; Brown-out Reset enabled in hardware only (SBOREN is disabled)
CONFIG BORV = 190 ; VBOR set to 1.90 V nominal
CONFIG WDTEN = ON ; WDT is always enabled. SWDTEN bit has no effect
CONFIG WDTPS = 32768 ; 1:32768
CONFIG CCP2MX = PORTC1 ; CCP2 input/output is multiplexed with RC1
CONFIG PBADEN = OFF ; PORTB<5:0> pins are configured as digital I/O on Reset
CONFIG CCP3MX = PORTB5 ; P3A/CCP3 input/output is multiplexed with RB5
CONFIG HFOFST = ON ; HFINTOSC output and ready status are not delayed by the oscillator stable status
CONFIG T3CMX = PORTC0 ; T3CKI is on RC0
CONFIG P2BMX = PORTB5 ; P2B is on RB5
CONFIG MCLRE = INTMCLR ; MCLR pin enabled, RE3 input pin disabled
CONFIG STVREN = ON ; Stack full/underflow will cause Reset
CONFIG LVP = OFF ; Single-Supply ICSP disabled
CONFIG XINST = OFF ; Instruction set extension and Indexed Addressing mode disabled (Legacy mode)
CONFIG DEBUG = OFF ; Disabled
CONFIG CP0 = OFF ; Block 0 (000800-001FFFh) not code-protected
CONFIG CP1 = OFF ; Block 1 (002000-003FFFh) not code-protected
CONFIG CP2 = OFF ; Block 2 (004000-005FFFh) not code-protected
CONFIG CP3 = OFF ; Block 3 (006000-007FFFh) not code-protected
CONFIG CPB = OFF ; Boot block (000000-0007FFh) not code-protected
CONFIG CPD = OFF ; Data EEPROM not code-protected
CONFIG WRT0 = OFF ; Block 0 (000800-001FFFh) not write-protected
CONFIG WRT1 = OFF ; Block 1 (002000-003FFFh) not write-protected
CONFIG WRT2 = OFF ; Block 2 (004000-005FFFh) not write-protected
CONFIG WRT3 = OFF ; Block 3 (006000-007FFFh) not write-protected
CONFIG WRTC = OFF ; Configuration registers (300000-3000FFh) not write-protected
CONFIG WRTB = OFF ; Boot Block (000000-0007FFh) not write-protected
CONFIG WRTD = OFF ; Data EEPROM not write-protected
CONFIG EBTR0 = OFF ; Block 0 (000800-001FFFh) not protected from table reads executed in other blocks
CONFIG EBTR1 = OFF ; Block 1 (002000-003FFFh) not protected from table reads executed in other blocks
CONFIG EBTR2 = OFF ; Block 2 (004000-005FFFh) not protected from table reads executed in other blocks
CONFIG EBTR3 = OFF ; Block 3 (006000-007FFFh) not protected from table reads executed in other blocks
CONFIG EBTRB = OFF ; Boot Block (000000-0007FFh) not protected from table reads executed in other blocks
#ENDCONFIG
define OSC 64
ANSELC = 0
include "strtok.pbpmod"
OSCCON = $70
OSCTUNE.6 = 1
RCSTA = $90 ' Enable serial port & continuous receive
TXSTA = $24 ' Enable transmit, BRGH = 1
SPBRG = 21 ' 57600 Baud @ 64MHz, -0.08%
SPBRGH = 1
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
asm
ADCcode = _MsgData
Num0 = _MsgData + 1
Num1 = _MsgData + 3
Num2 = _MsgData + 5
Num3 = _MsgData + 7
Num4 = _MsgData + 9
Num5 = _MsgData + 11
Num6 = _MsgData + 13
Num7 = _MsgData + 15
Num8 = _MsgData + 17
Num9 = _MsgData + 19
endasm
incoming var byte[21]
MsgData var byte[21]
ADCcode var BYTE ext
Num0 VAR WORD ext
Num1 VAR WORD ext
Num2 VAR WORD ext
Num3 VAR WORD ext
Num4 VAR WORD ext
Num5 VAR WORD ext
Num6 VAR WORD ext
Num7 VAR WORD ext
Num8 VAR WORD ext
Num9 VAR WORD ext
Pause 1000 ' Let PIC stabilize and start after RX PIC
Mainloop:
hserout [ "<OK>"]
hserin 50,mainloop,[ wait("[",21), STR incoming \21]
if incoming[0] = 2 then
strcpy MsgData , incoming ,21
hserout [ "[", dec4 Num0, _
" ", dec4 Num1, " ", dec4 Num2, " ", dec4 Num3, _
" ", dec4 Num4, " ", dec4 Num5, " ", dec4 Num6, _
" ", dec4 Num7, " ", dec4 Num8, " ", dec4 Num9, "]",13,10]
hserout [ 10] ' this is just to maintain alignment on Serial Communicator
endif
GOTO Mainloop
end
-
Re: Losing data when extracting bytes from words - 16F18855
1. Why does this compile OK? I mean the asm/endasm block is before defining the variables. Shouldn't the compiler complain about that?
2. the sub TransmitData transfers data to variables Num0-Num9 from MsgLoop but then sends the str MsgData. Is this correct?
Ioannis
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
1. Why does this compile OK? I mean the asm/endasm block is before defining the variables. Shouldn't the compiler complain about that?
why would it complain? the asm block generates no code at all , it only creates labels for the assembler
Quote:
2. the sub TransmitData transfers data to variables Num0-Num9 from MsgLoop but then sends the str MsgData. Is this correct?
yes, MsgData is a 21 byte structure that holds the vars Num0-Num9 + ADCcode
-
1 Attachment(s)
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by
richard
more robust demand/response handshaking...
Once I TX data, I waited till TX complete:
Quote:
The TXIF flag does not indicate transmit completion (use TRMT for this purpose instead).
(16F18855 p.146)
Then I sit in a loop waiting for RX interrupt:
Quote:
To ensure that no actual data is lost, check the RCIDL bit to verify that a receive operation is not in process...
(16F18855 p.553)
Code:
;--- Interrupts ----------------------------------------------------------------
RXInterrupt:
hserin [ STR MsgData\3 ]
while BAUDCON1.6 = 0 ' Check RCIDL bit
wend
RXoccurred = 1 ' Set flag
@ INT_RETURN
;--- Subroutines ---------------------------------------------------------------
SendData:
hserout [ MsgData[0], MsgData[1], MsgData[2] ]
while TX1STA.1 = 0 ' Check TRMT bit
wend
while RXoccurred = 0 ' Check for interrupt
wend
RXoccurred = 0 ' Set flag
ADCchange = 1
RETURN
I turned the pot pretty fast and this is the fastest interval I got from start of 1st TX to start of 2nd TX:
Attachment 9950
I'm still studying your TX/RX module. At least now I have a control that I can compare with.
-
1 Attachment(s)
Re: Losing data when extracting bytes from words - 16F18855
To make sure I wasn't losing data, I returned the data I received. I also used the 45mm slide pot for another speed test; zipping that sucker as fast as I could: 1.234 mSec from start to start of TX.
These are the signals, in case the text from Saleae probe is not clear enough (they get a little fudgy or some reason):
Primary PIC:
- TX
Secondary PIC:
- RX-INT
- LCDout ADC values
- TX confirmation
- LCDout "X" indicator (this is for testing only, to see if other pots "jitter")
Note that data is not lost even if bottom LCDout overlaps into next message.
Attachment 9951
-
1 Attachment(s)
Re: Losing data when extracting bytes from words - 16F18855
I figure I'd push the envelope a bit faster with that 45mm slide pot; 1.228 mSec from start to start of TX.
I also took out that 2nd LCDout with the "x" indicator, it was just for testing anyways.
This time I went faster than the previous ADC increment changes of 3, I managed to go to 7 and still no data lost:
Attachment 9952
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by
richard
...a packetised binary structure is way more efficient esp if its fixed length ...
I've been working with your module for 2 days and encountered a slight complication. I love the routine, but it seems the module is still working in the background when the next code instructions execute. For example:
I can refer to ADCcode in the RX pgm right away after strcpy cause it's the first byte in my structure:
Code:
asm
ADCcode = _MsgData
ADCnum = _MsgData + 1
ADCerror1 = _MsgData + 3
ADCerror2 = _MsgData + 4
endasm
...
Mainloop:
while RXoccurred = 0 ' Wait for message
wend
strcpy MsgData , incoming ,5
if ADCcode = 0 then
gosub ProcessADC_A0
else
if ADCcode = 1 then
gosub ProcessADC_A1
else
if ADCcode = 3 then
gosub ProcessSW3
else
if ADCcode = 4 then
gosub ProcessADC_A4
else
if ADCcode = 5 then
gosub ProcessADC_C3
else
if ADCcode = 6 then
gosub ProcessADC_C4
endif
endif
endif
endif
endif
endif
GOTO Mainloop
This code works as expected.
But if I refer to ADCerror1 or ADCerror2 in the TX pgm immediately after strcpy, they don't get seen by the program. I have to add a PAUSE 1 for the IFs to get triggered:
Code:
hserout [ str MsgData\5 ] ' transmit ADC value
while TX1STA.1 = 0 ' Check TRMT bit
wend
while RXoccurred = 0 ' Wait for confirmation message (RX int)
wend
strcpy MsgData , incoming ,5
PAUSE 1
if ADCerror1 = 1 then ' Check return code 1
Errorcodes = Errorcodes | %01000000 ' Force PORTA bit 6 to 1
else
if ADCerror2 = 1 then ' Check return code 2
Errorcodes = Errorcodes | %10000000 ' Force PORTA bit 7 to 1
else
Errorcodes = Errorcodes & %00111111 ' Force PORTA bits 6-7 to 0
endif
endif
Is it complicated to add a Completion Code variable in element 0 (1 byte)?
0 = processing
1 = finished
That way I can substitute the PAUSE by a WHILE WEND like this:
Code:
' PAUSE 1
while incoming[0] = 0 ' Wait for string copy to complete
wend
I can initialize incoming[0] to 0 before calling strcpy if that helps you.
I try to avoid using PAUSE so I can use DT Ints without surprises.
Right now my structure is only 5 bytes long, but this will most likely grow over time.
PS: Please don't bother with this if it takes more than 2-3 minutes.
-
Re: Losing data when extracting bytes from words - 16F18855
I'm reading up on arrays in the manual and I learned something new (never did any thing complicated with arrays before):
Quote:
One last bit of information that is implied above: You can write aliases to other aliases. In the above example, you could create a name for a BYTE variable at the end of the array with:
last_byte VAR my_bytes[31]
This works even though "my_bytes" is, itself, an alias.
p. 278, version 2015-12-01
I can TX/RX the entire array, and refer to individual elements with aliases, and not use ArrayName[n] syntax. It makes for a much more structured approach to defining a structure (old COBOL habits die hard).
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by
Demon
...refer to individual elements with aliases, and not use ArrayName[n] syntax...
Very convinient indeed!
Ioannis
-
Re: Losing data when extracting bytes from words - 16F18855
Yup.
I'm testing that right now; 1 program with aliases, 1 program with strcpy:
- TX 80 character (same TX program for both tests),
- RX 80 characters and display 80 characters (I fill up a 4x20 LCD with text),
- compare the time on Saleae.
-
3 Attachment(s)
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by
Ioannis
Very convenient indeed!
Ioannis
Yup, now confirmed. It's faster to use aliases than Richard's module strcpy.
Shared TX pgm:
- loads array with 80 characters (DEC 43 to DEC 122),
- Hserout 80 bytes
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
DEFINE OSC 32
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
define CCP1_REG 0 ' Must clear unused CCP pins or else unpredictable results
DEFINE CCP1_BIT 0
define CCP2_REG 0
DEFINE CCP2_BIT 0
define CCP3_REG 0
DEFINE CCP3_BIT 0
define CCP4_REG 0
DEFINE CCP4_BIT 0
define CCP5_REG 0
DEFINE CCP5_BIT 0
;--- Setup registers -----------------------------------------------------------
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
WPUA = %00100000 ' Pin A7 = Error code 2
' Pin A6 = Error code 1
' Pin A4 = ADC-A4 (B10K)
' Pin A3 = SW external pull-down
' Pin A2 = Vref-
' Pin A1 = ADC-A1 (B5K w/SW)
' Pin A0 = ADC-A0 (B5K)
WPUB = %00111111 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
WPUC = %00100111 ' Pin C7 = RX
' Pin C6 = TX
' Pin C4 = ADC-C4 (B10K)
' Pin C3 = ADC-C3 (B10K)
ANSELA = %00000000 ' Pin A7 = Error code 2
' Pin A6 = Error code 1
' Pin A4 = ADC-A4 (B10K)
' Pin A1 = ADC-A1 (B5K w/SW)
' Pin A0 = ADC-A0 (B5K)
ANSELB = %00000000
ANSELC = %00000000 ' Pin C7 = RX
' Pin C6 = TX
' Pin C4 = ADC-C4 (B10K)
' Pin C3 = ADC-C3 (B10K)
TRISA = %00011011 ' Pin A7 = Error code 2
' Pin A6 = Error code 1
' Pin A4 = ADC-A4 (B10K)
' Pin A3 = SW
' Pin A1 = ADC-A1 (B5K w/SW)
' Pin A0 = ADC-A0 (B5K)
TRISB = %00000000 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
TRISC = %11011000 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
' Pin C4 = ADC-C4 (B10K)
' Pin C3 = ADC-C3 (B10K)
Marker1 var LatA.6 ' Pin A7 = Marker 1
Marker2 var LatA.7 ' Pin A6 = Marker 2
MsgData var byte[80]
MsgLoop var byte
MsgLength var byte
Marker1 = 0
Marker2 = 0
MsgLength = 80
Pause 500 ' Let PIC and LCD stabilize
Marker1 = 1
for MsgLoop = 0 to MsgLength - 1
MsgData [MsgLoop] = MsgLoop + 43
next MsgLoop
LatA = %10000000
hserout [ str MsgData\MsgLength ] ' Transmit data
while TX1STA.1 = 0 ' Check TRMT bit
wend
LatA = %00000000
EndlessLoop:
goto EndlessLoop
end
RX pgm using aliases:
- Hserin 80 bytes
- displays array on LCD
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
;--- Interrupts ----------------------------------------------------------------
include "I:\Project_v2\PBP\PBP_Includes\DT_INTS-14_16F1885x-7x.bas"
include "I:\Project_v2\PBP\PBP_Includes\ReEnterPBP.bas"
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler RX_INT, _RXinterrupt, PBP, no
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
DEFINE OSC 32
DEFINE LCD_DREG PORTB ' Set LCD data port
DEFINE LCD_DBIT 0 ' Set starting data bit
DEFINE LCD_RSREG PORTC ' Set LCD register select port
DEFINE LCD_RSBIT 4 ' Set LCD register select bit
DEFINE LCD_EREG PORTC ' Set LCD enable port
DEFINE LCD_EBIT 5 ' Set LCD enable bit
DEFINE LCD_BITS 4 ' Set LCD bus size
DEFINE LCD_LINES 4 ' Set number of lines on LCD
DEFINE LCD_COMMANDUS 1000 ' Set command delay time in microseconds
DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds
define CCP1_REG 0 ' Must clear unused CCP pins or else unpredictable results
DEFINE CCP1_BIT 0
define CCP2_REG 0
DEFINE CCP2_BIT 0
define CCP3_REG PORTB ' PWM Pulse out to LCD backlight
DEFINE CCP3_BIT 5
define CCP4_REG 0 ' Must clear unused CCP pins or else unpredictable results
DEFINE CCP4_BIT 0
define CCP5_REG PORTA ' PWM Pulse out to LED strips
DEFINE CCP5_BIT 4
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
;--- Setup registers -----------------------------------------------------------
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
INTCON = %11000000 ' INTERRUPT CONTROL REGISTER
' bit 7 GIE: Global Interrupt Enable bit
' 1 = Enables all active interrupts
' 0 = Disables all interrupts
' bit 6 PEIE: Peripheral Interrupt Enable bit
' 1 = Enables all active peripheral interrupts
' 0 = Disables all peripheral interrupts
PIE3 = %00100000 ' PERIPHERAL INTERRUPT ENABLE REGISTER 3
' bit 5 RCIE: USART Receive Interrupt Enable bit
' 1 = Enables the USART receive interrupt
' 0 = Enables the USART receive interrupt
CCP3CON = %10001111 ' CCP3 CONTROL REGISTER
' bit 7 EN: CCPx Module Enable bit
' 1 = CCPx is enabled
' bit 4 FMT: CCPW (Pulse Width) Alignment bit
' MODE = PWM mode
' 0 = Right-aligned format
' bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
' 1111 = PWM mode
CCP5CON = %10001111 ' CCP5 CONTROL REGISTER
' bit 7 EN: CCPx Module Enable bit
' 1 = CCPx is enabled
' bit 4 FMT: CCPW (Pulse Width) Alignment bit
' MODE = PWM mode
' 0 = Right-aligned format
' bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
' 1111 = PWM mode
ADCON0 = %00000000 ' Value CONTROL REGISTER 0
WPUA = %00001111 ' Pin A7 = LCDout 2
' Pin A6 = LCDout 1
' Pin A5 = RX Int
' Pin A4 = PWM to LED strips
WPUB = %11011111 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
' Pin B5 = PWM to LCD backlight
WPUC = %00111111 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
ANSELA = %00000000 ' Pin A6 = LCDout 1
' Pin A5 = RX Int
' Pin A4 = PWM to LED strips
ANSELB = %00000000 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
' Pin B5 = PWM to LCD backlight
ANSELC = %00000000 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
TRISA = %00000000 ' Pin A7 = LCDout 2
' Pin A6 = LCDout 1
' Pin A5 = RX Int
' Pin A4 = PWM to LED strips
TRISB = %00000000 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
' Pin B5 = PWM to LCD backlight
TRISC = %11000000 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
Marker2 var LATA.7
Marker1 var LATA.5
MsgData var byte[80]
Value0 VAR MsgData[0] ' LCD row 1
Value1 VAR MsgData[1]
Value2 VAR MsgData[2]
Value3 VAR MsgData[3]
Value4 VAR MsgData[4]
Value5 VAR MsgData[5]
Value6 VAR MsgData[6]
Value7 VAR MsgData[7]
Value8 VAR MsgData[8]
Value9 VAR MsgData[9]
Value10 VAR MsgData[10]
Value11 VAR MsgData[11]
Value12 VAR MsgData[12]
Value13 VAR MsgData[13]
Value14 VAR MsgData[14]
Value15 VAR MsgData[15]
Value16 VAR MsgData[16]
Value17 VAR MsgData[17]
Value18 VAR MsgData[18]
Value19 VAR MsgData[19]
Value20 VAR MsgData[20] ' LCD row 2
Value21 VAR MsgData[21]
Value22 VAR MsgData[22]
Value23 VAR MsgData[23]
Value24 VAR MsgData[24]
Value25 VAR MsgData[25]
Value26 VAR MsgData[26]
Value27 VAR MsgData[27]
Value28 VAR MsgData[28]
Value29 VAR MsgData[29]
Value30 VAR MsgData[30]
Value31 VAR MsgData[31]
Value32 VAR MsgData[32]
Value33 VAR MsgData[33]
Value34 VAR MsgData[34]
Value35 VAR MsgData[35]
Value36 VAR MsgData[36]
Value37 VAR MsgData[37]
Value38 VAR MsgData[38]
Value39 VAR MsgData[39]
Value40 VAR MsgData[40] ' LCD row 3
Value41 VAR MsgData[41]
Value42 VAR MsgData[42]
Value43 VAR MsgData[43]
Value44 VAR MsgData[44]
Value45 VAR MsgData[45]
Value46 VAR MsgData[46]
Value47 VAR MsgData[47]
Value48 VAR MsgData[48]
Value49 VAR MsgData[49]
Value50 VAR MsgData[50]
Value51 VAR MsgData[51]
Value52 VAR MsgData[52]
Value53 VAR MsgData[53]
Value54 VAR MsgData[54]
Value55 VAR MsgData[55]
Value56 VAR MsgData[56]
Value57 VAR MsgData[57]
Value58 VAR MsgData[58]
Value59 VAR MsgData[59]
Value60 VAR MsgData[60] ' LCD row 4
Value61 VAR MsgData[61]
Value62 VAR MsgData[62]
Value63 VAR MsgData[63]
Value64 VAR MsgData[64]
Value65 VAR MsgData[65]
Value66 VAR MsgData[66]
Value67 VAR MsgData[67]
Value68 VAR MsgData[68]
Value69 VAR MsgData[69]
Value70 VAR MsgData[70]
Value71 VAR MsgData[71]
Value72 VAR MsgData[72]
Value73 VAR MsgData[73]
Value74 VAR MsgData[74]
Value75 VAR MsgData[75]
Value76 VAR MsgData[76]
Value77 VAR MsgData[77]
Value78 VAR MsgData[78]
Value79 VAR MsgData[79]
MsgLength var byte
HPWMlcdBL var BYTE
HPWMledstrip var BYTE
RXoccurred var BYTE
MsgLength = 80
Marker1 = 0
Marker2 = 1
HPWMlcdBL = 150 ' low intensity
HPWMledstrip = 15 ' low intensity
HPWM 3, HPWMlcdBL, 1953
HPWM 5, HPWMledstrip, 1953
Marker2 = 0
RXoccurred = 0 ' Clear RX flag
Pause 500 ' Let PIC and LCD stabilize
goto Start ' Jump over sub-routines
;--- Interrupts ----------------------------------------------------------------
RXinterrupt:
Marker1 = 1
hserin [ STR MsgData\MsgLength]
while BAUDCON1.6 = 0 ' Check RCIDL bit
wend
RXoccurred = 1 ' Set flag
Marker1 = 0
@ INT_RETURN
;--- Subroutines ---------------------------------------------------------------
Start:
@ INT_ENABLE RX_INT ; Enable USART Receive interrupts
while RXoccurred = 0 ' Wait for message
wend
Marker2 = 1
LCDOUT $FE, 1
LCDOUT $FE, $80, Value0, Value1, Value2, Value3, Value4, _
Value5, Value6, Value7, Value8, Value9, _
Value10, Value11, Value12, Value13, Value14, _
Value15, Value16, Value17, Value18, Value19
LCDOUT $FE, $C0, Value20, Value21, Value22, Value23, Value24, _
Value25, Value26, Value27, Value28, Value29, _
Value30, Value31, Value32, Value33, Value34, _
Value35, Value36, Value37, Value38, Value39
LCDOUT $FE, $94, Value40, Value41, Value42, Value43, Value44, _
Value45, Value46, Value47, Value48, Value49, _
Value50, Value51, Value52, Value53, Value54, _
Value55, Value56, Value57, Value58, Value59
LCDOUT $FE, $D4, Value60, Value61, Value62, Value63, Value64, _
Value65, Value66, Value67, Value68, Value69, _
Value70, Value71, Value72, Value73, Value74, _
Value75, Value76, Value77, Value78, Value79
Marker2 = 0
EndlessLoop:
goto EndlessLoop
end
RX pgm using strcpy:
- Hserin 80 bytes
- strcpy array
- displays array on LCD
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
include "I:\Project_v2\PBP\PBP_Includes\USARTarray.bas"
;--- Interrupts ----------------------------------------------------------------
include "I:\Project_v2\PBP\PBP_Includes\DT_INTS-14_16F1885x-7x.bas"
include "I:\Project_v2\PBP\PBP_Includes\ReEnterPBP.bas"
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler RX_INT, _RXinterrupt, PBP, no
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
DEFINE OSC 32
DEFINE LCD_DREG PORTB ' Set LCD data port
DEFINE LCD_DBIT 0 ' Set starting data bit
DEFINE LCD_RSREG PORTC ' Set LCD register select port
DEFINE LCD_RSBIT 4 ' Set LCD register select bit
DEFINE LCD_EREG PORTC ' Set LCD enable port
DEFINE LCD_EBIT 5 ' Set LCD enable bit
DEFINE LCD_BITS 4 ' Set LCD bus size
DEFINE LCD_LINES 4 ' Set number of lines on LCD
DEFINE LCD_COMMANDUS 1000 ' Set command delay time in microseconds
DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds
define CCP1_REG 0 ' Must clear unused CCP pins or else unpredictable results
DEFINE CCP1_BIT 0
define CCP2_REG 0
DEFINE CCP2_BIT 0
define CCP3_REG PORTB ' PWM Pulse out to LCD backlight
DEFINE CCP3_BIT 5
define CCP4_REG 0 ' Must clear unused CCP pins or else unpredictable results
DEFINE CCP4_BIT 0
define CCP5_REG PORTA ' PWM Pulse out to LED strips
DEFINE CCP5_BIT 4
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
;--- Setup registers -----------------------------------------------------------
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
INTCON = %11000000 ' INTERRUPT CONTROL REGISTER
' bit 7 GIE: Global Interrupt Enable bit
' 1 = Enables all active interrupts
' 0 = Disables all interrupts
' bit 6 PEIE: Peripheral Interrupt Enable bit
' 1 = Enables all active peripheral interrupts
' 0 = Disables all peripheral interrupts
PIE3 = %00100000 ' PERIPHERAL INTERRUPT ENABLE REGISTER 3
' bit 5 RCIE: USART Receive Interrupt Enable bit
' 1 = Enables the USART receive interrupt
' 0 = Enables the USART receive interrupt
CCP3CON = %10001111 ' CCP3 CONTROL REGISTER
' bit 7 EN: CCPx Module Enable bit
' 1 = CCPx is enabled
' bit 4 FMT: CCPW (Pulse Width) Alignment bit
' MODE = PWM mode
' 0 = Right-aligned format
' bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
' 1111 = PWM mode
CCP5CON = %10001111 ' CCP5 CONTROL REGISTER
' bit 7 EN: CCPx Module Enable bit
' 1 = CCPx is enabled
' bit 4 FMT: CCPW (Pulse Width) Alignment bit
' MODE = PWM mode
' 0 = Right-aligned format
' bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
' 1111 = PWM mode
ADCON0 = %00000000 ' Value CONTROL REGISTER 0
WPUA = %00001111 ' Pin A7 = LCDout 2
' Pin A6 = LCDout 1
' Pin A5 = RX Int
' Pin A4 = PWM to LED strips
WPUB = %11011111 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
' Pin B5 = PWM to LCD backlight
WPUC = %00111111 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
ANSELA = %00000000 ' Pin A6 = LCDout 1
' Pin A5 = RX Int
' Pin A4 = PWM to LED strips
ANSELB = %00000000 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
' Pin B5 = PWM to LCD backlight
ANSELC = %00000000 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
TRISA = %00000000 ' Pin A7 = LCDout 2
' Pin A6 = LCDout 1
' Pin A5 = RX Int
' Pin A4 = PWM to LED strips
TRISB = %00000000 ' Pin B7 = ...not available, ICSPDAT
' Pin B6 = ...not available, ICSPCLK
' Pin B5 = PWM to LCD backlight
TRISC = %11000000 ' Pin C7 = RX *** Datasheet requirement, INPUT ***
' Pin C6 = TX *** Datasheet requirement, INPUT ***
Marker2 var LATA.7
Marker1 var LATA.5
asm
Value0 = _MsgData
Value1 = _MsgData + 1
Value2 = _MsgData + 2
Value3 = _MsgData + 3
Value4 = _MsgData + 4
Value5 = _MsgData + 5
Value6 = _MsgData + 6
Value7 = _MsgData + 7
Value8 = _MsgData + 8
Value9 = _MsgData + 9
Value10 = _MsgData + 10
Value11 = _MsgData + 11
Value12 = _MsgData + 12
Value13 = _MsgData + 13
Value14 = _MsgData + 14
Value15 = _MsgData + 15
Value16 = _MsgData + 16
Value17 = _MsgData + 17
Value18 = _MsgData + 18
Value19 = _MsgData + 19
Value20 = _MsgData + 20
Value21 = _MsgData + 21
Value22 = _MsgData + 22
Value23 = _MsgData + 23
Value24 = _MsgData + 24
Value25 = _MsgData + 25
Value26 = _MsgData + 26
Value27 = _MsgData + 27
Value28 = _MsgData + 28
Value29 = _MsgData + 29
Value30 = _MsgData + 30
Value31 = _MsgData + 31
Value32 = _MsgData + 32
Value33 = _MsgData + 33
Value34 = _MsgData + 34
Value35 = _MsgData + 35
Value36 = _MsgData + 36
Value37 = _MsgData + 37
Value38 = _MsgData + 38
Value39 = _MsgData + 39
Value40 = _MsgData + 40
Value41 = _MsgData + 41
Value42 = _MsgData + 42
Value43 = _MsgData + 43
Value44 = _MsgData + 44
Value45 = _MsgData + 45
Value46 = _MsgData + 46
Value47 = _MsgData + 47
Value48 = _MsgData + 48
Value49 = _MsgData + 49
Value50 = _MsgData + 50
Value51 = _MsgData + 51
Value52 = _MsgData + 52
Value53 = _MsgData + 53
Value54 = _MsgData + 54
Value55 = _MsgData + 55
Value56 = _MsgData + 56
Value57 = _MsgData + 57
Value58 = _MsgData + 58
Value59 = _MsgData + 59
Value60 = _MsgData + 60
Value61 = _MsgData + 61
Value62 = _MsgData + 62
Value63 = _MsgData + 63
Value64 = _MsgData + 64
Value65 = _MsgData + 65
Value66 = _MsgData + 66
Value67 = _MsgData + 67
Value68 = _MsgData + 68
Value69 = _MsgData + 69
Value70 = _MsgData + 70
Value71 = _MsgData + 71
Value72 = _MsgData + 72
Value73 = _MsgData + 73
Value74 = _MsgData + 74
Value75 = _MsgData + 75
Value76 = _MsgData + 76
Value77 = _MsgData + 77
Value78 = _MsgData + 78
Value79 = _MsgData + 79
endasm
Value0 VAR BYTE ext ' LCD row 1
Value1 VAR BYTE ext
Value2 VAR BYTE ext
Value3 VAR BYTE ext
Value4 VAR BYTE ext
Value5 VAR BYTE ext
Value6 VAR BYTE ext
Value7 VAR BYTE ext
Value8 VAR BYTE ext
Value9 VAR BYTE ext
Value10 VAR BYTE ext
Value11 VAR BYTE ext
Value12 VAR BYTE ext
Value13 VAR BYTE ext
Value14 VAR BYTE ext
Value15 VAR BYTE ext
Value16 VAR BYTE ext
Value17 VAR BYTE ext
Value18 VAR BYTE ext
Value19 VAR BYTE ext
Value20 VAR BYTE ext ' LCD row 2
Value21 VAR BYTE ext
Value22 VAR BYTE ext
Value23 VAR BYTE ext
Value24 VAR BYTE ext
Value25 VAR BYTE ext
Value26 VAR BYTE ext
Value27 VAR BYTE ext
Value28 VAR BYTE ext
Value29 VAR BYTE ext
Value30 VAR BYTE ext
Value31 VAR BYTE ext
Value32 VAR BYTE ext
Value33 VAR BYTE ext
Value34 VAR BYTE ext
Value35 VAR BYTE ext
Value36 VAR BYTE ext
Value37 VAR BYTE ext
Value38 VAR BYTE ext
Value39 VAR BYTE ext
Value40 VAR BYTE ext ' LCD row 3
Value41 VAR BYTE ext
Value42 VAR BYTE ext
Value43 VAR BYTE ext
Value44 VAR BYTE ext
Value45 VAR BYTE ext
Value46 VAR BYTE ext
Value47 VAR BYTE ext
Value48 VAR BYTE ext
Value49 VAR BYTE ext
Value50 VAR BYTE ext
Value51 VAR BYTE ext
Value52 VAR BYTE ext
Value53 VAR BYTE ext
Value54 VAR BYTE ext
Value55 VAR BYTE ext
Value56 VAR BYTE ext
Value57 VAR BYTE ext
Value58 VAR BYTE ext
Value59 VAR BYTE ext
Value60 VAR BYTE ext ' LCD row 4
Value61 VAR BYTE ext
Value62 VAR BYTE ext
Value63 VAR BYTE ext
Value64 VAR BYTE ext
Value65 VAR BYTE ext
Value66 VAR BYTE ext
Value67 VAR BYTE ext
Value68 VAR BYTE ext
Value69 VAR BYTE ext
Value70 VAR BYTE ext
Value71 VAR BYTE ext
Value72 VAR BYTE ext
Value73 VAR BYTE ext
Value74 VAR BYTE ext
Value75 VAR BYTE ext
Value76 VAR BYTE ext
Value77 VAR BYTE ext
Value78 VAR BYTE ext
Value79 VAR BYTE ext
Incoming var byte[80]
MsgData var byte[80]
MsgLength var byte
HPWMlcdBL var BYTE
HPWMledstrip var BYTE
RXoccurred var BYTE
MsgLength = 80
Marker1 = 0
Marker2 = 1
HPWMlcdBL = 150 ' low intensity
HPWMledstrip = 15 ' low intensity
HPWM 3, HPWMlcdBL, 1953
HPWM 5, HPWMledstrip, 1953
Marker2 = 0
RXoccurred = 0 ' Clear RX flag
Pause 500 ' Let PIC and LCD stabilize
goto Start ' Jump over sub-routines
;--- Interrupts ----------------------------------------------------------------
RXinterrupt:
Marker1 = 1
hserin [ STR Incoming\MsgLength]
while BAUDCON1.6 = 0 ' Check RCIDL bit
wend
RXoccurred = 1 ' Set flag
Marker1 = 0
@ INT_RETURN
;--- Subroutines ---------------------------------------------------------------
Start:
@ INT_ENABLE RX_INT ; Enable USART Receive interrupts
while RXoccurred = 0 ' Wait for message
wend
Marker2 = 1
strcpy MsgData , Incoming , 80
pause 50
Marker2 = 0
Marker1 = 1
LCDOUT $FE, 1
LCDOUT $FE, $80, Value0, Value1, Value2, Value3, Value4, _
Value5, Value6, Value7, Value8, Value9, _
Value10, Value11, Value12, Value13, Value14, _
Value15, Value16, Value17, Value18, Value19
LCDOUT $FE, $C0, Value20, Value21, Value22, Value23, Value24, _
Value25, Value26, Value27, Value28, Value29, _
Value30, Value31, Value32, Value33, Value34, _
Value35, Value36, Value37, Value38, Value39
LCDOUT $FE, $94, Value40, Value41, Value42, Value43, Value44, _
Value45, Value46, Value47, Value48, Value49, _
Value50, Value51, Value52, Value53, Value54, _
Value55, Value56, Value57, Value58, Value59
LCDOUT $FE, $D4, Value60, Value61, Value62, Value63, Value64, _
Value65, Value66, Value67, Value68, Value69, _
Value70, Value71, Value72, Value73, Value74, _
Value75, Value76, Value77, Value78, Value79
Marker1 = 0
EndlessLoop:
goto EndlessLoop
end
Both RX programs used same base code, only changed array and added strcpy.
Saleae probe timings from before Load Array in TX to after Lcdout in RX
TX/RX using aliases, 35.4 mSec:
Attachment 9953
TX/RX using strcpy, now 85.2 mSec, adds 50.0 mSec step during strcpy:
Attachment 9954
LCD displayed properly "+" to "z":
Attachment 9955
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Yup, now confirmed. It's faster to use aliases than Richard's module strcpy.
while totally ignoring the reasons why i do it that way
1, you get every opportunity to vet the data before committing to overwrite the old data
its east to vet whether by crc or any other test you can devise
2, it can receive data from multiple devices and allow you to steer the data into appropriate structures at will
if you really need speed without verification
hserin 50,mainloop,[ wait("[",21), STR MsgData \21]
you don't need any of that alias typing exercise
-
Re: Losing data when extracting bytes from words - 16F18855
Quote:
Originally Posted by
richard
while totally ignoring the reasons why i do it that way
1, you get every opportunity to vet the data before committing to overwrite the old data...
Ah, so now I understand why you referred to the first field in Incoming[0] before the strcpy. I was wondering why you did that.
Aliases are nice because I can give the elements a meaningful name instead of MsgData[x], and I don't have to move fields about.
I won't be moving 80 bytes anyways. This was just a test to use your module along with all those characters on my LCD.
I'll probably have a short layout, so I can "most likely" still use your module as you intended:
1 byte, destination PIC ID (%11xxxxxx)
1 byte, field ID (%1xxxxxxx)
1 word, field value
1 byte, return code
1 word, CRC (just sum of 5 bytes)
(return code might even be placed in the field value on reply and use only 4 bytes)
At least now I know that I can slide 3 slide pots at the same time as fast as I can and not lose data, even if the ADC increments grow larger (I wasn't sure before these ADCin tests). The real test will be making sure it reaches MSFS properly via USB - that's where I worry. I know USB can pile up messages in a queue, I just don't want to have to do that in my programs as well.
I still have to see if I can turn 2 encoders quickly at the same time to simulate a pilot and copilot each turning encoders. I want to make sure two people can share the panels, like when one changes radio frequency while the other changes heading.
The harder part will be flying the same plane over LAN or internet. Having two sets of my panels being used at the same time is an unknown for now (the game supports shared cockpit).
