Hola, consegui un par de modulos 3310 y estoy haciendo algunas pruebas; arranque en proteus y al compilar el ejemplo del foro, me sale este problema:
Google Translate:
Hello, I got a couple of modules 3310 and I am doing some tests;

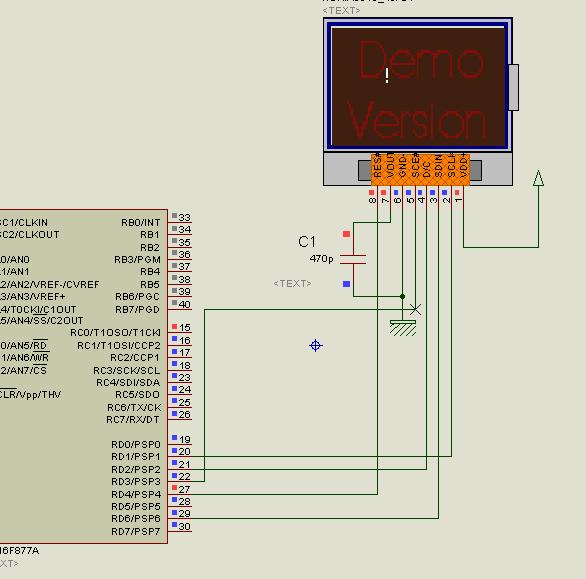

proteus and start to compile the example of the forum, I get this problem:
Attachment 8073
solo se ve el caracter "!"... probe de todo, e incluido, me lei todos los topicos, pero no llego a ver el prblema... compilo con PBP 2.50 y hasta llegue a pedirle a un conocido que lo compile en su 2.60 y el mismo problema... sera mplab?

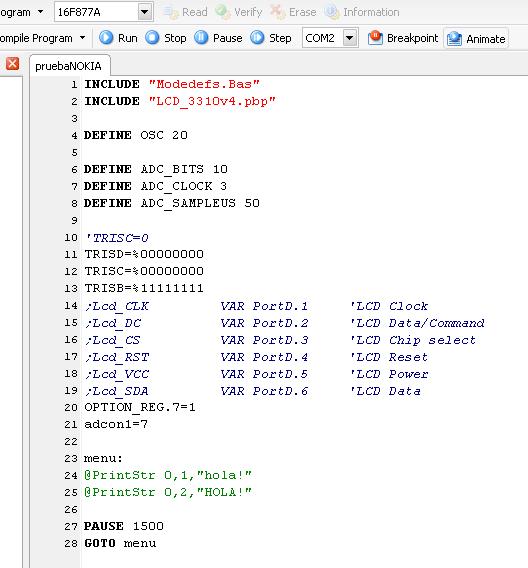

este es el ejemplo:
Google Translate:
only the character is "!" ... tried everything, and even, I read all the topics,
but I fail to see the prblem ... compiled with PBP 2.50 and to come to ask an
acquaintance who compile in his 2.60 and the same problem ... it will MPLAB?
This is the example:
La libreria es la que esta en el foro; Lo unico que modifique es:Code:Include "Modedefs.Bas"
include "LCD_3310v4.INC"
DEFINE OSC 20
DEFINE ADC_BITS 10
DEFINE ADC_CLOCK 3
DEFINE ADC_SAMPLEUS 50
'TRISC=0
TRISD=%00000000
TRISC=%00000000
TRISB=%11111111
;Lcd_CLK VAR PortD.1 'LCD Clock
;Lcd_DC VAR PortD.2 'LCD Data/Command
;Lcd_CS VAR PortD.3 'LCD Chip select
;Lcd_RST VAR PortD.4 'LCD Reset
;Lcd_VCC VAR PortD.5 'LCD Power
;Lcd_SDA VAR PortD.6 'LCD Data
OPTION_REG.7=1
adcon1=7
menu:
@ PrintStr 0,0, "I love being"
@ PrintStr 0,1, "able to print "
@ PrintStr 0,2, "so easily!"
pause 1500
goto menu
Google Translate:
The library is the one forum; The only thing that changes is:
'Configuracion de puertos - Cambiar segun sus apliaciones
Lcd_CLK VAR PortD.1 'LCD Clock
Lcd_DC VAR PortD.2 'LCD Data/Command
Lcd_SCE VAR PortD.3 'LCD Chip select
Lcd_RES VAR PortD.4 'LCD Reset
Lcd_VCC VAR PortD.5 'LCD Power
Lcd_SDO VAR PortD.6 'LCD Data
Google Translate:
'Port configuration - changed as apliaciones
VAR Lcd_CLK PortD.1 'LCD Clock
VAR Lcd_DC PortD.2 'LCD Data / Command
VAR Lcd_SCE PortD.3 'LCD Chip select
VAR Lcd_RES PortD.4 'LCD Reset
VAR Lcd_VCC PortD.5 'LCD Power
VAR Lcd_SDO PortD.6 'LCD Data
SaludosCode:'*****************************************************************
'* Name : LCD_3310.INC *
'* Date : 29.4.2009 *
'* Version : 3.1 with string and variable write macros *
'* Notes : LCD command library for Nokia 3310 or similar LCD *
'* : New Single line string and variable macro for *
'* : write to LCD makes using the Nokia_3310 much easier*
'*****************************************************************
' LCD Commands are:
' Lcd_Init
' Lcd_GotoXY
' Lcd_Clear
' Lcd_Home
' Lcd_Contrast
' Scr_Normal
' Scr_Invert
' @ PrintStr x,y, "string goes here" 'will auto wrap to next line if needed
' @ PrintVar x,y, _anyvariablehere
'you can manually position x,y and manually print characters by the following:
' PosX = 0 'move to position 0 of 83 (char best viewed at spacing of 6)
' PosY = 1 'move to second line of 6
' Gosub Lcd_GotoXY 'this must be specified BEFORE stating Lcd_Data
' Lcd_Data = "H"
' Gosub Lcd_SendChar
'-------------------------------------------------------------------------------
'LCD Common Variables for 3310 and 7110 LCD
PosX var Byte 'Variable para Posicion X
PosY var Byte 'Variable para Posicion Y
FC var Byte [5] 'Variable 5 bytes = 1 caracter
Lcd_Data var Byte 'LCD command or data
ColumnNum var byte 'numero de Columna
CharNum var byte 'numero de caracter CGRAM
VarData var word 'variable a imprimir en el lcd
n var byte 'empleado como variable en "for next"
digits var bit 'numero de digito en "VarData"
'for @ printstr
Addr VAR WORD
Char VAR byte 'lcdchardata[0]
'-------------------------------------------------------------------------------
'Configuracion de puertos - Cambiar segun sus apliaciones
Lcd_CLK VAR PortD.1 'LCD Clock
Lcd_DC VAR PortD.2 'LCD Data/Command
Lcd_SCE VAR PortD.3 'LCD Chip select
Lcd_RES VAR PortD.4 'LCD Reset
Lcd_VCC VAR PortD.5 'LCD Power
Lcd_SDO VAR PortD.6 'LCD Data
'inicializacion del display-----------------------------------------------
pause 25
gosub Lcd_Init 'Iniciar LCD
gosub Lcd_Clear 'Limpiar el conteido de la pantalla
'-----------------------------------------------------------------
goto OverLCD 'al teminar, salir
'-------------------------------------------------------------------------------
Lcd_Init: 'Initialize LCD, run 1st this!
Low Lcd_RES 'Reset LCD (HW reset)
pause 1
High Lcd_RES 'Release Reset
Low Lcd_SCE 'Chip Select
Low Lcd_DC 'Command/Data
Lcd_Data= $21: GOSUB Lcd_SendByte ' LCD EXTENDED COMMANDS
Lcd_Data= $c8: GOSUB Lcd_SendByte ' SET LCD Vop (CONTRAST)
Lcd_Data= $06: GOSUB Lcd_SendByte ' SET TEMP COEFFICENT
Lcd_Data= $13: GOSUB Lcd_Sendbyte ' LCD BIAS MODE
Lcd_Data= $20: GOSUB Lcd_Sendbyte ' LCD STANDARD COMMANDS
lcd_data= $08: gosub lcd_sendbyte 'lcd blank
Lcd_Data= $0c: GOSUB Lcd_sendbyte ' LCD IN NORMAL MODE
Return
'-------------------------------------------------------------------------------
'@ printstr macro function from Darrel and edited to work for this lcd
'format should look like this: @ PrintStr x,y, "your text string goes here"
ASM
PrintStr macro x, y, Str
local TheString, OverStr
goto OverStr
TheString
data Str, 0
OverStr
MOVE?CB x, _PosX
MOVE?CB y, _PosY
MOVE?CW TheString, _Addr
L?CALL _StringOut
endm
ENDASM
StringOut:
Readcode Addr, Char ' Get a character
if Char = 0 then StringDone ' Look for Null char, Stop if found
Gosub Lcd_GotoXY
Lcd_Data = Char
gosub Lcd_SendChar 'puttext
Addr = Addr + 1 ' Point to next character
PosX = PosX + 6
if PosX > 78 then 'If end of line, cycle to next line
PosY = PosY + 1
PosX = 0
endif
goto StringOut ' Continue with rest of the string
StringDone:
return
'_______________________________________________________________________________
'@ PrintVar macro function
'format should look like this: @ PrintVar x,y, _anyvariable
ASM
PrintVar macro x, y, Variable ;input values from: @PrintVar 0,1, _any_variable
local OverVar
goto OverVar
OverVar
MOVE?CB x, _PosX ;move x from above statement to PosX
MOVE?CB y, _PosY ;move y from above statement to PosY
MOVE?WW Variable, _VarData ;move variable in statement to VarData
L?CALL _VariableOut ;call VariableOut function
endm
ENDASM
VariableOut:
@ bcf _digits
for n = 4 to 0 step -1 'cycles through all possible digts of number
Gosub Lcd_GotoXY 'place character at position PosX and PosY
Lcd_Data = (VarData dig n) + 48 'digit number n to character str format
if Lcd_data = 48 and digits = 0 then SkipChar 'skip if first char is 0
@ bsf _digits ;show that one character has been printed
gosub Lcd_SendChar 'print char to screen
PosX = PosX + 6 'next x position for character
SkipChar:
next n
return
'-------------------------------------------------------------------------------
Lcd_GotoXY: 'Goto XY coordinates
Low Lcd_DC
Lcd_Data=%01000000 | PosY :Gosub Lcd_SendByte
Lcd_Data=%10000000 | PosX :Gosub Lcd_SendByte
Return
Lcd_Clear: 'Clear display
Gosub Lcd_Home
High Lcd_DC
For ColumnNum = 1 to 84 'Send empty character
SHiftOUT Lcd_SDO, Lcd_CLK, MSBFIRST, [0,0,0,0,0,0] '14 per page
Next ColumnNum '6 rows
High Lcd_DC '14 * 6 = 84
Return
Lcd_Home: 'Cursor home
PosX=0:PosY=0:Gosub Lcd_GotoXY
Return
Lcd_Contrast: 'Contrast
Low Lcd_DC
Lcd_Data= %11010001: Gosub Lcd_SendByte 'Contrast might need
Return 'fine tunig
Scr_Normal: 'Normal screen mode
Low Lcd_DC
Lcd_Data= %00001100:Gosub Lcd_SendByte
return
Scr_Invert: 'Invert screen mode
Low Lcd_DC
Lcd_Data= %00001101:Gosub Lcd_SendByte
return
Lcd_SendByte: 'Send command or data to LCD
SHiftOUT Lcd_SDO, Lcd_CLK, MSBFIRST, [Lcd_Data]
Return
'-------------------------------------------------------------------------------
' This part demonstrates how to write to LCD
Lcd_SendChar:
lookdown Lcd_data,[" !\#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ"],CharNum'[\]^_`abcdefghijklmnopqrstuvwxyz{|}~"],CharNum
Lcd_data = CharNum +32
sELECT CASE lcd_data
Case 32
FC(0)=$00:FC(1)=$00:FC(2)=$00:FC(3)=$00:FC(4)=$00 ' // sp
Case 33
FC(0)=$00:FC(1)=$00:FC(2)=$2f:FC(3)=$00:FC(4)=$00 ' // !
Case 34
FC(0)=$00:FC(1)=$07:FC(2)=$00:FC(3)=$07:FC(4)=$00 ' // " (use \)
Case 35
FC(0)=$14:FC(1)=$7f:FC(2)=$14:FC(3)=$7f:FC(4)=$14 ' // #
Case 36
FC(0)=$24:FC(1)=$2a:FC(2)=$7f:FC(3)=$2a:FC(4)=$12 ' // $
Case 37
FC(0)=$c4:FC(1)=$c8:FC(2)=$10:FC(3)=$26:FC(4)=$46 ' // %
Case 38
FC(0)=$36:FC(1)=$49:FC(2)=$55:FC(3)=$22:FC(4)=$50 ' // &
Case 39
FC(0)=$00:FC(1)=$05:FC(2)=$03:FC(3)=$00:FC(4)=$00 ' // '
Case 40
FC(0)=$00:FC(1)=$1c:FC(2)=$22:FC(3)=$41:FC(4)=$00 ' // (
Case 41
FC(0)=$00:FC(1)=$41:FC(2)=$22:FC(3)=$1c:FC(4)=$00 ' // )
Case 42
FC(0)=$14:FC(1)=$08:FC(2)=$3E:FC(3)=$08:FC(4)=$14 ' // *
Case 43
FC(0)=$08:FC(1)=$08:FC(2)=$3E:FC(3)=$08:FC(4)=$08 ' // +
Case 44
FC(0)=$00:FC(1)=$00:FC(2)=$50:FC(3)=$30:FC(4)=$00 ' //
Case 45
FC(0)=$10:FC(1)=$10:FC(2)=$10:FC(3)=$10:FC(4)=$10 ' // -
Case 46
FC(0)=$00:FC(1)=$60:FC(2)=$60:FC(3)=$00:FC(4)=$00 ' // .
Case 47
FC(0)=$20:FC(1)=$10:FC(2)=$08:FC(3)=$04:FC(4)=$02 ' // /
Case 48
FC(0)=$3E:FC(1)=$51:FC(2)=$49:FC(3)=$45:FC(4)=$3E ' // 0
Case 49
FC(0)=$00:FC(1)=$42:FC(2)=$7F:FC(3)=$40:FC(4)=$00 ' // 1
Case 50
FC(0)=$42:FC(1)=$61:FC(2)=$51:FC(3)=$49:FC(4)=$46 ' // 2
Case 51
FC(0)=$21:FC(1)=$41:FC(2)=$45:FC(3)=$4B:FC(4)=$31 ' // 3
Case 52
FC(0)=$18:FC(1)=$14:FC(2)=$12:FC(3)=$7F:FC(4)=$10 ' // 4
Case 53
FC(0)=$27:FC(1)=$45:FC(2)=$45:FC(3)=$45:FC(4)=$39 ' // 5
Case 54
FC(0)=$3C:FC(1)=$4A:FC(2)=$49:FC(3)=$49:FC(4)=$30 ' // 6
Case 55
FC(0)=$01:FC(1)=$71:FC(2)=$09:FC(3)=$05:FC(4)=$03 ' // 7
Case 56
FC(0)=$36:FC(1)=$49:FC(2)=$49:FC(3)=$49:FC(4)=$36 ' // 8
Case 57
FC(0)=$06:FC(1)=$49:FC(2)=$49:FC(3)=$29:FC(4)=$1E ' // 9
Case 58
FC(0)=$00:FC(1)=$36:FC(2)=$36:FC(3)=$00:FC(4)=$00 ' // :
Case 59
FC(0)=$00:FC(1)=$56:FC(2)=$36:FC(3)=$00:FC(4)=$00 ' // ";"
Case 60
FC(0)=$08:FC(1)=$14:FC(2)=$22:FC(3)=$41:FC(4)=$00 ' // <
Case 61
FC(0)=$14:FC(1)=$14:FC(2)=$14:FC(3)=$14:FC(4)=$14 ' // =
Case 62
FC(0)=$00:FC(1)=$41:FC(2)=$22:FC(3)=$14:FC(4)=$08 ' // >
Case 63
FC(0)=$02:FC(1)=$01:FC(2)=$51:FC(3)=$09:FC(4)=$06 ' // ?
Case 64
FC(0)=$32:FC(1)=$49:FC(2)=$59:FC(3)=$51:FC(4)=$3E ' // @
Case 65
FC(0)=$7E:FC(1)=$11:FC(2)=$11:FC(3)=$11:FC(4)=$7E ' // A
Case 66
FC(0)=$7F:FC(1)=$49:FC(2)=$49:FC(3)=$49:FC(4)=$36 ' // B
Case 67
FC(0)=$3E:FC(1)=$41:FC(2)=$41:FC(3)=$41:FC(4)=$22 ' // C
Case 68
FC(0)=$7F:FC(1)=$41:FC(2)=$41:FC(3)=$22:FC(4)=$1C ' // D
Case 69
FC(0)=$7F:FC(1)=$49:FC(2)=$49:FC(3)=$49:FC(4)=$41 ' // E
Case 70
FC(0)=$7F:FC(1)=$09:FC(2)=$09:FC(3)=$09:FC(4)=$01 ' // F
Case 71
FC(0)=$3E:FC(1)=$41:FC(2)=$49:FC(3)=$49:FC(4)=$7A ' // G
Case 72
FC(0)=$7F:FC(1)=$08:FC(2)=$08:FC(3)=$08:FC(4)=$7F ' // H
Case 73
FC(0)=$00:FC(1)=$41:FC(2)=$7F:FC(3)=$41:FC(4)=$00 ' // I
Case 74
FC(0)=$20:FC(1)=$40:FC(2)=$41:FC(3)=$3F:FC(4)=$01 ' // J
Case 75
FC(0)=$7F:FC(1)=$08:FC(2)=$14:FC(3)=$22:FC(4)=$41 ' // K
Case 76
FC(0)=$7F:FC(1)=$40:FC(2)=$40:FC(3)=$40:FC(4)=$40 ' // L
Case 77
FC(0)=$7F:FC(1)=$02:FC(2)=$0C:FC(3)=$02:FC(4)=$7F ' // M
Case 78
FC(0)=$7F:FC(1)=$04:FC(2)=$08:FC(3)=$10:FC(4)=$7F ' // N
Case 79
FC(0)=$3E:FC(1)=$41:FC(2)=$41:FC(3)=$41:FC(4)=$3E ' // O
Case 80
FC(0)=$7F:FC(1)=$09:FC(2)=$09:FC(3)=$09:FC(4)=$06 ' // P
Case 81
FC(0)=$3E:FC(1)=$41:FC(2)=$51:FC(3)=$21:FC(4)=$5E ' // Q
Case 82
FC(0)=$7F:FC(1)=$09:FC(2)=$19:FC(3)=$29:FC(4)=$46 ' // R
Case 83
FC(0)=$46:FC(1)=$49:FC(2)=$49:FC(3)=$49:FC(4)=$31 ' // S
Case 84
FC(0)=$01:FC(1)=$01:FC(2)=$7F:FC(3)=$01:FC(4)=$01 ' // T
Case 85
FC(0)=$3F:FC(1)=$40:FC(2)=$40:FC(3)=$40:FC(4)=$3F ' // U
Case 86
FC(0)=$1F:FC(1)=$20:FC(2)=$40:FC(3)=$20:FC(4)=$1F ' // V
Case 87
FC(0)=$3F:FC(1)=$40:FC(2)=$38:FC(3)=$40:FC(4)=$3F ' // W
Case 88
FC(0)=$63:FC(1)=$14:FC(2)=$08:FC(3)=$14:FC(4)=$63 ' // X
Case 89
FC(0)=$07:FC(1)=$08:FC(2)=$70:FC(3)=$08:FC(4)=$07 ' // Y
Case 90
FC(0)=$61:FC(1)=$51:FC(2)=$49:FC(3)=$45:FC(4)=$43 ' // Z
' Case 91
' FC(0)=$00:FC(1)=$7F:FC(2)=$41:FC(3)=$41:FC(4)=$00 ' // [
' Case 92
' FC(0)=$02:FC(1)=$04:FC(2)=$08:FC(3)=$10:FC(4)=$20 ' // \ (we are using this for " above)
' Case 93
' FC(0)=$00:FC(1)=$41:FC(2)=$41:FC(3)=$7F:FC(4)=$00 ' // ]
' Case 94
' FC(0)=$04:FC(1)=$02:FC(2)=$01:FC(3)=$02:FC(4)=$04 ' // ^
' Case 95
' FC(0)=$40:FC(1)=$40:FC(2)=$40:FC(3)=$40:FC(4)=$40 ' // _
' Case 96
' FC(0)=$00:FC(1)=$01:FC(2)=$02:FC(3)=$04:FC(4)=$00 ' // '
' Case 97
' FC(0)=$20:FC(1)=$54:FC(2)=$54:FC(3)=$54:FC(4)=$78 ' // a
' Case 98
' FC(0)=$7F:FC(1)=$48:FC(2)=$44:FC(3)=$44:FC(4)=$38 ' // b
' Case 99
' FC(0)=$38:FC(1)=$44:FC(2)=$44:FC(3)=$44:FC(4)=$20 ' // c
' Case 100
' FC(0)=$38:FC(1)=$44:FC(2)=$44:FC(3)=$48:FC(4)=$7F ' // d
' Case 101
' FC(0)=$38:FC(1)=$54:FC(2)=$54:FC(3)=$54:FC(4)=$18 ' // e
' Case 102
' FC(0)=$08:FC(1)=$7E:FC(2)=$09:FC(3)=$01:FC(4)=$02 ' // f
' Case 103
' FC(0)=$0C:FC(1)=$52:FC(2)=$52:FC(3)=$52:FC(4)=$3E ' // g
' Case 104
' FC(0)=$7F:FC(1)=$08:FC(2)=$04:FC(3)=$04:FC(4)=$78 ' // h
' Case 105
' FC(0)=$00:FC(1)=$44:FC(2)=$7D:FC(3)=$40:FC(4)=$00 ' // i
' Case 106
' FC(0)=$20:FC(1)=$40:FC(2)=$44:FC(3)=$3D:FC(4)=$00 ' // j
' Case 107
' FC(0)=$7F:FC(1)=$10:FC(2)=$28:FC(3)=$44:FC(4)=$00 ' // k
' Case 108
' FC(0)=$00:FC(1)=$41:FC(2)=$7F:FC(3)=$40:FC(4)=$00 ' // l
' Case 109
' FC(0)=$7C:FC(1)=$04:FC(2)=$18:FC(3)=$04:FC(4)=$78 ' // m
' Case 110
' FC(0)=$7C:FC(1)=$08:FC(2)=$04:FC(3)=$04:FC(4)=$78 ' // n
' Case 111
' FC(0)=$38:FC(1)=$44:FC(2)=$44:FC(3)=$44:FC(4)=$38 ' // o
' Case 112
' FC(0)=$7C:FC(1)=$14:FC(2)=$14:FC(3)=$14:FC(4)=$08 ' // p
' Case 113
' FC(0)=$08:FC(1)=$14:FC(2)=$14:FC(3)=$18:FC(4)=$7C ' // q
' Case 114
' FC(0)=$7C:FC(1)=$08:FC(2)=$04:FC(3)=$04:FC(4)=$08 ' // r
' Case 115
' FC(0)=$48:FC(1)=$54:FC(2)=$54:FC(3)=$54:FC(4)=$20 ' // s
' Case 116
' FC(0)=$04:FC(1)=$3F:FC(2)=$44:FC(3)=$40:FC(4)=$20 ' // t
' Case 117
' FC(0)=$3C:FC(1)=$40:FC(2)=$40:FC(3)=$20:FC(4)=$7C ' // u
' Case 118
' FC(0)=$1C:FC(1)=$20:FC(2)=$40:FC(3)=$20:FC(4)=$1C ' // v
' Case 119
' FC(0)=$3C:FC(1)=$40:FC(2)=$30:FC(3)=$40:FC(4)=$3C ' // w
' Case 120
' FC(0)=$44:FC(1)=$28:FC(2)=$10:FC(3)=$28:FC(4)=$44 ' // x
' Case 121
' FC(0)=$0C:FC(1)=$50:FC(2)=$50:FC(3)=$50:FC(4)=$3C ' // y
' Case 122
' FC(0)=$44:FC(1)=$64:FC(2)=$54:FC(3)=$4C:FC(4)=$44 ' // z
' case 123
' FC(0)=$00:FC(1)=$08:FC(2)=$36:FC(3)=$41:FC(4)=$00' // {
' case 124
' FC(0)=$00:FC(1)=$00:FC(2)=$7F:FC(3)=$00:FC(4)=$00 ' // |
' case 125
' FC(0)=$00:FC(1)=$41:FC(2)=$36:FC(3)=$08:FC(4)=$00' // }
' case 126
' FC(0)=$10:FC(1)=$08:FC(2)=$08:FC(3)=$10:FC(4)=$08' // ~
'case 127
' FC(0)=$10:FC(1)=$08:FC(2)=$08:FC(3)=$10:FC(4)=$08' // DEL
'Case 128
' FC(0)=$55:FC(1)=$2A:FC(2)=$55:FC(3)=$2A:FC(4)=$55 ' // 55 (shaded)
end SELECT
Write_LCD:
High Lcd_DC
SHiftOUT Lcd_SDO , Lcd_CLK , MSBFIRST, [ FC(0),FC(1),FC(2),FC(3),FC(4),$00 ]
Low Lcd_DC
Return
'-------------------------------------------------------------------------------
OverLCD:
