Again ADC with 12F675 ...

Hi !
I wote this code for 12F675:

Code:

---

@ __config _XT_OSC & _WDT_OFF & _PWRTE_ON & _MCLRE_ON & _BODEN_OFF & _CP_ON

DEFINE OSC  4
DEFINE ADC_BITS 10
DEFINE ADC_CLOCK 3
DEFINE ADC_SAMPLEUS 50

CMCON = 7
OPTION_REG  = %10000110
TRISIO      = %00001100
GPIO        = %00000001
ANSEL      = %00010100
ADCON0      = %10001001

---

In ISIS I have multiple errors ... what did I do wrong ?

Hi,
Is that really ALL of the code?

When you select an analog input which you want to convert the sample and hold circuit for the ADC needs to charge the S/H capacitor. It takes a certain amount of time (called acquisition time) for this capacitor to charge up. When the the A to D conversion starts the capacitor is disconnected from the input. If the A to D conversion is started before the acquisition time has expired the conversion result will not be correct.

I'm not sure if perhaps ISIS can, based on the simulation, figure out that the acquisition time isn't long enough. I've never used ISIS (haven't been able to justify the cost) so I don't know.... From the time stamp it looks like you're doing a A to D conversion in a quite tight loop, I don't know if that's a possible problem. It think you're going to have to post more of the code.

Finally, it's not an error, it's message telling you that it has happend. It doesn't prevent the code form compiling or from running but the behaviour of the code, as written, might not be what you actually wanted.

/Henrik.

Thank You so much for reply !
The rest of code is :

Code:

---

main:
pause 200
 ADCON0.1 = 1
 WHILE ADCON0.1 = 1 : WEND
 adval.HighByte = ADRESH
 adval.LowByte = ADRESL
 if k=0 and adval > 10 and adval < 750 then
 k=1
 pause 250
 endif

 while k=1
 gosub start
 wend
 goto main


start:

 ADCON0.1 = 1
 WHILE ADCON0.1 = 1 : WEND
 adval.HighByte = ADRESH
 adval.LowByte = ADRESL
if adval > 10  AND adval < 103 then gosub VolDn

return

---

Hi,

>The rest of code is :

Is it? You're calling VolDn but I don't see that in the code but I guess there's nothing to do with the ADC there?

Anyway, have you tried using ADCIN just to see if the message from ISIS goes away then?
I'm asking beacuse the DEFINE ADC_SAMPLUS 50 is for use with the ADCIN command I don't think it does anything for you when you run the ADC "manually". Alternativaly, whenever you're doing a converstion try:

Code:

---

ADCON0 = %10001001    ' Right justify, VRef=Vdd, select AN2, enable ADC.
PAUSEUS 100
ADCON0.1 = 1          ' Start conversion
WHILE ADCON0.1 = 1 : WEND
adval.HighByte = ADRESH
adval.LowByte = ADRESL

---

In this case I don't think anything of it really matters since you're always sampling the same channel but it might be worth a try just to see if ISIS stops generating the message.

Finally, you're doing DEFINE ADC_CLOCK 3 but then you're overriding that by manually setting ANSEL to %00010100 which will set the ADC Clock to FOsc/8 instead of FRC. I don't think that's a problem in this case though.

/Henrik.

Thank you verry much !
Indeed, my mistake was the overriding of defines ...I didn't know until today the things You've posted. Hm ... so much to learn ! I'm glad I met people like You and other kindly members of this forum !
Best regards !

Me, again ...with something strange (at least for me) !
I try to use ADC for reading a couple of buttons. I have two situations :
- three buttons, with 82 ohms, 164 ohms, 1448 ohms resistors ; ADC reading = 1023 nothing pressed ; 78 with button 1 pressed ; 144 with button 2 ; 605 with button 3 ;
- three buttons, with 300 ohms, 1300 ohms, 3110 ohms AND 100 Kohms in parallel ; ADC reading = 1013 nothing pressed ; 236 with button 1 pressed; 575 with button 2 ; 768 with button 3.

I tried with 2 version of code (for both situations):

Code:

---

ADCON0.1 = 1
 WHILE ADCON0.1 = 1 : WEND
 adval.HighByte = ADRESH
 adval.LowByte = ADRESL
if adval > 10  and adval < 300 then  gosub LED1
...etc....

---

and

Code:

---

ADCIN 3, adval
if adval > 10 and adval < 300 then gosub LED1
...etc...

---

For first situation everything works fine, with both version of reading ADC !
BUT ... for second situation, NOTHING HAPPENS !!! I really not understand what I do wrong ... Can me point to the right direction ? Thanks in advance !

Attachment 7758 Attachment 7759

Note : In Proteus both schematic work, so I made it on PCB. First variant works just fine, second none :( ...

For the code using ADCIN, is the left/right justification set correctly? I can never remember which way around it wants it so whatever you have it set to, try changing it. And, do you have DEFINE ADCBITS 10 in there?

/Henrik.

Thanks for reply !

Code:

---

CMCON = 7
OPTION_REG  = %10000110
TRISIO      = %00001100
GPIO        = %00000001
ANSEL      = %00010100
ADCON0      = %10001001

---

I don't change anything in code (except values for actions) ... just the resistors from "chain" command.
With first chain work ; with second not. It's because of 100 kOhms ?!?

may be we could suspect the debounce time for your switches ... 50 µs is rather a short time !

did you try to use a little pause for settling ???

Alain

Thank you !
That means to add something like "Pause 50" before or after ADCIN command ?

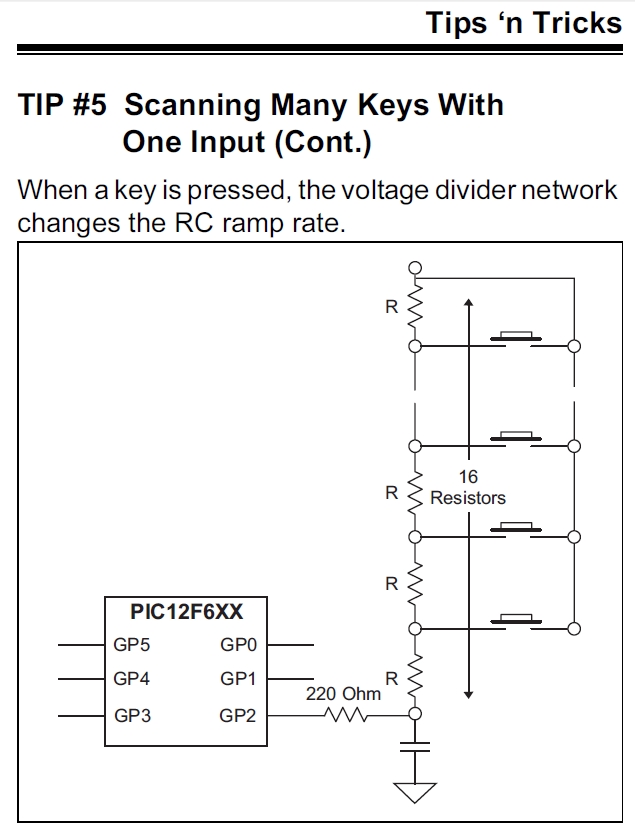

Here you can find an example ( in assembler ... YES ! ) that shows how it is done.
http://www.piclist.com/techref/micro...x4key1ad7r.htm

did you also read that one ???
http://www.picbasic.co.uk/forum/showthread.php?t=17956

Alain

Thanks ! But still no have answers on my problem ...

Hi Fratello,

1) Do you have two PCB with different resistor values?
or
2) Have you changed resistors to same board and tested with two SW settings?

In case
1) there must be some other differences on PCB
2) resistors are not with correct values

Thanks, Mr. Gusse, for support !
I have only one PCB, without the resistors from chain (just R2=1k is soldered on PCB, between +5V and ADC_IN).
I put the resistors from chain 1 from R2/ADC_IN to ground ; in first case works perfect.
Then I soldered the R9=100k from R2/ADC_IN to ground ; I put resistors from chain 2 into circuit (in parallel with R9). In this case nothing happens.
All the resistors are measured, look to be OK (this was my first concern too ...).

Tomorrow I'm going to try to set some debounce ...

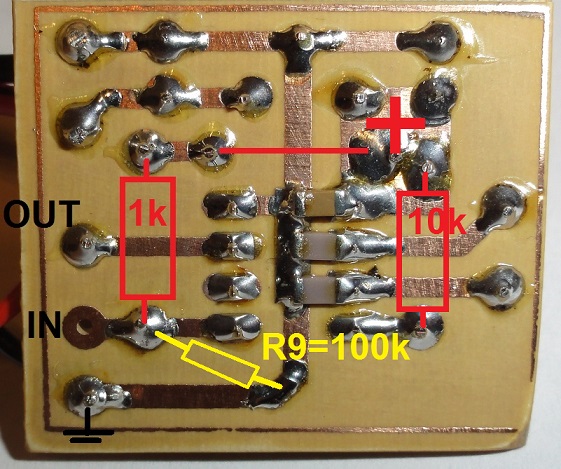

Update picture...
Attachment 7763

SOLVED !!!
In first case the code is :
"If adval > 419 and adval < 536 then gosub LED" = working fine.
In second case :
"If adval > 450 and adval < 600 then gosub LED" = NOT working.

So I tried this :
"If adval < 600 and adval > 450 then gosub LED"
And VOILA, IT'S WORKING !!!

Thanks for support ! Regards !

I don't get it. That looks identical to me.

Robert

For me too ... But I can prove it (by video) !
Maybe because when no button is pressed, ADC reading is NOT 1023 ?!

I do not know what version of PICBasic you are using or what version of MPASM either.

I compiled and ran the following code in the MPASM Simulator and it works fine for all (3) IF/THEN statements in main.

If adval <= 419 then myLED does not increment.
If adval > 419 and <= 450 then myLED only increments 1 time for each loop (IF/THEN #1 : Not #2 and #3)
if adval > 450 and < 536, then myLED increments 3 times for each loop (IF/THEN #1, #2 and #3)
if adval => 536 and < 600 then myLED increments 2 times for each loop (IF/THEN #2 and #3 : Not #1)
if adval => 600 then myLED does not increment.

Code:

---

'MCU = 12F675
'PBP v3.0.7.4
'MPASM v8.90


DEFINE OSC  4
DEFINE ADC_BITS 10
DEFINE ADC_CLOCK 3
DEFINE ADC_SAMPLEUS 50

CMCON = 7
OPTION_REG  = %10000110
TRISIO      = %00001100
GPIO        = %00000001
ANSEL      = %00010100
ADCON0      = %10001001

adval var word
myLED var word

adval = 0
myLed = 0

goto main

LED:
    myLED = myLEd + 1

    return

main:
    for adval = 0 to 700
        If adval > 419 and adval < 536 then gosub LED  'Works
        If adval > 450 and adval < 600 then gosub LED  'Works
        If adval < 600 and adval > 450 then gosub LED  'Works
    next
        myLed = 0

    goto main

---

Thanks !
In Proteus my code work fine too ... But not work in "real life".
Tomorrow I will come with another issue ...

...so I'm back !
After solving first problem, I meet another one ... I can not reading two channel ADC.
I try two version of code :
-first variant

Code:

---

@ __config _XT_OSC & _WDT_OFF & _PWRTE_ON & _MCLRE_ON & _BODEN_ON & _CP_ON
DEFINE OSC  4


CMCON      = 7
OPTION_REG.7= 1
TRISIO      = %00001110
GPIO        = %00000001
ANSEL      = %00110110
ADCON0.7    = 1

adval  var word
advalb var word

PAUSE 200

main:

 ADCON0.2 = 1
 ADCON0.3 = 0
 ADCON0.1 = 1
 WHILE ADCON0.1 = 1 : WEND
 adval.HighByte = ADRESH
 adval.LowByte = ADRESL
 PAUSE 50

if adval < 950 then
        if adval < 940 AND adval > 650 THEN gosub Led1
        IF adval < 600 AND adval > 450 THEN gosub Led2
        IF adval < 400 AND adval > 150 THEN gosub Led3
        IF adval < 100 THEN gosub Led4
endif

 ADCON0.2 = 0
 ADCON0.3 = 1
 ADCON0.1 = 1
 WHILE ADCON0.1 = 1 : WEND
 adval.HighByte = ADRESH
 adval.LowByte = ADRESL
 PAUSE 50

if advalb < 950 then
        if advalb < 940 AND advalb > 650 THEN gosub Led1
        IF advalb < 600 AND advalb > 450 THEN gosub Led2
        IF advalb < 400 AND advalb > 150 THEN gosub Led3
        IF advalb < 100 THEN gosub Led4
endif

goto main

---

-second variant

Code:

---

@ __config _XT_OSC & _WDT_OFF & _PWRTE_ON & _MCLRE_ON & _BODEN_ON & _CP_ON

DEFINE OSC  4

DEFINE ADC_BITS    10
DEFINE ADC_CLOCK    3
DEFINE ADC_SAMPLEUS 200

CMCON = 7
OPTION_REG  = %10000110
TRISIO      = %00000110
GPIO        = %00000110
ANSEL = %00000110
ADCON0.7    = 1



ADVALA  VAR WORD
ADVALB  VAR WORD

pAUSE 100

main:

adcin 1, advalA
pause 5
if advalA < 950 then
        if advaLA < 940 AND advalA > 650 THEN gosub LED1
        IF advalA < 600 AND advalA > 450 THEN gosub LED2
        IF advalA < 400 AND advalA > 150 THEN gosub LED3
        IF advalA < 100 THEN gosub LED4
endif

adcin 2, advalB
pause 5
if advalB < 950 then
        if advalB < 940 AND advalB > 655 THEN gosub LED1
        IF advalB < 600 AND advalB > 450 THEN gosub LED2
        IF advalB < 400 AND advalB > 150 THEN gosub LED3
        IF advalB < 100 THEN gosub LED4
endif


goto main

---

ONLY "advalA < 100" is sensing and LED4 command is executed ...
Can somebody pointing to the right direction ? Thanks in advance !

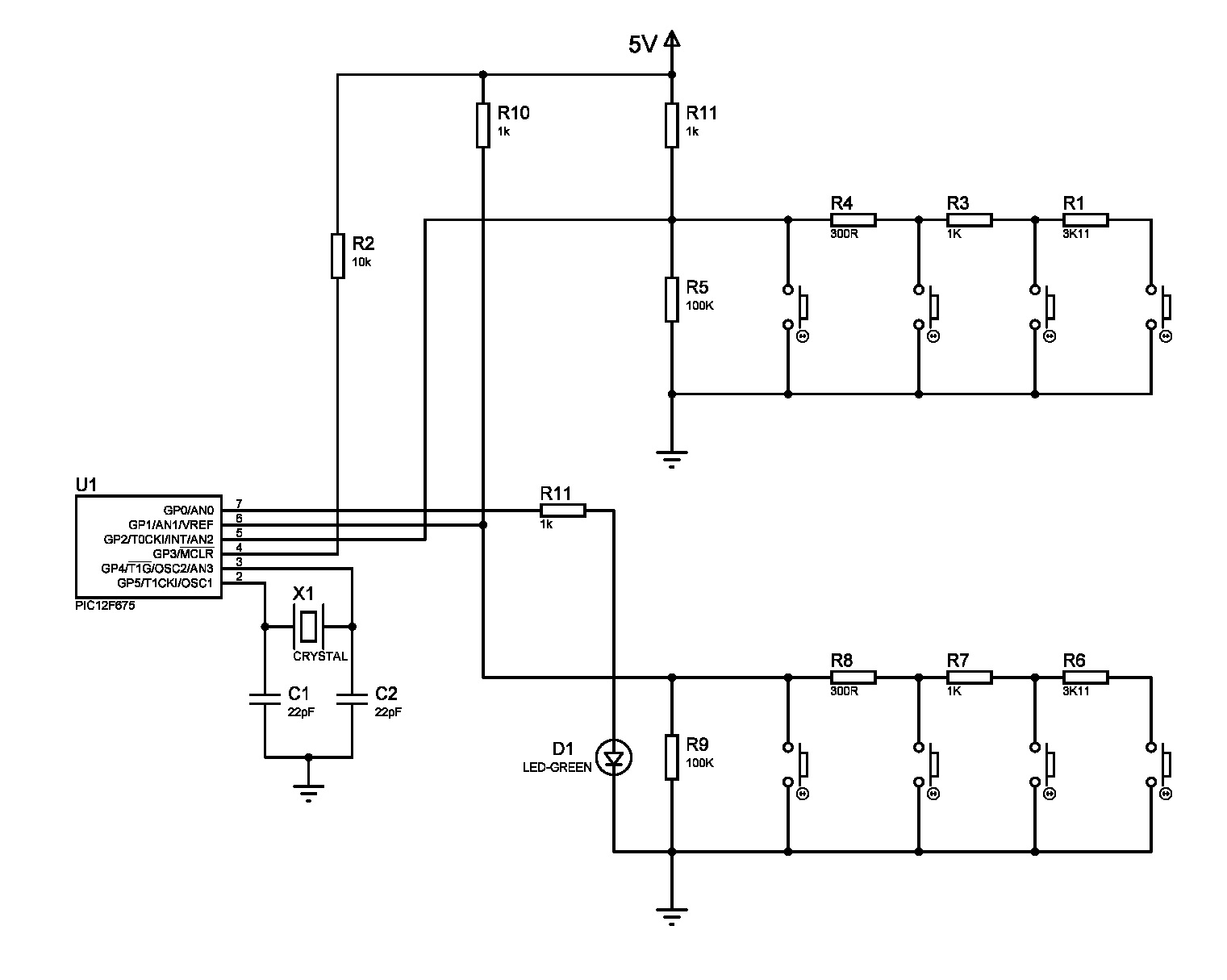

Schematic added.
Attachment 7766

A couple of suggestions second variant.
Remove "GPIO = %00000110" you are trying to set a high on the input pins.
Change "ANSEL = %00000110" to "%01110110", this will set the PIC ADC clock to RC mode and will match the
"DEFINE ADC_CLOCK 3" directive.

Then give Variant 2 a try.

I will try this, thanks !

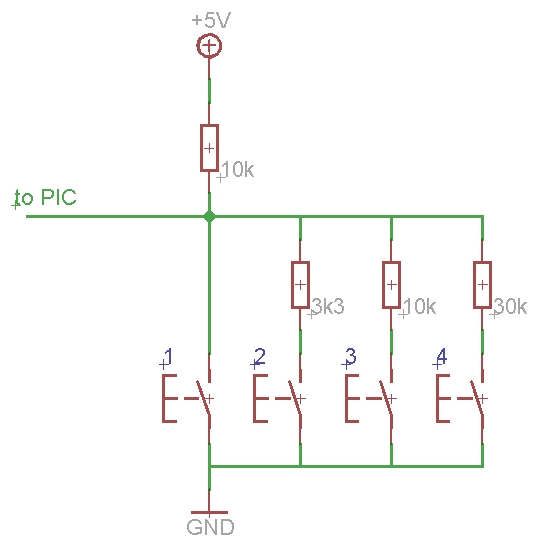

Hi Fratello. A while back I did the same basic thing you're doing. On an ADC pin I attached a 47K pullup resistor. Then a 22K resistor with pushbutton to ground, 10K with button to ground, 2.2K with button to ground and a 1K with button to ground. Here is the code. It works perfect for me.

ANSEL = 0 'all inputs digital
CMCON = 7 'comparators off
DEFINE OSCCAL_1K 1 ' Set OSCCAL for 1K device to accurize osc
TRISIO = %11111111 'SET I/O'S to all inputs for now
@ device pic12F675, INTRC_OSC_NOCLKOUT, wdt_on, BOD_ON,pwrt_on, mclr_off, protect_on
BUT VAR BYTE 'BUTTON VARIABLE
BUT2 VAR BYTE 'VARIABLE TO COMPARE READINGS TO PREVENT WRONG ADC READINGS
Pause 500 'SETTLE DOWN

STAYHERE:
ADCIN 3,BUT 'ADCIN COMMAND AUTOMATICALLY CONVERTS I/O TO ADC PORT
IF BUT < 100 Then STAYHERE 'IF BUTTON STUCK on power up WAIT HERE

BEGIN:
NAP 0 'REDUCE BATTERY DRAIN
ADCIN 3,BUT
IF BUT > 100 Then begin 'BUTTON not PUSHED

table:
ADCIN 3,BUT
Pause 100
ADCIN 3,BUT2
IF BUT <> BUT2 Then TABLE 'RE-READ ADC should both be same

IF BUT < 91 AND BUT > 71 Then (DO FUNCTION 1)
IF BUT < 50 AND BUT > 40 Then (DO FUNCTION 2)
IF BUT < 15 AND BUT > 8 Then (DO FUNCTION 3)
IF BUT < 8 AND BUT > 4 Then (DO FUNCTION 4)
IF BUT < 5 AND BUT > 2 Then (DO FUNCTION 5) '1K & 2.2K BUTTON PUSHED @ SAME TIME
GOTO BEGIN

Thank you !
As I say, with just one resistors chain , everything works PERFECT !
My troubles appears when I try to use TWO resistors chains (and TWO ADC channel).
I wrote another version :

Code:

---

@ __config _XT_OSC & _WDT_OFF & _PWRTE_ON & _MCLRE_ON & _BODEN_ON & _CP_ON

DEFINE OSC  4

DEFINE ADC_BITS    10
DEFINE ADC_CLOCK    3
DEFINE ADC_SAMPLEUS 100



CMCON = 7
OPTION_REG.7= 1
TRISIO      = %00000110
GPIO        = %00000001
ANSEL      = %00110110
ADCON0.7    = 1

adval  var word
valb    var word
vala    var word

PAUSE 200

goto mainloop

getadv:
        PAUSEuS 50                              ' Wait for A/D channel acquisition time
        ADCON0.1 = 1
        WHILE ADCON0.1 = 1 : WEND
        adval.HighByte = ADRESH
        adval.LowByte = ADRESL
Return

getadvala:
        ADCON0 = %10000101
        Gosub getadv
        vala=adval
Return

getadvalb:
        ADCON0 = %10001001
        Gosub getadv
        valb=adval
Return

mainloop:
gosub getadvala
gosub getadvalb


if vala < 950 then
        if vala < 940 AND vala > 650 THEN gosub LED1
        IF vala < 600 AND vala > 450 THEN gosub LED2
        IF vala < 400 AND vala > 150 THEN gosub LED3
        IF vala < 100 THEN gosub LED4
endif

if valb < 950 then
        if valb < 940 AND valb > 650 THEN gosub LED1
        IF valb < 600 AND valb > 450 THEN gosub LED2
        IF valb < 400 AND valb > 150 THEN gosub LED3
        IF valb < 100 THEN gosub LED4
endif

goto mainloop

---

But still no have proper results :( ...

My schematic/code are from here : http://www.imdb.com/title/tt0052520/ !!!
I did it work ... by re-reversing all those commands :
" If VALA > 650 and VALA < 940 Then Gosub LED1"" ...
instead of :
" If VALA < 940 and VALA > 650 Then Gosub LED1"

Nothing else ! And now everything works just fine !
Thank you all for support !
Have a Nice and Happy Easter !

I think you may wat to try the following: if (vala >650) and (vala <920) then go sub xx

In your very first post, I couldn't find any clear description of your problem or goal.... ;)

Quote:

---

Originally Posted by fratello

Post#6
Attachment 7758 Attachment 7759

---

Quote:

---

Originally Posted by fratello

Post #22
Attachment 7766

---

Resistor coupling is apparently not the same in those two posts - is this okay?



Try this:
Attachment 7802
Button 1 = 0 Volt => ADC 8 bits = +/-0 , ADC 10 bits = +/-0
Button 2 = 1,25 Volts => ADC 8 bits = +/-64 , ADC 10 bits = +/-320
Button 3 = 2,5 Volts => ADC 8 bits = +/-128 , ADC 10 bits = +/-640
Button 4 = 3,75 Volts => ADC 8 bits = +/-192 , ADC 10 bits = +/-960

I didn't built the circuit above; if ADC values are not stable, try with all R values ( :10) => 10k becomes 1k, 3k3 becomes 300Ohms and so on.



As an alternative, you may want to have a look here "Compiled Tips ‘N Tricks Guide".Attachment 7801

Thanks for info !
