PIC driving Adjustable Voltage Regulator

Results 1 to 7 of 7

Threaded View

  1. - 6th June 2007, 11:48 #1
    flotulopex's Avatar
    flotulopex
    flotulopex is offline Senior Member
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    938

    Default PIC driving Adjustable Voltage Regulator

    Hello,

    I'm building a(nother) lead battery charger.

    Just to make sure I'm not missing something important, I would like somebody, who made this before, to tell me if my principle is correct.

    The PIC will read the Vout via ADC (GP1) and set the PWM (GP5) to adjust voltage.

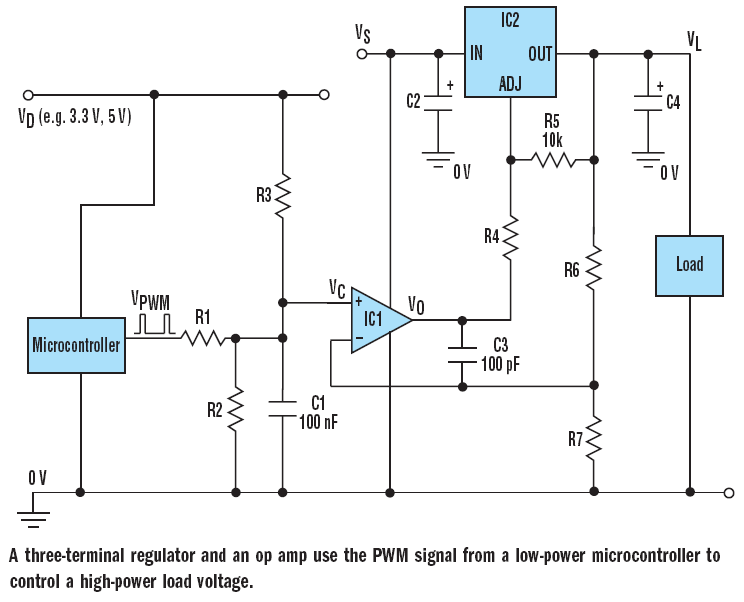

    <img src="http://www.picbasic.co.uk/forum/attachment.php?attachmentid=1715&stc=1&d=118112643 8">
    Is there a better way to control a voltage regulator?
    Attached Images Attached Images
    Roger
