    Quote Originally Posted by T.Jackson View Post
    Thanks

    Getting back to the clock for a moment - I've had it running for 24hrs so far and its gained 3 secs. Anyone have any thoughts on how to improve its accuracy?
    Adjust the oscillator frequency! 3 sec/day means 34 ppm; that sounds reasonable for an unadjusted oscillator.
    Or change the divisor rate from the nominal 31250/4096 to a value who meet the actual frequency.

    Regards
    Gianni

  2. #2
    Join Date
    Apr 2007
    Posts
    11


    Did you find this post helpful? Yes | No

    Smile Picture

    Dear Trent, can't you at least post a big rezolution picture of the circuit's pcb, of the logical part, not of the led's? 10q

  3. #3
    T.Jackson's Avatar
    T.Jackson Guest


    Did you find this post helpful? Yes | No

    Post

    Quote Originally Posted by Dan Cata View Post
    Dear Trent, can't you at least post a big rezolution picture of the circuit's pcb, of the logical part, not of the led's? 10q
    I HAVE posted a big picture of the PCB with more than adequate resolution. See post #15 http://www.picbasic.co.uk/forum/atta...4&d=1177471027

  4. #4
    Join Date
    Apr 2007
    Posts
    11


    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by T.Jackson View Post
    I HAVE posted a big picture of the PCB with more than adequate resolution. See post #15 http://www.picbasic.co.uk/forum/atta...4&d=1177471027

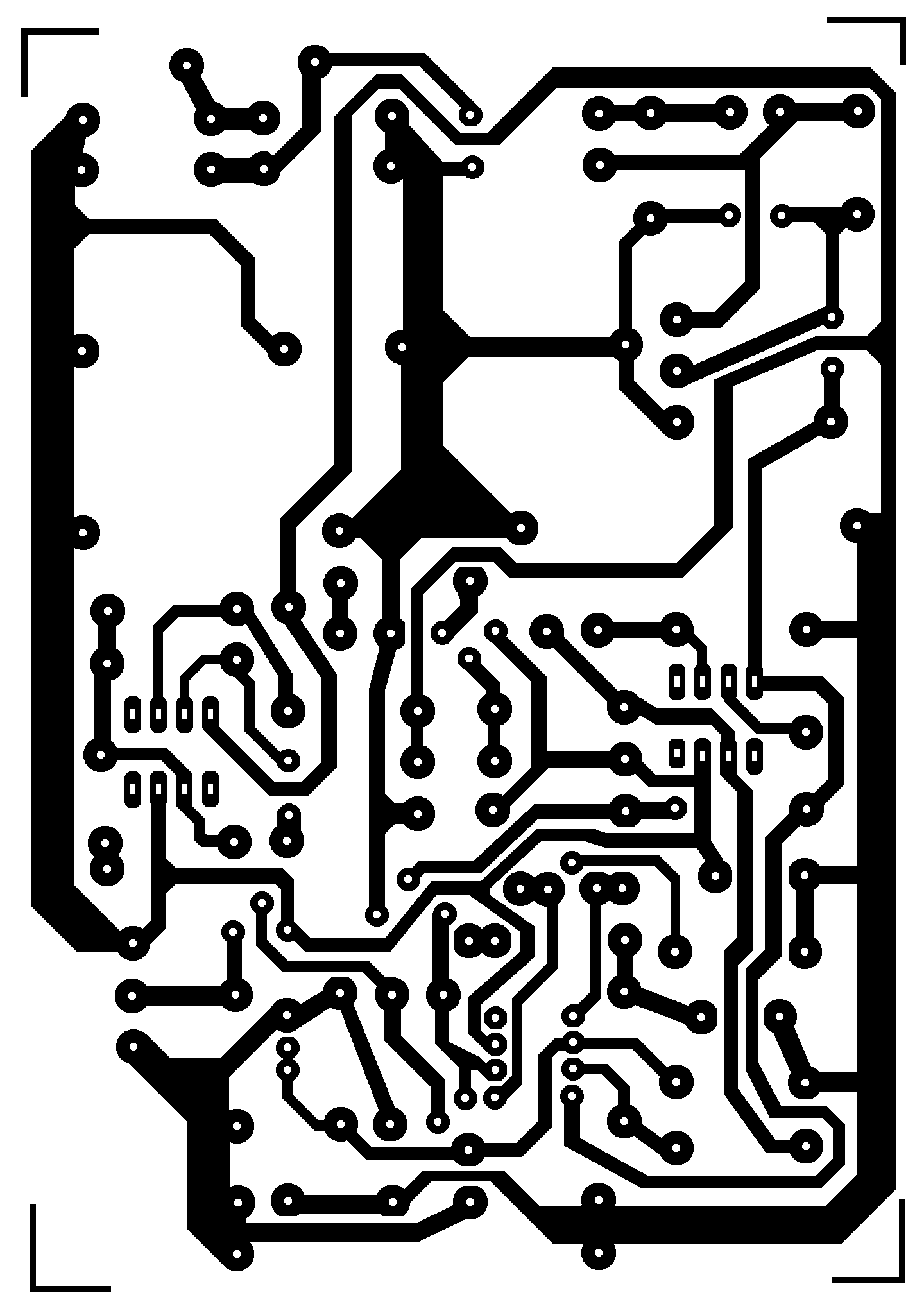

    I ment something more like this pic...
    Attached Images Attached Images

  5. #5
    T.Jackson's Avatar
    T.Jackson Guest


    Did you find this post helpful? Yes | No

    Post

    Sorry - as I've said before, the PCB artwork isn't available.

  6. #6
    Join Date
    May 2007
    Posts
    43


    Did you find this post helpful? Yes | No

    Default dear tender

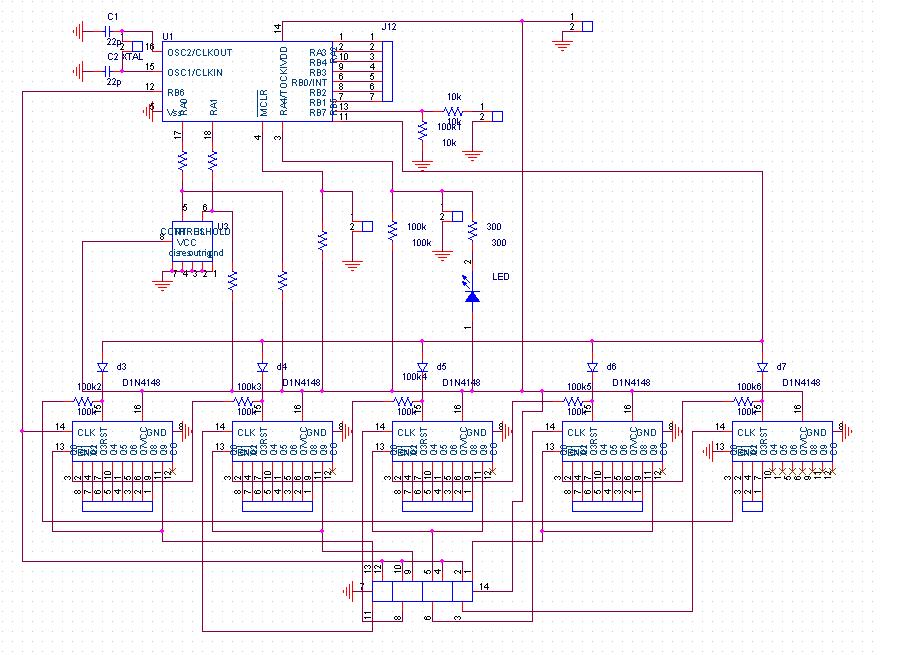

    i made the pcb in orcad layout, but it doesen`t WORK !!! . Tell me the problems... plsssss. And the led should lit when the serials cable+ 5v cable is connected to the board or not? or when the 5v cable is connected?

    On the link you can see the board... The caps than are not shown i have reposition them... the picture has made without them...

    http://www.zamfirelu.org/led/fata.jpg
    Attached Images Attached Images
    Last edited by magu; - 7th June 2007 at 13:47.

  7. #7
    Join Date
    May 2007
    Posts
    43


    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by skimask View Post
    I don't remember seeing any money back guarantees anywhere...I could be wrong. How much did you pay for this project?

    And I built it over the weekend (although I simulated the bulk of the LEDs and left a couple of banks off), worked fine for me.
    i spend over (in your currency) 30$ (american) . If you have orcad and layout i attach the files, the design of the board and the pcb. I examin the circuit over 14 times and i draw it good. If you can send me your pcb or design of the board it will be helpful.. thx..
    Attached Files Attached Files
