    Question h-bridge problem

    hi,

    I'm a beginner in this amazing world of PICs and I have encountered 2 problems in controlling a dc motor direction...

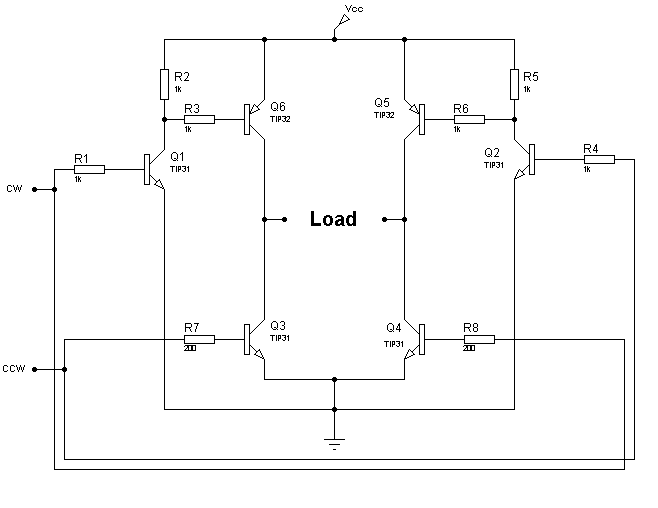

    1. I used this H-bridge to control my motor (see attachments) and works fine while adding a voltmeter across the output but when load it with any load e.g my 9v motor the voltage decreases to a value of 0.01v and couldn't drive my motor.

    2. I wrote this program that reads a potentiometer value ,if this value is greater than 12kohms turns the motor CW, less than 12k ohms turns the motor CCW:
    device=16f84a
    dim R_Value as byte
    trisb=%00000001

    start:
    portb=0
    r_value=pot portb.0,153
    if r_value > 65 then goto rotate_lower 'Making motor rotate CW
    if r_value < 59 then goto rotate_higher 'Making motor rotate CCW

    Rotate_Lower:
    portb.1=1
    delayms 250
    goto start

    Rotate_Higher:
    portb.2=1
    delayms 250
    goto start
    the program worked but instead of comparing the value to 12 k ohms it performs this operation at 1.2k ohms (I have checked my scale!)

    any help will be appreciated, thank you
