serial LCD 1602 Backpack using PIC16F690 for Hitach HD44780

[richard]

My code honours the timing as specified by the lcd defines , timing that most lcd displays need esp the cheapest and oldest examples of them.
If you send data at a rate that exceeds the specified time constraints as defined it will of course fall. The solution is to either pace data transmission or set the defines to the actual speed the lcd can tolerate . The intent of my code is to match data rate to the real speed that the lcd can manage

[jackberg1]

set pace to 1 , and it's working
sEROUT2 lcd,baudR,pace,[254,128,"ABCDEFGHIJKLMNOP"]

thanks.

[Ioannis]

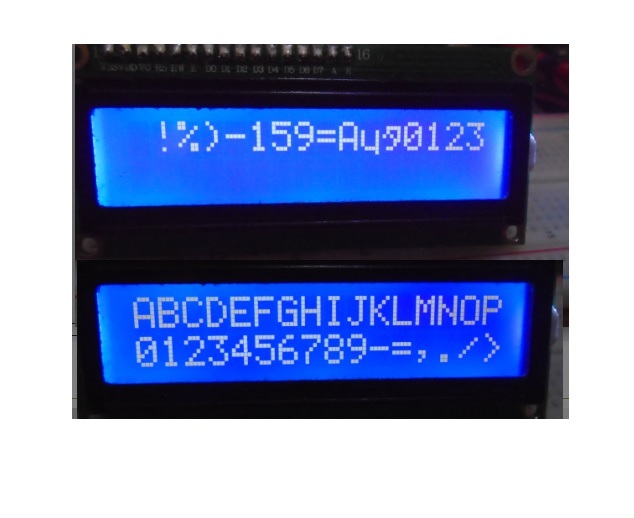

I only tested at 19200 and the Backlight works OK.

But text, could not send up to this moment.

WIll try different Baud Rate. Though I test on a PIC16F1827 at 32MHz.

Ioannis

[jackberg1]

when testing baud rate, usualy I start at 300 and up

when it stopped working then I set pace = 1

and re-start from the last baud rate tested.

16F690 Xtal 20Mhz

set pace to 1
sEROUT2 lcd,baudR,pace,[254,128,"ABCDEFGHIJKLMNOP"]


from my code here's the tested baud rate .
and when booting the PIC's at different baud rate the sender 12F683 and receiver 16F690 the LCD screen light up right away and start displaying text, and back light on/off
there's no lag for the first receiving if I remember correctly the pace for the sender is set = 0.

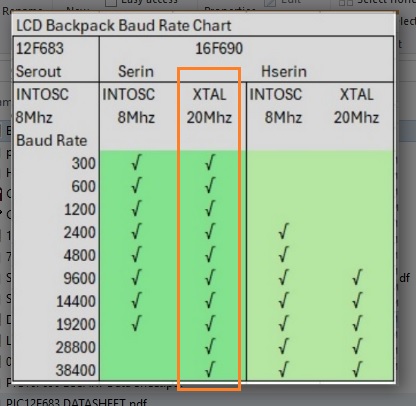

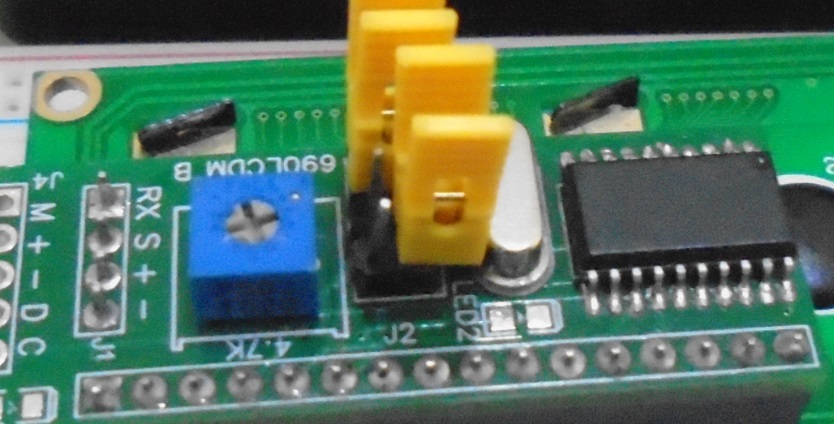

Also I add baud rate selection jumpers on the Backpack''







' Jumpers
'
J3 300 600 1200 2400 4800 9600 14400 19200 28800 38400
' 1--2 RB7 On On On On On On
' 3--4 RA2 On On On On
' 5--6 RA1 On On On On
' 7--8 RA3 On On On



' Baud Rate SW Selection (PCB J3)
If PORTA = 001110 And PORTB.7 = 1 Then BaudR = 3313 ' 300
If PORTA = 001110 And PORTB.7 = 0 Then BaudR = 1646 ' 600
If PORTA = 001010 And PORTB.7 = 1 Then BaudR = 813 ' 1200
If PORTA = 001100 And PORTB.7 = 1 Then BaudR = 396 ' 2400
If PORTA = 000110 And PORTB.7 = 1 Then BaudR = 188 ' 4800
If PORTA = 001010 And PORTB.7 = 0 Then BaudR = 84 ' 9600
If PORTA = 001100 And PORTB.7 = 0 Then BaudR = 49 ' 14400
If PORTA = 000110 And PORTB.7 = 0 Then BaudR = 32 ' 19200
If PORTA = 001000 And PORTB.7 = 0 Then BaudR = 15 ' 28800
If PORTA = 000000 And PORTB.7 = 0 Then BaudR = 6 ' 38400

[jackberg1]

from my last edit,

' Jumpers
' J3 300 600 1200 2400 4800 9600 14400 19200 28800 38400
' 1--2 RB7 On On On On On On
' 3--4 RA2 On On On On
' 5--6 RA1 On On On On
' 7--8 RA3 On On On

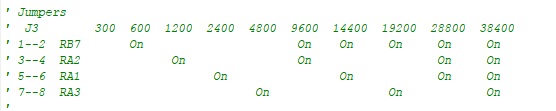

I think courier new does not take spaces !
better use screen cap

[jackberg1]

edited BaudR var word : baudr = 3313 and TRISA = 111110

1st receiving random characters
2nd normal

what could be done to avoid the first
thanks.
