  1. - 20th March 2025, 03:06 #1
    Demon's Avatar
    Demon
    Demon is offline SuperMod
    Join Date
    Jan 2005
    Location
    Montreal, Quebec, Canada
    Posts
    3,170

    Did you find this post helpful? Yes | No

    Default Re: Losing data when extracting bytes from words - 16F18855

    Quote Originally Posted by Ioannis View Post
    Very convenient indeed!

    Ioannis

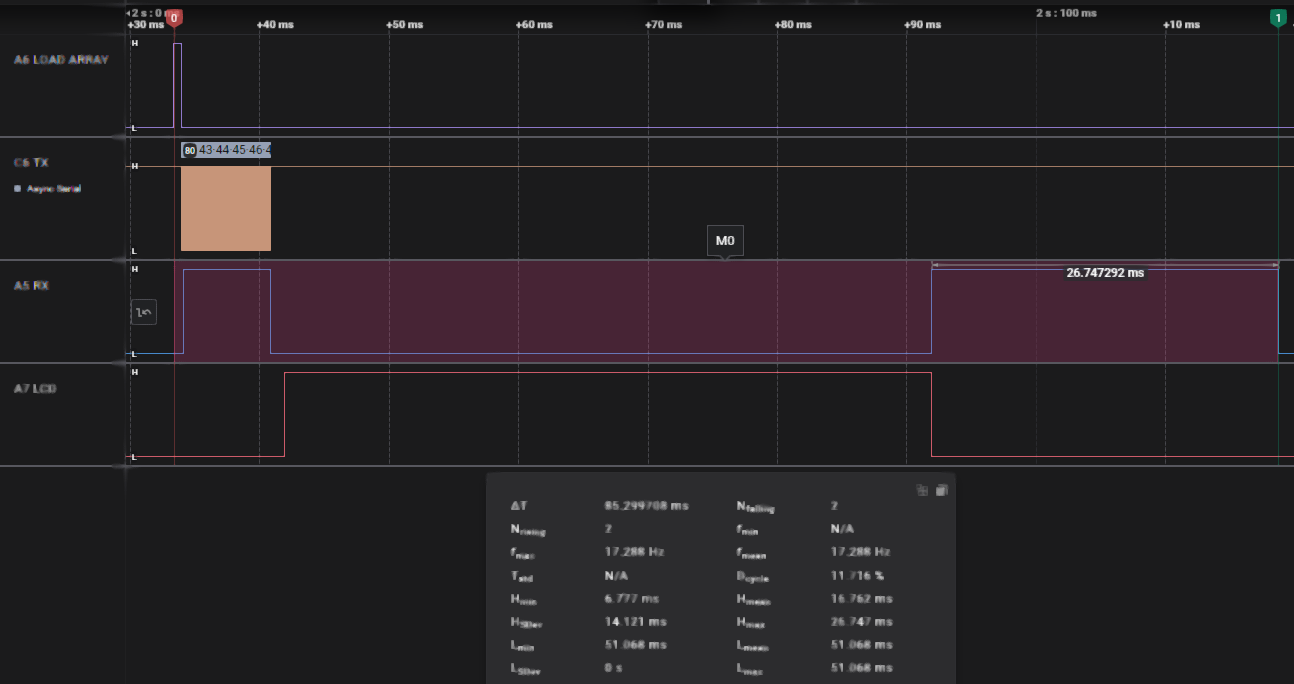

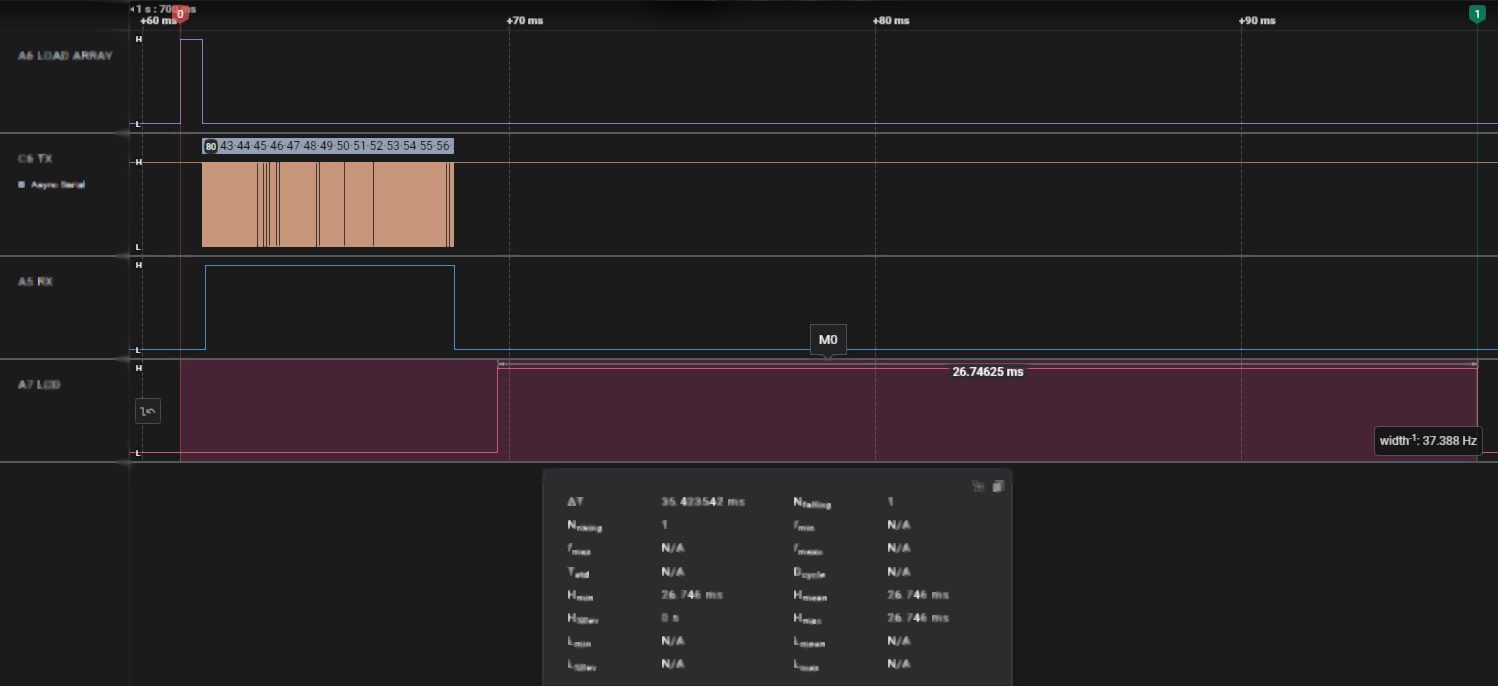

    Yup, now confirmed. It's faster to use aliases than Richard's module strcpy.

    Shared TX pgm:
    - loads array with 80 characters (DEC 43 to DEC 122),
    - Hserout 80 bytes

    Code:
    #CONFIG
    __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
    __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
    __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
    __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
    __config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG

DEFINE OSC 32

DEFINE  HSER_RXREG PORTC
DEFINE  HSER_RXBIT 7
DEFINE  HSER_TXREG PORTC
DEFINE  HSER_TXBIT 6

DEFINE  HSER_RCSTA 90h              ' Enable serial port & continuous receive
DEFINE  HSER_TXSTA 24h              ' Enable transmit, BRGH = 1
Define  HSER_BAUD 115200
DEFINE  HSER_CLROERR 1              ' Clear overflow automatically
DEFINE  HSER_SPBRGH  0
DEFINE  HSER_SPBRG  68

define  CCP1_REG     0              ' Must clear unused CCP pins or else unpredictable results
DEFINE  CCP1_BIT     0
define  CCP2_REG     0
DEFINE  CCP2_BIT     0
define  CCP3_REG     0
DEFINE  CCP3_BIT     0
define  CCP4_REG     0
DEFINE  CCP4_BIT     0
define  CCP5_REG     0
DEFINE  CCP5_BIT     0

;--- Setup registers -----------------------------------------------------------

BAUDCON.3 = 1                       ' Enable 16 bit baudrate generator

WPUA = %00100000                        ' Pin A7 = Error code 2
                                        ' Pin A6 = Error code 1
                                        ' Pin A4 = ADC-A4 (B10K)
                                        ' Pin A3 = SW             external pull-down
                                        ' Pin A2 = Vref-
                                        ' Pin A1 = ADC-A1 (B5K w/SW)
                                        ' Pin A0 = ADC-A0 (B5K)
WPUB = %00111111                        ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
WPUC = %00100111                        ' Pin C7 = RX
                                        ' Pin C6 = TX
                                        ' Pin C4 = ADC-C4 (B10K)
                                        ' Pin C3 = ADC-C3 (B10K)


ANSELA = %00000000                      ' Pin A7 = Error code 2
                                        ' Pin A6 = Error code 1
                                        ' Pin A4 = ADC-A4 (B10K)
                                        ' Pin A1 = ADC-A1 (B5K w/SW)
                                        ' Pin A0 = ADC-A0 (B5K)
ANSELB = %00000000
ANSELC = %00000000                      ' Pin C7 = RX
                                        ' Pin C6 = TX
                                        ' Pin C4 = ADC-C4 (B10K)
                                        ' Pin C3 = ADC-C3 (B10K)

TRISA = %00011011                       ' Pin A7 = Error code 2
                                        ' Pin A6 = Error code 1
                                        ' Pin A4 = ADC-A4 (B10K)
                                        ' Pin A3 = SW
                                        ' Pin A1 = ADC-A1 (B5K w/SW)
                                        ' Pin A0 = ADC-A0 (B5K)
TRISB = %00000000                       ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
TRISC = %11011000                       ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***
                                        ' Pin C4 = ADC-C4 (B10K)
                                        ' Pin C3 = ADC-C3 (B10K)

Marker1     var LatA.6                  ' Pin A7 = Marker 1
Marker2     var LatA.7                  ' Pin A6 = Marker 2


MsgData     var byte[80]
MsgLoop     var byte
MsgLength   var byte

  Marker1 = 0
  Marker2 = 0

    MsgLength = 80
    Pause 500                                       ' Let PIC and LCD stabilize

  Marker1 = 1
    for MsgLoop = 0 to MsgLength - 1
        MsgData [MsgLoop] = MsgLoop + 43
    next MsgLoop

  LatA = %10000000

    hserout [   str MsgData\MsgLength   ]           ' Transmit data

    while TX1STA.1 = 0                              ' Check TRMT bit
    wend
  LatA = %00000000

EndlessLoop:
    goto EndlessLoop
end

    RX pgm using aliases:
    - Hserin 80 bytes
    - displays array on LCD

    Code:
    #CONFIG
    __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
    __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
    __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
    __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
    __config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG

;--- Interrupts ----------------------------------------------------------------

include "I:\Project_v2\PBP\PBP_Includes\DT_INTS-14_16F1885x-7x.bas"
include "I:\Project_v2\PBP\PBP_Includes\ReEnterPBP.bas"

ASM
INT_LIST  macro    ; IntSource,        Label,  Type, ResetFlag?
        INT_Handler    RX_INT,      _RXinterrupt,   PBP,  no
    endm
    INT_CREATE               ; Creates the interrupt processor
ENDASM

DEFINE OSC 32

DEFINE  LCD_DREG      PORTB         ' Set LCD data port
DEFINE  LCD_DBIT      0             ' Set starting data bit
DEFINE  LCD_RSREG     PORTC         ' Set LCD register select port
DEFINE  LCD_RSBIT     4             ' Set LCD register select bit
DEFINE  LCD_EREG      PORTC         ' Set LCD enable port
DEFINE  LCD_EBIT      5             ' Set LCD enable bit
DEFINE  LCD_BITS      4             ' Set LCD bus size
DEFINE  LCD_LINES     4             ' Set number of lines on LCD
DEFINE  LCD_COMMANDUS 1000          ' Set command delay time in microseconds
DEFINE  LCD_DATAUS    50            ' Set data delay time in microseconds

define  CCP1_REG     0              ' Must clear unused CCP pins or else unpredictable results
DEFINE  CCP1_BIT     0
define  CCP2_REG     0
DEFINE  CCP2_BIT     0
define  CCP3_REG     PORTB          ' PWM Pulse out to LCD backlight
DEFINE  CCP3_BIT     5
define  CCP4_REG     0              ' Must clear unused CCP pins or else unpredictable results
DEFINE  CCP4_BIT     0
define  CCP5_REG     PORTA          ' PWM Pulse out to LED strips
DEFINE  CCP5_BIT     4

DEFINE  HSER_RXREG PORTC
DEFINE  HSER_RXBIT 7
DEFINE  HSER_TXREG PORTC
DEFINE  HSER_TXBIT 6

DEFINE  HSER_RCSTA 90h              ' Enable serial port & continuous receive
DEFINE  HSER_TXSTA 24h              ' Enable transmit, BRGH = 1
Define  HSER_BAUD 115200
DEFINE  HSER_CLROERR 1              ' Clear overflow automatically
DEFINE  HSER_SPBRGH  0
DEFINE  HSER_SPBRG  68

;--- Setup registers -----------------------------------------------------------

BAUDCON.3 = 1                       ' Enable 16 bit baudrate generator

INTCON = %11000000                  ' INTERRUPT CONTROL REGISTER
'   bit 7   GIE: Global Interrupt Enable bit
'               1 = Enables all active interrupts
'               0 = Disables all interrupts
'   bit 6   PEIE: Peripheral Interrupt Enable bit
'               1 = Enables all active peripheral interrupts
'               0 = Disables all peripheral interrupts

PIE3 = %00100000                    ' PERIPHERAL INTERRUPT ENABLE REGISTER 3
'   bit 5   RCIE: USART Receive Interrupt Enable bit
'               1 = Enables the USART receive interrupt
'               0 = Enables the USART receive interrupt

CCP3CON = %10001111                 ' CCP3 CONTROL REGISTER
'   bit 7   EN: CCPx Module Enable bit
'               1 = CCPx is enabled
'   bit 4   FMT: CCPW (Pulse Width) Alignment bit
'       MODE = PWM mode
'               0 = Right-aligned format
'   bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
'               1111 = PWM mode

CCP5CON = %10001111                 ' CCP5 CONTROL REGISTER
'   bit 7   EN: CCPx Module Enable bit
'               1 = CCPx is enabled
'   bit 4   FMT: CCPW (Pulse Width) Alignment bit
'       MODE = PWM mode
'               0 = Right-aligned format
'   bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
'               1111 = PWM mode

ADCON0 = %00000000                      ' Value CONTROL REGISTER 0

WPUA = %00001111                        ' Pin A7 = LCDout 2
                                        ' Pin A6 = LCDout 1
                                        ' Pin A5 = RX Int
                                        ' Pin A4 = PWM to LED strips
WPUB = %11011111                        ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
                                        ' Pin B5 = PWM to LCD backlight
WPUC = %00111111                        ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***


ANSELA = %00000000                      ' Pin A6 = LCDout 1
                                        ' Pin A5 = RX Int
                                        ' Pin A4 = PWM to LED strips
ANSELB = %00000000                      ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
                                        ' Pin B5 = PWM to LCD backlight
ANSELC = %00000000                      ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***


TRISA = %00000000                       ' Pin A7 = LCDout 2
                                        ' Pin A6 = LCDout 1
                                        ' Pin A5 = RX Int
                                        ' Pin A4 = PWM to LED strips
TRISB = %00000000                       ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
                                        ' Pin B5 = PWM to LCD backlight
TRISC = %11000000                       ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***

Marker2           var LATA.7
Marker1               var LATA.5

MsgData     var byte[80]
Value0        VAR MsgData[0]              ' LCD row 1
Value1        VAR MsgData[1]
Value2        VAR MsgData[2]
Value3        VAR MsgData[3]
Value4        VAR MsgData[4]
Value5        VAR MsgData[5]
Value6        VAR MsgData[6]
Value7        VAR MsgData[7]
Value8        VAR MsgData[8]
Value9        VAR MsgData[9]
Value10       VAR MsgData[10]
Value11       VAR MsgData[11]
Value12       VAR MsgData[12]
Value13       VAR MsgData[13]
Value14       VAR MsgData[14]
Value15       VAR MsgData[15]
Value16       VAR MsgData[16]
Value17       VAR MsgData[17]
Value18       VAR MsgData[18]
Value19       VAR MsgData[19]
Value20       VAR MsgData[20]             ' LCD row 2
Value21       VAR MsgData[21]
Value22       VAR MsgData[22]
Value23       VAR MsgData[23]
Value24       VAR MsgData[24]
Value25       VAR MsgData[25]
Value26       VAR MsgData[26]
Value27       VAR MsgData[27]
Value28       VAR MsgData[28]
Value29       VAR MsgData[29]
Value30       VAR MsgData[30]
Value31       VAR MsgData[31]
Value32       VAR MsgData[32]
Value33       VAR MsgData[33]
Value34       VAR MsgData[34]
Value35       VAR MsgData[35]
Value36       VAR MsgData[36]
Value37       VAR MsgData[37]
Value38       VAR MsgData[38]
Value39       VAR MsgData[39]
Value40       VAR MsgData[40]             ' LCD row 3
Value41       VAR MsgData[41]
Value42       VAR MsgData[42]
Value43       VAR MsgData[43]
Value44       VAR MsgData[44]
Value45       VAR MsgData[45]
Value46       VAR MsgData[46]
Value47       VAR MsgData[47]
Value48       VAR MsgData[48]
Value49       VAR MsgData[49]
Value50       VAR MsgData[50]
Value51       VAR MsgData[51]
Value52       VAR MsgData[52]
Value53       VAR MsgData[53]
Value54       VAR MsgData[54]
Value55       VAR MsgData[55]
Value56       VAR MsgData[56]
Value57       VAR MsgData[57]
Value58       VAR MsgData[58]
Value59       VAR MsgData[59]
Value60       VAR MsgData[60]             ' LCD row 4
Value61       VAR MsgData[61]
Value62       VAR MsgData[62]
Value63       VAR MsgData[63]
Value64       VAR MsgData[64]
Value65       VAR MsgData[65]
Value66       VAR MsgData[66]
Value67       VAR MsgData[67]
Value68       VAR MsgData[68]
Value69       VAR MsgData[69]
Value70       VAR MsgData[70]
Value71       VAR MsgData[71]
Value72       VAR MsgData[72]
Value73       VAR MsgData[73]
Value74       VAR MsgData[74]
Value75       VAR MsgData[75]
Value76       VAR MsgData[76]
Value77       VAR MsgData[77]
Value78       VAR MsgData[78]
Value79       VAR MsgData[79]
MsgLength           var byte

HPWMlcdBL           var BYTE
HPWMledstrip        var BYTE

RXoccurred          var BYTE

    MsgLength = 80

  Marker1 = 0
  Marker2 = 1

    HPWMlcdBL = 150                                 ' low intensity
    HPWMledstrip = 15                               ' low intensity
    HPWM 3, HPWMlcdBL, 1953
    HPWM 5, HPWMledstrip, 1953

  Marker2 = 0

    RXoccurred = 0                                  ' Clear RX flag

    Pause 500                                       ' Let PIC and LCD stabilize

    goto Start                                      ' Jump over sub-routines

;--- Interrupts ----------------------------------------------------------------

RXinterrupt:
  Marker1 = 1
    hserin [ STR MsgData\MsgLength]

    while BAUDCON1.6 = 0                            ' Check RCIDL bit
    wend

    RXoccurred = 1                                  ' Set flag
  Marker1 = 0
@ INT_RETURN

;--- Subroutines ---------------------------------------------------------------

Start:

@   INT_ENABLE   RX_INT             ; Enable USART Receive interrupts

    while RXoccurred = 0                            ' Wait for message
    wend

  Marker2 = 1

    LCDOUT $FE, 1

    LCDOUT $FE, $80,    Value0,  Value1,  Value2,  Value3,  Value4,  _
                        Value5,  Value6,  Value7,  Value8,  Value9,  _
                        Value10, Value11, Value12, Value13, Value14, _
                        Value15, Value16, Value17, Value18, Value19

    LCDOUT $FE, $C0,    Value20, Value21, Value22, Value23, Value24, _
                        Value25, Value26, Value27, Value28, Value29, _
                        Value30, Value31, Value32, Value33, Value34, _
                        Value35, Value36, Value37, Value38, Value39

    LCDOUT $FE, $94,    Value40, Value41, Value42, Value43, Value44, _
                        Value45, Value46, Value47, Value48, Value49, _
                        Value50, Value51, Value52, Value53, Value54, _
                        Value55, Value56, Value57, Value58, Value59

    LCDOUT $FE, $D4,    Value60, Value61, Value62, Value63, Value64, _
                        Value65, Value66, Value67, Value68, Value69, _
                        Value70, Value71, Value72, Value73, Value74, _
                        Value75, Value76, Value77, Value78, Value79

  Marker2 = 0

EndlessLoop:
    goto EndlessLoop
end

    RX pgm using strcpy:
    - Hserin 80 bytes
    - strcpy array
    - displays array on LCD

    Code:
    #CONFIG
    __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
    __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
    __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
    __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
    __config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG

include    "I:\Project_v2\PBP\PBP_Includes\USARTarray.bas"

;--- Interrupts ----------------------------------------------------------------

include "I:\Project_v2\PBP\PBP_Includes\DT_INTS-14_16F1885x-7x.bas"
include "I:\Project_v2\PBP\PBP_Includes\ReEnterPBP.bas"

ASM
INT_LIST  macro    ; IntSource,        Label,  Type, ResetFlag?
        INT_Handler    RX_INT,      _RXinterrupt,   PBP,  no
    endm
    INT_CREATE               ; Creates the interrupt processor
ENDASM

DEFINE OSC 32

DEFINE  LCD_DREG      PORTB         ' Set LCD data port
DEFINE  LCD_DBIT      0             ' Set starting data bit
DEFINE  LCD_RSREG     PORTC         ' Set LCD register select port
DEFINE  LCD_RSBIT     4             ' Set LCD register select bit
DEFINE  LCD_EREG      PORTC         ' Set LCD enable port
DEFINE  LCD_EBIT      5             ' Set LCD enable bit
DEFINE  LCD_BITS      4             ' Set LCD bus size
DEFINE  LCD_LINES     4             ' Set number of lines on LCD
DEFINE  LCD_COMMANDUS 1000          ' Set command delay time in microseconds
DEFINE  LCD_DATAUS    50            ' Set data delay time in microseconds

define  CCP1_REG     0              ' Must clear unused CCP pins or else unpredictable results
DEFINE  CCP1_BIT     0
define  CCP2_REG     0
DEFINE  CCP2_BIT     0
define  CCP3_REG     PORTB          ' PWM Pulse out to LCD backlight
DEFINE  CCP3_BIT     5
define  CCP4_REG     0              ' Must clear unused CCP pins or else unpredictable results
DEFINE  CCP4_BIT     0
define  CCP5_REG     PORTA          ' PWM Pulse out to LED strips
DEFINE  CCP5_BIT     4

DEFINE  HSER_RXREG PORTC
DEFINE  HSER_RXBIT 7
DEFINE  HSER_TXREG PORTC
DEFINE  HSER_TXBIT 6

DEFINE  HSER_RCSTA 90h              ' Enable serial port & continuous receive
DEFINE  HSER_TXSTA 24h              ' Enable transmit, BRGH = 1
Define  HSER_BAUD 115200
DEFINE  HSER_CLROERR 1              ' Clear overflow automatically
DEFINE  HSER_SPBRGH  0
DEFINE  HSER_SPBRG  68

;--- Setup registers -----------------------------------------------------------

BAUDCON.3 = 1                       ' Enable 16 bit baudrate generator

INTCON = %11000000                  ' INTERRUPT CONTROL REGISTER
'   bit 7   GIE: Global Interrupt Enable bit
'               1 = Enables all active interrupts
'               0 = Disables all interrupts
'   bit 6   PEIE: Peripheral Interrupt Enable bit
'               1 = Enables all active peripheral interrupts
'               0 = Disables all peripheral interrupts

PIE3 = %00100000                    ' PERIPHERAL INTERRUPT ENABLE REGISTER 3
'   bit 5   RCIE: USART Receive Interrupt Enable bit
'               1 = Enables the USART receive interrupt
'               0 = Enables the USART receive interrupt

CCP3CON = %10001111                 ' CCP3 CONTROL REGISTER
'   bit 7   EN: CCPx Module Enable bit
'               1 = CCPx is enabled
'   bit 4   FMT: CCPW (Pulse Width) Alignment bit
'       MODE = PWM mode
'               0 = Right-aligned format
'   bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
'               1111 = PWM mode

CCP5CON = %10001111                 ' CCP5 CONTROL REGISTER
'   bit 7   EN: CCPx Module Enable bit
'               1 = CCPx is enabled
'   bit 4   FMT: CCPW (Pulse Width) Alignment bit
'       MODE = PWM mode
'               0 = Right-aligned format
'   bit 3-0 MODE<3:0>: CCPx Mode Select bits(1)
'               1111 = PWM mode

ADCON0 = %00000000                      ' Value CONTROL REGISTER 0

WPUA = %00001111                        ' Pin A7 = LCDout 2
                                        ' Pin A6 = LCDout 1
                                        ' Pin A5 = RX Int
                                        ' Pin A4 = PWM to LED strips
WPUB = %11011111                        ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
                                        ' Pin B5 = PWM to LCD backlight
WPUC = %00111111                        ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***


ANSELA = %00000000                      ' Pin A6 = LCDout 1
                                        ' Pin A5 = RX Int
                                        ' Pin A4 = PWM to LED strips
ANSELB = %00000000                      ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
                                        ' Pin B5 = PWM to LCD backlight
ANSELC = %00000000                      ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***


TRISA = %00000000                       ' Pin A7 = LCDout 2
                                        ' Pin A6 = LCDout 1
                                        ' Pin A5 = RX Int
                                        ' Pin A4 = PWM to LED strips
TRISB = %00000000                       ' Pin B7 = ...not available, ICSPDAT
                                        ' Pin B6 = ...not available, ICSPCLK
                                        ' Pin B5 = PWM to LCD backlight
TRISC = %11000000                       ' Pin C7 = RX      *** Datasheet requirement, INPUT ***
                                        ' Pin C6 = TX      *** Datasheet requirement, INPUT ***

Marker2           var LATA.7
Marker1               var LATA.5

asm
Value0     = _MsgData
Value1     = _MsgData + 1
Value2     = _MsgData + 2
Value3     = _MsgData + 3
Value4     = _MsgData + 4
Value5     = _MsgData + 5
Value6     = _MsgData + 6
Value7     = _MsgData + 7
Value8     = _MsgData + 8
Value9     = _MsgData + 9
Value10    = _MsgData + 10
Value11    = _MsgData + 11
Value12    = _MsgData + 12
Value13    = _MsgData + 13
Value14    = _MsgData + 14
Value15    = _MsgData + 15
Value16    = _MsgData + 16
Value17    = _MsgData + 17
Value18    = _MsgData + 18
Value19    = _MsgData + 19
Value20    = _MsgData + 20
Value21    = _MsgData + 21
Value22    = _MsgData + 22
Value23    = _MsgData + 23
Value24    = _MsgData + 24
Value25    = _MsgData + 25
Value26    = _MsgData + 26
Value27    = _MsgData + 27
Value28    = _MsgData + 28
Value29    = _MsgData + 29
Value30    = _MsgData + 30
Value31    = _MsgData + 31
Value32    = _MsgData + 32
Value33    = _MsgData + 33
Value34    = _MsgData + 34
Value35    = _MsgData + 35
Value36    = _MsgData + 36
Value37    = _MsgData + 37
Value38    = _MsgData + 38
Value39    = _MsgData + 39
Value40    = _MsgData + 40
Value41    = _MsgData + 41
Value42    = _MsgData + 42
Value43    = _MsgData + 43
Value44    = _MsgData + 44
Value45    = _MsgData + 45
Value46    = _MsgData + 46
Value47    = _MsgData + 47
Value48    = _MsgData + 48
Value49    = _MsgData + 49
Value50    = _MsgData + 50
Value51    = _MsgData + 51
Value52    = _MsgData + 52
Value53    = _MsgData + 53
Value54    = _MsgData + 54
Value55    = _MsgData + 55
Value56    = _MsgData + 56
Value57    = _MsgData + 57
Value58    = _MsgData + 58
Value59    = _MsgData + 59
Value60    = _MsgData + 60
Value61    = _MsgData + 61
Value62    = _MsgData + 62
Value63    = _MsgData + 63
Value64    = _MsgData + 64
Value65    = _MsgData + 65
Value66    = _MsgData + 66
Value67    = _MsgData + 67
Value68    = _MsgData + 68
Value69    = _MsgData + 69
Value70    = _MsgData + 70
Value71    = _MsgData + 71
Value72    = _MsgData + 72
Value73    = _MsgData + 73
Value74    = _MsgData + 74
Value75    = _MsgData + 75
Value76    = _MsgData + 76
Value77    = _MsgData + 77
Value78    = _MsgData + 78
Value79    = _MsgData + 79
endasm

Value0     VAR BYTE ext                  ' LCD row 1
Value1     VAR BYTE ext
Value2     VAR BYTE ext
Value3     VAR BYTE ext
Value4     VAR BYTE ext
Value5     VAR BYTE ext
Value6     VAR BYTE ext
Value7     VAR BYTE ext
Value8     VAR BYTE ext
Value9     VAR BYTE ext
Value10    VAR BYTE ext
Value11    VAR BYTE ext
Value12    VAR BYTE ext
Value13    VAR BYTE ext
Value14    VAR BYTE ext
Value15    VAR BYTE ext
Value16    VAR BYTE ext
Value17    VAR BYTE ext
Value18    VAR BYTE ext
Value19    VAR BYTE ext
Value20    VAR BYTE ext                  ' LCD row 2
Value21    VAR BYTE ext
Value22    VAR BYTE ext
Value23    VAR BYTE ext
Value24    VAR BYTE ext
Value25    VAR BYTE ext
Value26    VAR BYTE ext
Value27    VAR BYTE ext
Value28    VAR BYTE ext
Value29    VAR BYTE ext
Value30    VAR BYTE ext
Value31    VAR BYTE ext
Value32    VAR BYTE ext
Value33    VAR BYTE ext
Value34    VAR BYTE ext
Value35    VAR BYTE ext
Value36    VAR BYTE ext
Value37    VAR BYTE ext
Value38    VAR BYTE ext
Value39    VAR BYTE ext
Value40    VAR BYTE ext                  ' LCD row 3
Value41    VAR BYTE ext
Value42    VAR BYTE ext
Value43    VAR BYTE ext
Value44    VAR BYTE ext
Value45    VAR BYTE ext
Value46    VAR BYTE ext
Value47    VAR BYTE ext
Value48    VAR BYTE ext
Value49    VAR BYTE ext
Value50    VAR BYTE ext
Value51    VAR BYTE ext
Value52    VAR BYTE ext
Value53    VAR BYTE ext
Value54    VAR BYTE ext
Value55    VAR BYTE ext
Value56    VAR BYTE ext
Value57    VAR BYTE ext
Value58    VAR BYTE ext
Value59    VAR BYTE ext
Value60    VAR BYTE ext                  ' LCD row 4
Value61    VAR BYTE ext
Value62    VAR BYTE ext
Value63    VAR BYTE ext
Value64    VAR BYTE ext
Value65    VAR BYTE ext
Value66    VAR BYTE ext
Value67    VAR BYTE ext
Value68    VAR BYTE ext
Value69    VAR BYTE ext
Value70    VAR BYTE ext
Value71    VAR BYTE ext
Value72    VAR BYTE ext
Value73    VAR BYTE ext
Value74    VAR BYTE ext
Value75    VAR BYTE ext
Value76    VAR BYTE ext
Value77    VAR BYTE ext
Value78    VAR BYTE ext
Value79    VAR BYTE ext

Incoming            var byte[80]
MsgData             var byte[80]
MsgLength           var byte

HPWMlcdBL           var BYTE
HPWMledstrip        var BYTE

RXoccurred          var BYTE

    MsgLength = 80

  Marker1 = 0
  Marker2 = 1

    HPWMlcdBL = 150                                 ' low intensity
    HPWMledstrip = 15                               ' low intensity
    HPWM 3, HPWMlcdBL, 1953
    HPWM 5, HPWMledstrip, 1953

  Marker2 = 0

    RXoccurred = 0                                  ' Clear RX flag

    Pause 500                                       ' Let PIC and LCD stabilize

    goto Start                                      ' Jump over sub-routines

;--- Interrupts ----------------------------------------------------------------

RXinterrupt:
  Marker1 = 1
    hserin [ STR Incoming\MsgLength]

    while BAUDCON1.6 = 0                            ' Check RCIDL bit
    wend

    RXoccurred = 1                                  ' Set flag
  Marker1 = 0
@ INT_RETURN

;--- Subroutines ---------------------------------------------------------------

Start:

@   INT_ENABLE   RX_INT             ; Enable USART Receive interrupts

    while RXoccurred = 0                            ' Wait for message
    wend

  Marker2 = 1
    strcpy  MsgData , Incoming , 80
    pause 50
  Marker2 = 0

  Marker1 = 1

    LCDOUT $FE, 1

    LCDOUT $FE, $80,    Value0,  Value1,  Value2,  Value3,  Value4,  _
                        Value5,  Value6,  Value7,  Value8,  Value9,  _
                        Value10, Value11, Value12, Value13, Value14, _
                        Value15, Value16, Value17, Value18, Value19

    LCDOUT $FE, $C0,    Value20, Value21, Value22, Value23, Value24, _
                        Value25, Value26, Value27, Value28, Value29, _
                        Value30, Value31, Value32, Value33, Value34, _
                        Value35, Value36, Value37, Value38, Value39

    LCDOUT $FE, $94,    Value40, Value41, Value42, Value43, Value44, _
                        Value45, Value46, Value47, Value48, Value49, _
                        Value50, Value51, Value52, Value53, Value54, _
                        Value55, Value56, Value57, Value58, Value59

    LCDOUT $FE, $D4,    Value60, Value61, Value62, Value63, Value64, _
                        Value65, Value66, Value67, Value68, Value69, _
                        Value70, Value71, Value72, Value73, Value74, _
                        Value75, Value76, Value77, Value78, Value79

  Marker1 = 0

EndlessLoop:
    goto EndlessLoop
end

    Both RX programs used same base code, only changed array and added strcpy.

    Saleae probe timings from before Load Array in TX to after Lcdout in RX


    TX/RX using aliases, 35.4 mSec:

    Name: Load alias v4.png Views: 22751 Size: 73.2 KB


    TX/RX using strcpy, now 85.2 mSec, adds 50.0 mSec step during strcpy:

    Name: Load strcpy v4.png Views: 22789 Size: 76.4 KB


    LCD displayed properly "+" to "z":

    Name: Load LCD.jpg Views: 22792 Size: 69.1 KB
    Last edited by Demon; - 20th March 2025 at 03:15.
    My Creality Ender 3 S1 Plus is a giant paperweight that can't even be used as a boat anchor, cause I'd be fined for polluting our waterways with electronic devices.

    Not as dumb as yesterday, but stupider than tomorrow!
    Reply With Quote Reply With Quote
  2. - 20th March 2025, 03:33 #2
    richard's Avatar
    richard
    richard is offline Prolific Poster
    Join Date
    May 2013
    Location
    australia
    Posts
    2,653

    Did you find this post helpful? Yes | No

    Default Re: Losing data when extracting bytes from words - 16F18855

    Yup, now confirmed. It's faster to use aliases than Richard's module strcpy.
    while totally ignoring the reasons why i do it that way

    1, you get every opportunity to vet the data before committing to overwrite the old data
    its east to vet whether by crc or any other test you can devise
    2, it can receive data from multiple devices and allow you to steer the data into appropriate structures at will

    if you really need speed without verification
    hserin 50,mainloop,[ wait("[",21), STR MsgData \21]


    you don't need any of that alias typing exercise
    Warning I'm not a teacher
    Reply With Quote Reply With Quote
  3. - 20th March 2025, 04:33 #3
    Demon's Avatar
    Demon
    Demon is offline SuperMod
    Join Date
    Jan 2005
    Location
    Montreal, Quebec, Canada
    Posts
    3,170

    Did you find this post helpful? Yes | No

    Default Re: Losing data when extracting bytes from words - 16F18855

    Quote Originally Posted by richard View Post
    while totally ignoring the reasons why i do it that way

    1, you get every opportunity to vet the data before committing to overwrite the old data...

    Ah, so now I understand why you referred to the first field in Incoming[0] before the strcpy. I was wondering why you did that.


    Aliases are nice because I can give the elements a meaningful name instead of MsgData[x], and I don't have to move fields about.


    I won't be moving 80 bytes anyways. This was just a test to use your module along with all those characters on my LCD.

    I'll probably have a short layout, so I can "most likely" still use your module as you intended:

    1 byte, destination PIC ID (%11xxxxxx)
    1 byte, field ID (%1xxxxxxx)
    1 word, field value
    1 byte, return code
    1 word, CRC (just sum of 5 bytes)

    (return code might even be placed in the field value on reply and use only 4 bytes)


    At least now I know that I can slide 3 slide pots at the same time as fast as I can and not lose data, even if the ADC increments grow larger (I wasn't sure before these ADCin tests). The real test will be making sure it reaches MSFS properly via USB - that's where I worry. I know USB can pile up messages in a queue, I just don't want to have to do that in my programs as well.

    I still have to see if I can turn 2 encoders quickly at the same time to simulate a pilot and copilot each turning encoders. I want to make sure two people can share the panels, like when one changes radio frequency while the other changes heading.

    The harder part will be flying the same plane over LAN or internet. Having two sets of my panels being used at the same time is an unknown for now (the game supports shared cockpit).
    Last edited by Demon; - 20th March 2025 at 04:41.
    My Creality Ender 3 S1 Plus is a giant paperweight that can't even be used as a boat anchor, cause I'd be fined for polluting our waterways with electronic devices.

    Not as dumb as yesterday, but stupider than tomorrow!
    Reply With Quote Reply With Quote
« Previous Thread | Next Thread »

Similar Threads

  1. Decoding serial data bytes and nibbles.
    By retepsnikrep in forum mel PIC BASIC Pro
    Replies: 6
    Last Post: - 18th January 2018, 08:22
  2. Bits, Bytes Words and Arrays
    By Melanie in forum FAQ - Frequently Asked Questions
    Replies: 24
    Last Post: - 14th June 2016, 07:55
  3. ORing / ANDing bytes or words
    By mmargolis in forum mel PIC BASIC Pro
    Replies: 1
    Last Post: - 19th March 2011, 20:12
  4. Success! Are they 'words' or are they 'bytes'?
    By BitHead in forum mel PIC BASIC Pro
    Replies: 3
    Last Post: - 27th December 2009, 16:54
  5. Codespace Saving Tip... Don't mix Words and Bytes
    By Melanie in forum Code Examples
    Replies: 0
    Last Post: - 18th June 2004, 10:23

Members who have read this thread : 14

You do not have permission to view the list of names.

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts

Forum Rules
