ESP8266 - transfer some bytes PC<>PIC over wifi


+ Reply to Thread
Results 1 to 25 of 25
  1. #1
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    Hi there,

    I'd like to transfer a config ".TXT" file (it's a bunch of 100 bytes or so) from my PC to a PIC over wifi.

    So first things first: power it up and find some AP to connect to.

    BTW, this is the very common module I have, the ESP-01S:
    Name:  ESP-01S.jpg
Views: 3443
Size:  20.7 KB

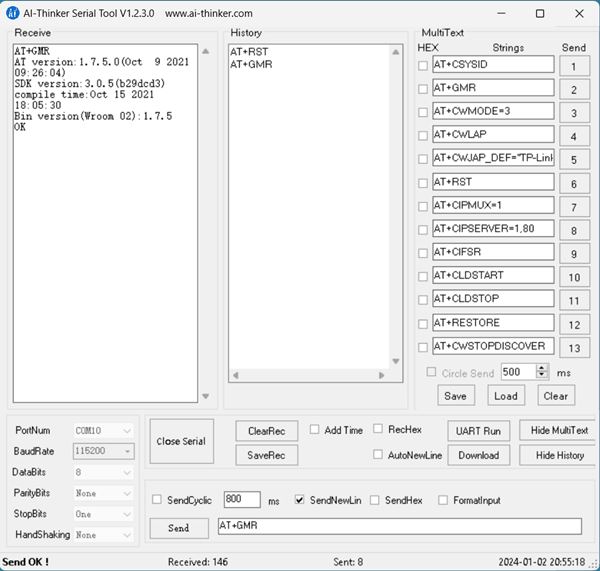

    My first action is to get connected to the wifi, but I always get an error message when trying to list the networks (I can see at least five APs on my mobile):

    Name:  Ai-serial.jpg
Views: 3425
Size:  38.6 KB


    Has this "ERROR" something to do with the firmware? There are so many versions out there (mine looks already old...2015...) that I don't know where to look at for a start....
    Roger

  2. #2
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    Okay, for now, I'm trying to get started with this piece of info https://www.instructables.com/Gettin...SP8266-ESP-01/

    🤞
    Roger

  3. #3
    Join Date
    Nov 2003
    Location
    Greece
    Posts
    4,038

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Have you found what caused the Error?

    Very interesting instructable link. Thank you!

    Ioannis

  4. #4
    Join Date
    Oct 2005
    Location
    Sweden
    Posts
    3,580

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Have you tried with CWMODE = 3?

    Also, see this:

    https://stackoverflow.com/questions/...ith-no-details

  5. #5
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Quote Originally Posted by Ioannis View Post
    Have you found what caused the Error?
    Unfortunately, no.

    Still searching....
    Roger

  6. #6
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    Quote Originally Posted by HenrikOlsson View Post
    Have you tried with CWMODE = 3?
    No. I'll give it a try when I'm back from office.
    Roger

  7. #7
    Join Date
    Oct 2005
    Location
    Sweden
    Posts
    3,580

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    I tried with an old module I had laying around.
    I got the same issue no matter which CWMODE. But in the Stackoverflow post I linked to user urbanSoft (so all credit to him) writes:
    That AT+CWLAP returns an error without any prior connection is desired behaviour.
    The doc states that "AT+CWLAP connects an ESP station to a targeted AP with the last Wi-Fi configuration."

    Since there is no last Wi-Fi configuration an error is returned.
    So I tried that by connecting it to my network using AT+CWJAP="myssid","mypassword" and after that CWLAP worked as expected.

    My module is really old with stock firmware. AT commands have changed and been added over the years so don't expect any and all examples you find on the internet to just work if they don't match the firmware.

  8. #8

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    do anyone want to try the ESP8266 programmed to be serial to WIFI 'bridge' ?? This is a few years old but all the info and files seem to be available.
    Here is the link for github page

    https://github.com/jeelabs/esp-link/...ster/README.md


    I would post about any issues I had or suggestions if anyone wants or needs that.

  9. #9
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Quote Originally Posted by HenrikOlsson View Post
    Have you tried with CWMODE = 3?
    ...as you suggested, I tried with mode 3 and:

    Name:  ESP8266 Wifi OK.jpg
Views: 3286
Size:  61.2 KB

    Thank you very much Henrik
    Last edited by flotulopex; - 29th December 2023 at 16:49.
    Roger

  10. #10
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Quote Originally Posted by amgen View Post
    do anyone want to try the ESP8266 programmed to be serial to WIFI 'bridge' ??.
    Amgen, what exactly is a "bridge"? Is it what I actually want to achieve = send (small amount of) data, both ways, between a PC and a PIC over Wifi?
    Roger

  11. #11

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Amgen, what exactly is a "bridge"? Is it what I actually want to achieve = send (small amount of) data, both ways, between a PC and a PIC over Wifi?
    Yes, instead of bridge, could use 'connection'......... what program or app would you use on the PC to receive and send data?

  12. #12
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Quote Originally Posted by amgen View Post
    what program or app would you use on the PC to receive and send data?
    Don't know yet.

    I think I'm going to use some kind of mobile Terminal app or, if possible, a web browser or even make one by myself with MIT App Inventor which I'm already on my way but using Bluetooth for now which I'll need to change to wifi, obviously.

    Attachment 9528

    I've no idea what will be the simplest and fastest to achieve...

    It's really just about to send some data to a PIC, have the PIC acknowledging and storing if datat is okay. Voilà.
    Roger

  13. #13
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    ...can't edit my previous post.... so here is the picture ment to appear:

    Name:  MIT_App_Inventor.jpg
Views: 3119
Size:  43.0 KB
    Roger

  14. #14

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    I found that web browsers block from trying to access your internal network like putting 192.168.X.X into the address bar ...... But, old Hyper Terminal will connect and do send/receive except it intermingles the send/receive characters.

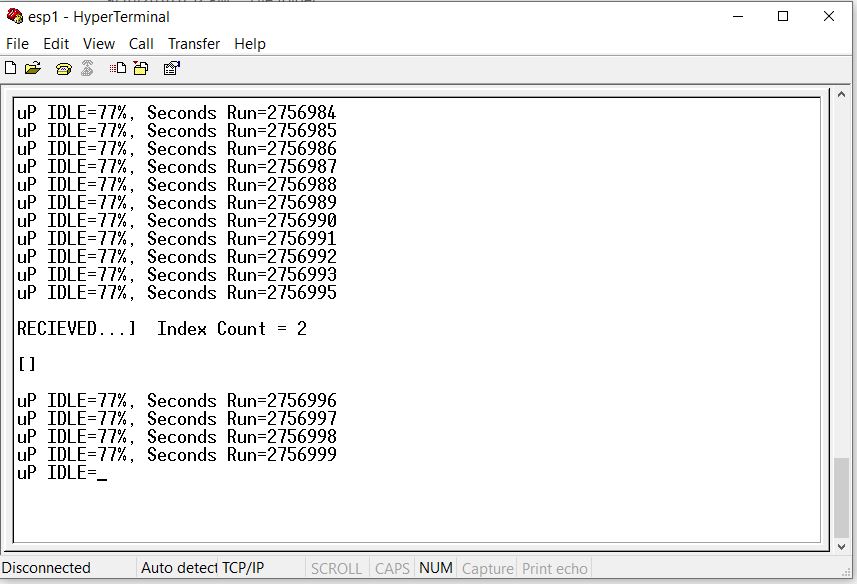

    When you get to start testing...... my PIC18f2525 sends serial out every second (helps when connecting and checking functioning)
    Name:  esp1.JPG
Views: 3131
Size:  84.9 KB

  15. #15
    Join Date
    Oct 2005
    Location
    Sweden
    Posts
    3,580

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    Quick note about something I re-learned yesterday.
    It started when I tried to update the firmware of my ESP-01 module, it only has 4Mbit of FLASH so it did not work. Dug out an ESP-12F module and loaded 2.2.1.0 onto it. Flashing it worked fine but I could not get it to "work". Then I remembered...

    Somewhere in the firmware history the default UART-pins for AT command have changed from GPIO.0/3 to GPIO.13/15.

    GPIO.0/3 are still used to PROGRAM the thing but AT commands are now accepted on GPIO.13/15.

    On version 2.2.1.0 CWLAP works in CWMODE=1 and CWMODE=3 without first connecting to an existing network. It also has AT commands for managing MQTT (don't know when those commands were added).

    I have a command reference dated 2020 which includes the MQQT commands but no longer contains the command CWMODE. Instead it references CWMODE_DEF and CWMODE_CUR however neither of these work. Online documentation here is back to just CWMODE.

    So yeah, it's a bit of a mess....

  16. #16
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    There's quite a jungle of firmwares available for these ESP modules.

    Which one should I use? Which one will allow me to "simply" send and receive a few bytes back an forth between a PC and a PIC?

    If I already have a project doing the same (transferring bytes) but using Bluetooth HC-05 modules, will I be able to replace these Bt modules by the Wifi ones and it will work like 1:1 or is it not possible?
    Roger

  17. #17

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    There's quite a jungle of firmwares available for these ESP modules.

    Which one should I use? Which one will allow me to "simply" send and receive a few bytes back and forth between a PC and a PIC?
    That is what I found about these 8266's. Plus I wanted to just deal with the serial/data/programming with the PIC and not have to add all the CWxxx's in the communications back and forth. So, the Jeelabs thing did that...... Programming these 8266 is about the same with different methods, I used the Espressif tool to put 4 files at the specified locations on the 8266. The Jeelabs page has files for the 8266-1 and -12. Sometimes had to flash 2 times to get the program to take..... after programmed, you open the onboard web page to make all the network settings.... then everytime it is powered up, it automatically hooks to the network you had set it for and waits for a connection and then automatically sends and receives serial stuff. Plus, you can access your PIC from local or anywhere in the world with internet. I was looking for others ideas for the routines/programs on the PIC plus apps or program on PC for easy simple comms for simple micro-controllers.
    Name:  esp.JPG
Views: 3145
Size:  98.4 KB
    Last edited by amgen; - 31st December 2023 at 15:41.

  18. #18
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    Amgen,

    Would you please share the firmware you've installed?

    I tried so many that didn't work....
    Roger

  19. #19
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    BTW, ESPRESSIF seem to have a firmware, the ESP-WROOM-02 Series that should fit the ESP8266 according.

    https://docs.espressif.com/projects/..._binaries.html


    It looks very easy to download the firmware to the module since one can choose between multiple .bin files (for the "experts" I presume) or a single .bin file (for th rookie I am )

    The download process runs well with the ESP8266 FLASCH DOWNLOAD TOOL v3.9.5 but once the download is done, an error will always occur - must be some data copy check that doesn't accept the final result.

    So, still stuck and searching....
    Roger

  20. #20

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    If this comes through, here is the zipped 4 files to load and the screen shot for the locations they have to programmed to. I believe all this is still on Jeelabs git pages.
    I'm sure you know that the program files need to be referenced in the folder you have put them.
    '
    one more edit for you...... if I remember?!@#...... had to check/box the 'DOUT' ... it was little tricky but once you get it it goes easy
    '
    Flash.zip
    Last edited by amgen; - 1st January 2024 at 19:11.

  21. #21
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    Thanks a lot Amgen, I'll give it a try tonight.

    Until then, just a question about your addresses: are these really correct?

    Name:  2024-01-02 08_56_42-Good config 12-20.jpg
Views: 3118
Size:  100.3 KB

    ...or does it just doesn't make any change if they have one trailing zero less?
    Roger

  22. #22

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi


  23. #23
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    Okay, thanks to amgen, I finally successfully flashed my module.

    But, still nothing works and sending AT+GMR will return...nothing at all.

    Maybe my three modules are just defect...

    I think I'm going to leave this by side for a while, go get a beer, and have some fun with something else and come back later
    Roger

  24. #24

    Default Re: ESP8266 - transfer some bytes PC<>PIC over wifi

    hey man,...... YOU DON'T USE AT STUFF........
    What you do next is......1) power up 8266... (3 volts)
    2) Look at your live WIFI network list for the ESP device and hook up your computer/laptop to that network, I put screen shot-
    3) that opens the onboard web page for all the settings and type of access point (you can figure out) or I will share what I did
    4) restart the device with your UART TX,RX connected to pic...... open say Hyperterminal connection type TC/IP winsoc
    5) connect to your network ..... 192.X...... or 172.XX.......... port 23
    6) once connected, you can send and receive at the baud you have set
    ....... suggestion, program PIC to serout some crap say once/second,...... then when you connect you can tell if shit is working
    .
    .
    Name:  esp2.JPG
Views: 3149
Size:  148.6 KB
    .
    Last edited by amgen; - 2nd January 2024 at 20:06.

  25. #25
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    923

    Default ESP8266 - transfer some bytes PC<>PIC over wifi

    I just realized I was using the flasher version 3.9.5 from the beginning.....

    I found version 2.3 and guess what, all my modules are now updated successfully and I can check this via AT commands

    Name:  update_ok.jpg
Views: 3050
Size:  52.6 KB

    Amgen, I'm now going to read your previous post carefully.
    Roger
