for 4m ext clock with usb and 48m fosc i/o on a6

Code:
#CONFIG
  CONFIG  PLLDIV = 1         ; No prescale (4 MHz oscillator input drives PLL directly)
  CONFIG  CPUDIV = OSC1_PLL2 ; [Primary Oscillator Src: /1][96 MHz PLL Src: /2]
  CONFIG  USBDIV = 2         ; USB clock source comes from the 96 MHz PLL divided by 2
  CONFIG  FOSC = ECPLLIO_EC  ; EC oscillator, PLL enabled, port function on RA6 (ECPIO)
  CONFIG  FCMEN = OFF        ; Fail-Safe Clock Monitor disabled
  CONFIG  IESO = OFF         ; Oscillator Switchover mode disabled
  CONFIG  PWRT = OFF         ; PWRT disabled
  CONFIG  BOR = ON           ; Brown-out Reset enabled in hardware only (SBOREN is disabled)
  CONFIG  BORV = 3           ; Minimum setting
  CONFIG  VREGEN = ON        ; USB voltage regulator enabled
  CONFIG  WDT = ON           ; WDT enabled
  CONFIG  WDTPS = 512        ; 1:512
  CONFIG  CCP2MX = ON        ; CCP2 input/output is multiplexed with RC1
  CONFIG  PBADEN = OFF       ; PORTB<4:0> pins are configured as digital I/O on Reset
  CONFIG  LPT1OSC = OFF      ; Timer1 configured for higher power operation
  CONFIG  MCLRE = ON         ; MCLR pin enabled; RE3 input pin disabled
  CONFIG  STVREN = ON        ; Stack full/underflow will cause Reset
  CONFIG  LVP = OFF          ; Single-Supply ICSP disabled
  CONFIG  ICPRT = OFF        ; ICPORT disabled
  CONFIG  XINST = OFF        ; Instruction set extension and Indexed Addressing mode disabled (Legacy mode)
  CONFIG  DEBUG = OFF        ; Background debugger disabled, RB6 and RB7 configured as general purpose I/O pins
  CONFIG  CP0 = OFF          ; Block 0 (000800-001FFFh) is not code-protected
  CONFIG  CP1 = OFF          ; Block 1 (002000-003FFFh) is not code-protected
  CONFIG  CP2 = OFF          ; Block 2 (004000-005FFFh) is not code-protected
  CONFIG  CP3 = OFF          ; Block 3 (006000-007FFFh) is not code-protected
  CONFIG  CPB = OFF          ; Boot block (000000-0007FFh) is not code-protected
  CONFIG  CPD = OFF          ; Data EEPROM is not code-protected
  CONFIG  WRT0 = OFF         ; Block 0 (000800-001FFFh) is not write-protected
  CONFIG  WRT1 = OFF         ; Block 1 (002000-003FFFh) is not write-protected
  CONFIG  WRT2 = OFF         ; Block 2 (004000-005FFFh) is not write-protected
  CONFIG  WRT3 = OFF         ; Block 3 (006000-007FFFh) is not write-protected
  CONFIG  WRTC = OFF         ; Configuration registers (300000-3000FFh) are not write-protected
  CONFIG  WRTB = OFF         ; Boot block (000000-0007FFh) is not write-protected
  CONFIG  WRTD = OFF         ; Data EEPROM is not write-protected
  CONFIG  EBTR0 = OFF        ; Block 0 (000800-001FFFh) is not protected from table reads executed in other blocks
  CONFIG  EBTR1 = OFF        ; Block 1 (002000-003FFFh) is not protected from table reads executed in other blocks
  CONFIG  EBTR2 = OFF        ; Block 2 (004000-005FFFh) is not protected from table reads executed in other blocks
  CONFIG  EBTR3 = OFF        ; Block 3 (006000-007FFFh) is not protected from table reads executed in other blocks
  CONFIG  EBTRB = OFF        ; Boot block (000000-0007FFh) is not protected from table reads executed in other blocks
#ENDCONFIG

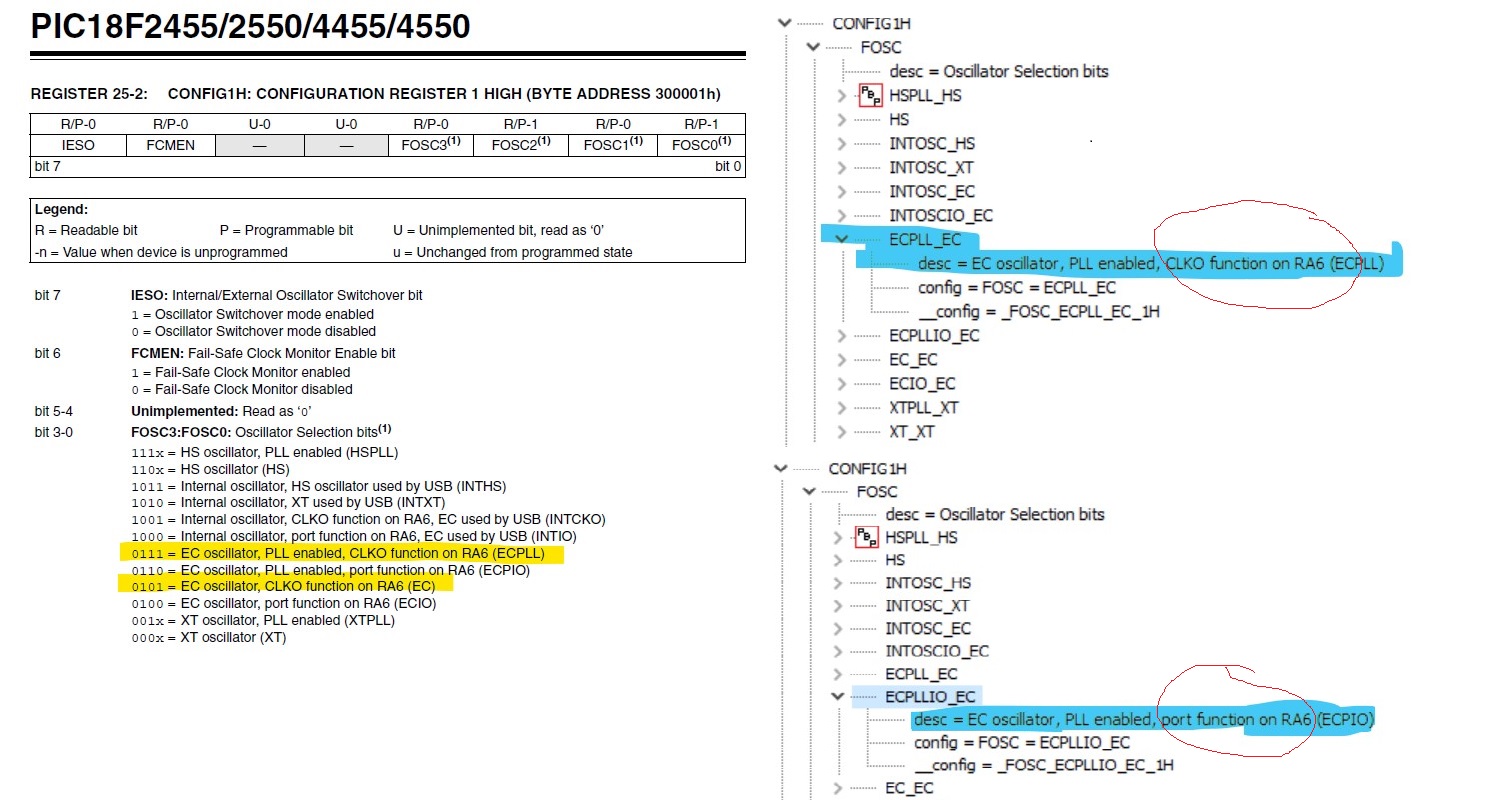

Name: Screenshot .jpg Views: 3664 Size: 272.5 KB
