Again ADC with 12F675 ...

[fratello]

Me, again ...with something strange (at least for me) !
I try to use ADC for reading a couple of buttons. I have two situations :

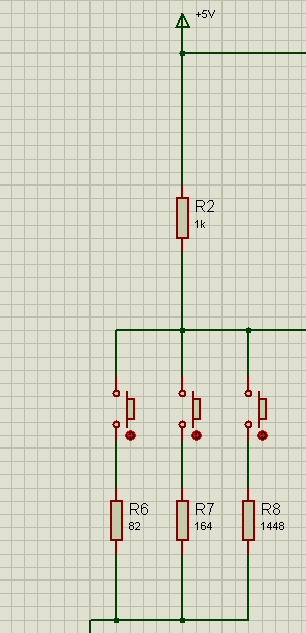

- three buttons, with 82 ohms, 164 ohms, 1448 ohms resistors ; ADC reading = 1023 nothing pressed ; 78 with button 1 pressed ; 144 with button 2 ; 605 with button 3 ;

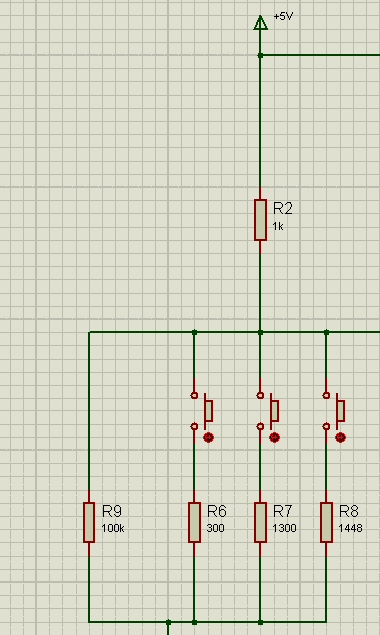

- three buttons, with 300 ohms, 1300 ohms, 3110 ohms AND 100 Kohms in parallel ; ADC reading = 1013 nothing pressed ; 236 with button 1 pressed; 575 with button 2 ; 768 with button 3.

I tried with 2 version of code (for both situations):

 ADCON0.1 = 1
 WHILE ADCON0.1 = 1 : WEND
 adval.HighByte = ADRESH
 adval.LowByte = ADRESL
if adval > 10  and adval < 300 then  gosub LED1
...etc....

and

ADCIN 3, adval
if adval > 10 and adval < 300 then gosub LED1
...etc...

For first situation everything works fine, with both version of reading ADC !
BUT ... for second situation, NOTHING HAPPENS !!! I really not understand what I do wrong ... Can me point to the right direction ? Thanks in advance !

[fratello]

Note : In Proteus both schematic work, so I made it on PCB. First variant works just fine, second none ...

[HenrikOlsson]

For the code using ADCIN, is the left/right justification set correctly? I can never remember which way around it wants it so whatever you have it set to, try changing it. And, do you have DEFINE ADCBITS 10 in there?

/Henrik.

[fratello]

Thanks for reply !

CMCON = 7
OPTION_REG  = %10000110
TRISIO      = %00001100
GPIO        = %00000001
ANSEL       = %00010100
ADCON0      = %10001001

I don't change anything in code (except values for actions) ... just the resistors from "chain" command.
With first chain work ; with second not. It's because of 100 kOhms ?!?

[flotulopex]

In your very first post, I couldn't find any clear description of your problem or goal....

Post#6
Attachment 7758 Attachment 7759

Post #22
Attachment 7766

Resistor coupling is apparently not the same in those two posts - is this okay?



Try this:

Button 1 = 0 Volt => ADC 8 bits = +/-0 , ADC 10 bits = +/-0
Button 2 = 1,25 Volts => ADC 8 bits = +/-64 , ADC 10 bits = +/-320
Button 3 = 2,5 Volts => ADC 8 bits = +/-128 , ADC 10 bits = +/-640
Button 4 = 3,75 Volts => ADC 8 bits = +/-192 , ADC 10 bits = +/-960

I didn't built the circuit above; if ADC values are not stable, try with all R values ( :10) => 10k becomes 1k, 3k3 becomes 300Ohms and so on.



As an alternative, you may want to have a look here "Compiled Tips ‘N Tricks Guide".

[fratello]

Thanks for info !
