Can you use the same pin as input/output and control led load?

Results 1 to 7 of 7

Threaded View

  1. - 15th August 2013, 09:28 #7
    Charlie's Avatar
    Charlie
    Charlie is offline Senior Member
    Join Date
    Dec 2010
    Posts
    409

    Did you find this post helpful? Yes | No

    Default Re: Can you use the same pin as input/output and control led load?

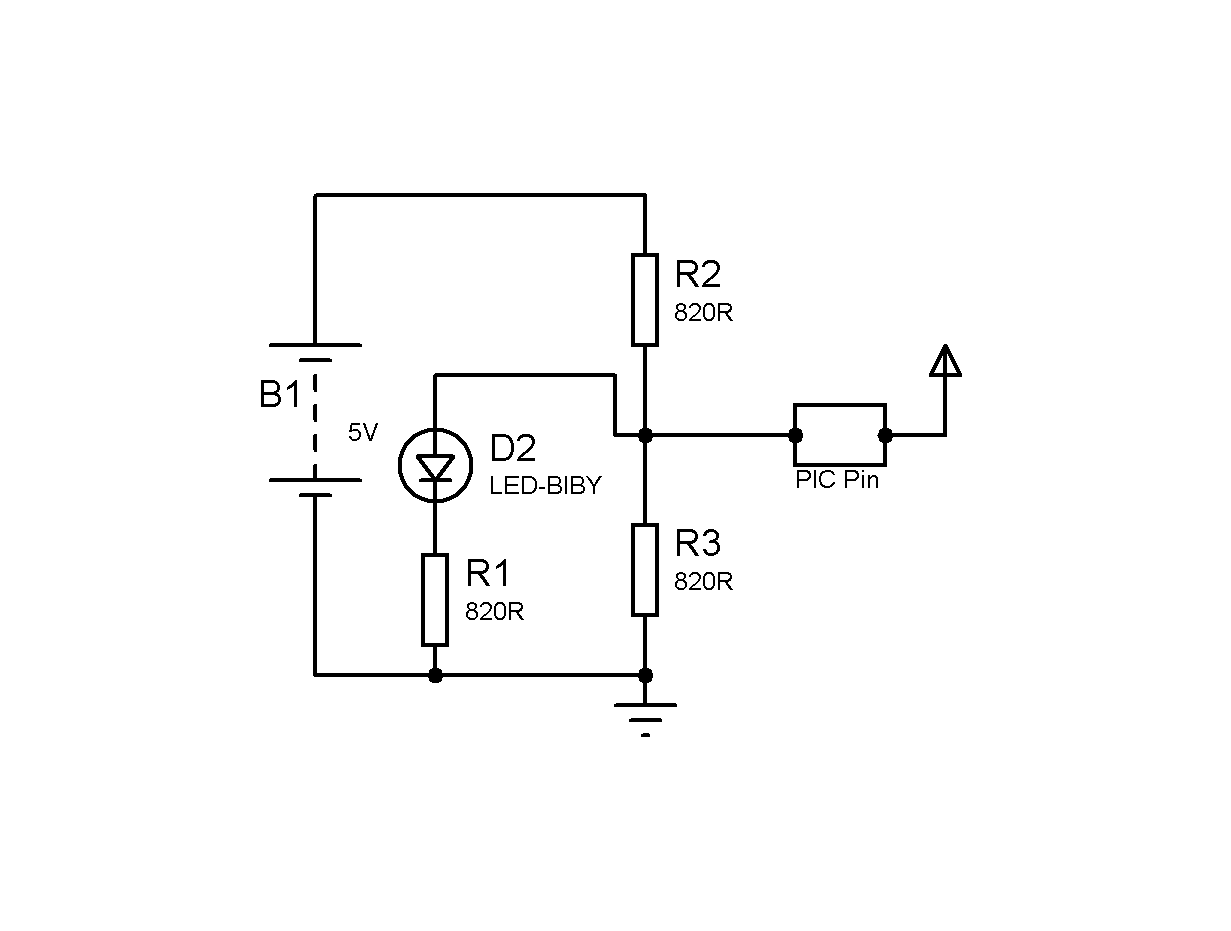

    What are you trying to accomplish with this circuit?
    Is the objective to have the LED on dimly and be able to confirm it has not failed, then be able to have the PIC turn it on brightly or off completely?
    Is the PIC also powered by 5V?
    If so, R3 does not serve any purpose...
    Last edited by Charlie; - 15th August 2013 at 09:30.
