Henrik,

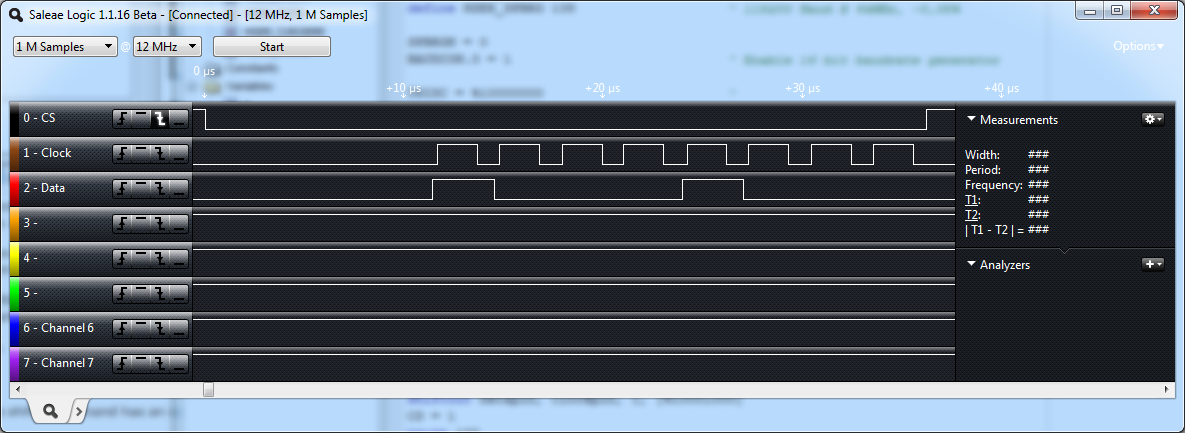

I had the scope connected after the 3.9k resistors. I have the resistors connected directly to the PIC pins for protection and then I run wires (About 6" to a connector which goes directly to the IC I am sending data to). The scope probes were clipped to the wires at the connector end. There is no level conversion going on however, the chip I am sending the SPI commands to is powered by a different source. The grounds are tied together. Everything runs at 3.3V
I will get someone to help me measure the signals directly at the PIC pins with nothing else attached and I will let you know if it looks any better.
Thanks for your help,
Jim
