Well, now that I've switched from PBP2..6 to PBP3 I seem to be having trouble with DT_Interrupts in some "previously working" code.
I've read the manual about migrating from PBP2.6 to 3.0, and have successfully applied it to other programs, but can't seem to get it going on this one.
The chip is a 16F726. It uses DT_interrupts in a touch sensor routine.
The code worked when compiled with PBP2.6 but creates some "ASM Errors" with PBP3

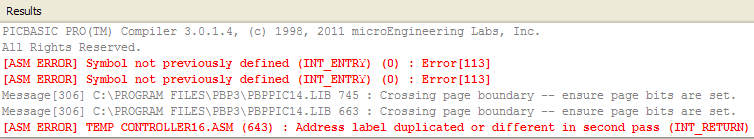

Here's the errors I get:

Here's my ASM code. First, some config stuff.
Used to be:
Code:
@ __config _CONFIG1, _DEBUG_OFF & _PLL_EN & _BORV_2_5 & _BOR_ON & _CP_OFF & _MCLRE_OFF & _PWRT_EN & _WDT_OFF & _INTOSCIO
@ __config _CONFIG2, _VCAP_RA0
Now looks like:
Code:
#CONFIG
__config _CONFIG1, _DEBUG_OFF & _PLL_EN & _BORV_2_5 & _BOR_ON & _CP_OFF & _MCLRE_OFF & _PWRT_EN & _WDT_OFF & _INTOSCIO
__config _CONFIG2, _VCAP_RA0
#endCONFIG
Then I set up the interrupt. Here's my OLD code for PBP2.6:
Code:
'-----Set up Interrrupts
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler TMR1GATE_INT, _CheckCount, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
@ INT_ENABLE TMR1GATE_INT ; enable Timer 2 interrupts
And the NEW code for PBP3:
Code:
'-----Set up Interrrupts
#CONFIG
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler TMR1GATE_INT, _CheckCount, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
#ENDCONFIG
#CONFIG
INT_ENABLE TMR1GATE_INT ; enable Timer 1 interrupts
#ENDCONFIG
At the end of my interrupt handler routine I had this:
Which has been changed to this:
Code:
#CONFIG
INT_RETURN
#ENDCONFIG
That'all the ASM there is.
I clearly haven't done it right... could someone point me in the right direction?
Thanks!
