Counting led blinks..

[tacbanon]

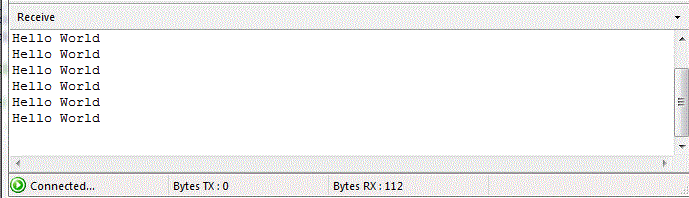

Hi everyone, now the usb device is recognized and its in Port COM2. My only problem is that my pulse counter variable i is reseting back to zero when a pulse(acctually I'm using a button on RA4 to simulate the pulse) is detected. In the code I did not yet insert the command "USBOut 3, buffer, cnt, Main" to send to pc.

asm    ;__CONFIG    _CONFIG1L, _PLLDIV_5_1L & _CPUDIV_OSC1_PLL2_1L & _USBDIV_2_1L
    __CONFIG    _CONFIG1L, _PLLDIV_2_1L & _CPUDIV_OSC1_PLL2_1L & _USBDIV_2_1L
    __CONFIG    _CONFIG1H, _FOSC_XTPLL_XT_1H & _FCMEN_OFF_1H & _IESO_OFF_1H
                            ;                  ;               ; Oscillator Switchover mode disabled
                            ;                  ; Fail-Safe Clock Monitor disabled
                            ; XT oscillator, PLL enabled, XT used by USB
    __CONFIG    _CONFIG2L, _PWRT_ON_2L & _BOR_ON_2L  & _BORV_2_2L  & _VREGEN_ON_2L
    __CONFIG    _CONFIG2H, _WDT_OFF_2H
    __CONFIG    _CONFIG3H, _MCLRE_ON_3H & _LPT1OSC_OFF_3H & _PBADEN_OFF_3H & _CCP2MX_ON_3H
    __CONFIG    _CONFIG4L, _STVREN_ON_4L & _LVP_OFF_4L & _ICPRT_OFF_4L  & _XINST_OFF_4L & _DEBUG_OFF_4L
    endasm
DEFINE OSC 48
DEFINE LCD_DREG PORTB
DEFINE LCD_DBIT 0
DEFINE LCD_EREG PORTB
DEFINE LCD_EBIT 5
DEFINE LCD_RSREG PORTB
DEFINE LCD_RSBIT 4
DEFINE LCD_BITS 4
DEFINE LCD_LINES 2
DEFINE LCD_COMMANDUS 2000
DEFINE LCD_DATAUS 50
PAUSE 100


Include    "cdc_desc.bas"    ' Include the HID descriptors
buffer    Var    Byte[16]
Cnt       VAR BYTE
Cnt = 2



TRISA.4 = 1 ' RA4/T0CKI = input to TMR0 counter
TRISA.0 = 0 ' RA0 = output for LED
CMCON = 7   ' All digital
ADCON1 = 001111      ' A/D converter off


'If you prefer, then increment on low-to-high transitions
T0CON   = 111000
USBInit                   ' Initialize USART


i var byte
i=0
' Assign prescaler to WDT for 1:1 prescale on TMR0
' TMR0 clock will be from your external input on RA4/T0CKI
' Increment on high-to-low transitions


                            '
Lcdout $fe, 128, "Counter: ", #i
'pause 20
Main:
    USBService    ' Must service USB regularly
    TMR0L = 0     ' Clear TMR0 count before start

Loop1:

    WHILE TMR0L = 0 ' Wait for high-to-low transition
    USBService
    WEND           ' on RA4/T0CKI
    pause 5
    PORTB.0 = 1    ' LED on to indicate transition seen
    i=i+1       ' increment i
    Lcdout $fe, 128, "Counter: ", #i
    USBService
    PORTB.0 = 0    ' LED off

I appreciate any help...

thanks in advance,
tacbanon

[HenrikOlsson]

When you enter the Loop1 routine you sit at the WHILE-WEND loop waiting for a pulse. When a pulse comes along you run thru the rest of the routine and finally pull PortB.0 low....then what happens?

There's no GOTO or END or anything after the Loop1 routine so the program will continue and continue and continue thru the (empty) codespace untill it reaches the end, then it'll wrap around and start over at the beginning and what happens there? Yep - you reset the count (i = 0) ;-)

By the way, you're now incrementing and displaying the i variable and not the TMR0 count but I guess that's intentional for now?

/Henrik.

[tacbanon]

Hi, yes your'e right Henrik "Goto Main" was all it need.

By the way, you're now incrementing and displaying the i variable and not the TMR0 count but I guess that's intentional for now?

I think TMR0 and variable i are the same but only not reseting to zero, and I need it for visual.

I hope they can allow me here to continue, because I'm planning to incorporate an SD card module to hold the number of coins.

regards,
tacbanon

[tacbanon]

Hi, I would like to incorporate an sdcard to the project and record the number of coins, only when pressing a button (e.g RB7) , but first I want to make a seperate test program using Pic18F4550. As I understood the connection should be simple enough but just to make sure I attached an image of my connections(Please correct me if it's wrong). I found a source code but it's in C.

 // example writing to SD card, sford
 #include "mbed.h"
 #include "SDFileSystem.h"
 SDFileSystem sd(p5, p6, p7, p8, "sd"); // the pinout on the mbed Cool  Components workshop board

 int main() {
     printf("Hello World!\n");

     mkdir("/sd/mydir", 0777);

     FILE *fp = fopen("/sd/mydir/sdtest.txt", "w");
     if(fp == NULL) {
         error("Could not open file for write\n");
    }
    fprintf(fp, "Hello fun SD Card World!");
    fclose(fp);


   printf("Goodbye World!\n");
 }

The code creates a folder and writes "Hello fun SD Card World" to file name "sdtest.txt".
Hope anyone can help...

thanks in advance,
tacbanon

[HenrikOlsson]

Hi,
That C-example does nothing for or with PBP, the C-compiler used in the example (which ever it is) has a built in library function to support a SD-card. There is no such function built into PBP. HOWEVER there is a SD-card example on (who would've thought) the examples page at MELABS (SDFS3.pbp).

With that said do you really need a SD-card? How much info do you need to store? The 4550 has 256bytes of EEPROM, can't you use that? Not that having a SD-card is "impossible" but using the EEPROM is going to be MUCH (I mean MUCH) easier than - which I think you'll see once you look at the example code.

/Henrik.

[tacbanon]

Hi Henrik, thanks for the responce. To be honest I already saw the link, but I'm skeptical because I dont really understand how it works(not simple for me). But I'm willing to try it out. I need to incorporate the sdcard because I'm trying to create a "coin operated computer rental app" I want later to save the number of coins and date/time per transaction. I also want to learn the EEPROM stuff but I was thinking about the capacity and since SDCARD can be quite cool (if I manage to incorporate it). I will try the link and post the results.

regards,
tacbanon

[mackrackit]

Maybe you can get some use from this?
http://www.picbasic.co.uk/forum/cont...USB-SD-LOGGING
