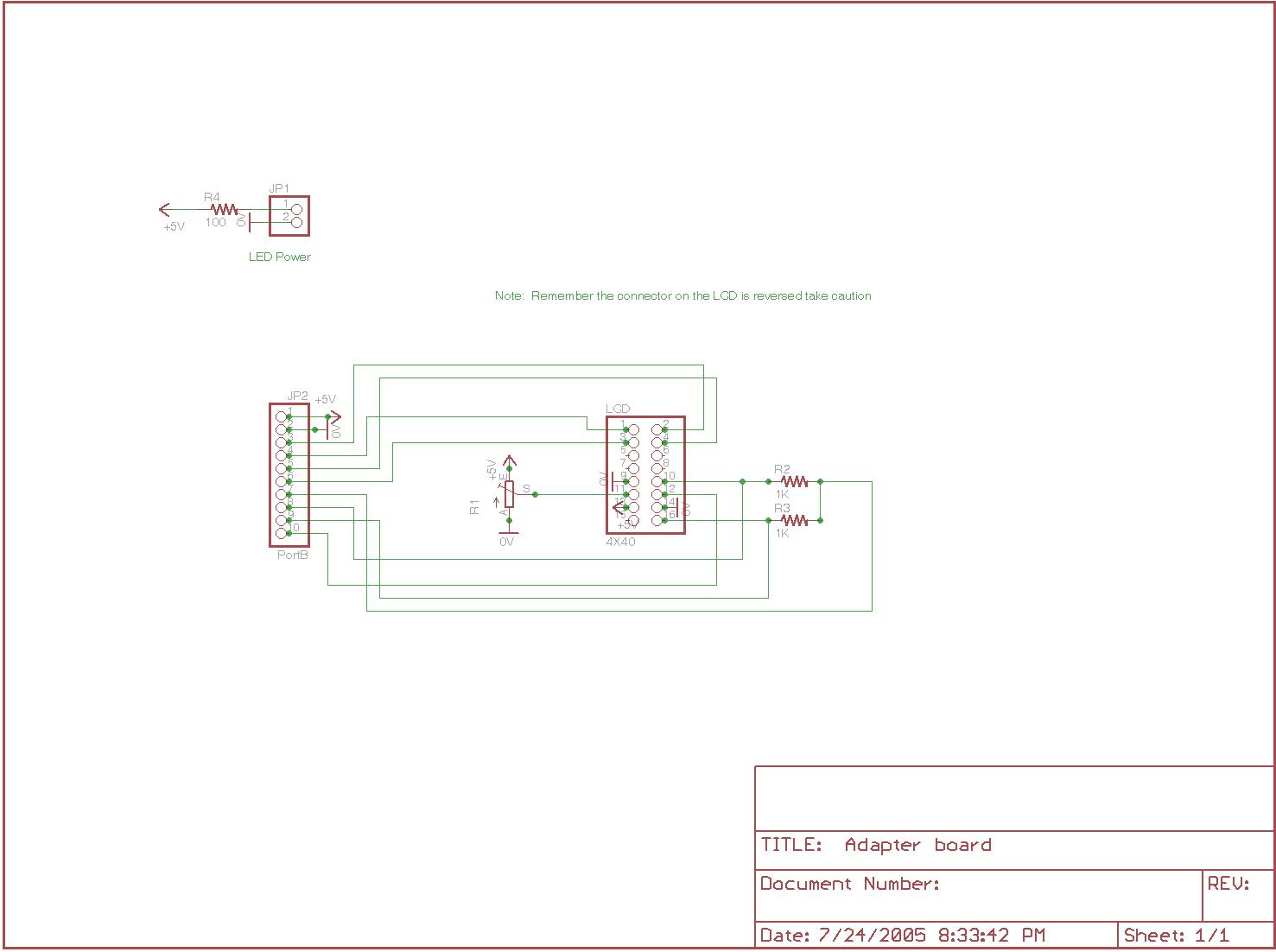

Here is how I made a 4x40 work

Code:
'****************************************************************
'* Name : USBladem4X40LCD *
'* Author : Dave Cutliff *
'* Notice : Copyright (c) 2005 Patent pending *
'* : All Rights Reserved *
'* Date : 7/22/05 *
'* Version : 1.0 *
'* Notes : PIC18F2455 *
'* : LCD 4X40 Dual driver *
'****************************************************************
Define OSC 48
'**** LCD *******************************************************
'Set LCD Data port
DEFINE LCD_DREG PORTB
'Set starting Data bit (0 or 4) if 4-bit bus
DEFINE LCD_DBIT 4
'Set LCD Register Select port
DEFINE LCD_RSREG PORTB
'Set LCD Register Select bit
DEFINE LCD_RSBIT 0
'Set LCD Enable port
DEFINE LCD_EREG PORTB
'Set LCD Enable bit
DEFINE LCD_EBIT 3
'LCD RW Register PORT
'DEFINE LCD_RWREG PORTB
'LCD read/write pin bit
'DEFINE LCD_RWBIT 5
'Set LCD bus size (4 or 8 bits)
DEFINE LCD_BITS 4
'Set number of lines on LCD
DEFINE LCD_LINES 4
'Set command delay time in us
DEFINE LCD_COMMANDUS 2000
'Set data delay time in us
DEFINE LCD_DATAUS 50
LCD1_Disable var portb.2
LCD2_Disable var portb.1
'*** Program variables *****************************************
buffer1 Var Byte[8]
buffer2 Var Byte[8]
cnt Var Byte
lcdcnt var byte
'lcdchr var byte
lcdlen var byte
lcdline var byte
lcd var byte
lcdfunction var byte
'x var byte
'y var byte
'j var byte
k var byte
'ln var byte
'tmp1 var byte
'***************************************************************
USBInit
pause 500
' Initialize LCD
input LCD1_Disable
input LCD2_Disable
LCDOut $fe,1 'clear lcd
pause 100
LCDOut $fe,2 'home
LCDOut $fe,$0c 'Curser off
LCDOut " USB 4X40 LCD "
LCDOut $FE,$C0
LCDOut " DAVE CUTLIFF "
low LCD1_Disable
input LCD2_Disable
LCDOut $fe,1 'clear lcd
LCDOut $fe,2 'home
LCDOut $fe,$0c 'Curser off
LCDOut " Highspeed USB Project "
LCDOut $FE,$C0
LCDOut " August 2005 "
pause 100
goto idleloop
'*********************subrouteens*************************
READ_SETUP:
USBService
lcdlen = buffer1[3]
lcdline = buffer1[1]
lcdfunction = buffer1[2]
lcd = buffer1[0]
if lcd= 0 then
input LCD1_Disable
LOW LCD2_Disable
else
LOW LCD1_Disable
input LCD2_Disable
endif
if lcdfunction = 1 then lcdout $FE,1
lcdout $FE,lcdline
RETURN
Write_LCD:
USBService
lcdcnt = 1
While lcdcnt < lcdlen
for k = 1 to 7
lcdcnt = lcdcnt + 1
LCDOUT buffer2[k]
if lcdcnt = lcdlen then goto outloop
usbin 2, buffer2, cnt, idleloop
next k
wend
Return
outloop:
USBService ' Must service USB regularly
USBOut 1, buffer1, cnt, outloop ' Send the bytes back
return
'****************************************************************
' Wait for USB input of 8 numbers.
idleloop:
USBService ' Must service USB regularly
cnt = 8 ' Specify input buffer size
USBIn 1, buffer1, cnt, idleloop
gosub READ_SETUP
gosub outloop
usbin 2, buffer2, cnt, idleloop
GOSUB Write_LCD
gosub outloop
goto idleloop
Hope this helps
Dave
