I have one of these that I no longer need (no GLCD). We can do another contest similar to the last one.
Walter, do you want to administer this one as well?
I have one of these that I no longer need (no GLCD). We can do another contest similar to the last one.
Walter, do you want to administer this one as well?
Last edited by rmteo; - 7th April 2011 at 16:28.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
The objective of the contest is pretty simple - to pulse/blink a minimum 4 LEDs (more is better) at independent, variable rates using any PIC of your choice. The actual blink rate is not important, as long as it is visually discernible. Also, the method to adjust the blink rate is unimportant - you can use POTs on ADC channels or whatever method you want.
Sounds easy? There's a small catch though - each LED must ramp-up and ramp-down in brightness from 0 to 100% and NOT just toggle hard-on and hard-off.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
RMTEO, Hats off to you this is very generous.
Now I realize this new contest hasn't been approved yet, but I have 1 question. Should the intensity change with each blink, ie each LED will need to blink 200 times to go through the full ramp up/ramp down?
This is a very good contest idea. Thank you!! (did I mention I love puzzles?)
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
The blink rate/frequency has to be adjustable for each of the LEDs. For every blink, each LED should ramp from 0-100-0% brightness. Perhaps this video of 2 LEDs will give you a better idea (note that the blink rate is different for each LED).
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Blinky ideas??
http://www.picbasic.co.uk/forum/show...47&pagenumber=
Last edited by mackrackit; - 8th April 2011 at 06:17.
Dave
Always wear safety glasses while programming.

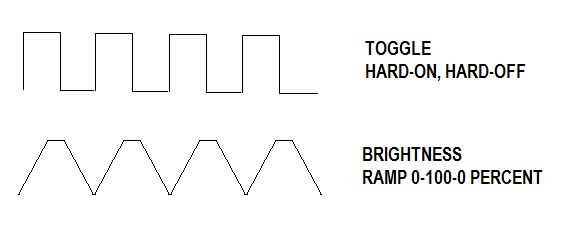

Unfortunately, none of those ideas will qualify - they are just simple ON/OFF blinkies. Take a look at the attached drawing. The horizontal axis is time and represents the blink rate. The vertical axis is the LED brightness. The post that you linked to is like the upper trace. What I am looking for (as in the video above) is shown in the lower trace.
Also, the blink rate (or period) needs to be adjustable by some method of your choice. A minimum of 4 LEDs/channels are required. The blink rate of each LED needs to be adjustable independently and should not affect any of the other channels.
Last edited by rmteo; - 8th April 2011 at 14:56.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Hopefully senior members (who may not wish to participate in the contest) will chime in with tips/tricks and/or code snippets to help the less experienced get started.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Seems like you are doing a fine job rmteo, and great challenge! If you still want help, let me know, I would be happy to.
Is Mibam allowed, or is that cheating? http://www.picbasic.co.uk/forum/cont...-Modulation%29 .
Last edited by ScaleRobotics; - 8th April 2011 at 16:59. Reason: changed url to link to Mibam Wiki
Thanks for your offer. I will handle it for now. You could move this to a more appropriate forum if you think it should be.
Any technique (including MIBAM) is good.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Feel free to ask questions or to have any points clarified.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Is this a first valid answer wins contest, or post and vote.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
The puzzle is coming along fine, I have it on a slow simmer.
Right now I am trying to decide on min and max frequencies. I am thinking .5 to 1000 Hz. But clearly 1K will look just full on, so I may go with 500hZ. Anything less then .5hZ will just be painful to watch.
Also trying to work out resolution for the frequency. Seems like it should not be linear with the pot adjust.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Some pointers to take note of:
1. The variable/controllable blink rate should range from about 0.5Hz to no more than 8Hz - anything faster will appear as a flicker, which you do not want.
2. As the LED goes from full OFF to full ON and back to full OFF, its brightness has to be varied using some kind pulse modulation such as PWM or MIBAM. The frequency of this modulation has to be high enough that there is no flickering as the LEDs pulsate. Refer to the video and especially the drawing posted previously.
In essence, each of the LEDs is being driven by 2 modulated signals at the same time. A low frequency one from 0.5-8Hz which is the blink rate and a higher frequency one that controls the 0-100-0% percent brightness ramp which gives the LEDs a pulsating effect - instead of just going OFF-ON-OFF.
Hint: Think FM.
Last edited by rmteo; - 12th April 2011 at 18:33. Reason: - added hint.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Thanks for the more refined parameters. This should help us all. It at least helps me to not have to decide on the spread.
The hint is very nice, thank you. I guess my solution is that, but haven't thought about FM since college. As soon as I could get away from analog I did. Guess thats why I am a machinists. LOL
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
I hope I have not confused you (or anyone else) with these explanations. Trying to put the concept into layman's terms is lot trickier than I thought. In technical terms the objective is:
To create 4 independently controllable, low frequency (0.5-8Hz) channels of analog signals (triangle waveform in this case) using digital modulation (such as PWM) with the LED's acting as a low-pass filter.
Now that sounds a lot easier to do, doesn't it?![]()
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Well actually I thought it was fine before.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Bert, have you made progress? Looks like no one else (besides Walter and yourself) has a solution for this contest. Do you (Walter, or anyone else) feel that perhaps it is too difficult and the contest should be changed to something simpler?
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
PM sent![]()
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Four days to go - and it looks like there may be only one entry.![]()
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
I just saw this contest now.
<---- darn tag under my name...
That is a very nice experiment board. I've been using the Lab X1 lately.
My Creality Ender 3 S1 Plus is a giant paperweight that can't even be used as a boat anchor, cause I'd be fined for polluting our waterways with electronic devices.
Not as dumb as yesterday, but stupider than tomorrow!
I thought the GLCD was misplaced but I found it so the development board is like in the 1st. post. It comes with a PIC18F4620 - you can use any PIC16F or PIC18F in 40, 28, 20, 18, 14 and 8 pin DIP packages. I installed a ZIF socket in the 40-pin position.
If anyone is interested, I have a PDF of the manual (it is too large at 2.5MB to upload).
Last edited by rmteo; - 27th April 2011 at 15:56.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Oh! The prize gets even better. Is anyone working on this contest? I hate to see a great prize and contest not even attempted!
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
you have shamed me into it. LOL!
I am putting it together now, likely I will slide in just under the april 30 deadline.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Heres my code so far. It appears to work as needed, but thus far I have only tested it with a sim. I will try and put the hardware together tonight and test it in real time.
All comments welcome. I did this all software (no hardware PWM) as I thought it would be more fun.Code:' Name : RMTEO Contest 2.pbp ' Compiler : PICBASIC PRO Compiler 2.6A ' Assembler : MPASM ' Target PIC : 16F1947 ' Hardware : RMTEO Contest ' Oscillator : internal ' Keywords : ' Description : PICBASIC PRO program to drive 4 LED's at independent speeds ' adjustable from 4 pot's. fade from 0-100-0% for each cycle ' ' ' ' ' Configure ports ' ' ANSELA = %00001111 'port A 0-3 analog 4-7 digital ANSELE = %00000000 'port E all digital ANSELF = %00000000 'port F all digital ANSELG = %00000000 'port G all digital CM1CON0 = %00000000 'No comparaters CM1CON1 = %00000000 CM2CON0 = %00000000 CM2CON1 = %00000000 ' preload latches before setting direction LATB = %00000000 LATC = %00000000 LATD = %00000000 'LED's 0 for red, 1 FOR GREEN should start red LATF = %00000000 ' low nibble is drive enable. 1 disables LATG = %00000000 ' I/O direction TRISA = %00001111'x,x,x,x,p3,p2,p1,p0 TRISB = %00000000'x,x,x,x,led3,led2,led1,led0 TRISC = %00000000'UNUSED TRISD = %00000000'UNUSED TRISE = %00000000'UNUSED TRISF = %00000000'UNUSED TRISG = %00000000'UNUSED 'REMOVE THIS LINE IF NOT SETTING THE CONFIGS IN CODE SPACE @ __config _CONFIG1,_FOSC_INTOSC & _WDTE_OFF & _PWRTE_OFF & _MCLRE_OFF & _CP_OFF & _CPD_OFF & _BOREN_OFF & _CLKOUTEN_OFF & _IESO_OFF & _FCMEN_OFF @ __config _CONFIG2,_WRT_OFF & _VCAPEN_OFF & _PLLEN_ON & _STVREN_OFF & _LVP_OFF ;_BORV_25 '------------------Internal osc setup OSCCON = %11110000 'clock is 8 meg. turn on PLL for 32 meg clock DEFINE OSC 32 DEFINE NO_CLRWDT 1 'Variables 'Port assignments '------------------port B '---------------------words freqs1 var word freqs2 var word freqs3 var word freqs4 var word freq1 var word freq2 var word freq3 var word freq4 var word '---------------------Bytes TICKS VAR BYTE display VAR BYTE duty1 VAR BYTE duty2 VAR BYTE duty3 VAR BYTE duty4 VAR BYTE myflags var byte '---------------------Bits led1 var display.0 led2 var display.1 led3 var display.2 led4 var display.3 df1 var myflags.0 df2 var myflags.1 df3 var myflags.2 df4 var myflags.3 '---------------------INIT VARIABLE VALUE GOTO START MYINIT: BSR = 0 TICKS = 0 freqs1 = 128 freqs2 = 256 freqs3 = 512 freqs4 = 1023 duty1 = 0 duty2 = 0 duty3 = 0 duty4 = 0 display = 0 MYFLAGS = 0 '-------------------A/D setup adcon0 = %00000001 adcon1 = %11100000 define ADC_BITS 10 '-------------------10uS interrupt setup DEFINE INTHAND _TimeBase PIR1.1 = 0 PIE1.1 = 1 ; Enable Timer2 interrupts INTCON.6 = 1 ; enable PEIE INTCON.7 = 1 ; enable GIE T2CON = %00000100 ; Setup Timer2 AND SET PRESCALE TO 1:1. @32Mhz THE Interrupt PR2 = 39' FOR TMR2 WILL BE 10uSec RETURN '---------------------start of program START: GOSUB MYINIT MAIN: adcin 0,freqs1 '-------------------------led1 math if ticks>duty1 then led1 = 0 else led1 = 1 endif if freq1 > freqs1 then if df1 then duty1=duty1+1 else duty1=duty1-1 endif if duty1=100 then df1=0 if duty1=0 then df1 = 1 freq1 = 1 endif adcin 1,freqs2 '------------------------led2 math if ticks>duty2 then led2 = 0 else led2 = 1 endif if freq2 > freqs2 then if df2 then duty2=duty2+1 else duty2=duty2-1 endif if duty2=100 then df2=0 if duty2=0 then df2 = 1 freq2 = 1 endif adcin 2,freqs3 '------------------------led3 math if ticks>duty3 then led3 = 0 else led3 = 1 endif if freq3 > freqs3 then if df3 then duty3=duty3+1 else duty3=duty3-1 endif if duty3=100 then df3=0 if duty3=0 then df3 = 1 freq3 = 1 endif adcin 3,freqs4 '---------------------------led4 math if ticks>duty4 then led4 = 0 else led4 = 1 endif if freq4 > freqs4 then if df4 then duty4=duty4+1 else duty4=duty4-1 endif if duty4=100 then df4=0 if duty4=0 then df4 = 1 freq4 = 1 endif GOTO MAIN '-----------------------ISR TimeBase: BSR = 0 portb = display ' update led's freq1 = freq1 +1 freq2 = freq2 +1 freq3 = freq3 +1 freq4 = freq4 +1 if ticks >99 then ticks = 0 else ticks = ticks+1 endif pir1.1 = 0 ' clear interrupt @ RETFIE
Thanks for the contest RMTEO! Sorry I seem to be the only one entering.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Yes, it will be interesting to see how it works!
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
Well I am done at work today, so home I go and hopefully get this put together and running.
Then to figure out about posting video - always something new and fun
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
OK, I have my working do-hicky video'ed. Anybody have any suggestions how to get it from my iphone4 to here?
I know how to upload it to facebook, but what good is that?
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
If you can get it to youtube, that is probably the easiest way. Then add the link to your post, like this {video}your youtube link{/video} but with the other kind of brackets.
Oh dear. Guess it's time I learn to post on you tube now. I hope I figure it out before the deadline. Ok, I'll be back in a little bit.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Don't worry about the deadline.
Why pay for overpriced toys when you can have
professional grade tools for FREE!!!
well you know, i have created the youtube account. sent the video to youtube via my phone. Now I just need to find the video on youtube. seems this part is the hardest.
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
I did it (I think)
whats better? getting my entry in or posting my first video? Hmmmm
-Bert
The glass is not half full or half empty, Its twice as big as needed for the job!
http://foamcasualty.com/ - Warbird R/C scratch building with foam!
Looking at the video, it sure looks like you did it. Can you confirm that the drive to the LEDs looks similar like this (only two channels shown) - you don't have to make a video of the scope trace.
