IR Learner? Need ideas


Closed Thread
Results 1 to 19 of 19
  1. #1
    Join Date
    Nov 2009
    Location
    London
    Posts
    251

    Question IR Learner? Need ideas

    Hi, I am trying to build a program for my 16F676 which can help it learn at least 1 code from any IR transmitter. Two LEDs (red and green) to be connected to my PIC, one button & one IR receiver. When button is pressed PIC should go to the learning mode.
    Then while in learning mode someone to press a button on ANY ir remote and PIC will learn that button code. Every time that particular button is pressed, green LED to glow for 1 sec else RED will stay ON.

    I have a code I use currently, but it involves me making my own transmitter as well, since I can control pulses coming out from my own transmitter, it is easy to program the receiver to catch those pulses (Thanks to Bruce for his codes on his website).

    Code:
       PULSIN PORTA.3,0,PULSE_IN        '// Read-in start pulse
       IF (PULSE_IN < 200) OR (PULSE_IN = 0) OR (PULSE_IN > 270) THEN Decode2 '// Less than Start pulse, then keep looking

    Verify:
       FOR Index = 0 TO 15               '// Setup to read-in 16 pulses
        PULSIN PORTA.3,0,IR_PULSE[Index] '// Read 13 low-going pulses on RA.7
       NEXT Index                        '// Loop x times
       DBYTE = $FF                       '// Start with all 1's and find each 0
       ABYTE = $FF 				         '// Start with all 1's and find each 0 in pattern
       FOR Index = 0 TO 7                '// Get 8 "data" bits
        IF IR_PULSE[Index] < 85 THEN DBYTE.0[Index]=0
        IF IR_PULSE[Index+8] < 85 THEN ABYTE.0[Index]=0
       NEXT Index
    -------------------------------------------------------------------------------------------------------
    Since now I want to train my PIC to learn any sort of pulse from any sort of transmitter, I am totally confused as to how my PIC will learn that. I have to sync with some start bit to make this happen. But there are so many protocols, that I need a little help to achieve this.

  2. #2
    Join Date
    Dec 2005
    Posts
    1,073


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Your approach is far too limited. Some protocols use PulseWidthModulation (PWM), some use PulsePositionModulation (PPM) and some use something entirely different. Also the number of bits in a code can vary from less than 20 to more than 100. Most, but not all, use an extended silence between repeat copies of the code.

    My interest has been more with RF than IR but the approach is similar except that most RF receivers are active high while most IR receivers are active low.

    Here's some code I use with RF. You'll need to modify it for IR. And it will capture only PWM & PPM codes - there are other protocols.

    Code:
    '============================RECEIVER============================
    'PIC12F683 @ 8MHz          <500 words
    'Receives up to 44 bits of PDM/PWM RF with initial lead-in of 2-9mS
    'outputs received codes via RS232 @ 9600bps on GPIO.4 (Pin 3)

    @ __config _INTRC_OSC_NOCLKOUT & _WDT_OFF & _PWRTE_ON & _MCLRE_OFF & _BOD_ON & _CP_OFF & _CPD_OFF

    DEFINE OSC 8					        '8 MHz oscillator
    DEFINE ADC_BITS 8
    DEFINE ADC_CLOCK 3
    DEFINE ADC_SAMPLEUS 25
    DEFINE DEBUG_REG GPIO
    DEFINE DEBUG_BIT 4 				        'GPIO.4 (Pin 3)
    DEFINE DEBUGIN_BIT 3					'GPIO.3 (Pin 4)
    DEFINE DEBUG_MODE 1 				        'Inverted logic
    DEFINE DEBUG_BAUD 9600

    Symbol	Capture=PIR1.2 				        'CCP1 capture flag
    Symbol	PinChng=INTCON.0			        'InterruptOnChange
    Symbol	RS232=GPIO.3				        'GPIO.3 (Pin 2)
    Symbol	RS485=GPIO.0				        'GPIO.0 (Pin 6)
    RF      VAR 	byte[6]
    RS	VAR	byte[6]
    cfg	VAR 	byte[5]
    ID	VAR	byte
    pw	VAR 	word
    i       VAR 	byte
    bits	VAR	byte
    bytes	VAR	byte
    sof  	VAR 	word           		        	'start of frame
    minSOF	VAR	word				        'minimum start pulse (1900-8500 ~1.9mS-8.5mS)
    minBits VAR	byte
    adc     VAR	byte
    id	VAR 	byte
    module	VAR	byte
    addr	VAR	byte
    rssi	VAR	word				        'received signal strength indicator

    	DATA $01,$FE,$6C,$07,$0E,$01			'EEPROM module,id,minSOF (1900),minBits (14),adc

            OSCCON 	= %01110001                  		'INT HF OSC 8MHz
            WHILE OSCCON.3>0:WEND              		'OSC startup timeout
            WHILE OSCCON.2=0:WEND              		'INT HF OSC stable
            CMCON0  =%00000111                     		'comparators off
            TRISIO  =%00101110			        'make GPIO.0,4 outputs
            GPIO    =%00000000				'make GPIO.0,4 LOW
            ANSEL   =%00000010			        'make GPIO.1 analog
            ADCON0.7=1				        'right justify ADC result for 10-bit
            IOC	=%00001001			        'IOC Pins enabled
            INTCON	=%00000000			        'disable interrupts
            READ 0,module
            DEBUG DEC module,32
            READ 1,id
            DEBUG DEC id,32
            READ 2,minSOF.LowByte
            READ 3,minSOF.HighByte
            DEBUG DEC minSOF,32
            READ 4,minBits
            DEBUG DEC minBits,32
            READ 5,adc
            DEBUG DEC adc,10,13
    init:	RF[0]=0:RF[1]=0:RF[2]=0:RF[3]=0:RF[4]=0:RF[5]=0
            CCP1CON=%00000101:Capture=0	        	'capture rising edge
            While !Capture			            	'wait for rising edge
            Wend
            TMR1H=0:TMR1L=0:T1CON=%00010000			'prescale=2, tick=1uS
            ADCIN 1, rssi				        'read pulse amplitude
            CCP1CON=0:Capture=0			        'capture falling edge
            While !Capture				        'wait for falling edge
            Wend
            sof.HighByte=CCPR1H:sof.LowByte=CCPR1L
            If (sof<minSOF) Then init	        	'<min so abort
            If (sof>9600) Then init	        		'>max so abort
            ADCIN 1, i				        'read space amplitude
            If (i<rssi) Then
              rssi=rssi-i
            Else
    	  rssi=i-rssi
            EndIf
            CCP1CON=%00000101			        'capture rising edge
            bits=0:Capture=0:INTCON.2=0
            While !Capture				        'wait for rising edge
            Wend
            Repeat
    	  TMR1H=0:TMR1L=0:T1CON=%00010000		'prescale=2, tick=1uS
    	  TMR0=100				        'overflow 156*16=2496uS (100+156=256)
    	  OPTION_REG=%10000100:Capture=0		'TMR0 prescale=16
              While !Capture			        'wait rising edge
    	    If INTCON.2=1 Then break			'TMR0 overflow (GAP>2.5mS)
              Wend
    	  pw.HighByte=CCPR1H:pw.LowByte=CCPR1L
              If (pw<850) Then init				'<0.85mS so abort
              If (pw>1300) Then			    	'>1.3mS
                RF.0(i)=1				    	'set bit
              EndIf
              i=i+1
            Until (i>43)
    break:  If (bits<>20) Then
              bits=i+1
            EndIf
            If (bits<minBits) Then init
            bytes=(bits)/8
            If ((bits)//8>0) Then
    	  bytes=bytes+1
            EndIf
            Debug bits
            For i = 0 to bytes
      	  Debug ihex2 RF[i]
    	  RS[i]=RF[i]
            Next
            DEBUG ihex2 (sof/40)
            If (adc>0) Then
              DEBUG ihex2 (rssi>>2)
            EndIf
            debug 13,10
            GoTo init

            End
    A more generalized method that can capture any protocol uses a bit array and samples the input at 25-50µS intervals, setting a bit when the sample is high. This gives you an image of the code with the resolution depending on the sample rate.

    You might find some of the links on my web page useful.

  3. #3
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Quote Originally Posted by dhouston View Post
    A more generalized method that can capture any protocol uses a bit array and samples the input at 25-50µS intervals, setting a bit when the sample is high. This gives you an image of the code with the resolution depending on the sample rate.
    Cheers Dave for the reply. I am still learning this stuff at my pace, can you please elaborate your point with few lines of code for my better understanding.

  4. #4
    Join Date
    Dec 2005
    Posts
    1,073


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    As my interest has been with RF, with PWM & PPM and with defined protocols, I've never needed to use the generalized method so I have no code. Also, most PICs (all but PIC18) are limited to a maximum array size of 256 bits. If we sample every 50µS (0.00005 secs) 256 bits can only record 0.00005x256=0.0128 secs or 12.8mS which is less than 1/10 the length of some IR codes.

    This method was used by dedicated IR devices such as Slink-e and Ocelot which had more powerful processors and much more memory (external to the processor).

  5. #5
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Question Re: IR Learner? Need ideas

    Thanks for the info Dave.

    I have also gone through a lot of info about this today. I will narrow down my selection to only accept codes from 3 protocols only SIRC, NEC & RC5.

    Can anyone advice on how to catch and write routines to save a particular button value coming from any of the remote operating on either of the above protocols. ( I am using 16F676)
    Thanks a lot in advance

  6. #6
    Join Date
    Dec 2005
    Posts
    1,073


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    The RF code I posted earlier in the thread will handle SIRC & NEC although you will need to modify it because IR is active low and it is expecting active high. You want to catch falling edges rather than rising edges.

    RC5 is harder - there is no pronounced difference in its start sequence. IIRC Bruce Reynolds has code for it. He may have posted it here or it may be on his website.This site is also quite helpful.
    Last edited by dhouston; - 4th April 2011 at 02:13.

  7. #7
    Join Date
    Dec 2006
    Location
    Brasil, Sao Paulo, Campinas
    Posts
    54


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    I use the sony protocol. I think that is more easy to learning.
    You can use some universal remote control (with sony protocol) to test and to learn.
    My sample to help:

    @ DEVICE pic16F628a, INTRC_OSC_NOCLKOUT ' System Clock Options
    @ DEVICE pic16F628a, WDT_OFF ' Watchdog Timer
    @ DEVICE pic16F628a, PWRT_OFF ' Power-On Timer
    @ DEVICE pic16F628a, BOD_OFF ' Brown-Out Detect
    @ DEVICE pic16F628a, MCLR_ON ' Master Clear Options (External)
    @ DEVICE pic16F628a, LVP_OFF ' Low-Voltage Programming
    @ DEVICE pic16F628a, CPD_OFF ' Data Memory Code Protect
    @ DEVICE pic16F628a, PROTECT_OFF ' Program Code Protection
    DEFINE OSC 4
    'Definição das variáveis e declarações
    INCLUDE "bs1defs.bas" 'inclui arquivo p/ compatibilizar com BS1
    'p/entender as variáveis b0...b3, w0...w6 e bit0...bit13
    CMCON = 7 'DEFINE PORTA COMO DIGITAL (COMPARADORES ANALÓGICOS:OFF)
    symbol ir = PORTB.7 'entrada do sinal de IR
    SYMBOL LED = PORTB.4
    SYMBOL RELE = PORTB.0
    TRISB = %10000000

    '-------------------------------------------------------------------------------
    PORTB = 0
    LED = 1: PAUSE 100
    '-------------------------------------------------------------------------------
    'rotina principal
    LOOP_1:
    pulsin ir,0,w0 'wait start bit
    if w0 < 200 then LOOP_1 'start bit is > 200
    pause 20 'jump first sent
    pulsin ir,0,b0 'wait 2º start bit
    pulsin ir,0,b1
    pulsin ir,0,b2 'read each bit from IR code
    pulsin ir,0,b3
    pulsin ir,0,b4
    pulsin ir,0,b5
    pulsin ir,0,b6
    pulsin ir,0,b7

    bit0=b1/96 ' LSB
    bit1=b2/96
    bit2=b3/96
    bit3=b4/96
    bit4=b5/96
    bit5=b6/96
    bit6=b7/96 ' MSB
    bit7=0

    if b0=21 then COMANDO 'test the values of your control
    GOTO LOOP_1

    COMANDO:
    RELE = 1
    LED = 1
    PAUSE 500
    RELE = 0
    LED = 0
    GOTO LOOP_1

    '-------------------------------------------------------------------------------
    end


    Other article to learning from Experimenting_pbp.pdf:
    "
    Sony, infrared remote control Receiver
    There are three main protocols used for the transmission and reception
    of infrared signals . RC5, which is used by Philips, Rec-80, which is used
    by Panasonic, and the Sony format (SIRCS), which will be described
    here. Each form of infrared signalling has one thing in common, that is
    the use of modulated infrared light. Modulation is used to enable a
    certain amount of immunity from ambient light sources, especially
    fluorescent lighting. The frequency of modulation varies from 36kHz to
    40kHz, depending on the manufacturer . An infrared detector is required
    to convert this modulated light into a digital signal . These are readily
    available in just about every TV, VCR, and satellite receiver made within
    the past 20 years . The type used for these series of experiments is the
    Siemens SFH506-38, (unfortunately it's now out of production, but the
    alternatives are the SFH5110 or the LT-1059) . These are small three
    terminal devices that have a centre frequency of around 38kHz .
    However, just about any type may be substituted, the only difference that
    will be apparent will be a slight lack of range .
    For the Sony protocol, the remote sends a start bit, sometimes called an
    AGC pulse, that is 2.4ms in length . This allows the receiver to
    synchronize, and adjust its automatic gain control, this occurs inside the
    infrared detector module. After the start bit, the remote sends a series of
    pulses . A 600us pulse represents a zero, and a 1200us pulse represents
    a one, there is a 600us gap between each pulse. Not all manufacturers
    stick stringently to these timings, so we will consider them as
    approximates. All of these pulses build up a 12-bit serial signal called a
    packet . This comprises of a 7-bit button value (the remote button
    pressed), and a 5-bit device value (TV, VCR, etc) . The serial signal is
    transmitted with the least significant bit sent first . "
    Last edited by Pimentel; - 4th April 2011 at 02:24. Reason: correction

  8. #8
    Join Date
    Dec 2008
    Location
    Ploiesti, ROMANIA
    Posts
    582


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Have somebody doing something like this (ir-remote, ir-learner, ir-repeater) but using RC10 protocol ?

  9. #9
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Default Getting there...

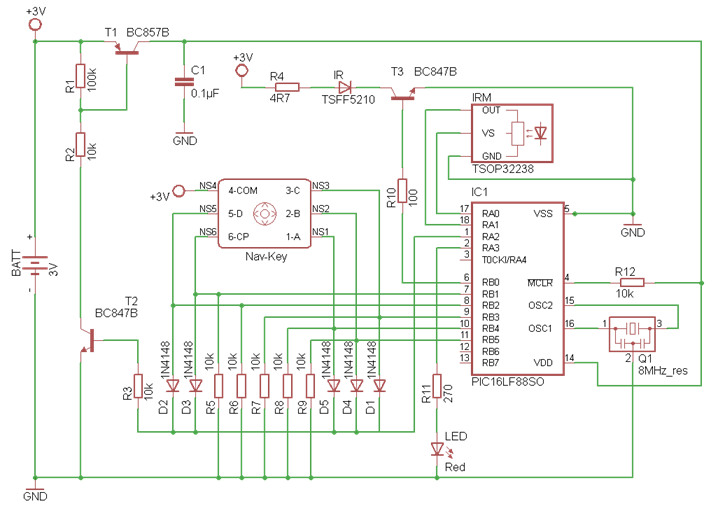

    I have been reading a good example of somewhat what I need (requires modifications) at this page: http://home.citycable.ch/flotulopex/...I_Frames_e.htm

    Few questions have arisen in my mind about this code:
    1) Why in this code IRM_OUT is an output but being used as an input?
    Code:
    IRM_Out VAR PORTA.1 'IR RX Module VDD (OUT)
    TRISA      = %00000000 'Set Input/Output

    IRM_Out = 1                   'set port HIGH

    WHILE IRM_Out = 1 : WEND      'Wait here until a LOW signal is incoming
    FOR Ctr_A = 1 TO Max_Bit
        TMR1H = 0                 'Reset Timer
        TMR1L = 0                 'Reset Timer
        T1CON.0 = 1               'Start Timer
        WHILE IRM_Out = 0 : WEND  'stay here as long as input signal is LOW
        T1CON.0 = 0               'Stop Timer
        V_Tmr.LowByte  = TMR1L    ' \
        V_Tmr.HighByte = TMR1H    '  > Store data to LOW_BIT var
        L_Bit[Ctr_A]   = V_Tmr    ' /
        TMR1H = 0                 'Reset Timer
        TMR1L = 0                 'Reset Timer
        T1CON.0 = 1               'Start Timer
        WHILE IRM_Out = 1 : WEND  'stay here as long as input signal is HIGH
        T1CON.0 = 0               'Stop Timer
        V_Tmr.LowByte  = TMR1L    ' \
        V_Tmr.HighByte = TMR1H    '  > Store data to HIGH_BIT var
        H_Bit[Ctr_A]   = V_Tmr    ' /
    NEXT Ctr_A
    C_Led = 0
    PAUSE 1000                    'wait before continue
    2) It is declared that 'factor is a constant =0', then what does this routine do?
    Code:
    '______________________________________________________________
    ' Factorise (time compensation due to BASIC operations latency)
    FOR Ctr_A = 1 TO Max_Bit
        IF L_Bit[Ctr_A] >= Factor THEN L_Bit[Ctr_A] = L_Bit[Ctr_A] + Factor
        IF H_Bit[Ctr_A] >= Factor THEN H_Bit[Ctr_A] = H_Bit[Ctr_A] + Factor
    NEXT Ctr_A
    3) Also it will be much appreciated if someone can explain the following three routines as well, as this purpose is not clear to me
    Code:
    '_______________________________________________
    ' Rescale values (according to acquiring method???)
    FOR Ctr_A = 1 TO Max_Bit
        IF L_Bit[Ctr_A] > 0 THEN L_Bit[Ctr_A] = L_Bit[Ctr_A]/2
        IF H_Bit[Ctr_A] > 0 THEN H_Bit[Ctr_A] = H_Bit[Ctr_A]/2
    NEXT Ctr_A

    '______________________________________
    ' Find the longest H_Bit = interval bit
    '  This to determine how many bits in pattern
    FOR Ctr_A = 1 TO Max_Bit
        IF H_Bit[Ctr_A] > Itv_Bit THEN
            Itv_Bit = (H_Bit[Ctr_A] + 100) 'store the highest H_Bit value in Itv_Bit
            Bit_Cnt = Ctr_A            'is the count of bits in the original pattern --- How can bit_cnt count the bits in the original pattern if it only enters this loop if H_Bit[Ctr_A] > Itv_Bit
        ENDIF
    NEXT Ctr_A

    '___________________________________________________
    ' Replace all "after pattern" bits with value "zero"
    FOR Ctr_A = (Bit_Cnt + 1) TO Max_Bit
        L_Bit[Ctr_A] = 0
        H_Bit[Ctr_A] = 0
    NEXT Ctr_A

  10. #10
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Anyone there???

  11. #11
    Join Date
    Feb 2006
    Location
    Gilroy, CA
    Posts
    1,530


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    It looks like he named it IRM_out, because it is the output of the infra red sensor, so an input on the PIC.

    Not sure why he is setting it high, and I don't see it ever set to input.

    Have you thought about emailing the author?

    IRM_VDD VAR PORTA.0 'IR RX Module Out (VCC)
    IRM_Out VAR PORTA.1 'IR RX Module VDD (OUT)

    Name:  image035.png
Views: 2444
Size:  58.7 KB
    Last edited by ScaleRobotics; - 7th April 2011 at 14:25.

  12. #12
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Quote Originally Posted by scalerobotics View Post
    It looks like he named it IRM_out, because it is the output of the infra red sensor, so an input on the PIC.
    Thanks for the reply.

    If it is an input to the PIC then why the TrisA register is set for it to be an output?

  13. #13
    Join Date
    Feb 2006
    Location
    Gilroy, CA
    Posts
    1,530


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Quote Originally Posted by Megahertz View Post
    Thanks for the reply.

    If it is an input to the PIC then why the TrisA register is set for it to be an output?
    Yes, I am with you, confused. Have you tried emailing the author, Flutoloplex?

  14. #14
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Yes I did, but seems the author is a very busy man, so I believe experts here will be able to help me on this topic.

  15. #15
    Join Date
    Dec 2006
    Location
    Brasil, Sao Paulo, Campinas
    Posts
    54


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    I Think that if he used a IR module, then just go work if TRISA.1 = 1, as input!

    Pimentel

  16. #16
    Join Date
    Nov 2009
    Location
    London
    Posts
    251


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Quote Originally Posted by Pimentel View Post
    I Think that if he used a IR module, then just go work if TRISA.1 = 1, as input!

    Pimentel
    That could be fine if I just want to copy and replicate the code. But I am in a process to understand it fully. Making it input will settle question number 1 in my post above, but still looking for explanation on 2 & 3.

  17. #17
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    938


    Did you find this post helpful? Yes | No

    Default Re: IR Learner? Need ideas

    Hi there,

    I've been working on some other things these last months so no much time for this forum left :-(

    I'll come back with answers shortly.
    Roger

  18. #18
    Join Date
    Aug 2006
    Location
    SWITZERLAND (french speaking)
    Posts
    938


    Did you find this post helpful? Yes | No

    Default Some answers

    I haven't been working on this project for months so sorry for not answering earlier.

    I have updated my webpage because there were still pieces of code or comments that I left during the developpement phase; they have been now removed. Current REMI version is v2-1-2-5.


    As already answered
    Quote Originally Posted by scalerobotics
    It looks like he named it IRM_out, because it is the output of the infra red sensor, so an input on the PIC.
    So correct reading is:
    IRM_VDD VAR PORTA.0 'IR RX Module's VDD
    IRM_Out VAR PORTA.1 'IR RX Module's OUT



    Quote Originally Posted by Megahertz
    Why in this code IRM_OUT is an output but being used as an input?
    For any (to me) unknown reason, there is no need to declare this port as an Input... and it works. I'm always taking care not set ports as inputs to avoid any external noise and while doing this project, I accidentaly noticed that it works like this so I didn't change it up to now.

    The port IRM_Out = 1 because the IR Module idles HIGH. Not setting this port to HIGH will make the LEARN: routine start immediately - not waiting for a real incomming signal.



    Quote Originally Posted by Megahertz
    It is declared that 'factor is a constant =0', then what does this routine do?
    "Factorise (time compensation due to BASIC operations latency)". Before using TIMER method to count the elapsed time within a pulse, I used PUSLIN & RCTIME. But PULSIN & RCTIME have a lower accuracy than counting cycles like I do it now.

    Previous LEARN routine using PULSIN & RCTIME:
    Code:
    LEARN:
    PULSIN IRM_Out, 0, l_Bit[0]        'wait for first Low pulse to start recording
    TOGGLE led0
    IF l_Bit[0] = 0 THEN LEARN:
    Led0 = 1
    RCTIME IRM_Out, 1, h_Bit[0]        'get first High pulse from IR Module
    FOR Ctr_A = 1 TO (Max_Bit - 1)
       RCTIME IRM_Out, 0, l_Bit[Ctr_A] 'get Low pulse (1 to 38) from IR Module
       RCTIME IRM_Out, 1, h_Bit[Ctr_A] 'get High pulse (1 to 38) from IR Module
    NEXT Ctr_A
    RCTIME IRM_Out, 0, l_bit[Max_Bit]  'get last Low pulse from IR Module
    RCTIME IRM_Out, 1, H_bit[Max_Bit]  'get last High pulse from IR Module
    Led0 = 0
    PAUSE 1000                         'wait before continue


    Quote Originally Posted by Megahertz
    Also it will be much appreciated if someone can explain the following three routines as well, as this purpose is not clear to me
    "Rescale values" is ment to make the the result stored in the L_Bit and H_Bit variables equal to real time according to the oscillator used (4, 8 or 20MHz).

    "Find the longest H_Bit" is ment to make the full signal pattern repeatable (next version of REMI) but also to cleanup and trim the freshly learned pattern. In LEARNING mode, one sends the command from the original remote continiously until REMI has stored 40 bits. I admit that REMI will always start learning the very first bit of the transmitted pattern. Since the original remote may send the command repetitively, REMI needs to find whitch bit is the longest that this could be most likely the "separator" of a pattern.

    "Replace all 'after pattern' bits with value 'zero'" is an optional routine to check the µC's memory. It helped me to have a better view of what had been programmed in the PIC during debug. This routine can be omitted.

    HTH
    Roger

  19. #19
    Join Date
    Dec 2005
    Posts
    1,073


    Did you find this post helpful? Yes | No

    Default Re: Some answers

    Quote Originally Posted by flotulopex View Post
    The port IRM_Out = 1 because the IR Module idles HIGH. Not setting this port to HIGH will make the LEARN: routine start immediately - not waiting for a real incomming signal.
    I believe most of the IR receiver modules are open drain or open collector. They have a pullup to Vdd and are pulled low by the presence of IR. This also pulls the PIC pin low.

Members who have read this thread : 0

You do not have permission to view the list of names.

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
