    Default PicStart Plus ICSP Adapter

    I started to layout an ICSP adapter with screw, terminal blocks and a 40 pin header, Then after I was done i thought someone must have done this before so are there any good in circuit adapters for the PicStart Plus. If so do tell I have reached the end of removing chips and reinstalling them.
  2. - 14th August 2010, 06:39 #2
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    Sounds like you got fancy.
    I just took a 40 pin wire wrap DIP socket, soldered on the five wires needed and rand them to a the project board.
    Made another with a 5 pin socket on the end of the wires to plug onto a 5 pin header kind of like the PicKit2 does.
    Just be sure to kill the power to the board before programming.
    Dave
    Always wear safety glasses while programming.
  3. - 14th August 2010, 08:51 #3
    Acetronics2's Avatar
    Acetronics2
    Acetronics2 is offline Fanatical Contributor
    Join Date
    May 2004
    Location
    NW France
    Posts
    3,648

    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by mackrackit View Post
    Sounds like you got fancy.
    I just took a 40 pin wire wrap DIP socket, soldered on the five wires needed and rand them to a the project board.
    Made another with a 5 pin socket on the end of the wires to plug onto a 5 pin header kind of like the PicKit2 does.
    Just be sure to kill the power to the board before programming.
    Hi, Dave ...

    It's more than possible, I've seen it years ago !!!

    there are 5 unused goldened pads on the Picstart PCB that are the ICSP 5 signals.

    Just think they are NOT aligned in the correct sequence !!! EEK !!!

    http://www.picbasic.co.uk/forum/arch...hp/t-3351.html

    Alain
    Last edited by Acetronics2; - 14th August 2010 at 09:05.
    ************************************************** ***********************
    Why insist on using 32 Bits when you're not even able to deal with the first 8 ones ??? ehhhhhh ...
    ************************************************** ***********************
    IF there is the word "Problem" in your question ...
    certainly the answer is " RTFM " or " RTFDataSheet " !!!
    *****************************************
  4. - 14th August 2010, 21:03 #4
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    Just think they are NOT aligned in the correct sequence !!!
    Will that make the code run backwards??
    Dave
    Always wear safety glasses while programming.
  5. - 14th August 2010, 21:37 #5
    Acetronics2's Avatar
    Acetronics2
    Acetronics2 is offline Fanatical Contributor
    Join Date
    May 2004
    Location
    NW France
    Posts
    3,648

    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by mackrackit View Post
    Will that make the code run backwards??
    No, Dave

    the Pic will re-program your PC ...

    Talking seriously ...

    How much is the Pickit 2, those days ???? ... yes, I do agree !

    Alain
    ************************************************** ***********************
    Why insist on using 32 Bits when you're not even able to deal with the first 8 ones ??? ehhhhhh ...
    ************************************************** ***********************
    IF there is the word "Problem" in your question ...
    certainly the answer is " RTFM " or " RTFDataSheet " !!!
    *****************************************
  6. - 14th August 2010, 23:28 #6
    l_gaminde's Avatar
    l_gaminde
    l_gaminde is offline Member
    Join Date
    Aug 2009
    Location
    Paso Robles California
    Posts
    153

    Did you find this post helpful? Yes | No

    Default ICSP Adapter

    Ok here is what Im going to do! I found a .100 ICD DIP flat cable plug @ mouser and jameco so i will use flat ribbon cable or I will try 28 AWG stranded wire to a .100 single row connector, I was having boards made for my project and added this connector and a diode in the MCLR line have it runing on my desk works great but there are wires everywhere. hate that! This is a LanC board with Pir sensor and Serial input/output
  7. - 18th August 2010, 21:53 #7
    l_gaminde's Avatar
    l_gaminde
    l_gaminde is offline Member
    Join Date
    Aug 2009
    Location
    Paso Robles California
    Posts
    153

    Did you find this post helpful? Yes | No

    Default ICSP Adapter

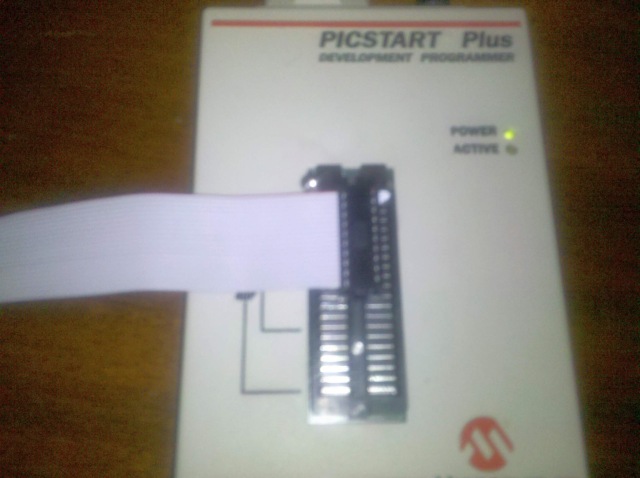

    This is so much cleaner

    Name: 2010-08-18 13.37.02.jpg Views: 1339 Size: 61.6 KB
  8. - 18th August 2010, 22:06 #8
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    Why would you run all 40 wires??

    Save time and headache and probably money. Get a PicKit2!!
    Dave
    Always wear safety glasses while programming.
  9. - 18th August 2010, 22:17 #9
    l_gaminde's Avatar
    l_gaminde
    l_gaminde is offline Member
    Join Date
    Aug 2009
    Location
    Paso Robles California
    Posts
    153

    Did you find this post helpful? Yes | No

    Default Not 40

    Its not all 40 is all 20, I got a number of these adapters and some #28 wire also will be making 5-6 pin ones next, just wanted to make one real fast and test it, cut down an old hard drive cable. I also got some 40 pin adapters never know !!

    Larry
  10. - 18th August 2010, 22:23 #10
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    OK
    28
    5 is all you need. Cuts done on the wires some.
    works great but there are wires everywhere. hate that!
    Dave
    Always wear safety glasses while programming.
  11. - 18th August 2010, 22:29 #11
    l_gaminde's Avatar
    l_gaminde
    l_gaminde is offline Member
    Join Date
    Aug 2009
    Location
    Paso Robles California
    Posts
    153

    Did you find this post helpful? Yes | No

    Default Number of wires

    I think 6 if I do LV programming will look that up again, I don't think i will be doing LV, so 5 will look good and the #28 wire will bend around anything. Can't wait till friday when the new boards arrive with a programming header built in.

    by the way where is Welton in AZ
    Last edited by l_gaminde; - 18th August 2010 at 22:33.
  12. - 18th August 2010, 23:16 #12
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    Just remembered. With some of the 18F's, 4320 in particular, I had to place a 10uF cap near the ZIFF.

    Wellton is between the Yuma Proving Grounds and the Barry Goldwater Bombing Range.
    A sunny 115 here today
    Last edited by mackrackit; - 18th August 2010 at 23:18.
    Dave
    Always wear safety glasses while programming.
  13. - 19th August 2010, 02:44 #13
    l_gaminde's Avatar
    l_gaminde
    l_gaminde is offline Member
    Join Date
    Aug 2009
    Location
    Paso Robles California
    Posts
    153

    Did you find this post helpful? Yes | No

    Default walton

    Kinda sounds like Walton is between a rock and a hard spot it was only 99, 100 here today hope it stays that way this is the coldest summer ever around here.
  14. - 19th August 2010, 03:08 #14
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    It has been cooler here than normal also.
    Gotta love this global warming thing
    Dave
    Always wear safety glasses while programming.
