New approach to Rotary Encoder

[HenrikOlsson]

Hi,
I don't have any experience with that routine but provided everything else works the way you want why don't you just set the pin which is common to the encoder (RB5 ?) high, read the port, and return the pin low.

GOSUB ScanMatrix 'Or whatever
PortB.5 = 1
GOSUB Encoder
PortB.5 = 0

Finally, in the first code you posted you had the encoder to RB7-5 so I based my code on that. Now, in your latest schematic, you have it on RB2-0 which means that my code (if that's what you're trying) definitely won't work without modifying it since it expects the three "switches" in the encoder to be on RB7-5.

[fratello]

What I do wrong ?!
I adapted "keypad.bas" to my hw :

KB_ROW        = 3                                      ; 3 ROW keypad
KB_ROW_PORT   = PORTB                                  ; Keypad ROW on PORTB
KB_ROW_BIT    = 3                                      ; ROW0 = PORTB.3
KB_COL        = 3                                      ; 3 COL keypad
KB_COL_PORT   = PORTB                                  ; Keypad Col on PORTB
KB_COL_BIT    = 0                                      ; COL0 = PORTB.0
DebounceDelay = 0x80                                   ; debounce delay 41mSec
SINGLE_SCAN   = 0                                      ; Scan ;till a key is pressed
KEYPAD_AUTOREPEAT = 1

and I wrote this pice of code :

@ DEVICE pic16F628A, XT_OSC, WDT_OFF, PWRT_ON, BOD_OFF, MCLR_ON, LVP_OFF

   Define   OSC 4           ' 4MHz
   CMCON = 7                ' Disable on-chip comparator, PORTA in digital mode

include "alldigital.pbp"
include "C:\PBP\enc_KEY.BAS"

TrisA = %00000000
PortA = %00000000
PortB = %00111000
TrisB = %00011000

oldState VAR BYTE
newState VAR BYTE
Q_Count VAR WORD
DIR VAR BIT

UP CON 1
DN CON 0


Main_Loop:
newState = (PortB & %00111000)

portb.5 = 1
gosub encoder
portb.5 = 0

if dir = up then
porta.0 = 0
porta.1 = 1
endif
if dir = dn then
porta.0 = 1
porta.1 = 0
endif
goto Main_Loop


encoder:
If newState <> 0 THEN
If newState <> oldState THEN        ' Changed from last time?
  Select Case oldState
    Case 32
    If NewState = 128 THEN          ' Was 1 now 4 = Up
      Q_Count = Q_Count + 1
      DIR = UP
    ELSE                          ' Was 1 now 2 = Down
      Q_Count = Q_Count - 1
      DIR = DN
    ENDIF

    Case 64
    If NewState = 32 THEN        ' Was 2 now 1 = Up
      Q_Count = Q_Count + 1
      DIR = UP
    ELSE                           ' Was 2 now 4 = Down
      Q_Count = Q_Count - 1
      DIR = DN
    ENDIF

    Case 128
    If NewState = 64 THEN        ' Was 4 now 2 = Up
      Q_Count = Q_Count + 1
      DIR = UP
    ELSE                       ' Was 4 now 1 = Down
      Q_Count = Q_Count - 1
      DIR = DN
    ENDIF
  END SELECT

  oldState = NewState

ENDIF
ENDIF
Return

..but no change in porta.0 or porta.1 state ...

[fratello]

Update code :

Main_Loop:
gosub keypadscan
newState = (PortB & %00000111)
gosub encoder
gosub check
goto main_loop

Check :
if dir = up then
porta.0 = 0
porta.1 = 1
endif
if dir = dn then
porta.0 = 1
porta.1 = 0
endif
return


encoder:
If newState <> 0 THEN
If newState <> oldState THEN        ' Changed from last time?
  Select Case oldState
    Case 32
    If NewState = 128 THEN          ' Was 1 now 4 = Up
      Q_Count = Q_Count + 1
      DIR = UP
    ELSE                          ' Was 1 now 2 = Down
      Q_Count = Q_Count - 1
      DIR = DN
    ENDIF

    Case 64
    If NewState = 32 THEN        ' Was 2 now 1 = Up
      Q_Count = Q_Count + 1
      DIR = UP
    ELSE                           ' Was 2 now 4 = Down
      Q_Count = Q_Count - 1
      DIR = DN
    ENDIF

    Case 128
    If NewState = 64 THEN        ' Was 4 now 2 = Up
      Q_Count = Q_Count + 1
      DIR = UP
    ELSE                       ' Was 4 now 1 = Down
      Q_Count = Q_Count - 1
      DIR = DN
    ENDIF
  END SELECT

  oldState = NewState

ENDIF
ENDIF
Return

but no matter what M (1,2 or 3) I push, porta.0 goes high and stay so.

[HenrikOlsson]

Hi,
In the first code you posted you read the status of PortB before driving the the common pin for the encoder so there probably won't be any signals comming in.
In the second, updated example, you never drive the common pin for the encoder at all.
You need to set the "common pin" high (or low depending on hardware) and THEN read the port otherwise you won't get anything back.


You really need to sit back and think the problem thru, not just cut and paste pieces of code together without understanding what they do and how the hardware they're intended to interface to is supposed to work.

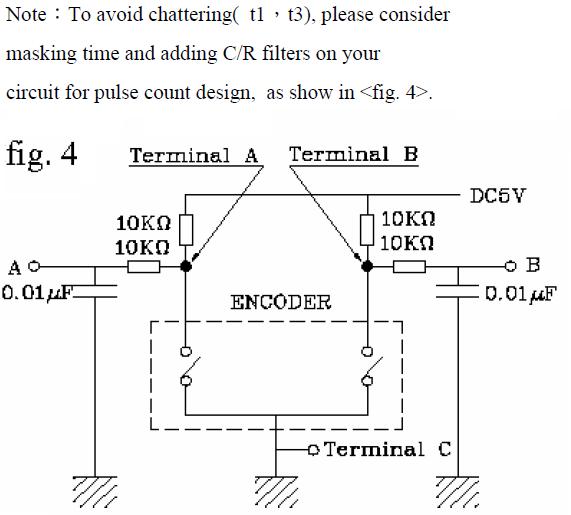

Think it thru.... The "encoder" has a "wiper" which "cylces" thru the different contacts. Depending on which contact the wipers is positioned at you'll get a signal out on a certain pin. In order to get that signal out the "wiper" must be "powered" in one way or another. If the inputs from the "contacts" are pulled up then wiper must be grounded so that it pulls the contact (and signal LOW). Likewise if the inputs from the contacts are pulled down then the "wiper" must be high in order to pull the inputs high.

If the inputs are pulled up with resistors then you'll get a "walking zero" across the three pins, if the inputs are pulled down you'll get a "walking one" across the inputs. You must adapt the code to match.

My suggestion, for now, is that you ditch the matrix routine untill you get the encoder working - and understand how it works.

/Henrik.

[fratello]

Thanks for support !
"In the second, updated example, you never drive the common pin for the encoder at all."
But ..."keypadscan" don't do this ? Proteus show how "0" walk through portb 3,4,5.

[HenrikOlsson]

Hi,
Like I said earlier, I don't have any experience with that piece fo code but if I'd venture I guess (and I'm pretty certain I'm right) it scans the pins once each time you GOSUB the routine. This means it does NOT scan the pins during the time you GOSUB the encoder routine.

Does Proteus show that walking zero across the pins at the same time as you do newState = PortB & %00000111 - I'd say no.

If your inputs are pulled up with resistors then the common/wiper of the encoder must be LOW at the time you read the status of the port. You must understand and remember that the PIC executes the code sequentially, one instruction after another.

[fratello]

Step-by-step I think I begin to understand ...
The correct hardware it's this.
The software can be this :

@ DEVICE pic16F628A, XT_OSC, WDT_OFF, PWRT_ON, BOD_OFF, MCLR_ON, LVP_OFF

   Define   OSC 4           ' 4MHz
   CMCON = 7                ' Disable on-chip comparator, PORTA in digital mode

include "alldigital.pbp"
include "C:\PBP\enc_KEY.BAS"

TRISB = 000000
PORTB = 000000

oldState VAR BYTE
newState VAR BYTE
DIR VAR BIT

UP CON 1
DN CON 0

Main_Loop:
portb.5 = 1
gosub keypadscan
gosub check
goto main_loop

Check :
if dir = up then
portb.0 = 1
pause 1000
portb.0 = 0
endif
if dir = dn then
portb.1 = 1
pause 1000
portb.1 = 0
endif
return

encoder:
portb.5 = 0
    newState = (porta & 000111)
If newState <> oldState THEN        ' Changed from last time?
  Select Case oldState
    Case 2
    If NewState = 4 THEN          ' Was 1 now 4 = Up
      DIR = up
    ELSE                          ' Was 1 now 2 = Down
      DIR = dn
    ENDIF

    Case 4
    If NewState = 1  THEN        ' Was 2 now 1 = Up
      DIR = up
    ELSE                           ' Was 2 now 4 = Down
      DIR = dn
    ENDIF

    Case 1
    If NewState = 2 THEN        ' Was 4 now 2 = Up
      DIR = up
    ELSE                       ' Was 4 now 1 = Down
      DIR = dn
    ENDIF
  END SELECT

  oldState = NewState
endif
portb.5 = 1
Return

The question is : where to put "gosub encoder" ? Inside the "enc_key.bas" (it's keypad.bas addapted to 2 row/3 cols) ???
