PICkit2 Problem

Closed Thread
Results 1 to 4 of 4

Thread: PICkit2 Problem

Hybrid View

  1. - 3rd November 2009, 15:18 #1
    Techbuilder's Avatar
    Techbuilder
    Techbuilder is offline Junior Member
    Join Date
    Jul 2007
    Posts
    67

    Default PICkit2 Problem

    I have to admit I am a total noob when it comes to programming and I had problems in the past with my old programmer so I bought the PICkit2 to use with my PIC basic Pro

    Well I tried using it and it stated that vdd pin is invalid or something like that

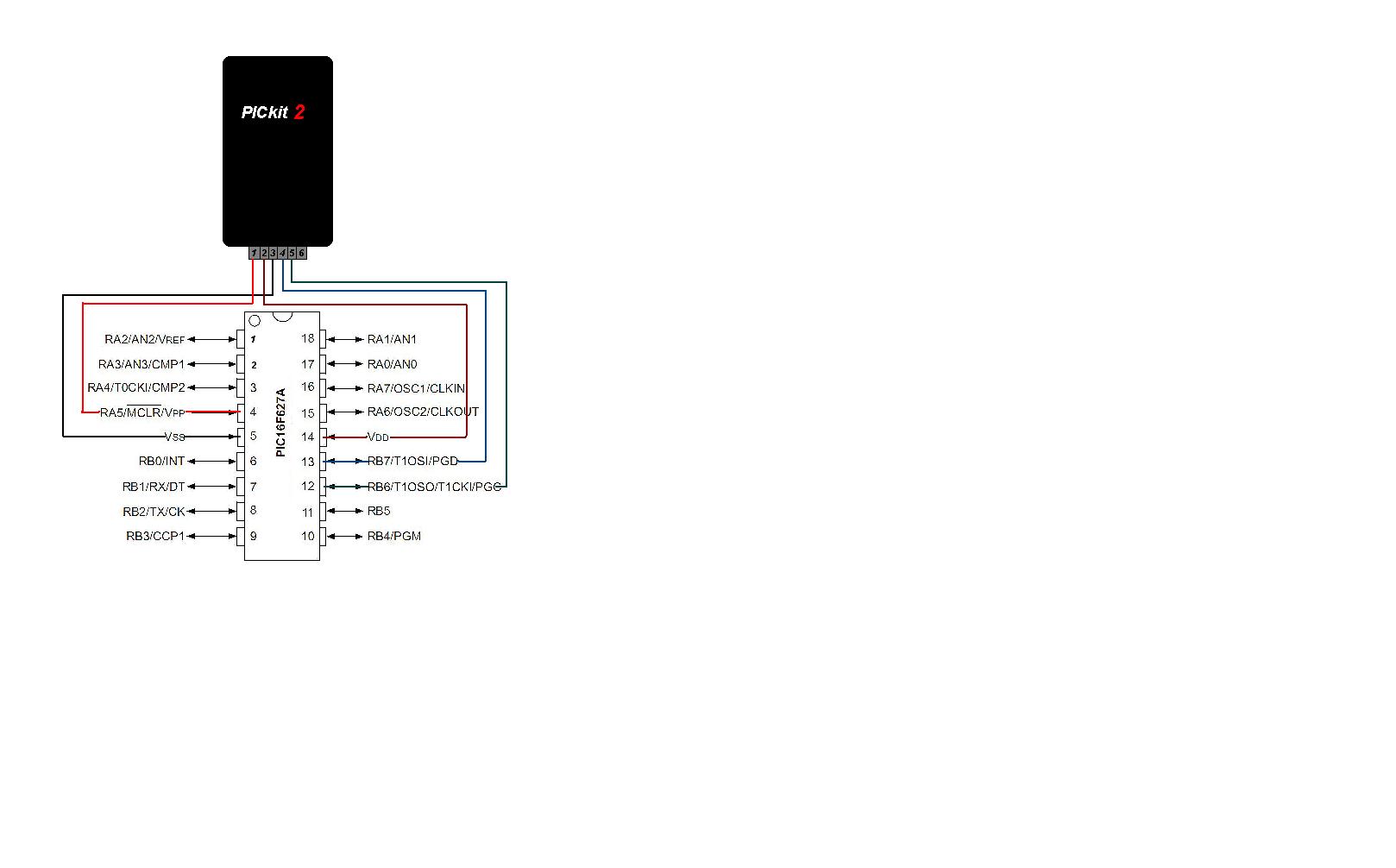

    here's how I have it wired up I don't have any diodes or resistors attached to the programmer am I supposed to?

    Any help would be greatly appreciated
    Attached Images Attached Images
  2. - 4th November 2009, 04:26 #2
    Archangel's Avatar
    Archangel
    Archangel is offline SuperMod
    Join Date
    Aug 2006
    Location
    Look, behind you.
    Posts
    2,818

    Did you find this post helpful? Yes | No

    Default

    Hi Techbuilder,
    here is the datasheet for the PICKIT2. Your Schematic looks correct to me. What manner of problem are you experiencing ?
    http://www.modtronix.com/products/pr...tasheet.pdf#10
    Well I tried using it and it stated that vdd pin is invalid or something like that
    Are you powering the PIC with an independent power supply, or just the USB ? It will accept either, but not both together. There is a check box in the PICKit2 software to enable power from usb. Are there any loads on the 3 programming pins ? If so that will cause it to complain.
    Last edited by Archangel; - 4th November 2009 at 04:33.
    If you do not believe in MAGIC, Consider how currency has value simply by printing it, and is then traded for real assets.
    .
    Gold is the money of kings, silver is the money of gentlemen, barter is the money of peasants - but debt is the money of slaves
    .
    There simply is no "Happy Spam" If you do it you will disappear from this forum.
  3. - 5th November 2009, 11:24 #3
    Techbuilder's Avatar
    Techbuilder
    Techbuilder is offline Junior Member
    Join Date
    Jul 2007
    Posts
    67

    Did you find this post helpful? Yes | No

    Default

    Well I can't quite figure out using MPLAB Ide yet but I couldn't even get it to link an LED
    I tried micro code studio and then exported the hex fle and wrote it to the pic with the PICkit 2 os and still nothing.

    How do I set the fuses for the pic kit 2?

    I do not have it powered I am supplying my voltage from the Pickit 2

    I just program it with the pic it's self and I don't connect anything to it besides the PICkit2
  4. - 6th November 2009, 19:18 #4
    mackrackit's Avatar
    mackrackit
    mackrackit is offline SuperMod
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924

    Did you find this post helpful? Yes | No

    Default

    You need to set the fuses in code or in the *.inc
    http://www.picbasic.co.uk/forum/showthread.php?t=543
    Dave
    Always wear safety glasses while programming.
