Synchronous pulses


Closed Thread
Results 1 to 17 of 17
  1. #1
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104

    Default Synchronous pulses

    .. not sure if that is the correct title but want I want to do is output a pulse in parallel on three different pins. The pulses will be of different lengths (1msec down to a few usecs) and the leading edges need to be aligned.

    I can think of one way of doing it - put all 3 o/p's high together then pause incrementally as I bring them back down one at a time - but I was wondering if there was a more elegant way of doing it ?

    Thanks,

    Andrew

  2. #2
    Join Date
    Nov 2005
    Location
    Bombay, India
    Posts
    966


    Did you find this post helpful? Yes | No

    Default

    Are you thinking of a software PWM? Quite easy to do really.

    http://darreltaylor.com/DT_INTS-14/SPWM.html

  3. #3
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104


    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by Jerson View Post
    Are you thinking of a software PWM? Quite easy to do really.

    http://darreltaylor.com/DT_INTS-14/SPWM.html
    No, not a software PWM.
    Actually for controlling some photographic strobes.
    Three command lines, need to fire simultaneously but then shut off after different times and wait for the next trigger.

    Andrew

  4. #4
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924


    Did you find this post helpful? Yes | No

    Default

    Add a little to your idea... Assuming the pins in question are on the same port...
    Code:
    TRIS? = %00000000
    X VAR BYTE
    Y VAR BYTE
    Z VAR BYTE

    STROBE:
    PORT? = %00000111
    PAUSE X  ' Or use PAUSEUS
    PORT? = %00000011
    PAUSE Y
    PORT? = %00000001
    PAUSE Z
    PORT? = %00000000
    RETURN
    Dave
    Always wear safety glasses while programming.

  5. #5
    Join Date
    May 2004
    Location
    NW France
    Posts
    3,648


    Did you find this post helpful? Yes | No

    Wink

    Hi, Andew

    It's in French ... Yes.

    But just close to what you look for ...

    http://mathieu.agopian.free.fr/prog_pic/servobis/

    http://mathieu.agopian.free.fr/prog_pic/servoter/

    Alain
    ************************************************** ***********************
    Why insist on using 32 Bits when you're not even able to deal with the first 8 ones ??? ehhhhhh ...
    ************************************************** ***********************
    IF there is the word "Problem" in your question ...
    certainly the answer is " RTFM " or " RTFDataSheet " !!!
    *****************************************

  6. #6
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104


    Did you find this post helpful? Yes | No

    Default

    Reply to Dave:

    Yup, that's what described.

    The issue is that the three outputs will not always be ordered longest to shortest from bit 0 to bit 2 (or bit 2 to 0 as you ordered them). Not difficult to get around - just need to sort the pulse lengths, calculate the incremental time between sequential trailing edges and use a bunch of IF statements to pull them back down in the right order.

    But woudn't it be nice if there was single command that could output parallel pulses

    Andrew
    Last edited by AndrewC; - 14th October 2009 at 09:59.

  7. #7
    Join Date
    Nov 2003
    Location
    Wellton, U.S.A.
    Posts
    5,924


    Did you find this post helpful? Yes | No

    Default

    How are you going to input the parameters to the PIC?
    Dave
    Always wear safety glasses while programming.

  8. #8
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104


    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by mackrackit View Post
    How are you going to input the parameters to the PIC?
    That bit is easy

    In this kind of application I probably only need about a dozen discrete pulse lengths. I'll probably store them in an array and select the array member by scrolling through it with single button per output. Depending on the PIC I'll use I might have an "up" and "down" button. Each flash needs a fire and quench signal, so that is 6 pins, plus the buttons takes me up to 9 (or 12) plus a serial output for an LCD plus a synch signal from the camera.

    Andrew

  9. #9
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104


    Did you find this post helpful? Yes | No

    Default

    Quote Originally Posted by Acetronics View Post
    Hi, Andew

    It's in French ... Yes.

    But just close to what you look for ...

    http://mathieu.agopian.free.fr/prog_pic/servobis/

    http://mathieu.agopian.free.fr/prog_pic/servoter/

    Alain
    Hi alain,

    Yes, seems to be pretty much what I'm describing. Thanks for the link.

    Andrew

  10. #10
    Join Date
    Aug 2005
    Location
    Michigan, USA
    Posts
    224


    Did you find this post helpful? Yes | No

    Default

    Hi Andrew,

    Would you like me to describe one method for producing up to 8 precisely timed synchronous pulses (on a single port), each pulse with a pulse width value of from 0 (off) to 1023 usecs with 1 usec pulse width resolution? If so, please let me know and I'd be happy to explain how the following code snippets work. I apologize for the C code.

    Kind regards, Mike




    Code:
    unsigned int pulse[] = {  120,       // pulse 0 (RB0),  120-usecs
                               44,       // pulse 1 (RB1),   44-usecs
                               45,       // pulse 2 (RB2),   45-usecs
                             1001,       // pulse 3 (RB3), 1001-usecs
                                0,       // pulse 4 (RB4), off/not used
                                0,       // pulse 5 (RB5), off/not used
                                0,       // pulse 6 (RB6), off/not used
                                0 };     // pulse 7 (RB7), off/not used

    unsigned char toggle[1024] @0x400    // 1024 element (interval) toggle array
    Code:
    //
    //  1024 interval output routine (BoostC compiles the following
    //  do-while code into a 5-cycle loop which is perfect for 1-usec
    //  intervals with a 20-MHz clock).
    //
    void Output()
    { fsr0 = 0x400;                      // interval = 0
      do                                 // do
      { latb ^= postinc0;                // { latb ^= toggle[interval++]
      } while(fsr0h.3 == 0);             // } while(interval < 1024)
    }
    Code:
    //
    //  build new toggle array from the pulse array before calling Output()
    //
    void PrepArray()
    { for(i = 0; i < 1024; i++)          //
        toggle[i] = 0;                   // clear the array
      toggle[pulse[0]] |= 1;             // insert RB0 output toggle bit
      toggle[pulse[1]] |= 2;             // insert RB1 output toggle bit
      toggle[pulse[2]] |= 4;             // insert RB2 output toggle bit
      toggle[pulse[3]] |= 8;             // insert RB3 output toggle bit
      toggle[pulse[4]] |= 16;            // insert RB4 output toggle bit
      toggle[pulse[5]] |= 32;            // insert RB5 output toggle bit
      toggle[pulse[6]] |= 64;            // insert RB6 output toggle bit
      toggle[pulse[7]] |= 128;           // insert RB7 output toggle bit
      toggle[0] ^= 0xFF;                 // fix toggle[0] element
    }
    Last edited by Mike, K8LH; - 16th October 2009 at 21:57.

  11. #11
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104


    Did you find this post helpful? Yes | No

    Default

    Hi Mike,

    sounds interesting - explain away

    Andrew

  12. #12
    Join Date
    Aug 2005
    Location
    Michigan, USA
    Posts
    224


    Did you find this post helpful? Yes | No

    Default

    Hi Andrew,

    The disadvantage of this particular method is that you need a PIC with lots of RAM, something like an 18F2620, for the 1024 byte toggle array. If this is a one-off project then perhaps that may not be a big deal.

    The PrepArray() routine builds the following (abbreviated) toggle[] array from the pulse[] array values and the Output() routine uses those values to update LATB as shown below;

    Code:
     interval                                ^ LATB
    0000-usecs  toggle[   0] = 0b00001111  0b00001111  RB3..RB0 toggled on
    0001-usecs  toggle[   1] = 0b00000000  0b00001111
    ....
    0043-usecs  toggle[  43] = 0b00000000  0b00001111
    0044-usecs  toggle[  44] = 0b00000010  0b00001101  RB1 toggled off
    0045-usecs  toggle[  45] = 0b00000100  0b00001001  RB2 toggled off
    0046-usecs  toggle[  46] = 0b00000000  0b00001001
    ....
    0119-usecs  toggle[ 119] = 0b00000000  0b00001001
    0120-usecs  toggle[ 120] = 0b00000001  0b00001000  RB0 toggled off
    0121-usecs  toggle[ 121] = 0b00000000  0b00001000
    ....
    1000-usecs  toggle[1000] = 0b00000000  0b00001000
    1001-usecs  toggle[1001] = 0b00001000  0b00000000  RB3 toggled off
    ....


    The advantage of using a "toggle" data array and XOR'ing the values with LATB over using an "output" data array and simply writing the values to LATB is that the "toggle" array only requires inserting eight "toggle" bits into the array. An "output" data array would require inserting many many "output" bits into the array.

    The Do-While loop in the Output() routine compiles to the following 5-cycle instruction sequence (by the BoostC compiler) for perfect 1-usec intervals (with a 20-MHz clock);

    Code:
    loop:
            movf    _postinc0,W     ;
            xorwf   _latb,F         ;
            btfss   _fsr0h,3        ;
            bra     loop            ;
    In your program you would edit the pulse array values for the outputs and then call the PrepArray() routine to build the toggle array. Then I suspect you would wait for some "trigger" event before calling the Output() routine.

    Any of this make sense Sir? I'm rather pressed for time and that tends to make my rushed explanations rather useless to most people. Sorry...

    Regards, Mike

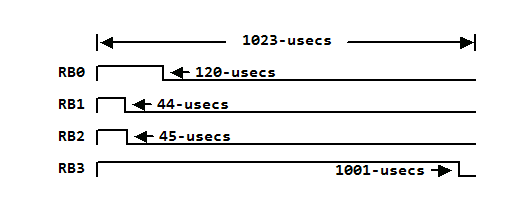

    Attached Images Attached Images
    Last edited by Mike, K8LH; - 17th October 2009 at 01:04.

  13. #13
    Join Date
    Feb 2006
    Location
    Brussels, Belgium
    Posts
    104


    Did you find this post helpful? Yes | No

    Default

    More or less makes sense.
    As I'm only juggling three outputs, I think I'll just sort the outputs into increasing time, calculate the incremental time between trailing edges, put them all on together and then pull them back down sequentially with PAUSEUS delays.

    Thanks for taking the time to answer

    Andrew
    Last edited by AndrewC; - 17th October 2009 at 08:23. Reason: spelling :(

  14. #14
    Join Date
    Aug 2005
    Location
    Michigan, USA
    Posts
    224


    Did you find this post helpful? Yes | No

    Default

    You're welcome.

    Good luck on your project.

    Regards, Mike

  15. #15
    Join Date
    Nov 2005
    Location
    Bombay, India
    Posts
    966


    Did you find this post helpful? Yes | No

    Default

    This last post made me to put on my thinking cap I do this stuff within an ISR usually, but your case doesn't need it.

    How about something like this. BEWARE : untested code

    Code:
    Out1    var   PORTB.0
    Out2    var   PORTB.1
    Out3    var   PORTB.2
    AllOn    con  %00000111      ' all three outputs on

    Delay1 var   word                 ' turn off delay for output1
    Delay2 var   word                 ' and 2
    Delay3 var   word                 ' surely this has to be for 3

    RunDelay var word               ' this is the running timer

    '  set all outputs on together
    TRISB = 0
    Delay1 = 1000                     ' in units of PAUSE time
    Delay2 = 2000
    Delay3 = 3000
    Loop:
        PORTB = AllOn

        for RunDelay = 0 to 65535  '  or whatever is the maximum you want
                                                   ' this would be your cycle  / repeat time
          if RunDelay > Delay1 then
             Out1 = 0
          endif

          if RunDelay > Delay2 then
             Out2 = 0
          endif

          if RunDelay > Delay3 then
             Out3 = 0
          endif

          pauseus 10                        ' this is the resolution of your delays
        next
    goto Loop

  16. #16
    Join Date
    Aug 2005
    Location
    Michigan, USA
    Posts
    224


    Did you find this post helpful? Yes | No

    Default

    Hi Jerson,

    I agree that ISR code isn't necessary or even desirable in this case because of the high resolution required and the ISR context save/restore 'overhead'.

    Andrew mentioned in his first post that the pulse width range could be several microseconds up to about one millisecond.

    I believe the pulse width resolution for your example would be the loop code 'overhead' plus the 16-bit compare code 'overhead' plus the delay. The 16-bit compare code 'overhead' may well be the biggest limiting factor affecting resolution and the delay may not be necessary. Have you checked to see how many cycles are used for 1 loop cycle in your example Sir?

    Regards, Mike
    Last edited by Mike, K8LH; - 17th October 2009 at 16:13.

  17. #17
    Join Date
    Aug 2005
    Location
    Michigan, USA
    Posts
    224


    Did you find this post helpful? Yes | No

    Default

    Hey Andrew,

    Once I figure out how to force an address for the toggle array in Swordfish BASIC I suspect my method might look something like this BASIC example, which I hope makes more sense than my previous pseudo C example.

    Kind regards, Mike

    Code:
    Dim Tgl(1024) As Byte                   ' ??? force to $400..$7FF ???
    Dim Pulse(3) As Word
    Dim LastElement As FSR0H.booleans(3)
    '
        Pulse(0) = 3                        ' RB0 pulse, 0..1023 usecs
        Pulse(1) = 11                       ' RB1 pulse, 0..1023 usecs
        Pulse(2) = 12                       ' RB2 pulse, 0..1023 usecs
    '
    '  clear the 1024 element toggle array
    '
        FSR0 = AddressOf(Tgl)               ' indirect for Tgl(0)
        Repeat                              ' clear toggle array
            POSTINC0 = 0                    ' clear 0x400..0x7FF
        Until LastElement                   '
    '
    '  insert 3 output toggle bits into our 1024 interval toggle array
    '
        Tgl(Pulse(0)) = Tgl(Pulse(0)) Or 1  ' insert RB0 toggle bit
        Tgl(Pulse(1)) = Tgl(Pulse(1)) Or 2  ' insert RB1 toggle bit
        Tgl(Pulse(2)) = Tgl(Pulse(2)) Or 4  ' insert RB2 toggle bit
        Tgl(0) = Tgl(0) Xor $FF             ' prep Tgl(0) element
    '
    '  implement a button press or some other trigger before falling into
    '  the output routine (1024 1-usec intervals with 20-MHz clock)
    '
        FSR0 = AddressOf(Tgl)               ' Tgl(0..1023), 0x400..0x7FF
        Repeat                              ' toggle outputs from toggle array
            LATB = LATB Xor POSTINC0        ' at 1-usec (5 cycle) intervals
        Until LastElement                   ' until end-of-array (0x800)
    Last edited by Mike, K8LH; - 18th October 2009 at 16:45.

Similar Threads

  1. I Need Help.. I want to generate controlled pulses
    By alabbadi in forum PBP Wish List
    Replies: 7
    Last Post: - 18th November 2007, 10:42
  2. Count pulses between VARIABLE TIME
    By RodSTAR in forum mel PIC BASIC Pro
    Replies: 0
    Last Post: - 15th October 2007, 12:44
  3. Timing input pulses and re-outputting them
    By jamie_s in forum mel PIC BASIC Pro
    Replies: 5
    Last Post: - 28th February 2007, 01:50
  4. Timed pulses on 2 pins
    By Danie Joubert in forum mel PIC BASIC Pro
    Replies: 1
    Last Post: - 15th March 2004, 07:38
  5. Counting pulses
    By srspinho in forum mel PIC BASIC Pro
    Replies: 12
    Last Post: - 19th November 2003, 00:54

Members who have read this thread : 0

You do not have permission to view the list of names.

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
