    Default Question on IO ports

    I received the book "PIC Microcontroller Project Book for PICBasic and PICBasic Pro Compilers"

    The book uses the 16F84A PIC in most of it's examples. In chapter 12 it shows an example using the 16F84A along with a 74LS164 to add 8 more IO ports incase you ever need more ports and the PIC you are using does not have enough.

    Question -

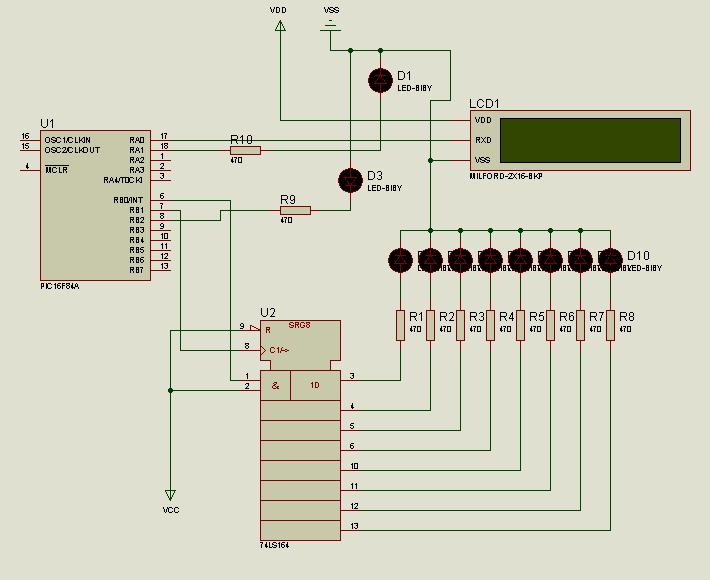

    Below is the sample source code along with my schematic drawing. This works great for turning on and off the LED's but I want to know what I need to do in order to send text to my 2x16 LCD using one of these ports.

    Would appreciate some help please.
    Thanks

    Code:
    include "MODEDEFS.BAS"

    lcd1 var porta.0
    led1 var porta.1
    led2 var portb.2

    B0 var byte
    TRISB.0 = 0

    pause 1000

    main

    high led1
    pause 100
    low led1
    pause 100
    high led2
    pause 100
    low led2
    pause 100

    B0 = 128
    gosub serial
    pause 1000
    B0 = 64
    gosub serial
    pause 1000
    B0 = 32
    gosub serial
    pause 1000
    B0 = 16
    gosub serial
    pause 1000
    B0 = 8
    gosub serial
    pause 1000
    B0 = 4
    gosub serial
    pause 1000
    B0 = 2
    gosub serial
    pause 1000
    B0 = 1
    gosub serial
    pause 1000
    B0 = 255
    gosub serial
    pause 1000
    B0 = 0
    gosub serial
    pause 1000

    goto main

    serial:
    portb.0 = B0.7
    pulsout 1,1
    portb.0 = B0.6
    pulsout 1,1
    portb.0 = B0.5
    pulsout 1,1
    portb.0 = B0.4
    pulsout 1,1
    portb.0 = B0.3
    pulsout 1,1
    portb.0 = B0.2
    pulsout 1,1
    portb.0 = B0.1
    pulsout 1,1
    portb.0 = B0.0
    pulsout 1,1
    portb.1 = 0
    return
    Attached Images Attached Images
    Last edited by studysession; - 16th February 2009 at 01:37.
