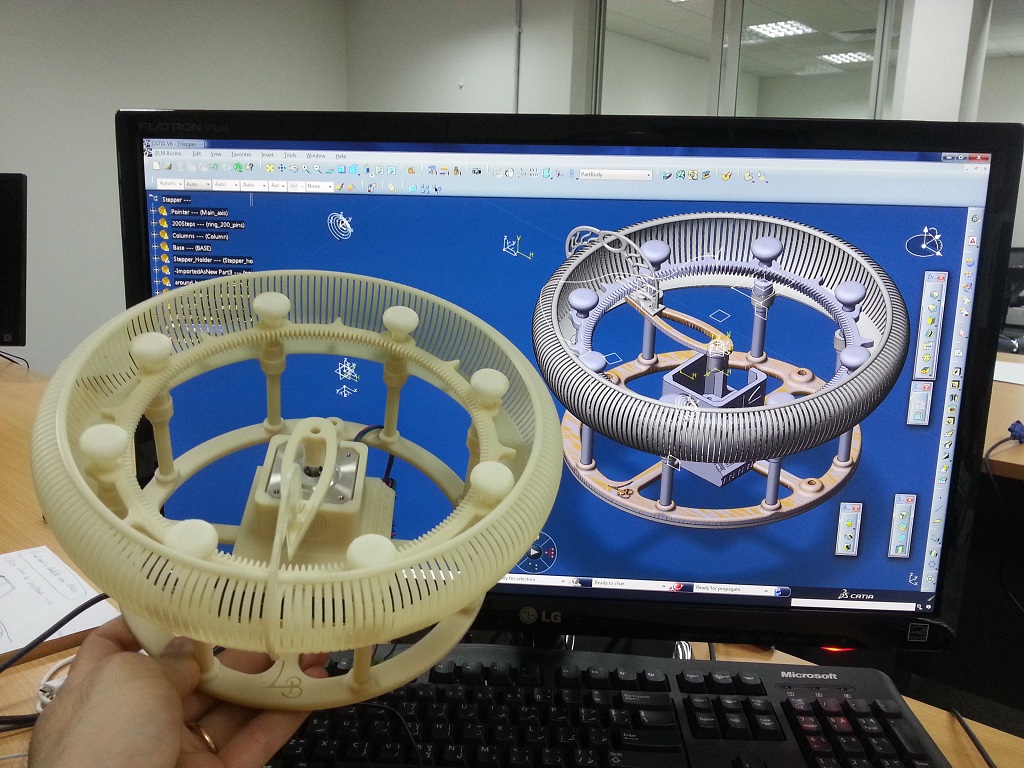

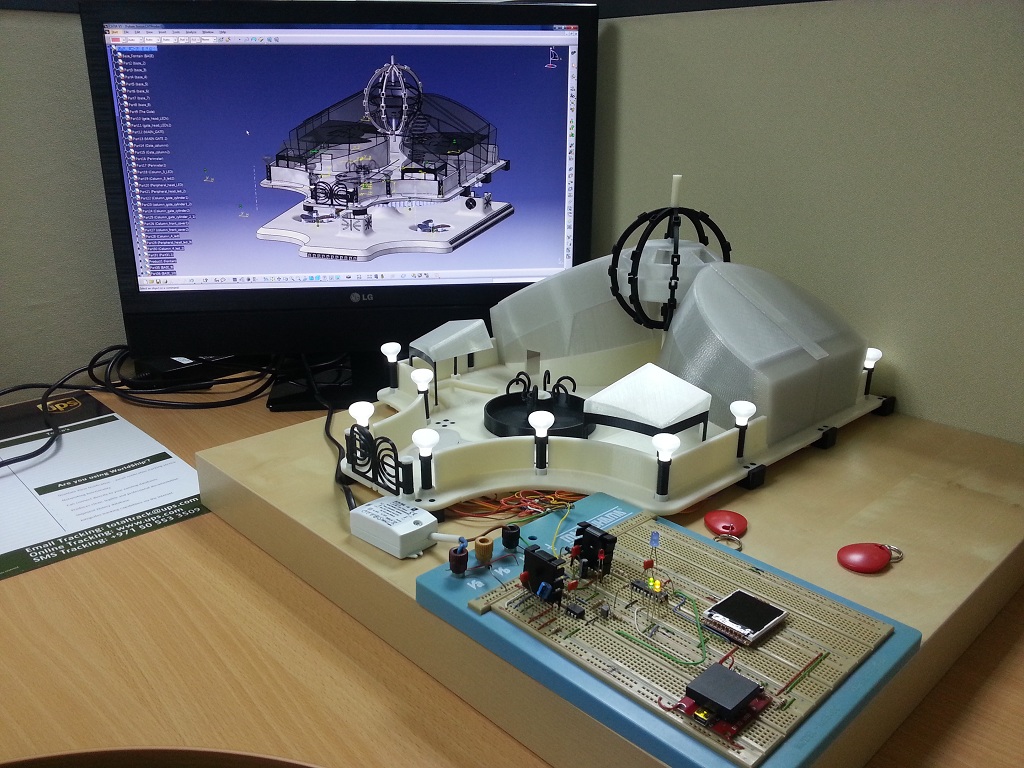

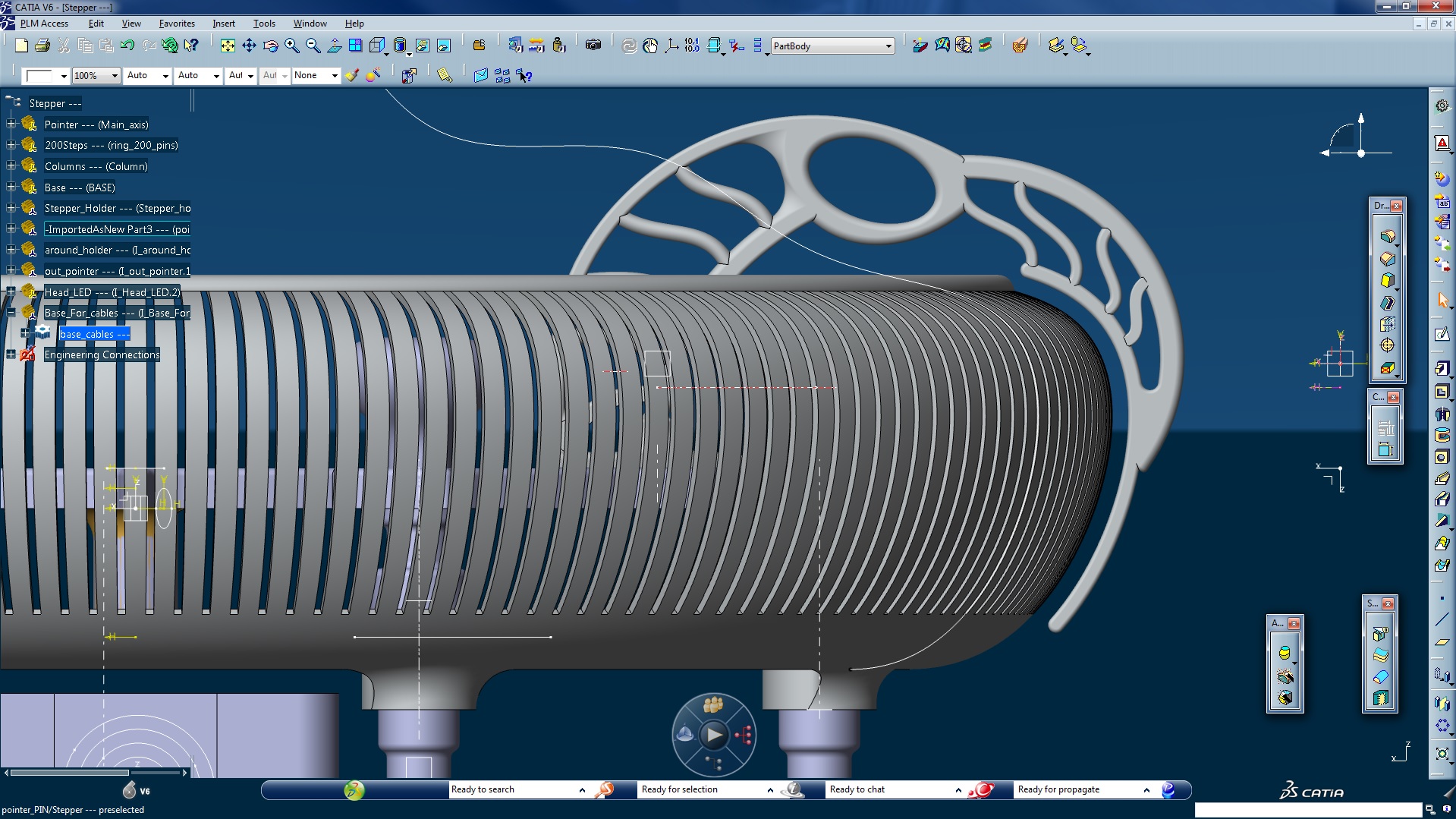

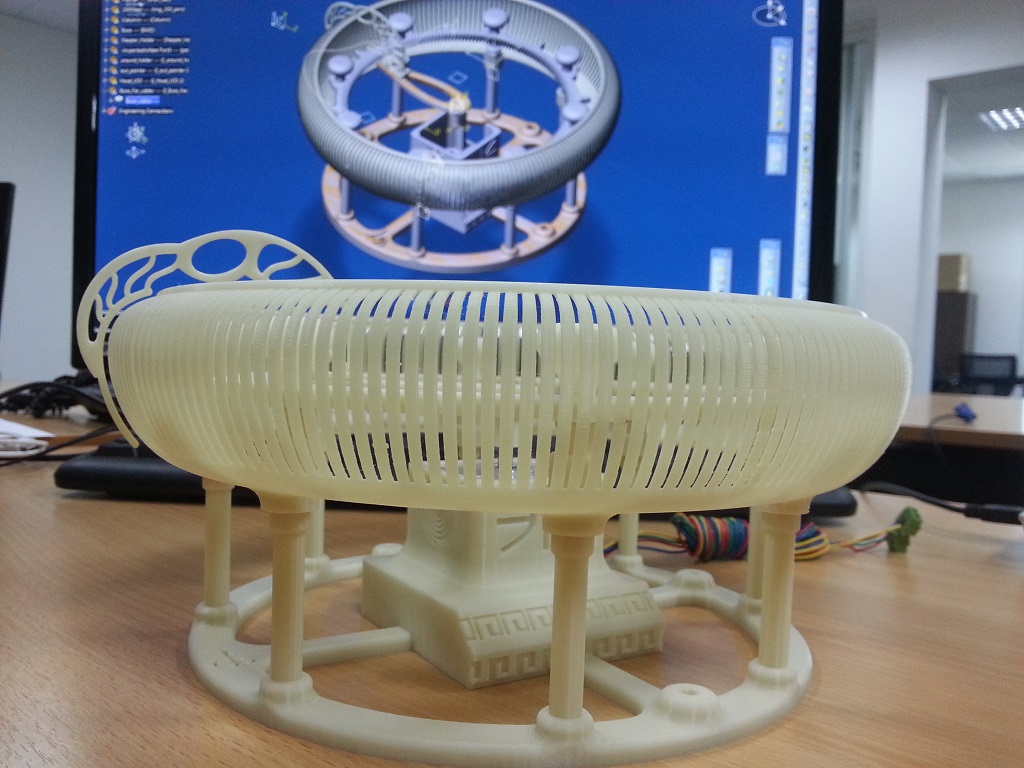

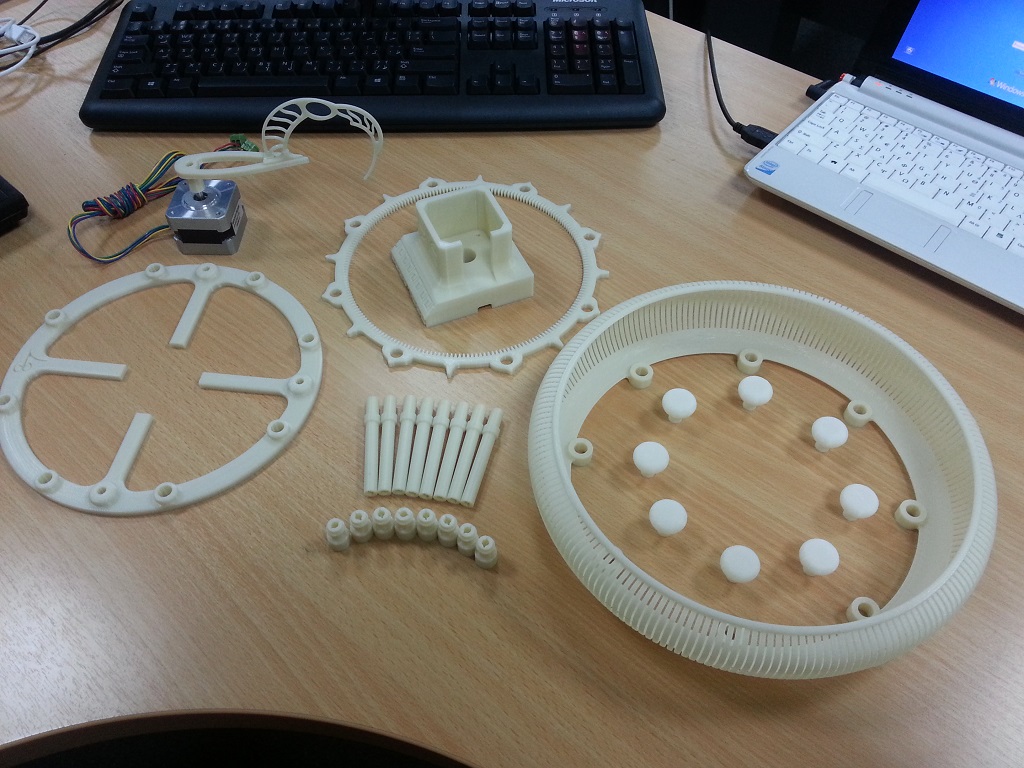

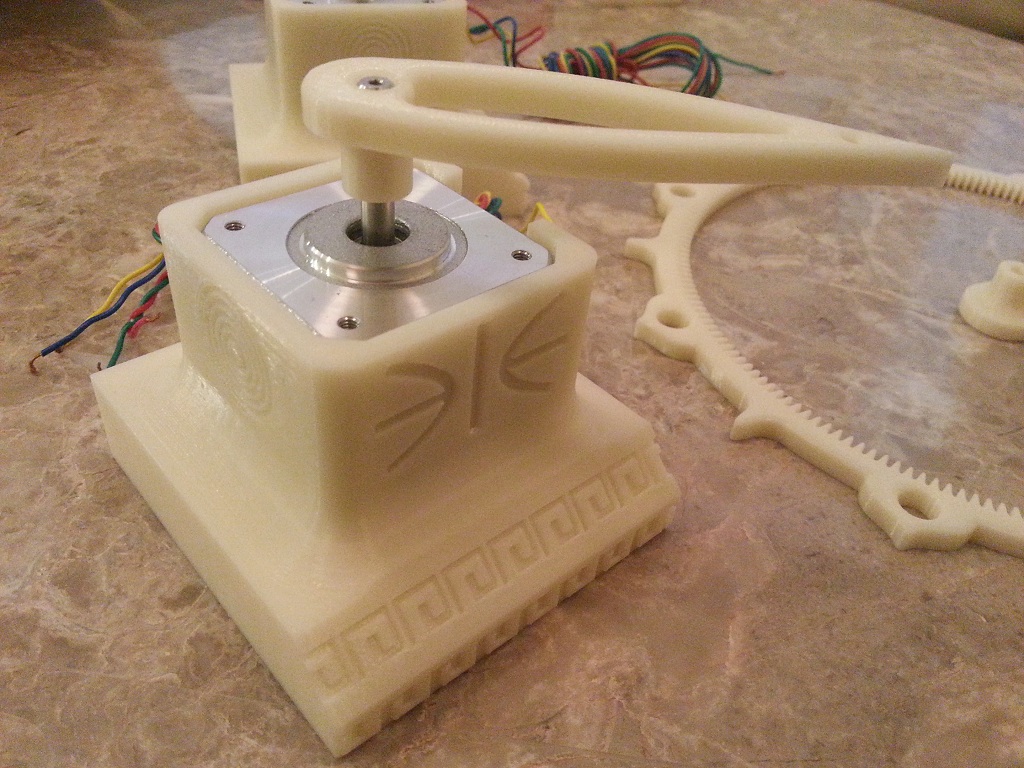

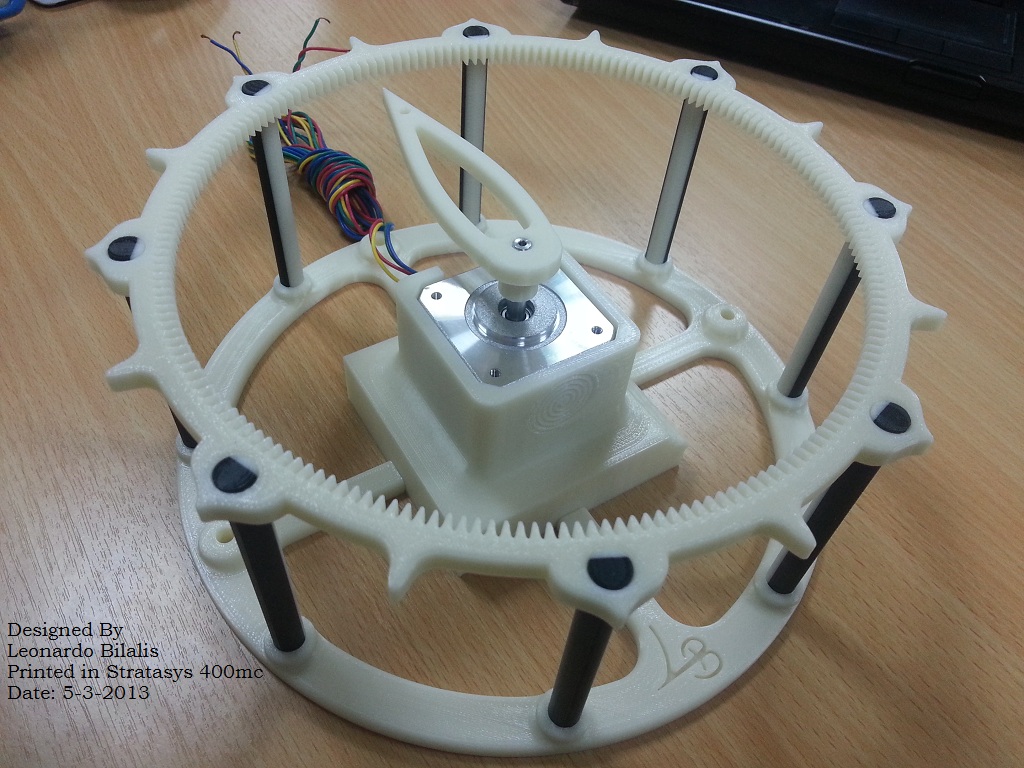

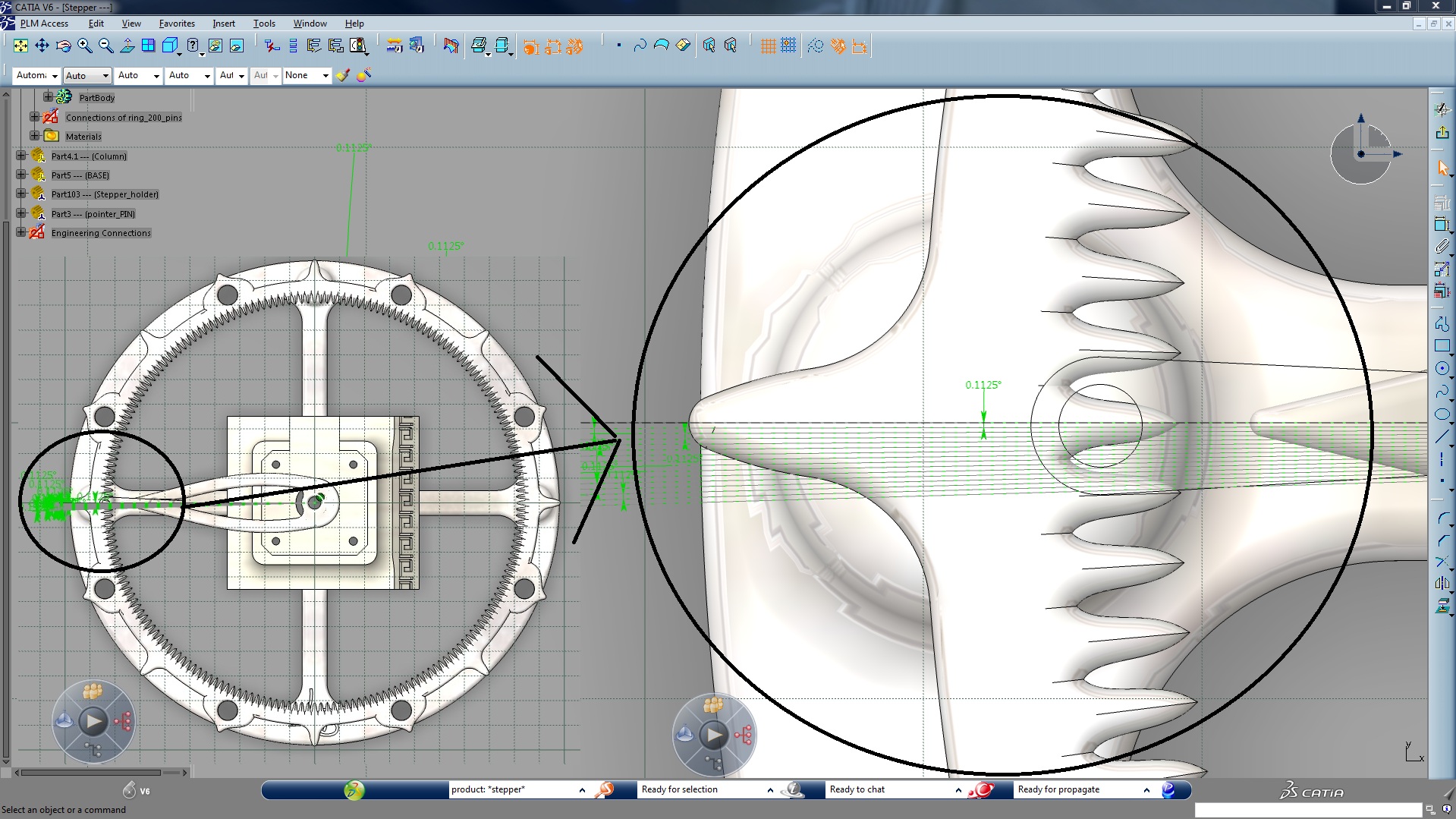

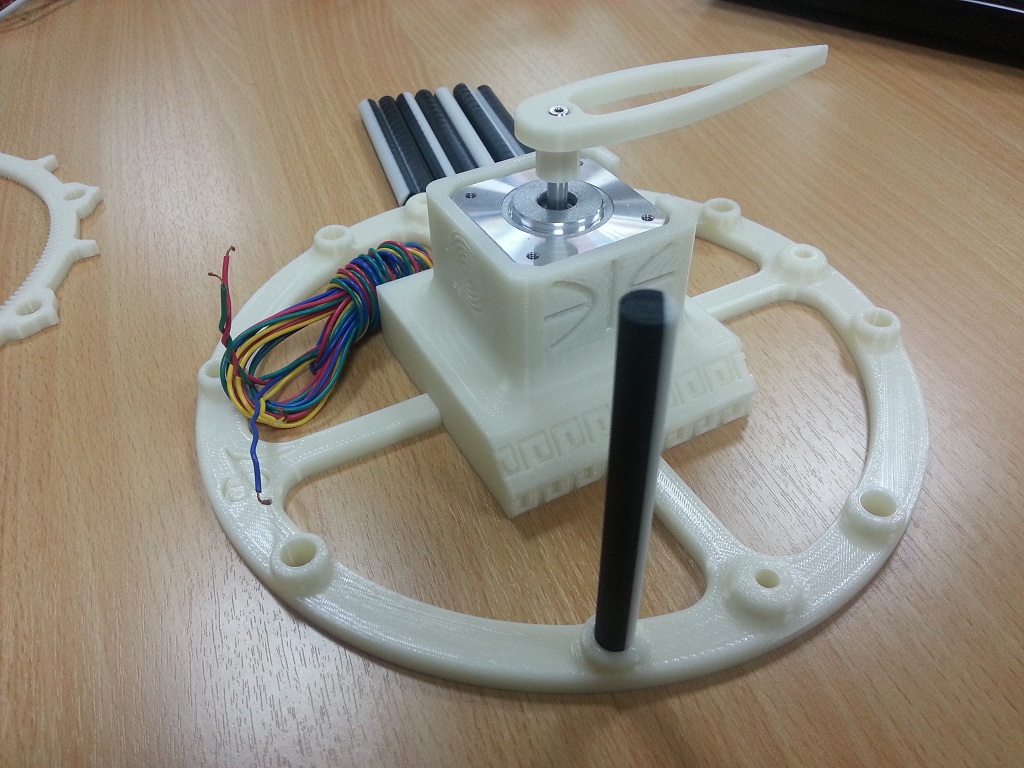

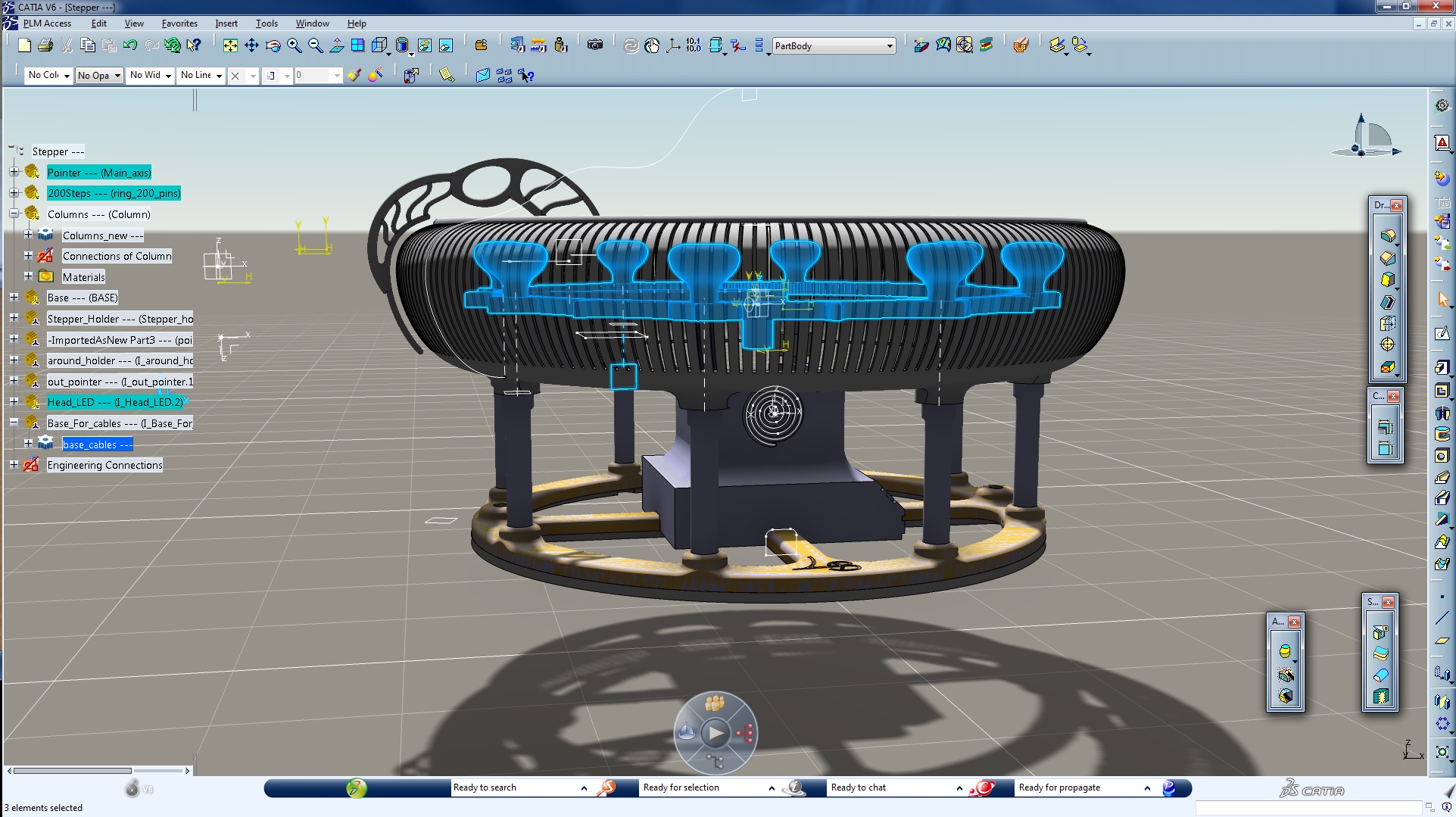

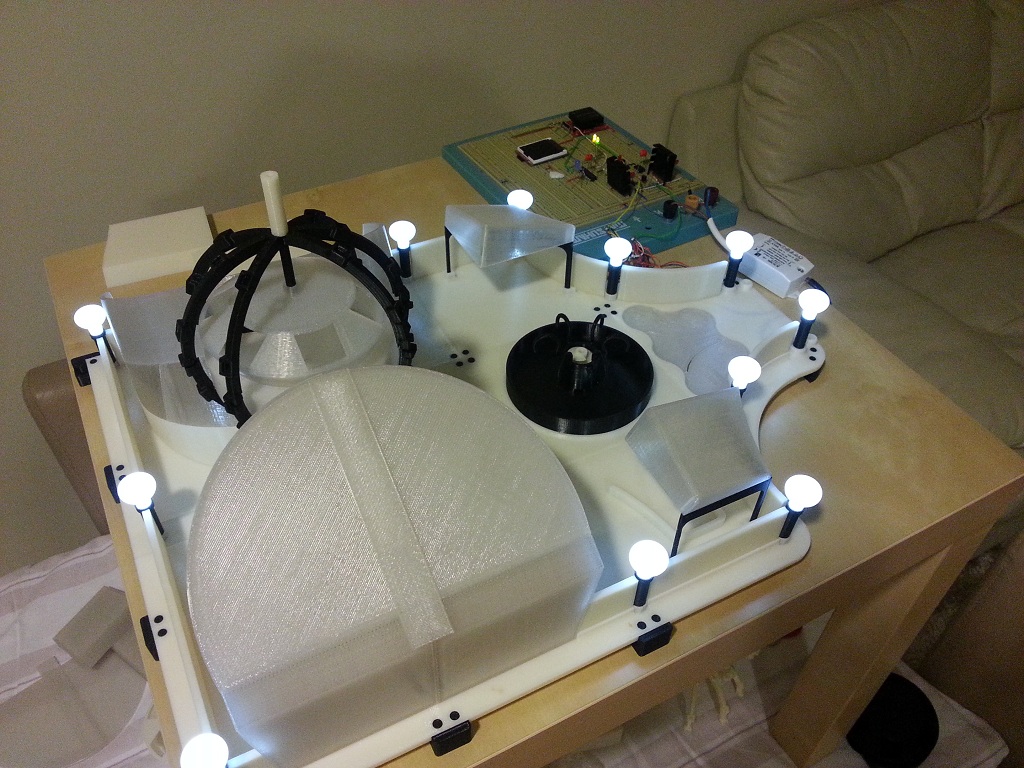

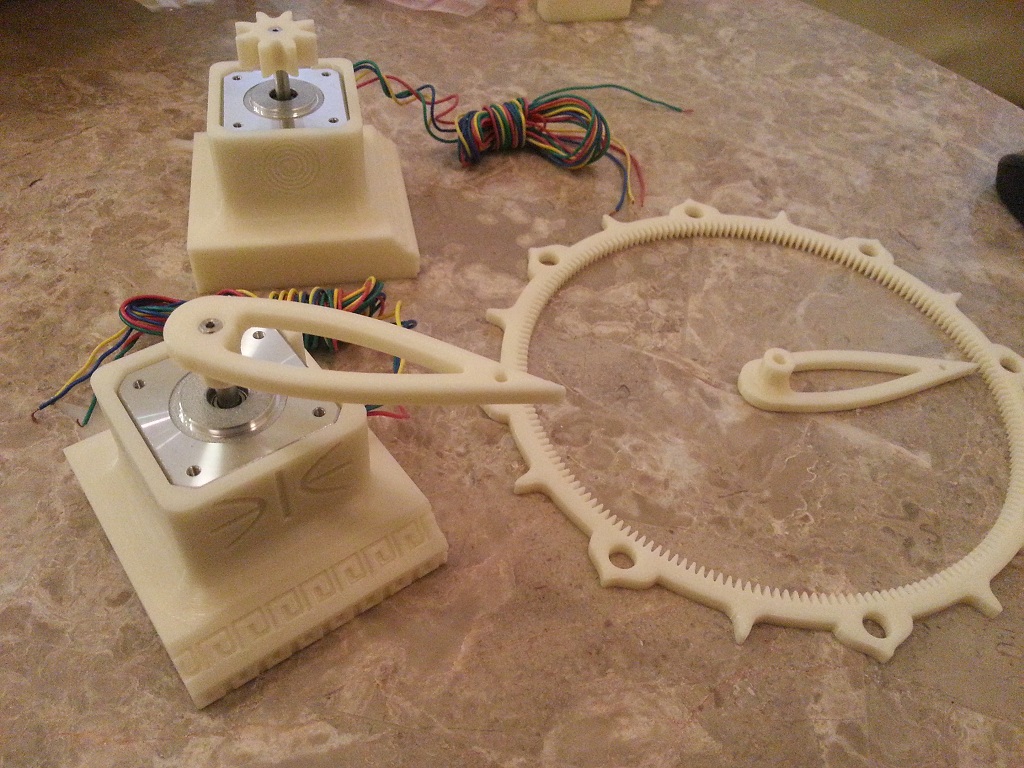

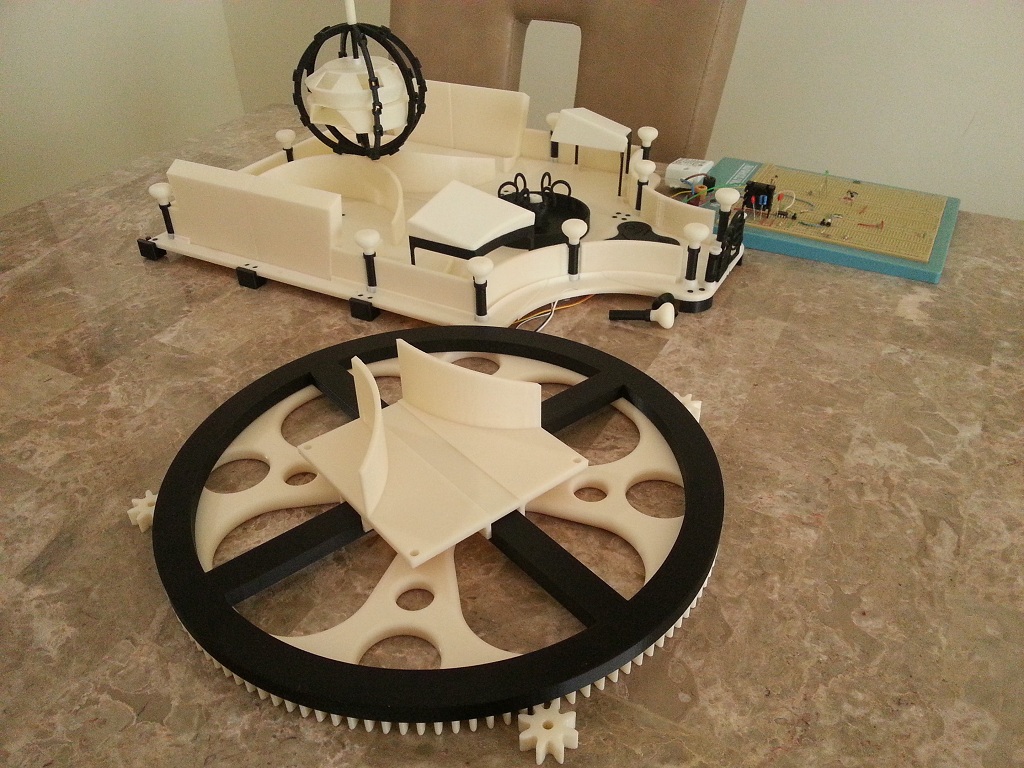

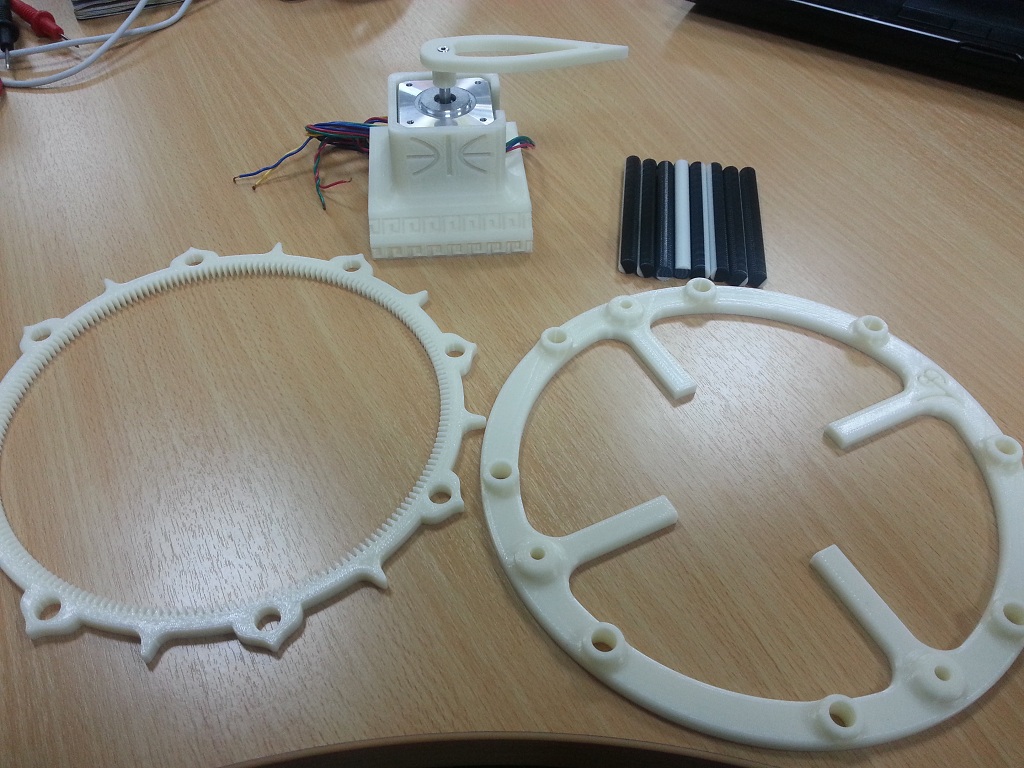

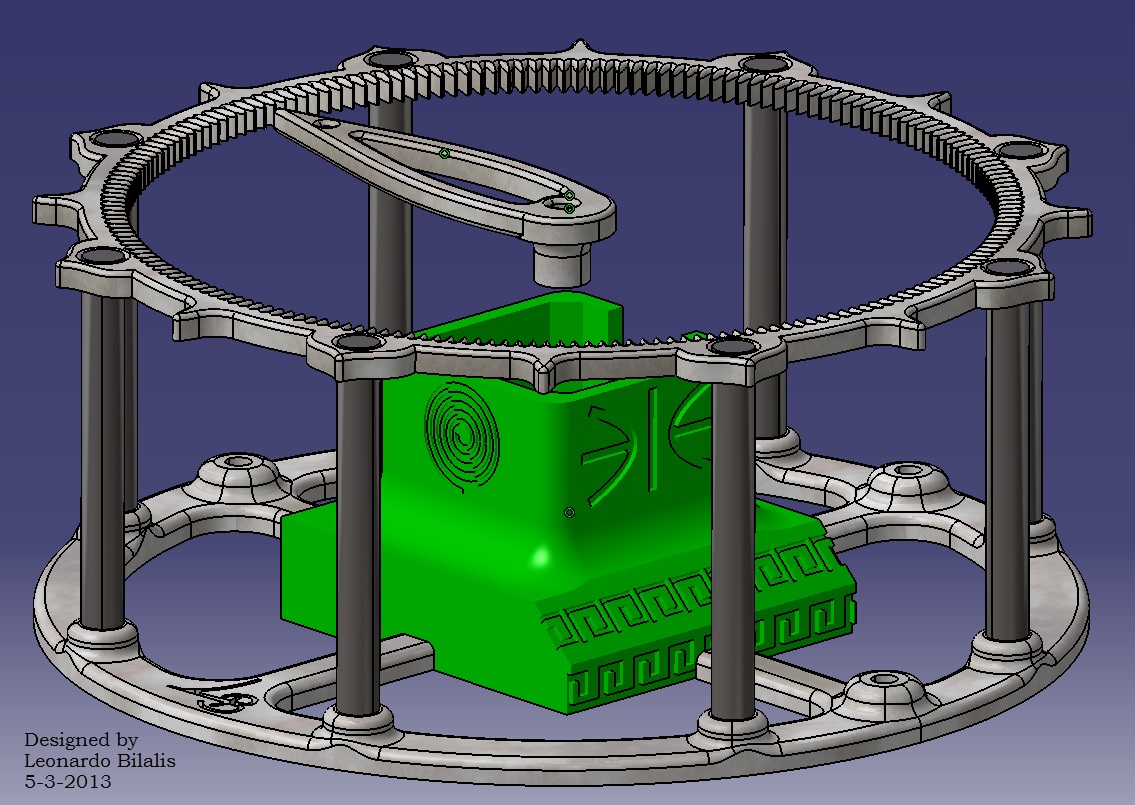

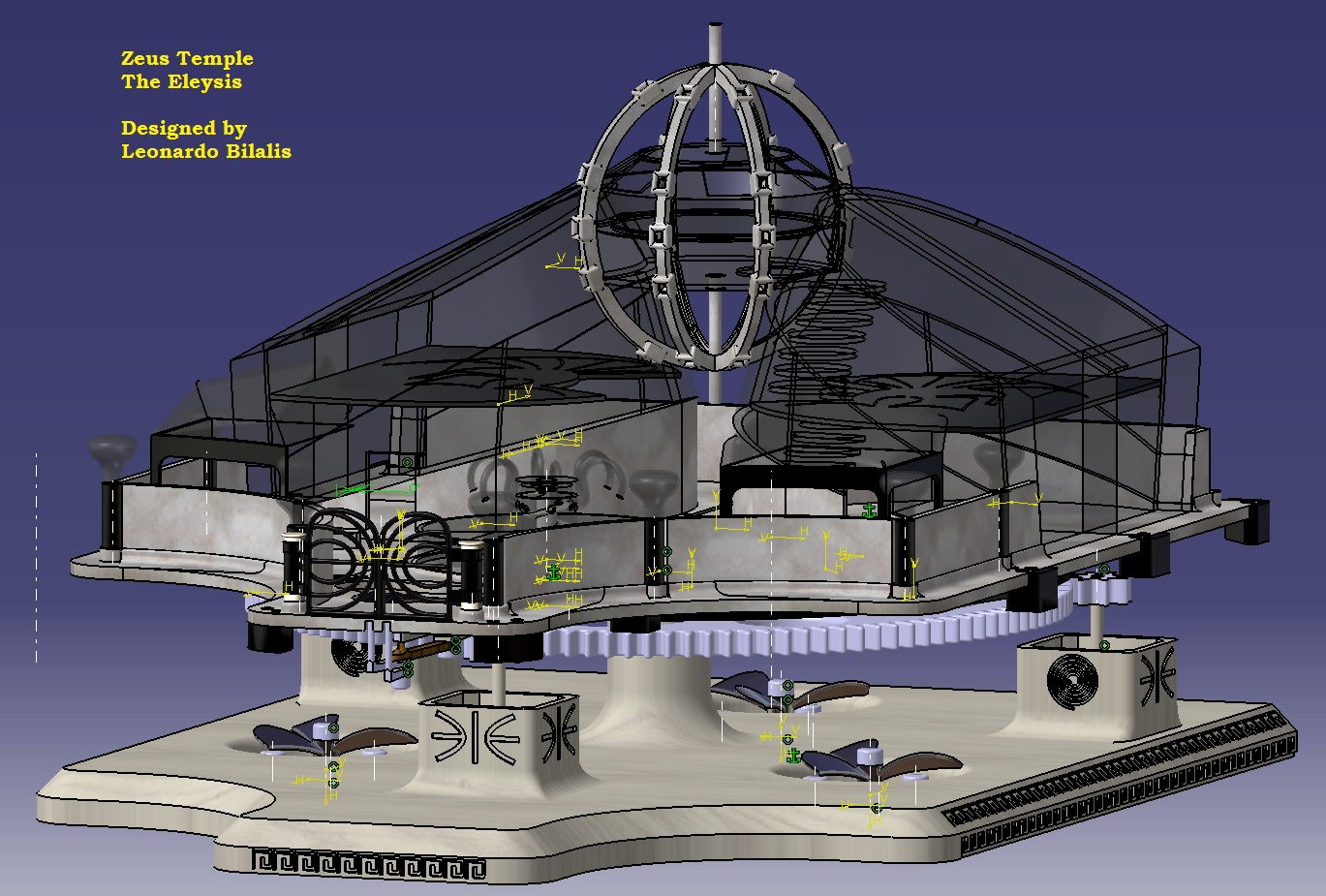

Motor Stepper Example

[astanapane]

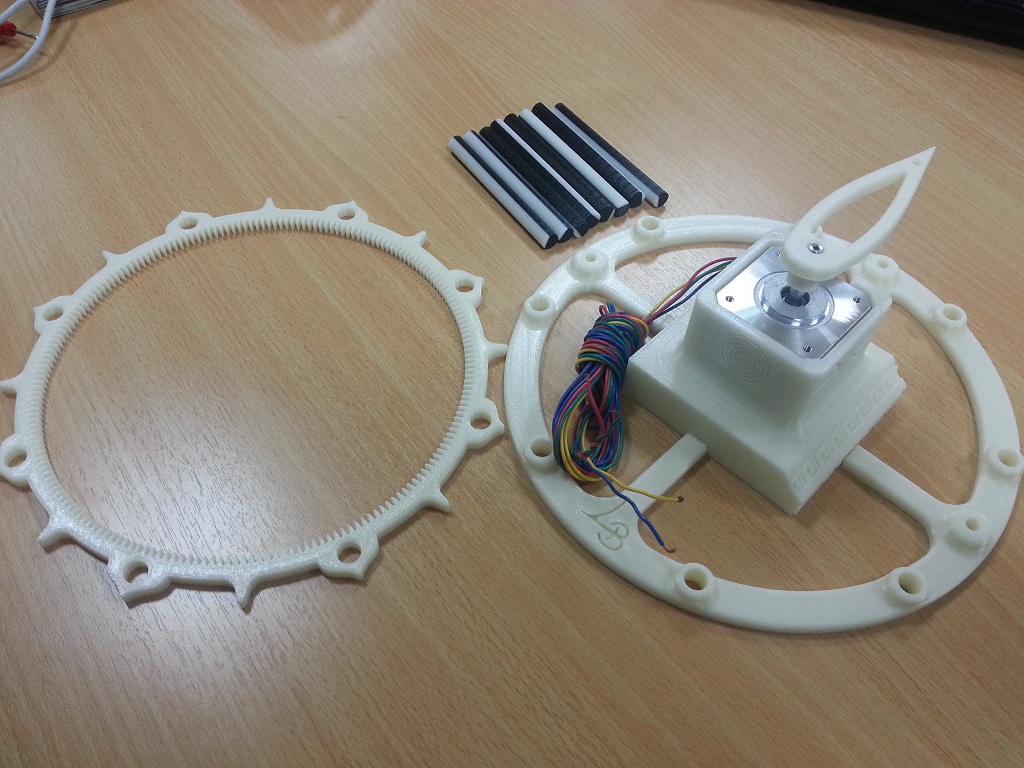

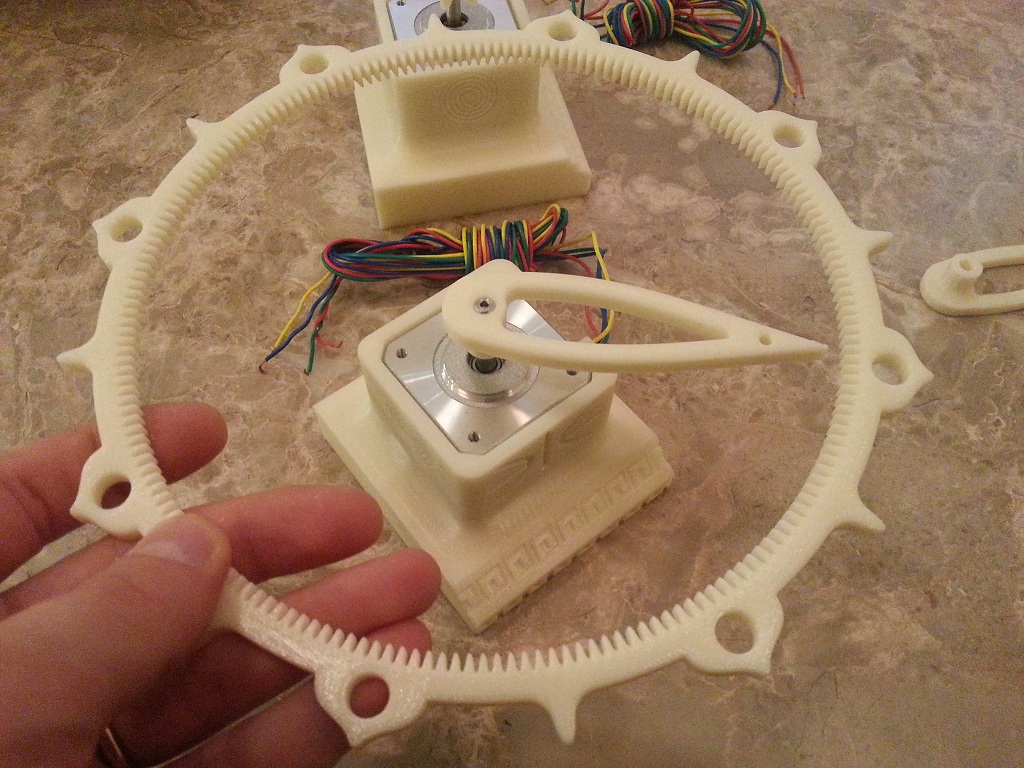

i think i will change the microcontroller to PIC16f628A because i have spare.

I only have at the moment one PIC16f88 and 3 PIC16F688.

'*************************************************************************************
'*  Name    : STEPPER MOTOR.BAS                                                      *
'*  Author  : GOT a HELP FROM HENRIK, Acetronics and Ioannis at (MELABS forum)       *
'*  Notice  : Copyright (c) 2013                                                     *
'*          : All Rights Reserved                                                    *
'*  Date    : 3/3/2013                                                               *
'*  Version : 1.0                                                                    *
'*  Notes   : Stepper Motor                                                          *
'*          :                                                                        *
'*************************************************************************************

	   'we are going to use the PIC16F628A for controling BIG EASY DRIVER

define osc 4
Include "MODEDEFS.BAS"


StepCount var word      ; distance to move
delay var word     ; time in ms between each step pulse
i var word


    but var PORTB.1            ; ASIGN THE PIC16F628A PORTB.1 AS A PUSH BUTTON
    Motor_Step VAR PORTB.2     ; ASIGN THE PIC16F628A PORTB.2 TO STEP PIN ON THE BIG EASY DRIVER
    DIRECTION VAR PORTB.3      ; ASIGN THE PIC16F628A PORT.3 TO DIR PIN ON THE BIG EASY DRIVER

CW    con 0                    ;HERE WE GIVE A CONSTANT DIRECTION
CCW   con 1                    ;HERE WE GIVE A CONSTANT DIRECTION

ANSEL = 0
cmcon = 7
PORTB = 0                      ;Reset PORT B (thanks to Acetronics from MELabs
TRISB = %11110011              ;Make Portb.2 and Portb.3 O/P and rest I/P

BEGIN:
    LOW Motor_Step ; WE CAN START BY MAKING LOW THE PORTB.2
    LOW DIRECTION ; WE CAN START BY MAKING LOW THE PORTB.3
    PAUSE 1000 ; THEN WE GIVE 1 SECOND DELAY

    if but = 0 then            ; WE HAVE CONNECTED A PUSH BUTTON AT PORTB.1
        StepCount = 200        ; the number of the motor steps
        delay = 100            ; 100us between each step
        direction = CW         ; THE DIRECTION IS COUNTERWISE
        gosub Rotation
    endif
    goto begin
end


                               ;THE FOLLOWING CODE SUPPOSE TO ROTATE THE SHAFT with a pulse of 200

ROTATION:
    for i = 0 to (StepCount - 1)
        PULSEOUT Motor_Step, 1  ;gosub StepIt
        pauseUs delay
    next
    return

;StepIt:
;    motor_step = 1             ;generate a 10us wide pulse on the step pin
;    pauseus 10
;    motor_step = 0

;    RETURN

	                       ;thanks to Henrik at Melabs forum.

Do i need to add the code marked in RED? I think i need to say some how to the motor_step to be 1 or 0

I havent compiled the code yet because i'm at work but hopefully tonight i will do the first tests. So i might need your help.
