Re: Framing error if I disable transmitter after shift register is empty?
Quote:
(I remember reading somewhere that USART ignores TRIS, or something...?)
you may well have but if you think every pic chip is the same then you will be in for a world of hurt . read the data sheet
Re: Framing error if I disable transmitter after shift register is empty?
Quote:
Originally Posted by
Demon
I don't have carpet, and that's the extent of my ESD protections.
Well the carpet is one thing. Even if you just walked the room and returned back to you chair (even worse if it has suspension), then you may well have charged enough to destroy the chips.
You have to remember to ground yourself just before you touch components or even better have a wrist band to permantly ground your body (through a high value resistor of course).
ESD can destroy just a tiny part of the chip, enough to drive you crazy!
Ioannis
Re: Framing error if I disable transmitter after shift register is empty?
Quote:
Am I supposed to set TRIS as well?
The USART section in the datasheet for your device will tell you if you should set/clear the TRIS bits for the TX/RX pins.

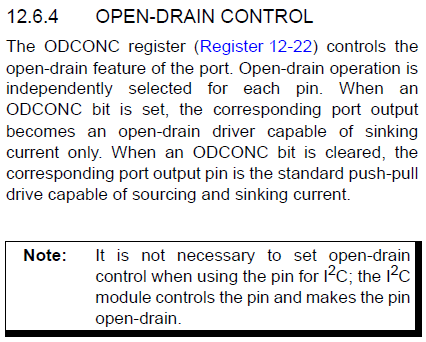

If the chip supports open-drain mode then you just need to setup the TX pin to enable it at startup (ODCONC.6 = 1).
There's no need to set and clear it, and you won't need to enable/disable TXEN anymore either.
Add a pullup to the TX line (you say you already have one), and you can connect all the TX lines from the different pics together now.
If your pic has PPS you'll probably need to set that up too to assign the pin to the UART TXD function.
PPS output functions aren't typically enabled by default.
1 Attachment(s)
Re: Framing error if I disable transmitter after shift register is empty?
Quote:
Originally Posted by
richard
not really , why would you want to change it back and forth?...
To be able to add more PICs later on the TX line.
Quote:
Originally Posted by
richard
...is there a pullup for the tx line ?...
Yup, on RX also. Both are on PIC #1.
(Using 16F18877 for testing)
PIC #1:
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
include "DT_INTS-14_16F18877.bas"
include "ReEnterPBP.bas"
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler RX_INT, _RXInterrupt, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
INT_ENABLE RX_INT ; Enables RX interrupts
ENDASM
DEFINE OSC 32
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
ANSELA = %00000000
ANSELB = %00000000
ANSELC = %00000000
ANSELD = %00000000
ANSELE = %00000000
TRISA = %00000000
TRISB = %00000000
TRISC = %10000000
TRISD = %00000000
TRISE = %00001000
LEDblink var LatB.5
RecvData var BYTE[11]
UsartFlag Var byte
pause 200
LEDblink = 0
UsartFlag = 0
goto Start
RXInterrupt:
hserin [ wait("["), STR RecvData\11\"]" ]
UsartFlag = 1
@ INT_RETURN
Start:
' ODCONC.6 = 0
hserout [ "[X]" ]
while TX1STA.1 = 0 ' Check TRMT bit
wend
' ODCONC.6 = 1
Mainloop:
LEDblink = 1
if UsartFlag = 0 then
UsartFlag = 0
endif
LEDblink = 0
goto Mainloop
end
PIC #2:
Code:
#CONFIG
__config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON
__config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF
__config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF
__config _CONFIG5, _CP_OFF & _CPD_OFF
#ENDCONFIG
include "DT_INTS-14_16F18877.bas"
include "ReEnterPBP.bas"
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler RX_INT, _ReceiveInterrupt, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
INT_ENABLE RX_INT ; Enables RX interrupts
ENDASM
DEFINE OSC 32
DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive
DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1
Define HSER_BAUD 115200
DEFINE HSER_CLROERR 1 ' Clear overflow automatically
DEFINE HSER_SPBRGH 0
DEFINE HSER_SPBRG 68
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
DEFINE HSER_RXREG PORTC
DEFINE HSER_RXBIT 7
DEFINE HSER_TXREG PORTC
DEFINE HSER_TXBIT 6
ANSELA = %00000000
ANSELB = %00000000
ANSELC = %00000000
ANSELD = %00000000
ANSELE = %00000000
TRISA = %00000000
TRISB = %00000000
TRISC = %10000000
TRISD = %00000000
TRISE = %00001000
LEDblink var LatD.0
RecvData var BYTE[11]
UsartFlag Var byte
pause 200
LEDblink = 0
UsartFlag = 0
goto Start
ReceiveInterrupt:
hserin [ wait("["), STR RecvData\11\"]" ]
UsartFlag = 1
@ INT_RETURN
Start:
Mainloop:
LEDblink = 1
if UsartFlag = 1 then
' ODCONC.6 = 0
hserout [ "[Y]" ]
while TX1STA.1 = 0 ' Check TRMT bit
wend
' ODCONC.6 = 1
UsartFlag = 0
endif
LEDblink = 0
GOTO Mainloop
end

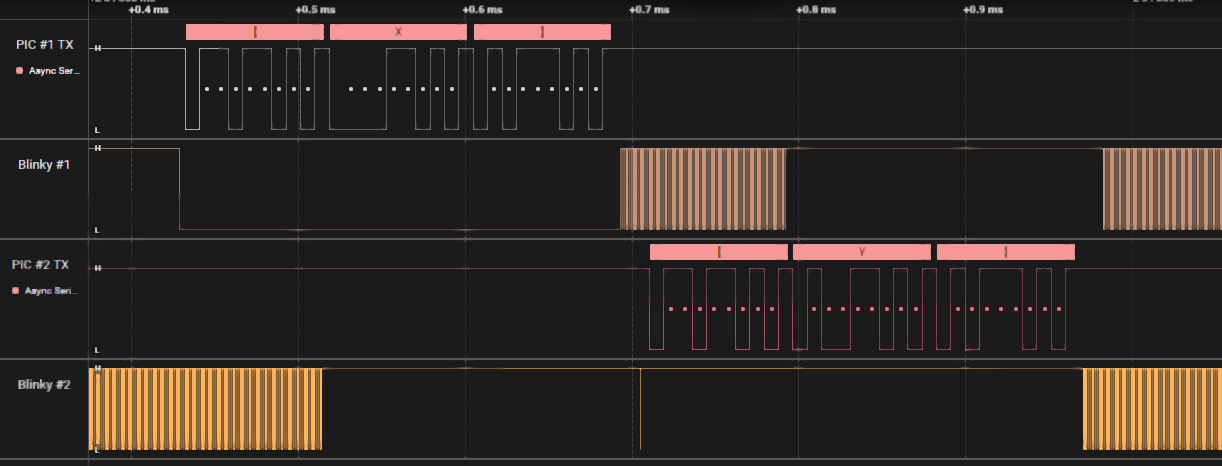

Results:
Attachment 9764
Custom DT_INTS-14.bas (IOC, RX, CCPx):
Code:
'***************************************************************************
'* Name : DT_INTS-14_16F1885x-7x.bas *
'* Author : Darrel Taylor (modified by Demon) *
'* Version : 1.15 (8/29/2024) *
'* Date : OCT 13, 2009 *
'***************************************************************************
'* REV 1.15 Customized for 16F1885xx-7x (IOC, USART-RX, CCPx) *
'* REV 1.10 Fixes Duplicate label error when Handlers cross page boundary *
'* Fixes error with 16F1's and MPLAB 8.53 (high) *
'* REV 1.00 Completely re-written, with optimization and F1 chips in mind *
'* REV 0.93 Fixed CMIF and EEIF problem with older PIC's *
'* that have the Flags in PIR1 instead of PIR2 *
'* Rev 0.92 solves a "Missed Interrupt" and *
'* banking switching problem *
'***************************************************************************
DEFINE DT_INTS_VERSION 110
DEFINE INTHAND INT_ENTRY
;-- Place a copy of these variables in your Main program -------------------
;-- The compiler will tell you which lines to un-comment --
;-- Do Not un-comment these lines --
;---------------------------------------------------------------------------
;wsave VAR BYTE $20 SYSTEM ' location for W if in bank0
;wsave VAR BYTE $70 SYSTEM ' alternate save location for W
' if using $70, comment wsave1-3
' --- IF any of these three lines cause an error ?? ------------------------
' Comment them out to fix the problem ----
' -- Which variables are needed, depends on the Chip you are using --
;wsave1 VAR BYTE $A0 SYSTEM ' location for W if in bank1
;wsave2 VAR BYTE $120 SYSTEM ' location for W if in bank2
;wsave3 VAR BYTE $1A0 SYSTEM ' location for W if in bank3
' --------------------------------------------------------------------------
ssave VAR BYTE BANK0 SYSTEM ' location for STATUS register
psave VAR BYTE BANK0 SYSTEM ' location for PCLATH register
fsave VAR BYTE BANK0 SYSTEM ' location for FSR register
RetAddr VAR WORD BANK0
INT_Bits VAR BYTE BANK0
Serviced VAR INT_Bits.0
Vars_Saved VAR INT_Bits.1
GIE VAR INTCON.7
PEIE VAR INTCON.6
ASM
ifdef PM_USED ; verify MPASM is the assembler
"ERROR: DT_INTS does not support the PM assembler, USE MPASM"
endif
;---------------------------------------------------------------------------
ifdef ReEnterUsed
ifdef ReEnterVersion
if (ReEnterVersion < 34)
error "Wrong version of ReEnterPBP.bas - Ver 3.4 or higher required
endif
else
error "Wrong version of ReEnterPBP.bas - Ver 3.4 or higher required
endif
endif
;---------------------------------------------------------------------------
if (BANK0_END == 0x7F)
ifdef BANK1_END
if (BANK1_END == 0xEF) ; doesn't find 12F683
variable ACCESSRAM = 1
else
variable ACCESSRAM = 0
endif
else
variable ACCESSRAM = 0
endif
else
variable ACCESSRAM = 0
endif
;---------------------------------------------------------------------------
#define OrChange Or change to wsave BYTE $70 SYSTEM
AddWsave macro B
if (B == 0)
if (ACCESSRAM == 1)
error " Add:" wsave VAR BYTE $70 SYSTEM
else
error " Add:" wsave VAR BYTE $20 SYSTEM
endif
endif
if (B == 1)
if (ACCESSRAM == 1)
error " Add:" wsave1 VAR BYTE $A0 SYSTEM, OrChange
else
error " Add:" wsave1 VAR BYTE $A0 SYSTEM
endif
endif
if (B == 2)
if (ACCESSRAM == 1)
error " Add:" wsave2 VAR BYTE $120 SYSTEM, OrChange
else
error " Add:" wsave2 VAR BYTE $120 SYSTEM
endif
endif
if (B == 3)
if (ACCESSRAM == 1)
error " Add:" wsave3 VAR BYTE $1A0 SYSTEM, OrChange
else
error " Add:" wsave3 VAR BYTE $1A0 SYSTEM
endif
endif
endm
#define WsaveE1(B) Chip has RAM in BANK#v(B), but wsave#v(B) was not found.
;#define WsaveE2(B) Uncomment wsave#v(B) in the DT_INTS-14.bas file.
#define WsaveCouldBe This chip has access RAM at $70
#define WsaveError(B) error WsaveE1(B)
ifndef FSR0L ; not a 16F1
ifndef wsave
; if (ACCESSRAM == 1)
error wsave variable not found,
AddWsave(0)
variable wsave = 0 ; stop further wsave errors
; else
; endif
else
if (wsave == 0x70)
if (ACCESSRAM == 0)
error This chip does not have AccessRAM at $70, change to wsave VAR BYTE $20 SYSTEM
endif
else
if (wsave != 0x20)
error wsave must be either $20 or $70
endif
endif
endif
ifdef BANK1_START
ifndef wsave1
ifdef wsave
if (wsave != 0x70)
WsaveError(1)
AddWsave(1)
endif
else
if (ACCESSRAM == 1)
if (wsave != 0x70)
WsaveCouldBe
endif
endif
endif
endif
endif
ifdef BANK2_START
ifndef wsave2
ifdef wsave
if (wsave != 0x70)
WsaveError(2)
AddWsave(2)
endif
endif
endif
endif
ifdef BANK3_START
ifndef wsave3
ifdef wsave
if (wsave != 0x70)
WsaveError(3)
AddWsave(3)
endif
endif
endif
endif
endif
ENDASM
ASM
asm = 0
Asm = 0
ASM = 0
pbp = 1
Pbp = 1
PBP = 1
yes = 1
Yes = 1
YES = 1
no = 0
No = 0
NO = 0
;---[Original DEFINES]------------------------------------------------------
#define ALL_INT INTCON,GIE, INTCON,GIE ;-- Global Interrupts *
; #define IOC_INT INTCON,IOCIF, INTCON,IOCIE ;-- Int On Change
; #define RX_INT PIR1,RCIF, PIE1,RCIE ;-- USART Receive
; #define CCP1_INT PIR1,CCP1IF, PIE1,CCP1IE ;-- CCP1
; #define CCP2_INT PIR2,CCP2IF, PIE2,CCP2IE ;-- CCP2
; #define CCP3_INT PIR3,CCP3IF, PIE3,CCP3IE ;-- CCP3
; #define CCP4_INT PIR3,CCP4IF, PIE3,CCP4IE ;-- CCP4
; #define CCP5_INT PIR3,CCP5IF, PIE3,CCP5IE ;-- CCP5
#define IOC_INT PIR0,IOCIF, PIE0,IOCIE ;-- Int On Change *
#define RX_INT PIR3,RCIF, PIE3,RCIE ;-- USART Receive
#define CCP1_INT PIR6,CCP1IF, PIE6,CCP1IE ;-- CCP1
#define CCP2_INT PIR6,CCP2IF, PIE6,CCP2IE ;-- CCP2
#define CCP3_INT PIR6,CCP3IF, PIE6,CCP3IE ;-- CCP3
#define CCP4_INT PIR6,CCP4IF, PIE6,CCP4IE ;-- CCP4
#define CCP5_INT PIR6,CCP5IF, PIE6,CCP5IE ;-- CCP5
ENDASM
ASM
;---[Returns the Address of a Label as a Word]------------------------------
GetAddress macro Label, Wout
CHK?RP Wout
movlw low Label ; get low byte
movwf Wout
; movlw High Label ; get high byte MPLAB 8.53 killed high
movlw Label >> 8 ; get high byte
movwf Wout + 1
endm
;---[find correct bank for a BIT variable]----------------------------------
CHKRP?T macro reg, bit
CHK?RP reg
endm
;---[This creates the main Interrupt Service Routine (ISR)]-----------------
INT_CREATE macro
local OverCREATE
L?GOTO OverCREATE
INT_ENTRY
ifndef FSR0L
if (CODE_SIZE <= 2)
movwf wsave ; 1 copy W to wsave register
swapf STATUS,W ; 2 swap status reg to be saved into W
clrf STATUS ; 3 change to bank 0
movwf ssave ; 4 save status reg to a bank 0 register
movf PCLATH,W ; 5 move PCLATH reg to be saved into W reg
movwf psave ; 6 save PCLATH reg to a bank 0 register
endIF
movf FSR,W ; 7 move FSR reg to be saved into W reg
movwf fsave ; 8 save FSR reg to a bank 0 register
else
banksel 0 ; BANK 0 for F1 chips
endif
variable PREV_BANK = 0
MOVE?CT 0, _Vars_Saved
List_Start
ifdef LoopWhenServiced
MOVE?CT 0, _Serviced ; indicate nothing has been serviced
endif
INT_LIST ; Expand the users list of interrupt handlers
; INT_LIST macro must be defined in main program
ifdef LoopWhenServiced
BIT?GOTO 1, _Serviced, List_Start
endif
ifdef ReEnterUsed ; if ReEnterPBP.bas was included
CHKRP?T _Vars_Saved
btfss _Vars_Saved ; if PBP system vars have been saved
goto INT_EXIT
L?GOTO _RestorePBP ; Restore PBP system Vars
endif
INT_EXIT
variable PREV_BANK = 0
ifndef FSR0L ; if chip is not an F1 - restore context
clrf STATUS ; BANK 0
movf fsave,W ; Restore the FSR reg
movwf FSR
movf psave,w ; Restore the PCLATH reg
movwf PCLATH
swapf ssave,w ; Restore the STATUS reg
movwf STATUS
swapf wsave,f
swapf wsave,w ; Restore W reg
endif
retfie ; Exit the interrupt routine
;-----------------------------
LABEL?L OverCREATE
bsf INTCON, 6 ; Enable Peripheral interrupts
bsf INTCON, 7 ; Enable Global interrupts
endm
ENDASM
ASM
;---[Add an Interrupt Source to the user's list of INT Handlers]------------
#INT_HANDLER macro FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
list
local AfterSave, AfterUserRoutine, NoInt
ifdef FlagBit
CHK?RP EnableReg
btfss EnableReg, EnableBit ; if the INT is enabled
goto NoInt
CHK?RP FlagReg
btfss FlagReg, FlagBit ; and the Flag set?
goto NoInt
ifdef LoopWhenServiced
MOVE?CT 1, _Serviced
endif
if (Type == PBP) ; If INT handler is PBP
ifdef ReEnterUsed
btfsc _Vars_Saved
goto AfterSave
GetAddress AfterSave, _RetAddr
L?GOTO _SavePBP ; Save PBP system Vars
LABEL?L AfterSave
else
error ReEnterPBP must be INCLUDEd to use PBP type interrupts
endif
endif
GetAddress AfterUserRoutine, _RetAddr ; save return address
L?GOTO Label ; goto the users INT handler
LABEL?L AfterUserRoutine
if (Reset == YES)
CHK?RP FlagReg
bcf FlagReg, FlagBit ; reset flag (if specified)
endif
else
INT_ERROR "INT_Handler"
endif
NoInt
banksel 0
PREV_BANK = 0
endm
;-----------------------------------
#define INT_HANDLER(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
ifndef INT_Handler
#define INT_Handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
#define int_handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
#define Int_Handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
#define Int_handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
#define int_Handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset
endif
;---[Returns from a "goto" subroutine]--------(RetAddr must be set first)---
#INT_RETURN macro
CHK?RP _RetAddr
movf _RetAddr + 1, W ; Set PCLATH with top byte of return address
movwf PCLATH
movf _RetAddr, W ; Go back to where we were
movwf PCL
endm
;_____________________________
#define INT_RETURN #INT_RETURN
ifndef INT_Return
#define INT_Return #INT_RETURN
#define int_return #INT_RETURN
#define Int_Return #INT_RETURN
#define Int_return #INT_RETURN
#define int_Return #INT_RETURN
endif
;----[Display not found error]----------------------------------------------
INT_ERROR macro From
error From - Interrupt Flag ( FlagReg,FlagBit ) not found.
endm
;---[Enable an interrupt source]--------------------------------------------
ifndef INT_ENABLECLEARFIRST
#define INT_ENABLECLEARFIRST 1 ; default to Clear First
endif ; use DEFINE INT_ENABLECLEARFIRST 0 to NOT clear First
#INT_ENABLE macro FlagReg, FlagBit, EnableReg, EnableBit
ifdef FlagBit
ifdef INT_ENABLECLEARFIRST
if (INT_ENABLECLEARFIRST == 1) ; if specified
MOVE?CT 0, FlagReg, FlagBit ; clear the flag first
endif
endif
MOVE?CT 1, EnableReg, EnableBit ; enable the INT source
else
INT_ERROR "INT_ENABLE"
endif
endm
;_____________________________
#define INT_ENABLE(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit
ifndef INT_Enable
#define INT_Enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit
#define int_enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit
#define Int_Enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit
#define Int_enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit
#define int_Enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit
endif
;---[Disable an interrupt source]-------------------------------------------
#INT_DISABLE macro FlagReg, FlagBit, EnableReg, EnableBit
ifdef FlagBit
MOVE?CT 0, EnableReg, EnableBit ; disable the INT source
else
INT_ERROR "INT_DISABLE"
endif
endm
;_____________________________
#define INT_DISABLE(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit
ifndef INT_Disable
#define INT_Disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit
#define int_disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit
#define Int_Disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit
#define Int_disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit
#define int_Disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit
endif
;---[Clear an interrupt Flag]-----------------------------------------------
#INT_CLEAR macro FlagReg, FlagBit, EnableReg, EnableBit
ifdef FlagBit
MOVE?CT 0, FlagReg, FlagBit ; clear the flag
else
INT_ERROR "INT_CLEAR"
endif
endm
;_____________________________
#define INT_CLEAR(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit
ifndef INT_Clear
#define INT_Clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit
#define int_clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit
#define Int_Clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit
#define Int_clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit
#define int_Clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit
endif
ENDASM
1 Attachment(s)
Re: Framing error if I disable transmitter after shift register is empty?
Quote:
Originally Posted by
tumbleweed
The USART section in the datasheet for your device will tell you if you should set/clear the TRIS bits for the TX/RX pins....
I've misunderstood/misinterpreted the data sheet before. :D Seriously, I read the EUSART section and my eyes gloss over when they start making distinctions between half-duplex, full-duplex, synchronous, asynchronous...)
Quote:
Originally Posted by
tumbleweed
..If the chip supports open-drain mode then you just need to setup the TX pin to enable it at startup (ODCONC.6 = 1).
There's no need to set and clear it, and you won't need to enable/disable TXEN anymore either...
Something like..?
TRISC.7=1
ODCONC.6 = 1
Loop:
TX, RX, rinse repeat
I would have thought you need to reset ODCONC.6 to "standard push/pull"...? (Possible example of not always understanding what the datasheet "means").
Quote:
Originally Posted by
tumbleweed
...If your pic has PPS you'll probably need to set that up too to assign the pin to the UART TXD function.
PPS output functions aren't typically enabled by default.
Yes, I figured that much. There's just so many peripherals available (coming from a guy that started with a 16F628).
EDIT: I just rechecked the EUSART section (starts at page 543), and they never mention ODCON (last occurence is at page 233).
The datasheet says very little about ODCON:
Attachment 9765
Re: Framing error if I disable transmitter after shift register is empty?
An open-drain or open-collector output pin is driven by a single transistor, which pulls the pin to only one voltage (generally, to ground). When the output device is off, the pin is left floating (open, or hi-z). A common example is an n-channel transistor which pulls the signal to ground when the transistor is on or leaves it open when the transistor is off.
Open-drain refers to such a circuit implemented in FET technologies because the transistor’s drain terminal is connected to the output; open-collector means a bipolar transistor’s collector is performing the function.
When the Open-drain transistor is off, the signal line is free to be driven low by another device, it generally will be pulled up by a resistor. The resistor prevents an undefined, floating state.
