Help with Pololu DRV8711 Stepper Motor Driver

Hello - I am trying to write a simple program to run a stepper motor back and forth using the Pololu DRV8711 driver (Link: https://www.pololu.com/product/3730). In order to use the driver, you must first enable it and then you can use the DIR and Step Pins to run your stepper. With other drivers, all you needed to do was drive the ENABLE pin high and you were good to go. With the 8711 board, you have to enable it via SPI. This is done by sending 16-bit values to the registers on the board. Page 27 of the data sheet for this (Link: https://www.ti.com/lit/ds/symlink/drv8711.pdf) shows the registers and gives the default values. Technically, all I should have to do is to set bit 0 of the CTRL register to 1 and that should enable the motor, correct? I also want to limit the current to 1/2 of it's maximum value of 4A. This is done using the lower 8 bits of the TORQUE register. Here is my routine to do that:

Code:

---

'****************************************************************
InitStepper1:
    'Set current to 1/2 max (2A)
    '$1180 = %0001000110000000
    high M1SCS
    Shiftout m1SDAT, M1SCLK, 1, [$1180/16]
    low M1SCS

    pause 50
    'Enable Motor
    '$0C11 = %0000110000010001
    high M1SCS
    Shiftout m1SDAT, M1SCLK, 1, [$0C11/16]
    low M1SCS

    return

'****************************************************************

---

I am leaving all of the other values at their default. After executing the InitStepper1 code, I go to stepping the motor by pulsing the STEP pin and nothing happens. My stepper spins freely and I get no indication from my power supply that there is any additional current draw. Is there something I am not doing or doing wrong? Thanks! Jeff

Looks like you're shifting out $1180 divided by 16, truncated to 8 bits, so $22. That's not what you want, is it?

Be careful with / vs \ ;-)

THANKS! Good catch and yes, I feel stupid. I will give this a try and let you know if that was it! Jeff

Well, While that was a problem, it was not THE problem. Still no movement. I tried both mode 1 and mode 0 for the SHIFTOUT methods, also, to no avail.

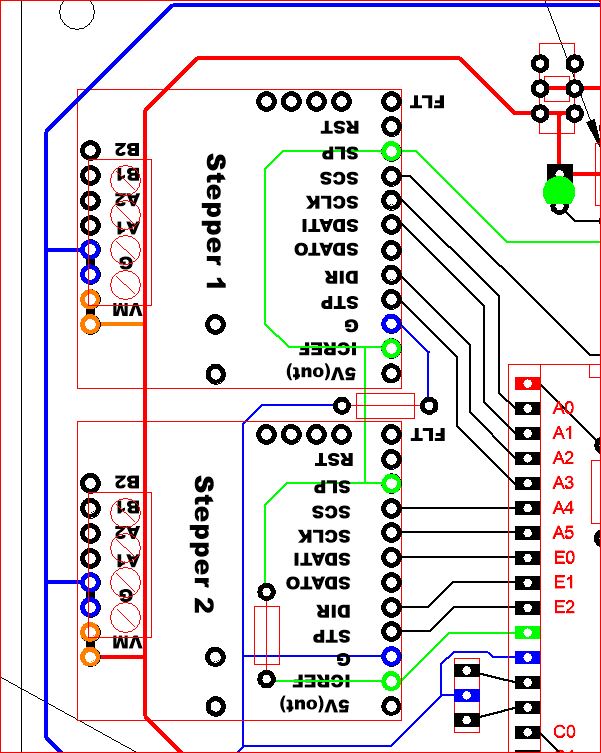

Here is a snip of the circuit board design for examination. It seems pretty straight forward, so I think my issue is with setting the registers. Any thoughts are appreciated.
NOTES: There are 2 drivers on board. Green traces = 5V, Blue = Gnd, Red = 12V, Black = Signal. PIC = PIC16F877A. Thanks!
Attachment 9972

Hmm...PortA...have you disabled the analog functions (ADCON1 and CMCON registers, I believe)?
Have you verified (logic analyzer or scope) that the expected data does appears on the pins?

Yes, I did set ADCON1 and no, I have not used a scope on this yet. Here is the entire code. I am simply trying to initialize the driver and run a stepper back and forth with 2 LEDs that indicate which direction. I really feel that there is some initialization that I am not doing or not doing correctly. Other than setting the torque and enabling the driver, I am using all the other register defaults... Thanks!

Code:

---

'****************************************************************
    DEFINE OSC 20
@ DEVICE HS_OSC

    TRISA = %00000000
    TRISB = %10111111
    TRISC = %01110000
    TRISD = %00000000
    TRISE = %00000000

    ADCON1 = 7          ' Set PortA Pins as I/O pins

'  M1 = Stepper1
    M1SCS      var PORTB.6
    M1SCLK      var PORTA.0
    M1SDAT      var PORTA.1
    M1DIR      Var PORTA.2
    M1STEP      var PORTA.3

    RedInd      var PORTD.0
    GrnInd      var PORTD.1

    Icnt        var word
    M1NumSteps  var word
    M1Delay    var word  'delay between steps - 250-12500 uS

'    CTRL Register
'    EnableON = %0000110000010001  '$0C11
'    EnableOFF = %0000110000010000  '$0C10

'    Torque Register
'    Torque50 = %0001000110000000  'Set current at 50% (2A) $1180
'    Torque100 = %0001000111111111  'Set current at 100% (4A) $11FF

'****************************************************************
    low RedInd
    low GrnInd

    low M1SCS ' Set reset pin low
    low M1Sclk ' Set clock pin low
    low M1Step

'****************************************************************
    pause 1000

    goto TestStepper1

'****************************************************************
'****************************************************************
TestStepper1:
    gosub InitStepper1
    M1numsteps = 4000
    M1Delay = 5000 'uS between steps

DoAgain1:
    high RedInd
    low GrnInd

    low M1DIR 'CW
    for icnt = 1 to M1numsteps
        high M1step
        pauseus 10
        low M1Step
        pauseus M1Delay
    next

    low RedInd
    low GrnInd
    pause 1000
    low RedInd
    high GrnInd

    high M1DIR 'CCW
    for icnt = 1 to M1numsteps
        high M1step
        pauseus 10
        low M1Step
        pauseus M1Delay
    next

    low RedInd
    low GrnInd
    pause 1000
    goto DoAgain1

'****************************************************************
InitStepper1:
    'Set current to 1/2 max (2A)
    '$1180 = %0001000110000000
    high M1SCS
    Shiftout m1SDAT, M1SCLK, 0, [$1180\16]
    low M1SCS

    pause 50
    'Enable Motor
    '$0C11 = %0000110000010001
    high M1SCS
    Shiftout m1SDAT, M1SCLK, 0, [$0C11\16]
    low M1SCS

    return

'****************************************************************
    End

---
