Interrupt block with different exit?
Hi all,
I'm troubleshooting an issue with an interrupt routine using RBC and Instant Interrupts where it's only detecting the first trigger and not any other following that.
In my interrupt routine, when the interrupt is detected, the flag is cleared and there's a choice (IF...Then) that can lead the code to one of 2 options using GOTO.
This means that after the interrupt, the code will not return to the point where the trigger was detected but somewhere else.
That being said, I replaced the @ INT_RETURN with a couple of GOTOs.
I found that replacing the @ INT_RETURN with GOTOs was causing the following triggers not being detected.
If i replace the GOTOs with the @ INT_RETURN, the interrupts will work always.
My question is...Is there a way i can do the jumps to where i want on the code and not being forced to return to where i was when the interrupt was triggered?
Thanks
Re: Interrupt block with different exit?
Quote:
My question is...Is there a way i can do the jumps to where i want on the code and not being forced to return to where i was when the interrupt was triggered?
no , the isr must return to the point it was triggered from. if you try manipulating the stack to alter the return address without the proper skillset and understanding it will always result in unpredictable behavior.
if you structure your code to check frequently for a flag set from the isr that causes different processes to be invoked its possible to simulate the sort of result you are looking for
Re: Interrupt block with different exit?
Greetings Richard,
thanks for the reply.
I thought that the interrupt would still work (at least the detection part) even if we didn't want to go back to the code.
In that case i will need to do what you are suggesting and add periodic checks (in the normal code sequence) for a flag change done by the interrupts.
Re: Interrupt block with different exit?
Hi,
you can return wherever you want at the end of an interrupt stubb ...
I did it some years ago ... but Darrel did not like it at all !!! ( ;) )
just have a look to the asm code generated and you will understand why and how !
the trick lies on the DEFINE INTHAND + RESUME _Label use ...
RESUME _Label gives
- bsf Intcon.7
- GOTO _Label
and _ Label is a PBP stubb ... where you want to jump to ...
for the moment, I have to dig out the program I wrote ...
Alain
Re: Interrupt block with different exit?
Yes, if you really, really know what you are doing and spend hours on the asm code to double and triple check the code flow.
Ioannis
Re: Interrupt block with different exit?
it only works for and with ON INTERRUPT, and that's not a real interrupt
Re: Interrupt block with different exit?
Quote:
Originally Posted by
richard
it only works for and with ON INTERRUPT, and that's not a real interrupt
Hi, Richard
just open your Holy Manual @ asm interrupts page ... ;)
as Ioannis states ... It's better to know what you are doing here ...
Our friend Paul was just asking if it was possible :rolleyes:
Alain
Re: Interrupt block with different exit?
Hi guys,
dos this makes any sense to you?
I added a debugin line with timeout and jump label inside my interrupt block and this is causing the code not work as expected as well!
Quote:
RBCinterrupts:
@ INT_DISABLE RBC_INT
debug "trigger detected...", 13,10
DEBUGIN 2000,JUMPOUT,[WAIT("MCU-"), DEC MOODCAP]
debug "debugin passed...", 13,10
RBIF=0
INTFLAG=1
DEBUG "returning...",13,10
@ INT_RETURN
Debugin jump block:
Quote:
JUMPOUT:
DEBUG "fail debugin...",13,10
@ INT_RETURN
Re: Interrupt block with different exit?
Quote:
dos this makes any sense to you?(sic)
there are a number of issues here
@ INT_DISABLE RBC_INT
this is most likely pointless. a pic can execute one and only one interrupt at a time, only a low priority interrupt can be interrupted
i will assume this is not one of them. once again code snippets are fairly useless as they never tell the whole story.
RBIF=0
once again code snippets are fairly useless they never tell the whole story. what port /pins is debug using. rbif can only be cleared if the portb mismatch condition has been cleared, there is no evidence this is happening.
see data sheet portb section re clearing mismatch condition.
performing all that serial comms in an isr is not a good practice.
if your code can tolerate that lengthy sort of interruption then there are most likely better ways to get a similar result other than by isr
its unclear which portb pins are inputs, which pin or pins have triggered the interrupt as you make no efforts to distinguish the source of the interrupt. this may or may not be relevant, snippets why bother
Re: Interrupt block with different exit?
Greetings Richard,
thanks for the help.
The code is still under development...i'm progressing while resolving issues...
Code:
;----[18F2580 Hardware Configuration]-------------------------------------------
#IF __PROCESSOR__ = "18F2580"
#DEFINE MCU_FOUND 1
#CONFIG
CONFIG OSC = IRCIO67 ; Internal oscillator block, port function on RA6 and RA7
CONFIG FCMEN = OFF ; Fail-Safe Clock Monitor disabled
CONFIG IESO = OFF ; Oscillator Switchover mode disabled
CONFIG PWRT = ON ; PWRT enabled
CONFIG BOREN = OFF ; Brown-out Reset disabled in hardware and software
CONFIG BORV = 3 ; VBOR set to 2.1V
CONFIG WDT = OFF ; WDT disabled (control is placed on the SWDTEN bit)
CONFIG WDTPS = 512 ; 1:512
CONFIG PBADEN = OFF ; PORTB<4:0> pins are configured as digital I/O on Reset
CONFIG LPT1OSC = OFF ; Timer1 configured for higher power operation
CONFIG MCLRE = OFF ; RE3 input pin enabled; MCLR disabled
CONFIG STVREN = ON ; Stack full/underflow will cause Reset
CONFIG LVP = OFF ; Single-Supply ICSP disabled
CONFIG BBSIZ = 1024 ; 1K words (2K bytes) boot block
CONFIG XINST = OFF ; Instruction set extension and Indexed Addressing mode disabled (Legacy mode)
CONFIG DEBUG = OFF ; Background debugger disabled, RB6 and RB7 configured as general purpose I/O pins
CONFIG CP0 = OFF ; Block 0 (000800-001FFFh) not code-protected
CONFIG CP1 = OFF ; Block 1 (002000-003FFFh) not code-protected
CONFIG CP2 = OFF ; Block 2 (004000-005FFFh) not code-protected
CONFIG CP3 = OFF ; Block 3 (006000-007FFFh) not code-protected
CONFIG CPB = OFF ; Boot block (000000-0007FFh) not code-protected
CONFIG CPD = OFF ; Data EEPROM not code-protected
CONFIG WRT0 = OFF ; Block 0 (000800-001FFFh) not write-protected
CONFIG WRT1 = OFF ; Block 1 (002000-003FFFh) not write-protected
CONFIG WRT2 = OFF ; Block 2 (004000-005FFFh) not write-protected
CONFIG WRT3 = OFF ; Block 3 (006000-007FFFh) not write-protected
CONFIG WRTC = OFF ; Configuration registers (300000-3000FFh) not write-protected
CONFIG WRTB = OFF ; Boot block (000000-0007FFh) not write-protected
CONFIG WRTD = OFF ; Data EEPROM not write-protected
CONFIG EBTR0 = OFF ; Block 0 (000800-001FFFh) not protected from table reads executed in other blocks
CONFIG EBTR1 = OFF ; Block 1 (002000-003FFFh) not protected from table reads executed in other blocks
CONFIG EBTR2 = OFF ; Block 2 (004000-005FFFh) not protected from table reads executed in other blocks
CONFIG EBTR3 = OFF ; Block 3 (006000-007FFFh) not protected from table reads executed in other blocks
CONFIG EBTRB = OFF ; Boot block (000000-0007FFh) not protected from table reads executed in other blocks
#ENDCONFIG
#ENDIF
;----[Verify Configs have been specified for Selected Processor]----------------
; Note: Only include this routine once, after all #CONFIG blocks
#IFNDEF MCU_FOUND
#ERROR "No CONFIGs found for [" + __PROCESSOR__ +"]"
#ENDIF
'*****************************************************************************
OSCCON =%01110000 '8MHz INTOSC
OSCTUNE=%11000000 'PLLEN enabled
DEFINE OSC 32
'*****************************************************************************
INCLUDE "ALLDIGITAL.pbp"
DEFINE SHOWDIGITAL 1
'*****************************************************************************
INCLUDE "DT_INTS-18.bas" ; Base Interrupt System
INCLUDE "ReEnterPBP-18.bas" ; Include if using PBP interrupts
'*****************************************************************************
INCLUDE "modedefs.bas"
'DEFINE DEBUG_REG PORTC
'DEFINE DEBUG_BIT 0
DEFINE DEBUGIN_REG PORTB
DEFINE DEBUGIN_BIT 5
DEFINE DEBUG_BAUD 9600
DEFINE DEBUG_MODE 0 ' Set Debug mode: 0 = true, 1 = inverted
'Inverted mode should idle low.
'True mode should idle high.
'*****************************************************************************
PORTA=%00000000
PORTB=%00000000
PORTC=%00000000
TRISA=%00000000
TRISB=%00100000
TRISC=%00000000
'*****************************************************************************
'PORTS & PINS
RED1 var PORTC.1
RED2 var PORTC.2
IC_TX var PORTC.0 'DEBUG OUT
RED3 var PORTA.6
RED4 var PORTB.4
RED5 var PORTA.7
RED6 var PORTB.0
GREEN1 var PORTC.7
GREEN2 var PORTB.1
GREEN3 var PORTB.2
GREEN4 var PORTB.3
GREEN5 var PORTC.3
GREEN6 var PORTC.4
GREEN7 var PORTC.5
GREEN8 var PORTC.6
BLUE1 var PORTA.5
BLUE2 var PORTA.4
BLUE3 var PORTA.3
BLUE4 var PORTA.2
BLUE5 var PORTA.1
BLUE6 var PORTA.0
BLUE7 var PORTB.7
BLUE8 var PORTB.6
IC_RX var PORTB.5 'INPUT
'Communication between MCUs (COMM)---------------------
'PORTB.5 IC5 COMM (use interrupt on change to detect start of communication)
PA1 VAR WORD
MOOD VAR WORD
MOODOLD VAR WORD
MOODCAP VAR WORD
INTFLAG VAR BYTE
MOODCHANGE VAR WORD
'*****************************************************************************
'PBP RBC Interrupts
'---[INT - interrupt handler]---------------------------------------------------
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler RBC_INT, _RBCinterrupts, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
RBIF var INTCON.0 'alias to RBIF bit of INTCON
INTCON2.0=1 'HIGH PRIORITY
'*****************************************************************************
INIT:
clear
PA1=2000
MOOD=1
MOODCAP=0
INTFLAG=0
MOODCHANGE=0
moodold=mood
GOSUB SYNC_ICS
pause 1000
GOTO START
'-----------------------------------------------------------------
SYNC_ICS:
debug "Init pulse check...", 13,10
IF IC_RX=1 THEN
WHILE IC_RX
WEND
RETURN
ELSE
GOTO SYNC_ICS
ENDIF
RETURN
'--------------------------------------------------------
START:
pause 400
HIGH RED1
HIGH GREEN1
HIGH BLUE1
pause 400
GOTO RED
'-----------------------------------------------------------------
RBCinterrupts:
@ INT_DISABLE RBC_INT
debug "trigger detected...", 13,10
DEBUGIN 2000,JUMPOUT,[WAIT("MCU-"), DEC MOODCAP]
debug "debugin passed...", 13,10
IF MOODCAP>0 AND MOODCAP<6 THEN
MOOD=MOODCAP
ENDIF
IF MOOD=MOODOLD THEN
MOODCHANGE=0
ELSE
MOODCHANGE=1
MOODOLD=MOOD
ENDIF
RBIF=0
INTFLAG=1
DEBUG "returning...",13,10
@ INT_RETURN
'--------------------------------------------------------
JUMPOUT:
DEBUG "fail debugin...",13,10
RBIF=0
INTFLAG=0
@ INT_RETURN
'--------------------------------------------------------
MOODCHECK:
SELECT CASE MOOD
CASE 1
GOTO RED
CASE 2
GOTO GREEN
CASE 3
GOTO BLUE
CASE 4
GOTO SHUTDOWN
CASE 5
GOTO LIGHT_TEST
END SELECT
'--------------------------------------------------------
VALIDAT:
IF INTFLAG=1 THEN
INTFLAG=0
if MOODCHANGE=1 then
MOODCHANGE=0
goto MOODCHECK
endif
return
else
return
ENDIF
'-----------------------------------------------------------------
LIGHT_TEST:
'INTCON=%11000000
'INTCON.0=0
RBIF=0
'enable interrupt
@ INT_ENABLE RBC_INT
LOW GREEN1
LOW GREEN2
LOW GREEN3
LOW GREEN4
LOW GREEN5
LOW GREEN6
LOW GREEN7
LOW GREEN8
LOW BLUE1
LOW BLUE2
LOW BLUE3
LOW BLUE4
LOW BLUE5
LOW BLUE6
LOW BLUE7
LOW BLUE8
LOW RED1
LOW RED2
LOW RED3
LOW RED4
LOW RED5
LOW RED6
gosub validat
PAUSE PA1
HIGH GREEN1
HIGH GREEN2
HIGH GREEN3
HIGH GREEN4
HIGH GREEN5
HIGH GREEN6
HIGH GREEN7
HIGH GREEN8
HIGH BLUE1
HIGH BLUE2
HIGH BLUE3
HIGH BLUE4
HIGH BLUE5
HIGH BLUE6
HIGH BLUE7
HIGH BLUE8
HIGH RED1
HIGH RED2
HIGH RED3
HIGH RED4
HIGH RED5
HIGH RED6
gosub validat
PAUSE PA1
GOTO LIGHT_TEST
'-----------------------------------------------------------------
RED:
'INTCON=%11000000
'INTCON.0=0
RBIF=0
'enable interrupt
@ INT_ENABLE RBC_INT
LOW GREEN1
LOW GREEN2
LOW GREEN3
LOW GREEN4
LOW GREEN5
LOW GREEN6
LOW GREEN7
LOW GREEN8
LOW BLUE1
LOW BLUE2
LOW BLUE3
LOW BLUE4
LOW BLUE5
LOW BLUE6
LOW BLUE7
LOW BLUE8
HIGH RED1
HIGH RED2
HIGH RED3
HIGH RED4
HIGH RED5
HIGH RED6
gosub validat
GOTO RED
'--------------------------------------------------------
SHUTDOWN:
'INTCON=%11000000
'INTCON.0=0
RBIF=0
'enable interrupt
@ INT_ENABLE RBC_INT
PAUSE 10000
LOW GREEN1
LOW GREEN2
LOW GREEN3
LOW GREEN4
LOW GREEN5
LOW GREEN6
LOW GREEN7
LOW GREEN8
LOW BLUE1
LOW BLUE2
LOW BLUE3
LOW BLUE4
LOW BLUE5
LOW BLUE6
LOW BLUE7
LOW BLUE8
LOW RED1
LOW RED2
LOW RED3
LOW RED4
LOW RED5
LOW RED6
end
'--------------------------------------------------------
GREEN:
DEBUG "GREEN ON...",13,10
'INTCON=%11000000
'INTCON.0=0
RBIF=0
'enable interrupt
@ INT_ENABLE RBC_INT
HIGH GREEN1
HIGH GREEN2
HIGH GREEN3
HIGH GREEN4
HIGH GREEN5
HIGH GREEN6
HIGH GREEN7
HIGH GREEN8
LOW BLUE1
LOW BLUE2
LOW BLUE3
LOW BLUE4
LOW BLUE5
LOW BLUE6
LOW BLUE7
LOW BLUE8
LOW RED1
LOW RED2
LOW RED3
LOW RED4
LOW RED5
LOW RED6
gosub validat
GOTO GREEN
'--------------------------------------------------------
BLUE:
DEBUG "BLUE ON...",13,10
'INTCON=%11000000
'INTCON.0=0
RBIF=0
'enable interrupt
@ INT_ENABLE RBC_INT
LOW GREEN1
LOW GREEN2
LOW GREEN3
LOW GREEN4
LOW GREEN5
LOW GREEN6
LOW GREEN7
LOW GREEN8
HIGH BLUE1
HIGH BLUE2
HIGH BLUE3
HIGH BLUE4
HIGH BLUE5
HIGH BLUE6
HIGH BLUE7
HIGH BLUE8
LOW RED1
LOW RED2
LOW RED3
LOW RED4
LOW RED5
LOW RED6
gosub validat
GOTO BLUE
'--------------------------------------------------------
1 Attachment(s)
Re: Interrupt block with different exit?
just a few comments
trying to capture a serial stream with a bit-banged routine triggered from an isr is difficult to make reliable far better to use the eusart module.
to reset rbcif flag you need to make sure the pin involved is in a steady state[ not still receiving data] and do a read of portb immediately before exiting isr
alias your leds to lat regs not ports, dont use high/low

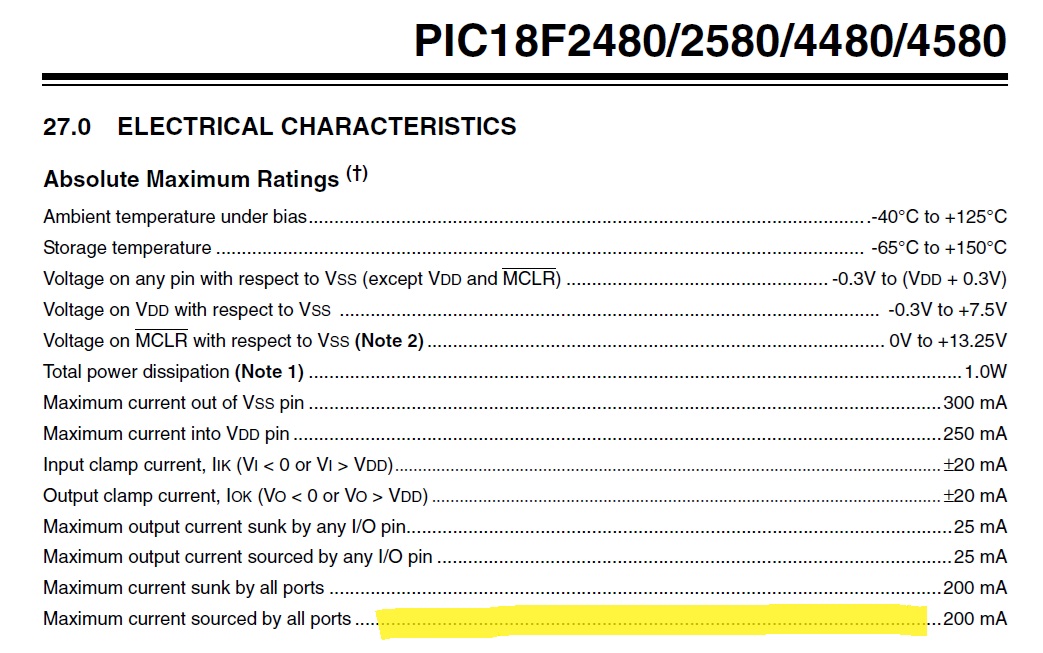

be aware that a pic-chip is not a power supply there is a maximum total pin current
your code seems to call validat over and over an over yet never returns , the stack won't be happy about that
Attachment 9906
Re: Interrupt block with different exit?
Greetings Richard,
sorry for the late reply... Been busy lately...
Will check all your suggestions, thanks for that.
Just one question regarding this one: "alias your leds to lat regs not ports, dont use high/low"
You mean using "Green var LATC.0" instead of "Green var PORTC.0" and use "Green=1" instead of "high Green" ?
Thanks
Best regards
Re: Interrupt block with different exit?
Quote:
you mean using "Green var LATC.0" instead of "Green var PORTC.0" and use "Green=1" instead of "high Green" ?
that's it
just to keep my hand in i made this, one with the lot [ slight differences in led pins]
Code:
#CONFIG
CONFIG OSC = IRCIO67 ; Internal oscillator block, port function on RA6 and RA7
CONFIG FCMEN = OFF ; Fail-Safe Clock Monitor disabled
CONFIG IESO = OFF ; Oscillator Switchover mode disabled
CONFIG PWRT = ON ; PWRT enabled
CONFIG BOREN = OFF ; Brown-out Reset disabled in hardware and software
CONFIG BORV = 3 ; VBOR set to 2.1V
CONFIG WDT = OFF ; WDT disabled (control is placed on the SWDTEN bit)
CONFIG WDTPS = 512 ; 1:512
CONFIG PBADEN = OFF ; PORTB<4:0> pins are configured as digital I/O on Reset
CONFIG LPT1OSC = OFF ; Timer1 configured for higher power operation
CONFIG MCLRE = OFF ; RE3 input pin enabled; MCLR disabled
CONFIG STVREN = ON ; Stack full/underflow will cause Reset
CONFIG LVP = OFF ; Single-Supply ICSP disabled
CONFIG BBSIZ = 1024 ; 1K words (2K bytes) boot block
CONFIG XINST = OFF ; Instruction set extension and Indexed Addressing mode disabled (Legacy mode)
CONFIG DEBUG = OFF ; Background debugger disabled, RB6 and RB7 configured as general purpose I/O pins
CONFIG CP0 = OFF ; Block 0 (000800-001FFFh) not code-protected
CONFIG CP1 = OFF ; Block 1 (002000-003FFFh) not code-protected
CONFIG CP2 = OFF ; Block 2 (004000-005FFFh) not code-protected
CONFIG CP3 = OFF ; Block 3 (006000-007FFFh) not code-protected
CONFIG CPB = OFF ; Boot block (000000-0007FFh) not code-protected
CONFIG CPD = OFF ; Data EEPROM not code-protected
CONFIG WRT0 = OFF ; Block 0 (000800-001FFFh) not write-protected
CONFIG WRT1 = OFF ; Block 1 (002000-003FFFh) not write-protected
CONFIG WRT2 = OFF ; Block 2 (004000-005FFFh) not write-protected
CONFIG WRT3 = OFF ; Block 3 (006000-007FFFh) not write-protected
CONFIG WRTC = OFF ; Configuration registers (300000-3000FFh) not write-protected
CONFIG WRTB = OFF ; Boot block (000000-0007FFh) not write-protected
CONFIG WRTD = OFF ; Data EEPROM not write-protected
CONFIG EBTR0 = OFF ; Block 0 (000800-001FFFh) not protected from table reads executed in other blocks
CONFIG EBTR1 = OFF ; Block 1 (002000-003FFFh) not protected from table reads executed in other blocks
CONFIG EBTR2 = OFF ; Block 2 (004000-005FFFh) not protected from table reads executed in other blocks
CONFIG EBTR3 = OFF ; Block 3 (006000-007FFFh) not protected from table reads executed in other blocks
CONFIG EBTRB = OFF ; Boot block (000000-0007FFh) not protected from table reads executed in other blocks
#ENDCONFIG
DEFINE OSC 32
INCLUDE "DT_INTS-18.bas" ; Base Interrupt System
INCLUDE "ReEnterPBP-18.bas" ; Include if using PBP interrupts
OSCCON = %01110000 '8MHz INTOSC
OSCTUNE.6 = 1 'PLLEN enabled
LATA = % 00000000
LATB = % 00000000
LATC = % 00000000
TRISA = % 00000000
TRISB = % 00000000
TRISC = % 11000000
ADCON1 = 15
RCSTA = $90 ' Enable serial port & continuous receive
TXSTA = $24 ' Enable transmit, BRGH = 1
SPBRG = 64 ' 9600 Baud @ 32MHz, 0.04%
SPBRGH = 3
BAUDCON.3 = 1 ' Enable 16 bit baudrate generator
IC_TX var PORTC.6 'DEBUG OUT
IC_RX var PORTC.7 'INPUT
RED1 var PORTC.1
RED2 var PORTC.2
RED3 var PORTA.6
RED4 var PORTB.4
RED5 var PORTA.7
RED6 var PORTB.0
GREEN1 var PORTB.5
GREEN2 var PORTB.1
GREEN3 var PORTB.2
GREEN4 var PORTB.3
GREEN5 var PORTC.3
GREEN6 var PORTC.4
GREEN7 var PORTC.5
GREEN8 var PORTC.0
BLUE1 var PORTA.5
BLUE2 var PORTA.4
BLUE3 var PORTA.3
BLUE4 var PORTA.2
BLUE5 var PORTA.1
BLUE6 var PORTA.0
BLUE7 var PORTB.7
BLUE8 var PORTB.6
PA1 VAR WORD
BUFFERB VAR BYTE[10]
MOOD VAR BYTE
MOODCAP VAR BYTE
rxb_B_C VAR BYTE
INTFLAG VAR BYTE
MOODCHANGE VAR BYTE
maxq con 32
prnb var byte[maxq]
spos var byte bank0
rpos var byte bank0
HEAD VAR BYTE [32]
I VAR BYTE
J VAR BYTE
K VAR BYTE
@milies = _TICKS ; LOW 16
@seconds = _TICKS+1 ;UPPER 16
FLG var byte
milies var word ext ;4mS TICKS
seconds var word ext ;COUNTS IN SECONDS 3.906mS*256
now var word
seconds_changed VAR FLG.0
TICKS var byte[3] ;24 BIT TIME KEEPING ticks[1]+[2] is in seconds
Timer3Reload CON 49914 ;3906uS 1/256 second @32mHz clk div2
clear
'---[INT - interrupt handler]---------------------------------------------------
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler RX_INT, _RXB, PBP, yes
INT_Handler TMR3_INT, TICK, ASM, YES
INT_Handler TX_INT , _do_tx, asm,no
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
pause 1000
ARRAYWRITE head, ["READY", 13,10 ]
GOSUB MYPRINT
pause 400
GOSUB setrgb1
pause 400
START:
rxb_B_C = 0
MOOD = 1
MOODCHANGE = 1
MOODCAP = 1
RCSTA.4 = 0 ;clear any rcsta error
RCSTA.4 = 1
INTCON = $C0
PIR2.1=0
@ INT_ENABLE RX_INT
@ INT_ENABLE TMR3_INT
PIE2.1=1
t3con = $11
main:
GOsub get_now
GOsub MOODCHECK
IF INTFLAG = 1 THEN
INTFLAG = 0
rxb_B_C = 0
RCSTA.4 = 0 ;clear any rcsta error
RCSTA.4 = 1
@ INT_ENABLE RX_INT
ARRAYREAD BUFFERB,10,dud,[wait("MCU-"), DEC1 MOODCAP ]
IF MOODCAP != MOOD THEN MOODCHANGE = 1
ARRAYWRITE head, [10,"NEW MOOD ",DEC MOODCAP, 13,10]
GOSUB MYPRINT
endif
if MOODCHANGE = 1 then
IF MOODCAP < 6 THEN
MOOD = MOODCAP
MOODCHANGE = 0
gosub clr_rgb
ELSE
MOODCHANGE = 0
GOTO DUD
endif
endif
PAUSE 10
goto main
dud:
ARRAYWRITE head, ["DUD MOOD", 13,10]
GOSUB MYPRINT
goto main
END
MOODCHECK:
SELECT CASE MOOD
CASE 1
GOsub RED
CASE 2
GOsub GREEN
CASE 3
GOsub BLUE
CASE 4
GOsub SHUTDOWN
CASE 5
PA1 = NOW
MOOD = 6
GOsub LIGHT_ONTEST
CASE 6
IF NOW - PA1 > 250 THEN
GOsub LIGHT_OFFTEST
MOOD = 7
PA1 = NOW
ENDIF
CASE 7
IF NOW - PA1 > 250 THEN MOOD = 5
END SELECT
return
LIGHT_ONTEST:
gosub red
gosub BLUE
gosub GREEN
return
LIGHT_OFFTEST:
gosub clr_rgb
return
RED: ; PORTC.1 PORTC.2 PORTA.6 PORTB.4 PORTA.7 PORTB.0
LATA = LATA | 192
LATB = LATB | 17
LATC = LATC | 6
return
SHUTDOWN:
gosub clr_rgb
return
GREEN: ; PORTB.5 PORTB.1 PORTB.2 PORTB.3 PORTC.3 PORTC.4 PORTC.5 PORTC.0
LATB = LATB | 46
LATC = LATC | 57
return
BLUE: ; PORTA.5 PORTA.4 PORTA.3 PORTA.2 PORTA.1 PORTA.0 PORTB.7 PORTB.6
LATA = LATA | 63
LATB = LATB | 192
return
setrgb1:
LATA = 32
LATB = 32
LATC = 2
RETURN
clr_rgb:
LATA = 0
LATB = 0
LATC = LATC & ~63
RETURN
RXB:
WHILE PIR1.5
BUFFERB[rxb_B_C] = RCREG
IF (rxb_B_C >= 9)|| (BUFFERB[rxb_B_C] == 13) THEN
PIE1.5 = 0
INTFLAG = 1
BUFFERB[rxb_B_C] = 0
else
rxb_B_C = rxb_B_C + 1
endif
WEND
@ INT_RETURN
asm
TICK ;isr
BANKSEL T3CON
MOVE?CT 0, T3CON, TMR3ON ; stop timer
MOVLW LOW(_Timer3Reload) ; Add TimerReload
ADDWF TMR3L,F
BTFSC STATUS,C
INCF TMR3H,F
MOVLW HIGH(_Timer3Reload)
ADDWF TMR3H,F
MOVE?CT 1, T3CON, TMR3ON ; start timer
MOVLW LOW( _TICKS) ;inc 24
movwf FSR0L
MOVLW HIGH( _TICKS)
movwf FSR0H
BCF STATUS,Z
incfsz POSTINC0,F
BRA I24D
BANKSEL _FLG
BSF _FLG ,0 ;seconds_changed
incfsz POSTINC0,F
BRA I24D
incf INDF0,F
I24D
INT_RETURN
endASM
do_tx:
asm
BANKSEL _rpos
movf _spos,W ;if rpos==spos then buffer is empty
subwf _rpos,W
btfsC STATUS,Z
bra LX
txb movlw High _prnb ;Store the High byte of buffer to FSR0H
movwf FSR0H
movlw Low _prnb ; Get the Low byte of buffer
addwf _rpos,W ; Add rpos to pointer
movwf FSR0L ; Store Low byte of pointer in FSR0
movf INDF0,W
btfsc STATUS,Z ; if its not a null send it
bra ex_prn
movwf TXREG
incf _rpos,F ; Increment rpos
movf _rpos,W ; Move new rpos to W
sublw _maxq -1 ; Subtract rposfrom buffer_size
btfsS STATUS, C ; If rpos > buffer_size
clrf _rpos ; Clear rpos
BRA ex_prn
LX ;if buffer empty turn ofF interrupt
bcf PIE1,TXIF
ex_prn
;RST?RP
INT_RETURN
endasm
MYPRINT:
J=0
WHILE HEAD[J]
INTCON=0
I=SPOS+1
K=RPOS
INTCON=$C0
IF ((I)==K) || ((I== MAXQ )&& (K==0) ) THEN
PAUSE 1
ELSE
PRNB[SPOS]= HEAD[J]
SPOS=SPOS+1
IF SPOS=MAXQ THEN SPOS=0
PIE1.4=1
J=J+1
ENDIF
WEND
RETURN
get_now:
pie2.1 = 0
NOW = milies
pie2.1 = 1
return
Re: Interrupt block with different exit?
Greetings Richard,
thank you so much for your time. Your code looks impressive.
There are lots of bits that I don't understand yet but it's great because I like to learn.
Will study your code and implement the changes.
Best regards
