16F18446 - maybe missing some registers settings
Hello there,
Here's a code snippet involving a 72x40 OLED display and this PIC having lots of memory.
I'm comparing this program with another I made with a 16F690 but, of course, there are some changes.
Unfortunately, I can't find what is still missing -or wrong- so any idea is welcome to help me get this display working :wink:
Code:
' ====== FUSES =====================================================================================
' External Oscillator
' 16F18446
#CONFIG
__config _CONFIG1, _FCMEN_OFF & _CSWEN_OFF & _CLKOUTEN_OFF & _RSTOSC_EXT1X & _FEXTOSC_HS
__config _CONFIG2, _MCLRE_OFF & _PWRTS_PWRT_64 & _LPBOREN_OFF & _BOREN_SBOREN & _BORV_LO & _ZCDDIS_OFF & _PPS1WAY_OFF & _STVREN_ON
__config _CONFIG3, _WDTCPS_WDTCPS_31 & _WDTE_SWDTEN & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _BBSIZE_BB512 & _BBEN_OFF & _SAFEN_OFF & _WRTAPP_OFF & _WRTB_OFF & _WRTC_OFF & _WRTD_OFF & _WRTSAF_OFF & _LVP_OFF
__config _CONFIG5, _CP_OFF
#ENDCONFIG
@ ERRORLEVEL -306
@ ERRORLEVEL -202
' ====== REGISTERS =================================================================================
' 16F18446
ANSELA = %00000000
WPUA = %00000000
ANSELB = %00000000
WPUB = %00000000
ANSELC = %00000000
WPUC = %00000000
ADCON0 = %00000000
ADCON1 = %00000000
ADCON2 = %00000000
ADCON3 = %00000000
INTCON = %00000000
CM1CON0 = %00000000
CM1CON1 = %00000000
TRISA = %00000000
TRISB = %00000000
TRISC = %00000000
PORTA = %00000000
PORTB = %00000000
PORTC = %00000000
LATA = %00000000
LATB = %00000000
LATC = %00000000
INLVLA = %00000000
INLVLB = %00000000
INLVLC = %00000000
' ====== DEFINES ===================================================================================
DEFINE OSC 4
' ====== VARIABLES =================================================================================
SDA VAR LATB.5
SCL VAR LATB.6
I2CDevice CON $78
Page VAR BYTE
' ====== SSD1306 I2C 72x40 OLED display initialization =============================================
PAUSE 500 ' let OLED module settle
I2CWrite SDA,SCL,I2CDevice,[$00,$AE]
I2CWrite SDA,SCL,I2CDevice,[$00,$D5]
I2CWrite SDA,SCL,I2CDevice,[$00,$80]
I2CWrite SDA,SCL,I2CDevice,[$00,$A8]
I2CWrite SDA,SCL,I2CDevice,[$00,$3F]
I2CWrite SDA,SCL,I2CDevice,[$00,$D3]
I2CWrite SDA,SCL,I2CDevice,[$00,$00]
I2CWrite SDA,SCL,I2CDevice,[$00,$20]
I2CWrite SDA,SCL,I2CDevice,[$00,$00]
I2CWrite SDA,SCL,I2CDevice,[$00,$AD]
I2CWrite SDA,SCL,I2CDevice,[$00,$30]
I2CWrite SDA,SCL,I2CDevice,[$00,$8D]
I2CWrite SDA,SCL,I2CDevice,[$00,$14]
I2CWrite SDA,SCL,I2CDevice,[$00,$68]
I2CWrite SDA,SCL,I2CDevice,[$00,$A6]
I2CWrite SDA,SCL,I2CDevice,[$00,$A4]
I2CWrite SDA,SCL,I2CDevice,[$00,$A1]
I2CWrite SDA,SCL,I2CDevice,[$00,$C8]
I2CWrite SDA,SCL,I2CDevice,[$00,$DA]
I2CWrite SDA,SCL,I2CDevice,[$00,$12]
I2CWrite SDA,SCL,I2CDevice,[$00,$81]
I2CWrite SDA,SCL,I2CDevice,[$00,$7F]
I2CWrite SDA,SCL,I2CDevice,[$00,$D9]
I2CWrite SDA,SCL,I2CDevice,[$00,$22]
I2CWrite SDA,SCL,I2CDevice,[$00,$DB]
I2CWrite SDA,SCL,I2CDevice,[$00,$40]
I2CWrite SDA,SCL,I2CDevice,[$00,$2E]
I2CWrite SDA,SCL,I2CDevice,[$00,$AF]
' Clear display
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,0,4]
FOR Page = 0 TO 4
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, _
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, _
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, _
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
NEXT Page
' ====== PROGRAM ===================================================================================
MAIN:
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,43,$22,1,4]
GOSUB ZERO32x16
I2CWrite SDA,SCL,I2CDevice,[$00,$21,50,65,$22,1,4]
GOSUB ZERO32x16
I2CWrite SDA,SCL,I2CDevice,[$00,$21,72,76,$22,1,4]
GOSUB DOT32x16
I2CWrite SDA,SCL,I2CDevice,[$00,$21,84,99,$22,1,4]
GOSUB ZERO32x16
LATB.7 = !LATB.7 ' proof of loop
pause 500
GOTO MAIN
END
' ====== CHARACTERS TO DISPLAY =====================================================================
ZERO32x16:
I2CWrite SDA,SCL,I2CDevice,[$40,_
128,192,224,240,240,240,240,240,240,240,240,240,240,224,192,128, _
255,255,255,255,1,0,0,0,0,0,0,1,255,255,255,255, _
255,255,255,255,0,0,0,0,0,0,0,0,255,255,255,255, _
31,63,127,255,248,240,240,240,240,240,240,248,255,127,63,31]
RETURN
DOT32x16:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,_
0,0,0,0,0,_
0,0,0,0,0,_
248,248,248,248,248]
RETURN
Re: 16F18446 - maybe missing some registers settings
Code:
SDA VAR LATB.5
SCL VAR LATB.6
The above for starters.
PBP high level commands, like HIGH/LOW, SEROUT, PULSEOUT, I2CWRITE etc does not work with LATx. These commands tries to set the pin direction (TRIS register) automatically based on the fact that there's always the same "distance" in the memory map between the PORT and TRIS registers (a fixed offset). When you specify LAT instead of PORT PBP will twiddle some other bit in some register which may (or may not) make a total mess.
Re: 16F18446 - maybe missing some registers settings
Quote:
Originally Posted by
HenrikOlsson
Code:
SDA VAR LATB.5
SCL VAR LATB.6
The above for starters.
PBP high level commands, like HIGH/LOW, SEROUT, PULSEOUT, I2CWRITE etc
does not work with LATx. These commands tries to set the pin direction (TRIS register) automatically based on the fact that there's always the same "distance" in the memory map between the PORT and TRIS registers (a fixed offset). When you specify LAT instead of PORT PBP will twiddle some other bit in some register which may (or may not) make a total mess.
Good catch! Yes, definitely I've never seen a variable been declared in PBP using LATx. Also, check in the configuration INC file in the mpasmx folder. I believe you have a missing setting in CONFIG2.
Re: 16F18446 - maybe missing some registers settings
Oh, you can most certainly create aliases to LAT and then use it with direct access commands like
Code:
LED VAR LATB.0
LED = 1
What you should not do is use that alias with "high level" command as outlined previously.

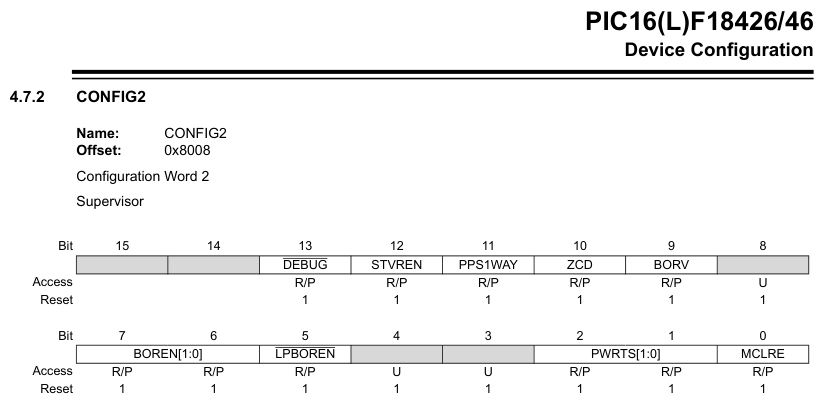

1 Attachment(s)
16F18446 - maybe missing some registers settings
Quote:
check in the configuration INC file in the mpasmx folder.
Since I don't use MPLAB but "only" the MPASM Suite, I don't have this folder.
Instead, I found the 1F18446.INFO file in the PBP3 folder which provides CONFIG settings:
Code:
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;
; File: PIC16F18446.INFO
; Date: 02/01/20
; Generated by melabs File Manager
;
; PICBASIC PRO(tm) Compiler version: 3.1.3
;
; Copyright 2020 ME Labs, Inc. All Rights Reserved
; The content herein is intended to facilitate embedded development using
; PICBASIC PRO Compiler. Reproduction or utilization for other purposes
; is prohibited without written permission from ME Labs, Inc..
;
; ME Labs, Inc.
; PO Box 8250
; Asheville NC 28814
; 719-520-5323
; fax: 719-520-1867
; http://melabs.com
; [email protected]
;
; Modifications to this file in the \DEVICE_REFERENCE folder will be
; overwritten when you install future upgrades.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;MPASM __CONFIG Directive Options
;
; The PBP default configuration for the PIC16F18446 is:
;
; #CONFIG
; __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_ON & _FCMEN_ON
; __config _CONFIG2, _MCLRE_ON & _PWRTS_PWRT_64 & _LPBOREN_OFF & _BOREN_SBOREN & _BORV_LO & _ZCDDIS_OFF & _PPS1WAY_OFF & _STVREN_ON
; __config _CONFIG3, _WDTCPS_WDTCPS_31 & _WDTE_SWDTEN & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
; __config _CONFIG4, _BBSIZE_BB512 & _BBEN_OFF & _SAFEN_OFF & _WRTAPP_OFF & _WRTB_OFF & _WRTC_OFF & _WRTD_OFF & _WRTSAF_OFF & _LVP_OFF
; __config _CONFIG5, _CP_OFF
; #ENDCONFIG
;
; You may use the information below to construct your own configuration
; directives for the PIC16F18446. Please note that ALL DEFAULT
; CONFIGURATION SETTINGS WILL BE OVERWRITTEN when you include a #CONFIG
; block in your program.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;
; Available __CONFIG labels for PIC16F18446:
;
;CONFIG1 Options
;
; External Oscillator mode selection bits
; _FEXTOSC_ECH ;EC above 8MHz; PFM set to high power
; _FEXTOSC_ECM ;EC for 500kHz to 8MHz; PFM set to medium power
; _FEXTOSC_ECL ;EC below 500kHz; PFM set to low power
; _FEXTOSC_OFF ;Oscillator not enabled
; _FEXTOSC_RESERVED ;Reserved
; _FEXTOSC_HS ;HS (crystal oscillator) above 4MHz; PFM set to high power
; _FEXTOSC_XT ;XT (crystal oscillator) above 500kHz, below 4MHz; PFM set to medium power
; _FEXTOSC_LP ;LP (crystal oscillator) optimized for 32.768kHz; PFM set to low power
;
; Power-up default value for COSC bits
; _RSTOSC_EXT1X ;EXTOSC operating per FEXTOSC bits
; _RSTOSC_HFINT1 ;HFINTOSC (1MHz)
; _RSTOSC_LFINT ;LFINTOSC
; _RSTOSC_SOSC ;SOSC
; _RSTOSC_RESERVED ;Reserved
; _RSTOSC_EXT4X ;EXTOSC with 4x PLL, with EXTOSC operating per FEXTOSC bits
; _RSTOSC_HFINTPLL ;HFINTOSC with 2x PLL, with OSCFRQ = 16 MHz and CDIV = 1:1 (FOSC = 32 MHz)
; _RSTOSC_HFINT32 ;HFINTOSC with OSCFRQ= 32 MHz and CDIV = 1:1
;
; Clock Out Enable bit
; _CLKOUTEN_ON ;CLKOUT function is enabled; FOSC/4 clock appears at OSC2
; _CLKOUTEN_OFF ;CLKOUT function is disabled; i/o or oscillator function on OSC2
;
; Clock Switch Enable bit
; _CSWEN_ON ;Writing to NOSC and NDIV is allowed
; _CSWEN_OFF ;The NOSC and NDIV bits cannot be changed by user software
;
; Fail-Safe Clock Monitor Enable bit
; _FCMEN_ON ;FSCM timer enabled
; _FCMEN_OFF ;FSCM timer disabled
;
;CONFIG2 Options
;
; Master Clear Enable bit
; _MCLRE_ON ;MCLR pin is Master Clear function
; _MCLRE_OFF ;MCLR pin function is port defined function
;
; Power-up Timer Enable bit
; _PWRTS_OFF ;PWRT disabled
; _PWRTS_PWRT_64 ;PWRT set at 64 ms
; _PWRTS_PWRT_16 ;PWRT set at 16 ms
; _PWRTS_PWRT_1 ;PWRT set at 1 ms
;
; Low-Power BOR enable bit
; _LPBOREN_OFF ;ULPBOR disabled
; _LPBOREN_ON ;ULPBOR enabled
;
; Brown-out reset enable bits
; _BOREN_ON ;Brown-out Reset Enabled, SBOREN bit is ignored
; _BOREN_NSLEEP ;Brown-out Reset enabled while running, disabled in sleep; SBOREN is ignored
; _BOREN_SBOREN ;Brown-out reset enabled according to SBOREN bit
; _BOREN_OFF ;Brown-out reset disabled
;
; Brown-out Reset Voltage Selection
; _BORV_LO ;Brown-out Reset Voltage (VBOR) set to 2.45V
; _BORV_HI ;Brown-out Reset Voltage (VBOR) is set to 2.7V
;
; Zero-cross detect disable
; _ZCD_OFF ;Zero-cross detect circuit is disabled at POR.
; _ZCD_ON ;Zero-cross detect circuit is always enabled
;
; Peripheral Pin Select one-way control
; _PPS1WAY_ON ;The PPSLOCK bit can be cleared and set only once in software
; _PPS1WAY_OFF ;The PPSLOCK bit can be set and cleared repeatedly by software
;
; Stack Overflow/Underflow Reset Enable bit
; _STVREN_ON ;Stack Overflow or Underflow will cause a reset
; _STVREN_OFF ;Stack Overflow or Underflow will not cause a reset
;
;CONFIG3 Options
;
; WDT Period Select bits
; _WDTCPS_WDTCPS_0 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_1 ;Divider ratio 1:64
; _WDTCPS_WDTCPS_2 ;Divider ratio 1:128
; _WDTCPS_WDTCPS_3 ;Divider ratio 1:256
; _WDTCPS_WDTCPS_4 ;Divider ratio 1:512
; _WDTCPS_WDTCPS_5 ;Divider ratio 1:1024
; _WDTCPS_WDTCPS_6 ;Divider ratio 1:2048
; _WDTCPS_WDTCPS_7 ;Divider ratio 1:4096
; _WDTCPS_WDTCPS_8 ;Divider ratio 1:8192
; _WDTCPS_WDTCPS_9 ;Divider ratio 1:16384
; _WDTCPS_WDTCPS_10 ;Divider ratio 1:32768
; _WDTCPS_WDTCPS_11 ;Divider ratio 1:65536
; _WDTCPS_WDTCPS_12 ;Divider ratio 1:131072
; _WDTCPS_WDTCPS_13 ;Divider ratio 1:262144
; _WDTCPS_WDTCPS_14 ;Divider ratio 1:524299
; _WDTCPS_WDTCPS_15 ;Divider ratio 1:1048576
; _WDTCPS_WDTCPS_16 ;Divider ratio 1:2097152
; _WDTCPS_WDTCPS_17 ;Divider ratio 1:4194304
; _WDTCPS_WDTCPS_18 ;Divider ratio 1:8388608
; _WDTCPS_WDTCPS_19 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_20 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_21 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_22 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_23 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_24 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_25 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_26 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_27 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_28 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_29 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_30 ;Divider ratio 1:32
; _WDTCPS_WDTCPS_31 ;Divider ratio 1:65536; software control of WDTPS
;
; WDT operating mode
; _WDTE_OFF ;WDT Disabled, SWDTEN is ignored
; _WDTE_SWDTEN ;WDT enabled/disabled by SWDTEN bit in WDTCON0
; _WDTE_NSLEEP ;WDT enabled while sleep=0, suspended when sleep=1; SWDTEN ignored
; _WDTE_ON ;WDT enabled regardless of sleep; SWDTEN ignored
;
; WDT Window Select bits
; _WDTCWS_WDTCWS_0 ;window delay = 87.5 percent of time; no software control; keyed access required
; _WDTCWS_WDTCWS_1 ;window delay = 75 percent of time; no software control; keyed access required
; _WDTCWS_WDTCWS_2 ;window delay = 62.5 percent of time; no software control; keyed access required
; _WDTCWS_WDTCWS_3 ;window delay = 50 percent of time; no software control; keyed access required
; _WDTCWS_WDTCWS_4 ;window delay = 37.5 percent of time; no software control; keyed access required
; _WDTCWS_WDTCWS_5 ;window delay = 25 percent of time; no software control; keyed access required
; _WDTCWS_WDTCWS_6 ;window always open (100%); no software control; keyed access required
; _WDTCWS_WDTCWS_7 ;window always open (100%); software control; keyed access not required
;
; WDT input clock selector
; _WDTCCS_LFINTOSC ;WDT reference clock is the 31.0kHz LFINTOSC output
; _WDTCCS_HFINTOSC ;WDT reference clock is the 31.25 kHz HFINTOSC
; _WDTCCS_SOSC ;WDT reference clock is the 32kHz secondary oscillator
; _WDTCCS_SC ;Software Control
;
;CONFIG4 Options
;
; Boot Block Size Selection bits
; _BBSIZE_BB512 ;512 words boot block size
; _BBSIZE_BB1K ;1024 words boot block size
; _BBSIZE_BB2K ;2048 words boot block size
; _BBSIZE_BB4K ;4096 words boot block size
; _BBSIZE_BB8K ;8192 words boot block size
; _BBSIZE_BB16K ;* half of user program memory
; _BBSIZE_BB32K ;* half of user program memory
; _BBSIZE_BB64K ;* half of user program memory
;
; Boot Block Enable bit
; _BBEN_OFF ;Boot Block disabled
; _BBEN_ON ;Boot Block enabled
;
; SAF Enable bit
; _SAFEN_OFF ;SAF disabled
; _SAFEN_ON ;SAF enabled
;
; Application Block Write Protection bit
; _WRTAPP_OFF ;Application Block not write protected
; _WRTAPP_ON ;Application Block write protected
;
; Boot Block Write Protection bit
; _WRTB_OFF ;Boot Block not write protected
; _WRTB_ON ;Boot Block write protected
;
; Configuration Register Write Protection bit
; _WRTC_OFF ;Configuration Register not write protected
; _WRTC_ON ;Configuration Register write protected
;
; Data EEPROM write protection bit
; _WRTD_OFF ;Data EEPROM NOT write protected
; _WRTD_ON ;Data EEPROM write protected
;
; Storage Area Flash Write Protection bit
; _WRTSAF_OFF ;SAF not write protected
; _WRTSAF_ON ;SAF write protected
;
; Low Voltage Programming Enable bit
; _LVP_ON ;Low Voltage programming enabled. MCLR/Vpp pin function is MCLR.
; _LVP_OFF ;High Voltage on MCLR/Vpp must be used for programming
;
;CONFIG5 Options
;
; UserNVM Program memory code protection bit
; _CP_OFF ;UserNVM code protection disabled
; _CP_ON ;UserNVM code protection enabled
;
;
;/MPASM
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
Strangely, some CONFIG2 default settings are not listed in this .INFO file ?! What is right, what is wrong or why is it so? Does it affect my circuit?
Attachment 9875
Anyway, for a try, I modified my CONFIG2 line like:
__config _CONFIG2, _MCLRE_OFF & _PWRTS_PWRT_64 & _LPBOREN_OFF & _BOREN_OFF & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF
instead of:
__config _CONFIG2, _MCLRE_OFF & _PWRTS_PWRT_64 & _LPBOREN_OFF & _BOREN_OFF & _BORV_LO & _ZCDDIS_OFF & _PPS1WAY_OFF & _STVREN_ON
Still not even a flicker on my display...and I corrected from LATx to PORTx.
16F18446 - finally working
Working example :wink:
Two simple splash screens and already over 3k Words.
Code:
' ====== FUSES =====================================================================================
' External Oscillator - 32MHz crystal
' 16F18446
#CONFIG
__config _CONFIG1, _FCMEN_OFF & _CSWEN_OFF & _CLKOUTEN_OFF & _RSTOSC_EXT1X & _FEXTOSC_HS
__config _CONFIG2, _MCLRE_OFF & _PWRTS_PWRT_64 & _LPBOREN_OFF & _BOREN_OFF & _BORV_LO & _ZCDDIS_OFF & _PPS1WAY_OFF & _STVREN_ON
__config _CONFIG3, _WDTCPS_WDTCPS_31 & _WDTE_SWDTEN & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC
__config _CONFIG4, _BBSIZE_BB512 & _BBEN_OFF & _SAFEN_OFF & _WRTAPP_OFF & _WRTB_OFF & _WRTC_OFF & _WRTD_OFF & _WRTSAF_OFF & _LVP_OFF
__config _CONFIG5, _CP_OFF
#ENDCONFIG
@ ERRORLEVEL -306
@ ERRORLEVEL -202
' ====== REGISTERS =================================================================================
' 16F18446
ANSELA = %00000000
ANSELB = %00000000
ANSELC = %00000000
TRISA = %00000000
TRISB = %00000000
TRISC = %00000000
' ====== DEFINES ===================================================================================
DEFINE OSC 32
DEFINE I2C_SLOW 1 ' if >8MHz
' ====== VARIABLES =================================================================================
SDA VAR PORTB.5
SCL VAR PORTB.6
I2CDevice CON $78
Page VAR BYTE
' ====== SSD1306 I2C OLED initialization ===========================================================
PAUSE 500 ' let OLED module settle
I2CWrite SDA,SCL,I2CDevice,[$00,$AE,$D5,$80,$A8,$3F,$D3,$00,$20,$00,$AD,$30,$8D,$14,$68,$A6,$A4,_
$A1,$C8,$DA,$12,$81,$7F,$D9,$22,$DB,$40,$2E,$AF]
' Clear display
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,0,4]
FOR Page = 0 TO 4 ' 5 pages, draw nothing, pages are each 8 pixels high and 72 pixels wide
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, _
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, _
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, _
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
NEXT Page
' ====== PROGRAM ===================================================================================
MAIN:
' 1st splash screen
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,0,0]
GOSUB SPLASH_1_72x40PAGE0
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,1,1]
GOSUB SPLASH_1_72x40PAGE1
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,2,2]
GOSUB SPLASH_1_72x40PAGE2
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,3,3]
GOSUB SPLASH_1_72x40PAGE3
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,4,4]
GOSUB SPLASH_1_72x40PAGE4
PAUSE 2000
' 2nd splash screen
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,0,0]
GOSUB SPLASH_2_72x40PAGE0
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,1,1]
GOSUB SPLASH_2_72x40PAGE1
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,2,2]
GOSUB SPLASH_2_72x40PAGE2
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,3,3]
GOSUB SPLASH_2_72x40PAGE3
I2CWrite SDA,SCL,I2CDevice,[$00,$21,28,99,$22,4,4]
GOSUB SPLASH_2_72x40PAGE4
PAUSE 2000
GOTO MAIN
END
' ====== CHARACTERS TO DISPLAY =====================================================================
' SPLASH 1
SPLASH_1_72x40PAGE0:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,252,252,252,60,28,28,28,56,248,248,240,192,0,0,0,252,252,252,0,0,0,0,192,240,248,120,60,28,28,28,28,60,248,248,240,192,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
RETURN
SPLASH_1_72x40PAGE1:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,255,255,255,56,56,56,56,60,31,31,15,3,0,0,0,255,255,255,0,0,0,62,255,255,255,128,0,0,0,0,0,0,192,192,192,192,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
RETURN
SPLASH_1_72x40PAGE2:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,15,15,15,0,0,0,0,0,0,0,0,0,0,0,0,15,15,15,0,0,0,0,1,3,7,15,14,14,12,14,14,15,15,7,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
RETURN
SPLASH_1_72x40PAGE3:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,240,252,252,140,140,204,252,120,0,0,0,96,96,32,32,224,224,0,0,192,224,224,32,32,96,64,0,0,192,236,108,0,128,192,224,96,32,96,96,64,0]
RETURN
SPLASH_1_72x40PAGE4:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,62,63,55,49,49,57,31,31,6,0,28,62,54,34,18,63,63,7,0,16,56,49,35,55,62,30,0,0,56,63,15,0,0,31,63,48,48,48,56,24,0,0]
RETURN
' SPLASH 2
SPLASH_2_72x40PAGE0:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
RETURN
SPLASH_2_72x40PAGE1:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,128,128,192,192,0,0,0,0,128,192,192,192,192,192,128,0,0,192,192,192,192,192,192,0,0,128,128,192,192,0,0,0,0,128,192,64,192,128,0,0,0,0,0,0,0,192,192,192,0,0,0,0,0,0,0,192,192,192,0,0,0,128,192,192,192,192,192,128,0,0]
RETURN
SPLASH_2_72x40PAGE2:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,1,129,255,255,128,0,0,0,255,255,136,12,140,249,249,0,0,255,255,12,12,12,12,0,0,1,129,255,255,128,0,0,99,255,32,8,156,255,99,0,0,96,120,124,103,99,255,255,96,0,0,96,120,124,103,99,255,255,96,0,0,255,255,136,12,140,249,249,0,0]
RETURN
SPLASH_2_72x40PAGE3:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,1,1,1,1,1,1,0,0,0,1,1,1,1,1,0,0,0,1,1,0,0,0,0,0,0,1,1,1,1,1,1,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,0,1,1,0,0,0,0,1,1,1,1,1,0,0,0]
RETURN
SPLASH_2_72x40PAGE4:
I2CWrite SDA,SCL,I2CDevice,[$40,_
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]
RETURN
