Update on that "anti-static" foam.
https://youtu.be/P0K-RasrwZU?si=RinMT-DUSUMmC8uz&t=105
Start at 1:45.
It's not so anti-static as claimed.
Would passing over a fabric softener sheet do the job?
(sold as Bounce in Canada)
So fabric sheets don't seem a "complete" solution.
One guy did mention aluminium foil.
https://electronics.stackexchange.co...dryer-sheets-o
Should I line the plastic drawer with aluminum paper first, drop the foam in, then apply the ICs?
Or was my idea of using the A-S bags as liners be better?
But then I'm still unsure about using this foam. One guy says to wipe with a lightly damp cloth.
Wow, so even those trays are not "safe".
https://youtu.be/kLJOI9HC-tQ?si=CJN_XObfCQXobhZP&t=220
Starts at 3:45
He does explain how the mylar bags are the best protection.
This mylar would be just about right to line this plastic drawer (18cm model in my case).
https://www.aliexpress.com/item/1005007976583729.html
Price is a bit steep, but it'll last a loooong time. :D
This is my first attempt by recycling the bags from the manufacturers:
https://youtu.be/ECFyKdcCd08
- this was done with the 5mm foam.
- I'm going to order 10mm foam for MOSFETs and other TO-220 and the like (will have to test for transistors).
- it helps to have the ICs mounted on the foam during the application of the tape. The extra weight also helps when you slide the mylar into the drawer.
- the scraps are useful for those "extra" ICs.
- take a pic of the original label on the bag; it'll come in handy when you make labels.
- if you're not planning on adding external labels, place a basic label between the mylar and the front side; it won't be able to come out with that piece of tape along the top edge.

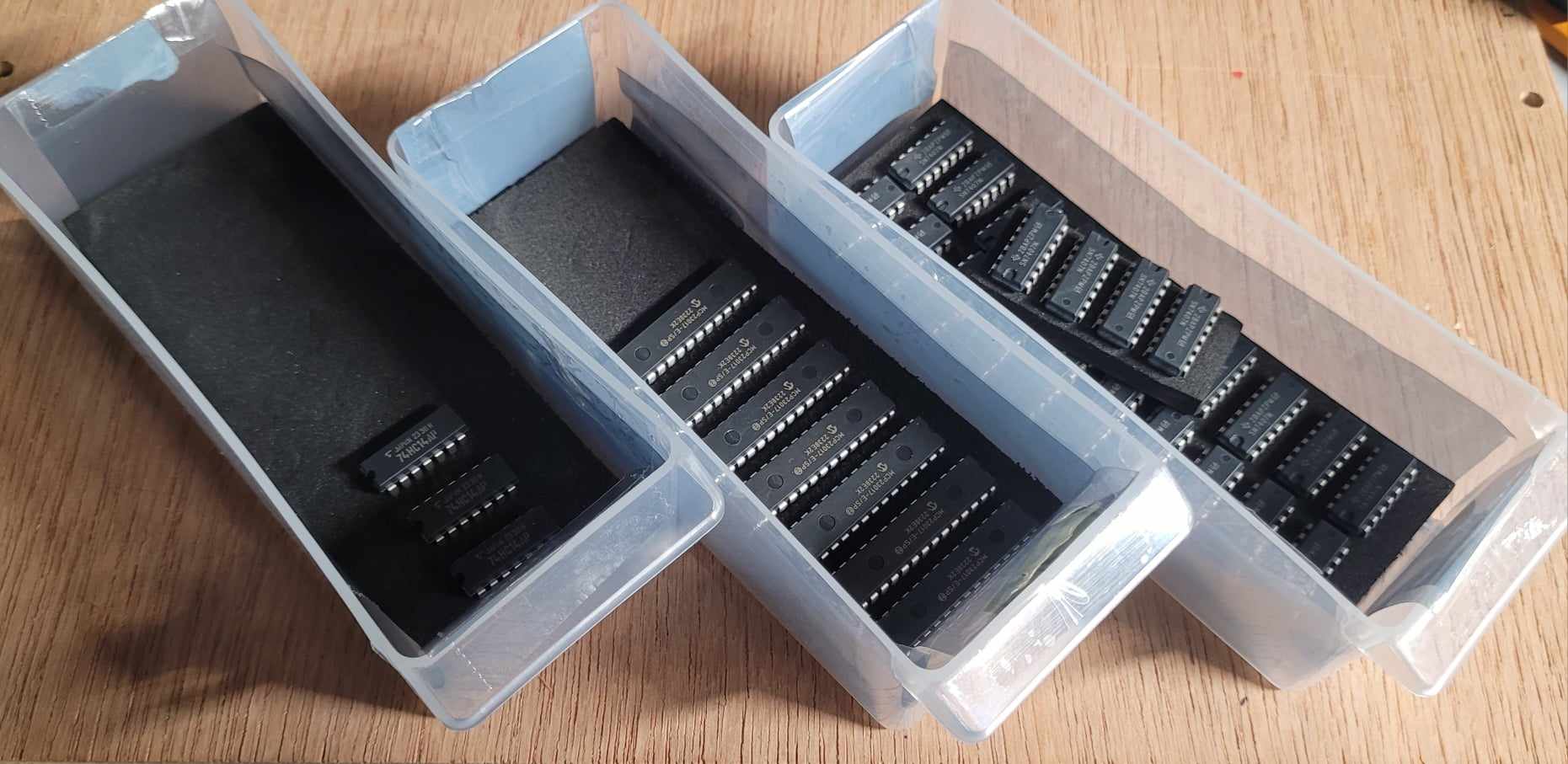

Attachment 9873
If you REALLY want to surround the ICs with the mylar protective layer, tape a layer on the back of a 3mm thick foam as a "lid".
Let me know if you think of other ways to improve this.
All these plastic bags or foams are conductive to some degree. That is why aluminum foil is also used. But i am a bit cautious with that since the chip may touch few pins and not all on the aluminum. Foam is much better since it will short all pins at once with a relatively low resistance.
You did nice job on the plastic boxes. I really like what you did with mylar.
I normally just use the foam and take care to have ESD wrist band on my hand, along with ESD floor mat and a mat on my bench. With these measures I had not a problem in respect with ESD.
Ioannis
I got that roll and set up a cutting board to reduce time (got over 800 drawers).
It's just a test to see if everything goes smoothly; and yeah, I'm waiting for a shorter set of steel rulers with cork backing. This 16in ruler is so cumbersome.
https://youtu.be/84pu8SWZ1AM?si=iMFwwkxGNAbdfWYQ
Nice construction.Quote:
Originally Posted by Demon
Well, you do not need to put antistatic in every drawer. Capacitors, resistors or other hardware have no problem with ESD. Just semiconductors.
Ioannis
Yeah, you're right. I'll adjust as I label the drawers with their proper contents, using stock drawer, lined and padded as required.
But this sure does make cutting so much easier; same thing with my mylar insertion tool.
Quote:
Originally Posted by Ioannis
Ok, so basically any IC gets a mylar liner, and sits on ESD foam (depending on pin lengths - SMDs just sits on thin 3mm foam mainly cause I have it on hand now).
Discretes need nothing:
- diodes;
- resistors;
- pots;
- rotary encoders (maybe 3mm foam to help protect pins when there's only a few sloshing in the drawer);
- capacitors;
- LEDs;
- ZNRs;
- TVSs;
- photocells.
Anything wrong, or am I missing anything?
I think any semi is sensitive in ESD somehow. Though I never saw a LED or zener destroyed, I never tried on purpose also.
See these links:
https://www.radium.de/en/service-too...atic-discharge
https://www.eevblog.com/forum/beginn...nsitive-parts/
Ioannis
The first link doesn't seem worried for standard LEDs, it seems more concerned when there's a module involved (I have none).
Quote:
electrostatic discharge when touching LED strips is not harmful and usually not even noticeable. On the other hand, LED modules can quickly be damaged to a considerable degree - even at low charges.
From the 2nd link:
Interesting, I guess I'm putting tiny, fast and Schottky diodes and SMD LEDs at least on mylar lining.Quote:
Zener diodes and bridge rectifiers are normally not ESD sensitive. The same is true for larger diodes (e.g. 1N400x) - but special low leakage fast diodes / schottkys can be ESD sensitive. Also modern LEDs and especially laser diodes are ESD sensitive.
This is how I went about with version 2 of mylar linings.
https://youtu.be/ZgteFRSEuNs
Just rambling sharing ideas and thoughts about my inventory adventure:
https://youtu.be/KopIe9lj6KM
I'm still learning OBS Studio, so I still make mistakes in setting and macros, but at least I'm getting there.
I can't believe I've been able to do all my videos in 1 take no edits. :D
It makes for longer material, cause I'm not following a script, or even a checklist of items. I initially wanted to, then said "awe, what the heck. I'm an amateur, I'm gonna look like one". :D
Oh, man! You put a lot of work and effort into this, right? And I am sure you have the longest list of parts!
I wonder when I will organize my stuff too. Have less parts but in any case it is good to have them in such an order.
I like the work you done. Alot!
But for complete ESD protection please consider to get an ESD wrist and mat for the bench. Even better for the floor too.
Examples:
https://export.farnell.com/multicomp...BoC024QAvD_BwE
https://export.farnell.com/weller/t0...hoCjdUQAvD_BwE
https://www.tme.com/ca/en/details/at..._source=google
Ioannis
Thank you for the videos.
Finished reloading the older cabinet; what i call Series A.
https://youtu.be/PJ3roYofLVw?si=XI9AviOZCTidcFYj
