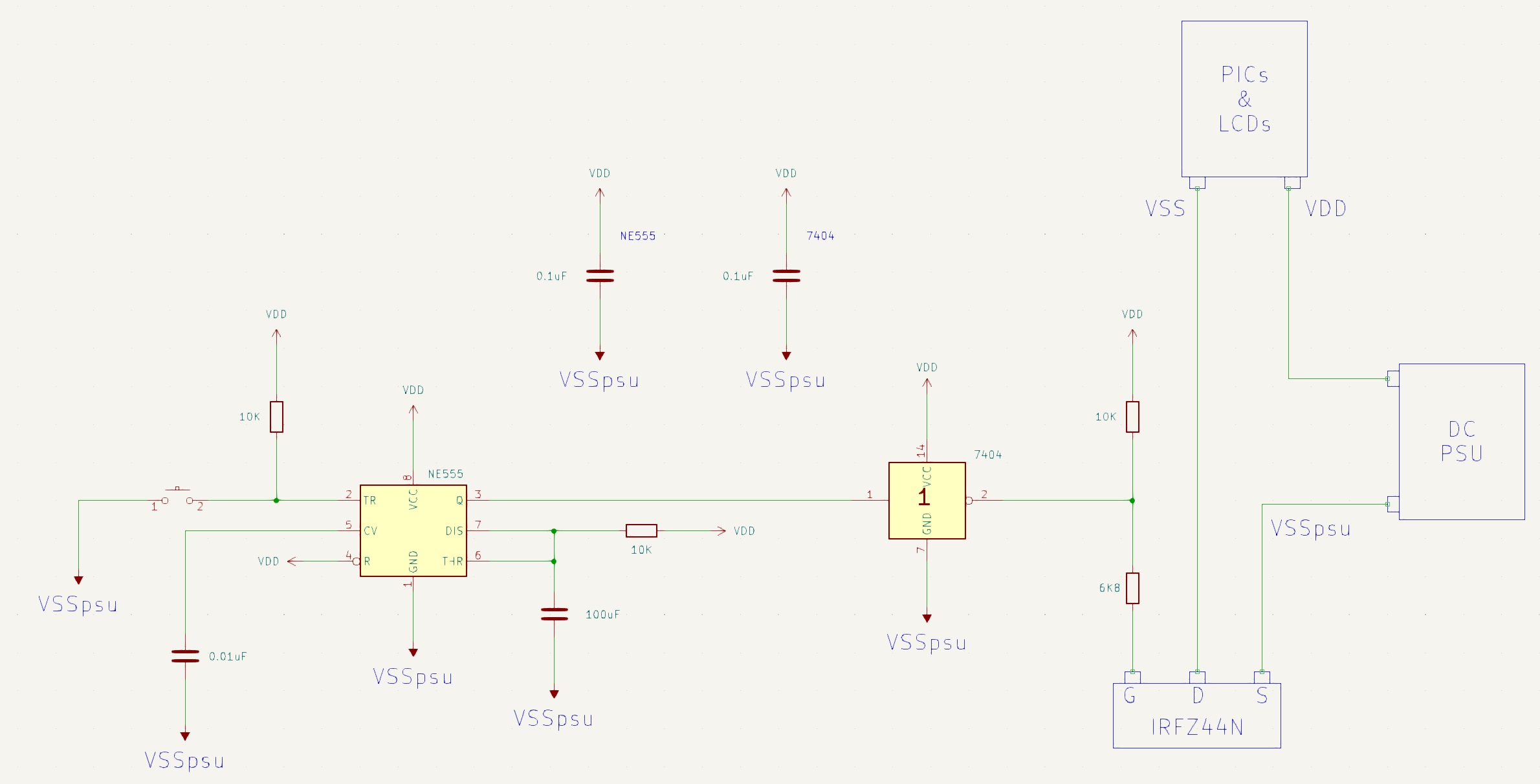

The purpose of this circuit is to provide sufficient time for the PICs and LCDs to make a complete reset once powered down and back up.
Attachment 9797
Thread and video:
https://www.picbasic.co.uk/forum/sho...-works-sort-of
Printable View
The purpose of this circuit is to provide sufficient time for the PICs and LCDs to make a complete reset once powered down and back up.
Attachment 9797
Thread and video:
https://www.picbasic.co.uk/forum/sho...-works-sort-of
seems an awful lot of circuitry to achieve not a lot, would it not be easier to turn it off, count to 3 turn it on again :D
for all that work i would expect at least a single button on/off facility
Yeah, that would work, but I thought this was cool with the delay. :D
And I've never touched a 555 or 7404, so it was a learning experience.
I like this idea
Attachment 9798
Where would a load go on this circuit (LCDs and other PICs)?
Anywhere off the mosfet drain or the regulator, it's just a switch
