Symbol not prev defined FSR

Symbol not prev defined FSR - Elapsed Timer

16F18877

Program:

Code:

#CONFIG __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF __config _CONFIG5, _CP_OFF & _CPD_OFF #ENDCONFIG ;--- Interrupts ---------------------------------------------------------------- ;--- Defines ------------------------------------------------------------------- DEFINE OSC 32 RA4PPS = 0 ' Disable CCP5 RB0PPS = 0 ' Disable CCP4 RB5PPS = 0 ' Disable CCP3 RC1PPS = 0 ' Disable CCP2 RC2PPS = 0 ' Disable CCP1 ANSELA = %00000000 ANSELB = %00000000 ANSELC = %00000000 ANSELD = %00000000 ANSELE = %00000000 ;--- Setup Port directions ----------------------------------------------------- TRISA = %00000000 TRISB = %00000000 TRISC = %00000000 TRISD = %00000000 TRISE = %00001000 INCLUDE "Elapsed_DN_32MHz.bas" ; Elapsed Timer Routines Days = 0 ' set initial time Hours = 0 Minutes = 0 Seconds = 1 LatB.5 = 0 GOSUB StartTimer LatB.5 = 1 Main: IF Ticks > 100 THEN LatB.5 = 0 ENDIF GOTO Main end

Elapsed DN, with 32MHz mod:

Code:

'**************************************************************** '* Name : ELAPSED.PBP * '* Author : Darrel Taylor * '* Notice : Copyright (c) 2003 * '* Date : 12/16/2003 * '* Notes : * '**************************************************************** Define INTHAND _ClockCount ' Tell PBP Where the code starts on an interrupt Include "ASM_INTS.bas" ' ASM Interrupt Stubs Ticks VAR BYTE ' 1/100th of a second Seconds VAR BYTE Minutes VAR BYTE Hours VAR BYTE Days VAR WORD R0save VAR WORD R1save VAR WORD ZERO VAR BIT CountDown VAR BIT SecondsChanged VAR BIT MinutesChanged VAR BIT HoursChanged VAR BIT DaysChanged VAR BIT CountDown = 0 SecondsChanged = 1 MinutesChanged = 1 Goto OverElapsed ' ------------------------------------------------------------------------------ Asm IF OSC == 4 ; Constants for 100hz interrupt from Timer1 TimerConst = 0D8F7h ; Executed at compile time only EndIF If OSC == 8 TimerConst = 0B1E7h EndIF If OSC == 10 TimerConst = 09E5Fh EndIF If OSC == 20 TimerConst = 03CB7h EndIF If OSC == 32 ; T1CON TimerConst = 063C7h ; TMR1CS bits 7-6, 00 = FOSC/4 EndIF ; T1CKPS bits 5-4, 01 = 1:2 Prescale value ; ----------------- ADD TimerConst to TMR1H:TMR1L ADD2_TIMER macro CHK?RP T1CON BCF T1CON,TMR1ON ; Turn off timer MOVLW LOW(TimerConst) ; 1 ADDWF TMR1L,F ; 1 ; reload timer with correct value BTFSC STATUS,C ; 1/2 INCF TMR1H,F ; 1 MOVLW HIGH(TimerConst) ; 1 ADDWF TMR1H,F ; 1 endm ; ----------------- ADD TimerConst to TMR1H:TMR1L and restart TIMER1 RELOAD_TIMER macro ADD2_TIMER BSF T1CON,TMR1ON ; 1 ; Turn TIMER1 back on CHK?RP PIR1 bcf PIR1, TMR1IF ; Clear Timer1 Interrupt Flag endm ; ----------------- Load TimerConst into TMR1H:TMR1L LOAD_TIMER macro EndAsm T1CON.0 = 0 ; Turn OFF Timer1 TMR1L = 0 TMR1H = 0 Asm ADD2_TIMER endm EndAsm ' ------[ This is the Interrupt Handler ]--------------------------------------- ClockCount: ' Note: this is being handled as an ASM interrupt @ INT_START @ RELOAD_TIMER ; Reload TIMER1 R0save = R0 ; Save 2 PBP system vars that are used during R1save = R1 ; the interrupt Ticks = Ticks + 1 if Ticks = 100 then Ticks = 0 IF CountDown THEN IF Seconds > 0 THEN Seconds = Seconds - 1 SecondsChanged = 1 IF Seconds = 0 THEN IF Days = 0 THEN IF Hours = 0 THEN IF Minutes = 0 THEN GOSUB StopTimer ; Zero reached ZERO = 1 ENDIF ENDIF ENDIF ENDIF ELSE IF Minutes > 0 THEN Minutes = Minutes - 1 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 ELSE IF Hours > 0 THEN Hours = Hours - 1 Minutes = 59 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 HoursChanged = 1 ELSE IF Days > 0 THEN Days = Days - 1 Hours = 23 Minutes = 59 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 HoursChanged = 1 DaysChanged = 1 ELSE ; Zero already reached, shouldn't get here GOSUB StopTimer ZERO = 1 ENDIF ENDIF ENDIF ENDIF ELSE ; Counting Up Seconds = Seconds + 1 SecondsChanged = 1 IF Seconds = 60 THEN Minutes = Minutes + 1 MinutesChanged = 1 Seconds = 0 ENDIF IF Minutes = 60 THEN Hours = Hours + 1 HoursChanged = 1 Minutes = 0 ENDIF IF Hours = 24 THEN Days = Days + 1 DaysChanged = 1 Hours = 0 ENDIF endif ENDIF R1 = R1save ; Restore the PBP system vars R0 = R0save @ INT_RETURN ; Restore context and return from interrupt '-----====[ END OF TMR1 Interrupt Handler ]====--------------------------------- StartTimer: IF NOT ZERO THEN T1CON.1 = 0 ; (TMR1CS) Select FOSC/4 Clock Source T1CON.3 = 0 ; (T1OSCEN) Disable External Oscillator PIR1.0 = 0 ; (TMR1IF) Clear Timer1 Interrupt Flag PIE1.0 = 1 ; (TMR1IE) Enable TMR1 overflow interrupt INTCON.6 = 1 ; (PEIE) Enable peripheral interrupts INTCON.7 = 1 ; (GIE) Enable global interrupts T1CON.0 = 1 ; (TMR1ON) Start TIMER1 ENDIF return ; ----------------- StopTimer: T1CON.0 = 0 ; Turn OFF Timer1 return ; ----------------- ResetTime: ZERO = 0 R0save = T1CON.0 ; Save TMR1ON bit T1CON.0 = 0 ; Turn OFF Timer1 TMR1L = 0 TMR1H = 0 @ LOAD_TIMER ; Load TimerConst T1CON.0 = R0save ; Restore TMR1ON bit Ticks = 0 Seconds = 0 Minutes = 0 Hours = 0 Days = 0 SecondsChanged = 1 return OverElapsed:

ASM_INTS.bas:

Code:

'**************************************************************** '* Name : ASM_INTS.PBP * '* Author : Darrel Taylor * '* Notice : Copyright (c) 2003 * '* Date : JAN 4, 2003 * '**************************************************************** wsave var byte $20 SYSTEM ' location for W if in bank0 ' --- IF any of these three lines cause an error ?? Simply Comment them out to fix the problem ---- wsave1 var byte $A0 SYSTEM ' location for W if in bank1 wsave2 var byte $120 SYSTEM ' location for W if in bank2 wsave3 var byte $1A0 SYSTEM ' location for W if in bank3 ' ------------------------------------------------------------------------------ ssave var byte BANK0 SYSTEM ' location for STATUS register psave var byte BANK0 SYSTEM ' location for PCLATH register fsave var byte BANK0 SYSTEM ' location for FSR register Asm INT_START macro IF (CODE_SIZE <= 2) movwf wsave ; copy W to wsave register swapf STATUS,W ; swap status reg to be saved into W clrf STATUS ; change to bank 0 regardless of current bank movwf ssave ; save status reg to a bank 0 register movf PCLATH,w ; move PCLATH reg to be saved into W reg movwf psave ; save PCLATH reg to a bank 0 register EndIF movf FSR,W ; move FSR reg to be saved into W reg movwf fsave ; save FSR reg to a bank 0 register endm EndAsm Asm INT_RETURN macro MOVF fsave,W ; Restore the FSR reg MOVWF FSR Movf psave,w ; Restore the PCLATH reg Movwf PCLATH swapf ssave,w ; Restore the STATUS reg movwf STATUS swapf wsave,f swapf wsave,w ; Restore W reg Retfie ; Exit the interrupt routine endm EndAsm

For starters, I'm just trying to get a 100tick interval on the Logic Probe with LatB.5.

Re: Symbol not prev defined FSR - Elapsed Timer

Modded this code for program:

https://dt.picbasic.co.uk/CODEX/ETimer

Elapsed_DN.bas came from here:

https://www.picbasic.co.uk/forum/con...sed-Timer-Demo

ASM_INTS.bas came from here:

https://dt.picbasic.co.uk/CODEX/ETimerExamples

Re: Symbol not prev defined FSR - Elapsed Timer

There is no FSR in the 16F18877, you have FSR0 and FSR1.

You need to look at the TMR1 setup... you need to set different registers and bits (ie T1CON and T1CLK).

1 Attachment(s)

Re: Symbol not prev defined FSR - Elapsed Timer

Quote:

Originally Posted by tumbleweed

There is no FSR in the 16F18877, you have FSR0 and FSR1...

I don't see a difference between FSR0 and FSR1. I assume I can use either one?

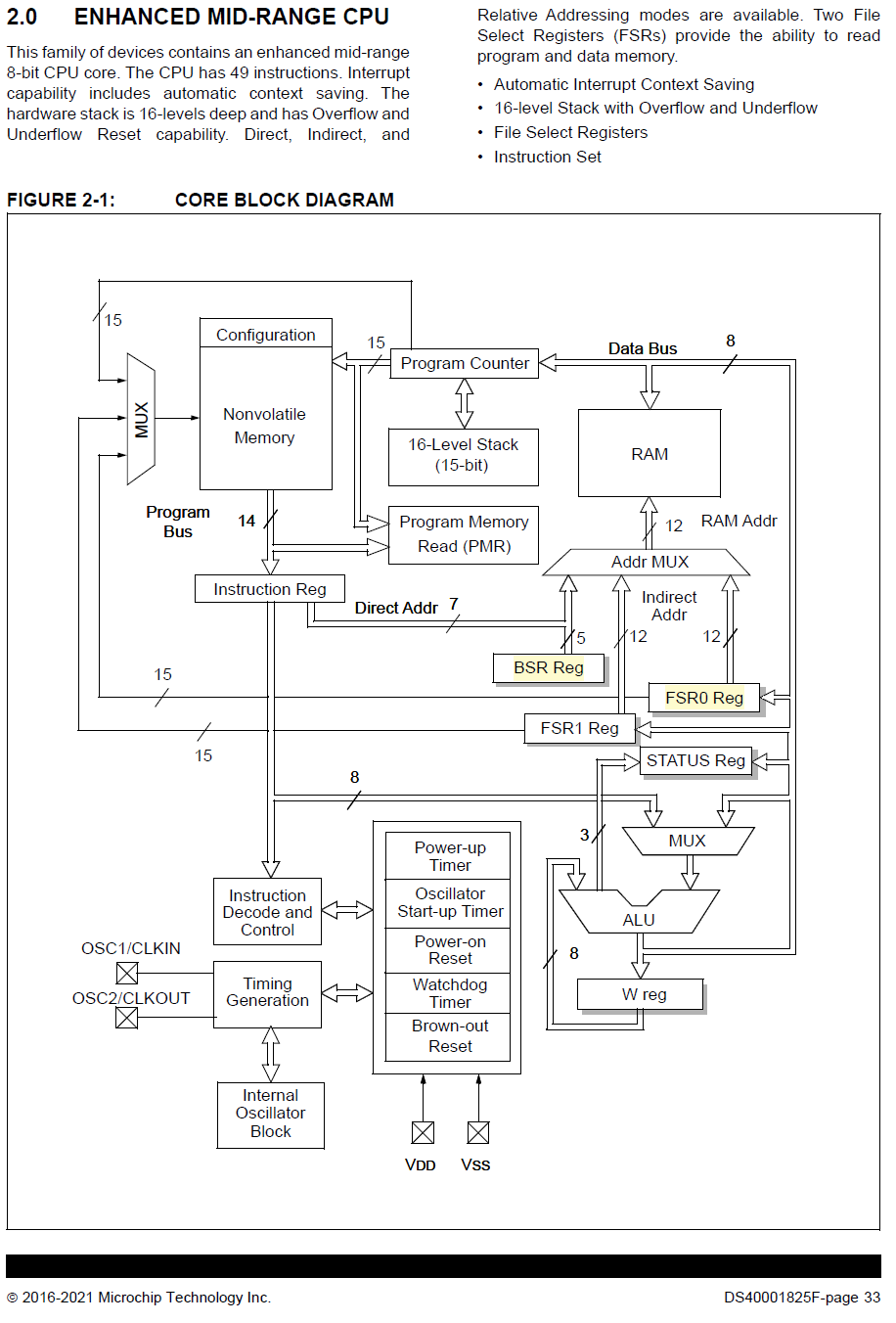

Attachment 9786

EDIT: Wooops, highlighted the wrong one, but you get the idea. FSR1 is right there as well, and it points to the same blocks as FSR0.

Re: Symbol not prev defined FSR - Elapsed Timer

16F18877

I start the timer, but I don't get a pulse on Logic Probe after 100 Ticks.

Code:

Code:

#CONFIG __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF __config _CONFIG5, _CP_OFF & _CPD_OFF #ENDCONFIG ;--- Interrupts ---------------------------------------------------------------- ;--- Defines ------------------------------------------------------------------- DEFINE OSC 32 define CCP1_REG 0 ' Must clear unused CCP pins or else unpredictable results DEFINE CCP1_BIT 0 define CCP2_REG 0 DEFINE CCP2_BIT 0 DEFINE CCP3_REG 0 DEFINE CCP3_BIT 0 define CCP4_REG 0 DEFINE CCP4_BIT 0 define CCP5_REG 0 ' Must clear unused CCP pins or else unpredictable results DEFINE CCP5_BIT 0 RA4PPS = 0 ' Disable CCP5 RB0PPS = 0 ' Disable CCP4 RB5PPS = 0 ' Disable CCP3 RC1PPS = 0 ' Disable CCP2 RC2PPS = 0 ' Disable CCP1 ANSELA = %00000000 ANSELB = %00000000 ANSELC = %00000000 ANSELD = %00000000 ANSELE = %00000000 ;--- Setup Port directions ----------------------------------------------------- TRISA = %00000000 TRISB = %00000000 TRISC = %00000000 TRISD = %00000000 TRISE = %00001000 INCLUDE "Elapsed_DN_Timer3_32MHz.bas" ' Elapsed Timer Routines 'Include "ASM_INTS_FSR0.bas" ' Required in folder to compile Days = 0 ' set initial time Hours = 0 Minutes = 1 Seconds = 0 LatB.0 = 0 ' Set interrupt trace low LatB.1 = 0 ' Set heartbeat trace low GOSUB StartTimer LatB.0 = 1 ' Beginning of interrupt Main: LatB.1 = 1 ' Pulse heartbeat IF Ticks > 100 THEN LatB.0 = 0 ' End of interrupt ENDIF LatB.1 = 0 ' Reset heartbeat trace GOTO Main end

Elapsed_DN_Timer3_32MHz.bas, modified for Timer3 and 32MHz:

Code:

'**************************************************************** '* Name : ELAPSED.PBP * '* Author : Darrel Taylor * '* Notice : Copyright (c) 2003 * '* Date : 12/16/2003 * '* Notes : * '**************************************************************** '* Name : Elapsed_DN_Timer3_32MHz.bas * '* Author : Robert H * '* Date : 2024-10-05 * '* Notes : Added support for 16F18877: * ' a) Added 32MHz * ' b) Used Timer3 instead of Timer1: * ' - changed Timer1 to Timer3 * ' - changed T1 to T3 * ' - changed TMR1 to TMR3 * ' - changed PIR1 to PIR4 * ' - changed PIE1 to PIE4 * ' c) Changed T3CON,TMR3ON to T3CON,ON * ' d) Used FSR0 in ASM_INTS_FSR0.bas * '**************************************************************** Define INTHAND _ClockCount ' Tell PBP Where the code starts on an interrupt Include "ASM_INTS_FSR0.bas" ' ASM Interrupt Stubs Ticks VAR BYTE ' 1/100th of a second Seconds VAR BYTE Minutes VAR BYTE Hours VAR BYTE Days VAR WORD R0save VAR WORD R1save VAR WORD ZERO VAR BIT CountDown VAR BIT SecondsChanged VAR BIT MinutesChanged VAR BIT HoursChanged VAR BIT DaysChanged VAR BIT CountDown = 0 SecondsChanged = 1 MinutesChanged = 1 Goto OverElapsed ' ------------------------------------------------------------------------------ Asm IF OSC == 4 ; Constants for 100hz interrupt from Timer3 TimerConst = 0D8F7h ; Executed at compile time only EndIF If OSC == 8 TimerConst = 0B1E7h EndIF If OSC == 10 TimerConst = 09E5Fh EndIF If OSC == 20 TimerConst = 03CB7h EndIF If OSC == 32 ; T3CON TimerConst = 063C7h ; TMR3CS bit 1, 0 = FOSC/4 EndIF ; T3CKPS bit 5-4, 01 = 1:2 Prescale value ; ----------------- ADD TimerConst to TMR3H:TMR3L ADD2_TIMER macro CHK?RP T3CON BCF T3CON,TMR3ON ; Turn off timer MOVLW LOW(TimerConst) ; 1 ADDWF TMR3L,F ; 1 ; reload timer with correct value BTFSC STATUS,C ; 1/2 INCF TMR3H,F ; 1 MOVLW HIGH(TimerConst) ; 1 ADDWF TMR3H,F ; 1 endm ; ----------------- ADD TimerConst to TMR3H:TMR3L and restart Timer3 RELOAD_TIMER macro ADD2_TIMER BSF T3CON,TMR3ON ; 1 ; Turn Timer3 back on CHK?RP PIR4 bcf PIR4, TMR3IF ; Clear Timer3 Interrupt Flag endm ; ----------------- Load TimerConst into TMR3H:TMR3L LOAD_TIMER macro EndAsm T3CON.0 = 0 ; Turn OFF Timer3 TMR3L = 0 TMR3H = 0 Asm ADD2_TIMER endm EndAsm ' ------[ This is the Interrupt Handler ]--------------------------------------- ClockCount: ' Note: this is being handled as an ASM interrupt @ INT_START @ RELOAD_TIMER ; Reload Timer3 R0save = R0 ; Save 2 PBP system vars that are used during R1save = R1 ; the interrupt Ticks = Ticks + 1 if Ticks = 100 then Ticks = 0 IF CountDown THEN IF Seconds > 0 THEN Seconds = Seconds - 1 SecondsChanged = 1 IF Seconds = 0 THEN IF Days = 0 THEN IF Hours = 0 THEN IF Minutes = 0 THEN GOSUB StopTimer ; Zero reached ZERO = 1 ENDIF ENDIF ENDIF ENDIF ELSE IF Minutes > 0 THEN Minutes = Minutes - 1 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 ELSE IF Hours > 0 THEN Hours = Hours - 1 Minutes = 59 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 HoursChanged = 1 ELSE IF Days > 0 THEN Days = Days - 1 Hours = 23 Minutes = 59 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 HoursChanged = 1 DaysChanged = 1 ELSE ; Zero already reached, shouldn't get here GOSUB StopTimer ZERO = 1 ENDIF ENDIF ENDIF ENDIF ELSE ; Counting Up Seconds = Seconds + 1 SecondsChanged = 1 IF Seconds = 60 THEN Minutes = Minutes + 1 MinutesChanged = 1 Seconds = 0 ENDIF IF Minutes = 60 THEN Hours = Hours + 1 HoursChanged = 1 Minutes = 0 ENDIF IF Hours = 24 THEN Days = Days + 1 DaysChanged = 1 Hours = 0 ENDIF endif ENDIF R1 = R1save ; Restore the PBP system vars R0 = R0save @ INT_RETURN ; Restore context and return from interrupt '-----====[ END OF TMR3 Interrupt Handler ]====--------------------------------- StartTimer: IF NOT ZERO THEN T3CON.1 = 0 ; (TMR3CS) Select FOSC/4 Clock Source T3CON.3 = 0 ; (T3OSCEN) Disable External Oscillator PIR4.0 = 0 ; (TMR3IF) Clear Timer3 Interrupt Flag PIE4.0 = 1 ; (TMR3IE) Enable TMR3 overflow interrupt INTCON.6 = 1 ; (PEIE) Enable peripheral interrupts INTCON.7 = 1 ; (GIE) Enable global interrupts T3CON.0 = 1 ; (TMR3ON) Start Timer3 ENDIF return ; ----------------- StopTimer: T3CON.0 = 0 ; Turn OFF Timer3 return ; ----------------- ResetTime: ZERO = 0 R0save = T3CON.0 ; Save TMR3ON bit T3CON.0 = 0 ; Turn OFF Timer3 TMR3L = 0 TMR3H = 0 @ LOAD_TIMER ; Load TimerConst T3CON.0 = R0save ; Restore TMR3ON bit Ticks = 0 Seconds = 0 Minutes = 0 Hours = 0 Days = 0 SecondsChanged = 1 return OverElapsed:

ASM_INTS_FSR0.bas, modified for FSR0:

Code:

'**************************************************************** '* Name : ASM_INTS.PBP * '* Author : Darrel Taylor * '* Notice : Copyright (c) 2003 * '* Date : JAN 4, 2003 * '* Notes : * '**************************************************************** '* Name : ASM_INTS_FSR0.bas * '* Author : Robert H * '* Date : 2024-10-05 * '* Notes : Added support for 16F18877: * ' a) Changed FSR to FSR0 * '**************************************************************** wsave var byte $20 SYSTEM ' location for W if in bank0 ' --- IF any of these three lines cause an error ?? Simply Comment them out to fix the problem ---- wsave1 var byte $A0 SYSTEM ' location for W if in bank1 wsave2 var byte $120 SYSTEM ' location for W if in bank2 wsave3 var byte $1A0 SYSTEM ' location for W if in bank3 ' ------------------------------------------------------------------------------ ssave var byte BANK0 SYSTEM ' location for STATUS register psave var byte BANK0 SYSTEM ' location for PCLATH register fsave var byte BANK0 SYSTEM ' location for FSR0 register Asm INT_START macro IF (CODE_SIZE <= 2) movwf wsave ; copy W to wsave register swapf STATUS,W ; swap status reg to be saved into W clrf STATUS ; change to bank 0 regardless of current bank movwf ssave ; save status reg to a bank 0 register movf PCLATH,w ; move PCLATH reg to be saved into W reg movwf psave ; save PCLATH reg to a bank 0 register EndIF movf FSR0,W ; move FSR0 reg to be saved into W reg movwf fsave ; save FSR0 reg to a bank 0 register endm EndAsm Asm INT_RETURN macro MOVF fsave,W ; Restore the FSR0 reg MOVWF FSR0 Movf psave,w ; Restore the PCLATH reg Movwf PCLATH swapf ssave,w ; Restore the STATUS reg movwf STATUS swapf wsave,f swapf wsave,w ; Restore W reg Retfie ; Exit the interrupt routine endm EndAsm

I used 18F4450 as an example of "default" settings.

18F4450, bit 0 is called TMR1ON in the datasheet.
16F18877, bit 0 is called ON.

If I rename the bit to ON, I get Symbol not previously defined (ON).

I must have missed something.

Re: Symbol not prev defined FSR - Elapsed Timer

I would start off with interrupt and in routine just add to a counter then in Basic do the math to get seconds, minutes etc. Otherwise that is a lot of code to fumble through. :eek::cool:

Re: Symbol not prev defined FSR - Elapsed Timer

there are more problems here than i can count

1, timer3 has no clock source
2, how can ticks ever get beyond 100

Code:

main: LatB.1 = 1 ' Pulse heartbeat IF Ticks > 100 THEN LatB.0 = 0 ' End of interrupt ENDIF LatB.1 = 0 ' Reset heartbeat trace GOTO Main

when

Code:

ClockCount: ' Note: this is being handled as an ASM interrupt @ INT_START @ RELOAD_TIMER ; Reload Timer3 R0save = R0 ; Save 2 PBP system vars that are used during R1save = R1 ; the interrupt Ticks = Ticks + 1 if Ticks = 100 then Ticks = 0 IF CountDown THEN

3, a 16f18877 like all enhanced core pic16's has Auto context save
the entire int_start / int_return macros are inappropriate

4, you need to rethink that, that is for timer1 not 3

Code:

StartTimer: IF NOT ZERO THEN T3CON.1 = 0 ; (TMR3CS) Select FOSC/4 Clock Source T3CON.3 = 0 ; (T3OSCEN) Disable External Oscillator PIR4.0 = 0 ; (TMR3IF) Clear Timer3 Interrupt Flag PIE4.0 = 1 ; (TMR3IE) Enable TMR3 overflow interrupt INTCON.6 = 1 ; (PEIE) Enable peripheral interrupts INTCON.7 = 1 ; (GIE) Enable global interrupts T3CON.0 = 1 ; (TMR3ON) Start Timer3 ENDIF return

Re: Symbol not prev defined FSR - Elapsed Timer

I'm already using Timer1, hence why I hoped to use Timer3.

I'll swap what I'm doing, so I can use DT's routine without changing Timer1.

(At the restaurant, so can't post elaborate reply)

Re: Symbol not prev defined FSR - Elapsed Timer

Quote:

Originally Posted by richard

... how can ticks ever get beyond 100 ...

I only wanted 1 interval, so I'd know the mods were working with the 16F18877.

Re: Symbol not prev defined FSR - Elapsed Timer

how big would Ticks have to be to make this true ?

IF Ticks > 100 THEN

Re: Symbol not prev defined FSR - Elapsed Timer

Quote:

Originally Posted by richard

how big would Ticks have to be to make this true ?

IF Ticks > 100 THEN

I have a feeling I'll be waiting a while for that to happen. :D I've brought that down to Ticks > 1.

I've started again with the original includes, and:
- added 32MHz
- changed PIE1 to PIE4
- changed PIR1 to PIR4
- changed FSR to FSR0

...I'm adding T1CON and T1CLK now...

I'm still puzzled by T1CON,TMR1ON. The datasheet doesn't have TMR1ON, it's just ON.

EDIT: Confirmed, it works once I added T1CON and T1CLK. I was blindly following the instructions on the Book of Interrupts and forgetting that this PIC is different.

a) I'm still puzzled why TMR1ON works though; seems contradictory to me.

b) so 1 Tick is 66.4ms on a 16F18877.

Blissful ignorance is a wonderful thing...

1 Attachment(s)

Re: Symbol not prev defined FSR - Elapsed Timer

all bit definitions are in the mpasmx folder *.inc files. the datasheet refers to any timer1 type timer for that chip, ie tmr1 tmr3 tmr5

eg

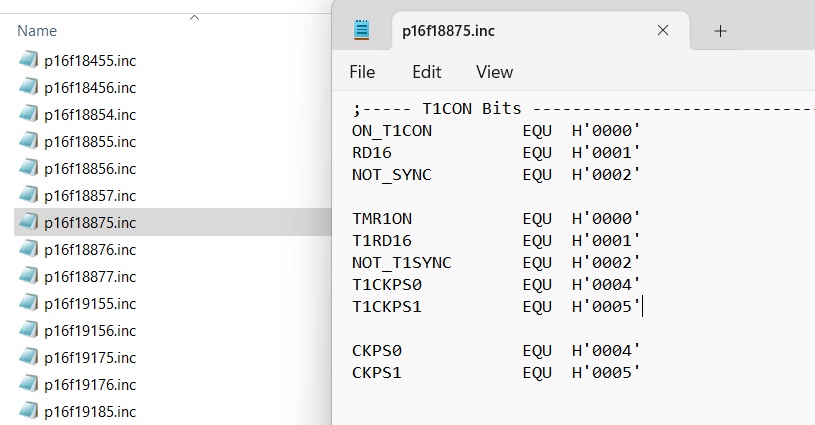

Attachment 9788

Re: Symbol not prev defined FSR - Elapsed Timer

I want to post my code in Code Examples.

What would be a good label for new PICs like the 16F18877 that need modified includes?

Re: Symbol not prev defined FSR - Elapsed Timer

Quote:

Originally Posted by richard

all bit definitions are in the mpasmx folder *.inc files.

Should we edit those includes to match the names In the datasheet?

Or is that opening another can of worms?

Re: Symbol not prev defined FSR - Elapsed Timer

Quote:

Should we edit those includes to match the names In the datasheet?

absolutely not, there is no problem to solve

if you want to use mpasm bit names in your code then use the bit names that microchip have created for them
there is zero point in inventing names that mpasmx will not recognize.
the proper and correct names are in the mpasmx picxxxxx.inc files

Re: Symbol not prev defined FSR - Elapsed Timer

I have no clue why the elapsed timer worked once before I went to bed. I get up today, and I can't get it to repeat the same results.

Quote:

Originally Posted by richard

... a 16f18877 like all enhanced core pic16's has Auto context save the entire int_start / int_return macros are inappropriate...

I didn't comprehend the depth of this statement, until now. I thought I was just forced to accept using Timer1 in the routines, and adapt my main code to use other timers.

Quote:

Originally Posted by amgen

I would start off with interrupt and in routine just add to a counter. ..

As they say, this is the way. I already have Timer1 running in 50ms intervals, I can easily repeat the same process with Timer3 and maintain a counter (I'm only after 100-200ms intervals anyways, this is just to avoid checking ADC every MainLoop).

I really thought Elapsed Timer could work with the 16F18877. I didn't understand that the assembler code just doesn't work with the newer PICs.

(Hopefully I haven't misunderstood anything this time :D )

1 Attachment(s)

Re: Symbol not prev defined FSR - Elapsed Timer

PIC 16F18877

Timer1 at 50ms intervals
Timer3 at 150ms intervals

Code:

Code:

'*************************************************************************************************** ' * ' Generate trace on Interrupt on Logic Probe * ' * ' PIC 16F18877 * ' * '*************************************************************************************************** #CONFIG __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_OFF & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_OFF __config _CONFIG5, _CP_OFF & _CPD_OFF #ENDCONFIG ;--- Interrupts ---------------------------------------------------------------- include "I:\Project_v2\PBP\PBP_Includes\DT_INTS-14_16F18877.bas" include "I:\Project_v2\PBP\PBP_Includes\ReEnterPBP.bas" ASM INT_LIST macro ; IntSource, Label, Type, ResetFlag? INT_Handler TMR1_INT, _Timer1Interrupt, PBP, yes INT_Handler TMR3_INT, _Timer3Interrupt, PBP, yes endm INT_CREATE ; Creates the interrupt processor INT_ENABLE TMR1_INT ;enables TMR1 interrupts INT_ENABLE TMR3_INT ;enables TMR3 interrupts ENDASM DEFINE OSC 32 define CCP1_REG 0 DEFINE CCP1_BIT 0 define CCP2_REG 0 DEFINE CCP2_BIT 0 DEFINE CCP3_REG 0 DEFINE CCP3_BIT 0 define CCP4_REG 0 DEFINE CCP4_BIT 0 define CCP5_REG 0 ' Must clear unused CCP pins or else unpredictable results DEFINE CCP5_BIT 0 RA4PPS = 0 ' Disable CCP5 RB0PPS = 0 ' Disable CCP4 RB5PPS = 0 ' Disable CCP3 RC1PPS = 0 ' Disable CCP2 RC2PPS = 0 ' Disable CCP1 T1CON = %00110001 ' 1:8 Prescale, Enables Timer1 T3CON = %00110001 ' 1:8 Prescale, Enables Timer3 ' bit 7-6 Unimplemented: Read as ‘0’ ' bit 5-4 CKPS<1:0>: Timer1 Input Clock Prescale Select bits ' ----> 11 = 1:8 Prescale value ' 10 = 1:4 Prescale value ' 01 = 1:2 Prescale value ' 00 = 1:1 Prescale value ' bit 3 Unimplemented: Read as ‘0’ ' bit 2 SYNC: Timer1 Synchronization Control bit ' When TMR1CLK = FOSC or FOSC/4 ' This bit is ignored. The timer uses the internal clock and no ' additional synchronization is performed. ' When TMR1CS<1:0> = (any setting other than FOSC or FOSC/4) ' 1 = Do not synchronize external clock input ' 0 = Synchronized external clock input with system clock ' bit 1 RD16: Timer1 On bit ' 1 = All 16 bits of Timer1 can be read simultaneously (TMR1H is buffered) ' 0 = 16-bit reads of Timer1 are disabled (TMR1H is not buffered) ' bit 0 ON: Timer1 On bit ' ----> 1 = Enables Timer1 ' 0 = Stops Timer1 and clears Timer1 gate flip-flop T1CLK = %00000001 ' FOSC/4 Timer1 Clock T3CLK = %00000001 ' FOSC/4 Timer1 Clock ' bit 7-4 Unimplemented: Read as ‘0’ ' bit 3-0 TxCS<3:0>: Timer1/3/5 Clock Select bits ' 1111 = LC4_out ' 1110 = LC3_out ' 1101 = LC2_out ' 1100 = LC1_out ' 1011 = TMR5 overflow output ' 1010 = TMR3 overflow output ' 1001 = TMR1 overflow output ' 1000 = TMR0 overflow output ' 0111 = CLKR output clock ' 0110 = SOSC ' 0101 = MFINTOSC ' 1.05msec @ 32MHz with no preload ' 0100 = LFINTOSC ' n/a ' 0011 = HFINTOSC ' 16.56msec @ 32MHz with no preload ' 0010 = FOSC ' 16.54msec @ 32MHz with no preload ' ----> 0001 = FOSC/4 ' 66.18msec @ 32MHz with no preload ' 0000 = TxCKIPPS ANSELA = %00000000 ANSELB = %00000000 ANSELC = %00000000 ANSELD = %00000000 ANSELE = %00000000 TRISA = %00000000 TRISB = %00000000 TRISC = %00000000 TRISD = %00000000 TRISE = %00001000 Timer1Ended var byte Timer3Ended var byte Timer3Counter var byte LatB.2 = 0 ' Set Timer1 trace low LatB.0 = 0 ' Set Timer3 trace low LatB.1 = 0 ' Set heartbeat trace low pause 1 goto Start ;--- Interrupts ---------------------------------------------------------------- Timer1Interrupt: T1CON.0 = 0 ' Stops Timer1 Timer1Ended = 1 ' Set flag @ INT_RETURN Timer3Interrupt: T3CON.0 = 0 ' Stops Timer3 Timer3Ended = 1 ' Set flag @ INT_RETURN ;--- Subroutines --------------------------------------------------------------- StartTimer1: @ INT_CLEAR TMR1_INT -- clear flags TMR1H = 62 : TMR1L = 95 ' 50msec interval (32MHz, 16bit, 1:8) T1CON.0 = 1 ' Starts Timer1 Timer1Ended = 0 ' Set flag return StartTimer3: @ INT_CLEAR TMR1_INT -- clear flags TMR3H = 62 : TMR3L = 95 ' 50msec interval (32MHz, 16bit, 1:8) T3CON.0 = 1 ' Starts Timer3 Timer3Ended = 0 ' Set flag return Start: GOSUB StartTimer1 LatB.2 = 1 ' Start Timer1 trace Timer3Counter = 0 GOSUB StartTimer3 LatB.0 = 1 ' Start Timer3 trace Main: LatB.1 = 1 ' Pulse heartbeat IF Timer1Ended = 1 THEN LatB.2 = 0 ' Stop Timer1 trace GOSUB StartTimer1 LatB.2 = 1 ' Start Timer1 trace ENDIF IF Timer3Ended = 1 THEN Timer3Counter = Timer3Counter + 1 if Timer3Counter = 3 then Timer3Counter = 0 LatB.0 = 0 ' Stop Timer3 trace endif GOSUB StartTimer3 LatB.0 = 1 ' Start Timer3 trace ENDIF LatB.1 = 0 ' Reset heartbeat trace GOTO Main end

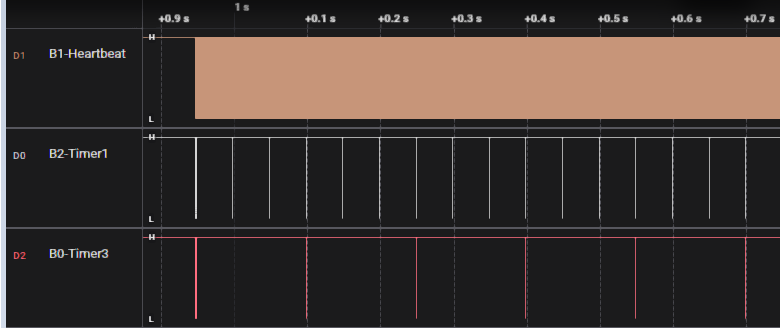

Attachment 9791

Re: Symbol not prev defined FSR - Elapsed Timer

In case someone needs it.

DT_INTS-14_16F18877.bas, supports on 16F18877:

- IOC
- Timer1
- Timer3
- RX
- CCP1
- CCP2
- CCP3
- CCP4
- CCP5

Code:

'*************************************************************************** '* Name : DT_INTS-14_16F18877.bas * '* Author : Darrel Taylor (modified by Demon) * '* Version : 1.15 (8/29/2024) * '* Date : OCT 13, 2009 * '*************************************************************************** '* REV 1.15 Customized for 16F1885xx-7x (IOC, USART-RX, CCPx) * '* REV 1.10 Fixes Duplicate label error when Handlers cross page boundary * '* Fixes error with 16F1's and MPLAB 8.53 (high) * '* REV 1.00 Completely re-written, with optimization and F1 chips in mind * '* REV 0.93 Fixed CMIF and EEIF problem with older PIC's * '* that have the Flags in PIR1 instead of PIR2 * '* Rev 0.92 solves a "Missed Interrupt" and * '* banking switching problem * '*************************************************************************** DEFINE DT_INTS_VERSION 110 DEFINE INTHAND INT_ENTRY ;-- Place a copy of these variables in your Main program ------------------- ;-- The compiler will tell you which lines to un-comment -- ;-- Do Not un-comment these lines -- ;--------------------------------------------------------------------------- ;wsave VAR BYTE $20 SYSTEM ' location for W if in bank0 ;wsave VAR BYTE $70 SYSTEM ' alternate save location for W ' if using $70, comment wsave1-3 ' --- IF any of these three lines cause an error ?? ------------------------ ' Comment them out to fix the problem ---- ' -- Which variables are needed, depends on the Chip you are using -- ;wsave1 VAR BYTE $A0 SYSTEM ' location for W if in bank1 ;wsave2 VAR BYTE $120 SYSTEM ' location for W if in bank2 ;wsave3 VAR BYTE $1A0 SYSTEM ' location for W if in bank3 ' -------------------------------------------------------------------------- ssave VAR BYTE BANK0 SYSTEM ' location for STATUS register psave VAR BYTE BANK0 SYSTEM ' location for PCLATH register fsave VAR BYTE BANK0 SYSTEM ' location for FSR register RetAddr VAR WORD BANK0 INT_Bits VAR BYTE BANK0 Serviced VAR INT_Bits.0 Vars_Saved VAR INT_Bits.1 GIE VAR INTCON.7 PEIE VAR INTCON.6 ASM ifdef PM_USED ; verify MPASM is the assembler "ERROR: DT_INTS does not support the PM assembler, USE MPASM" endif ;--------------------------------------------------------------------------- ifdef ReEnterUsed ifdef ReEnterVersion if (ReEnterVersion < 34) error "Wrong version of ReEnterPBP.bas - Ver 3.4 or higher required endif else error "Wrong version of ReEnterPBP.bas - Ver 3.4 or higher required endif endif ;--------------------------------------------------------------------------- if (BANK0_END == 0x7F) ifdef BANK1_END if (BANK1_END == 0xEF) ; doesn't find 12F683 variable ACCESSRAM = 1 else variable ACCESSRAM = 0 endif else variable ACCESSRAM = 0 endif else variable ACCESSRAM = 0 endif ;--------------------------------------------------------------------------- #define OrChange Or change to wsave BYTE $70 SYSTEM AddWsave macro B if (B == 0) if (ACCESSRAM == 1) error " Add:" wsave VAR BYTE $70 SYSTEM else error " Add:" wsave VAR BYTE $20 SYSTEM endif endif if (B == 1) if (ACCESSRAM == 1) error " Add:" wsave1 VAR BYTE $A0 SYSTEM, OrChange else error " Add:" wsave1 VAR BYTE $A0 SYSTEM endif endif if (B == 2) if (ACCESSRAM == 1) error " Add:" wsave2 VAR BYTE $120 SYSTEM, OrChange else error " Add:" wsave2 VAR BYTE $120 SYSTEM endif endif if (B == 3) if (ACCESSRAM == 1) error " Add:" wsave3 VAR BYTE $1A0 SYSTEM, OrChange else error " Add:" wsave3 VAR BYTE $1A0 SYSTEM endif endif endm #define WsaveE1(B) Chip has RAM in BANK#v(B), but wsave#v(B) was not found. ;#define WsaveE2(B) Uncomment wsave#v(B) in the DT_INTS-14.bas file. #define WsaveCouldBe This chip has access RAM at $70 #define WsaveError(B) error WsaveE1(B) ifndef FSR0L ; not a 16F1 ifndef wsave ; if (ACCESSRAM == 1) error wsave variable not found, AddWsave(0) variable wsave = 0 ; stop further wsave errors ; else ; endif else if (wsave == 0x70) if (ACCESSRAM == 0) error This chip does not have AccessRAM at $70, change to wsave VAR BYTE $20 SYSTEM endif else if (wsave != 0x20) error wsave must be either $20 or $70 endif endif endif ifdef BANK1_START ifndef wsave1 ifdef wsave if (wsave != 0x70) WsaveError(1) AddWsave(1) endif else if (ACCESSRAM == 1) if (wsave != 0x70) WsaveCouldBe endif endif endif endif endif ifdef BANK2_START ifndef wsave2 ifdef wsave if (wsave != 0x70) WsaveError(2) AddWsave(2) endif endif endif endif ifdef BANK3_START ifndef wsave3 ifdef wsave if (wsave != 0x70) WsaveError(3) AddWsave(3) endif endif endif endif endif ENDASM ASM asm = 0 Asm = 0 ASM = 0 pbp = 1 Pbp = 1 PBP = 1 yes = 1 Yes = 1 YES = 1 no = 0 No = 0 NO = 0 ;---[Original DEFINES]------------------------------------------------------ #define ALL_INT INTCON,GIE, INTCON,GIE ;-- Global Interrupts * ; #define IOC_INT INTCON,IOCIF, INTCON,IOCIE ;-- Int On Change ; #define RX_INT PIR1,RCIF, PIE1,RCIE ;-- USART Receive ; #define CCP1_INT PIR1,CCP1IF, PIE1,CCP1IE ;-- CCP1 ; #define CCP2_INT PIR2,CCP2IF, PIE2,CCP2IE ;-- CCP2 ; #define CCP3_INT PIR3,CCP3IF, PIE3,CCP3IE ;-- CCP3 ; #define CCP4_INT PIR3,CCP4IF, PIE3,CCP4IE ;-- CCP4 ; #define CCP5_INT PIR3,CCP5IF, PIE3,CCP5IE ;-- CCP5 #define IOC_INT PIR0,IOCIF, PIE0,IOCIE ;-- Int On Change #define TMR1_INT PIR4,TMR1IF, PIE4,TMR1IE ;-- Timer1 #define TMR3_INT PIR4,TMR3IF, PIE4,TMR3IE ;-- Timer3 #define RX_INT PIR3,RCIF, PIE3,RCIE ;-- USART Receive #define CCP1_INT PIR6,CCP1IF, PIE6,CCP1IE ;-- CCP1 #define CCP2_INT PIR6,CCP2IF, PIE6,CCP2IE ;-- CCP2 #define CCP3_INT PIR6,CCP3IF, PIE6,CCP3IE ;-- CCP3 #define CCP4_INT PIR6,CCP4IF, PIE6,CCP4IE ;-- CCP4 #define CCP5_INT PIR6,CCP5IF, PIE6,CCP5IE ;-- CCP5 ENDASM ASM ;---[Returns the Address of a Label as a Word]------------------------------ GetAddress macro Label, Wout CHK?RP Wout movlw low Label ; get low byte movwf Wout ; movlw High Label ; get high byte MPLAB 8.53 killed high movlw Label >> 8 ; get high byte movwf Wout + 1 endm ;---[find correct bank for a BIT variable]---------------------------------- CHKRP?T macro reg, bit CHK?RP reg endm ;---[This creates the main Interrupt Service Routine (ISR)]----------------- INT_CREATE macro local OverCREATE L?GOTO OverCREATE INT_ENTRY ifndef FSR0L if (CODE_SIZE <= 2) movwf wsave ; 1 copy W to wsave register swapf STATUS,W ; 2 swap status reg to be saved into W clrf STATUS ; 3 change to bank 0 movwf ssave ; 4 save status reg to a bank 0 register movf PCLATH,W ; 5 move PCLATH reg to be saved into W reg movwf psave ; 6 save PCLATH reg to a bank 0 register endIF movf FSR,W ; 7 move FSR reg to be saved into W reg movwf fsave ; 8 save FSR reg to a bank 0 register else banksel 0 ; BANK 0 for F1 chips endif variable PREV_BANK = 0 MOVE?CT 0, _Vars_Saved List_Start ifdef LoopWhenServiced MOVE?CT 0, _Serviced ; indicate nothing has been serviced endif INT_LIST ; Expand the users list of interrupt handlers ; INT_LIST macro must be defined in main program ifdef LoopWhenServiced BIT?GOTO 1, _Serviced, List_Start endif ifdef ReEnterUsed ; if ReEnterPBP.bas was included CHKRP?T _Vars_Saved btfss _Vars_Saved ; if PBP system vars have been saved goto INT_EXIT L?GOTO _RestorePBP ; Restore PBP system Vars endif INT_EXIT variable PREV_BANK = 0 ifndef FSR0L ; if chip is not an F1 - restore context clrf STATUS ; BANK 0 movf fsave,W ; Restore the FSR reg movwf FSR movf psave,w ; Restore the PCLATH reg movwf PCLATH swapf ssave,w ; Restore the STATUS reg movwf STATUS swapf wsave,f swapf wsave,w ; Restore W reg endif retfie ; Exit the interrupt routine ;----------------------------- LABEL?L OverCREATE bsf INTCON, 6 ; Enable Peripheral interrupts bsf INTCON, 7 ; Enable Global interrupts endm ENDASM ASM ;---[Add an Interrupt Source to the user's list of INT Handlers]------------ #INT_HANDLER macro FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset list local AfterSave, AfterUserRoutine, NoInt ifdef FlagBit CHK?RP EnableReg btfss EnableReg, EnableBit ; if the INT is enabled goto NoInt CHK?RP FlagReg btfss FlagReg, FlagBit ; and the Flag set? goto NoInt ifdef LoopWhenServiced MOVE?CT 1, _Serviced endif if (Type == PBP) ; If INT handler is PBP ifdef ReEnterUsed btfsc _Vars_Saved goto AfterSave GetAddress AfterSave, _RetAddr L?GOTO _SavePBP ; Save PBP system Vars LABEL?L AfterSave else error ReEnterPBP must be INCLUDEd to use PBP type interrupts endif endif GetAddress AfterUserRoutine, _RetAddr ; save return address L?GOTO Label ; goto the users INT handler LABEL?L AfterUserRoutine if (Reset == YES) CHK?RP FlagReg bcf FlagReg, FlagBit ; reset flag (if specified) endif else INT_ERROR "INT_Handler" endif NoInt banksel 0 PREV_BANK = 0 endm ;----------------------------------- #define INT_HANDLER(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset ifndef INT_Handler #define INT_Handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset #define int_handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset #define Int_Handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset #define Int_handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset #define int_Handler(FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset) #INT_HANDLER FlagReg,FlagBit, EnableReg,EnableBit, Label, Type,Reset endif ;---[Returns from a "goto" subroutine]--------(RetAddr must be set first)--- #INT_RETURN macro CHK?RP _RetAddr movf _RetAddr + 1, W ; Set PCLATH with top byte of return address movwf PCLATH movf _RetAddr, W ; Go back to where we were movwf PCL endm ;_____________________________ #define INT_RETURN #INT_RETURN ifndef INT_Return #define INT_Return #INT_RETURN #define int_return #INT_RETURN #define Int_Return #INT_RETURN #define Int_return #INT_RETURN #define int_Return #INT_RETURN endif ;----[Display not found error]---------------------------------------------- INT_ERROR macro From error From - Interrupt Flag ( FlagReg,FlagBit ) not found. endm ;---[Enable an interrupt source]-------------------------------------------- ifndef INT_ENABLECLEARFIRST #define INT_ENABLECLEARFIRST 1 ; default to Clear First endif ; use DEFINE INT_ENABLECLEARFIRST 0 to NOT clear First #INT_ENABLE macro FlagReg, FlagBit, EnableReg, EnableBit ifdef FlagBit ifdef INT_ENABLECLEARFIRST if (INT_ENABLECLEARFIRST == 1) ; if specified MOVE?CT 0, FlagReg, FlagBit ; clear the flag first endif endif MOVE?CT 1, EnableReg, EnableBit ; enable the INT source else INT_ERROR "INT_ENABLE" endif endm ;_____________________________ #define INT_ENABLE(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit ifndef INT_Enable #define INT_Enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit #define int_enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit #define Int_Enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit #define Int_enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit #define int_Enable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_ENABLE FlagReg, FlagBit, EnableReg, EnableBit endif ;---[Disable an interrupt source]------------------------------------------- #INT_DISABLE macro FlagReg, FlagBit, EnableReg, EnableBit ifdef FlagBit MOVE?CT 0, EnableReg, EnableBit ; disable the INT source else INT_ERROR "INT_DISABLE" endif endm ;_____________________________ #define INT_DISABLE(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit ifndef INT_Disable #define INT_Disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit #define int_disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit #define Int_Disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit #define Int_disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit #define int_Disable(FlagReg, FlagBit, EnableReg, EnableBit) #INT_DISABLE FlagReg, FlagBit, EnableReg, EnableBit endif ;---[Clear an interrupt Flag]----------------------------------------------- #INT_CLEAR macro FlagReg, FlagBit, EnableReg, EnableBit ifdef FlagBit MOVE?CT 0, FlagReg, FlagBit ; clear the flag else INT_ERROR "INT_CLEAR" endif endm ;_____________________________ #define INT_CLEAR(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit ifndef INT_Clear #define INT_Clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit #define int_clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit #define Int_Clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit #define Int_clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit #define int_Clear(FlagReg, FlagBit, EnableReg, EnableBit) #INT_CLEAR FlagReg, FlagBit, EnableReg, EnableBit endif ENDASM

Re: Symbol not prev defined FSR - Elapsed Timer

Quote:

I didn't comprehend the depth of this statement, until now. I thought I was just forced to accept using Timer1 in the routines, and adapt my main code to use other timers.

i doubt i will understand how you came to that conclusion. you will need a different strategy if you plan additional interrupt usage as there can only be one interrupt handler, dt's elapsed timer takes it over entirely

by the way the newer chips are easier to use

i called this dlapsed.pbp,

Code:

'**************************************************************** '* Name : ELAPSED.PBP * '* Author : Darrel Taylor * '* Notice : Copyright (c) 2003 * '* Date : 12/16/2003 * '* Notes : its based on this * '**************************************************************** '* Name : DLAPSED.PBP * '* Author : Richard * '* Date : 2024-10-05 * '* Notes : for 16F18877 or similar * ' a) @32MHz * ' b) Used Timer3 * '**************************************************************** Define INTHAND _ClockCount ' Tell PBP Where the code starts on an interrupt Ticks VAR BYTE ' 1/100th of a second Seconds VAR BYTE Minutes VAR BYTE Hours VAR BYTE Days VAR WORD R0save VAR WORD R1save VAR WORD ZERO VAR BIT CountDown VAR BIT SecondsChanged VAR BIT MinutesChanged VAR BIT HoursChanged VAR BIT DaysChanged VAR BIT CountDown = 0 SecondsChanged = 1 MinutesChanged = 1 Goto OverElapsed ' ------------------------------------------------------------------------------ Asm TimerConst = 45537 ; 100Hz ; ----------------- ADD TimerConst to TMR3H:TMR3L ADD2_TIMER macro CHK?RP T3CON BCF T3CON,TMR3ON ; Turn off timer MOVLW LOW(TimerConst) ; 1 ADDWF TMR3L,F ; 1 ; reload timer with correct value BTFSC STATUS,C ; 1/2 INCF TMR3H,F ; 1 MOVLW HIGH(TimerConst) ; 1 ADDWF TMR3H,F ; 1 endm ; ----------------- ADD TimerConst to TMR3H:TMR3L and restart Timer3 RELOAD_TIMER macro ADD2_TIMER BSF T3CON,TMR3ON ; 1 ; Turn Timer3 back on CHK?RP PIR4 bcf PIR4, TMR3IF ; Clear Timer3 Interrupt Flag endm ; ----------------- Load TimerConst into TMR3H:TMR3L LOAD_TIMER macro EndAsm T3CON.0 = 0 ; Turn OFF Timer3 TMR3L = 0 TMR3H = 0 Asm ADD2_TIMER endm EndAsm ' ------[ This is the Interrupt Handler ]--------------------------------------- ClockCount: ' Note: this is being handled as an ASM interrupt @ RELOAD_TIMER ; Reload Timer3 R0save = R0 ; Save 2 PBP system vars that are used during R1save = R1 ; the interrupt Ticks = Ticks + 1 if Ticks = 100 then Ticks = 0 IF CountDown THEN IF Seconds > 0 THEN Seconds = Seconds - 1 SecondsChanged = 1 IF Seconds = 0 THEN IF Days = 0 THEN IF Hours = 0 THEN IF Minutes = 0 THEN GOSUB StopTimer ; Zero reached ZERO = 1 ENDIF ENDIF ENDIF ENDIF ELSE IF Minutes > 0 THEN Minutes = Minutes - 1 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 ELSE IF Hours > 0 THEN Hours = Hours - 1 Minutes = 59 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 HoursChanged = 1 ELSE IF Days > 0 THEN Days = Days - 1 Hours = 23 Minutes = 59 Seconds = 59 SecondsChanged = 1 MinutesChanged = 1 HoursChanged = 1 DaysChanged = 1 ELSE ; Zero already reached, shouldn't get here GOSUB StopTimer ZERO = 1 ENDIF ENDIF ENDIF ENDIF ELSE ; Counting Up Seconds = Seconds + 1 SecondsChanged = 1 IF Seconds = 60 THEN Minutes = Minutes + 1 MinutesChanged = 1 Seconds = 0 ENDIF IF Minutes = 60 THEN Hours = Hours + 1 HoursChanged = 1 Minutes = 0 ENDIF IF Hours = 24 THEN Days = Days + 1 DaysChanged = 1 Hours = 0 ENDIF endif ENDIF R1 = R1save ; Restore the PBP system vars R0 = R0save @ RETFIE ; Restore context and return from interrupt '-----====[ END OF TMR3 Interrupt Handler ]====--------------------------------- StartTimer: IF NOT ZERO THEN T3CLK = 1 ; clock source t3con = $20 ; prescaler PIR4.2 = 0 ; (TMR3IF) Clear Timer3 Interrupt Flag PIE4.2 = 1 ; (TMR3IE) Enable TMR3 overflow interrupt INTCON.6 = 1 ; (PEIE) Enable peripheral interrupts INTCON.7 = 1 ; (GIE) Enable global interrupts T3CON.0 = 1 ; (TMR3ON) Start Timer3 ENDIF return ; ----------------- StopTimer: T3CON.0 = 0 ; Turn OFF Timer3 return ; ----------------- ResetTime: ZERO = 0 R0save = T3CON.0 ; Save TMR3ON bit T3CON.0 = 0 ; Turn OFF Timer3 TMR3L = 0 TMR3H = 0 @ LOAD_TIMER ; Load TimerConst T3CON.0 = R0save ; Restore TMR3ON bit Ticks = 0 Seconds = 0 Minutes = 0 Hours = 0 Days = 0 SecondsChanged = 1 return OverElapsed:

usage demo

Code:

#CONFIG __config _CONFIG1, _FEXTOSC_OFF & _RSTOSC_HFINT32 & _CLKOUTEN_OFF & _CSWEN_OFF & _FCMEN_ON __config _CONFIG2, _MCLRE_ON & _PWRTE_OFF & _LPBOREN_OFF & _BOREN_ON & _BORV_LO & _ZCD_OFF & _PPS1WAY_OFF & _STVREN_ON & _DEBUG_OFF __config _CONFIG3, _WDTCPS_WDTCPS_11 & _WDTE_ON & _WDTCWS_WDTCWS_7 & _WDTCCS_LFINTOSC __config _CONFIG4, _WRT_OFF & _SCANE_available & _LVP_ON __config _CONFIG5, _CP_OFF & _CPD_OFF #ENDCONFIG DEFINE OSC 32 ANSELA = 0 TRISA = %11101111 INCLUDE "DLAPSED.PBP " ' Elapsed Timer Routines Days = 0 ' set initial time Hours = 0 Minutes = 1 Seconds = 0 ZERO = 0 GOSUB StartTimer Main: IF SecondsChanged THEN Lata.4 = !Lata.4 ' flash led on porta.4 SecondsChanged = 0 ENDIF GOTO Main end
