My rotary encoder adventures

1 Attachment(s)

This is what I have to far:

Code:

'------------------------------------------------------------------------------ ' SPEED 26-36us to execute IF logic ' '------------------------------------------------------------------------------ ' ' Change log ' 2024-08-18 Convert from 16F1937 @ ERRORLEVEL -301 ; turn off ADC clock ignored message @ ERRORLEVEL -306 ; turn off crossing page boundary message '*********************************************************************** ' Default in file: PBP3_1\DEVICES\PIC16F1936.PBPINC * ' List in file: PBP3_1\DEVICE_REFERENCE\PIC16F1936.INFO * ' Note: PIC18 devices, the __CONFIG directive has * ' been superceded by the CONFIG directive * '*********************************************************************** #CONFIG __CONFIG _CONFIG1, _FOSC_INTOSC & _WDTE_OFF & _PWRTE_ON & _MCLRE_ON & _CP_OFF & _CPD_OFF & _BOREN_OFF & _CLKOUTEN_OFF & _IESO_OFF & _FCMEN_OFF __CONFIG _CONFIG2, _WRT_OFF & _VCAPEN_OFF & _PLLEN_OFF & _STVREN_OFF & _BORV_LO & _LVP_OFF #ENDCONFIG ;--- Defines ------------------------------------------------------------------- DEFINE OSC 32 DEFINE LCD_DREG PORTB ' Set LCD data port DEFINE LCD_DBIT 0 ' Set starting data bit DEFINE LCD_RSREG PORTC ' Set LCD register select port DEFINE LCD_RSBIT 5 ' Set LCD register select bit DEFINE LCD_EREG PORTC ' Set LCD enable port DEFINE LCD_EBIT 4 ' Set LCD enable bit DEFINE LCD_BITS 4 ' Set LCD bus size DEFINE LCD_LINES 4 ' Set number of lines on LCD DEFINE LCD_COMMANDUS 1000 ' Set command delay time in microseconds DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds define CCP4_REG PORTC ' PWM Pulse out to LCD contrast DEFINE CCP4_BIT 1 ' 2N2907 PNP with 1K on base define CCP5_REG PORTC ' PWM Pulse out to LCD backlight DEFINE CCP5_BIT 2 ' 2N2222A NPN with 1K on base DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1 Define HSER_BAUD 115200 DEFINE HSER_CLROERR 1 ' Clear overflow automatically DEFINE HSER_SPBRGH 0 DEFINE HSER_SPBRG 68 ;--- Setup registers ----------------------------------------------------------- SPLLEN CON %1 ' PLL enable IRCF CON %1110 ' to enable 8 MHz SCS CON %00 ' system clock determined by FOSC OSCCON = (SPLLEN << 7) | (IRCF << 3) | SCS BAUDCON.3 = 1 ' Enable 16 bit baudrate generator ;--- Setup analog pins to digital ---------------------------------------------- ANSELA = %00000000 ANSELB = %00000000 'ANSELC = %00000000 ' No analog on port C 'ANSELD = %00000000 ' No port D 'ANSELE = %00000000 ' No analog on port E ;--- Setup Port directions ----------------------------------------------------- TRISA = %00000111 ' Pin A7 = ...available ' Pin A6 = ...available ' Pin A5 = ...available ' Pin A4 = ...available ' Pin A3 = ...available ' Pin A2 = SPST ' Pin A1 = WiperB ' Pin A0 = WiperA TRISB = %00000000 ' Pin B7 = iCSP clock ' Pin B6 = ICSP data ' Pin B5 = Blink LED1 ' Pin B4 = Blink LED2 ' Pin B3 = LCD data D7 ' Pin B2 = LCD data D6 ' Pin B1 = LCD data D5 ' Pin B0 = LCD data D4 TRISC = %10000000 ' Pin C7 = RX ' Pin C6 = TX ' Pin C5 = LCD RS ' Pin C4 = LCD EN ' Pin C3 = ...available ' Pin C2 = PWM LCD backlight ' Pin C1 = PWM LCD contrast ' Pin C0 = ...available 'TRISD = %00000000 ' No port D ' TRISE = %00000000 ' Pin E3 = MCLR ;--- Setup constants ----------------------------------------------------------- ;--- Setup pins ---------------------------------------------------------------- Enc1_WiperA var PortA.0 Enc1_WiperB var PortA.1 Enc1_SPST VAR PortA.2 BlinkLED1 VAR LatB.5 ' Switch these ON/OFF to determine time BlinkLED2 VAR LatB.4 ' required to execute a section of code ;--- Setup variables ----------------------------------------------------------- Enc1_previous var BYTE Enc1_rotation var BYTE Enc1_direction VAr BYTE USARTcounter VAr WORd ' Used to show program is looping Enc1_counter VAr WORd ' Used to display encoder movement ;--- Program initialization ---------------------------------------------------- BlinkLED1 = 0 BlinkLED2 = 0 HPWM 2,100,1953 ' LCD contrast (V0 pin) HPWM 1,180,1953 ' LCD backlight (LED anode) USARTcounter = 0 Enc1_previous = 0 Enc1_rotation = 0 Enc1_direction = 0 Enc1_counter = 0 goto Start ;--- Subroutines --------------------------------------------------------------- Start: Pause 500 ' Let PIC and LCD stabilize LCDOUT $FE, 1 : Pauseus 1 LCDOUT $FE, $80, "ROTARY ENCODER TEST" : Pauseus 1 Mainloop: BlinkLED1 = 1 ' Top of LOOP on Logic 2 probe BlinkLED2 = 0 if USARTcounter < 65025 then ' To show program is working USARTcounter = USARTcounter + 1 else USARTcounter = 0 endif ' Wiper Chart: ' ============ ' A B ' --- --- ' 0 0 ' 1 0 /\ CCW ' 1 1 ' 0 1 \/ CW ' 0 0 ' ' Careful, EC11 30 detents 15 pulses will move from 00 to 11 ' EC11 20 detents can move from 00 back to 00 in one click if Enc1_WiperA = 0 and Enc1_WiperB = 0 then ' See wiper chart above if Enc1_previous = 01 then ' 2 digits to follow chart better Enc1_direction = 1 ' 1=CW, 0=CCW Enc1_rotation = 1 ' Motion occurred else if Enc1_previous = 10 then Enc1_direction = 0 ' 0=CCW Enc1_rotation = 1 ' Motion occurred else Enc1_direction = 0 ' Not relevant without motion Enc1_rotation = 0 ' No motion occurred endif endif Enc1_previous = 00 ' Save wiper position endif if Enc1_WiperA = 1 and Enc1_WiperB = 0 then if Enc1_previous = 00 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 11 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 10 endif if Enc1_WiperA = 1 and Enc1_WiperB = 1 then if Enc1_previous = 10 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 01 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 11 endif if Enc1_WiperA = 0 and Enc1_WiperB = 1 then if Enc1_previous = 11 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 00 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 01 endif if Enc1_rotation = 1 then if (Enc1_WiperA = 0 and Enc1_WiperB = 0) or _ (Enc1_WiperA = 1 and Enc1_WiperB = 1) then if Enc1_direction = 1 then Enc1_counter = Enc1_counter + 1 ' Turned 1 position CW else if Enc1_counter > 0 then Enc1_counter = Enc1_counter - 1 ' Turned 1 position CCW endif endif endif endif BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe BlinkLED2 = 1 hserout ["#:", DEC5 USARTcounter,_ " C:", dec3 Enc1_counter,_ " A:", DEC1 Enc1_WiperA,_ " B:", DEC1 Enc1_WiperB,_ " SW:", DEC1 Enc1_SPST, 10] BlinkLED1 = 0 ' After HSEROUT on Logic 2 probe BlinkLED2 = 0 LCDOUT $FE, $D4, "C:", dec3 Enc1_counter,_ " A:", DEC1 Enc1_WiperA,_ " B:", DEC1 Enc1_WiperB,_ " SW:", DEC1 Enc1_SPST : Pauseus 1 BlinkLED1 = 0 ' After LCDOUT on Logic 2 probe BlinkLED2 = 0 goto mainloop end

To put things into perspective, these are the times I've observed so far:

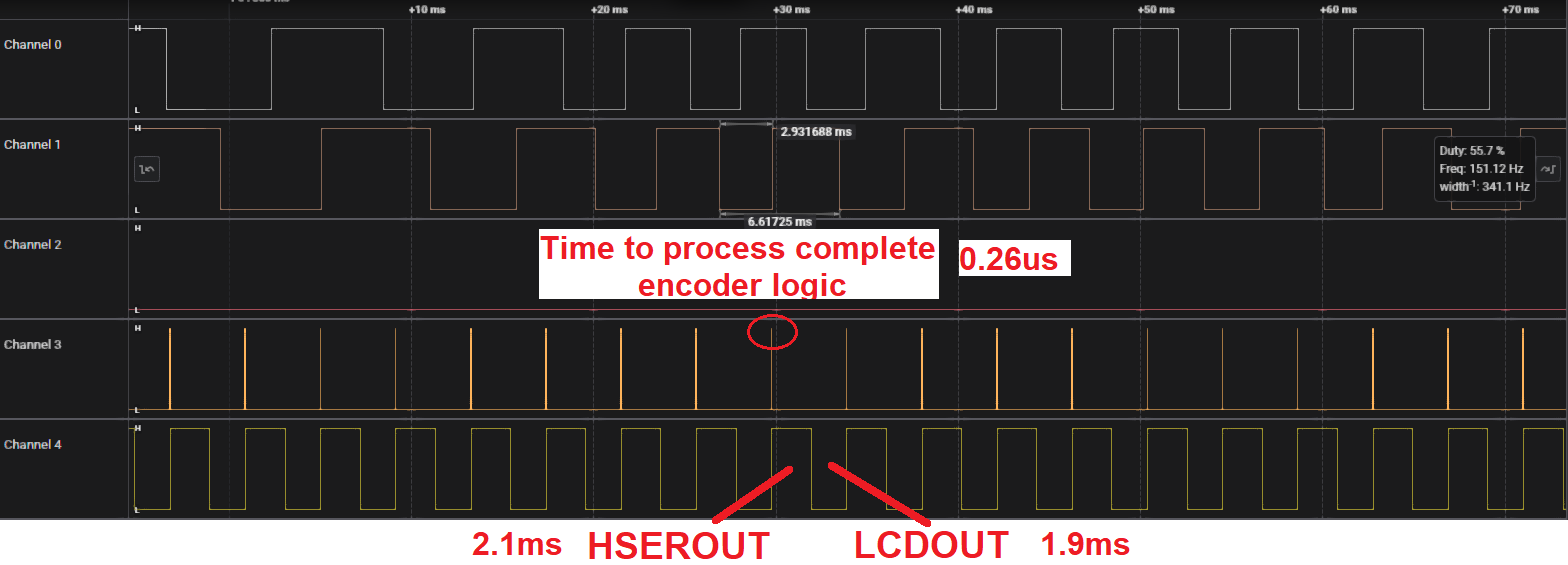

Attachment 9720

Those encoder readings on channels 0 and 1 were done while turning the encoder as fast as I could. I wanted to see if I could over-run the time it takes the PIC to execute all the encoder code at 32 MHz.

The PIC is not even close to being overwhelmed, so now I know I should be able to process at least 2 encoders at the same time (at least that's what should happen in my mind :D ).

1 Attachment(s)

Re: My rotary encoder adventures

Here's an example of a chinesium EC11 clone:

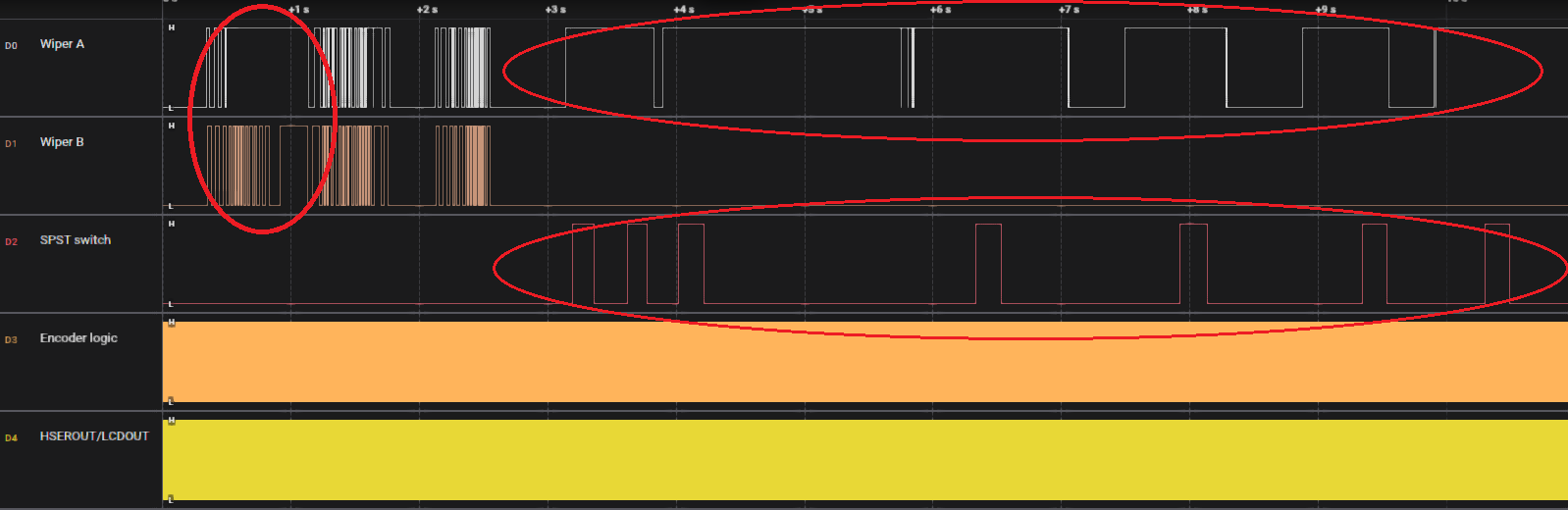

Attachment 9722

Every time I press on the switch built into the shaft, wiper A bounces. Also, note how wiper A never came down at the top left.

So now I have some good quality control tests to do on EC11s that I'll be having made in china.
:D

(I would never have thought of checking for this defect. I'm fiddling with my Saleae Logic 2 probe on a rotary encoder. I just wanted to see how a manual press would compare with the encoder pulses.)

EDIT: These are from AliExpress; you get what you pay for. But when you order from Alibaba, you can get reimbursed if you can demonstrate that a product is not performing accord to specifications.

I don't mind the aliexpress lower quality, I use them mainly for testing.

Re: My rotary encoder adventures

You have turned off the WDT (for speed I suppose) but forgot to tell PBP about it so no speed gained.

Anyway, try this as your encoder logic and see if it beats 26us.

Code:

New_Encoder VAR BYTE Old_Encoder VAR BYTE Test VAR BYTE Enc1_counter VAR WORD BlinkLED1 VAR LatB.5 ' Switch these ON/OFF to determine time BlinkLED2 VAR LatB.4 MainLoop: BlinkLED1 = 1 ' Top of LOOP on Logic 2 probe BlinkLED2 = 0 New_Encoder = PortA & %00000011 ' Read encoder signals on RA0 and RA1 Test = New_Encoder ^ Old_Encoder ' Bitwise XOR current state with previous state to see if any pins changed. IF Test.0 = 1 THEN ' Edge detected on channel A? IF Old_Encoder.0 ^ Old_Encoder.1 THEN ' If Old_Encoder is 0 or 3 we count up, otherwise we count down. Enc1_counter = Enc1_counter + 1 ELSE Enc1_counter = Enc1_counter - 1 ENDIF GOTO MainLoop ENDIF IF Test.1 = 1 THEN ' Edge detected on channel B? IF Old_Encoder.0 ^/ Old_Encoder.1 THEN ' If Old_Encoder is 1 or 2 we count up, otherwise we count down. Enc1_counter = Enc1_counter + 1 ELSE Enc1_counter = Enc1_counter - 1 ENDIF Goto MainLoop ENDIF BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe BlinkLED2 = 1 ' Other stuff here... Goto MainLoop

EDIT: Oh, the timing measurment will not work properly since we're jumping back to mainloop before flipping the LEDs but you can fix that.

Re: My rotary encoder adventures

Holy poopenstuff!

My logic took about 20us, yours took about 2.4us!

:O

I knew there was room for improvement with bit manipulation, but I didn't expect nearly a ten-fold acceleration.

EDIT: Ooops, just noticed you're jumping out with turning off LED, adjusting now.

3.9 to 4.9us, depending on where it jumps out of logic.

Still, that's 4-5 times faster than my IFs.

EDIT SOME MORE: I put my LCDOUTs back in to check on Enc1_Counter, and something funky is going on. It's looping like crazy, gonna check to see if I can figure it out.

Re: My rotary encoder adventures

Henrik, my encoder goes from 00 to 11 in one click, then back to 00 in the next click.

Does your encoder do that also?

EDIT: I put in an old encoder that goes from 00 to 00 and that one works "better" from click to click, but as I move that one slowly, I can see the counter moving super fast, then stop on the click.

Re: My rotary encoder adventures

[QUOTE=HenrikOlsson;155986]You have turned off the WDT (for speed I suppose) but forgot to tell PBP about it so no speed gained.

You're assuming I know what I'm doing. :D

I didn't think I'd need WDT, until someone tells me I should use it. :)

Re: My rotary encoder adventures

Henrik, maybe a video would be helpful. 1st half is with a encoder with 30detents/15pulses, 2nd half is 20detents (I don't have datasheet for that one, no idea how many pulses).

https://youtu.be/kQLFlk5DtlQ?si=aoTj5MFWcqUiVqj3

That rocker switch selects logic; mine is first in video, yours is 2nd when switch is rocked to the right.

My code with combined logic. I added a switch and moved LCDOUT into a subroutine to keep the code clean:

Code:

goto Start ;--- Subroutines --------------------------------------------------------------- LCDoutput: LCDOUT $FE, $D4, "C:", dec5 Enc1_counter,_ " A:", DEC1 Enc1_WiperA,_ " B:", DEC1 Enc1_WiperB,_ " SW:", DEC1 Enc1_SPST : Pauseus 1 Return Start: Pause 500 ' Let PIC and LCD stabilize LCDOUT $FE, 1 : Pauseus 1 LCDOUT $FE, $80, "ROTARY ENCODER TEST" : Pauseus 1 Mainloop: BlinkLED1 = 1 ' Top of LOOP on Logic 2 probe if logicselector = 1 then goto MyLogic ' Wiper Chart: ' ============ ' A B ' --- --- ' 0 0 ' 1 0 /\ CCW ' 1 1 ' 0 1 \/ CW ' 0 0 ' ' Careful, EC11 30 detents 15 pulses will move from 00 to 11 ' EC11 20 detents can move from 00 back to 00 in one click New_Encoder = PortA & %00000011 ' Read encoder signals on RA0 and RA1 Test = New_Encoder ^ Old_Encoder ' Bitwise XOR current state with previous state to see if any pins changed. IF Test.0 = 1 THEN ' Edge detected on channel A? IF Old_Encoder.0 ^ Old_Encoder.1 THEN ' If Old_Encoder is 0 or 3 we count up, otherwise we count down. Enc1_counter = Enc1_counter + 1 ELSE Enc1_counter = Enc1_counter - 1 ENDIF BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe GOSUB LCDoutput GOTO MainLoop ENDIF IF Test.1 = 1 THEN ' Edge detected on channel B? IF Old_Encoder.0 ^/ Old_Encoder.1 THEN ' If Old_Encoder is 1 or 2 we count up, otherwise we count down. Enc1_counter = Enc1_counter + 1 ELSE Enc1_counter = Enc1_counter - 1 ENDIF BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe GOSUB LCDoutput Goto MainLoop ENDIF BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe GOSUB LCDoutput goto mainloop MyLogic: if Enc1_WiperA = 0 and Enc1_WiperB = 0 then ' See wiper chart above if Enc1_previous = 01 then ' 2 digits to follow chart better Enc1_direction = 1 ' 1=CW, 0=CCW Enc1_rotation = 1 ' Motion occurred else if Enc1_previous = 10 then Enc1_direction = 0 ' 0=CCW Enc1_rotation = 1 ' Motion occurred else Enc1_direction = 0 ' Not relevant without motion Enc1_rotation = 0 ' No motion occurred endif endif Enc1_previous = 00 ' Save wiper position endif if Enc1_WiperA = 1 and Enc1_WiperB = 0 then if Enc1_previous = 00 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 11 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 10 endif if Enc1_WiperA = 1 and Enc1_WiperB = 1 then if Enc1_previous = 10 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 01 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 11 endif if Enc1_WiperA = 0 and Enc1_WiperB = 1 then if Enc1_previous = 11 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 00 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 01 endif if Enc1_rotation = 1 then if (Enc1_WiperA = 0 and Enc1_WiperB = 0) or _ (Enc1_WiperA = 1 and Enc1_WiperB = 1) then if Enc1_direction = 1 then Enc1_counter = Enc1_counter + 1 ' Turned 1 position CW else if Enc1_counter > 0 then Enc1_counter = Enc1_counter - 1 ' Turned 1 position CCW endif endif endif endif GOSUB LCDoutput goto mainloop

1 Attachment(s)

Re: My rotary encoder adventures

Henrik, inspired by your code. I got down to 6.4 - 8.6us:

Goes in initialization section:

Code:

Enc1_previous = %11111111 Enc1_Current = %00000000 Enc1_counter = 0

MainLoop:

Code:

MyLogic: Enc1_Current = (Enc1_WiperA << 1) + Enc1_WiperB IF Enc1_Current != Enc1_Previous THEN IF Enc1_Current = %00000011 THEN IF Enc1_Previous = %00000010 THEN Enc1_counter = Enc1_counter + 1 ELSE IF Enc1_Previous = %00000001 THEN Enc1_counter = Enc1_counter - 1 ENDIF ENDIF ELSE IF Enc1_Current = %00000000 THEN IF Enc1_Previous = %00000001 THEN Enc1_counter = Enc1_counter + 1 ELSE IF Enc1_Previous = %00000010 THEN Enc1_counter = Enc1_counter - 1 ENDIF ENDIF ENDIF ENDIF ENDIF Enc1_Previous = Enc1_Current BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe GOSUB LCDoutput goto mainloop

Since my encoder doesn't stop on 01 or 10, I only need to check 11 and 00. Already 3 times faster than my original.

EDIT: Updated times

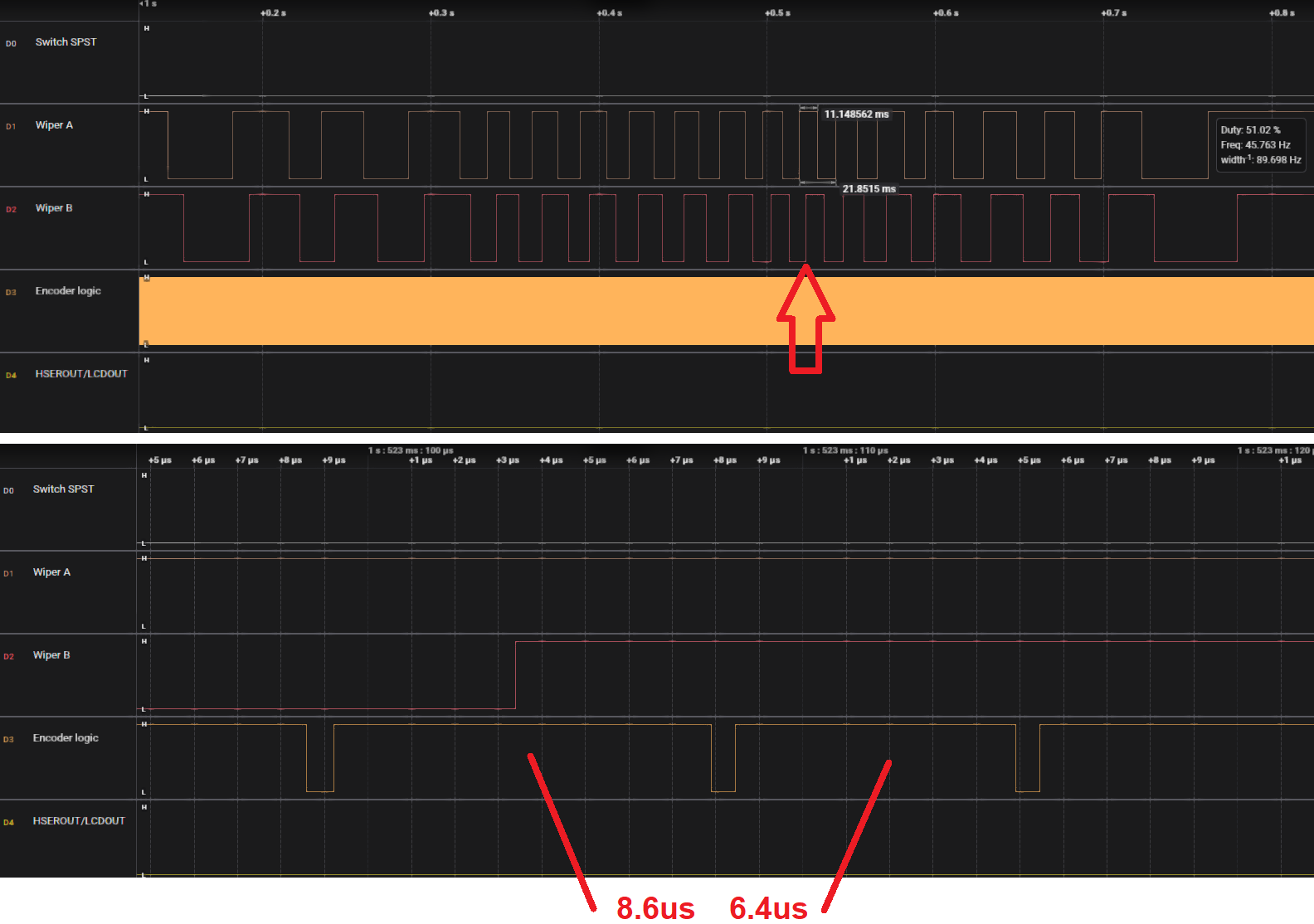

Attachment 9723

Re: My rotary encoder adventures

I use that code with an optical encoder to convert from quartature to up/down pulses and it tracks the encoder perfectly to >200k edges per second. I modified it to incorporate your counter but I might have messed something up.

Quote:

Since my encoder doesn't stop on 01 or 10, I only need to check 11 and 00. Already 3 times faster than my original.

It might not have a detent at every quadrature state but it sure must "go thru" them.
If you are at 00 and go to 11, which direction did it turn? There's no way to know unless also decoding the 10/01 states in between the detents - and you are doing that.

Also, don't forget that your LCDoutput subroutine takes considerable amount of time, you can not allow the encoder to pass thru two (or more) states without reading it or it WILL miss pulses or even count backwards.

Take your logic analyzer capture and measure the time between the rising edges of channel A and B respectively.
The pulsewidth of channel A is 11ms but the time between the edges on A and B is much shorter than 5.5ms due to the fact that the phase shift is far from 90° on your encoder. Lets say it's 2ms... How long does your LCDoutput subroutine take?

Re: My rotary encoder adventures

Quote:

Originally Posted by Demon

Every time I press on the switch built into the shaft, wiper A bounces. Also, note how wiper A never came down at the top left.

Who could imagine that....! Wow, chinese keep surprising me!

Ioannis

Re: My rotary encoder adventures

Quote:

I use that code with an optical encoder to convert from quartature to up/down pulses and it tracks the encoder perfectly to >200k edges per second.

Yeah, that's what I thought. We're not using the exact same device. I noticed such irregularities when I was switching between my own encoders (2 different batches).

Quote:

It might not have a detent at every quadrature state but it sure must "go thru" them.

Oh definitely. I even see them display on the LCD when I turn my encoder REAL slow.

Quote:

If you are at 00 and go to 11, which direction did it turn? There's no way to know unless also decoding the 10/01 states in between the detents - and you are doing that.

Yup, that's why I check the Current state against the Previous state. I only increase/decrease my counter on 00 and 11, cause that's where the encoder has a physical detent. A user turning the knob doesn't care about intermediate steps; only that the device actuates by one position when the knob goes click.

Quote:

Take your logic analyzer capture and measure the time between the rising edges of channel A and B respectively.
The pulsewidth of channel A is 11ms but the time between the edges on A and B is much shorter than 5.5ms due to the fact that the phase shift is far from 90° on your encoder. Lets say it's 2ms...

The fastest interval between wiper A and B is on a drop, and it's 3.88ms

Quote:

How long does your LCDoutput subroutine take?

~1.92ms

Note that the final product will use a dedicated PIC to display data on LCDs, and a separate PIC to process incoming encoder signals.

I'm only using the LCD alongside the encoder to help me understand how the encoder is behaving.

Re: My rotary encoder adventures

Quote:

It might not have a detent at every quadrature state but it sure must "go thru" them.

Quote:

Oh definitely. I even see them display on the LCD when I turn my encoder REAL slow.

That's why I had put this comment in my code, to show the CW/CCW progression through the wiper states:

Code:

' Wiper Chart: ' ============ ' A B ' --- --- ' 0 0 ' 1 0 /\ CCW ' 1 1 ' 0 1 \/ CW ' 0 0 ' ' Careful, EC11 30 detents 15 pulses will move from 00 to 11 ' EC11 20 detents can move from 00 back to 00 in one click

No wonder my older EC11 were causing me so much grief in my initial testing. :D

2 Attachment(s)

Re: My rotary encoder adventures

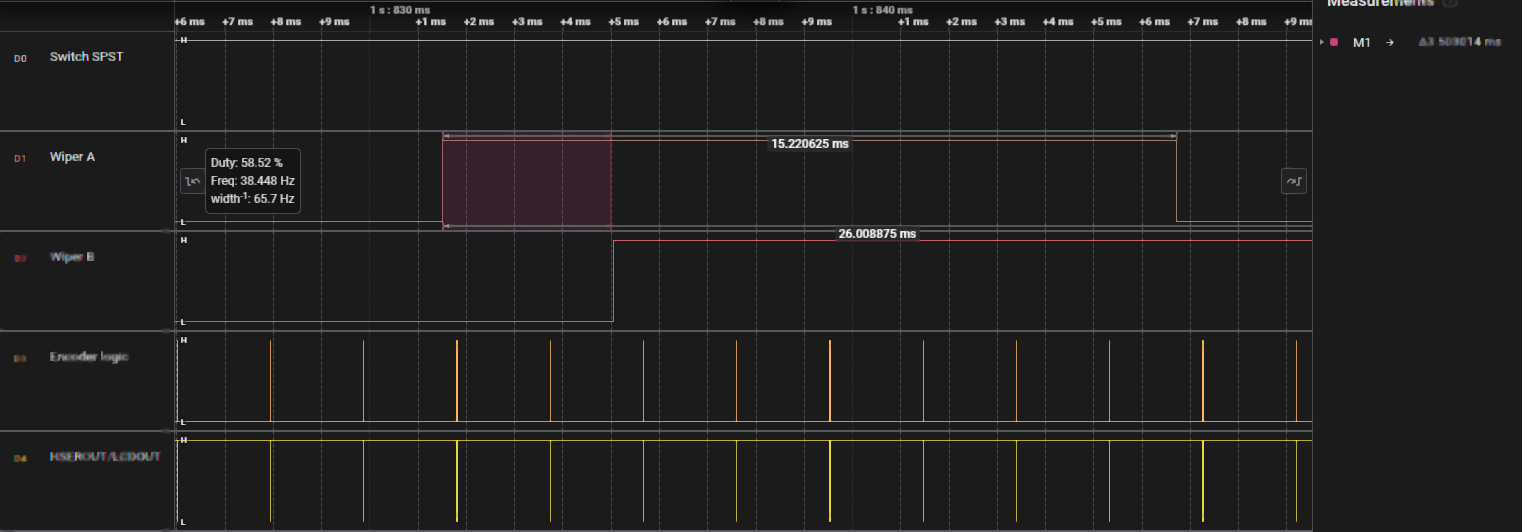

Here's one of my faster ones:

A is 15.22ms duration
Difference between rise of A and B is 3.50ms
I nearly had time to send LCDOUT twice.

Attachment 9724

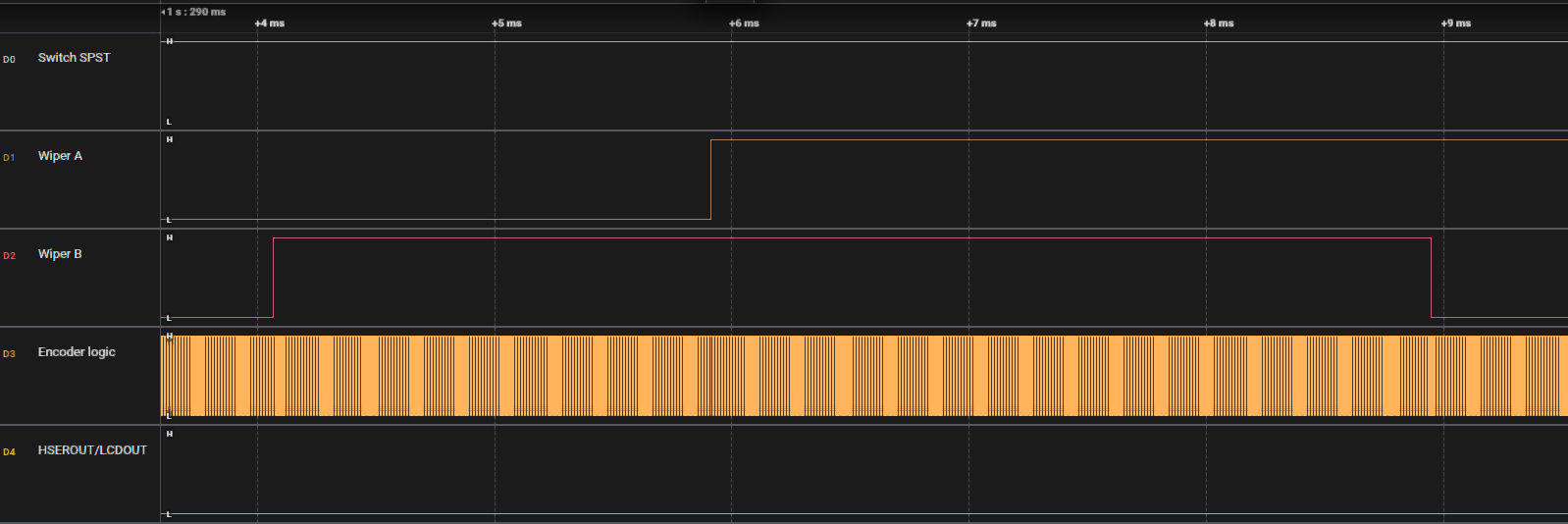

I'm more than satisfied with what I have so far as encoder logic. When I remove LCDOUT, this is how many times the encoder logic can cycle during a fast pulse; a gazillion.

Attachment 9725

I'm thrilled actually; with a big smile on my face as I type this. :D

Re: My rotary encoder adventures

Very good, then there's plenty of margin.
Next challenge: Velocity sensing, ie a way to detect that the user wants the value to change by a lot and not have to turn the knob 600 turns. Getting that just right seems to be tricky, even the big boys don't always... (I've never tried).

How will you transfer the count from one PIC to the other? Keep track of your timing, you might be able to do it all with a single PIC. If needed, divide the LCDOutput routine in two (or more) parts if needed.

Re: My rotary encoder adventures

You can experiment with

DEFINE LCD_COMMANDUS 2500

And

DEFINE LCD_DATAUS 50

parameters in order to match your LCD module. Maybe you are lucky and have a faster one. But be carefull as these might not work with all modules.

The Velocity sensing is a really good one. Indeed, if the user has to to change values in a broad range it is very handy. Maybe if Timer is involved can make things simpler.

Ioannis

2 Attachment(s)

Re: My rotary encoder adventures

Quote:

Originally Posted by HenrikOlsson

Very good, then there's plenty of margin.
Next challenge: Velocity sensing, ie a way to detect that the user wants the value to change by a lot and not have to turn the knob 600 turns. Getting that just right seems to be tricky, even the big boys don't always... (I've never tried). ...

That's exactly why I started looking up Elapsed Timer last night. I already have an idea in mind; rotate the encoder at 3 speeds, record the time elapsed between pulses, and then use that to determine if I increment/decrement by ones, fives or tens. I figure with some tweaking I can generate a decent compromise.

I've already adjusted my logic this morning to fall down to 359 when it goes below 0; to better simulate a heading gauge in flight sim, and inverse, flip up to 0 after moving up past 359.

Quote:

Originally Posted by HenrikOlsson

... How will you transfer the count from one PIC to the other? ...

HSEROUT, that's why I had it in my early tests. It compares somewhat with LCDOUT timewise, maybe a tad slower.

I have a lot of R&D to go on that subject (like protocol and such).

Quote:

Originally Posted by HenrikOlsson

... If needed, divide the LCDOutput routine in two (or more) parts if needed.

Nah, I have a LOT of controls to manage. I'm putting encoders as priority on a PIC, then switches and pots separately (ADC probably takes forever in comparison), and 4 LCDs wherever I have room and time available.

This is a preliminary layout; 3 enclosures: left, center and right . The right side has the most encoders with:

- 4 dual encoders
- 7 single encoders
- 1 mouse wheel (essentially a single encoder)

Those Custom Keys in the middle are just a reminder for a 4th optional enclosure at far left.

Attachment 9726

The thin red stripes are LED stripes; shielded towards the controls to simulate a red glow, like this:

Attachment 9727

Re: My rotary encoder adventures

Quote:

Originally Posted by HenrikOlsson

Very good, then there's plenty of margin.
Next challenge: Velocity sensing, ie a way to detect that the user wants the value to change by a lot and not have to turn the knob 600 turns. Getting that just right seems to be tricky, even the big boys don't always... (I've never tried).

I'm in the middle of a project requiring a rotary encoder to set a weight target for a loadcell. I plan on using Richard's graphical LCD driver for a dot matrix display (not superfast update refreshing), so I actually needed something like what you've described there Henrik. Using Demon's code, I twiddled it a bit to utilise (elapsed) Timer0 on an 18F26K22 to provide the screen refreshing. This is what I basically came up with (which I'm happy with):

Code:

'REMOVED ALL THE INIALIZATION STUFF FOR THIS PASTING Enc1_counter = 1000 SETFONT FONT5x7 'SETFONT bignum5 LATC.4 = 0 'using a pic pin output as a temporary ground rail for the rotary encoder gosub grf_clr T0CON.7 = 1 'enable timer 0 T0CON.6 = 0 'timer 0 in 16 bit mode T0CON.5 = 0 'timer 0 clock source = internal instruction clock 'T0CON.4 T0CON.3 = 0 'timer prescaler assigned T0CON.2 = 0 ' prescaler assigned to 1:4 T0CON.1 = 0 ' " T0CON.0 = 1 ' " Timer_Counter = 0 Change = 0 MainLoop: Timer_Counter.lowbyte = TMR0L Timer_Counter.highbyte = TMR0H New_Encoder = (PortB.4 << 1) + PortB.5 IF New_Encoder != Old_Encoder THEN IF New_Encoder = %00000011 THEN IF Old_Encoder = %00000010 THEN Change = Change+1 Enc1_counter = Enc1_counter + Change ELSE IF Old_Encoder = %00000001 THEN Change = Change+1 Enc1_counter = Enc1_counter - Change ENDIF ENDIF ELSE IF New_Encoder = %00000000 THEN IF Old_Encoder = %00000001 THEN Change = Change+1 Enc1_counter = Enc1_counter + Change ELSE IF Old_Encoder = %00000010 THEN Change = Change+1 Enc1_counter = Enc1_counter - Change ENDIF ENDIF ENDIF ENDIF ENDIF if change >= 1 and Timer_Counter>60000 then TMR0H=0 TMR0L=0 ARRAYWRITE BUFF,[sdec Enc1_counter,0] gosub grf_clr 'DMDSTR 10,10, BUFFp,1 DMDSTR 10,10, BUFF,1 gosub show Change = 0 else pause 5 endif Old_Encoder = New_Encoder goto MainLoop:

Troy
