SOLVED: Why is BlinkLED2 high at same time as BlinkLED1?

(Yes, I'm reading up on Read-Modify-Write right now :D )

My entire code for 16F1936:

Code:

' Change log ' 2024-08-18 Convert from 16F1937 @ ERRORLEVEL -301 ; turn off ADC clock ignored message @ ERRORLEVEL -306 ; turn off crossing page boundary message '*********************************************************************** ' Default in file: PBP3_1\DEVICES\PIC16F1936.PBPINC * ' List in file: PBP3_1\DEVICE_REFERENCE\PIC16F1936.INFO * ' Note: PIC18 devices, the __CONFIG directive has * ' been superceded by the CONFIG directive * '*********************************************************************** #CONFIG __CONFIG _CONFIG1, _FOSC_INTOSC & _WDTE_OFF & _PWRTE_ON & _MCLRE_ON & _CP_OFF & _CPD_OFF & _BOREN_OFF & _CLKOUTEN_OFF & _IESO_OFF & _FCMEN_OFF __CONFIG _CONFIG2, _WRT_OFF & _VCAPEN_OFF & _PLLEN_OFF & _STVREN_OFF & _BORV_LO & _LVP_OFF #ENDCONFIG ;--- Defines ------------------------------------------------------------------- DEFINE OSC 32 DEFINE LCD_DREG PORTB ' Set LCD data port DEFINE LCD_DBIT 0 ' Set starting data bit DEFINE LCD_RSREG PORTC ' Set LCD register select port DEFINE LCD_RSBIT 5 ' Set LCD register select bit DEFINE LCD_EREG PORTC ' Set LCD enable port DEFINE LCD_EBIT 4 ' Set LCD enable bit DEFINE LCD_BITS 4 ' Set LCD bus size DEFINE LCD_LINES 4 ' Set number of lines on LCD DEFINE LCD_COMMANDUS 1000 ' Set command delay time in microseconds DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds define CCP4_REG PORTC ' PWM Pulse out to LCD contrast DEFINE CCP4_BIT 1 ' 2N2907 PNP with 1K on base define CCP5_REG PORTC ' PWM Pulse out to LCD backlight DEFINE CCP5_BIT 2 ' 2N2222A NPN with 1K on base DEFINE HSER_RCSTA 90h ' Enable serial port & continuous receive DEFINE HSER_TXSTA 24h ' Enable transmit, BRGH = 1 Define HSER_BAUD 115200 DEFINE HSER_CLROERR 1 ' Clear overflow automatically DEFINE HSER_SPBRGH 0 DEFINE HSER_SPBRG 68 ;--- Setup registers ----------------------------------------------------------- SPLLEN CON %1 ' PLL enable IRCF CON %1110 ' to enable 8 MHz SCS CON %00 ' system clock determined by FOSC OSCCON = (SPLLEN << 7) | (IRCF << 3) | SCS BAUDCON.3 = 1 ' Enable 16 bit baudrate generator ;--- Setup analog pins to digital ---------------------------------------------- ANSELA = %00000000 ANSELB = %00000000 'ANSELC = %00000000 ' No analog on port C 'ANSELD = %00000000 ' No port D 'ANSELE = %00000000 ' No analog on port E ;--- Setup Port directions ----------------------------------------------------- TRISA = %00000111 ' Pin A7 = ...available ' Pin A6 = ...available ' Pin A5 = ...available ' Pin A4 = ...available ' Pin A3 = ...available ' Pin A2 = SPST ' Pin A1 = WiperB ' Pin A0 = WiperA TRISB = %00000000 ' Pin B7 = iCSP clock ' Pin B6 = ICSP data ' Pin B5 = Blink LED1 ' Pin B4 = Blink LED2 ' Pin B3 = LCD data D7 ' Pin B2 = LCD data D6 ' Pin B1 = LCD data D5 ' Pin B0 = LCD data D4 TRISC = %10000000 ' Pin C7 = RX ' Pin C6 = TX ' Pin C5 = LCD RS ' Pin C4 = LCD EN ' Pin C3 = ...available ' Pin C2 = PWM LCD backlight ' Pin C1 = PWM LCD contrast ' Pin C0 = ...available 'TRISD = %00000000 ' No port D ' TRISE = %00000000 ' Pin E3 = MCLR ;--- Setup constants ----------------------------------------------------------- ;--- Setup pins ---------------------------------------------------------------- Enc1_WiperA var PORTA.0 Enc1_WiperB var PORTA.1 Enc1_SPST VAR PORTA.2 BlinkLED1 VAR PORTB.5 ' Switch these ON/OFF to determine time BlinkLED2 VAR PORTB.4 ' required to execute a section of code ;--- Setup variables ----------------------------------------------------------- Enc1_previous var BYTE Enc1_rotation var BYTE Enc1_direction VAr BYTE HPWMcontrast var BYTE HPWMbacklight var BYTE USARTcounter VAr WORd ' Used to show program is looping Enc1_counter VAr WORd ' Used to display encoder movement ;--- Program initialization ---------------------------------------------------- BlinkLED1 = 0 BlinkLED2 = 0 HPWM 2,100,1953 ' LCD contrast (V0 pin) HPWM 1,180,1953 ' LCD backlight (LED anode) USARTcounter = 0 Enc1_previous = 0 Enc1_rotation = 0 Enc1_direction = 0 Enc1_counter = 0 goto Start ;--- Subroutines --------------------------------------------------------------- Start: Pause 500 ' Let PIC and LCD stabilize LCDOUT $FE, 1 : Pauseus 1 LCDOUT $FE, $80, "ROTARY ENCODER TEST" : Pauseus 1 Mainloop: BlinkLED1 = 1 ' Top of LOOP on Logic 2 probe BlinkLED2 = 0 if USARTcounter < 65025 then ' To show program is working USARTcounter = USARTcounter + 1 else USARTcounter = 0 endif ' Wiper Chart: ' ============ ' A B ' --- --- ' 0 0 ' 1 0 /\ CCW ' 1 1 ' 0 1 \/ CW ' 0 0 ' ' Careful, EC11 30 detents 15 pulses will move from 00 to 11 if Enc1_WiperA = 0 and Enc1_WiperB = 0 then ' See wiper chart above if Enc1_previous = 01 then ' 2 digits to follow chart better Enc1_direction = 1 ' 1=CW, 0=CCW Enc1_rotation = 1 ' Motion occurred else if Enc1_previous = 10 then Enc1_direction = 0 ' 0=CCW Enc1_rotation = 1 ' Motion occurred else Enc1_direction = 0 ' Not relevant without motion Enc1_rotation = 0 ' No motion occurred endif endif Enc1_previous = 00 ' Save wiper position endif if Enc1_WiperA = 1 and Enc1_WiperB = 0 then if Enc1_previous = 00 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 11 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 10 endif if Enc1_WiperA = 1 and Enc1_WiperB = 1 then if Enc1_previous = 10 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 01 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 11 endif if Enc1_WiperA = 0 and Enc1_WiperB = 1 then if Enc1_previous = 11 then Enc1_direction = 1 Enc1_rotation = 1 else if Enc1_previous = 00 then Enc1_direction = 0 Enc1_rotation = 1 else Enc1_direction = 0 Enc1_rotation = 0 endif endif Enc1_previous = 01 endif if Enc1_rotation = 1 then if (Enc1_WiperA = 0 and Enc1_WiperB = 0) or _ (Enc1_WiperA = 1 and Enc1_WiperB = 1) then if Enc1_direction = 1 then Enc1_counter = Enc1_counter + 1 ' Turned 1 position CW else if Enc1_counter > 0 then Enc1_counter = Enc1_counter - 1 ' Turned 1 position CCW endif endif endif endif BlinkLED1 = 0 ' Bottom of IFs on Logic 2 probe BlinkLED2 = 1 hserout ["#:", DEC5 USARTcounter,_ " C:", dec3 Enc1_counter,_ " A:", DEC1 Enc1_WiperA,_ " B:", DEC1 Enc1_WiperB,_ " SW:", DEC1 Enc1_SPST, 10] BlinkLED1 = 0 ' After HSEROUT on Logic 2 probe BlinkLED2 = 0 LCDOUT $FE, $D4, "C:", dec3 Enc1_counter,_ " A:", DEC1 Enc1_WiperA,_ " B:", DEC1 Enc1_WiperB,_ " SW:", DEC1 Enc1_SPST : Pauseus 1 BlinkLED1 = 0 ' After LCDOUT on Logic 2 probe BlinkLED2 = 0 goto mainloop end

The probes are attached to pin-side of 10K resistor on LEDs (10K shouldn't matter according to me).

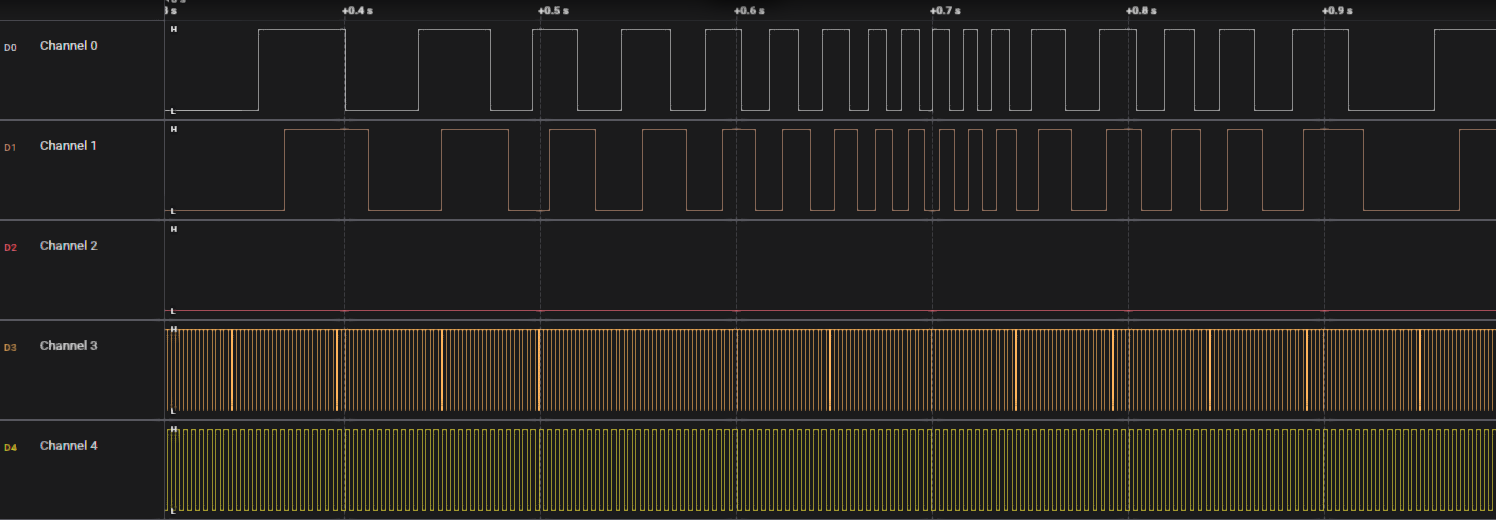

Attachment 9717

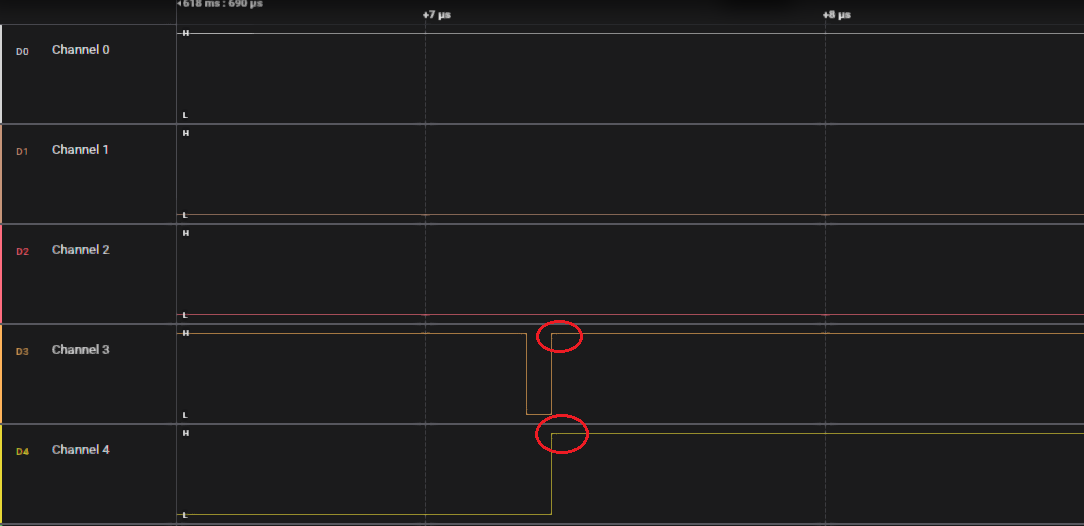

Both LEDs are never HIGH at the same time, and yet they don't blink as expected...?

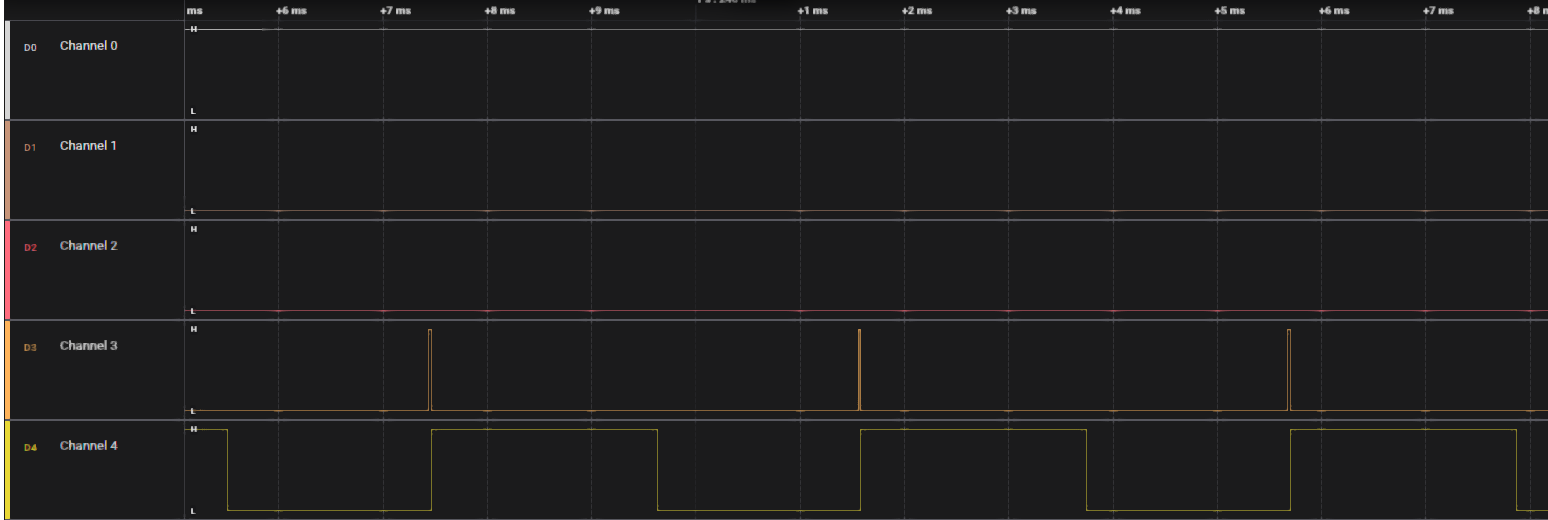

Attachment 9716
