example: i want 234 on-off software states on a port and, at the same time, 400 on-off software states on another port. Both start and finish at the same so with different pauses but with not reciprocal influences, impossible?
lutherblisset,
No not impossible at all, but it may depend on the clock speed that your micro is running at, AND your ability to dream up the code to make it happen :D
A couple of possibilities (depending on whether the two pulse rates are symmetrical with regard to themselves)
What I mean by that is... is the pulse rate for the first pin a fixed rate? can it be handled by a PWM peripheral within the PIC? (and the same question holds for the second port, is its rate also fixed and could it be handled by a second PWM peripheral?)
You could also use a couple of timer peripherals within your micro along with timer interrupts. Letting one timer control one output and the other timer control the second output. If the pulse rate is not symmetrical you could pre load each timer as it expires (and interrupts your micro telling it to change the state of the given output) with a new and if necessary, different value, so that it will roll over and interrupt the micro at a different time to change the output state as necessary to meet your requirements.
Can the PIC be running at a high enough clock rate such that it has time to set one port.pin high then go and set the second port.pin high then come back and set the first port.pin low then wait a given amount of time and then set the second port.pin low, etc. etc.
All the while keeping what ever time base and pulse rate that your application demands??
From my perspective (non professional programmer) Nothing ever happens "AT THE SAME TIME" within the PIC and the various port.pins. There will always be some delay or latency from one act (program directive) and the next, though this delay may be so short (a few microseconds) that it is as though it were "at the same time". The question for you to answer is, is the latency or delay (dependent on clock speed and program execution) "good enough"??
Using assembly code (or "machine language" as I used to call it) as opposed to PICBASIC code at certain points in your program may also shorten the latency and make things happen closer to "the same time".
Others may have better insight and you should try and provide more information as to time duration, pulse rate, pause duration, chosen microcontroller, etc. etc. so that we have enough information to better answer your specific question.
Just a few things to consider...
hi heckler, thank you for the answer. Every pulse have its rate time, i need pauses of of 200-400 microseconds (picbasic pauseus) between every single pulse. But if the first train with 300 pulses start and finish after 10 seconds the second train with 500 pulses start and finish in synchrony with the first after 10 seconds too. Maybe you think at the pic with the hardware pwm but with them i think its impossible to set the number of the pulses.....
What's the shortest time?
What's the longest time?
What's the needed resolution, ie will there be times that are 345us or is 200, 300, 400, that sort of thing enough?
What kind of error can you accept?
How many "channels"?
Since you're talking microseconds it's either going to get "in the ballpark" or very very tricky if you need precision on many "channels".
Do you have a PIC this needs to run and if so which one and at what Clock frequency is it runing? Or can you select the most optimal PIC for the task?
I'm not pretending I have an ready to go answer but it's of no use to either of us describing possible solutions which clearly won't work once we know the details.
So, more details are needed.
/Henrik.
the resolution its non critical, the range is from 200 to 600 us, at 50 microseconds steps possible rate ( 100,150,200 etc). i need two channels, the best i have is a pic16f876a with 20mhz quartz.
luther,
In your earlier comment you mentioned the word "pauseus" which is the picbasic command to halt the micro for a specific number of microseconds. Please be aware that this "pauseus" statement will prevent the micro from doing anything else. (except being interrupted, I believe)
The same goes for the "pause" statement. The micro is halted or "paused" for the specified duration. It will NOT continue on to the next instruction until the pause expires. So you may want to consider implementing the use of timers and interrupts. Such that the pic will just be servicing the timer interrupts and changing port.pin states as needed when the count of timer rollovers reaches your desired pulse duration.
At this point, if I were you, I would get out my breadboard, a PIC and start blinking some LED's (or pulsing some port.pins and watching the effect (time duration) on an O'Scope) and developing some code building blocks.
For me that is the only way to get going and learn.
How do you eat an elephant?? One bite (or is it Byte?) at a time! ;)
good luck and keep asking questions
The more specific the better and with whatever code you have implemented so far.
assuming waveform duration <= 100mS
using a resoloution of 100uS requires 1000 bits (125 bytes) to describe each wave [in a sampled fashion]
easy enough to clockout two independant waves this way but a pic16f876a with only limited(384 bytes i think) ram is a bit tricky
have you thought about other ways to "describe" your wave forms , are they fixed or do they vary . can the be subdivided into fixed and variable sections [header and footer maybe ?]
the first train is fixed 400 pulses, 50% on and 50% off. for the second train i can set another number of pulses, but the totale time must be the same of the first train, same start same end, maybe two pic serially connected?
so wave 1 is 400 pulses of [ pulse width x] : therefore duration = x * 800
wave 2 is y pulses of duration/(y*2) ; assuming 50% duty
y range is ?
x range is ?
tolerance is ?
repeat rate is ?
the only fixed thing is the 400 pulses of the x, with 300us on and 300us off, on the other side y i must have the choice to set different pulses (100 to 600). But whatever pulses have the y the goal must be to reach the end at the same time....
how do you define the end ?Quote:
But whatever pulses have the y the goal must be to reach the end at the same time....
depending on what you think a reasonable resolution is (and achievable) not all possible pulse counts in the range 100-600 will divide exactly into the duration .
what is the duration 800 * 300 uS or 799 * 300 uS ?
how do you intend the sync to be eg leading edge low to high transition to trailing edge high to low transition ?
can the final y pulse just be truncated to fit ?
hello richard, first of all thank you. The y pulse can be always approximate to the unit, so it's never truncated. Only the pause change to reach the total time together at the x pulse. the x pulse is fixed 400*600=240000=240milliseconds, so the y pulses.
i will make a test to see if the logical circuit connected to the pic accept "on" states duration other than "off" states, not symmetrical. Cause if the only important thing is the distance between the beginning of every "on" state maybe the software can be easier....
It is, I understand, also possible to run more than one pic from a clock source. You mentioned connecting pics serially, but I do not see this as a solution; however, two (or more) sync'ed to the same clock...
this is what the datasheet of the ic connected to the pic says:
"An active low pulse on the input pin activate the logic. The activation occurs on the rising edge of the signal"
clock input pin: low max 0,6v, high min 2v
clock time: 0,5 us
set up time: 1 us
hold time: 4 us
i tried with only 4us of "off" state and the input pin of the ic connected to the pic count the clock pulses very good, like the datasheet says
it work with even 1us off state
Are you looking to implement a frequency multiplier using PIC ?
oh no, it's a stepper motors driver
Well okay, a stepper motor driver should not be difficult to implement. You are possibly asking for some kind of multiplication factor between an input wave (encoder) and the output drive(Stepper). I'm not sure I understand the problem you described very well.
simply the stepper motor driver use the input clock to define the steps, one rising pulse is one step, 400 rising pulses are 400 steps
So the PIC is what's going to generate the pulses for two step motor drivers and you're trying to implement linear interpolation in the PIC?
Generally what you're looking for is Breshenhams algorithm but your case seems rather specific with one axis always moving the same distance so I don't know.
/Henrik.
if i choose the two pic serially connected solution the two separate quartz can produce an error in time or it will be negligible?
it would be relatively easy to to emit 400 cycles of a 50% pw 600uS period wave [x] using a ccp module while toggling another pin at 2 to 12 mS intervals (100-600 pulses) . the pin toggle isr would count down the desired number of [y ] pulses (the period being predetermined) and terminate the ccp output and itself at that point . if a 16 bit timer is used for the isr then the resoution would be reasonable with a 20mhz clk.
you could also look at a PoKeys57 module or an arduino running GRBL.
your description of the problem at hand lacks sufficient detail for me to progress beyond this point , a classic xy problem http://xyproblem.info/
hello richard so its possible to stop the pwm after a fixed time? Maybe its a solution, cause the 400 steps (or always multiply of 400) are fixed, i need only to stop the pwm output after the same time of y, its possible to stop the pwm at the exact point from the software?
CPRxCON=12 PWM ON
CPRxCON=0 PWM OFF
You may need to set the CCPx output pin to 0 if the pin idle state is critical

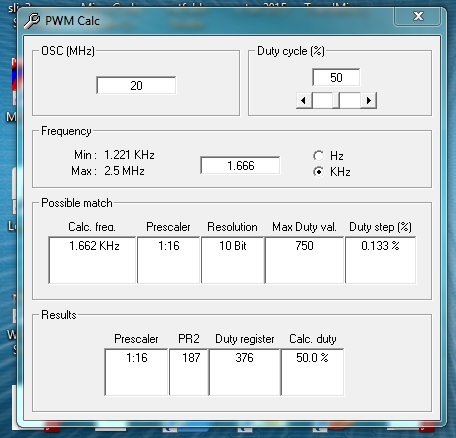

the lowest possible hpwm frequency is 245 hz (for a 4mhz quartz) and 1221hz for a 20mhz quartz, now i have to calculate the frequency of 400 pulses.....
try thisAttachment 8153
400*300+300=240.000 us
1.000.000 us /240.000 us =4,1666666667
4,1666666667*400 pulses =1.666,66666668 hz for one second if the quartz is precise.......
the pwm work good and the frequency counter confirm the exact frequency and its possible to stop it at a fixed point, now i need a second timer to count the y pulses other than 400) with a same time of x. The x train with 400 pulses do the work in: 400*300+300=240.000us. I need the same time for y, with pulses other than 400....
what's the lowest possible increment in uS units of the two other timers with 20mhz quartz?
i think thats the wrong questionQuote:
what's the lowest possible increment in uS units of the two other timers with 20mhz quartz?
1. first thing is what time intervals are required to toggle the output at to achieve for the given number of pulses in the time frame
2. are they all possible within the available timer resolution ? how many pulses do you really need ? steps of 5 10, 50 ,1 ,2 ?
3. what method will be fast enough to toggle the output and count the pulses too .ie an isr or a fast loop to monitor timer overflows
PULSES TOGGLES PERIOD uS
100 199 1204.52
101 201 1192.54
150 299 801.67
200 399 600.75
250 499 480.36
300 599 400.17
350 699 342.92
400 799 300.00
450 899 266.63
500 999 239.94
550 1099 218.11
599 1197 200.25
600 1199 199.92
hi richard, to match the x pulses (1666hz) for the y pulses i need to set a range from 500us (250high+250low) to 7500us (3750high+3750low) the increment can be 50us. For your 3rd question i need your help....
if you go down that path then
then :-Code:
toggle /time
pulses
250
479
300
399
350
342
400
299
450
266
500
239
550
217
600
199
650
184
700
171
750
159
800
149
850
141
900
133
950
126
1000
119
1050
114
1100
108
1150
104
1200
99
1250
95
1300
92
1350
88
1400
85
1450
82
1500
79
1550
77
1600
74
1650
72
1700
70
1750
68
1800
66
1850
64
1900
63
1950
61
2000
59
2050
58
2100
57
2150
55
2200
54
2250
53
2300
52
2350
51
2400
49
2450
48
2500
47
2550
47
2600
46
2650
45
2700
44
2750
43
2800
42
2850
42
2900
41
2950
40
3000
39
3050
39
3100
38
3150
38
3200
37
3250
36
3300
36
3350
35
3400
35
3450
34
3500
34
3550
33
3600
33
3650
32
3700
32
3750
31

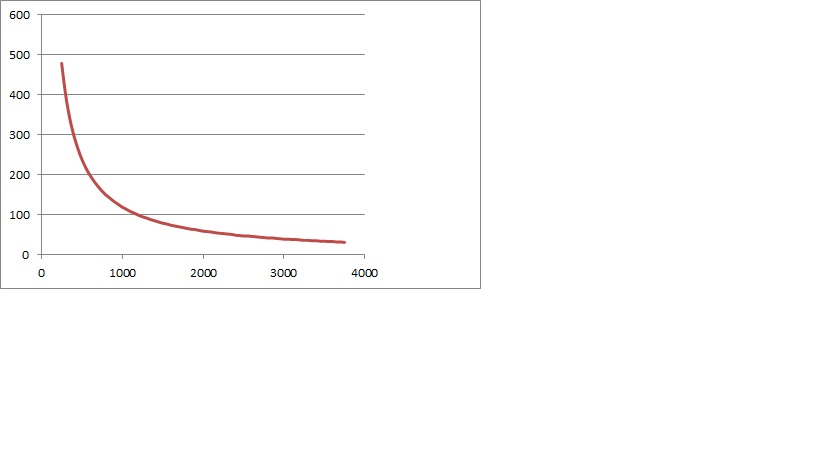

1. your range is 31 to 479 pulses nothing like the 100-600 initially specified
2. not every period produces a different pulse count
3. pulses will not always finish synchronously within the 400 pulse stream
4. the pulse count varies in a non-linear manner
Attachment 8158
hi richard, i understand. The 31-479 possible pulses of y for every 400 pulses of x are for me necessary, it's impossible for me to change those three parameters. i know it's a problem of "times", they are like two "digital gears" and i must find the way to match the reciprocal "teeth". The frequency of x now is 1666 hz (240.000uS) but the x motor accept other frequencies too. More difficult for me is understand interrupts, overflow, ticks, to find my way and the possible solution
the forum is crammed full of examplesQuote:
More difficult for me is understand interrupts, overflow, ticks, to find my way and the possible solution
search "blinky" to see some relevant ideas
perhaps if you provide more detailed information about what you are trying to achieve preferably with some examples of the code that you have tried , more help would be offered.
as it stands your goal is a mystery and worse still the goalposts seem to keep moving . speculation wastes everyone time and patience.
(I'm thinking now that an electronically variable gearbox might be your target , if so this approach is not going to work) but that's just speculation
anyway the pwm (the only way to have two pulses on different ports of a pic at the same time) it's not good for me cause i work with stepper motors and i have to define closed number of steps, not frequencies. Cause i must define fix numbers, not number of pulses for second. I can't tell the pic to count until 9600 on a port and to count until 120000 on another port at the same time (the quartz of course) its impossible.
from what you have described so far, it may be easier than it seems to implement this..... maybe.
1, you have to use timer interrupt at 50micro seconds..... the highest common value for both times
2, you implement a while/wend loop with block of code for main X....hi/low and total run ... and block of code for Y .... with values you calculated
3, using counters in blocks to toggle pins and exit while when pulses/count are reached
4, outside of while blocks to get/calculate new Y's.... do other stuff then startup a new round of pulses
5, the constraint is all the code inside blocks have to be less than 50micro seconds..... at 20 MHZ should able to do about 100 to 200 instructions in 50micro seconds
thank you amgen, i have to work with the timers for generate the correct number of pulses for two ports with the lowest possible latency.
