Displaying and scrolling large amount of text on 8x14 led dot matrix display?
Hello!
I'm building a custom stereo spectrum analyzer for home system. It will have 8x14 led dot matrix display. Having such nice display inspired me to use it for showing additional data, such as name of input selected, show volume level while adjusting and so on. The problem is that EPROM space of chip I want to use PIC16F887 is quite limited, so having whole font in memory is not possible.
My approach is as follows:
1. Attach an external eeprom chip, where letter graphics and other symbols will be stored
2. create a lookup table, so we know that say data for "B" starts at address F940 and data for "X" starts say at FFCD.
3. Alocate a virtual "frame buffer" in chip eeprom, which will be read by separate routine in interrupt, which will update the display.
4. As needed, transfer data from external eeprom to internal.
The question is, to have smooth display, I will need to update it at least 30 times per second. Reading internal eeprom so much times will cause it to fail quite fast, I guess? The possible workaround is to use SRAM chip, but maybe I'm making things too complicated and there are simpler ways to solve it? I don't want to use external IC like MAX7219 or similar, I want to do everything purely my MCU powers.
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
For 8x14 bits it’s far from unreasonable to store the frame buffer in the pic’s RAM as 14 bytes.
It may take time to write from EEPROM to the frame buffer in RAM, but at least when it comes time
to update the display frame, that can be fast so you don’t see the display being drawn.
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
a 14x8 font would be nicely accommodated in a pic16's flash pgm memory (its 14 bits wide) if you have the space
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
14x8 is the display dimensions. Actual "font" and graphics will be smaller, say 5x8.
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
CouriousOne, the question:" I will need to update it at least 30 times per second. Reading internal eeprom so much times will cause it to fail quite fast, I guess? " NO reading the eeprom from the particular processor will not wear it out BUT, Writing to the same locations of PROGRAM MEMORY more than 1000 or so times will. Also writing to internal EEPROM MEMORY more than 100,000 times will.
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
A 5x8 font with uppercase characters, digits and basic punctuation is 472 bytes,
but if you only need to use several words and omit characters you don’t need,
it may fit on the 256 bytes on chip EEPROM, or a combination of on-chip EEPROM and program memory.
Here is the 5x8 font used by the hitachi LCD controllers (if the forum fits it in the post)
It’s in a C array, but the data is the same.
You’ll notice the bottom value is always zero because the character display is actually only 5x7,
so that’s a decent head start ;)
Code:
unsigned char charmap[472]={
0b00000, // Space _ 0x20
0b00000,
0b00000,
0b00000,
0b00000,
0b00000,
0b00000,
0b00000, //
0b00100, // Exclamation ! 0x21
0b00100,
0b00100,
0b00100,
0b00000,
0b00000,
0b00100,
0b00000, //
0b01010, // Inverted Commas " 0x22
0b01010,
0b01010,
0b00000,
0b00000,
0b00000,
0b00000,
0b00000, //
0b01010, // Hash # 0x23
0b01010,
0b11111,
0b01010,
0b11111,
0b01010,
0b01010,
0b00000, //
0b00100, // Dollar Sign $ 0x24
0b01111,
0b10100,
0b01110,
0b00101,
0b11110,
0b00100,
0b00000, //
0b11000, // Percent Sign % 0x25
0b11001,
0b00010,
0b00100,
0b01000,
0b10011,
0b00011,
0b00000, //
0b01100, // And Sign & 0x26
0b10010,
0b10100,
0b01000,
0b10101,
0b10010,
0b01101,
0b00000, //
0b01100, // Inverted Comma ' 0x27
0b00100,
0b01000,
0b00000,
0b00000,
0b00000,
0b00000,
0b00000, //
0b00010, // Open Bracket ( 0x28
0b00100,
0b01000,
0b01000,
0b01000,
0b00100,
0b00010,
0b00000, //
0b01000, // Close Bracket ) 0x29
0b00100,
0b00010,
0b00010,
0b00010,
0b00100,
0b01000,
0b00000, //
0b00000, // Asterisk * 0x2A
0b00100,
0b10101,
0b01110,
0b10101,
0b00100,
0b00000,
0b00000, //
0b00000, // Plus Sign + 0x2B
0b00100,
0b00100,
0b11111,
0b00100,
0b00100,
0b00000,
0b00000, // Comma , 0x2C
0b00000,
0b00000,
0b00000,
0b00000,
0b01100,
0b00100,
0b01000,
0b00000, //
0b00000, // Dash/Minus Sign - 0x2D
0b00000,
0b00000,
0b11111,
0b00000,
0b00000,
0b00000,
0b00000, //
0b00000, // Period/Decimal Point . 0x2E
0b00000,
0b00000,
0b00000,
0b00000,
0b01100,
0b01100,
0b00000, //
0b00000, // Forward Slash / 0x2F
0b00001,
0b00010,
0b00100,
0b01000,
0b10000,
0b00000,
0b00000, //
0b01110, // 0 0x30
0b10001,
0b10011,
0b10101,
0b11001,
0b10001,
0b01110,
0b00000, //
0b00100, // 1 0x31
0b01100,
0b00100,
0b00100,
0b00100,
0b00100,
0b01110,
0b00000, //
0b01110, // 2 0x32
0b10001,
0b00001,
0b00010,
0b00100,
0b01000,
0b11111,
0b00000, //
0b11111, // 3 0x33
0b00010,
0b00100,
0b00010,
0b00001,
0b10001,
0b01110,
0b00000, //
0b00010, // 4 0x34
0b00110,
0b01010,
0b10010,
0b11111,
0b00010,
0b00010,
0b00000, //
0b11111, // 5 0x35
0b10000,
0b11110,
0b00001,
0b00001,
0b10001,
0b01110,
0b00000, //
0b00110, // 6 0x36
0b01000,
0b10000,
0b11110,
0b10001,
0b10001,
0b01110,
0b00000, //
0b11111, // 7 0x37
0b00001,
0b00010,
0b00100,
0b01000,
0b01000,
0b01000,
0b00000, //
0b01110, // 8 0x38
0b10001,
0b10001,
0b01110,
0b10001,
0b10001,
0b01110,
0b00000, //
0b01110, // 9 0x39
0b10001,
0b10001,
0b01111,
0b00001,
0b00010,
0b01100,
0b00000, //
0b00000, // Colon : 0x3A
0b01100,
0b01100,
0b00000,
0b01100,
0b01100,
0b00000,
0b00000, //
0b00000, // Semi Colon ; 0x3B
0b01100,
0b01100,
0b00000,
0b01100,
0b00100,
0b01000,
0b00000, //
0b00010, // Less Than Sign < 0x3C
0b00100,
0b01000,
0b10000,
0b01000,
0b00100,
0b00010,
0b00000, //
0b00000, // Equals Sign = 0x3D
0b00000,
0b11111,
0b00000,
0b11111,
0b00000,
0b00000,
0b00000, //
0b01000, // Greater Than Sign > 0x3E
0b00100,
0b00010,
0b00001,
0b00010,
0b00100,
0b01000,
0b00000, //
0b01110, // Question Mark ? 0x3F
0b10001,
0b00001,
0b00010,
0b00100,
0b00000,
0b00100,
0b00000, //
0b01110, // Ampersand @ 0x40
0b10001,
0b00001,
0b01101,
0b10101,
0b10101,
0b01110,
0b00000, //
0b01110, // A 0x41
0b10001,
0b10001,
0b10001,
0b11111,
0b10001,
0b10001,
0b00000, //
0b11110, // B 0x42
0b10001,
0b10001,
0b11111,
0b10001,
0b10001,
0b11110,
0b00000, //
0b01110, // C 0x43
0b10001,
0b10000,
0b10000,
0b10000,
0b10001,
0b01110,
0b00000, //
0b11100, // D 0x44
0b10010,
0b10001,
0b10001,
0b10001,
0b10010,
0b11100,
0b00000, //
0b11111, // E 0x45
0b10000,
0b10000,
0b11110,
0b10000,
0b10000,
0b11111,
0b00000, //
0b11111, // F 0x46
0b10000,
0b10000,
0b11110,
0b10000,
0b10000,
0b10000,
0b00000, //
0b01110, // G 0x47
0b10001,
0b10000,
0b10111,
0b10001,
0b10001,
0b01111,
0b00000, //
0b10001, // H 0x48
0b10001,
0b10001,
0b11111,
0b10001,
0b10001,
0b10001,
0b00000, //
0b01110, // I 0x49
0b00100,
0b00100,
0b00100,
0b00100,
0b00100,
0b01110,
0b00000, //
0b00111, // J 0x4A
0b00010,
0b00010,
0b00010,
0b00010,
0b10010,
0b01100,
0b00000, //
0b10001, // K 0x4B
0b10010,
0b10100,
0b11000,
0b10100,
0b10010,
0b10001,
0b00000, //
0b10000, // L 0x4C
0b10000,
0b10000,
0b10000,
0b10000,
0b10000,
0b11111,
0b00000, //
0b10001, // M 0x4D
0b11011,
0b10101,
0b10101,
0b10001,
0b10001,
0b10001,
0b00000, //
0b10001, // N 0x4E
0b10001,
0b11001,
0b10101,
0b10011,
0b10001,
0b10001,
0b00000, //
0b01110, // O 0x4F
0b10001,
0b10001,
0b10001,
0b10001,
0b10001,
0b01110,
0b00000, //
0b11110, // P 0x50
0b10001,
0b10001,
0b11110,
0b10000,
0b10000,
0b10000,
0b00000, //
0b01110, // Q 0x51
0b10001,
0b10001,
0b10001,
0b10101,
0b10010,
0b01101,
0b00000, //
0b11110, // R 0x52
0b10001,
0b10001,
0b11110,
0b10100,
0b10010,
0b10001,
0b00000, //
0b01111, // S 0x53
0b10000,
0b10000,
0b01110,
0b00001,
0b00001,
0b11110,
0b00000, //
0b11111, // T 0x54
0b00100,
0b00100,
0b00100,
0b00100,
0b00100,
0b00100,
0b00000, //
0b10001, // U 0x55
0b10001,
0b10001,
0b10001,
0b10001,
0b10001,
0b01110,
0b00000, //
0b10001, // V 0x56
0b10001,
0b10001,
0b10001,
0b10001,
0b01110,
0b00100,
0b00000, //
0b10001, // W 0x57
0b10001,
0b10001,
0b10101,
0b10101,
0b10101,
0b01010,
0b00000, //
0b10001, // X 0x58
0b10001,
0b01010,
0b00100,
0b01010,
0b10001,
0b10001,
0b00000, //
0b10001, // Y 0x59
0b10001,
0b10001,
0b01010,
0b00100,
0b00100,
0b00100,
0b00000, //
0b11111, // Z 0x5A
0b00001,
0b00010,
0b00100,
0b01000,
0b10000,
0b11111,
0b00000,};
//
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
This is a routine I came up with about 8 years or so ago.
' ************************************************** ******************
CHARTABLR: '5 x 7 CHARACTER LOOK-UP TABLE FOR ROWS (LSB=RIGHT) (ROW1 = TOP)
' ************************************************** ******************
IF CHARACTER < 31 OR CHARACTER > 127 THEN CHARACTER = 63 '?
' " ","!",""","#","$","%","&","'","(",")","*","+", ",",
'"-",".","/","0","1","2","3","4","5","6","7","8","9",":",";", "<","=",">","?",
'"@","A","B","C","D","E","F","G","H","I","J","K"," L","M","N","O","P","Q","R",
'"S","T","U","V","W","X","Y","Z","[","\","]","^","_","`","a","b","c","d","e",
'"f","g","h","i","j","k","l","m","n","o","p","q"," r","s","t","u","v","w","x",
'"y","z","{","|","}","~"]
ROW1:
LOOKUP CHARACTER - 32,[$00,$04,$0A,$0A,$04,$18,$0C,$0C,$04,$04,$00,$00,$0 0,_
$00,$00,$00,$0E,$04,$0E,$1F,$02,$1F,$06,$1F,$0E,$0 E,$00,$00,$02,$00,$08,$0E,_
$0E,$0E,$1E,$0E,$1C,$1F,$1F,$0E,$11,$0E,$07,$11,$1 0,$11,$11,$0E,$1E,$0E,$1E,_
$0F,$1F,$11,$11,$11,$11,$11,$1F,$1C,$00,$07,$04,$0 0,$08,$00,$10,$00,$01,$00,_
$06,$00,$10,$04,$01,$10,$0C,$00,$00,$00,$00,$00,$0 0,$00,$08,$00,$00,$00,$00,_
$00,$00,$04,$04,$04,$00],ROW_DAT(0)
ROW2:
LOOKUP CHARACTER - 32,[$00,$04,$0A,$0A,$0F,$19,$12,$04,$08,$02,$04,$04,$0 0,_
$00,$00,$01,$11,$0C,$11,$02,$06,$10,$08,$01,$11,$1 1,$0C,$0C,$04,$00,$04,$11,_
$11,$11,$11,$11,$12,$10,$10,$11,$11,$04,$02,$12,$1 0,$1B,$11,$11,$11,$11,$11,_
$10,$04,$11,$11,$11,$11,$11,$01,$10,$10,$01,$0A,$0 0,$04,$00,$10,$00,$01,$00,_
$09,$0F,$10,$00,$00,$10,$04,$00,$00,$00,$00,$00,$0 0,$00,$08,$00,$00,$00,$00,_
$00,$00,$08,$04,$02,$00],ROW_DAT(1)
ROW3:
LOOKUP CHARACTER - 32,[$00,$04,$0A,$1F,$14,$02,$14,$08,$10,$01,$15,$04,$0 0,_
$00,$00,$02,$13,$04,$01,$04,$0A,$1E,$10,$02,$11,$1 1,$0C,$0C,$08,$1F,$02,$01,_
$01,$11,$11,$10,$11,$10,$10,$10,$11,$04,$02,$14,$1 0,$15,$19,$11,$11,$11,$11,_
$10,$04,$11,$11,$11,$0A,$11,$02,$10,$08,$01,$11,$0 0,$02,$0E,$16,$0E,$0D,$0E,_
$08,$11,$16,$0C,$03,$12,$04,$1A,$16,$0E,$1E,$0D,$1 6,$0E,$1C,$11,$11,$11,$11,_
$11,$1F,$08,$04,$02,$05],ROW_DAT(2)
ROW4:
LOOKUP CHARACTER - 32,[$00,$04,$00,$0A,$0E,$04,$08,$00,$10,$01,$0E,$1F,$0 0,_
$1F,$00,$04,$15,$04,$02,$02,$12,$01,$1E,$04,$0E,$0 F,$00,$00,$10,$00,$01,$02,_
$0D,$11,$1E,$10,$11,$1E,$1E,$17,$1F,$04,$02,$18,$1 0,$15,$15,$11,$1E,$11,$1E,_
$0E,$04,$11,$11,$15,$04,$0A,$04,$10,$04,$01,$00,$0 0,$00,$01,$19,$10,$13,$11,_
$1C,$11,$19,$04,$01,$14,$04,$15,$19,$11,$11,$13,$1 9,$10,$08,$11,$11,$11,$0A,_
$11,$02,$10,$04,$01,$0A],ROW_DAT(3)
ROW5
LOOKUP CHARACTER - 32,[$00,$00,$00,$1F,$05,$08,$15,$00,$10,$01,$15,$04,$0 C,_
$00,$00,$08,$19,$04,$04,$01,$1F,$01,$11,$08,$11,$0 1,$0C,$0C,$08,$1F,$02,$04,_
$15,$1F,$11,$10,$11,$10,$10,$11,$11,$04,$02,$14,$1 0,$11,$13,$11,$10,$15,$14,_
$01,$04,$11,$11,$15,$0A,$04,$08,$10,$02,$01,$00,$0 0,$00,$0F,$11,$10,$11,$1F,_
$08,$0F,$11,$04,$01,$18,$04,$15,$11,$11,$1E,$0F,$1 0,$0E,$08,$11,$11,$15,$04,_
$0F,$04,$08,$04,$02,$00],ROW_DAT(4)
ROW6
LOOKUP CHARACTER - 32,[$00,$00,$00,$0A,$1E,$13,$12,$00,$08,$02,$04,$04,$0 4,_
$00,$0C,$10,$11,$04,$08,$11,$02,$11,$11,$08,$11,$0 1,$0C,$04,$04,$00,$04,$00,_
$15,$11,$11,$11,$12,$10,$10,$11,$11,$04,$12,$12,$1 0,$11,$11,$11,$10,$12,$12,_
$01,$04,$11,$0A,$15,$11,$04,$10,$10,$01,$01,$00,$0 0,$00,$11,$11,$11,$11,$10,_
$08,$01,$11,$04,$09,$14,$04,$11,$11,$11,$10,$01,$1 0,$01,$09,$13,$0A,$15,$0A,_
$01,$08,$08,$04,$02,$00],ROW_DAT(5)
ROW7:
LOOKUP CHARACTER - 32,[$00,$04,$00,$0A,$04,$03,$0D,$00,$04,$04,$00,$00,$0 8,_
$00,$0C,$00,$0E,$0E,$1F,$0E,$02,$0E,$0E,$08,$0E,$0 E,$00,$08,$02,$00,$08,$04,_
$0E,$11,$1E,$0E,$1C,$1F,$10,$0F,$11,$0E,$0C,$11,$1 F,$11,$11,$0E,$10,$0D,$11,_
$1E,$04,$0E,$04,$0A,$11,$04,$1F,$1C,$00,$07,$00,$1 F,$00,$0F,$1E,$0E,$0F,$0E,_
$08,$0E,$11,$0E,$06,$12,$0E,$11,$11,$0E,$10,$01,$1 0,$1E,$06,$0D,$04,$0A,$11,_
$0E,$1F,$04,$04,$04,$00],ROW_DAT(6)
RETURN
Enjoy....
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
Yes I see it contains some kind of "font", but how to "convert" it to a text string?
3 Attachment(s)
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
Here is how I have done it with an 8x8 led matrix.
using a 16f690 or 16f1829
the three pertinant code snippets below are from that program.
you may want to copy / paste them into microcode studio or, even better, use FineLine IDE which also shows lines on for/next loops and makes it easier to follow the code.

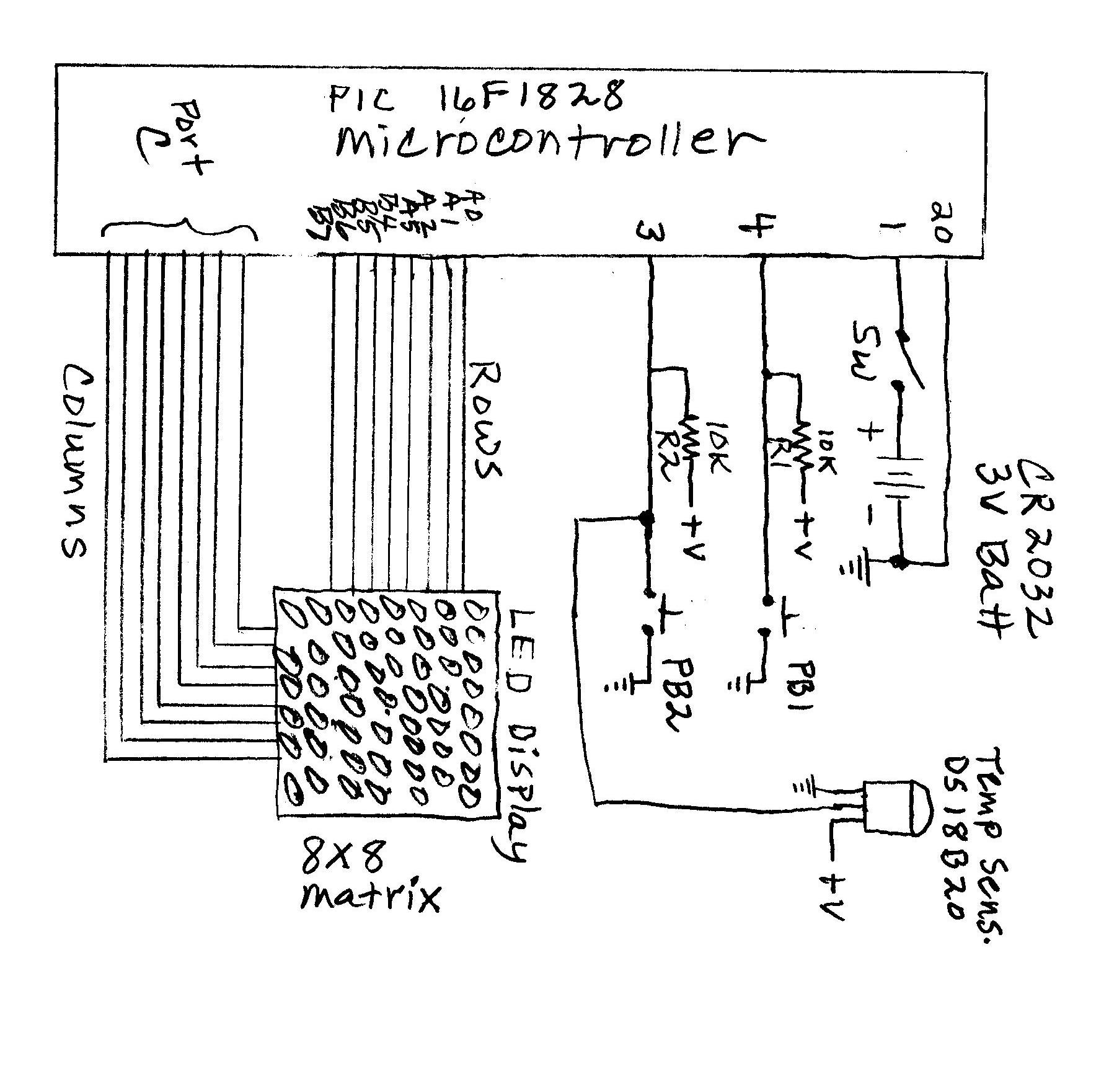

I can send you the whole program and schematic if it would be helpful.
works very well.

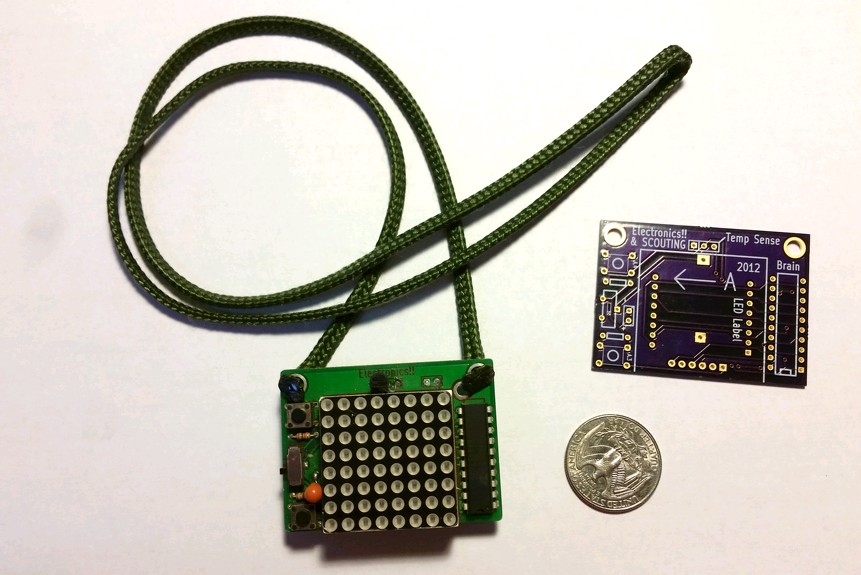

There has been over 400 kits built using this code.
Attachment 8121
Attachment 8122
Code:
arraywrite msg,["High Uintah 2015"]
len=16:GOSUB Message
arraywrite msg,["A Scout is..."]
len=13:GOSUB Message
arraywrite msg,["Trustworthy"]
len=11:GOSUB Message
arraywrite msg,["Loyal"]
len=5:GOSUB Message
arraywrite msg,["Helpful"]
len=7:GOSUB Message
arraywrite msg,["Friendly"]
len=8:GOSUB Message
arraywrite msg,["Courteous"]
len=9:GOSUB Message
arraywrite msg,["Kind"]
len=4:GOSUB Message
arraywrite msg,["Obedient"]
len=8:GOSUB Message
arraywrite msg,["Cheerful"]
len=8:GOSUB Message
arraywrite msg,["Thrifty"]
len=7:GOSUB Message
arraywrite msg,["Brave"]
len=5:GOSUB Message
arraywrite msg,["Clean"]
len=5:GOSUB Message
arraywrite msg,["Reverent"]
len=8:GOSUB Message
Code:
'==========================================================================
' MESSAGE subroutine
'==========================================================================
Message:
now=0
FOR ltr=0 TO len-1
char=msg[ltr]
pos = 0 'reset pos counter for new letter
GOSUB GetChar 'get first value representing number of columns
pix=col 'set pix to be number of columns in current character
FOR pos = 1 TO pix 'pos starts at 1 to skip first character data
GOSUB GetChar 'get actual character data
x88[now]=col 'store character data in current position of matrix
GOSUB Display 'display each new character column data
NEXT pos
x88[now]=$FF 'follow each character with 2 blank spaces
GOSUB Display
x88[now]=$FF
GOSUB Display
NEXT ltr
Finish: 'follow each word with 2 complete blank screens
FOR ltr = 1 TO 16
x88[now]=$ff
GOSUB Display
NEXT ltr
RETURN
Code:
'==========================================================
' DISPLAY subroutine
'==========================================================
Display: 'display the current 8x8 matrix "view" times
IF col=0 THEN 'check to see if should scroll or static
now=0
GOTO DntScrl 'skip incrementing now (which causes scrolling)
ENDIF
now=now+1 'increment position counter for scrolling
IF now=8 THEN now=0 'done with frame so reset postion
DntScrl:
FOR view = 0 TO speed 'scroll speed, number of time to scan each screen
IF BtnTmr = 0 THEN GOSUB Btn 'time to check for button press
BtnTmr=BtnTmr -1 'else decriment BtnTmr for button debounce
FOR r = 0 TO 7 'count for row scanning
'The following lookup is used to creat a "walking" 1
'for Row Scanning. Row port pins are not contiguous.
'The list of numbers is dependant on which PIC pins
'are connected to which LED matrix rows. In this case
'pins A.0:A.1:A.2:A.5:B.4:B.5:B.6:B.7
'(A.5 and B.5 cause 32 to be used twice.)
LOOKUP r, [1,2,4,32,16,32,64,128], row 'walking "1" for row scanning
IF r<4 THEN
PortA=row 'PortA 0,1,2,5 is connected to row 1-4
ELSE
PortB=row 'PortB 4,5,6,7 is connected to row 5-8
ENDIF
i=r + now 'combine row count with position counter(now)
IF i>7 THEN i=i-8 'to create scrolling effect
col=x88[i]
IF r=0 THEN 'this is the Car row so combine track with car
crash=col |/ car ' check for collision using NOR function
col=col & car ' show car postion
ENDIF
IF crash >0 THEN 'crashed
wface=11 'so set up for crash indicator
GOTO Crashed 'then goto display crash symbol
ENDIF
PortC=col 'set the column LED's with current col
PAUSEUS LOn 'on time for each col (250,500,1000,1500)
PortA=0 :PortB=0 'all rows off
PortC=%11111111 'all cols off
NEXT r
NEXT view
RETURN
Code:
GetChar:
SELECT CASE char
case" " :LOOKUP pos, [2,$FF,$FF], col
Case"!" :LOOKUP pos, [1,$05], col
Case"*" :LOOKUP pos, [9,$FF,$BF,$5F,$BF,$FF,$01,$6F,$6F,$7F], col 'deg F
Case"+" :LOOKUP pos, [7,$FF,$FF,$EF,$EF,$83,$EF,$EF], col
Case"-" :LOOKUP pos, [6,$FF,$FF,$EF,$EF,$EF,$EF], col
Case"." :LOOKUP pos, [2,$F9,$F9], col
Case"0" :LOOKUP pos, [5,$83,$75,$6D,$5D,$83], col
Case"1" :LOOKUP pos, [3,$BD,$01,$FD], col
Case"2" :LOOKUP pos, [5,$BD,$79,$75,$6D,$9D], col
Case"3" :LOOKUP pos, [5,$7B,$7D,$6D,$4D,$33], col
Case"4" :LOOKUP pos, [5,$E7,$D7,$B7,$01,$F7], col
Case"5" :LOOKUP pos, [5,$1B,$5D,$5D,$5D,$63], col
Case"6" :LOOKUP pos, [5,$C3,$AD,$6D,$6D,$F3], col
Case"7" :LOOKUP pos, [5,$7F,$71,$6F,$5F,$3F], col
Case"8" :LOOKUP pos, [5,$93,$6D,$6D,$6D,$93], col
Case"9" :LOOKUP pos, [5,$9F,$6D,$6D,$6B,$87], col
Case"A" :LOOKUP pos, [5,$C1,$B7,$77,$B7,$C1], col
Case"B" :LOOKUP pos, [5,$7D,$01,$6D,$6D,$93], col
Case"C" :LOOKUP pos, [5,$83,$7D,$7D,$7D,$BB], col
Case"D" :LOOKUP pos, [5,$7D,$01,$7D,$7D,$83], col
Case"E" :LOOKUP pos, [5,$01,$6D,$6D,$6D,$7D], col
Case"F" :LOOKUP pos, [5,$01,$6F,$6F,$6F,$7F], col
Case"G" :LOOKUP pos, [5,$83,$7D,$7D,$6D,$61], col
Case"H" :LOOKUP pos, [5,$01,$EF,$EF,$EF,$01], col
Case"I" :LOOKUP pos, [3,$7D,$01,$7D], col
Case"J" :LOOKUP pos, [5,$FB,$FD,$FD,$FD,$03], col
Case"K" :LOOKUP pos, [5,$01,$EF,$D7,$BB,$7D], col
Case"L" :LOOKUP pos, [5,$01,$FD,$FD,$FD,$FD], col
Case"M" :LOOKUP pos, [5,$01,$BF,$CF,$BF,$01], col
Case"N" :LOOKUP pos, [5,$01,$DF,$EF,$F7,$01], col
Case"O" :LOOKUP pos, [5,$83,$7D,$7D,$7D,$83], col
Case"P" :LOOKUP pos, [5,$01,$6F,$6F,$6F,$9F], col
Case"Q" :LOOKUP pos, [5,$83,$7D,$75,$7B,$85], col
Case"R" :LOOKUP pos, [5,$01,$6F,$67,$6B,$9D], col
Case"S" :LOOKUP pos, [5,$9B,$6D,$6D,$6D,$B3], col
Case"T" :LOOKUP pos, [5,$7F,$7F,$01,$7F,$7F], col
Case"U" :LOOKUP pos, [5,$03,$FD,$FD,$FD,$03], col
Case"V" :LOOKUP pos, [5,$1F,$E7,$F9,$E7,$1F], col
Case"W" :LOOKUP pos, [5,$03,$FD,$E3,$FD,$03], col
Case"X" :LOOKUP pos, [5,$39,$D7,$EF,$D7,$39], col
Case"Y" :LOOKUP pos, [5,$3F,$DF,$E1,$DF,$3F], col
Case"Z" :LOOKUP pos, [5,$79,$75,$6D,$5D,$3D], col
Case"a" :LOOKUP pos, [5,$E3,$DD,$DD,$EB,$C1], col
Case"b" :LOOKUP pos, [5,$01,$ED,$ED,$ED,$F3], col
Case"c" :LOOKUP pos, [5,$E3,$DD,$DD,$DD,$ff], col 'last col was $EB
Case"d" :LOOKUP pos, [5,$E3,$DD,$DD,$DD,$01], col
Case"e" :LOOKUP pos, [5,$E3,$D5,$D5,$D5,$E5], col
Case"f" :LOOKUP pos, [5,$EF,$81,$6F,$6F,$BF], col
Case"g" :LOOKUP pos, [5,$E7,$DA,$DA,$EA,$C0], col
Case"h" :LOOKUP pos, [5,$01,$DF,$DF,$DF,$E1], col
Case"i" :LOOKUP pos, [1,$41], col
Case"j" :LOOKUP pos, [3,$F9,$FE,$41], col
Case"k" :LOOKUP pos, [4,$01,$F7,$EB,$DD], col
Case"l" :LOOKUP pos, [3,$03,$FD,$FD], col
Case"m" :LOOKUP pos, [5,$C1,$DF,$E1,$DF,$E1], col
Case"n" :LOOKUP pos, [5,$C1,$EF,$DF,$DF,$E1], col
Case"o" :LOOKUP pos, [5,$E3,$DD,$DD,$DD,$E3], col
Case"p" :LOOKUP pos, [5,$C0,$EB,$DB,$DB,$E7], col
Case"q" :LOOKUP pos, [5,$E7,$DB,$DB,$C0,$FE], col
Case"r" :LOOKUP pos, [5,$C1,$EF,$DF,$DF,$EF], col
Case"s" :LOOKUP pos, [5,$EF,$D5,$D5,$D5,$FB], col
Case"t" :LOOKUP pos, [4,$DF,$03,$DD,$FB], col
Case"u" :LOOKUP pos, [5,$C3,$FD,$FD,$FB,$C1], col
Case"v" :LOOKUP pos, [5,$C7,$FB,$FD,$FB,$C7], col
Case"w" :LOOKUP pos, [5,$C3,$FD,$C3,$FD,$C3], col
Case"x" :LOOKUP pos, [5,$DD,$EB,$F7,$EB,$DD], col
Case"y" :LOOKUP pos, [4,$C7,$FA,$FA,$C1], col
Case"z" :LOOKUP pos, [5,$DD,$D9,$D5,$CD,$DD], col
Case":" :LOOKUP pos, [2,$99,$99], col
END SELECT
RETURN
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
Thanks a lot, will take a look later :)
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
Dwight, That looks like a nice little project for our soldering class at our workshop in Northville Michigan. Would you mind if I used it?
Re: Displaying and scrolling large amount of text on 8x14 led dot matrix display?
Dave... sent you a PM
dwight
