Moving menu down in LCD

Hello,

I am trying to build a menu that is moving upwards and downwards with buttons on a 20x4 LCD.

I have 6 variables in this scenario and menu looks like this:
[display area]
============ (1)
[V1>15]
[V2=25]
[V3=30]
[V4=40]
V5=55
V6=60
============
Then when I keep pressing down it should move like this:
============ (2)
[V1=15]
[V2>25]
[V3=30]
[V4=40]
V5=55
V6=60
============ (3)
[V1=15]
[V2=25]
[V3>30]
[V4=40]
V5=55
V6=60
============ (4)
V1=15
[V2=25]
[V3=30]
[V4>40]
[V5=55]
V6=60
============ (5)
V1=15
V2=25
[V3=30]
[V4=40]
[V5>55]
[V6=60]
============ (6)
V1=15
V2=25
[V3=30]
[V4=40]
[V5=55]
[V6>60]
============

Here is my code:

Code:

rak VAR WORD ss VAR BYTE 'current line of selection in the menu qq VAR BYTE 'number of the first line displayed in the LCD ssmax VAR BYTE 'maximum number of variables ss1 VAR BYTE 'where to write first variable in the LCD ss2 VAR BYTE 'where to write second variable in the LCD ss3 VAR BYTE ss4 VAR BYTE ss5 VAR BYTE ss6 VAR BYTE advanced: ssmax=6 ss=1 gosub show_text advanced_1: if but=15 then 'up ss=ss-1 if ss<1 then ss=6 gosub advanced_2 gosub show_text gosub menu_arrow endif if but=16 then 'down ss=ss+1 if ss>6 then ss=1 gosub ayarlar_advanced_2 gosub show_text gosub menu_arrow endif IF but=17 Then 'enter ' for saving variables modified here EndIF gosub type_in if rak>999 then for k=0 to 9:p(k)=0:next k:k=0:rak=0 endif goto advanced_1 advanced_2: if ss=1 then rak=v1 if ss=2 then rak=v2 if ss=3 then rak=v3 if ss=4 then rak=v4 if ss=5 then rak=v5 if ss=6 then rak=v6 return show_text: lcdout$fe,1 qq=ss-2 if (ss-2<=0) then qq=1 if (ss=ssmax) then qq=ss-3 Select Case qq Case 1:ss1=128:ss2=192:ss3=148:ss4=212:gosub y1:gosub y2:gosub y3:gosub y4 Case 2:ss2=128:ss3=192:ss4=148:ss5=212:gosub y2:gosub y3:gosub y4:gosub y5 Case 3:ss3=128:ss4=192:ss5=148:ss6=212:gosub y3:gosub y4:gosub y5:gosub y6 End Select return y1: lcdout$fe,ss1,"VARIABLE1=",#v1 return y2: lcdout$fe,ss2,"VARIABLE2=",#v2 return y3: lcdout$fe,ss3,"VARIABLE3=",#v3 return y4: lcdout$fe,ss4,"VARIABLE4=",#v4 return y5: lcdout$fe,ss5,"VARIABLE5=",#v5 return y6: lcdout$fe,ss6,"VARIABLE6=",#v6 return menu_arrow: gosub menu_arrow_delete lcdout$fe,159,">" if (ss=1) then gosub menu_arrow_delete lcdout$fe,139,">" endif if (ss=2) then gosub menu_arrow_delete lcdout$fe,203,">" endif if (ss=ssmax) then gosub menu_arrow_delete lcdout$fe,223,">" endif ' if ss=1 then lcdout$fe,$8b,">" 'I still need to work on this for modifying selected variable ' if ss=2 then lcdout$fe,$cb,">" ' if ss=3 then lcdout$fe,$9f,">" ' if ss=4 then lcdout$fe,$df,">" return menu_arrow_delete: lcdout$fe,$8b,":":lcdout$fe,$cb,":":lcdout$fe,$9f,":":lcdout$fe,$df,":" return type_in: p(k)=but if but=10 then p(k)=0 k=k+1 if k>3 then for k=0 to 9:p(k)=0:next k p(0)=but:LCDOut$fe,155," ":k=1 rak=0 if ss=1 then lcdout$fe,$8c,#rak," " if ss=2 then lcdout$fe,$cc,#rak," " if ss=3 then lcdout$fe,$a0,#rak," " if ss=4 then lcdout$fe,$e0,#rak," " endif Select Case k Case 1:rak=p(0) Case 2:rak=p(0)*10+p(1) Case 3:rak=p(0)*100+p(1)*10+p(2) End Select return

So the main idea is to shift the menu downwards when last line is reached, or likewise to the upward direction.
As you can see from my code, my knowledge and experience is very limited. I have 3 questions:
1. I somehow managed to make it work with the code above but as you can see it is very inefficient. Is there an easier way to do this? Since string variables are not supported, I am having serious problems with writing a decent function that covers where to write in the LCD.
2. Is there a better way to handle a type_in function? I need to press ESC to clear the number otherwise it becomes messed up.
3. And the most important question: How can I turn this function into a generic one where I can use it for more or less variables?

Thanks in advance.

Re: Moving menu down in LCD

In very rough syntax:

Code:

VV var byte[6] ‘ number of values in VV byte array work var byte ‘ work variable index var byte ‘ first counter indexb var byte ‘ second counter selected var byte ‘ selected array index lcdline var byte ‘ lcd line address ‘ selected = 0 ‘ reset selection for startup ‘ ‘ reset and init lcd here ‘ cycle: ‘ ‘write lcd display for index = 0 to 3 ‘ one less than the number of lcd lines ‘ gosub get line ‘ get lcd line address work = VV[index] LCDOUT $FE,lcdline,[“V”,#selected,” “,”value = “,#work] ‘ if index = 1 then LCDOUT “<-“ ‘ print arrow on second line endif ‘ next index ‘ ‘ check button here somehow if buttonpressed = 1 then gosub rotatearray endif ‘ ‘ goto cycle ‘ ‘ getline: lookup index,[$80,$C0,$94,$D4],lcdline return ‘ rotatearray: ' bitwise rotate array right eight times for indexb = 0 to 5 @ rrf _VV+7 ,F ; @ rrf _VV+6 ,F ; @ rrf _VV+5 ,F ; @ rrf _VV+4 ,F ; @ rrf _VV+3 ,F ; @ rrf _VV+2 ,F ; @ rrf _VV+1 ,F ; @ rrf _VV+0 ,F ; @ bcf _VV+7 ,7 ;clear MSB next indexb return ‘

Re: Moving menu down in LCD

Thank you Art, I will try and report back on Monday.

Re: Moving menu down in LCD

I see errors (late at night). In the last asm routine bitwise rotate
should be index = 0 to 7 (not 0 to 5),
and I did not increment the “selected” value.

Code:

IF button presses = 1 then ‘should also include selected = selected + 1 if selected > 5 then selected = 0 endif gosub rotatearray endif

The selected value tells you what sensor you’re looking at while you’re pointed at zero.

The first thing you should do is learn to start counting from zero like all computers and programming languages do.
Then only when it comes to displaying something like “sensor 0 is reading 32 degrees” to the Humans,
is the point you increment everything by 1 to make it readable to the outside world of Humans.

1 Attachment(s)

Re: Moving menu down in LCD

Thank you Art, but rotatearray is not working for me.

To simplify the question, I used text on the left side as: V1, V2, V3 but actually they are different strings, that is what creates the problem.

1.MY FIRST VARIABLE=20
================
2.SECOND VALUE =25
3.THIRD ONE =30
4.DIFFERENT >40
5.FIFTH VAR =50
================
6.SIXTH VAR =60

Since I can only show 4 lines on the LCD, when the user presses DOWN button I need to know the following:
selected_variable: Which variable is the user currently on (in the above example: 4)
first_line_displayed: Which lines should be displayed OR which line should be on the top (in the above example: 2)

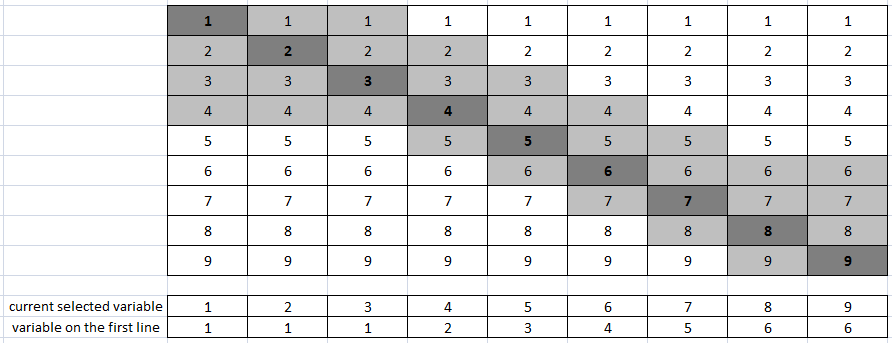

Here is a table I created:
Attachment 7981
Dark grey is the currently selected variable
Light grey are displayed in the LCD

Based on this table:
first_line_displayed = selected_variable - 2
IF (selected_variable - 2 <= 0) THEN first_line_displayed = 1
IF (selected_variable = max_number_of_variables) THEN first_line_displayed = selected_variable - 3

This very simple method works for display purposes. However, the problem is I cannot form a loop to go through all 8 (or less/more) variables and display only the ones that should be played based on the table above (and on the correct place). Can you help me form such a loop?

Re: Moving menu down in LCD

I think that Select and Case will work:

DG=Dark Grey number
LSD = Line Start Display
MNV = Max Number of Variables

Select case DG
Case is < 4
LSD = 1 : GOSUB Display
Case is 4 to MNV - 1 'MNV calculated or hard coded. Only first 3 and last one are special cases.
LSD = DG - 2 : GOSUB Display
Case = MNV
LSD = MNV - 3: GOSUB Display
End select

Display:
For LP = LSD to LSD + 3
DIPLAY LINE LP
NEXT LP
Return
