TM1640 (16 digit display) with PicBAsic Pro, possible is? How?

Possible is programing TM1640 Display with PicBasic Pro? How???


I have this code, but does not work. Someone can help me?

'************************************************* ***************
'* Name : TM1640-demo.pbp *
'* Author : João Efrem *
'* Notice : Copyright (c) 2013 JOÃO EFREM @ 2012 *
'* : All Rights Reserved *
'* Date : 22/7/2013 *
'* Version : 1.0 *
'* Notes : *
'* : *
'************************************************* ***************
CLEAR ; start with clearing the
DEFINE OSC 48
Define RESET_ORG 800h

Seg_nr var Byte
Seg_data var Byte
Info var Byte
T var Byte
Test var Byte
Temp var Byte


Pin_clk var Portb.0 ' TM1640 clock
Pin_data var Portb.1 ' TM1640 data

TRISA=%11111111 ' Configura o PortA como Entrada
TRISB=%00000000 ' Configura o PortB como Saida
TRISC=%00000000 ' Configura o PortC como Saida

INTCON2.7 = 1 ; Turn Pull Up Resitor (PORTB Only) 0=Enable/1=Desable
ADCON1 = %00001111 ; Sets all ports to digital
PORTA = %11111111 ; Turn on all PortA Porta = 255
PORTB = %11111111 ; Turn on all PortB Portb = 255
PORTC = %11111111 ; Turn on all PortC Portc = 255

Gosub Tm1640_init ' Ajustar o brilho
pause 100

main:


For Temp = 0 To 15
Seg_nr = Temp
Seg_data = Temp
Gosub Tm1640
Next Temp

goto main

'************************************************* *****************************
'*** Rotina TM1640 ***
'*** ***
'*** Nós usamos duas variáveis??, a saber: ***
'*** Seg_nr com um intervalo de 0-15 ***
'*** Seg_data com um intervalo de 0-16, que tudo> 15 = branco ***
'************************************************* *****************************
Tm1640:

If Seg_nr > 15 Then Return
If Seg_data > 16 Then Seg_data = 16 ' = Branco

gosub DesenhaDigito

Info = 68 ' É dobrado de dados
Gosub Tm1640_zend

high Pin_clk : high Pin_data

Info = Seg_nr + 192 ' número do segmento (+ 192)
Gosub Tm1640_zend

Info = Seg_data ' dados do segmento
Gosub Tm1640_zend


high Pin_clk : high Pin_data ' Barramento de alta

Return

'************************************************* *****************************
'*** Enviar um byte para o display ***
'************************************************* *****************************
Tm1640_zend:

low Pin_clk : low Pin_data

For T = 1 To 8
Test = Info And 1
if test = 1 then
high pin_data
else
low pin_data
endif
info = info >> 1
high Pin_clk
low Pin_clk
Next T

Return

'************************************************* *****************************
'*** INIT - Ajusta o brilho dos display's ***
'************************************************* *****************************
Tm1640_init:

Info = 138 ' 143 = Brilho total, 138 = 4/16e
Gosub Tm1640_zend

high Pin_clk : high Pin_data

Return

'************************************************* *****************************
'*** Exibe os números de 0-16(F) nos 16 display's ***
'************************************************* *****************************

DesenhaDigito: 'Sem ponto Decimal
Lookup Seg_data,[$3F,$6,$5B,$4F,$66,$6D,$7D,$7,$7F,$67,$77,$7C,$58, $5E,$79,$71,0],Seg_data ' Sem Ponto Decimal
return

End 'end program


Regard,
João Efrem

Well, without looking at the datasheet this is what I can tell you:

Define RESET_ORG 800h needs to be upper case. i.e. DEFINE RESET_ORG 800h

Then you set all of PortA to inputs, TRISA=%11111111 ' Configura o PortA como Entrada (I think at least. I don't do Brazilian.) and then turn them on(?) with PORTA = %11111111 ; Turn on all PortA Porta = 255. I just don't think that's right. Can you even make that happen when the port is set to input?

Lots of people could be more helpful if you'd do it in English.

It would also be helpful for you to tell us what doesn't work. Do you get any display using this program? How about another program? Is the display completely dead or does it do anything? A schematic may also be good if the display doesn't do have any display.

Good luck

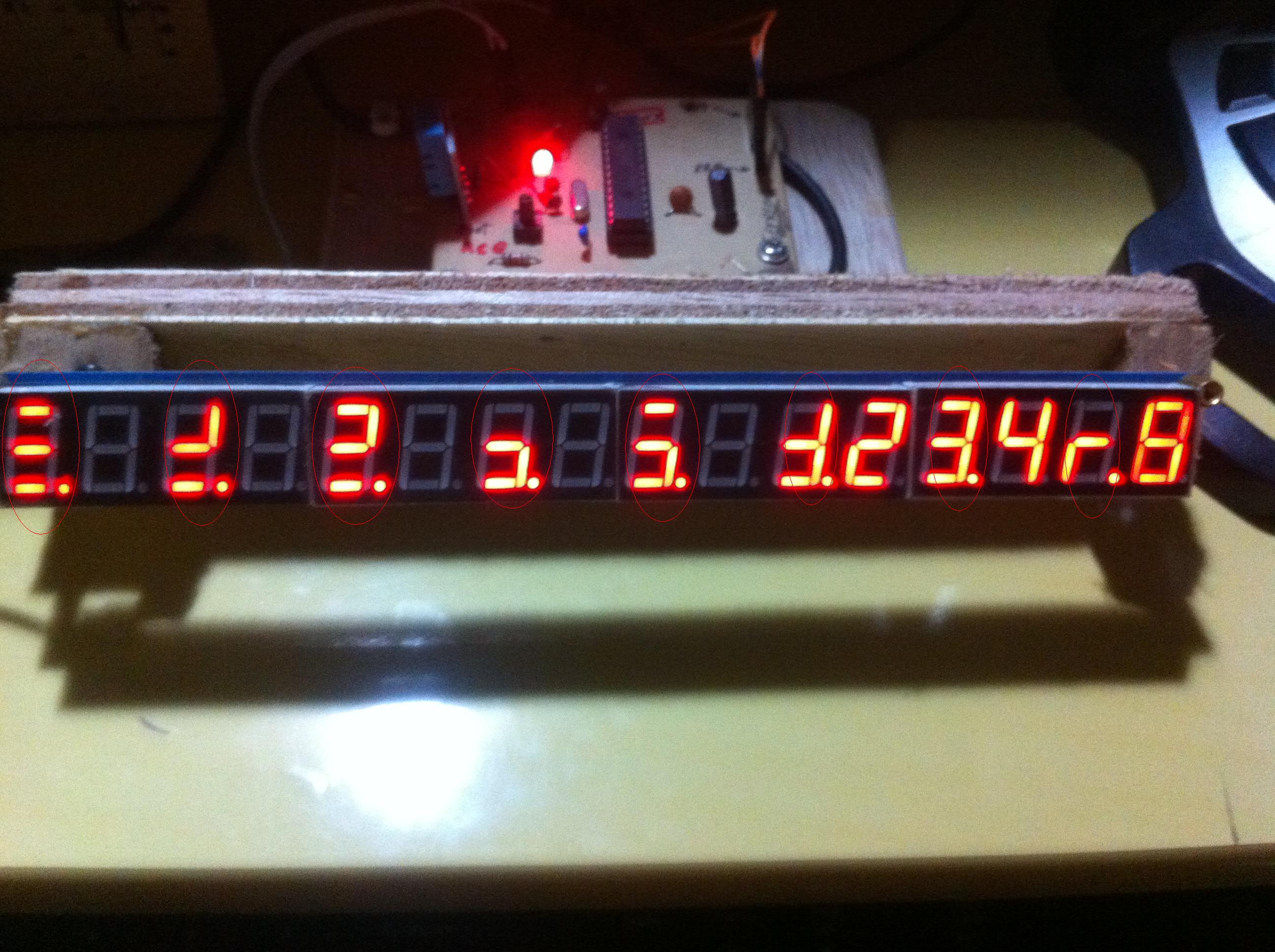

Hellow AvionicsMaster1, thank you for your atencion.

So, when write this code in my PIC18F2550 nothing happens. Nothing display lights. I've tried other programs but nothing happens.

Below has three URL with datasheet, Arduino example and reference library for this display..

Arduino Example: http://tronixstuff.wordpress.com/201...splay-modules/
Ic Datasheet: http://www.titanmec.com/doce/product-detail-180.html
Reference site: https://code.google.com/p/tm1638-library/

Hope you can help me, grateful for your the attention.

[QUOTE=jefrem;121502]Possible is programing TM1640 Display with PicBasic Pro? How???


I have this code, but does not work. Someone can help me?

'************************************************* ***************
'* Name : TM1640-demo.pbp *
'* Author : João Efrem *
'* Notice : Copyright (c) 2013 JOÃO EFREM @ 2012 *
'* : All Rights Reserved *
'* Date : 22/7/2013 *
'* Version : 1.0 *
'* Notes : *
'* : *
'************************************************* ***************
CLEAR ; start with clearing the
DEFINE OSC 48
DEFINE RESET_ORG 800h

Seg_nr var Byte
Seg_data var Byte
Info var Byte
T var Byte
Test var Byte
Temp var Byte
LED1 var PORTC.5

Pin_clk var Portb.0 ' TM1640 clock
Pin_data var Portb.1 ' TM1640 data

TRISA=%11111111 ' Port PortA as Input
TRISB=%00000000 ' Port PortB as Output
TRISC=%00000000 ' Port PortC as Output

INTCON2.7 = 1 ; Turn Pull Up Resitor (PORTB Only) 0=Enable/1=Desable
ADCON1 = %00001111 ; Sets all ports to digital
PORTA = %00000000 ; Turn off all PortA
PORTB = %00000000 ; Turn off all PortB
PORTC = %00000000 ; Turn off all PortC

Gosub Tm1640_init ' Light Intensity of display
pause 100

main:


For Temp = 0 To 15
Seg_nr = Temp
Seg_data = Temp
Gosub Tm1640
Next Temp

TOGGLE LED1 ' This normally functioning LED1

goto main

'************************************************* *****************************
'*** Routin TM1640 ***
'*** ***
'*** There two variable. ***
'*** Seg_nr = display number 0-15 (16 Displays) ***
'*** Seg_data = Value send for display (7 Segment date) ***
'************************************************* *****************************
Tm1640:

If Seg_nr > 15 Then Return
If Seg_data > 16 Then Seg_data = 16 ' = Blank Display

gosub DisplayNumberSegment

Info = 68
Gosub Tm1640_zend

high Pin_clk : high Pin_data

Info = Seg_nr + 192 ' Display position (+ 192)
Gosub Tm1640_zend

Info = Seg_data ' Number date to write in display
Gosub Tm1640_zend


high Pin_clk : high Pin_data

Return

'************************************************* *****************************
'*** Send display date and clock Routine ***
'************************************************* *****************************
Tm1640_zend:

low Pin_clk : low Pin_data ' Put low signal in Pin_clk and Pin_data

For T = 1 To 8 ' Test bitwise and send for 'Pind_data' the state of each bit.
Test = Info And 1
if test = 1 then
high pin_data
else
low pin_data
endif
info = info >> 1
high Pin_clk ' Send the pulse clock(Pin_clk) + date(Pin_data)
low Pin_clk
Next T

Return

'************************************************* *****************************
'*** INIT - Light Intensity of display Routine ***
'************************************************* *****************************
Tm1640_init:

Info = 138 ' 143 = fully Light Intensity, 138 = 4/16e
Gosub Tm1640_zend

high Pin_clk : high Pin_data

Return

'************************************************* *****************************
'*** Show the display numbers 0-16(F) on 16 display ***
'************************************************* *****************************

DisplayNumberSegment: 'Display without decimal point
Lookup Seg_data,[$3F,$6,$5B,$4F,$66,$6D,$7D,$7,$7F,$67,$77,$7C,$58, $5E,$79,$71,0],Seg_data '
return

End 'end program

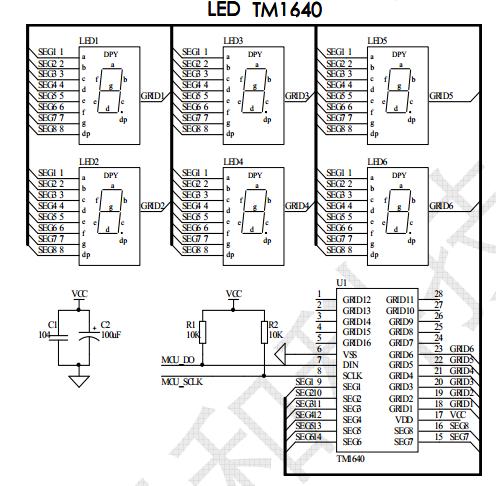

This is circuit diagram.

Attachment 7036

Hi jefrem

I wrote the following code for the JY-MCU JY-LKM1638 using the Microcode loader and

PicBasic assembler.

It displays the numbers 0 to 7 on the 7seg displays, the buttons pressed as binary

representation on a LCD display and cycles the LEDs off -> green -> red. Hope this helps.

Phil

[code
@ DEVICE PIC16F873A, XT_OSC 'Xtal OSC
@ DEVICE PIC16F873A, WDT_OFF 'WDT off
@ DEVICE PIC16F873A, PWRT_ON 'Power-up timer on
@ DEVICE PIC16F873A, BOD_OFF 'Brown-out detect off

DEFINE LOADER_USED 1
DEFINE OSC 4
DEFINE LCD_DREG PORTB
DEFINE LCD_DBIT 4
DEFINE LCD_RSREG PORTB
DEFINE LCD_RSBIT 2
DEFINE LCD_EREG PORTB
DEFINE LCD_EBIT 3

TRISC = %00000000
TRISB = %00000001 'LCD display / I/R input
TRISA = %11000000 'A.6 & A.7 Bootloader
ADCON1 = %00000110 'PortA all digital

strobe var PORTA.4
sda VAR PORTA.3
scl VAR PORTA.2

fix_addr con $C0 'Start address of 7 segs & LEDs
'($C0 = %11000000 = address $00)
auto_addr con $40 'Address of auto-increment mode
read_mode con $42 'Address to read switches

char var byte 'LOOKUP offset for 7 seg code
disp_addr var byte 'Offset from display start address
'(ODD = LED, EVEN = 7seg)
data_io var byte 'Data IN / OUT
disp_brit var byte 'Display brightness
seg_val var byte 'Code to send to 7 seg displays
'LEDs 0 = OFF, 1 = RED, 2 = GREEN
bank var byte '0 = Left 7 segment, 2 = next segment
'...... 14 = Right 7 segment
sw1 var byte 'Byte 1 of switch read
sw2 var byte 'Byte 2 of switch read
sw3 var byte 'Byte 3 of switch read
sw4 var byte 'Byte 4 of switch read
switch var byte 'Switch pressed as binary number
counter var byte 'General counter
counter1 var byte

strobe = 1 'Set strobe pin high
SDA = 1 'Set data pin high
SCL = 1 'Set clock pin high
disp_brit = $88 'Set minimum brightness (Max = $8F)
bank = 0
DISP_ADDR = 0
'----------------------------------------------------------------
lcdout $FE,1 'Clear LCD
pause 100
lcdout $FE,$80,"Switch "
gosub clear_char: 'Clear 7 seg displays & LEDs
gosub display: 'Write Chars to 7 seg display

MAIN:
for DISP_ADDR = 1 to 15 step 2
gosub write_display 'Write to LEDs display
seg_val = seg_val + 1
if seg_val > 2 then seg_val = 0
next
for counter1 = 0 to 50 'Pause for 1 sec
pause 20
gosub GET_SWITCH: 'Check switches
next
goto MAIN:

end
'----------------------------------------------------------------
DISPLAY:
gosub WRITE_MODE:
DISP_ADDR = bank + 0
char = 0 'Print "0"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 2
char = 1 'Print "1"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 4
char = 2 'Print "2"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 6
char = 3 'Print "3"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 8
char = 4 'Print "4"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 10
char = 5 'Print "5"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 12
char = 6 'Print "6"
gosub lookup_char:
gosub write_display:
DISP_ADDR = bank + 14
char = 7 'Print "7"
gosub lookup_char:
gosub write_display:
gosub display_brit: 'Set Display brightness
return
'----------------------------------------------------------------
CLEAR_CHAR: 'Clear LEDs & 7 seg displays
gosub write_mode:
STROBE = 0
data_io = FIX_ADDR 'Set start address
gosub send_char:
for counter = 1 to 16
data_io = 0 'Blank display
gosub send_char:
next
Strobe = 1
return
'----------------------------------------------------------------
CLEAR_LEDS: 'Clear LEDs only
gosub write_mode:
for DISP_ADDR = 1 to 15 step 2
SEG_VAL = 0 'Turns LEDs OFF
gosub write_display:
next
gosub display_brit 'Set brightness
return
'----------------------------------------------------------------
SEND_CHAR:
shiftout SDA,SCL,4,[data_io]'LSB first, CLOCK idle HIGH
return
'----------------------------------------------------------------
LOOKUP_CHAR:
' lookup char,[1,2,4,8,16,32,64,128],seg_val
' Turns on a different segment on each display
lookup char,[$3F,$06,$5B,$4F,$66,$6D,$7D,$07,_
$7F,$6F,$77,$7C,$58,$5E,$79,$71,$0],SEG_VAL
'Value for 0,1,2,3,4,5,6,7,8,9,A,b,c,d,E,F,(Blank)
return
'----------------------------------------------------------------
GET_SWITCH:
data_io = read_mode 'Set to read 4 bytes
strobe = 0
gosub SEND_CHAR:
shiftin sda,scl,6,[sw1,sw2,sw3,sw4] '4 byte switch read
'MSB first, Read data after clock
strobe = 1
switch.7 = sw1.7 'Convert 4 switch read bytes
switch.6 = sw2.7 'into a single byte
switch.5 = sw3.7 'and display on LCD
switch.4 = sw4.7 'as a binary number
switch.3 = sw1.3 'Left hand 4 switches are in
switch.2 = sw2.3 'bit 7 of the 4 bytes
switch.1 = sw3.3 'Right hand 4 switches are in
switch.0 = sw4.3 'bit 3 of the 4 bytes
' switch = sw1 + (sw2 / 2) + (sw3 / 4) + (sw4 / 8)
' Alternative way to convert but uses more bytes
lcdout $FE,$88,bin8 switch
return
'----------------------------------------------------------------
DISPLAY_BRIT:
data_io = disp_brit
STROBE = 0
gosub send_char:
STROBe = 1
return
'----------------------------------------------------------------
WRITE_DISPLAY:
data_io = FIX_ADDR + DISP_ADDR
strobe = 0
gosub send_char:
data_io = SEG_VAL
gosub send_char:
STROBE = 1
gosub display_brit:
return
'----------------------------------------------------------------
WRITE_MODE:
DATA_IO = AUTO_ADDR
strobe = 0
gosub send_char:
strobe = 1
return
'================================================= ===============
/code]

Hellow Sherbrook, I will try to this your code and give news.

Hello, Sherbrook.

I made change below but yet not works. I will buy another display, I thing this display is wrong, but I don't have sure.


'************************************************* ***************
'* Name : LKM1638.BAS *
'* Author : Sherbrook' *
'* Notice : Microcode loader and PicBasic assembler. *
'* : All Rights Reserved *
'* Date : 24/7/2013 *
'* Version : v 2.0 *
'* Notes : *
'* : *
'************************************************* ***************
'@ DEVICE PIC16F873A, XT_OSC 'Xtal OSC
'@ DEVICE PIC16F873A, WDT_OFF 'WDT off
'@ DEVICE PIC16F873A, PWRT_ON 'Power-up timer on
'@ DEVICE PIC16F873A, BOD_OFF 'Brown-out detect off
CLEAR ; start with clearing the
DEFINE OSC 48
Define RESET_ORG 800h


'strobe var PORTA.4
sda VAR PORTB.1
scl VAR PORTB.0

TRISA=%11111111 ' Configura o PortA como Entrada
TRISB=%00000000 ' Configura o PortB como Saida
TRISC=%00000000 ' Configura o PortC como Saida

INTCON2.7 = 1 ' Turn Pull Up Resitor (PORTB Only) 0=Enable/1=Desable
ADCON1 = %00001111 ' Sets all ports to digital
PORTA = %00000000 ' Turn off all PortA
PORTB = %00000000 ' Turn off all PortB
PORTC = %00000000 ' Turn off all PortC
'================================================= =======

'TRISC = %00000000
'TRISB = %00000001 ' LCD display / I/R input
'TRISA = %11000000 ' A.6 & A.7 Bootloader
'ADCON1 = %00000110 ' PortA all digital

fix_addr con $C0 ' Start address of 7 segs & LEDs '($C0 = %11000000 = address $00)
auto_addr con $40 ' Address of auto-increment mode (Change to $44-IC1640)
'read_mode con $42 ' Address to read switches

char var byte ' LOOKUP offset for 7 seg code
disp_addr var byte ' Offset from display start address (ODD = LED, EVEN = 7seg)
data_io var byte ' Data IN / OUT
disp_brit var byte ' Display brightness
seg_val var byte ' Code to send to 7 seg displays LEDs 0 = OFF, 1 = RED, 2 = GREEN
bank var byte ' 0 = Left 7 segment, 2 = next segment ...... 14 = Right 7 segment
'sw1 var byte ' Byte 1 of switch read
'sw2 var byte ' Byte 2 of switch read
'sw3 var byte ' Byte 3 of switch read
'sw4 var byte ' Byte 4 of switch read
'switch var byte ' Switch pressed as binary number
counter var byte ' General counter
counter1 var byte

'strobe = 1 ' Set strobe pin high
SDA = 1 ' Set data pin high
SCL = 1 ' Set clock pin high
disp_brit = $88 ' Set minimum brightness (Max = $8F)
bank = 0
DISP_ADDR = 0

'----------------------------------------------------------------
gosub clear_char: 'Clear 7 seg displays & LEDs
gosub display: 'Write Chars to 7 seg display

MAIN:

for DISP_ADDR = 1 to 15 step 2
gosub write_display 'Write to LEDs display
seg_val = seg_val + 1
if seg_val > 2 then seg_val = 0
next

for counter1 = 0 to 50 'Pause for 1 sec
pause 20
next

goto MAIN:

end
'----------------------------------------------------------------
DISPLAY:
gosub WRITE_MODE:
DISP_ADDR = bank + 0
char = 0 'Print "0"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 2
char = 1 'Print "1"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 4
char = 2 'Print "2"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 6
char = 3 'Print "3"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 8
char = 4 'Print "4"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 10
char = 5 'Print "5"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 12
char = 6 'Print "6"
gosub lookup_char:
gosub write_display:

DISP_ADDR = bank + 14
char = 7 'Print "7"
gosub lookup_char:
gosub write_display:
gosub display_brit: 'Set Display brightness

return

'----------------------------------------------------------------
CLEAR_CHAR: 'Clear LEDs & 7 seg displays
gosub write_mode:

'STROBE = 0
data_io = FIX_ADDR 'Set start address
gosub send_char:

for counter = 1 to 16
data_io = 0 'Blank display
gosub send_char:
next

'Strobe = 1

return

'----------------------------------------------------------------
CLEAR_LEDS: 'Clear LEDs only
gosub write_mode:

for DISP_ADDR = 1 to 15 step 2
SEG_VAL = 0 'Turns LEDs OFF
gosub write_display:
next

gosub display_brit 'Set brightness

return

'----------------------------------------------------------------
SEND_CHAR:
shiftout SDA,SCL,4,[data_io]'LSB first, CLOCK idle HIGH
return

'----------------------------------------------------------------
LOOKUP_CHAR:
' lookup char,[1,2,4,8,16,32,64,128],seg_val
' Turns on a different segment on each display
lookup char,[$3F,$06,$5B,$4F,$66,$6D,$7D,$07,$7F,$6F,$77,$7C,$5 8,$5E,$79,$71,$0],SEG_VAL
'Value for 0,1,2,3,4,5,6,7,8,9,A,b,c,d,E,F,(Blank)
return

'----------------------------------------------------------------
DISPLAY_BRIT:
data_io = disp_brit
'STROBE = 0
gosub send_char:

'STROBe = 1

return

'----------------------------------------------------------------
WRITE_DISPLAY:
data_io = FIX_ADDR + DISP_ADDR
'strobe = 0
gosub send_char:

data_io = SEG_VAL
gosub send_char:

'STROBE = 1
gosub display_brit:

return

'----------------------------------------------------------------
WRITE_MODE:
DATA_IO = AUTO_ADDR
'strobe = 0
gosub send_char:

'strobe = 1

return
'================================================= ================

Thank you for your attention.

Every link I find about this display is coupled with Arduino and they always reference a library. I wasn't able to find any libraries written for PBP so it might never work on Basic until you can find the library for it.

I continuous search article about this Display (TM1640) on internet, if find any thing about this device, I post he!

I see you are using USB loader and are stuck with 48mHz. Perhaps this is too fast for TM1640. Have you got a slower PIC to try with.
My code does work at 4mHz.
Have you got the datasheet for TM1640?
Phil

Exact, I've use Bootloader with 48MHz. I have the Datasheet. I'll try with 16F628A and return.

Hi João
Have ordered a JY-MCU 16X display. I should get it in about 2 weeks. Will let you know how I get on.
Phil

Hi Phil,

I tried buy other display on dx.com but is sold out. Where you buy? Do you have an PIC18F with clock 48Mhz famile for make this new test ?

Regards,

Just set the DEFINE SHIFT_PAUSEUS 3 which will set the clock to a minimum of 3 us. that will slow it down to 333 Khz. which is just below the maximum of 450 Khz.

Hi Dave Purola,

I tried set this but nothing happens, I need buy other display for sure if my is good or no I think my display is bad, I don't have sure.

Thank you for your attention.

Display is ordered from www.fasttech.com. I have not ordered from them before so do not know what the service is like yet.
I have a PIC18F2550 with USB bootloader to try it on.

Phil

Hi Phil,

I used this code on my test. When possible try this so.


'************************************************* ***************
'* Name : LKM1640.BAS *
'* Author : Sherbrook' *
'* Notice : Microcode loader and PicBasic assembler. *
'* : All Rights Reserved *
'* Date : 24/7/2013 *
'* Version : v 2.0 *
'* Notes : *
'* : *
'************************************************* ***************
CLEAR ; start with clearing the

DEFINE OSC 48
Define RESET_ORG 800h
DEFINE SHIFT_PAUSEUS 300
Include "modedefs.bas" ' Include shift modes


'DEFINE LOADER_USED 1
''DEFINE OSC 4
'DEFINE LCD_DREG PORTA
'DEFINE LCD_DBIT 4
'DEFINE LCD_RSREG PORTA
'DEFINE LCD_RSBIT 2
'DEFINE LCD_EREG PORTA
'DEFINE LCD_EBIT 3

'================================================= =======
LED1 var PORTA.5
'strobe var PORTA.4
SDA VAR PORTB.1
SCL VAR PORTB.0

TRISA=%00000000 ' Configura o PortA como Saida
TRISB=%00000000 ' Configura o PortB como Saida
TRISC=%00000000 ' Configura o PortC como Saida

INTCON2.7 = 1 ' Turn Pull Up Resitor (PORTB Only) 0=Enable/1=Desable
ADCON1 = %00001111 ' Sets all ports to digital 00001111
PORTA = %00000000 ' Turn off all PortA
PORTB = %00000000 ' Turn off all PortB
PORTC = %00000000 ' Turn off all PortC

'================================================= =======


'TRISC = %00000000
'TRISB = %00000001 ' LCD display / I/R input
'TRISA = %11000000 ' A.6 & A.7 Bootloader
'ADCON1 = %00000110 ' PortA all digital



fix_addr con $C0 ' Start address of 7 segs & LEDs '($C0 = %1100-0000 = address $00) - 192
auto_addr con $44 ' Address of auto-increment mode - 40/64/0100-0000 - 44/68/0100-0100
'read_mode con $42 ' Address to read switches - 42/66/0100-0010

char var byte ' LOOKUP offset for 7 seg code
disp_addr var byte ' Offset from display start address (ODD = LED, EVEN = 7seg)
data_io var byte ' Data IN / OUT
disp_brit var byte ' Display brightness
seg_val var byte ' Code to send to 7 seg displays LEDs 0 = OFF, 1 = RED, 2 = GREEN
bank var byte ' 0 = Left 7 segment, 2 = next segment ...... 14 = Right 7 segment
'sw1 var byte ' Byte 1 of switch read
'sw2 var byte ' Byte 2 of switch read
'sw3 var byte ' Byte 3 of switch read
'sw4 var byte ' Byte 4 of switch read
'switch var byte ' Switch pressed as binary number
counter var byte ' General counter
counter1 var byte

'high strobe 'strobe = 1 ' Set strobe pin high
high SDA ' Set data pin high
high SCL ' Set clock pin high
disp_brit = $8f ' Set minimum brightness (Max = $8F) - 88/136/1000-1000
bank = 0
DISP_ADDR = 0

'----------------------------------------------------------------
'lcdout $FE,1 ' Clear LCD
'pause 100
'lcdout $FE,$80,"Switch "

gosub BLINK_LED_START:
gosub clear_char: 'Clear 7 seg displays & LEDs
gosub display: 'Write Chars to 7 seg display

MAIN:


for DISP_ADDR = 0 to 16
gosub write_display 'Write to LEDs display
seg_val = seg_val + 1
if seg_val > 2 then seg_val = 0
next

'for counter1 = 0 to 50 'Pause for 1 sec
' pause 20
' gosub GET_SWITCH: 'Check switches
'next

toggle led1

goto MAIN

END
'----------------------------------------------------------------
DISPLAY:
gosub WRITE_MODE

DISP_ADDR = fix_addr 'bank + 0
char = 0 'Print "0"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 2
char = 1 'Print "1"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 4
char = 2 'Print "2"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 6
char = 3 'Print "3"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 8
char = 4 'Print "4"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 10
char = 5 'Print "5"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 12
char = 6 'Print "6"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 14
char = 7 'Print "7"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 16
char = 8 'Print "8"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 18
char = 9 'Print "9"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 20
char = 10 'Print "10"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 22
char = 11 'Print "11"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 24
char = 12 'Print "12"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 26
char = 13 'Print "13"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 28
char = 14 'Print "14"
gosub lookup_char
gosub write_display

DISP_ADDR = bank + 30
char = 15 'Print "15"
gosub lookup_char
gosub write_display

gosub display_brit 'Set Display brightness

return

'----------------------------------------------------------------
CLEAR_CHAR: 'Clear LEDs & 7 seg displays
gosub write_mode

'STROBE = 0
data_io = FIX_ADDR 'Set start address
gosub send_char

for counter = 1 to 16
data_io = 0 'Blank display
gosub send_char
next

'Strobe = 1

return

'----------------------------------------------------------------
'CLEAR_LEDS: 'Clear LEDs only
' gosub write_mode
'
' for DISP_ADDR = 1 to 15 step 2
' SEG_VAL = 0 'Turns LEDs OFF
' gosub write_display
' next
'
' gosub display_brit 'Set brightness
'
'return

'----------------------------------------------------------------
SEND_CHAR:
shiftout SDA,SCL,4,[data_io]'LSB first, CLOCK idle HIGH
return

'----------------------------------------------------------------
LOOKUP_CHAR:
' lookup char,[1,2,4,8,16,32,64,128],seg_val
' Turns on a different segment on each display
lookup char,[$3F,$06,$5B,$4F,$66,$6D,$7D,$07,$7F,$6F,$77,$7C,$5 8,$5E,$79,$71,$0],SEG_VAL
'Value for 0,1,2,3,4,5,6,7,8,9,A,b,c,d,E,F,(Blank)
return

'----------------------------------------------------------------
DISPLAY_BRIT:
data_io = disp_brit
'STROBE = 0
gosub send_char

'STROBe = 1

return

'----------------------------------------------------------------
WRITE_DISPLAY:
data_io = FIX_ADDR + DISP_ADDR
'strobe = 0
gosub send_char
data_io = SEG_VAL
gosub send_char
'STROBE = 1
gosub display_brit

return

'----------------------------------------------------------------
WRITE_MODE:
DATA_IO = AUTO_ADDR
'strobe = 0
gosub send_char

'strobe = 1

return

'----------------------------------------------------------------
BLINK_LED_START:
high led1
pause 200

low led1
pause 100

high led1
pause 200

low led1
pause 100

high led1
pause 200

low led1
pause 100
return

'================================================= ================

jefrem

It may make little difference but try removing the colons after the gosubs in the following lines:

Code:

---

gosub BLINK_LED_START:
 gosub clear_char: 'Clear 7 seg displays & LEDs
 gosub display: 'Write Chars to 7 seg display

---

Norm

Hi Norm, I will change this your tips and return.

Hi Norm, I tried this new change but not worked.

Regards,

Just out of curiousity, what does this line do in your code?

Define RESET_ORG 800h

Hi, This "Define RESET_ORG 800h" line is used for Microchip USB bootloader.

Regards,

Well, I've pointed this out before but the Define must be caps. If it's part of the bootloader that may be why it isn't loading. Which may be the issue.

I honestly think you need to take a step back and go for blinking a LED. A quick review of your posts only indicate nothing is working. If you're communicating properly with the PIC the LED will indicate that.

AvionicMaster1,
Can you give us some reference supporting your statement regarding the case sensitivity? I ask because I think you've got it wrong and I'll support that by quoting Darrel from another thread:

Quote:

---

The word "define" is a PBP statement, and PBP is not case sensitive. So it doesn't matter what case DeFiNe is.
What follows "define" is passed on to the assembler, and MPASM IS case sensitive.

---

So in this case the line Define RESET_ORG 800h is perfectly valid since RESET_ORG is all upper case.

Again, it's NOT the word define that must be upper case, it is what follows the word define that must match the case of however it's being used elsewhere.
In PBP's case (no pun intended) all defines are upper case but if you use or write an assembly routine which has some constants you can set it may, or may not, be all upper case. It might be myParticularSetting. If you then would try to set that to 123 by doing DEFINE MYPARTICULARSETTING 123 it wouldn't work since the assembly code is looking for myParticularSetting.

Apart from that I'm afraid I don't have much to contribute to this thread....

/Henrik.

Hi, my project has a LED. I use TOGGLE command in MAIN route and not has problem, the LED blink normally. In other words, the communication PIC is worked.


Regards,

Hi HenrikOlsson,

Thank you by your contribution.


Regards,

Well, from the PBP3 manual shows this for asm interrups which although doesn't specify DEFINE needs to be in caps they are all written that way.

6.2.2 DEFINEs
PBP offers a DEFINE to specify the name of the interrupt service routine label. The
label refers to the Assembly Language label that marks the beginning of your
service routine.
DEFINE INTHAND Label
For devices with multiple priority interrupts, PBP offers a single additional DEFINE
that allows you to specify a second label for a second service routine. This routine
will be used for low-priority interrupts.
DEFINE INTLHAND Label

And here it says they need to be in caps even a line that has the DEFINE RESET_ORG uses caps so I assume it needs caps.

2.3.2 Global DEFINEs
Other DEFINEs that are important, though less frequently used, are:
DEFINE NO_CLRWDT 1 'Don’t insert CLRWDTs
DEFINE LOADER_USED 1 'Bootloader is being used
DEFINE OSCCAL_1K 1 'Set OSCCAL for 1K PIC12
DEFINE OSCCAL_2K 1 'Set OSCCAL for 2K PIC12
DEFINE RESET_ORG 0h 'Change reset address for PIC18
DEFINE INTHAND Label 'Assign assembler interrupt
handler label
DEFINE INTLHAND Label 'Assign assembler low priority
interrupt handler label for
PIC18
See section 8.6 for a condensed list of DEFINEs with brief explanations.

2.3.3 DEFINEs defined
For the user familiar with Assembly Language, the major clue to understanding is
that DEFINEs in PBP are converted literally to Assembly Language #DEFINE
directives.
For the practical PBP user, there are a couple of fundamental points to consider:
1) DEFINEs are CASE SENSITIVE!
2) Specific DEFINEs are generally associated with PBP commands. The
command pages will describe how the relevant DEFINEs affect the
operation of each command.
DEFINEs are used by PBP to change the generated Assembly Language that
makes up the compiled program. A DEFINE might simply change an internal
register setting, or it might result in the use of an alternative Assembly Language
routine to accomplish a task.

For what it's worth I'm not an experienced programmer but If I'm wrong I'd like to know for future use. In the few prorams I've written I've always had to use caps for the defines to work but I haven't been calling asm routines. So I'd at least try it to see if it matters.

It appears this isn't the problem anyway. If I am wrong I apologize for any waste of time my conributions to this thread has accumulated.

Hi,

Quote:

---

For what it's worth I'm not an experienced programmer but If I'm wrong I'd like to know for future use. In the few prorams I've written I've always had to use caps for the defines to work but I haven't been calling asm routines. So I'd at least try it to see if it matters.

---

But you have been calling ASM routines since that is exactly what PBP does, it "builds" your code into an ASM program by "stitching together" different library routines which are all in ASM. Some of these routines have "settings" which can be "configured" and this is done with the DEFINE directive. The DEFINE directive is a PBP "command" and PBP is not case sensitive so the DeFiNe can be any case but the name of the "setting" you want to configure must match the case of how it is written in the ASM routine it "configures" - and all the PBP library routies use all upper case.

Let's take the simple example of DEFINE OSC 20, in the library file you'll find something like (and this is ASM):

Code:

---

    ifndef OSC
OSC = 4
    endif

---

See, here OSC is all upper case and since this is code that is directly used by the assembler IS case sensitive so if you, in your program, would do define osc 20 it wouldn't work. Not because define is lower case but because osc is. What happens is that the assembler creates a constant named osc (which is different from OSC that the library routines is looking for) and assignes the value 20 to it. The library routines checks if OSC has been defined but doesn't see it so it sets its value to 4 - when you intended for it to be 20.

If you write a ASM routine where the assembler is looking for aBc then you'd need to use DEFINE aBc for it to work, define ABC wouldn't, neither would DEFINE ABC.

Man, I really hope I got that right but if I didn't I hope someone will jump in and correct me.

/Henrik.

Every link I find about this display is coupled with Arduino and they always reference a library. I wasn't able to find any libraries written for PBP so it might never work on Basic until you can find the library for it.I honestly think you need to take a step back and go for blinking a LED. A quick review of your posts only indicate nothing is working. If you're communicating properly with the PIC the LED will indicate that.

Hi, I blink a led and is worked normally. In other words, my main program is ok! I think this display problem is clock, I think is very fast for the TM1640 display controler. I will try with other PIC16F628A but dont have yet. But, already thank for your contribution.

Regards,

Hi jefrem

My display took a long time to come, only got it 2 days ago.
Here is some code to get it going, done mainly by trial & error with a bit of luck.
The TM1640 is still a bit of a mystery, don't understand it fully yet.
The code is not 100%, got some more work to do, will keep you posted.

Phil

Code:

---

' PIC18F2550 @ 48mHz with USB bootloader

DEFINE OSC 48
DEFINE RESET_ORG 1000h

    dat_com_inc var byte        'Display command for auto inc address
    dat_com_fix var byte        'Display command for fixed address
    dis_com_off var byte        'Display command OFF
    dis_com_on  var byte        'Display command ON
    address    var byte        'Display address
    brightness  var byte        'Brightness value (0 - 7)
    dat        var byte        'Data to send to TM1640
    digit      var byte        '7 seg display (0 - 15)
    n          var byte        'Counter

    dat_com_inc = %01000000    'Data command ADDRESS auto + 1
    dat_com_fix = %01000100    'Data command FIXED address
    dis_com_off = %10000000    'Switch display OFF
    dis_com_on  = %10001000    'Switch display ON
    brightness  = %00000011    'Display brightness (0 = MIN 7 = MAX)
    address    = %11000000    'Display ADDRESS $00

    din        var LATB.7
    sclk      var LATB.6

    TRISC = %00111000
    LATC = 0
    TRISB = %00111111

    din  = 1                    'Data pin HIGH to start
    sclk = 1                    'Clock pin HIGH to start

'---------- Start of program ------------------------------------

    FOR digit = 0 to 16        'Shift display to right 16 times
    dat = address + digit      'Set address to 1st 7seg display
    GOSUB COMMAND:              'Do it
    din = 0 : PAUSE 1
    sclk = 0 : PAUSEUS 10      'Start transmission process
    FOR n = 0 to 15            'Print 16 characters
        LOOKUP n,[64,64,0,115,6,57,6,127,113,91,109,109,63,0,64,64],dat
            SHIFTOUT din,sclk,0,[dat]  'Print message
        NEXT
        PAUSEUS 10 : sclk = 1
    PAUSEUS 10 : din = 1        'End transmission process
    PAUSE 10
    dat = dis_com_on + brightness  'Set brightness
    GOSUB COMMAND:
    PAUSE 500
    NEXT                        'Print at next digit along

    END
'----------------------------------------------------------------
COMMAND:
    din = 0 : PAUSE 1          'Start transmission
    sclk = 0 : PAUSEUS 10
    SHIFTOUT din,sclk,0,[dat]  'Mode 0 - LSB first, Clock idle low
    PAUSEUS 10 : sclk = 0
    PAUSEUS 10 : din = 0        'End transmission
    PAUSE 10
    RETURN
'----------------------------------------------------------------

---

Hi, Phil. Very thank you for your attention, I hope repay soon by your attention, job and professionalism. Now, I will work around your code and post here any change or improvement I can do.

I bought other diplay(TM1640) but not yet arrived. I will try with my old Display tonight and say if is ok or no.


Regards,

Hello, I tested the Phil code is ok, very good code. I changed the Phil code to not shifting number on display because the original code is shifting when increase any number. On below code is the new change but it add a intercalary digit among all digit.

This code is a counter, start 0 to 255, this counter is ok but with intercalary digit in all display.
'************************************************* ***************
'* Name : TM1640_by_Phil.BAS *
'* Author : Phil (Sherbrook) *
'* Notice : Copyright (c) 2013 Phil (Sherbrook) *
'* : All Rights Reserved *
'* Date : 23/8/2013 *
'* Version : 1.0 *
'* Notes : http://www.picbasic.co.uk/forum/ *
'* : showthread.php?t=18239 *
'************************************************* ***************
' PIC18F2550 @ 48mHz with USB bootloader

DEFINE OSC 48
Define RESET_ORG 1000h

dat_com_inc var byte 'Display command for auto inc address
dat_com_fix var byte 'Display command for fixed address
dis_com_off var byte 'Display command OFF
dis_com_on var byte 'Display command ON
address var byte 'Display address
brightness var byte 'Brightness value (0 - 7)
dat var byte 'Data to send to TM1640
digit var byte '7 seg display (0 - 15)
n var byte 'Counter
Number var byte 'Number to write
seed var byte ' Cont 0 to 255
seedTmp var byte ' Save last Seed Number

vDigite00 var byte
vDigite01 var byte
vDigite02 var byte
vDigite03 var byte
vDigite04 var byte
vDigite05 var byte
vDigite06 var byte
vDigite07 var byte
vDigite08 var byte
vDigite09 var byte
vDigite10 var byte
vDigite11 var byte
vDigite12 var byte
vDigite13 var byte
vDigite14 var byte
vDigite15 var byte

dat_com_inc = %01000000 'Data command ADDRESS auto + 1 - 64
dat_com_fix = %01000100 'Data command FIXED address - 68
dis_com_off = %10000000 'Switch display OFF - 128
dis_com_on = %10001000 'Switch display ON - 136
brightness = %00000000 'Display brightness (0 = MIN 7 = MAX) - 3
address = %11000000 'Display ADDRESS $00 - 192

din var LATB.1
sclk var LATB.0
LED1 var PORTA.5

TRISC = %00111000 'Input/Output config Pin
LATC = 0
TRISB = %11111100 'Input/Output config Pin

din = 1 'Data pin HIGH to start
sclk = 1 'Clock pin HIGH to start
seed = 0
'----------------- DIGITS ---------------------------------------
vDigite00 = 16
vDigite01 = 16
vDigite02 = 16
vDigite03 = 16
vDigite04 = 16

vDigite05 = 16 ' Blank Digit

vDigite06 = 16
vDigite07 = 16
vDigite08 = 16
vDigite09 = 16

vDigite10 = 16 ' Blank Digit

vDigite11 = 16
vDigite12 = 16
'vDigite13 = 0
'vDigite14 = 0
'vDigite15 = 0
'---------- Start of program ------------------------------------

main:
gosub CMDSENDDIGIT
toggle led1
pause 20
seed = seed + 1

goto main:

'----------------------------------------------------------------
COMMAND:
din = 0 ': PAUSE 1 'Start transmission
sclk = 0 ': PAUSEUS 10
SHIFTOUT din,sclk,0,[dat] 'Mode 0 - LSB first, Clock idle low
'PAUSEUS 10
sclk = 0
'PAUSEUS 10
din = 0 'End transmission
'PAUSE 10
RETURN

CMDSENDDIGIT:

FOR n = 0 to 15 'Print 16 characters
gosub CMDNUMBER
dat = address + (n+1) 'Set address to 1st 7seg display
GOSUB COMMAND 'Do it
din = 0 ': PAUSE 1
sclk = 0 ': PAUSEUS 10 'Start transmission process
Lookup number,[$3F,$6,$5B,$4F,$66,$6D,$7D,$7,$7F,$67,$77,$7C,$58, $5E,$79,$71,0],dat
SHIFTOUT din,sclk,0,[dat] 'Print message
NEXT

'PAUSEUS 10' :
sclk = 1
'PAUSEUS 10' :
din = 1 'End transmission process
' PAUSE 10
dat = dis_com_on + brightness 'Set brightness
GOSUB COMMAND
return

CMDNUMBER:
select case n
case 0
number = vDigite00
case 1
number = vDigite01
case 2
number = vDigite02
case 3
number = vDigite03
case 4
number = vDigite04
case 5
number = vDigite05
case 6
number = vDigite06
case 7
number = vDigite07
case 8
number = vDigite08
case 9
number = vDigite09
case 10
number = vDigite10
case 11
number = vDigite11
case 12
number = vDigite12
case 13
'number = vDigite13
number = seed DIG 2
case 14
'number = vDigite14
number = seed DIG 1
case 15
'number = vDigite15
number = seed DIG 0
end select
return

end
'----------------------------------------------------------------

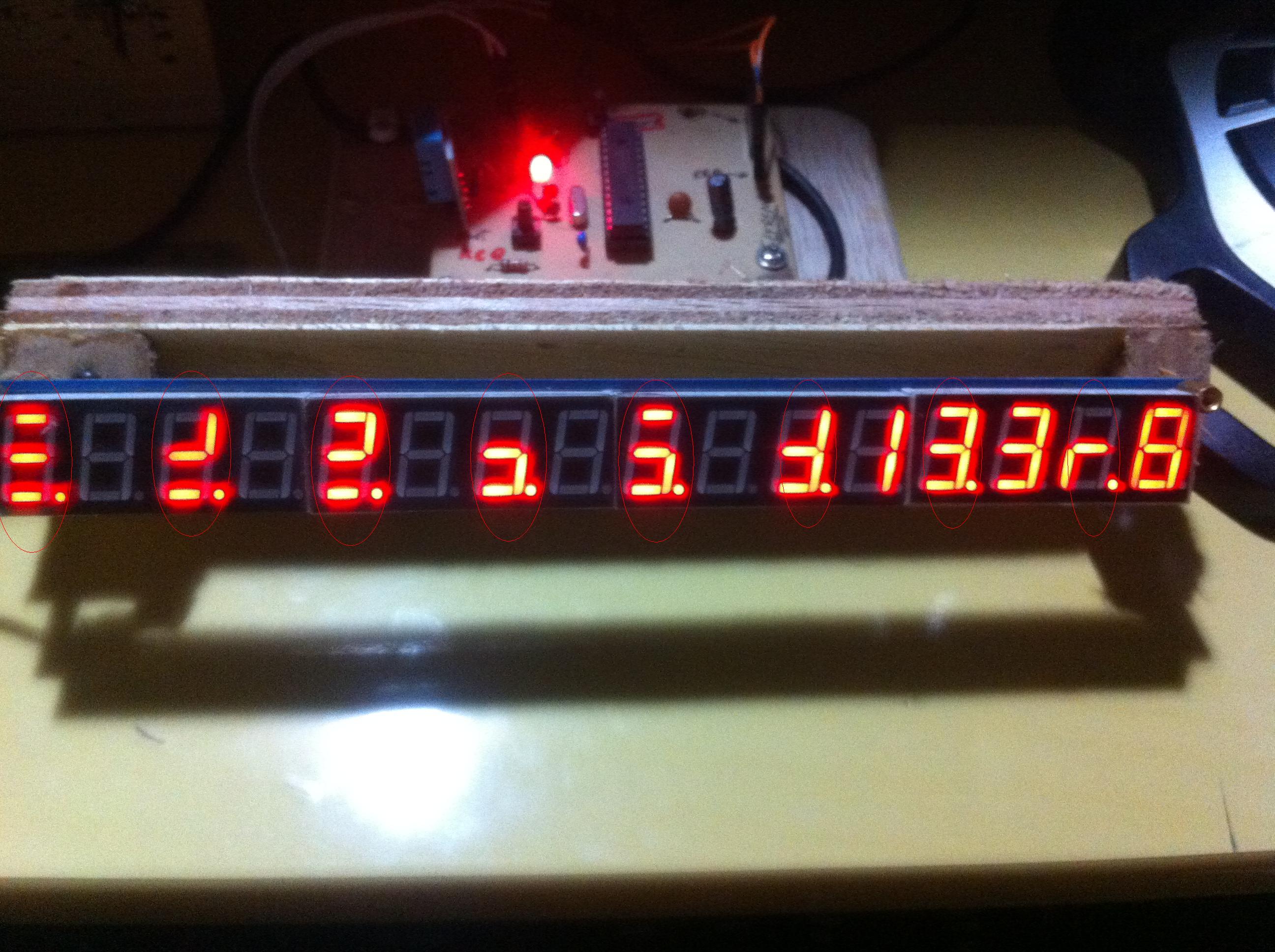

See the below picture for better understanding.

Attachment 7069

Attachment 7070


Regards,

Hi jefrem
New improved code. Pauses not required. Address set command now works. If you don't write to all 16 displays some segments of displays not written to turn on when they shouldn't, therefore it is best to write to all 16 displays and over-write these segments.
Phil

Code:

---

'PIC18F2550 @ 48mHz, USB bootloader, JY-LM1640 16 x 7 seg display

DEFINE OSC 48
DEFINE RESET_ORG 1000h

    dat_com_inc VAR BYTE        'Display command for auto inc address
    dat_com_fix VAR BYTE        'Display command for fixed address
    dis_com_off VAR BYTE        'Display command OFF
    dis_com_on  VAR BYTE        'Display command ON
    address    VAR BYTE        'Display address ($00 - $0F)
    brightness  VAR BYTE        'Brightness value (0 - 7)
    dat        VAR BYTE        'Data to send to TM1640
    digit      VAR BYTE        '7 seg display (0 - 15)
    n          VAR BYTE        'Counter

    dat_com_inc = %01000000    'Data command ADDRESS auto + 1
    dat_com_fix = %01000100    'Data command FIXED address
    dis_com_off = %10000000    'Switch display OFF
    dis_com_on  = %10001000    'Switch display ON
    brightness  = %00000011    'Display brightness (0 = MIN 7 = MAX)
    address    = %11000000    'Display ADDRESS $00

    din        VAR LATB.7
    sclk      VAR LATB.6

    TRISC = %00111000
    LATC = 0
    TRISB = %00111111

    din  = 1                    'Data pin HIGH to start
    sclk = 1                    'Clock pin HIGH to start
    PAUSE 500

'---------- Start of program ------------------------------------
    FOR digit = 0 TO 4          'Scroll to right, increase brightness
        GOSUB PRINT:
    NEXT
    FOR digit = 3 TO 0 STEP -1  'Scroll to left, decrease brightness
        GOSUB PRINT:
    NEXT
    END
'---------- Print to display ------------------------------------
PRINT:
    dat = dat_com_inc          'Data command setting
    GOSUB COMMAND:
    dat = address + digit      'Set address
    din = 0 : sclk = 0          'Start transmission process
    SHIFTOUT din,sclk,0,[dat]  'LSB first, clock idles low
    FOR n = 0 TO 15            'Print 16 characters
        LOOKUP n,[0,115,6,57,6,127,113,91,109,109,63,0,64,64,64,64],dat
        SHIFTOUT din,sclk,0,[dat]  'Print message
    NEXT
    sclk = 1 : din = 1          'End transmission process
    dat = dis_com_on + digit    'Set brightness
    GOSUB COMMAND:
    PAUSE 1000
    RETURN
'----------------------------------------------------------------
COMMAND:
    din = 0 : sclk = 0          'Start transmission process
    SHIFTOUT din,sclk,0,[dat]  'LSB first, clock idles low
    sclk = 1 : din = 1          'End transmission process
    RETURN
'----------------------------------------------------------------

---

Hi Phil,

This last code is perfect!!!

Thank you again for your attention and partnership my friend. If I can help, please contact me.

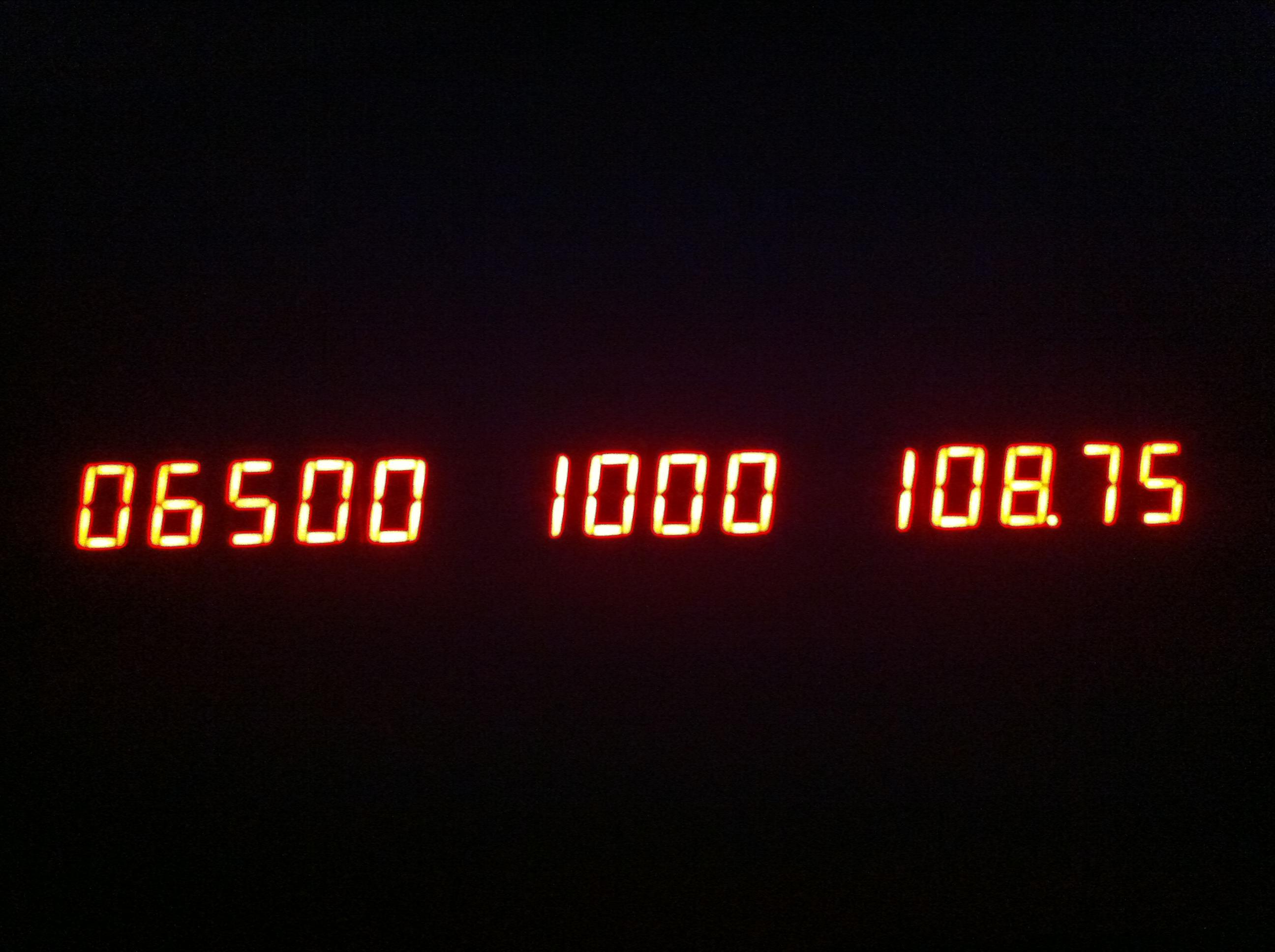

Attachment 7071

Regards,
