LED pick and place machine in Beijing Glichn

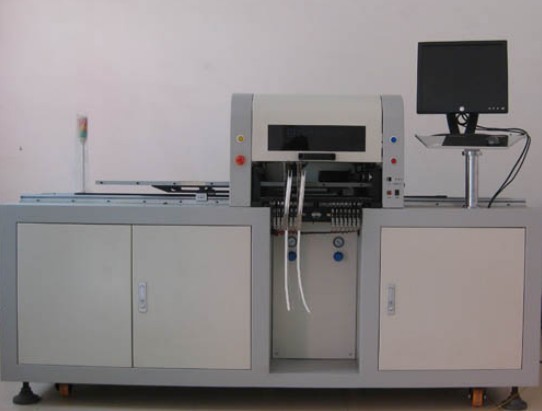

LED pick and place machine

There are 2 pick and place heads on the machine, the production efficiency is improved up to more than 60% than one heads, so this automatic pick and place machine is suitable for high volume LED production. LED pieces boards program and placement are completed stably and quickly. Components like 0603, 0805 and above resistors or capacitors, 3528,5050, LED and IC size <20mm can be available.
Manual input coordinates has been changed, it is automatic vision program that is easy and useful for operators and beginner.
6 grades speed changing function in the software of LED pick and place machine, you can check out the best speed setting according to the distance sheet and to do speed adjustment, which can increase the stability for long time usage.
Features
◆ PCBs(printed circuit boards) transmission is achieved by stepper motor drive industrial belt with precision slideway; placement accuracy and transmission speed have been improved effectively.
◆ Picking and place LED are operated by mounter heads; Transmission of pick and place heads is finished by servo motor with high precision ball screw.
◆ 2 groups LED pick and place heads; the production efficiency has been improved up to 60%;
◆ Automatic vision program, easy operation is good choice for beginner.
◆ Different feeders are configuration with LED pick and place machine to meet different LED requirement.
◆ High performance and cost LED pick and place machine, this model is the best suitable for large LED production.
◆ LED pick and place machine is controlled by industrial computer and special LED operation software;
◆ CAD data can be imported directly;
◆ LED pieces boards program and placement are completed stably and quickly.
◆ Pieces board coordinates can be displayed in the software, these coordinates can be fine adjusted to achieve high-precision placement.
◆ The space of piece boards can be set in software, all LED/SMD placement coordinates will be showed according to the space, and boards that need not to mount can be selected out.
◆ If the board has quality problems because of manufacturing, LED pick and place machine can shift the component place to mount accurately.
◆ Software can realize to achieve two mounting heads automatically optimization.
◆ XYZ axis detection limit is added in new software when moves;
◆ 6 grades speed changing function in the software of LED pick and place machine, you can check out the best speed setting according to the distance sheet and to do speed adjustment, which can increase the stability for long time usage.
◆ It is vacuum suction function on PCB working table that is helpful to improve LED place accuracy and make PCB position stable; in addition, FPC (Flexible Printed Circuit) position and placement can be finished.
◆ Build-in air pump, energy saving, small noise.
Standard spares
1. Industrial computer 1 pc
2. Mounting heads 2 groups
3. Nozzle 4 pcs
Option spares
1. Feeder 8mm, 12mm, 16mm and 24mm
2. Nozzles
3. Air pump
