help re pbp3 and picket 2 with 12f675
hi,
i am a beginner and use cannot get any program to run
i have compiled this and it complies fine, when i load the Hex file into mpelab it programs the chip but it does not run on my breadboard help
************************************************** **************
'* Name : Glow Driver - 1 *
'* Author : Ironsides *
'* Notice : Copyright (c) 2004 C *
'* : All Rights Reserved *
'* Date : 07 Feb 2004 *
'* Version : 1.0 *
'* Notes : Turns on glow driver to glow plug at low throttle *
'* ; An N Channel MOSFET is needed to carry the current*
'* ; See the circuit diagram for details *
'* Caution : Should have a safety cut off switch in the pits *
'* : For PIC 12F675 *
'************************************************* ***************
;The 12F675 has both analog converters and analog comparators.
;You must disable both to use the I/O pins for digital functions.
;In addition, the register that controls the analog converters
;has been named ANSEL, and it has a different format that the ADCON1
;register found on most PICmicro MCUs
PCON.3 = 1
ANSEL = 0 ;needed as as above
CMCON = 7
ASM
errorlevel -302 ; Suppress message 302
bcf STATUS,RP0 ; Bank 0
clrf GPIO ; Init GPIO
movlw 07h ; Set GP<2:0> to
movwf CMCON ; digital IO
bsf STATUS,RP0 ; Bank 1
clrf ANSEL ; Digital IO
movlw 0Ch ; Set GP<3:2> as inputs
movwf TRISIO ; and set up GP<5:4,1:0> as outputs
endasm
DEFINE OSC4 ;sets up 4 meg internal oscillator
GLOW VAR GPIO.2 ;Output to MOSFET driving glow driver - Pin 5
RADIO VAR GPIO.3 ;Input from receiver - Pin 4
P VAR WORD ; This stores the PULSIN value
;************************************************* ********************
clear ; Set all variables to zero
;************************************************* ********************
RX: ; This is where we wait for a signal from the Tx
PULSIN RADIO,1,P ; With 4 meg oscillator, PULSIN measures at 10 millisecs
IF P < 50 then goto RX ; You forgot to turn on the transmitter.
IF (P > 100) and (P < 125) THEN GOSUB SW_ON ; Turn on glow
IF (P > 125) THEN GOSUB SW_OFF ; Turn off glow
GOTO RX
;************************************************* *******************
SW_ON:
HIGH GLOW ; This outputs the glow signal on Pin 5
RETURN
SW_OFF:
LOW GLOW ; This outputs the glow signal on Pin 5
RETURN
;************************************************* *******************
END ;Terminate the program
Re: help re pbp3 and picket 2 with 12f675
hi sorry i should have added what config bits do i set to get this to work ? i am confused with these
regards judd
Re: help re pbp3 and picket 2 with 12f675
Hi, Judd
May be you could
1) add
@ the top of the code
2) Giving the link could have helped so much ... :chargrined:
http://www.rc-float-flying.rchomepag...w%20Driver.htm
shows the config is missing for GP3/MCLR ... used as an input
so, also add @ Top for PBP3
Code:
#CONFIG
__config _INTRC_OSC_NOCLKOUT & _WDT_ON & _PWRTE_ON & _MCLRE_OFF & _CP_OFF & _BODEN_ON
#ENDCONFIG
Alain
Re: help re pbp3 and picket 2 with 12f675
Alain,
Many thanks for this i wil try later and sorry for not including the link new at this as well
regards judd
problem with 12f675 not running
hi
see the ask below this complies and the hex file will program to chip, but it just will not run any suggestions?
; PICBASIC PRO(TM) Compiler 3.0.5.3, (c) 1998, 2012 microEngineering Labs, Inc. All Rights Reserved.
MPASMWIN_USED EQU 1
#define PBP_PATH C:\PBP3\
NOLIST
ifdef PM_USED
LIST
include 'M12F675.INC' ; PM header
XALL
NOLIST
else
LIST
LIST p = 12F675, r = dec, w = -302
INCLUDE "P12F675.INC" ; MPASM Header
NOLIST
endif
LIST
PBP_HARDWAREDEF macro
endm
__config _INTRC_OSC_NOCLKOUT & _WDT_ON & _PWRTE_ON & _MCLRE_OFF & _CP_OFF & _BODEN_ON
; Define statements.
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00017 DEFINE OSCCAL_1K 1
#define OSCCAL_1K 1
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00038 DEFINE OSC4 ;sets up 4 meg internal oscillator
#define OSC4 ;sets up 4 meg internal oscillator
RAM_START EQU 00020h
RAM_END EQU 0005Fh
RAM_BANKS EQU 00001h
BANK0_START EQU 00020h
BANK0_END EQU 0005Fh
EEPROM_START EQU 02100h
EEPROM_END EQU 0217Fh
; C:\PBP3\PBPPIC14.RAM 00012 A00020 R0 VAR WORD BANK0 SYSTEM ' System Register
R0 EQU RAM_START + 000h
; C:\PBP3\PBPPIC14.RAM 00013 A00022 R1 VAR WORD BANK0 SYSTEM ' System Register
R1 EQU RAM_START + 002h
; C:\PBP3\PBPPIC14.RAM 00014 A00024 R2 VAR WORD BANK0 SYSTEM ' System Register
R2 EQU RAM_START + 004h
; C:\PBP3\PBPPIC14.RAM 00015 A00026 R3 VAR WORD BANK0 SYSTEM ' System Register
R3 EQU RAM_START + 006h
; C:\PBP3\PBPPIC14.RAM 00016 A00028 R4 VAR WORD BANK0 SYSTEM ' System Register
R4 EQU RAM_START + 008h
; C:\PBP3\PBPPIC14.RAM 00017 A0002A R5 VAR WORD BANK0 SYSTEM ' System Register
R5 EQU RAM_START + 00Ah
; C:\PBP3\PBPPIC14.RAM 00018 A0002C R6 VAR WORD BANK0 SYSTEM ' System Register
R6 EQU RAM_START + 00Ch
; C:\PBP3\PBPPIC14.RAM 00019 A0002E R7 VAR WORD BANK0 SYSTEM ' System Register
R7 EQU RAM_START + 00Eh
; C:\PBP3\PBPPIC14.RAM 00020 A00030 R8 VAR WORD BANK0 SYSTEM ' System Register
R8 EQU RAM_START + 010h
; C:\PBP3\PBPPIC14.RAM 00026 A00032 FLAGS VAR BYTE BANK0 SYSTEM ' Static flags
FLAGS EQU RAM_START + 012h
; C:\PBP3\PBPPIC14.RAM 00025 A00033 GOP VAR BYTE BANK0 SYSTEM ' Gen Op Parameter
GOP EQU RAM_START + 013h
; C:\PBP3\PBPPIC14.RAM 00022 A00034 RM1 VAR BYTE BANK0 SYSTEM ' Pin 1 Mask
RM1 EQU RAM_START + 014h
; C:\PBP3\PBPPIC14.RAM 00024 A00035 RM2 VAR BYTE BANK0 SYSTEM ' Pin 2 Mask
RM2 EQU RAM_START + 015h
; C:\PBP3\PBPPIC14.RAM 00021 A00036 RR1 VAR BYTE BANK0 SYSTEM ' Pin 1 Register
RR1 EQU RAM_START + 016h
; C:\PBP3\PBPPIC14.RAM 00023 A00037 RR2 VAR BYTE BANK0 SYSTEM ' Pin 2 Register
RR2 EQU RAM_START + 017h
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00043 A00038 P VAR WORD ; This stores the PULSIN value
_P EQU RAM_START + 018h
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00001 A0003A '************************************************* ***************
T1 EQU RAM_START + 01Ah
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00001 A0003C '************************************************* ***************
T2 EQU RAM_START + 01Ch
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00126 PORTL VAR GPIO
_PORTL EQU GPIO
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00127 PORTH VAR GPIO
_PORTH EQU GPIO
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00128 TRISL VAR TRISIO
_TRISL EQU TRISIO
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00129 TRISH VAR TRISIO
_TRISH EQU TRISIO
#define _GLOW _GPIO??2
#define _RADIO _GPIO??3
#define _lED _GPIO??1
#define _PCON??3 PCON, 003h
#define _GPIO??2 GPIO, 002h
#define _GPIO??3 GPIO, 003h
#define _GPIO??1 GPIO, 001h
INCLUDE "GLOWDRIVERVER2.MAC"
INCLUDE "C:\PBP3\PBPPIC14.LIB"
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00036 #HEADER
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00061 #CONFIG
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00119 BANK0 $0020, $005F
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00121 EEPROM $2100, $217F
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00123 #ERROR "-n option (PBPL) is not supported for this device."
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00124 #ENDIF
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00125 LIBRARY "PBPPIC14"
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00130 include "PBPPIC14.RAM"
; C:\PBP3\DEVICES\PIC12F675.PBPINC 00134 #HEADER
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00017 DEFINE OSCCAL_1K 1
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00019 #CONFIG
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00023 PCON.3 = 1
MOVE?CT 001h, _PCON??3
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00024 ANSEL = 0 ;needed as as above
MOVE?CB 000h, ANSEL
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00025 CMCON = 7
MOVE?CB 007h, CMCON
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00026 ASM
ASM?
errorlevel -302 ; Suppress message 302
bcf STATUS,RP0 ; Bank 0
clrf GPIO ; Init GPIO
movlw 07h ; Set GP<2:0> to
movwf CMCON ; digital IO
bsf STATUS,RP0 ; Bank 1
clrf ANSEL ; Digital IO
movlw 0Ch ; Set GP<3:2> as inputs
movwf TRISIO ; and set up GP<5:4,1:0> as outputs
ENDASM?
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00038 DEFINE OSC4 ;sets up 4 meg internal oscillator
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00046 clear ; Set all variables to zero
CLEAR?
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00048 RX: ; This is where we wait for a signal from the Tx
LABEL?L _RX
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00049 PULSIN RADIO,1,P ; With 4 meg oscillator, PULSIN measures at 10 millisecs
PULSIN?TCW _RADIO, 001h, _P
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00050 HIGH LED ; SHOW PIC IS RUNING
HIGH?T _lED
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00051 IF P < 50 then goto RX ; You forgot to turn on the transmitter.
CMPGE?WCL _P, 032h, L00001
GOTO?L _RX
LABEL?L L00001
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00052 IF (P > 100) and (P < 125) THEN GOSUB SW_ON ; Turn on glow
CMPGT?WCB _P, 064h, T1
CMPLT?WCB _P, 07Dh, T2
LAND?BBW T1, T2, T2
CMPF?WL T2, L00003
GOSUB?L _SW_ON
LABEL?L L00003
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00053 IF (P > 125) THEN GOSUB SW_OFF ; Turn off glow
CMPLE?WCL _P, 07Dh, L00005
GOSUB?L _SW_OFF
LABEL?L L00005
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00054 GOTO RX
GOTO?L _RX
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00057 SW_ON:
LABEL?L _SW_ON
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00058 HIGH GLOW ; This outputs the glow signal on Pin 5
HIGH?T _GLOW
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00059 RETURN
RETURN?
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00061 SW_OFF:
LABEL?L _SW_OFF
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00062 LOW GLOW ; This outputs the glow signal on Pin 5
LOW?T _GLOW
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00063 RETURN
RETURN?
; C:\GCSPROGS\GLOWDRIVERVER2.PBP 00067 END ;Terminate the program
END?
END
Re: help re pbp3 and picket 2 with 12f675
Can you show your .pbp code?
Re: help re pbp3 and picket 2 with 12f675
hi
yes
Code:
'****************************************************************'* Name : UNTITLED.BAS *
'* Author : [select VIEW...EDITOR OPTIONS] *
'* Notice : Copyright (c) 2000 [select VIEW...EDITOR OPTIONS] *
'* : All Rights Reserved *
'* Date : 01/01/2000 *
'* Version : 1.0 *
'* Notes : *
'* : *
'***************************************************************
;The 12F675 has both analog converters and analog comparators.
;You must disable both to use the I/O pins for digital functions.
;In addition, the register that controls the analog converters
;has been named ANSEL, and it has a different format that the ADCON1
;register found on most PICmicro MCUs
DEFINE OSCCAL_1K 1
#CONFIG
__config _INTRC_OSC_NOCLKOUT & _WDT_ON & _PWRTE_ON & _MCLRE_OFF & _CP_OFF & _BODEN_ON
#ENDCONFIG
PCON.3 = 1
ANSEL = 0 ;needed as as above
CMCON = 7
ASM
errorlevel -302 ; Suppress message 302
bcf STATUS,RP0 ; Bank 0
clrf GPIO ; Init GPIO
movlw 07h ; Set GP<2:0> to
movwf CMCON ; digital IO
bsf STATUS,RP0 ; Bank 1
clrf ANSEL ; Digital IO
movlw 0Ch ; Set GP<3:2> as inputs
movwf TRISIO ; and set up GP<5:4,1:0> as outputs
endasm
DEFINE OSC4 ;sets up 4 meg internal oscillator
GLOW VAR GPIO.2 ;Output to MOSFET driving glow driver - Pin 5
RADIO VAR GPIO.3 ;Input from receiver - Pin 4
lED var GPIO.1 ;running led - PIN 7
P VAR WORD ; This stores the PULSIN value
;*********************************************************************
clear ; Set all variables to zero
;*********************************************************************
RX: ; This is where we wait for a signal from the Tx
PULSIN RADIO,1,P ; With 4 meg oscillator, PULSIN measures at 10 millisecs
HIGH LED ; SHOW PIC IS RUNING
IF P < 50 then goto RX ; You forgot to turn on the transmitter.
IF (P > 100) and (P < 125) THEN GOSUB SW_ON ; Turn on glow
IF (P > 125) THEN GOSUB SW_OFF ; Turn off glow
GOTO RX
;********************************************************************
SW_ON:
HIGH GLOW ; This outputs the glow signal on Pin 5
RETURN
SW_OFF:
LOW GLOW ; This outputs the glow signal on Pin 5
RETURN
;********************************************************************
END ;Terminate the program
Re: help re pbp3 and picket 2 with 12f675
If you added the LED back in, you would be able to trouble shoot it better.
What happens if you just load the straight hex from the code example that Acetronics links to:
Re: help re pbp3 and picket 2 with 12f675
Hi,
Code:
movlw 0Ch ; Set GP<3:2> as inputs
It works so much better with Port2 set as an output ....:applouse:
Alain
2 Attachment(s)
Re: help re pbp3 and picket 2 with 12f675

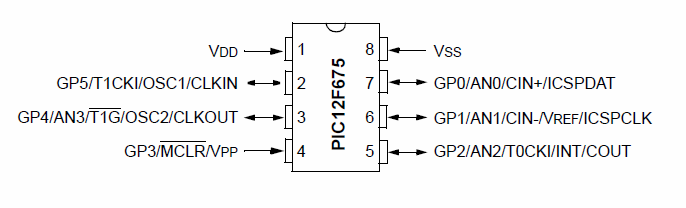

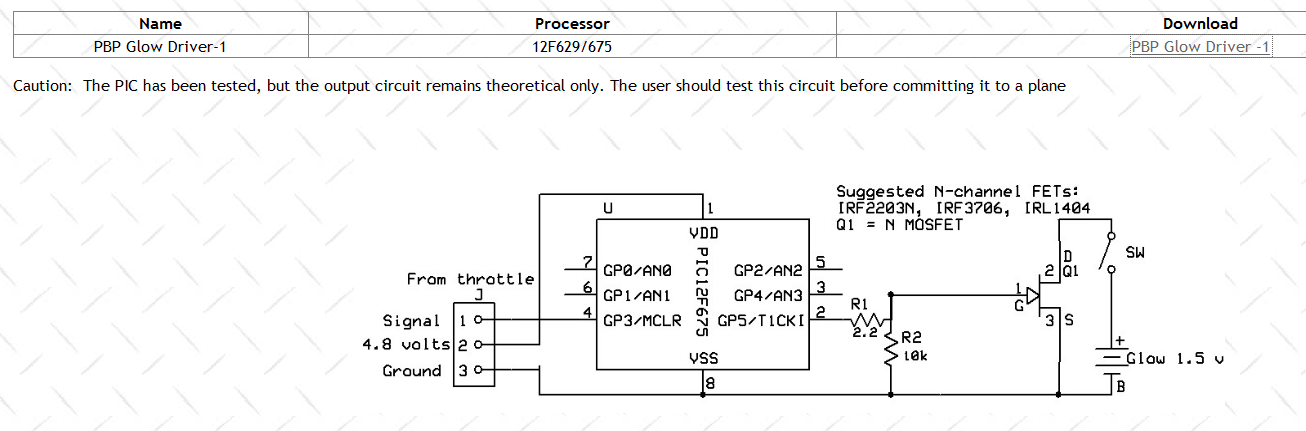

I think the original author of the code is confusing pins with port names. His drawing shows glow coming out pin 2, (GPIO5), but his code shows it coming out pin 5, GPIO2).
Attachment 6456
GLOW VAR GPIO.2 ;Output to MOSFET driving glow driver - Pin 5
RADIO VAR GPIO.3 ;Input from receiver - Pin 4
Attachment 6457
Re: help re pbp3 and picket 2 with 12f675
+1 !!!
Works fine using GP2 ... as the output.
BTW, this design is carbon14 dated ...
Alain
Re: help re pbp3 and picket 2 with 12f675
hi all,
thank you all for comments and help
i have followed Alains kind advise, and if i leave out the osscal 1k 1, it works, think the pics i am using have lost the oscal setting!!, Ordered some new ones
Alain adding the config statement got it working thank you very much.
what does carbon 14 dated mean?. Do you have a better bit of code to do this? i would be grateful for any help i am a complete beginner at this, thank you in advance
i did try to load the hex file but that did not run either.
but i have finally got this working?
thank you all it is very much appreciated
regards
Re: help re pbp3 and picket 2 with 12f675
In this case, Carbon 14 dated mean it's been made several thousands of years ago ;)
Re: help re pbp3 and picket 2 with 12f675
Alain,
thank you old but does the job.
a bit like me
regards
