Lab X1 and 16F877 examples for beginners
I figured this would be a good way to get back into the swing of things. I've had this X1 for years and still kept on using breadboards for all testing.
Lab X1 jumpers:
JP1=n/a (unused)
JP2=2-3 (up)
JP3=2-3 (up)
A=1-2 (down)
B=1-2 (down)
C=2-3 (up)
These examples are essentially for beginners and serve only as a starting point. I try not to assume anything and hope to include everything you need to have your program start on the 1st try.
Code:
'*****************************************************************
'* Name : LAB X1 LCD.BAS Version : 1.0 *
'* Author : Demon Date : 2012-01-06 *
'* Task : Display 2 lines of text *
'* Hardware : PIC 16F877, 20mhz crystal *
'* : Lab X1 Experimental Board *
'* : MeLabs U2 Programmer v4.32 *
'* Software : PIC Basic Pro v2.60C *
'* : MicroCode Studio Plus v2.2.1.1 *
'* : MeLabs PM Assembler *
'*****************************************************************
'define LOADER_USED 1
@ DEVICE PIC16F877, HS_OSC, WDT_OFF, PWRT_ON, BOD_ON, LVP_OFF, CPD_OFF, WRT_OFF, DEBUG_OFF, PROTECT_OFF
define OSC 20
DEFINE LCD_DREG PORTD ' Set LCD data port
DEFINE LCD_DBIT 0 ' Set starting data bit
DEFINE LCD_RSREG PORTE ' Set LCD register select port
DEFINE LCD_RSBIT 0 ' Set LCD register select bit
DEFINE LCD_EREG PORTE ' Set LCD enable port
DEFINE LCD_EBIT 1 ' Set LCD enable bit
DEFINE LCD_BITS 8 ' Set LCD bus size
DEFINE LCD_LINES 2 ' Set number of lines on LCD
define LCD_COMMANDUS 2000 ' Set command delay time in microseconds
DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds
TRISD = %00000000 ' Set all port D pins to output
TRISE = %00000000 ' Set all port E pins to output
ADCON1 = 7 ' A/D off, all digital
PAUSE 1000 ' Wait for LCD to initalize
LCDOUT $FE,1,"LAB X1 LCD"
LCDOUT $FE,$C0,"PIC 16F877"
end
Robert
:)
Re: Lab X1 and 16F877 examples for beginners
Code:
'*****************************************************************
'* Name : LAB X1 LEDs.BAS Version : 1.0 *
'* Author : Demon Date : 2012-01-06 *
'* Task : Blink LEDs in sequence *
'* Hardware : PIC 16F877, 20mhz crystal *
'* : Lab X1 Experimental Board *
'* : MeLabs U2 Programmer v4.32 *
'* Software : PIC Basic Pro v2.60C *
'* : MicroCode Studio Plus v2.2.1.1 *
'* : MeLabs PM Assembler *
'*****************************************************************
'define LOADER_USED 1
@ DEVICE PIC16F877, HS_OSC, WDT_OFF, PWRT_ON, BOD_ON, LVP_OFF, CPD_OFF, WRT_OFF, DEBUG_OFF, PROTECT_OFF
define OSC 20
TRISD = %00000000 ' Set all port D pins to output
ADCON1 = 7 ' A/D off, all digital
LED1 var PORTD.0 ' LEDs, starting from the right
LED2 var PORTD.1
LED3 var PORTD.2
LED4 var PORTD.3
LED5 var PORTD.4
LED6 var PORTD.5
LED7 var PORTD.6
LED8 var PORTD.7
PORTD = %00000000 ' Turn off all LEDs
CYCLE:
TOGGLE LED1 ' Turn 1st LED ON
pause 100 ' Short delay
TOGGLE LED1 ' Turn LED back off
pause 100
TOGGLE LED2
pause 100
TOGGLE LED2
pause 100
TOGGLE LED3
pause 100
TOGGLE LED3
pause 100
TOGGLE LED4
pause 100
TOGGLE LED4
pause 100
TOGGLE LED5
pause 100
TOGGLE LED5
pause 100
TOGGLE LED6
pause 100
TOGGLE LED6
pause 100
TOGGLE LED7
pause 100
TOGGLE LED7
pause 100
TOGGLE LED8
pause 100
TOGGLE LED8
pause 100
GOTO CYCLE
end
Re: Lab X1 and 16F877 examples for beginners
Code:
'*****************************************************************
'* Name : LAB X1 LEDs 2.BAS Version : 1.0 *
'* Author : Demon Date : 2012-01-06 *
'* Task : Blink LEDs back and forth *
'* Hardware : PIC 16F877, 20mhz crystal *
'* : Lab X1 Experimental Board *
'* : MeLabs U2 Programmer v4.32 *
'* Software : PIC Basic Pro v2.60C *
'* : MicroCode Studio Plus v2.2.1.1 *
'* : MeLabs PM Assembler *
'*****************************************************************
'define LOADER_USED 1
@ DEVICE PIC16F877, HS_OSC, WDT_OFF, PWRT_ON, BOD_ON, LVP_OFF, CPD_OFF, WRT_OFF, DEBUG_OFF, PROTECT_OFF
define OSC 20
TRISD = %00000000 ' Set all port D pins to output
ADCON1 = 7 ' A/D off, all digital
WSLOOP var byte ' Loop counter
PORTD = %00000001 ' Turn 1st LED on
pause 100 ' Short delay
CYCLE:
for wsloop = 1 to 7 ' Turn on next LED from right to left
PORTD = PORTD << 1
pause 100
next
for wsloop = 1 to 7 ' Turn on next LED from left to right
PORTD = PORTD >> 1
pause 100
next
GOTO CYCLE
end
Re: Lab X1 and 16F877 examples for beginners
By now you should have a good understanding of configuring your software and hardware for a 16F877 on the Lab X1.
Check in your PBP folder, there are many advanced examples under Lab-X \ LABX1 \ PBP (folder location may vary with newer releases of PBP).
Have fun!
Robert
:)
Re: Lab X1 and 16F877 examples for beginners
To use MPASM Assembler, use this config:
Code:
@ __config _HS_OSC & _WDT_OFF & _PWRTE_ON & _BODEN_ON & _LVP_OFF & _CPD_OFF & _WRT_ENABLE_OFF & _DEBUG_OFF & _PWRTE_OFF
Open 16F877.INC in PBP folder and comment out CONFIG for MPASM like this:
Code:
NOLIST
ifdef PM_USED
LIST
include 'M16F87x.INC' ; PM header
device pic16F877, xt_osc, wdt_on, pwrt_on, lvp_off, protect_off
XALL
NOLIST
else
LIST
LIST p = 16F877, r = dec, w = -302
INCLUDE "P16F877.INC" ; MPASM Header
; __config _XT_OSC & _WDT_ON & _PWRTE_ON & _LVP_OFF & _CP_OFF
NOLIST
endif
LIST
Don't forget to include the config in all your 16F877 programs now that the default setting is commented out.
Re: Lab X1 and 16F877 examples for beginners
Here's an example of elapsed time using DT's Interrupts:
http://darreltaylor.com/DT_INTS-14/intro.html
Interrupt include files are available here:
http://darreltaylor.com/DT_INTS-14/downloads.htm
Elapsed include file available here:
http://www.picbasic.co.uk/forum/show...7473#post17473
NOTE: You must use MPASM Assembler to use DT Interrupt routine.
Code:
'*****************************************************************
'* Name : LAB X1 Timer Interrupt.BAS Version : 1.0 *
'* Author : Demon Date : 2012-01-06 *
'* Task : Display elapsed time on LCD using DT Interrupts *
'* Hardware : PIC 16F877, 20mhz crystal *
'* : Lab X1 Experimental Board *
'* : MeLabs U2 Programmer v4.32 *
'* Software : PIC Basic Pro v2.60C *
'* : MicroCode Studio Plus v2.2.1.1 *
'* : MPASM Assembler v3.50 *
'*****************************************************************
'DEFINE LOADER_USED 1
' Comment out CONFIG in MPASM include (File: 16F877.INC in PBP folder).
@ __config _HS_OSC & _WDT_OFF & _PWRTE_ON & _BODEN_ON & _LVP_OFF & _CPD_OFF & _WRT_ENABLE_OFF & _DEBUG_OFF
DEFINE OSC 20
DEFINE LCD_DREG PORTD ' Set LCD data port
DEFINE LCD_DBIT 0 ' Set starting data bit
DEFINE LCD_RSREG PORTE ' Set LCD register select port
DEFINE LCD_RSBIT 0 ' Set LCD register select bit
DEFINE LCD_EREG PORTE ' Set LCD enable port
DEFINE LCD_EBIT 1 ' Set LCD enable bit
DEFINE LCD_BITS 8 ' Set LCD bus size
DEFINE LCD_LINES 2 ' Set number of lines on LCD
DEFINE LCD_COMMANDUS 2000 ' Set command delay time in microseconds
DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds
TRISD = %00000000 ' Set all port D pins to output
TRISE = %00000000 ' Set all port E pins to output
ADCON1 = 7 ' A/D off, all digital
wsave VAR BYTE $70 SYSTEM ' Required by Instant Interrupt routine
PAUSE 1000 ' Wait for LCD to initialize
LCDOUT $FE,1,"LabX1 16F877 Tim Int"
'---[INT - interrupt includes]--------------------------------------------------
INCLUDE "DT_INTS-14.bas" ; Base Interrupt System
INCLUDE "ReEnterPBP.bas" ; Include if using PBP interrupts
INCLUDE "Elapsed_INT.bas" ; Elapsed Time interrupts
'---[INT - interrupt definition]------------------------------------------------
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler TMR1_INT, _ClockCount, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
@ INT_ENABLE TMR1_INT ; Enable Timer 1 Interrupts
GOSUB ResetTime ' Reset Time to 0d-00:00:00.00
GOSUB StartTimer ' Start the Elapsed Timer
Main:
IF SecondsChanged = 1 THEN
SecondsChanged = 0
LCDOUT $FE,$C0, DEC Days,"d-",DEC2 Hours,":",DEC2 Minutes,":",DEC2 Seconds
ENDIF
GOTO Main
end
1 Attachment(s)
Re: Lab X1 and 16F877 examples for beginners
Here's an external interrupt example using DT's Interrupts:
Code:
'********************************************************************
'* Name : LAB X1 External Interrupt.BAS Version : 1.0 *
'* Author : Demon Date : 2012-01-06 *
'* Task : External interrupt from keypad using DT Interrupts *
'* Hardware : PIC 16F877, 20mhz crystal *
'* : Lab X1 Experimental Board *
'* : MeLabs U2 Programmer v4.32 *
'* Software : PIC Basic Pro v2.60C *
'* : MicroCode Studio Plus v2.2.1.1 *
'* : MPASM Assembler v3.50 *
'********************************************************************
'DEFINE LOADER_USED 1
' Comment out CONFIG in MPASM include (File: 16F877.INC in PBP folder).
@ __config _HS_OSC & _WDT_OFF & _PWRTE_ON & _BODEN_ON & _LVP_OFF & _CPD_OFF & _WRT_ENABLE_OFF & _DEBUG_OFF
DEFINE OSC 20
' Using only 4 bit bus to control LCD
DEFINE LCD_DREG PORTD ' Set LCD data port
DEFINE LCD_DBIT 4 ' Set starting data bit
DEFINE LCD_RSREG PORTE ' Set LCD register select port
DEFINE LCD_RSBIT 0 ' Set LCD register select bit
DEFINE LCD_EREG PORTE ' Set LCD enable port
DEFINE LCD_EBIT 1 ' Set LCD enable bit
DEFINE LCD_BITS 4 ' Set LCD bus size
DEFINE LCD_LINES 2 ' Set number of lines on LCD
DEFINE LCD_COMMANDUS 2000 ' Set command delay time in microseconds
DEFINE LCD_DATAUS 50 ' Set data delay time in microseconds
TRISB = %00001111 ' Set port B pins to 4 output, 4 input
' B0 = External Interrupt
TRISD = %00000000 ' Set all port D pins to output
TRISE = %00000000 ' Set all port E pins to output
ADCON1 = 7 ' A/D off, all digital
OPTION_REG.6 = 0 ' Sets interrupt trigger on falling edge
OPTION_REG.7 = 0 ' Enable weak pull-up resistors
wsave VAR BYTE $70 SYSTEM ' Required by Instant Interrupt routine
LED1 VAR PORTD.0
PAUSE 1000 ' Wait for LCD to initalize
LCDOUT $FE,1,"LabX1 16F877 Ext Int"
LCDOUT $FE,$C0,"Any button on row 1"
PORTD = %00000000 ' Clear LEDs
'---[INT - interrupt includes]--------------------------------------------------
INCLUDE "DT_INTS-14.bas" ; Base Interrupt System
INCLUDE "ReEnterPBP.bas" ; Include if using PBP interrupts
'---[INT - interrupt definition]------------------------------------------------
ASM
INT_LIST macro ; IntSource, Label, Type, ResetFlag?
INT_Handler INT_INT, _ToggleLED1, PBP, yes
endm
INT_CREATE ; Creates the interrupt processor
ENDASM
@ INT_ENABLE INT_INT ; enable external (INT) interrupts
Main:
PORTB = %00000000 ' Set output on keypad
' to prevent floating pins
GOTO Main
'---[INT - interrupt handler]---------------------------------------------------
ToggleLED1:
TOGGLE LED1
@ INT_RETURN
end

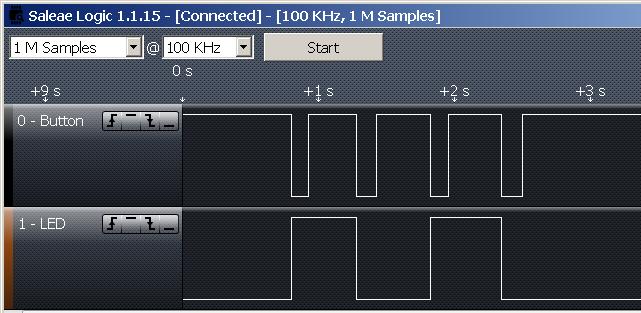

This is what it looks like on the Saleae Logic Analyser after 4 button presses:
Attachment 6215
