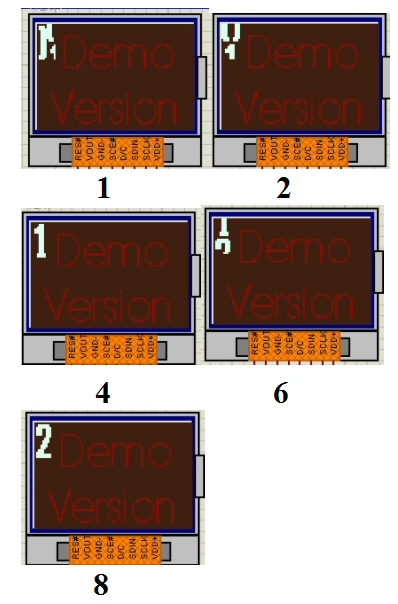

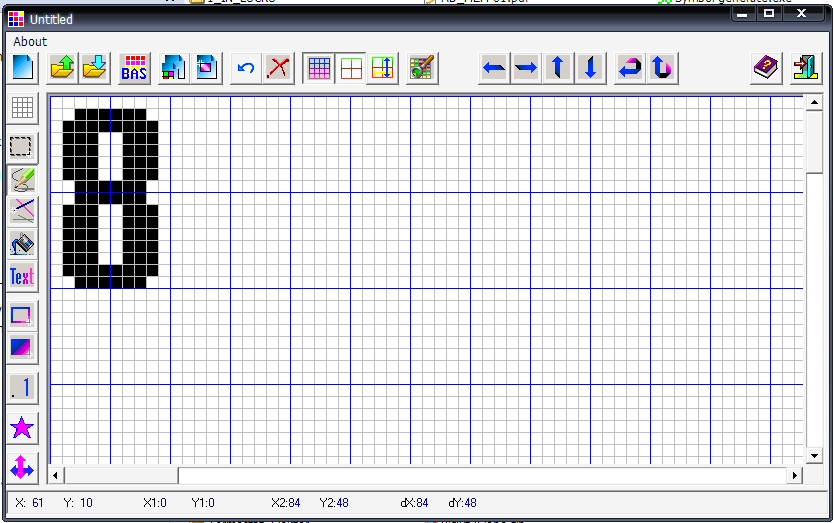

Need more space, please...
I wrote the code for thermometer with two sensors DS18B20 and Nokia 3310 display. Works fine, but...only in 16F648A. I want to use with 16F628A (easier to buy in my location). It' s possible to "minimize" the code ? I think maybe can make something with 'BorderLine:" ...
Thanks in advance !
Code:
;**********************************************************************************************
; Termo with BIG fonts
; 2 x DS18B20
; Thanks to Gusse !
; may 2011
;
; ATTENTION ON SCHEMATIC !!!
;
;**********************************************************************************************
;
; .oooO
; ( ) Oooo.
; \ ( ( )
; \_) ) /
; (_/
;
@ DEVICE pic16F648A, INTRC_OSC, WDT_OFF, PWRT_OFF, BOD_OFF, MCLR_ON, LVP_OFF, CPD_OFF, PROTECT_OFF
INCLUDE "modedefs.bas"
Define NO_CLRWDT 1
DEFINE OSC 4
TRISB = %00011100 'portB configuration 0=out 1=in
TRISA = %10100000 'portA configuration
PortA = %11100000
CMCON = 7
VRCON = 0
INTCON = 0
OPTION_REG=%00000111 'weak pullups on, TMRO prescale = 256
Lcd_DC var PortB.0
Lcd_SDA var PortA.3
Lcd_RST var PortA.4
Lcd_CLK var PortA.2
DQ var PortB.2
DQ2 VAR PORTB.3
buton var portb.4
Ts VAR BIT ' TYPE Of SPACE, variable / constante
Tc VAR byte ' TYPE Of Charater, normal / big
Ic var bit ' Inverted Char
i var Byte
j var Word
k var Byte
Tv var byte ' Tipo de Variavel que se vai receber
Nc var byte ' Numero de Carateres recebidos no Serin
PosX var Byte
PosY var Byte
Letra var Byte [9]
LetraA var byte
LetraB var byte
LcdStr var Byte [28]
Lcd_Data var Byte
Temperature Var Word bank0 : Temperature2 Var Word bank0
TempC Var Word bank0 : TempC2 Var Word bank0
Sign Var Word bank0 : Sign2 Var Word bank0
Float Var Word bank0 : Float2 Var Word bank0
V Var Word bank0 : V2 Var Word bank0
Dummy Var Byte bank0 : Dummy2 Var Byte bank0
Flag var Byte
SignBit var Flag.0
LcdReg var Byte bank0
x var Byte bank0
y var Byte bank0
Busy VAR BIT bank0
Cursor var Byte bank0
DS18B20_12bit CON %01111111 ' 750ms, 0.0625°C
DS18B20_12bit2 CON %01111111 ' 750ms, 0.0625°C
'==================================================
Low Lcd_RST
pause 100
High Lcd_RST
Low Lcd_DC
Lcd_Data= %00100001: Gosub Lcd_SentByte 'LCD EXTENDED COMMANDS
Lcd_Data= $E4 : Gosub Lcd_SentByte 'SET LCD Vop (CONTRAST)
Lcd_Data= %00000100: Gosub Lcd_SentByte 'SET TEMP COEFFICENT
Lcd_Data= %00010000: Gosub Lcd_SentByte 'LCD BIAS MODE 1:48
Lcd_Data= %00100000: Gosub Lcd_SentByte 'LCD STANDARD COMMANDS
Lcd_Data= %00001100: Gosub Lcd_SentByte 'LCD IN NORMAL MODE
Ts = 0 'Space constante
Ic = 0 'Blinking OFF
Gosub Lcd_Clear
'set contrast
Low Lcd_DC
Lcd_Data= %00100001: Gosub Lcd_SentByte 'LCD EXTENDED COMMANDS
Lcd_Data= %10100100: Gosub Lcd_SentByte 'Set Vop Register
Lcd_Data= %00100000: Gosub Lcd_SentByte 'LCD STANDARD COMMANDS
'==================================================
' Init Sensor 1
OWOUT DQ, 1, [$CC, $4E, 0, 0, DS18B20_12bit]
OWOut DQ, 1, [$CC, $48] ' Start temperature conversion
OWOut DQ, 1, [$CC, $B8]
OWOut DQ, 1, [$CC, $BE]
Pause 50
OWIn DQ, 2, [temperature.byte0, temperature.byte1]
' Init Sensor 2
OWOUT DQ2, 1, [$CC, $4E, 0, 0, DS18B20_12bit2]
OWOut DQ2, 1, [$CC, $48] ' Start temperature conversion
OWOut DQ2, 1, [$CC, $B8]
OWOut DQ2, 1, [$CC, $BE]
Pause 50
OWIn DQ2, 2, [temperature2.byte0, temperature2.byte1]
Pause 100
'==================================================
main:
Call BorderLine
pause 100
Part1:
' Start temp.conv.Sensor1
OWOut DQ, 1, [$CC, $44]
OWOut DQ, 1, [$CC, $BE]
OWIn DQ, 2, [temperature.byte0, temperature.byte1]
If Temperature.15 then
Temperature= ~Temperature +1
Sign = 1
Endif
Dummy = 625 * Temperature
TempC = DIV32 10
TempC = (Temperature & $7FF) >> 4
Float = ((Temperature.Lowbyte & $0F ) * 25 )>>2
Temperature = TempC*100 + Float
If Sign=1 then
V= 10000 - Temperature
else
V= 10000 + Temperature
EndIf
If V >= 10000 then
Temperature=V-10000
sign = " "
else
Temperature=10000-V
sign = "-"
EndIf
Part2 :
' Start temp.conv.Sensor1
OWOut DQ2, 1, [$CC, $44]
OWOut DQ2, 1, [$CC, $BE]
OWIn DQ2, 2, [temperature2.byte0, temperature2.byte1]
If Temperature2.15 then
Temperature2= ~Temperature2 +1
Sign2 = 1
Endif
Dummy2 = 625 * Temperature2
TempC2 = DIV32 10
TempC2 = (Temperature2 & $7FF) >> 4
Float2 = ((Temperature2.Lowbyte & $0F ) * 25 )>>2
Temperature2 = TempC2*100 + Float2
If Sign2=1 then
V2= 10000 - Temperature2
else
V2= 10000 + Temperature2
EndIf
If V2 >= 10000 then
Temperature2=V2-10000
sign2 = " "
else
Temperature2=10000-V2
sign2 = "-"
EndIf
if buton = 0 then
gosub buton_on
else
gosub buton_off
endif
goto main
'==================================================
buton_on:
LcdStr(5) = 59 ' simbol for degree
LcdStr(4) = 48 + Temperature dig 1
LcdStr(3) = "."
LcdStr(2) = 48 + Temperature dig 2
if Temperature dig 3=0 then
LcdStr(1) = 32
else
LcdStr(1) = 48 + Temperature dig 3
endif
LcdStr(0) = Sign
Tc=0
Nc=6
PosX=3
PosY=2
Gosub Lcd_GotoXY : Gosub Lcd_SentString
LcdStr(5) = 59 ' simbol for degree
LcdStr(4) = 48 + Temperature2 dig 1
LcdStr(3) = "."
LcdStr(2) = 48 + Temperature2 dig 2
if Temperature2 dig 3=0 then
LcdStr(1) = 32
else
LcdStr(1) = 48 + Temperature2 dig 3
endif
LcdStr(0) = Sign2
Tc=2
Nc=6
PosX=11
PosY=3
Gosub Lcd_GotoXY : Gosub Lcd_SentString
Tc=3
Nc=6
PosX=11
PosY=4
Gosub Lcd_GotoXY : Gosub Lcd_SentString
return
'==================================================
buton_off:
LcdStr(5) = 59 ' simbol for degree
LcdStr(4) = 48 + Temperature2 dig 1
LcdStr(3) = "."
LcdStr(2) = 48 + Temperature2 dig 2
if Temperature2 dig 3=0 then
LcdStr(1) = 32
else
LcdStr(1) = 48 + Temperature2 dig 3
endif
LcdStr(0) = Sign2
Tc=0
Nc=6
PosX=3
PosY=2
Gosub Lcd_GotoXY : Gosub Lcd_SentString
LcdStr(5) = 59 ' simbol for degree
LcdStr(4) = 48 + Temperature dig 1
LcdStr(3) = "."
LcdStr(2) = 48 + Temperature dig 2
if Temperature dig 3=0 then
LcdStr(1) = 32
else
LcdStr(1) = 48 + Temperature dig 3
endif
LcdStr(0) = Sign
Tc=2
Nc=6
PosX=11
PosY=3
Gosub Lcd_GotoXY : Gosub Lcd_SentString
Tc=3
Nc=6
PosX=11
PosY=4
Gosub Lcd_GotoXY : Gosub Lcd_SentString
return
'==================================================
Lcd_Clear:
For cursor = 0 to 5
PosX=0:PosY=Cursor:Gosub Lcd_GotoXY
High Lcd_DC
For i= 1 to 84
Lcd_Data=0:Gosub Lcd_SentByte
Lcd_Data=0:Gosub Lcd_SentByte
Next i
Next cursor
Return
'==================================================
Lcd_GotoXY:
Low Lcd_DC
Lcd_Data=%01000000 | PosY :Gosub Lcd_SentByte 'Y
Lcd_Data=%10000000 | PosX :Gosub Lcd_SentByte 'X
Return
'==================================================
Lcd_SentByte:
SHiftOUT Lcd_SDA , Lcd_CLK , MSBFIRST, [ Lcd_Data ]
Return
'==================================================
Lcd_SentString:
For k=0 to Nc-1
Lcd_Data=LcdStr(k)
Gosub Lcd_SentChar
next k
Return
'==================================================
Lcd_SentChar:
Letra(0)=$00:Letra(1)=$00:Letra(2)=$00:Letra(3)=$00:Letra(4)=$00:Letra(5)=$00
SELECT CASE lcd_data
' CAPITAL LETTERS
CASE 32
Tv=1 '
CASE 42
Tv=5:Letra(0)=$14: Letra(1)=$08:Letra(2)=$3E:Letra(3)=$08: Letra(4)=$14 '*
CASE 43
;Tv=5:Letra(0)=$10: Letra(1)=$10:Letra(2)=$7C:Letra(3)=$10: Letra(4)=$10 '+
Tv=5:Letra(0)=$08: Letra(1)=$08:Letra(2)=$3E:Letra(3)=$08: Letra(4)=$08 '+
CASE 45
Tv=5:Letra(0)=$08: Letra(1)=$08:Letra(2)=$08:Letra(3)=$08: Letra(4)=$08 '-
CASE 46
;Tv=3:Letra(1)=$C0: Letra(2)=$C0 '.
Tv=1:Letra(1)=$60 : Letra(2)=$60 '.
case 47
Tv=4:Letra(0)=96 : Letra(1)=48 :Letra(2)=24 :Letra(3)=12 : Letra(4)=06 '/
CASE 48
;Tv=5:Letra(0)=$7E: Letra(1)=$A1:Letra(2)=$91:Letra(3)=$89: Letra(4)=$7E '0
Tv=5:Letra(0)=$3E: Letra(1)=$51:Letra(2)=$49:Letra(3)=$45: Letra(4)=$3E '0
CASE 49
;Tv=4:Letra(1)=$82: Letra(2)=$FF:Letra(3)=$80 '1
Tv=4:Letra(1)=$42: Letra(2)=$7F:Letra(3)=$40 '1
CASE 50
;Tv=5:Letra(0)=$86: Letra(1)=$C1:Letra(2)=$A1:Letra(3)=$91: Letra(4)=$8E '2
Tv=5:Letra(0)=$42: Letra(1)=$61:Letra(2)=$51:Letra(3)=$49: Letra(4)=$46 '2
CASE 51
;Tv=5:Letra(0)=$62: Letra(1)=$81:Letra(2)=$89:Letra(3)=$89: Letra(4)=$76 '3
Tv=5:Letra(0)=$21: Letra(1)=$41:Letra(2)=$45:Letra(3)=$4B: Letra(4)=$31 '3
CASE 52
;Tv=5:Letra(0)=$38: Letra(1)=$24:Letra(2)=$22:Letra(3)=$FF: Letra(4)=$20 '4
Tv=5:Letra(0)=$18: Letra(1)=$14:Letra(2)=$12:Letra(3)=$7F: Letra(4)=$10 '4
CASE 53
;Tv=5:Letra(0)=$4F: Letra(1)=$89:Letra(2)=$89:Letra(3)=$89: Letra(4)=$71 '5
Tv=5:Letra(0)=$27: Letra(1)=$45:Letra(2)=$45:Letra(3)=$45: Letra(4)=$39 '5
CASE 54
;Tv=5:Letra(0)=$7E: Letra(1)=$89:Letra(2)=$89:Letra(3)=$89: Letra(4)=$72 '6
Tv=5:Letra(0)=$3C: Letra(1)=$4A:Letra(2)=$49:Letra(3)=$49: Letra(4)=$30 '6
CASE 55
;Tv=5:Letra(0)=$01: Letra(1)=$E1:Letra(2)=$11:Letra(3)=$09: Letra(4)=$07 '7
Tv=5:Letra(0)=$01: Letra(1)=$71:Letra(2)=$09:Letra(3)=$05: Letra(4)=$03 '7
CASE 56
;Tv=5:Letra(0)=$76: Letra(1)=$89:Letra(2)=$89:Letra(3)=$89: Letra(4)=$76 '8
Tv=5:Letra(0)=$36: Letra(1)=$49:Letra(2)=$49:Letra(3)=$49: Letra(4)=$36 '8
CASE 57
;Tv=5:Letra(0)=$46: Letra(1)=$89:Letra(2)=$89:Letra(3)=$89: Letra(4)=$7E '9
Tv=5:Letra(0)=$06: Letra(1)=$49:Letra(2)=$49:Letra(3)=$29: Letra(4)=$1E '9
CASE 58
Tv=3:Letra(1)=$36: Letra(2)=$36 ':
CASE 59
Tv=5:Letra(0)=$02: Letra(1)=$05: Letra(2)=$32: Letra(3)=$48: Letra(4)=$48 'simbol grade
end select
High Lcd_DC
If Tc = 0 Then ' Normal Charater
'==================================================
iF Ts = 0 tHEN
j = 5 ' CONSTANTE SPACE (6)
Else
j = Tv ' VARIABLE SPACE
endif
for I=0 to j
If Ic=0 Then ' Normal Charater
ShiftOUT Lcd_SDA , Lcd_CLK , 1 , [ Letra(I)]
else ' Inverted Charater
ShiftOUT Lcd_SDA , Lcd_CLK , 1 , [ (127-Letra(I))+128 ]
endif
next I
Return
Endif ' Double Charater
'==================================================
' Tc = 1 Nothing to change 2 x 1
If Tc = 2 Then ' 1ª time of 2x2
for i = 0 to 5
LetraA = Letra(i)
LetraB.0 = LetraA.0
LetraB.1 = LetraA.0
LetraB.2 = LetraA.1
LetraB.3 = LetraA.1
LetraB.4 = LetraA.2
LetraB.5 = LetraA.2
LetraB.6 = LetraA.3
LetraB.7 = LetraA.3
Letra(i) = LetraB
next i
ENdif
If TC = 3 then ' 2ª time of 2x2
for i = 0 to 5
LetraA = Letra(i)
LetraB.0 = LetraA.4
LetraB.1 = LetraA.4
LetraB.2 = LetraA.5
LetraB.3 = LetraA.5
LetraB.4 = LetraA.6
LetraB.5 = LetraA.6
LetraB.6 = LetraA.7
LetraB.7 = LetraA.7
Letra(i) = LetraB
next i
endif
iF Ts = 0 tHEN
j = 5 ' CONSTANTE SPACE
Else
j = Tv ' VARIABLE SPACE
endif
for I=0 to j
If Ic=0 Then ' Normal Charater
ShiftOUT Lcd_SDA , Lcd_CLK , 1 , [ Letra(I), Letra(i) ]
else ' Inverted Charater
ShiftOUT Lcd_SDA , Lcd_CLK , 1 , [ (127-Letra(I))+128, (127-Letra(I))+128 ]
endif
next I
Return
BorderLine: '
'=================================== RAND 0
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
for y = 0 to 83
LOokup y, [$FF,$01,$01,$01,$01,_
$01,$01,$01,$01,$01,$01,$01,$01,$01,$FD,$FD,$FD,$85,$85,$FD,$FD,$79,_ 'D
$01,$01,$FD,$FD,$FD,$01,$01,$79,$FD,$FD,$85,$A5,$ED,$ED,$69,$01,$01,_ 'IG
$FD,$FD,$FD,$01,$05,$05,$05,$FD,$FD,$FD,$05,$05,$05,$01,_ 'IT
$F9,$FD,$FD,$25,$25,$FD,$FD,$F9,$01,$01,$FD,$FD,$FD,$81,$81,$81,$81,_ 'AL
$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$FF] ,LcdReg
call PrintDataLcd
next y
'=================================== RAND 1
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== RAND 2
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000010 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000010 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== RAND 3
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000011 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000011 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== RAND 4
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000100 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000100 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== JOS
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000101 ' cursor Y
call PrintCtrlLcd
for y = 0 to 83
LOokup y, [$FF,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,_
$80,$80,$80,$80,$81,$81,$81,$BF,$BF,$BF,$81,$81,$81,$80,$BF,$BF,$BF,$A9,_
$A9,$A9,$A1,$80,$BF,$BF,$BF,$89,$89,$99,$A6,$80,$BF,$BF,$BF,$82,_
$84,$82,$BF,$BF,$BF,$80,$9E,$BF,$BF,$A1,$A1,$BF,$BF,$9E,$80,_
$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,_
$80,$80,$80,$80,$FF] ,LcdReg
call PrintDataLcd
next y
return
'==================================================
PrintCtrlLcd: LCD_DC = 0
PrintDataLcd: for x = 1 to 8
LCD_SDA = LcdReg.7
LCD_CLK = 1
LcdReg = LcdReg << 1
LCD_CLK = 0
next x
LCD_DC = 1
return
END ' of program
-
Re: Need more space, please...
Have you considered using two 16F628A?
Use 1 as master to control sensor, use the other as slave to control the LCD, communicate between the 2 using USART?
That would split the burden.
-
Thanks...but... NO WAY ! I try to make it "low cost" ;) ...
-
Re: Need more space, please...
You might be able to save a little space if you can SUB the digit conversion routines that are repeated in some places. It may gain you some words of space, but, beyond that, you may need to forego the borderline routine altogether(just a guess) or convert it into a code based border function rather than table driven.
-
Re: Need more space, please...
Quote:
Originally Posted by
fratello
Works fine, but...only in 16F648A. I want to use with 16F628A (easier to buy in my location).
Hi Fratello,
You are not the first person to mention this about this chip or that chip. I am just curious about the hardships of getting a part as old as the PIC16F648A in quantity? I can see it being a hardship if you can't get it at the local vendor, and don't want to order abroad for low numbers. But is it really that hard (or expensive) to get them by 25 or more? It sounds like your project is going to be marketed.
Maybe I am just spoiled by being able to get things from any country, pretty easily.
Again, just curious. Not doubting you, just wondering "easier to get" means.
-
I live in one small city from Romania ! Even one resistor must be purchased by e-commerce :( . at e-vendors the 16F648A have double price from 16F628A. And one great vendor (TME.EU) don't sell to persons, just company :(, from april, this year...
So, I try to make the best I can with limited resources. Thanks again for support !
-
Re: Need more space, please...
I think you can save a little space by not including "modedefs.bas"
You will need to change this line.
SHiftOUT Lcd_SDA , Lcd_CLK , MSBFIRST, [ Lcd_Data ]
To:
SHiftOUT Lcd_SDA , Lcd_CLK , 1, [ Lcd_Data ]
-
Still " address limit of 7ffh exceeded" ...
-
Re: Need more space, please...
Fratello,
check your pm please
Best Regards,
Bogdan Pitic
-
Re: Need more space, please...
I have results...
Code:
If Temperature.15 then
Temperature= ~Temperature +1
sign="-"
Endif
and removing older parts refering to "sign" and "sign2".
Now it's ok, but still wonder if can I store some "graphical elements" into eeprom...
-
Re: Need more space, please...
Quote:
Originally Posted by
fratello
. . . And one great vendor (TME.EU) don't sell to persons, just company. . . !
Hmmmm . . . Fratello International, Fratello Engineering , Fratello Imports , Fratello Enterprises, Hot Ziggidy those roses smell great . . . ;) oops . . . Fratello Technologies.EU
-
Re: Need more space, please...
Sorry for off-topic...My salary it's about 350 euro/month ; so, it's important if one IC cost 1 or 2 euro - it's just hobby !
And "Fratello Enterprise(s)" it's verry cool ... I love Star Trek !!!
-
Re: Need more space, please...
Business' often request and receive FREE samples. You are a small prototype company are you not ? You do develop products for others ? No employees required. No lies told. No money made ? That's a trade secret. :D
-
Re: Need more space, please...
I try something like this :
Code:
data @0,$FF,$01,$01,$01,$01,_
$01,$01,$01,$01,$01,$01,$01,$01,$01,$FD,$FD,$FD,$85,$85,$FD,$FD,$79,_
$01,$01,$FD,$FD,$FD,$01,$01,$79,$FD,$FD,$85,$A5,$ED,$ED,$69,$01,$01,_
$FD,$FD,$FD,$01,$05,$05,$05,$FD,$FD,$FD,$05,$05,$05,$01,_
$F9,$FD,$FD,$25,$25,$FD,$FD,$F9,$01,$01,$FD,$FD,$FD,$81,$81,$81,$81,_
$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$01,$FF
This is the first row.
But there, how must doing :
Code:
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
read 0, vcx
for y = 0 to 83
Lookup y,[??????? vcx ???????], LcdReg
call PrintDataLcd
next y
Thanks !
-
1 Attachment(s)
Re: Need more space, please...
I did it !!!
Code:
BorderLine: '
'=================================== RAND 0
for y = 0 to 83
call setcursor
read y, LcdReg
call PrintDataLcd
next y
return
'==================================================
setcursor:
LcdReg = %10000000 + y ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
return
...and this is the result !
-
3 Attachment(s)
Re: Need more space, please...
The button alternate the two temperatures (small and big). Full working code ! Thanks for support ! Regards !
-
Re: Need more space, please...
Congratulations !
Looks Great !
Now tell us all about it, is that a PIC16F648A or PIC16F628A ?
What kind of display is that ? Where can get one and for about how much ?
I see the making of an article in this thread.
Oh to all who read this post, if you are willing, please rename your code from .bas to .txt becauseWindows XP and up requires you to download and rename and will not open it first. That is my experience on 3 different computers. Win 98 does not care unless you have loaded VB and then it too does not like it.
Ahhhgh: My dumb self, I see nokia 3310, first line of O. P.
-
Re: Need more space, please...
Thanks !
It's PIC 16F628A ("downgrade" from 16F648A - the reason of this topic) ; display it's from Nokia 3310. Regards !
-
3 Attachment(s)
Need again help, please, PLEASE ...
I re-wrote the code, in attempt to having BIGGER numbers on display !
This is the code :
Code:
@ DEVICE pic16F648A, INTrc_osc, WDT_OFF, PWRT_OFF, BOD_OFF, MCLR_OFF, LVP_OFF, CPD_OFF, PROTECT_OFF
Define NO_CLRWDT 1
DEFINE OSC 4
TRISB = %00011100 'portB configuration 0=out 1=in
TRISA = %10100000 'portA configuration
PortA = %11100000
CMCON = 7
VRCON = 0
INTCON = 0
OPTION_REG=%00000111 'weak pullups on, TMRO prescale = 256
DQ2 VAR PORTB.3
RST var PortA.4 'pin 3 Output reset display
SDIN var PortA.3 'pin 2 Output master data out
SCK var PortA.2 'pin 1 Output Spi clock
DQ var PortB.2 'pin 18 I/O DQ DS18b20
D_C var PortB.0 'pin 6 Output command/data sel. register
Temperature Var Word
TempC Var Word
Sign Var Word
Float Var Word
Dummy Var Byte
LcdReg var byte
x var byte
y var byte
z var byte
Offset var byte
Char var byte
a var byte
PosX VAR Byte
PosY VAR Byte
Chr VAR Byte
LcdData VAR Byte
Cursor Var Byte
'-------------------------------------------------------------------------------
Data @0,$FC, $FE, $FE, $06, $00,_
$00, $06, $FE, $FE, $FC,_
$7F, $FF, $FF, $C0, $00,_
$00, $C0, $FF, $FF, $7F,_ ; //0
$00, $00, $18, $1C, $FE,_
$FE, $FE, $00, $00, $00,_
$00, $00, $00, $C0, $FF,_
$FF, $FF, $C0, $00, $00,_ ; //1
$00, $3C, $3E, $3E, $06,_
$86, $FE, $FE, $7C, $00,_
$00, $E0, $F0, $FC, $FF,_
$CF, $C7, $C1, $C0, $00,_ ; //2
$00, $1C, $1E, $9E, $86,_
$86, $FE, $FE, $FC, $00,_
$00, $78, $F8, $F9, $C1,_
$C1, $FF, $FF, $7E, $00,_ ; //3
$00, $00, $F0, $FE, $7E,_
$FE, $FE, $FE, $00, $00,_
$00, $3F, $3F, $37, $30,_
$FF, $FF, $FF, $30, $00 ; //4
Data @101, $00, $FE, $FE, $FE, $C6,_
$00, $C6, $C6, $C6, $86,_
$71, $F1, $F1, $C0, $00,_
$00, $C0, $FF, $FF, $7F,_ ; //5
$00, $FC, $FE, $FE, $C6,_
$C6, $DE, $DE, $9C, $00,_
$00, $7F, $FF, $FF, $C0,_
$C0, $FF, $FF, $7F, $00,_ ; //6
$00, $06, $06, $06, $86,_
$E6, $FE, $7E, $1E, $00,_
$00, $80, $F0, $FE, $3F,_
$07, $01, $00, $00, $00,_ ; //7
$00, $7C, $FE, $FE, $86,_
$86, $FE, $FE, $7C, $00,_
$00, $7E, $FF, $FF, $C1,_
$C1, $FF, $FF, $7E, $00,_ ; //8
$00, $FC, $FE, $FE, $86,_
$86, $FE, $FE, $FC, $00,_
$00, $78, $F9, $F9, $C1,_
$C1, $FF, $FF, $7F, $00 ; //9
'-------------------------------------------------------------------------------
pause 1000
RST = 1
PortB = 0
LcdReg = %00100001 'LCD Extended Commands.
call PrintCtrlLcd
LcdReg = $C5 'Set LCD Vop (Contrast).
call PrintCtrlLcd
LcdReg = %00000110 'Set Temp coefficent.
call PrintCtrlLcd
LcdReg = %00010011 'LCD bias mode 1:48.
call PrintCtrlLcd
LcdReg = %00100000 'LCD Standard Commands, Horizontal addressing mode.
call PrintCtrlLcd
LcdReg = %00001100 'LCD in normal mode
call PrintCtrlLcd
call CursorHome
Gosub LCD_Clear
Main:
' Sensor 1
OWOut DQ, 1, [$CC, $44]
OWOut DQ, 1, [$CC, $BE]
OWIn DQ, 2, [temperature.byte0, temperature.byte1]
If Temperature.15 then
Temperature= ~Temperature +1
sign="-"
Endif
Dummy = 625 * Temperature
TempC = DIV32 10
TempC = (Temperature & $7FF) >> 4
Float = ((Temperature.Lowbyte & $0F ) * 25 )>>2
Temperature = TempC*100 + Float
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
Char = (temperature dig 1)
Call PrintChar
LcdReg = %10000000 + 5 ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
Char = (temperature dig 1 )+ 1
Call PrintChar
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
Char = (temperature dig 1 )+ 2
Call PrintChar
LcdReg = %10000000 + 5 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
Char = (temperature dig 1 )+ 3
Call PrintChar
goto Main
'============================================================
CursorHome: LcdReg = %10000000 ' cursor Home
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Home
call PrintCtrlLcd
return
PrintChar: offset = Char * 5
for a = 1 to 5
read offset, LcdReg
call PrintDataLcd
offset = offset + 1
next a
LcdReg = 0
call PrintDataLcd
return
PrintCtrlLcd: D_C = 0
PrintDataLcd: for x = 1 to 8
SDIN = LcdReg.7
SCK = 1
LcdReg = LcdReg << 1
SCK = 0
next x
D_C = 1
return
Lcd_Clear:
FOR Cursor = 0 TO 5
PosX=0:PosY=Cursor:GOSUB Lcd_GotoXY
HIGH D_C
LcdData = 0
FOR Chr = 1 TO 84
GOSUB LCD_ByteOut
NEXT Chr
NEXT Cursor
RETURN
LCD_GotoXY:
LOW D_C
LcdData=%01000000 | PosY :GOSUB LCD_ByteOut
LcdData=%10000000 | PosX :GOSUB LCD_ByteOut
RETURN
LCD_ByteOut:
SHIFTOUT SDIN,SCK,1,[LcdData]
RETURN
Each number is made - in FastLCD- like in this example :
Attachment 5597
But the results are...strange, like this :
Attachment 5598
Please, need advice...Thanks in advance !!!
LE : I use now 16F648A (more EEprom). Attaching ISIS simulating.
-
Re: Need more space, please...
Based on this post : http://www.picbasic.co.uk/forum/show...7847#post87847 - Thank You, scalerebotics !!! I re-x-wrote the code. Now I have good results ! But.... HOW can I display all the three digits of var.temperature ?!? Give me a clue, please !!!
Code:
;**********************************************************************************************
; BIG FONTS - need improvements !!!
@ DEVICE pic16F628A, INTRC_OSC, WDT_OFF, PWRT_OFF, BOD_OFF, MCLR_ON, LVP_OFF, CPD_OFF, PROTECT_OFF
Define NO_CLRWDT 1
DEFINE OSC 4
TRISB = %00011100 'portB configuration 0=out 1=in
TRISA = %10100000 'portA configuration
PortA = %11100000
CMCON = 7
VRCON = 0
INTCON = 0
OPTION_REG=%00000111 'weak pullups on, TMRO prescale = 256
Lcd_DC var PortB.0
Lcd_SDA var PortA.3
Lcd_RST var PortA.4
Lcd_CLK var PortA.2
DQ var PortB.2
i var Byte
j var Word
k var Byte
Nc var Byte
PosX var Byte
PosY var Byte
LcdStr var Byte [28]
Lcd_Data var Byte
CharNum var Byte
FA VAR BYTE[5] 'upper left of character
FB VAR BYTE[5] 'upper right of character
FC VAR BYTE[5] 'lower left of character
FD VAR BYTE[5] 'lower right of character
LcdReg var Byte
x var Byte
y var Byte
cursor var Byte
Temperature Var Word
TempC Var Word
Sign Var Word
Float Var Word
Dummy Var Byte
DS18B20_12bit CON %01111111 ' 750ms, 0.0625°C
'initialize display-----------------------------------------------
pause 250
'-----------------------------------------------------------------
'Initialize LCD, run 1st this!
Low Lcd_RST 'Reset LCD (HW reset)
pause 100
High Lcd_RST 'Release Reset
Low Lcd_DC 'Command/Data
Lcd_Data= $21: GOSUB Lcd_SentByte ' LCD EXTENDED COMMANDS
Lcd_Data= $c2: GOSUB Lcd_SentByte ' SET LCD Vop (CONTRAST) era c8
Lcd_Data= $06: GOSUB Lcd_SentByte ' SET TEMP COEFFICENT
Lcd_Data= $13: GOSUB Lcd_Sentbyte ' LCD BIAS MODE
Lcd_Data= $20: GOSUB Lcd_Sentbyte ' LCD STANDARD COMMANDS
Lcd_Data= $09: GOSUB Lcd_Sentbyte ; all on
pause 1000
Lcd_data= $08: gosub lcd_sentbyte ' lcd blank
Lcd_Data= $0c: GOSUB Lcd_sentbyte ' LCD IN NORMAL MODE
gosub Lcd_Clear 'Clear contents of screen
Low Lcd_DC
Pause 100
'==================================================
' Init Sensor 1
OWOUT DQ, 1, [$CC, $4E, 0, 0, DS18B20_12bit]
OWOut DQ, 1, [$CC, $48] ' Start temperature conversion
OWOut DQ, 1, [$CC, $B8]
OWOut DQ, 1, [$CC, $BE]
Pause 50
OWIn DQ, 2, [temperature.byte0, temperature.byte1]
'==================================================
main:
pause 100
sign = " "
' Start temp.conv.Sensor1
OWOut DQ, 1, [$CC, $44]
OWOut DQ, 1, [$CC, $BE]
OWIn DQ, 2, [temperature.byte0, temperature.byte1]
If Temperature.15 then
Temperature= ~Temperature +1
sign="-"
Endif
Dummy = 625 * Temperature
TempC = DIV32 10
TempC = (Temperature & $7FF) >> 4
Float = ((Temperature.Lowbyte & $0F ) * 25 )>>2
Temperature = TempC*100 + Float
LcdStr(2) = 48 + TEMPERATURE dig 1
LcdStr(1) = 48 + TEMPERATURE dig 2
LcdStr(0) = 48 + TEMPERATURE dig 3
Nc=2
Gosub Lcd_SentString
gosub afisare
goto main
'==================================================
afisare:
High Lcd_DC
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
SHiftOUT Lcd_SDA , Lcd_CLK , 1, [ FA(0),FA(1),FA(2),FA(3),FA(4)] 'upper left
LcdReg = %10000000 + 5 ' cursor X
call PrintCtrlLcd
LcdReg = %01000000 ' cursor Y
call PrintCtrlLcd
SHiftOUT Lcd_SDA , Lcd_CLK , 1, [ FB(0),FB(1),FB(2),FB(3),FB(4)] 'upper right
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
SHiftOUT Lcd_SDA , Lcd_CLK , 1, [ FC(0),FC(1),FC(2),FC(3),FC(4)] 'lower left
LcdReg = %10000000 + 5 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
SHiftOUT Lcd_SDA , Lcd_CLK , 1, [ FD(0),FD(1),FD(2),FD(3),FD(4)] 'lower right
Low Lcd_DC
Return
'==================================================
Lcd_Clear:
For cursor = 0 to 5
PosX=0:PosY=Cursor:Gosub Lcd_GotoXY
High Lcd_DC
For i= 1 to 84
Lcd_Data=0:Gosub Lcd_SentByte
Lcd_Data=0:Gosub Lcd_SentByte
Next i
Next cursor
Return
'==================================================
Lcd_GotoXY:
Low Lcd_DC
Lcd_Data=%01000000 | PosY :Gosub Lcd_SentByte 'Y
Lcd_Data=%10000000 | PosX :Gosub Lcd_SentByte 'X
Return
'==================================================
Lcd_SentByte:
SHiftOUT Lcd_SDA , Lcd_CLK , 1, [ Lcd_Data ]
Return
'==================================================
Lcd_SentString:
;For k=0 to Nc-1
FOR K=0 TO NC
Lcd_Data=LcdStr(k)
Gosub Lcd_SentChar
next k
Return
'==================================================
Lcd_SentChar:
lookdown Lcd_data,[" !\#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghijklmnopqrstuvwxyz{|}~"],CharNum
Lcd_data = CharNum + 32
SELECT CASE lcd_data
Case 48 ' a zero
FA(0)=$00:FA(1)=$FC:FA(2)=$FE:FA(3)=$FE:FA(4)=$06 ' // 0
FB(0)=$06:FB(1)=$FE:FB(2)=$FE:FB(3)=$FC:FB(4)=$00 ' // 0
FC(0)=$00:FC(1)=$7F:FC(2)=$FF:FC(3)=$FF:FC(4)=$C0 ' // 0
FD(0)=$C0:FD(1)=$FF:FD(2)=$FF:FD(3)=$7F:FD(4)=$00 ' // 0
Case 49 ' a one
FA(0)=$00:FA(1)=$00:FA(2)=$18:FA(3)=$1C:FA(4)=$FE ' // 1
FB(0)=$FE:FB(1)=$FE:FB(2)=$00:FB(3)=$00:FB(4)=$00 ' // 1
FC(0)=$00:FC(1)=$00:FC(2)=$00:FC(3)=$C0:FC(4)=$FF ' // 1
FD(0)=$FF:FD(1)=$FF:FD(2)=$C0:FD(3)=$00:FD(4)=$00 ' // 1
Case 50 ' a TWO
FA(0)=$00:FA(1)=$3C:FA(2)=$3E:FA(3)=$3E:FA(4)=$06 ' // 2
FB(0)=$86:FB(1)=$FE:FB(2)=$FE:FB(3)=$7C:FB(4)=$00 ' // 2
FC(0)=$00:FC(1)=$E0:FC(2)=$F0:FC(3)=$FC:FC(4)=$FF ' // 2
FD(0)=$CF:FD(1)=$C7:FD(2)=$C1:FD(3)=$C0:FD(4)=$00 ' // 2
Case 51 ' a THREE
FA(0)=$00:FA(1)=$1C:FA(2)=$1E:FA(3)=$9E:FA(4)=$86 ' // 3
FB(0)=$86:FB(1)=$FE:FB(2)=$FE:FB(3)=$FC:FB(4)=$00 ' // 3
FC(0)=$00:FC(1)=$78:FC(2)=$F8:FC(3)=$F9:FC(4)=$C1 ' // 3
FD(0)=$C1:FD(1)=$FF:FD(2)=$FF:FD(3)=$7E:FD(4)=$00 ' // 3
Case 52 ' a FOUR
FA(0)=$00:FA(1)=$00:FA(2)=$F0:FA(3)=$FE:FA(4)=$7E ' // 4
FB(0)=$FE:FB(1)=$FE:FB(2)=$FE:FB(3)=$00:FB(4)=$00 ' // 4
FC(0)=$00:FC(1)=$3F:FC(2)=$3F:FC(3)=$37:FC(4)=$30 ' // 4
FD(0)=$FF:FD(1)=$FF:FD(2)=$FF:FD(3)=$30:FD(4)=$00 ' // 4
Case 53 ' a FIVE
FA(0)=$00:FA(1)=$FE:FA(2)=$FE:FA(3)=$FE:FA(4)=$C6 ' // 5
FB(0)=$C6:FB(1)=$C6:FB(2)=$C6:FB(3)=$86:FB(4)=$00 ' // 5
FC(0)=$00:FC(1)=$71:FC(2)=$F1:FC(3)=$F1:FC(4)=$C0 ' // 5
FD(0)=$C0:FD(1)=$FF:FD(2)=$FF:FD(3)=$7F:FD(4)=$00 ' // 5
Case 54 ' a SIX
FA(0)=$00:FA(1)=$FC:FA(2)=$FE:FA(3)=$FE:FA(4)=$C6 ' // 6
FB(0)=$C6:FB(1)=$DE:FB(2)=$DE:FB(3)=$9C:FB(4)=$00 ' // 6
FC(0)=$00:FC(1)=$7F:FC(2)=$FF:FC(3)=$FF:FC(4)=$C0 ' // 6
FD(0)=$C0:FD(1)=$FF:FD(2)=$FF:FD(3)=$7F:FD(4)=$00 ' // 6
Case 55 ' a SEVEN
FA(0)=$00:FA(1)=$06:FA(2)=$06:FA(3)=$06:FA(4)=$86 ' // 7
FB(0)=$E6:FB(1)=$FE:FB(2)=$7E:FB(3)=$1E:FB(4)=$00 ' // 7
FC(0)=$00:FC(1)=$80:FC(2)=$F0:FC(3)=$FE:FC(4)=$3F ' // 7
FD(0)=$07:FD(1)=$01:FD(2)=$00:FD(3)=$00:FD(4)=$00 ' // 7
Case 56 ' a EIGHT
FA(0)=$00:FA(1)=$7C:FA(2)=$FE:FA(3)=$FE:FA(4)=$86 ' // 8
FB(0)=$86:FB(1)=$FE:FB(2)=$FE:FB(3)=$7C:FB(4)=$00 ' // 8
FC(0)=$00:FC(1)=$7E:FC(2)=$FF:FC(3)=$FF:FC(4)=$C1 ' // 8
FD(0)=$C1:FD(1)=$FF:FD(2)=$FF:FD(3)=$7E:FD(4)=$00 ' // 8
Case 57 ' a NINE
FA(0)=$00:FA(1)=$FC:FA(2)=$FE:FA(3)=$FE:FA(4)=$86 ' // 9
FB(0)=$86:FB(1)=$FE:FB(2)=$FE:FB(3)=$FC:FB(4)=$00 ' // 9
FC(0)=$00:FC(1)=$78:FC(2)=$F9:FC(3)=$F9:FC(4)=$C1 ' // 9
FD(0)=$C1:FD(1)=$FF:FD(2)=$FF:FD(3)=$7F:FD(4)=$00 ' // 9
end SELECT
High Lcd_DC
PrintCtrlLcd: LCD_DC = 0
PrintDataLcd: for x = 1 to 8
LCD_SDA = LcdReg.7
LCD_CLK = 1
LcdReg = LcdReg << 1
LCD_CLK = 0
next x
LCD_DC = 1
return
END
Now I have only dig 1 on display :( ....
-
2 Attachment(s)
-
5 Attachment(s)
Me, again...
Hope not disturb !
This is my last variant of dual thermometer.
-
Re: Me, again...
Quote:
Originally Posted by
fratello
Hope not disturb !
This is my last variant of dual thermometer.
Fratello,
This is your thread.
You can post anything you consider relevant to this subject; more info on components, ideas about schematic, or more questions on code.
And congratulations on achieving your objectives!
-
4 Attachment(s)
Re: Me, again...
Thank You so much for support !
...another fonts...
-
1 Attachment(s)
Re: Need more space, please...
Instead :
Code:
BorderLine: '
'=================================== RAND 0
for y = 0 to 83
call setcursor
read y, LcdReg
call PrintDataLcd
next y
'=================================== RAND 1
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000001 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== RAND 2
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000010 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000010 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== RAND 3
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000011 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000011 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== RAND 4
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000100 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
LcdReg = %10000000 + 83 ' cursor X
call PrintCtrlLcd
LcdReg = %01000100 ' cursor Y
call PrintCtrlLcd
LOokup 0, [$FF] , LcdReg
call PrintDataLcd
'=================================== JOS
LcdReg = %10000000 ' cursor X
call PrintCtrlLcd
LcdReg = %01000101 ' cursor Y
call PrintCtrlLcd
for y = 0 to 83
LOokup y, [$FF,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,_
$80,$80,$80,$80,$81,$81,$81,$BF,$BF,$BF,$81,$81,$81,$80,$BF,$BF,$BF,$A9,_
$A9,$A9,$A1,$80,$BF,$BF,$BF,$89,$89,$99,$A6,$80,$BF,$BF,$BF,$82,_
$84,$82,$BF,$BF,$BF,$80,$9E,$BF,$BF,$A1,$A1,$BF,$BF,$9E,$80,_
$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,_
$80,$80,$80,$80,$FF] ,LcdReg
call PrintDataLcd
next y
return
I use now :
Code:
GotoXY:
LcdReg = %01000000 | Posy : call PrintCtrlLcd 'Y
LcdReg = %10000000 | Posx : call PrintCtrlLcd 'X
Return
'===========================
BorderLine: '
'=================================== up
posx=0
posy=0
gosub GotoXY
for y = 0 to 83
read y, LcdReg
call PrintDataLcd
next y
'=================================== raw all
for i= 1 to 4
posx=0
posy=i
gosub GotoXY
lcdReg= $FF
call PrintDataLcd
next i
for i = 1 to 4
posx=83
posy=i
gosub GotoXY
lcdReg= $FF
call PrintDataLcd
next i
'=================================== JOS
posx=0
posy=5
gosub GotoXY
for y = 0 to 83
LOokup y, [$FF,$80,$81,$81,$BF,$BF,$BF,$81,$81,$80,$BF,$BF,_
$BF,$A9,$A9,$A9,$80,$BF,$BF,$BF,$89,$89,$99,$A6,$80,$BF,$BF,$BF,_
$82,$84,$82,$BF,$BF,$BF,$80,$9E,$BF,$BF,$A1,$BF,$BF,$9E,$80,$80,_
$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,$80,_
$80,$80,$80,$80,$80,$9C,$A2,$A2,$A2,$9C,$80,$9E,$A0,$A0,$A0,$9E,_
$80,$82,$82,$BE,$82,$82,$80,$FF] ,LcdReg
call PrintDataLcd
next y
return
I attach the code from termometer with two differents fonts : small and big. Enjoy !
-
1 Attachment(s)
Re: Need more space, please...
The hex file for #16 schematic (bas in #17), for "unumic" user. Just remove the ".txt" extension. Enjoy !
-
Re: Need more space, please...
Got any RAM left?
Code:
Tc=2
Nc=6
PosX=11
PosY=3
Gosub Lcd_GotoXY : Gosub Lcd_SentString
Tc=3
Nc=6
PosX=11
PosY=4
Gosub Lcd_GotoXY : Gosub Lcd_SentString
->
Code:
bla var byte : blabla var byte
bla = 2 : blabla = 3
'************************
gosub loop
bla = bla + 1
blabla = blabla + 1
gosub loop
'************************
loop:
Tc=bla
Nc=6
PosX=11
PosY=blabla
Gosub Lcd_GotoXY : Gosub Lcd_SentString
return
plenty of potential for stuff like that,
& you did this exact same thing twice:
Code:
LcdStr(5) = 59 ' simbol for degree
LcdStr(4) = 48 + Temperature2 dig 1
LcdStr(3) = "."
LcdStr(2) = 48 + Temperature2 dig 2
if Temperature2 dig 3=0 then
LcdStr(1) = 32
else
LcdStr(1) = 48 + Temperature2 dig 3
endif
but looks like you fit it in anyways ;)
