Looking for a chart on the pinouts of the 12,16,18 family of chips.

the closest is here:
http://usuaris.tinet.cat/sag/pic452.htm
http://usuaris.tinet.cat/sag/jpgs/pic/josepino.gif
Mainly it is for programming.

or here
http://www.cs.uiowa.edu/~jones/cross/pic/

I'd like a list of families / 16f6xx ... 16fxx use this pin out....

I am working on converting the mc spread sheet to a useble format for sorting parts. Will up load it shortly.

Thanks,
I have spent hours looking obviously I have not found the correct keywords to search :)
pic16f pinout |pins, chart, guide ...

Try this ...

http://ww1.microchip.com/downloads/e...oc/00148K4.pdf

Starting at page 108.

Thanks Darrel,

That was what exactly it!

Now to find a more recent version -- that was the 2005 guide. :p
Just skimmed the file, that is some really really good reading.

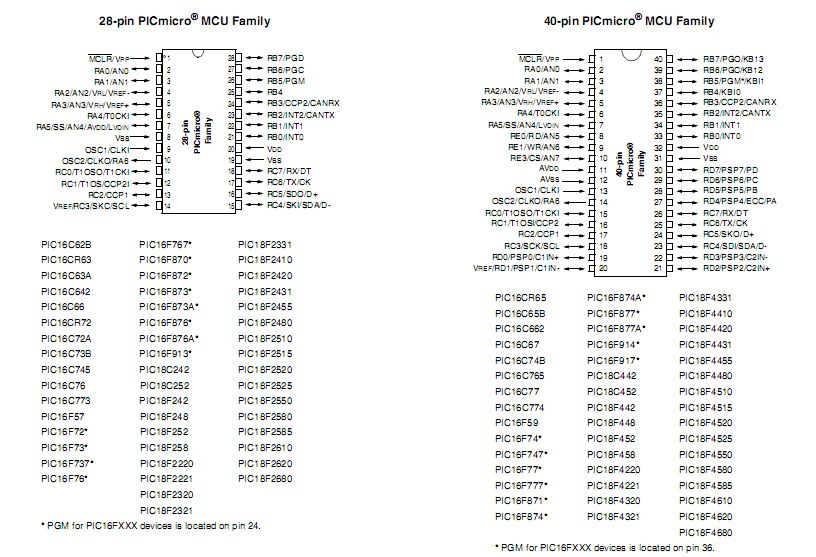

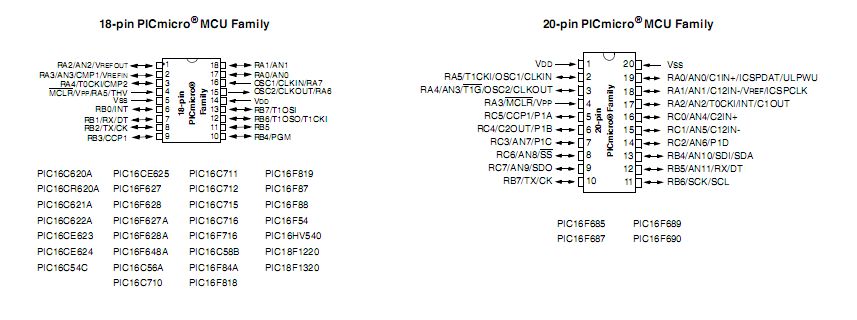

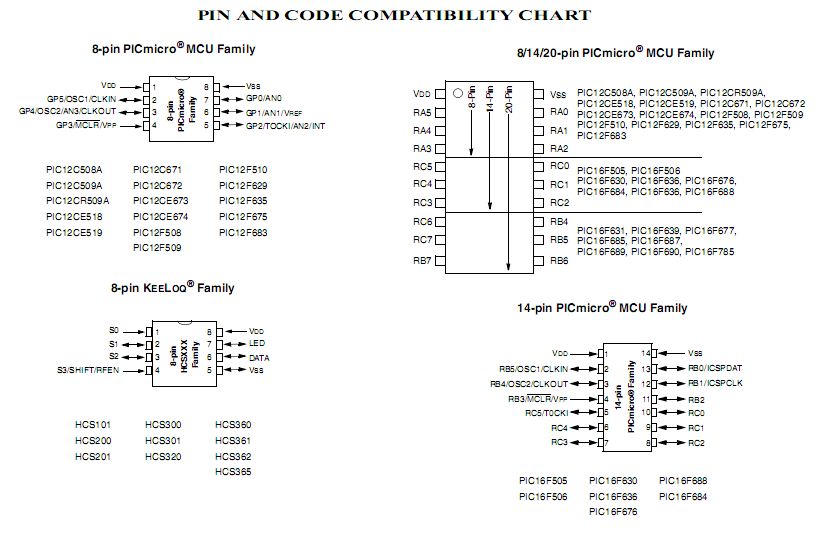

Attachment 5300Attachment 5301Attachment 5302
