PicBasic Pro and 12f617 compile error

I am trying to get a simple pic project working and have run into what I think is a bug in the way Picbasic Pro tries to select which bank in the 12f617. First I will list the version of programs I am using.

Microcode studio 4.0.0.0
Compiler Pic Basic Pro 2.60a
MPLAB IDE 8.53.00.00

I have the studio set to 12f617 for the chip being used and to use the MSAPM listing file and Macro expansion (I turned off quite mode) so that maybe I could get more info on the error messages. In the assembler tab its set to Use MPASM, also list file and macro, no quiet.

I get the following error(s) when I try to compile my program.

Message[303] c:\pbp\12f617.inc 22 : Program word too large. Truncated to core size. (FF54)
Error[113] c:\pbp\pbppic14.lib 7768 : Symbol not previously defined (RP1)
Error[113] c:\pbp\pbppic14.lib 7769 : Symbol not previously defined (RP0)
Error[113] c:\pbp\pbppic14.lib 465 : Symbol not previously defined (RP0)
Error[113] c:\pbp\pbppic14.lib 451 : Symbol not previously defined (RP0)
Error[113] c:\pbp\pbppic14.lib 517 : Symbol not previously defined (RP0)
Message[303] c:\pbp\samples\test-c~1.asm 128 : Program word too large. Truncated to core size. (FF54)

Here is my basic code window.

Code:

PAUSE 2000 ANSEL = %00000000 CMCON0 = 7 CMCON1 = 7 ADCON0 = %00000000 INTCON = 0 GPIO = %000000 TRISIO = %000000 Main: GPIO.0 = 0 IF GPIO.3 = 1 THEN Main GPIO.0 = 1 'TEST LED IS TURNED ON HERE PAUSE 2000 GPIO.0 = 0 'TEST LED IS TURNED OFF HERE GOTO Main End

I changed the header file a bit, here it is.

Code:

;**************************************************************** ;* 12F617.INC * ;* * ;* By : Leonard Zerman, Jeff Schmoyer * ;* Notice : Copyright (c) 2010 microEngineering Labs, Inc. * ;* All Rights Reserved * ;* Date : 05/12/10 * ;* Version : 2.60a * ;* Notes : * ;**************************************************************** NOLIST ifdef PM_USED LIST include 'M12F617.INC' ; PM header device pic12F617, intrc_osc_noclkout, wdt_on, mclr_on, ioscfs_4mhz, protect_off XALL NOLIST else LIST LIST P = 12F617, r = dec, w = -302 INCLUDE "P12F617.INC" ; MPASM Header __config _INTRC_OSC_NOCLKOUT & _WDT_OFF & _MCLRE_OFF & _IOSCFS_4MHZ & _CP_OFF NOLIST endif LIST BLOCK_SIZE EQU 4 #define EEDATA PMDATA #define EEADR PMADR #define EEDATH PMDATH #define EEADRH PMADRH #define EECON1 PMCON1 #define EECON2 PMCON2

Any hints to help me get this little project off the ground greatly appreciated.
- 18th November 2010, 03:56
mackrackit

Looks like there is something wrong with PBP and this chip.
I just tried compiling code for a 12F609, known good code, as a 12F617 and received the same errors.
- 18th November 2010, 04:16
Praetorian

Should I open a support ticket with PBP? Is that how to get this looked into and fixed?
- 18th November 2010, 04:20
mackrackit

If Darrel does not see this tonight and respond to you the yes, open a ticket.

Oh, and there is a problem with part of your setup. It should be something like this.

Code:

VRCON = 0 ' Disable internal Vref CMCON0 = 0 ' Disable comparators ANSEL = 0
- 18th November 2010, 13:09
ScaleRobotics

1 Attachment(s)

It looks like part of the problem is Microchip not being consistent from chip to chip with their include file. Their P12f617.INC doesn't have these two lines:

Code:

;----- STATUS Bits ----------------------------------------------------- C EQU H'0000' DC EQU H'0001' Z EQU H'0002' NOT_PD EQU H'0003' NOT_TO EQU H'0004' RP0 EQU H'0005' RP1 EQU H'0006' IRP EQU H'0007'

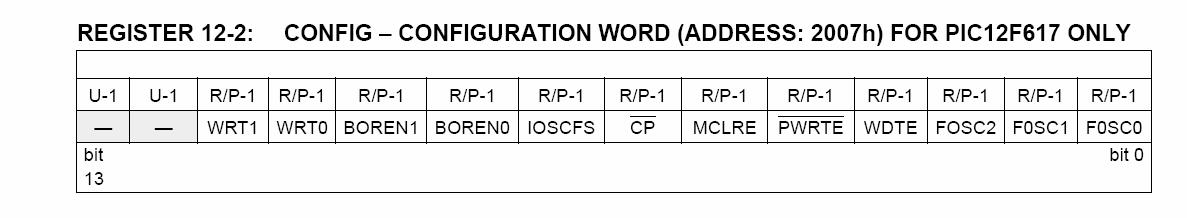

The Message[303] warning looks like it is coming from the configuration bits word size, also in Microchip's P12F617.INC file. If you look at the bottom of the file, the config bits go up to FFFF. But if I look in the datasheet, it shows bits 0 to 13, or 3FFF.

Attachment 4953

This could be bad advice (I have no way to test the chip), but it does compile correctly if I edit Microchip's P12F617.INC file so that all the config bits begin with a 3, instead of an F.

Code:

;----- CONFIG Options -------------------------------------------------- _LP_OSC EQU H'3FF8' ; LP _XT_OSC EQU H'3FF9' ; XT _HS_OSC EQU H'3FFA' ; HS _EC_OSC EQU H'3FFB' ; EC _INTRC_OSC_NOCLKOUT EQU H'3FFC' ; Internal RC No Clock _INTRC_OSC_CLKOUT EQU H'3FFD' ; Internal RC Clockout _EXTRC_OSC_NOCLKOUT EQU H'3FFE' ; External RC No Clock _EXTRC_OSC_CLKOUT EQU H'3FFF' ; External RC Clockout _WDT_OFF EQU H'3FF7' ; Off _WDT_ON EQU H'3FFF' ; On _PWRTE_ON EQU H'3FEF' ; On _PWRTE_OFF EQU H'3FFF' ; Off _MCLRE_OFF EQU H'3FDF' ; Internal _MCLRE_ON EQU H'3FFF' ; External _CP_ON EQU H'3FBF' ; On _CP_OFF EQU H'3FFF' ; Off _IOSCFS_4MHZ EQU H'3F7F' ; 4 MHz _IOSCFS_8MHZ EQU H'3FFF' ; 8 MHz _BOR_OFF EQU H'3CFF' ; BOR disabled _BOR_NSLEEP EQU H'3EFF' ; BOR enabled in run, disabled in sleep _BOR_ON EQU H'3FFF' ; BOR Enabled
- 18th November 2010, 15:38
Darrel Taylor

In MPLAB 8.60, Microchip has fixed the errors that Walter pointed out.

MPLAB 8.60 download ...
http://www.microchip.com/stellent/id...&part=SW007002

_____________
DT
http://www.pbpgroup.com/files/SIGIMG/Upgrade.gif
- 20th November 2010, 21:44
Praetorian

Thanks to all that responded. I upgraded my MPLAB and the errors went away. I also fixed the other things that were pointed out in my code. It all works now. Now onto slowly building up this code/project to the end goal.
