weird problem with dot matrix and shift register

Hi everyone,

I m trying to drive 8x8 dot matrix and i m facing a weird problem.

when i try to display simple pattern like this
Attachment 4917

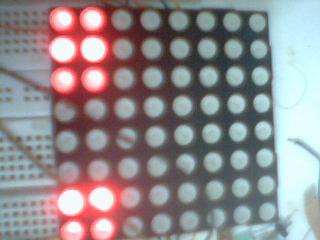

i got

Attachment 4918

if you notice, the third and eight rows is supposed to be OFF but they are not. instead, they are ON with a little brightness than the second and the seventh ( ON rows )

i tried to figure out whats the problem. is there any reason that the shift register used to sink column currents isnt able to change its state instantly from logic 1 to logic 0 ? is there some capacitance related to its latch function ?

** i used hef4094 to sink columns current and it receives its data serially from PIC16f84
** i used 8 transistors to source current to rows. they are connected to portb


this is the code i used

Code:

---


INCLUDE "MODEDEFS.BAS"
TRISB = 0
TRISA = 0

SYMBOL  STRB  = PORTA.0
SYMBOL  DAT  = PORTA.1
SYMBOL  CLK  = PORTA.2
SYMBOL  EN    = PORTA.3
TEMP    VAR BYTE
CNTR1  VAR BYTE
CNTR2  VAR BYTE
COL    VAR BYTE
ROW    VAR BYTE
COLVAR  VAR BYTE[8]
ROWVAR  VAR BYTE[8]
PORTB = 0
PORTA = 0
CNTR1 = 0
CNTR2 = 0
EN = 1

start:
COLVAR[0] = %11000000:COLVAR[1]=%11000000:COLVAR[2]=0:COLVAR[3]=0
COLVAR[4] = 0:COLVAR[5] = 0:COLVAR[6] = %11000000:COLVAR[7] = 0

MAIN:

FOR CNTR2 = 0 TO 100
PORTB = 1
FOR CNTR1 = 0 TO 7
 STRB = 0
 COL = COLVAR[CNTR1]^255
SHIFTOUT DAT,CLK,0,[COL]
SHIFTOUT DAT,CLK,0,[COL]
STRB = 1

PAUSE 2
PORTB = PORTB *2

NEXT CNTR1
NEXT CNTR2
'FOR CNTR1 = 0 TO 7
'COLVAR[CNTR1] = COLVAR[CNTR1]<<1
'NEXT CNTR1

GOTO MAIN

---

to summerize the problem here is what is happening

* i m loading column data to shift register then latch it
* i m scanning the rows each for 1 ms

* when moving from a row that has a pattern e.g. (11000000) to the next row with
pattern ( 00 00 00 00 ) , the bits that were at logic 1 in the previous state dont turn off to logic zero!! instead they are in intermediate state ( i.e. maybe 2.5 volts instead of zero)
so they still ON but with little brightness

this problem happens whenever a bit is turned of in the next scan ( i.e. whenever a bit that was 1 turned to be 0 in the next row)

thats weird.

I think you just need to "Blank" the rows before changing the Column data, then turn the next row on.

Try it like this ...

Code:

---

FOR CNTR2 = 0 TO 100
  FOR CNTR1 = 0 TO 7
    STRB = 0
    COL = COLVAR[CNTR1]^255
    SHIFTOUT DAT,CLK,0,[COL]
    PORTB = 0                  ; blank all Rows
    STRB = 1                    ; latch the data
    PORTB = DCD CNTR1          ; turn on next Row

    PAUSE 2
  NEXT CNTR1
NEXT CNTR2

---

Darrel,

thx alot for helping, it worked really well.

i always wished to thank you in person. cuz from 3 years i enter this forum as a visitor and i always see ur post. you always find the solution. thx much Darrel.

still i have a problem i didnt mention. the first row always doesnt give full brightness when it is on. i suppose this relates to the previous problem. i will try to work it out.

thx again Darrel.

BW

Thanks Ahmadabuomar, and your welcome.

First row's dimmer than the others ... ok.
Let's try moving the "blanking", so that all the rows are ON the same amount of time.
It should actually dim the other 7 rows to what the first one was.

Code:

---

FOR CNTR2 = 0 TO 100
  FOR CNTR1 = 0 TO 7
    STRB = 0
    COL = COLVAR[CNTR1]^255
    SHIFTOUT DAT,CLK,0,[COL]

    STRB = 1                    ; latch the data
    PORTB = DCD CNTR1          ; turn on the Row
    PAUSE 2                    ; LED ON time
    PORTB = 0                  ; blank all Rows

  NEXT CNTR1
NEXT CNTR2

---

Hi Darrel,

in fact, row 1 problem was not related to software!! after i tried your last code. i found nothing changed.

I then checked all npn transistors used in rows. i found the transistor on portb.0 is not working properly !! i changed the transistor and the problem was solved.

all portb transistors were bc337 25 npn transistors except portb.0 that was bc337 40

i dont know if 40 is different than 25 !! but i think the transistor itself is not working

thx Darrel for your help

BW
