I started to layout an ICSP adapter with screw, terminal blocks and a 40 pin header, Then after I was done i thought someone must have done this before so are there any good in circuit adapters for the PicStart Plus. If so do tell I have reached the end of removing chips and reinstalling them.
Sounds like you got fancy.
I just took a 40 pin wire wrap DIP socket, soldered on the five wires needed and rand them to a the project board.
Made another with a 5 pin socket on the end of the wires to plug onto a 5 pin header kind of like the PicKit2 does.
Just be sure to kill the power to the board before programming.
Hi, Dave ...Quote:
Originally Posted by mackrackit
It's more than possible, I've seen it years ago !!!
there are 5 unused goldened pads on the Picstart PCB that are the ICSP 5 signals.
:eek::eek: Just think they are NOT aligned in the correct sequence !!! :eek: EEK !!!
http://www.picbasic.co.uk/forum/arch...hp/t-3351.html
Alain
Will that make the code run backwards?? :DQuote:
Just think they are NOT aligned in the correct sequence !!!
No, DaveQuote:
Originally Posted by mackrackit
the Pic will re-program your PC ... :D
Talking seriously ...
How much is the Pickit 2, those days ???? ... yes, I do agree !
Alain

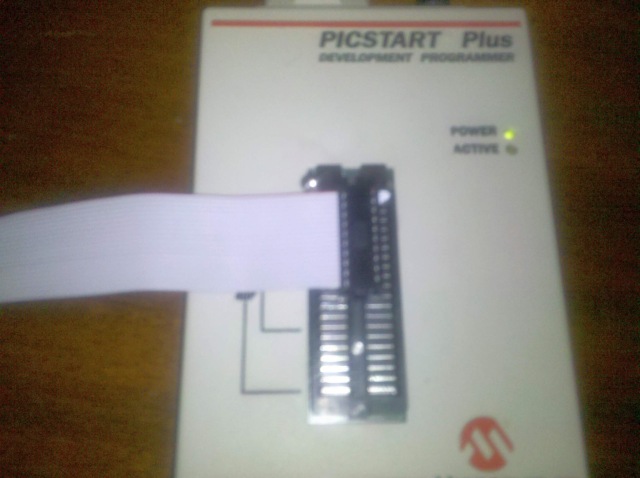

Ok here is what Im going to do! I found a .100 ICD DIP flat cable plug @ mouser and jameco so i will use flat ribbon cable or I will try 28 AWG stranded wire to a .100 single row connector, I was having boards made for my project and added this connector and a diode in the MCLR line have it runing on my desk works great but there are wires everywhere. hate that! This is a LanC board with Pir sensor and Serial input/output
This is so much cleaner
Attachment 4720
Why would you run all 40 wires??
Save time and headache and probably money. Get a PicKit2!!
Its not all 40 is all 20, I got a number of these adapters and some #28 wire also will be making 5-6 pin ones next, just wanted to make one real fast and test it, cut down an old hard drive cable. I also got some 40 pin adapters never know !!
Larry
OK
28 :)
5 is all you need. Cuts done on the wires some.
Quote:
works great but there are wires everywhere. hate that!
I think 6 if I do LV programming will look that up again, I don't think i will be doing LV, so 5 will look good and the #28 wire will bend around anything. Can't wait till friday when the new boards arrive with a programming header built in.
by the way where is Welton in AZ
Just remembered. With some of the 18F's, 4320 in particular, I had to place a 10uF cap near the ZIFF.
Wellton is between the Yuma Proving Grounds and the Barry Goldwater Bombing Range.
A sunny 115 here today ;)
Kinda sounds like Walton is between a rock and a hard spot it was only 99, 100 here today hope it stays that way this is the coldest summer ever around here.
It has been cooler here than normal also.
Gotta love this global warming thing ;)
