More than 8 Custom Chars on LCD?

I'm using a standard garden-variety 2x16 LCD and a PIC18F2550. What I'd like to do is make a larger number font by putting the top half of the digit on the first line and the bottom half on the second line. Obviously, it would take a total of 20 special characters to to make all ten digits; the CGRAM only allows eight custom characters. I thought (incorrectly, as it turns out) I could re-use characters but instead it refreshes previous instances.

Here's my testing code:

Code:

---

' PIC18F2550

'Pin Assignments
'---------------
' Pin        Name                  Use/Connection
'------------------------------------
'  1  MCLR                        Master Clear/Reset.  Pull High through 4.7k
'  2  RA0/AN0                LCD RS
'  3  RA1/AN1                LCD R/W
'  4  RA2/AN2                LCD Enable
'  5  RA3/AN3                n/c
'  6  RA4/T0CKI                n/c
'  7  RB5/AN4                n/c
'  8  Vss                        Ground
'  9  OSC1                        20 MHz resonator
' 10  OSC2                        20 MHz resonator
' 11  RC0/T1CKI                To 32 kHz crystal
' 12  RC1/CCP2                To 32 kHz crystal
' 13  RC2/CCP1                n/c
' 14  Vusb                        To USB (internal USB 3.3V voltage regulator)

' 15  RC4/D-                To USB (USB differential minus line)
' 16  RC5/D+                To USB (USB differential plus line)
' 17  RC6/TX                To MAX232
' 18  RC7/RX                To MAX232
' 19  Vss                        Ground
' 20  Vdd                        Voltage in (5V from USB)
' 21  RB0/INT                LCD DB0
' 22  RB1                        LCD DB1
' 23  RB2                        LCD DB2
' 24  RB3                        LCD DB3
' 25  RB4                        LCD DB4
' 26  RB5                        LCD DB5
' 27  RB6                        LCD DB6
' 28  RB7                        LCD DB7

' Compiler directives:
Define  OSC 20
DEFINE LOADER_USED 1 'Bootloader Used
'Set receive register to receiver enabled
DEFINE HSER_RCSTA 90h
'Set transmit register to transmitter enabled, high speed BRGH
DEFINE HSER_TXSTA 24h
'Set baud rate
DEFINE HSER_BAUD 9600
DEFINE HSER_CLROERR 1

DEFINE LCD_DREG PORTB
DEFINE LCD_DBIT 0
DEFINE LCD_RSREG PORTA
DEFINE LCD_RSBIT 0
DEFINE LCD_EREG PORTA
DEFINE LCD_EBIT 2
DEFINE LCD_BITS 8
DEFINE LCD_LINES 2
DEFINE LCD_COMMANDUS 3000
DEFINE LCD_DATAUS 200

ADCON1 = 15
CMCON = 7

TRISB = %00000000
TRISA.0 = $0
TRISA.1 = $0
TRISA.2 = $0


low PORTA.1

'high PORTA.2
pause 500
LCDOUT $FE,1

MAIN_LOOP:
        'Big "1"
        LCDOUT  $FE,$40,$00,$00,$04,$0C,$04,$04,$04,$04                ' Cust Char #0, big "1" top half
        LCDOUT  $FE,$48,$04,$04,$04,$04,$04,$0E,$00,$00                ' Cust Char #1, big "1" bottom half
        LCDOUT $FE,$80,0                                                                        ' Put it as 1st line, 1st char
        LCDOUT $FE,$C0,1                                                                        ' Put it as 2nd line, 1st char

        'Big "2"
        LCDOUT  $FE,$50,$00,$00,$0E,$11,$01,$01,$01,$02                ' Cust Char #2, big "2" top half
        LCDOUT  $FE,$58,$04,$08,$08,$10,$10,$1F,$00,$00                ' Cust Char #3, big "2" bottom half
        LCDOUT  $FE,$81,2                                                                        ' Put it as 1st line, 2nd char
        LCDOUT  $FE,$C1,3                                                                        ' Put it as 2nd line, 2nd char

        'Big "3"
        LCDOUT  $FE,$60,$00,$00,$0E,$11,$01,$01,$01,$06                ' Cust Char #4, big "3" top half
        LCDOUT  $FE,$68,$01,$01,$01,$01,$11,$0E,$00,$00                ' Cust Char #5, big "3" bottom half
        LCDOUT  $FE,$82,4                                                                        ' Put it as 1st line, 3rd char
        LCDOUT  $FE,$C2,5                                                                        ' Put it as 2nd line, 3rd char

        'Big "4"
        LCDOUT  $FE,$70,$00,$00,$06,$06,$0A,$0A,$12,$12                ' Cust Char #6, big "4" top half
        LCDOUT  $FE,$78,$12,$1F,$02,$02,$02,$02,$00,$00                ' Cust Char #7, big "4" bottom half
        LCDOUT  $FE,$83,6                                                                        ' Put it as 1st line, 4th char
        LCDOUT  $FE,$C3,7                                                                        ' Put it as 2nd line, 4th char

        pause 2000
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''

        'Big "5"
        LCDOUT  $FE,$40,$00,$00,$1F,$10,$10,$10,$1E,$01                ' Cust Char #0, big "5" top half
        LCDOUT  $FE,$48,$00,$01,$01,$01,$11,$0E,$00,$00                ' Cust Char #1, big "5" bottom half
        LCDOUT  $FE,$84,0                                                                        ' Put it as 1st line, 5th char
        LCDOUT  $FE,$C4,1                                                                        ' Put it as 2nd line, 5th char

        'Big "6"
        LCDOUT  $FE,$50,$00,$00,$06,$08,$08,$10,$1E,$11                ' Cust Char #2, big "6" top half
        LCDOUT  $FE,$58,$11,$11,$11,$11,$11,$0E,$00,$00                ' Cust Char #3, big "6" bottom half
        LCDOUT  $FE,$85,2                                                                        ' Put it as 1st line, 6th char
        LCDOUT  $FE,$C5,3                                                                        ' Put it as 2nd line, 6th char

        'Big "7"
        LCDOUT  $FE,$60,$00,$00,$1F,$01,$01,$01,$01,$01                ' Cust Char #4, big "7" top half
        LCDOUT  $FE,$68,$02,$04,$04,$08,$08,$08,$00,$00                ' Cust Char #5, big "7" bottom half
        LCDOUT  $FE,$86,4                                                                        ' Put it as 1st line, 7th char
        LCDOUT  $FE,$C6,5                                                                        ' Put it as 2nd line, 7th char

        'Big "8"
        LCDOUT  $FE,$70,$00,$00,$0E,$11,$11,$11,$11,$0E                ' Cust Char #6, big "8" top half
        LCDOUT  $FE,$78,$11,$11,$11,$11,$11,$0E,$00,$00                ' Cust Char #7, big "8" bottom half
        LCDOUT  $FE,$87,6                                                                        ' Put it as 1st line, 8th char
        LCDOUT  $FE,$C7,7                                                                        ' Put it as 2nd line, 8th char
        pause 2000

goto MAIN_LOOP

---

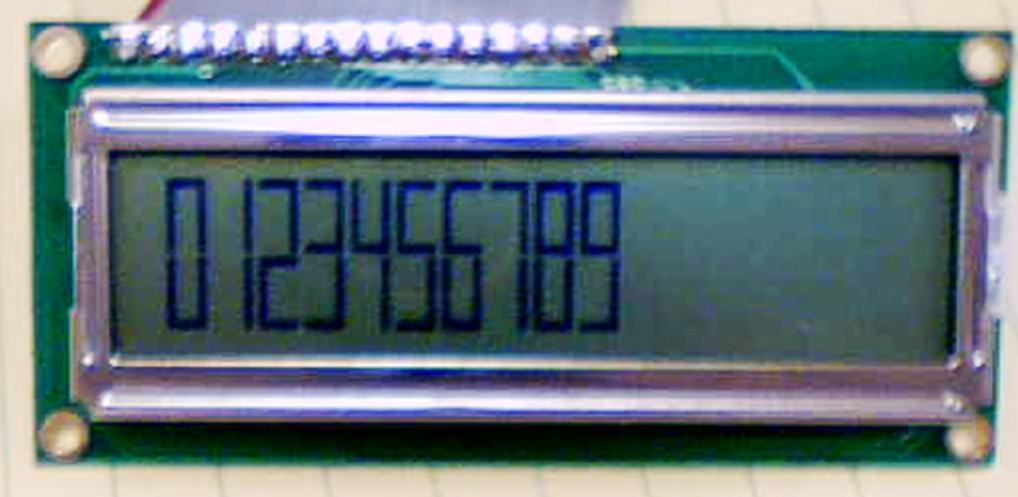

What I *thought* it should do is show "1234" in big numerals, pause, then show "12345678".

Instead it shows "1234" then goes back and forth between "56785678" and "12341234".

Is there a way to accomplish the goal of forcing the LCD to show the digits 0-9 with double height?

Thanks for reading...8^)

Paul

Here is a link to Scott Edwards site: http://www.seetron.com/pdf/lcd_an1.pdf
The code listed below was adapted by Darrel T. I think from the link I posted. I am sure you will find it somewhere in this forum but I neglected to add the URL to the code when I saved it.

Code:

---

'****************************************************************
'*  Name    : BigNums.BAS                                      *
'*  Author  : Scott Edwards, adapted by Darrel Taylor          *
'*  Notice  : Copyright (c)                                    *
'*          : All Rights Reserved                              *
'*  Date    : 2/20/07                                          *
'*  Version : 1.0                                              *
'*  Notes  :                                                  *
'*          :                                                  *
'****************************************************************
;Initialize your hardware first

'BIGNUMS.BS2 (Display four 1" digits on 4x20 display)
' Connect the serial input of a Backpack-equipped 4x20 display to
' BS2 pin P0 and run this program. The program will define a set
' of symbols that allow it to display 4-line-tall numerals on the
' LCD. To incorporate this capability into your own programs, just
' substitute your code for the demo loop. When you want to display
' a value (0-9999) in big numerals, write it to dispVal, then
' gosub bigLCD.
I      con 254 ' Instruction prefix.
ClrLCD  con 1 ' Clear-LCD instruction.
N96N    con $4054 ' 9600 baud, inverted, no parity.
cgRAM  con 64 ' Address 0 of CG RAM.
EEptr  var word ' Pointer into EEPROM.
pat    var EEptr ' Alias for EEptr.
dispVal var word ' Value to be displayed as big digits.
temp    var byte ' Temporary byte variable.
decade  var word
nbl    var byte ' Index into number-pattern tables.
digit  var byte ' Current digit to display
line    var byte ' LCD line

LCDOUT I,ClrLCD
PAUSE 500

' ====This section may be omitted with newer (post July 96)
' ====4x20 Serial LCD modules. Cut from here...============== >>>
bitPat0 DATA 0,0,0,1,3,7,15,31 ' Left-right up-ramp shape.
bitPat1 DATA 0,0,0,16,24,28,30,31 ' Right-left " "
bitPat2 DATA 31,15,7,3,1,0,0,0 ' Left-right down ramp.
bitPat3 DATA 31,30,28,24,16,0,0,0 ' Right-left " "
bitPat4 DATA 0,0,0,0,31,31,31,31 ' Lower block.
bitPat5 DATA 31,31,31,31,0,0,0,0 ' Upper block.
bitPat6 DATA 31,31,31,31,31,31,31,31 ' Full block.
bitPat7 DATA 0,0,0,0,0,0,0,0 ' Full blank
' <<<...to here. ===============================================
;low 0 ' Make the serial output low
;pause 1000 ' Let the LCD wake up.
' ====This section may be omitted with newer (post July 96)
' ====4x20 Serial LCD modules. Cut from here...============= >>>
;serout 0,N96N,[I,cgRAM] ' Enter CG RAM.
LCDOUT I,cgRAM

for EEptr = 0 to 63 ' Write the bit patterns
    Read EEptr,temp ' to the LCD.
;    serout 0,N96N,[temp]
    lcdout temp
next
' <<<...to here. ===============================================
;serout 0,N96N,[I,ClrLCD] ' Clear the LCD.
LCDOUT I, ClrLCD
pause 1
' ========================================================================
' Demo Loop: Show dispVal in Big Numerals, Increment, Loop
' ========================================================================
again:
    gosub bigLCD
    dispVal = dispVal + 1
    pause 500
goto again
' ========================================================================
' Subroutine Displaying Large Numbers
' ========================================================================
bigLCD:
    for line = 0 to 3
        decade = 1000
        lookup line,[128,192,148,212],temp

;        serout 0,N96N,[I,temp]
        LCDOUT I, temp
        for digit = 3 to 0 step -1
            nbl = dispVal dig digit
            gosub getPattern
            if dispVal = 0 and digit = 0 then skip0
            if dispVal < decade then blankIt
            skip0:
;            serout 0,N96N,[pat.nib3,pat.nib2,pat.nib1,pat.nib0]
            LCDOUT pat.Highbyte>>4, pat.Highbyte&$0F, pat.LowByte>>4, pat.Lowbyte&$0F

            goto cont
            blankIt:
;            serout 0,N96N,["    "]
            lcdout "    "
            cont:
            if digit = 0 then skip1
;            serout 0,N96N,[32]
            LCDOUT 32
            skip1:
            decade = decade/10
        next
    next
return
' Subroutines Defining Big-Character Patterns
' ========================================================================
getPattern:
branch line,[first,second,third,fourth]
' 0 1 2 3 4 5 6 7 8 9
' --- --- --- --- --- --- --- --- --- ---
first:
lookup2 nbl,[$0551,$7067,$0551,$0551,$6776,$6555,$0557,$2556,$0551,$0551],pat
return
second:
lookup2 nbl,[$6776,$7767,$7743,$7743,$6776,$2441,$6041,$7703,$2443,$6776],pat
return
third:
lookup2 nbl,[$6776,$7767,$0577,$7751,$2556,$7776,$6776,$7767,$0551,$2536],pat
return
fourth:
lookup2 nbl,[$2443,$7464,$6444,$2443,$7776,$2443,$2443,$7767,$2443,$7443],pat
return

---

I very sincerely hope it has not gotten corrupted sometime after I saved it. As always I offer all statements to be opinions and not necessarly facts.
EDIT: Here is a version from mister_e

Code:

---

'****************************************************************
'*  Name    : Big_Num.BAS                                      *
'*  Author  :                                        *
'*  Notice  : Copyright (c) 2007                      *
'*          : All Rights Reserved                              *
'*  Date    : 1/3/07                                            *
'*  Version : 1.0                                              *
'*  Notes  :Mister_e's big numbers for 16F877a                *
'*          :                                                  *
'****************************************************************
DEFINE LOADER_USED 1
Define OSC 4
DEFINE LCD_DREG PORTD    ' LCD data port
DEFINE LCD_DBIT 4        ' LCD data starting bit 0 or 4
DEFINE LCD_RSREG PORTD    ' LCD register select port
DEFINE LCD_RSBIT 2        ' LCD register select bit
DEFINE LCD_EREG PORTD    ' LCD enable port
DEFINE LCD_EBIT 3        ' LCD enable bit
DEFINE LCD_BITS 4        ' LCD bus size 4 or 8
DEFINE LCD_LINES 4        ' Number lines on LCD
DEFINE LCD_COMMANDUS 2000 ' Command delay time in us
DEFINE LCD_DATAUS 50      ' Data delay time in us

    Clr    CON 1
    Comm    con $FE
    EOL    con $FC
    Dx      con $14
    Line    var byte[4]
        line[0]=$80
        line[1]=$C0
        line[2]=$94
        line[3]=$D4

    Zero    data 5,0,0,4,EOL
            data $FF,Comm,Dx,Comm,Dx,$FF,EOL
            data $FF,Comm,Dx,Comm,Dx,$FF,EOL
            data 2,1,1,3,EOL
            data 5

    One    data Comm,Dx,5,$ff,EOL
            data Comm,Dx,Comm,Dx,$ff,EOL
            data Comm,Dx,Comm,Dx,$ff,EOL
            data Comm,Dx,Comm,Dx,$ff,EOL
            data 5;3

    Two    data 0,0,0,4,EOL
            data Comm,Dx,Comm,Dx,Comm,Dx,$ff,EOL
            data 5,0,0,0,EOL
            data $ff,1,1,1,EOL
            data 5

    Three  data 0,0,0,4,EOL
            data Comm,Dx,Comm,Dx,Comm,Dx,$ff,EOL
            data Comm,Dx,0,0,$ff,EOL
            data 1,1,1,3,EOL
            data 5

    Four    data $ff,Comm,Dx,Comm,Dx,$FF,EOL
            data $ff,Comm,Dx,Comm,Dx,$ff,EOL
            data 0,0,0,$ff,EOL
            data Comm,Dx,Comm,Dx,Comm,Dx,$ff,EOL
            data 5

    Five    data $FF,0,0,0,EOL
            data $ff,EOL
            data 0,0,0,4,EOL
            data 1,1,1,3,EOL
            data 5

    Six    data 5,0,0,EOL
            data $ff,EOL
            data $ff,0,0,4,EOL
            data 2,1,1,3,EOL
            data 5

    Seven  data 0,0,0,4,EOL
            data Comm,Dx,Comm,Dx,comm,dx,$ff,EOL
            data Comm,Dx,Comm,Dx,comm,dx,$ff,EOL
            data Comm,Dx,Comm,Dx,Comm,Dx,$ff,EOL
            data 5

    Eight  data 5,0,0,4,EOL
            data 2,1,1,3,EOL
            data 5,0,0,4,EOL
            data 2,1,1,3,EOL
            data 5

    Nine    data 5,0,0,4,EOL
            data 2,1,1,$ff,EOL
            data Comm,Dx, Comm,Dx,Comm,Dx,$ff,EOL
            data Comm,Dx,1,1,3,EOL
            data 5

    Punto  data EOL
            data EOL
            data EOL
            data 7,EOL
            data 2

    offset      var byte
    index      var byte
    Char        var byte
    ActualLine  var byte
    CounterA    var word
    CounterB    var byte
    Number      var byte
    Pattern    var word[11]
        pattern[0]=zero
        pattern[1]=one
        Pattern[2]=two
        pattern[3]=three
        pattern[4]=four
        Pattern[5]=Five
        Pattern[6]=Six
        Pattern[7]=Seven
        pattern[8]=eight
        pattern[9]=Nine
        pattern[10]=Punto

    pause 500
DumpCustChar:
    index=0
    repeat
        lookup index,[Comm,64,31,31,31,31,0,0,0,0,_      ; Cust Char #0
                      Comm,72,0,0,0,0,31,31,31,31,_      ; Cust Char #1
                      Comm,80,31,31,31,15,7,3,1,0,_      ; Cust Char #2
                      Comm,88,31,31,31,30,28,24,16,0,_  ; Cust Char #3
                      Comm,96,0,16,24,28,30,31,31,31,_  ; Cust Char #4
                      Comm,104,0,1,3,7,15,31,31,31,_    ; Cust Char #5
                      Comm,112,31,31,31,31,31,31,31,31,_ ; Cust Char #6
                      Comm,120,0,0,0,14,31,31,31,14],char; Cust Char #7
        lcdout char
        index=index+1
        until index=80

Main:
    countera=0
    repeat
        offset=0
        lcdout comm,clr
        counterb=3
        repeat
            number=countera dig counterb
            gosub displaynumber
            counterb=counterb-1
            until counterb=255
        pause 10
        countera=countera+1
        until countera=10000
        goto main

DisplayNumber:
    actualline=0
    index=0
    lcdout comm,line[0]+offset
    Loop:
        read pattern[number]+index,char
        if char!=eol then
            if actualline<4 then
                lcdout char
                else
                    offset=offset+char
                    Goto GetOut
                endif
            else
                actualline=actualline+1
                if actualline<4 then lcdout comm,line[actualline]+offset
            endif
        index=index+1
        goto loop
    GetOut:
        RETURN

---

Again I failed to save the URL.

Quote:

---

Is there a way to accomplish the goal of forcing the LCD to show the digits 0-9 with double height?

---

The answer is NO. Not more than 4 unique double height digits at a time. Optionally, use a graphic LCD.

The double line high digits use a series of blocks that only consume the eight custom characters:
http://www.doc.ic.ac.uk/~ih/doc/lcd/double.html
so you can display as many digits as the display can show.

You still couldn't make the font very detailed like you probably wanted to.

Art, thanks for the link. I take back my words. I stand corrected.

Art,

Thanks! That was *exactly* what I needed. Here's a (low-quality) picture of the result:

Attachment 4524

Complete code:

Code:

---

' PIC18F2550

'Pin Assignments
'---------------
' Pin        Name                  Use/Connection
'------------------------------------
'  1  MCLR                        Master Clear/Reset.  Pull High through 4.7k
'  2  RA0/AN0                LCD RS
'  3  RA1/AN1                LCD R/W
'  4  RA2/AN2                LCD Enable
'  5  RA3/AN3                n/c
'  6  RA4/T0CKI                n/c
'  7  RB5/AN4                n/c
'  8  Vss                        Ground
'  9  OSC1                        20 MHz resonator
' 10  OSC2                        20 MHz resonator
' 11  RC0/T1CKI                To 32 kHz crystal
' 12  RC1/CCP2                To 32 kHz crystal
' 13  RC2/CCP1                n/c
' 14  Vusb                        To USB (internal USB 3.3V voltage regulator)

' 15  RC4/D-                To USB (USB differential minus line)
' 16  RC5/D+                To USB (USB differential plus line)
' 17  RC6/TX                To MAX232
' 18  RC7/RX                To MAX232
' 19  Vss                        Ground
' 20  Vdd                        Voltage in (5V from USB)
' 21  RB0/INT                LCD DB0
' 22  RB1                        LCD DB1
' 23  RB2                        LCD DB2
' 24  RB3                        LCD DB3
' 25  RB4                        LCD DB4
' 26  RB5                        LCD DB5
' 27  RB6                        LCD DB6
' 28  RB7                        LCD DB7

' Compiler directives:
Define  OSC 20
DEFINE LOADER_USED 1 'Bootloader Used
'Set receive register to receiver enabled
DEFINE HSER_RCSTA 90h
'Set transmit register to transmitter enabled, high speed BRGH
DEFINE HSER_TXSTA 24h
'Set baud rate
DEFINE HSER_BAUD 9600
DEFINE HSER_CLROERR 1

DEFINE LCD_DREG PORTB
DEFINE LCD_DBIT 0
DEFINE LCD_RSREG PORTA
DEFINE LCD_RSBIT 0
DEFINE LCD_EREG PORTA
DEFINE LCD_EBIT 2
DEFINE LCD_BITS 8
DEFINE LCD_LINES 2
DEFINE LCD_COMMANDUS 3000
DEFINE LCD_DATAUS 200

ADCON1 = 15
CMCON = 7

TRISB = %00000000
TRISA.0 = $0
TRISA.1 = $0
TRISA.2 = $0

nPos var byte

low PORTA.1

'high PORTA.2
pause 500
LCDOUT $FE,1

'Set up the digits (http://www.darreltaylor.com/files/CustChar.htm)
LCDOUT  $FE,$40,$01,$01,$01,$01,$01,$01,$01,$01  ' Cust Char #0
'LCDOUT  $FE,$40,$02,$02,$02,$02,$02,$02,$02,$02  ' Cust Char #0
LCDOUT  $FE,$48,$1F,$11,$11,$11,$11,$11,$11,$11  ' Cust Char #1
LCDOUT  $FE,$50,$1F,$10,$10,$10,$10,$10,$10,$1F  ' Cust Char #2
LCDOUT  $FE,$58,$01,$01,$01,$01,$01,$01,$01,$1F  ' Cust Char #3
LCDOUT  $FE,$60,$1F,$11,$11,$11,$11,$11,$11,$1F  ' Cust Char #4
LCDOUT  $FE,$68,$11,$11,$11,$11,$11,$11,$11,$1F  ' Cust Char #5
LCDOUT  $FE,$70,$1F,$01,$01,$01,$01,$01,$01,$1F  ' Cust Char #6
LCDOUT  $FE,$78,$1F,$01,$01,$01,$01,$01,$01,$01  ' Cust Char #7

GOTO MAIN_LOOP

Zero:
        LCDOUT $FE,$80+nPos,1
        LCDOUT $FE,$C0+nPos,5
return

One:
        LCDOUT $FE,$80+nPos,0
        LCDOUT $FE,$C0+nPos,0
return

Two:
        LCDOUT $FE,$80+nPos,7
        LCDOUT $FE,$C0+nPos,2
return

Three:
        LCDOUT $FE,$80+nPos,6
        LCDOUT $FE,$C0+nPos,3
return

Four:
        LCDOUT $FE,$80+nPos,5
        LCDOUT $FE,$C0+nPos,0
return

Five:
        LCDOUT $FE,$80+nPos,2
        LCDOUT $FE,$C0+nPos,3
return

Six:
        LCDOUT $FE,$80+nPos,2
        LCDOUT $FE,$C0+nPos,5
return

Seven:
        LCDOUT $FE,$80+nPos,7
        LCDOUT $FE,$C0+nPos,0
return

Eight:
        LCDOUT $FE,$80+nPos,4
        LCDOUT $FE,$C0+nPos,5
return

Nine:
        LCDOUT $FE,$80+nPos,4
        LCDOUT $FE,$C0+nPos,3
return

MAIN_LOOP:
        nPos = 0
        GOSUB Zero
        nPos = 1
        GOSUB One
        nPos = 2
        GOSUB Two
        nPos = 3
        GOSUB Three
        nPos = 4
        GOSUB Four
        nPos = 5
        GOSUB Five
        nPos = 6
        GOSUB Six
        nPos = 7
        GOSUB Seven
        nPos = 8
        GOSUB Eight
        nPos = 9
        GOSUB Nine

        PAUSE 2000
GOTO MAIN_LOOP

---

And thanks to everyone else for reading and commenting. You folks are the best...

Best Regards,
Paul

Wow, it looks a lot nicer on the LCD than it did on the web page.

And if we have a variable byte or word how to display?

Quote:

---

Originally Posted by savnik

And if we have a variable byte or word how to display?

---

Use the DIG function. The demo below counts up to 65534, showing each number for 25mS. It also blanks out any leading zeros.

Code:

---

' PIC18F2550

'Pin Assignments
'---------------
' Pin        Name                  Use/Connection
'------------------------------------
'  1  MCLR                        Master Clear/Reset.  Pull High through 4.7k
'  2  RA0/AN0                LCD RS
'  3  RA1/AN1                LCD R/W
'  4  RA2/AN2                LCD Enable
'  5  RA3/AN3                n/c
'  6  RA4/T0CKI                n/c
'  7  RB5/AN4                n/c
'  8  Vss                        Ground
'  9  OSC1                        20 MHz resonator
' 10  OSC2                        20 MHz resonator
' 11  RC0/T1CKI                To 32 kHz crystal
' 12  RC1/CCP2                To 32 kHz crystal
' 13  RC2/CCP1                n/c
' 14  Vusb                        To USB (internal USB 3.3V voltage regulator)

' 15  RC4/D-                To USB (USB differential minus line)
' 16  RC5/D+                To USB (USB differential plus line)
' 17  RC6/TX                To MAX232
' 18  RC7/RX                To MAX232
' 19  Vss                        Ground
' 20  Vdd                        Voltage in (5V from USB)
' 21  RB0/INT                LCD DB0
' 22  RB1                        LCD DB1
' 23  RB2                        LCD DB2
' 24  RB3                        LCD DB3
' 25  RB4                        LCD DB4
' 26  RB5                        LCD DB5
' 27  RB6                        LCD DB6
' 28  RB7                        LCD DB7

' Compiler directives:
Define  OSC 20
DEFINE LOADER_USED 1 'Bootloader Used
'Set receive register to receiver enabled
DEFINE HSER_RCSTA 90h
'Set transmit register to transmitter enabled, high speed BRGH
DEFINE HSER_TXSTA 24h
'Set baud rate
DEFINE HSER_BAUD 9600
DEFINE HSER_CLROERR 1

DEFINE LCD_DREG PORTB
DEFINE LCD_DBIT 0
DEFINE LCD_RSREG PORTA
DEFINE LCD_RSBIT 0
DEFINE LCD_EREG PORTA
DEFINE LCD_EBIT 2
DEFINE LCD_BITS 8
DEFINE LCD_LINES 2
DEFINE LCD_COMMANDUS 1600'3000
DEFINE LCD_DATAUS 50'200

TRUE                CON 1
FALSE              CON 0

ADCON1 = 15
CMCON = 7

TRISB = %00000000
TRISA.0 = $0
TRISA.1 = $0
TRISA.2 = $0

nPos var byte
wVal var WORD
nDig var byte
bDoneWithLeadingZeros var bit

low PORTA.1

'high PORTA.2
pause 500
LCDOUT $FE,1

'Set up the digits (http://www.darreltaylor.com/files/CustChar.htm)
LCDOUT  $FE,$40,$01,$01,$01,$01,$01,$01,$01,$01  ' Cust Char #0
LCDOUT  $FE,$48,$1F,$11,$11,$11,$11,$11,$11,$11  ' Cust Char #1
LCDOUT  $FE,$50,$1F,$10,$10,$10,$10,$10,$10,$1F  ' Cust Char #2
LCDOUT  $FE,$58,$01,$01,$01,$01,$01,$01,$01,$1F  ' Cust Char #3
LCDOUT  $FE,$60,$1F,$11,$11,$11,$11,$11,$11,$1F  ' Cust Char #4
LCDOUT  $FE,$68,$11,$11,$11,$11,$11,$11,$11,$1F  ' Cust Char #5
LCDOUT  $FE,$70,$1F,$01,$01,$01,$01,$01,$01,$1F  ' Cust Char #6
LCDOUT  $FE,$78,$1F,$01,$01,$01,$01,$01,$01,$01  ' Cust Char #7

GOTO MAIN_LOOP

Zero:
        LCDOUT $FE,$80+nPos,1
        LCDOUT $FE,$C0+nPos,5
return

One:
        LCDOUT $FE,$80+nPos,0
        LCDOUT $FE,$C0+nPos,0
return

Two:
        LCDOUT $FE,$80+nPos,7
        LCDOUT $FE,$C0+nPos,2
return

Three:
        LCDOUT $FE,$80+nPos,6
        LCDOUT $FE,$C0+nPos,3
return

Four:
        LCDOUT $FE,$80+nPos,5
        LCDOUT $FE,$C0+nPos,0
return

Five:
        LCDOUT $FE,$80+nPos,2
        LCDOUT $FE,$C0+nPos,3
return

Six:
        LCDOUT $FE,$80+nPos,2
        LCDOUT $FE,$C0+nPos,5
return

Seven:
        LCDOUT $FE,$80+nPos,7
        LCDOUT $FE,$C0+nPos,0
return

Eight:
        LCDOUT $FE,$80+nPos,4
        LCDOUT $FE,$C0+nPos,5
return

Nine:
        LCDOUT $FE,$80+nPos,4
        LCDOUT $FE,$C0+nPos,3
return

Blank:
        LCDOUT $FE,$80+nPos," "
        LCDOUT $FE,$C0+nPos," "
return

PickDigit:
        if nDig = 0 AND bDoneWithLeadingZeros = false then
                gosub Blank
'LCDOUT $FE,1
        else
                bDoneWithLeadingZeros = true
                select case nDig
                case 0
                        gosub Zero
                case 1
                        gosub One
                case 2
                        gosub Two
                case 3
                        gosub Three
                case 4
                        gosub Four
                case 5
                        gosub Five
                case 6
                        gosub Six
                case 7
                        gosub Seven
                case 8
                        gosub Eight
                case 9
                        gosub Nine
                end select
        endif
return

MAIN_LOOP:
        for wVal = 0 to $FFFE
                bDoneWithLeadingZeros = FALSE
                'Most significant digit
                nPos = 0
                nDig = wVal dig 4
                Gosub PickDigit

                nPos = 1
                nDig = wVal dig 3
                Gosub PickDigit

                nPos = 2
                nDig = wVal dig 2
                Gosub PickDigit

                nPos = 3
                nDig = wVal dig 1
                Gosub PickDigit

                'Least significant digit
                nPos = 4
                nDig = wVal dig 0
                Gosub PickDigit

                pause 25
        next wVal
goto MAIN_LOOP

---

Best Regards,
Paul

Thank you. I will try.
